How I Built a Simple Keystroke Application for Windows

Hi friends, it's Hudy. In this tutorial, I'm so excited to show you how I built a keystroke application for Windows that was inspired by KeyCastr. You may wonder why I built a keystroke app when there are so many similar ones for Windows. The reason is simple: I find their UI/UX unappealing. This tutorial is a basic version. To access the full source code and guide, please visit the homepage below to download and access my repo.

Source code

Here is the homepage and GitHub repo: https://hudy9x.github.io/keyreader/

Feel free to download, fork, or contribute to it

Video version

I made a video version as well, you guys can watch it here

Prerequisites

Well, I've used some tech for building this app:

• Yarn or Npm - I use yarn
• Tauri - a toolkit for building desktop application
• Reactjs
• Tailwindcss
• rdev - a rust crate for listening to keystroke events
• Typescript basics

Make sure that you have yarn and tauri installed. Now, let's get started

Implementation

Open your terminal and create a new Tauri project called keyreader. The project use react-ts - means Reactjs with typescript and yarn as a package manager

$ yarn create tauri-app keyreader --template react-ts --manager yarn
$ cd keyreader
$ yarn
$ yarn tauri dev

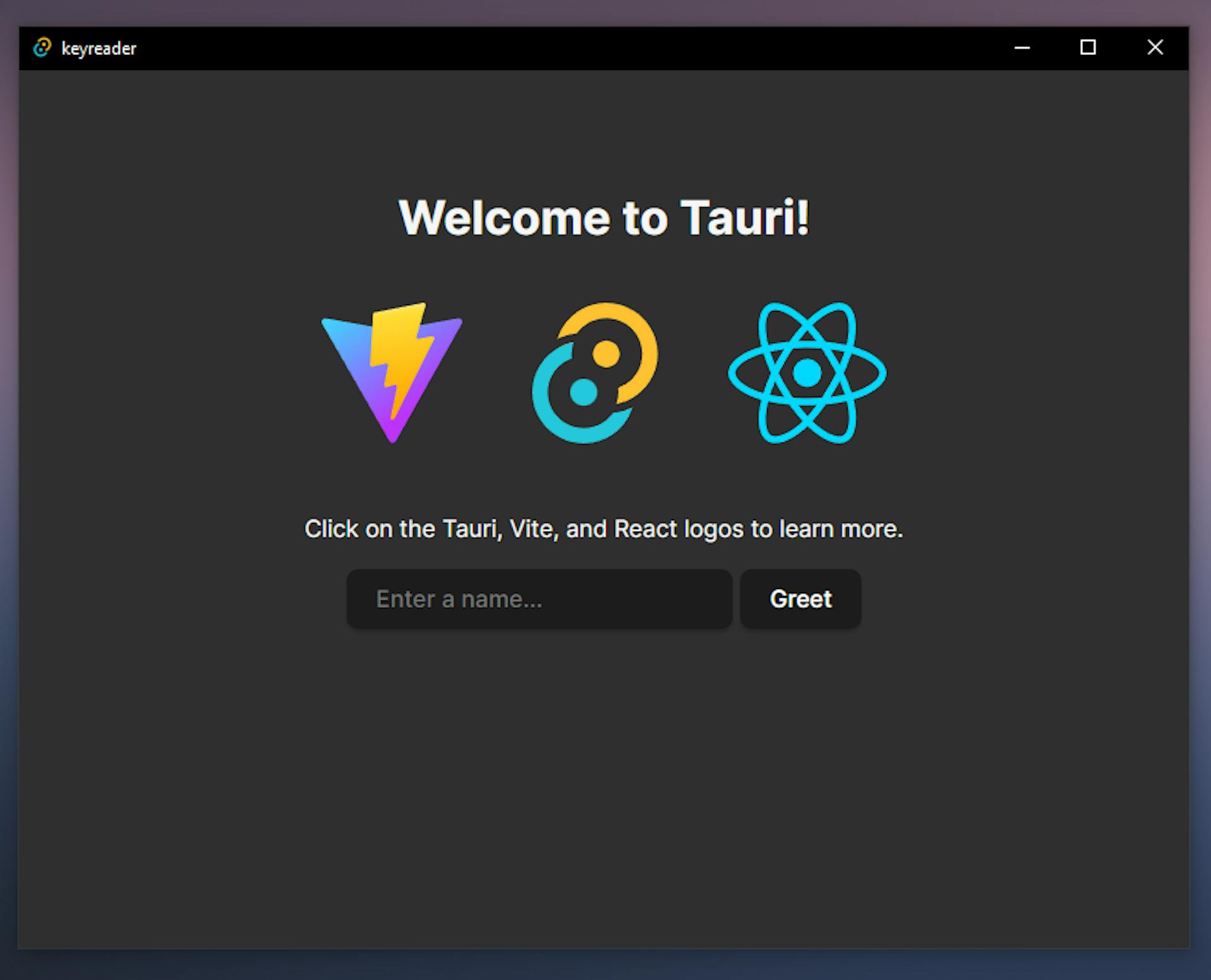

After running the above commands (It'll take a few minutes). The following UI shown means we created the Tauri app successfully

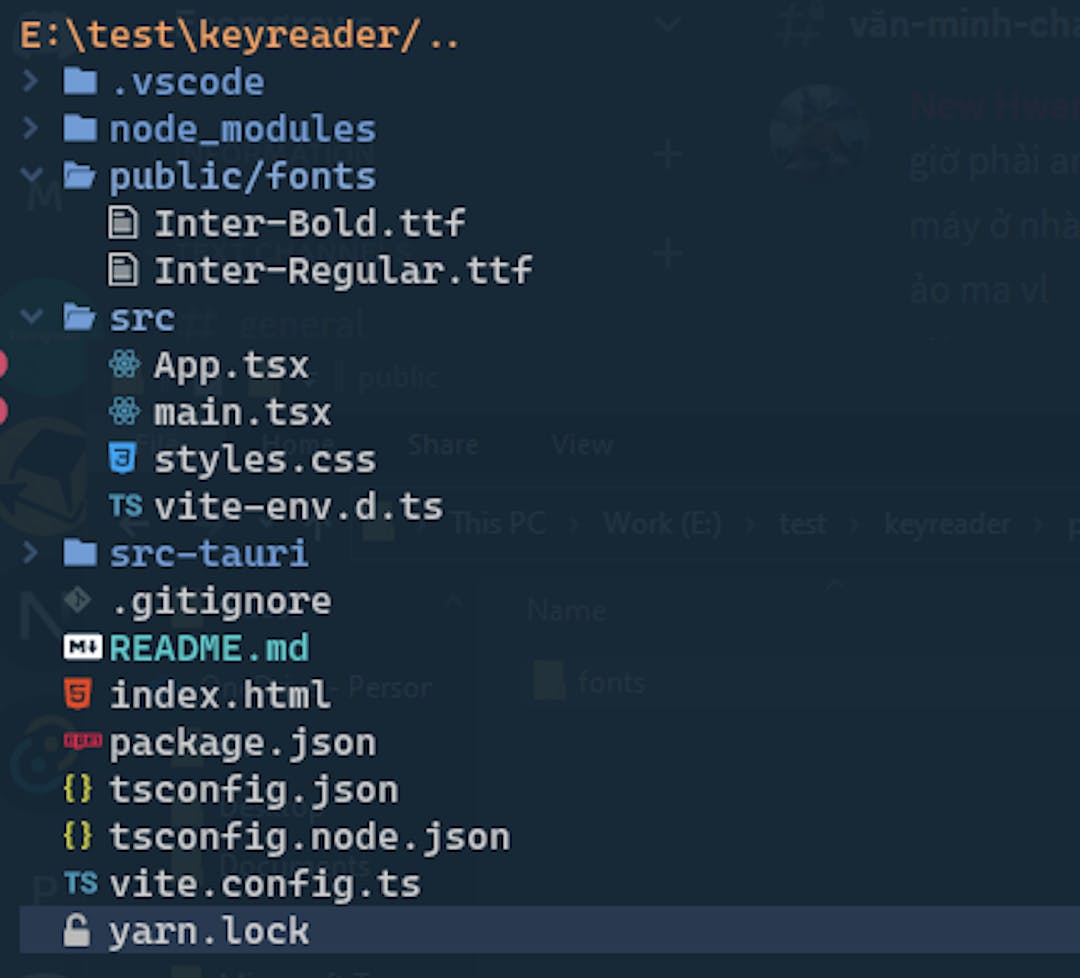

Remove redundant files in the source base

Just keep the main files and remove redundant files. I just removed files inside public and src folder.

Install tailwindcss (optional)

I'd love to use tailwindcss for styling cuz it's so useful. But you guys don't need to. Please take a look at the installation instruction here or follow the guide below

$ yarn add --dev tailwindcss postcss autoprefixer
$ yarn tailwindcss init -p

Add the paths to all of your template files in your tailwind.config.js file.

/** @type {import('tailwindcss').Config} */
export default {
  content: ["./src/**/*.{js,ts,jsx,tsx}"],
  theme: {
    extend: {},
  },
  plugins: [],
}

Now, add the @tailwind directives for each of Tailwind’s layers to your ./src/styles.css file.

@tailwind base;
@tailwind components;
@tailwind utilities;

Open src/App.tsx and add some class

function App() {
  return <div className="text-red-400">Hello world</div>;
}

export default App;

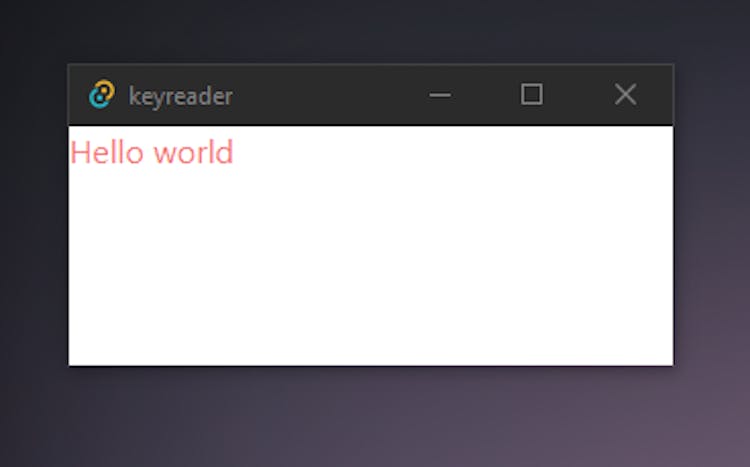

Then run the app again, if text turns to red that means it works

$ yarn tauri dev

Keystroke listener

This is the core of our app. I'll create a keyboard_listener.rs file for watching keystrokes that users typed. To do that, we use rdev crate.

Install the crate by opening src-tauri/Cargo.toml and add rdev to [dependencies] section

[build-dependencies]
tauri-build = { version = "1.2", features = [] }

[dependencies]
# ...
rdev = "0.5.2"

Time to create the listener

// ./src-tauri/src/keyboard_listener.rs
use rdev::{listen, Event, EventType};

pub fn run_listener<F>(emit: F)
where
    F: Fn(&str, &str) + 'static,
{
    if let Err(error) = listen(move |event| callback(event, &emit)) {
        println!("Error: {:?}", error)
    }
}

fn callback<F: Fn(&str, &str)>(event: Event, emit: &F) {
    match event.name {
        Some(string) => {
            println!("Some: {}", string);
            emit("Some", &string);
        }
        None => {
            match event.event_type {
                EventType::KeyPress(key) => {
                    println!("KeyPress: {:?}", key);
                    let key_str = format!("{:?}", key);
                    emit("KeyPress", &key_str);
                }
                EventType::KeyRelease(key) => {
                    let key_str = format!("{:?}", key);
                    emit("KeyRelease", &key_str);
                }
                EventType::MouseMove { .. } => {
                    // Ignore MouseMove event type
                }
                _ => {
                    // println!("None: {:?}", event.event_type);
                    // let event_type_str = format!("{:?}", event.event_type);
                    // emit(&event_type_str);
                }
            }
        }
    }
}

The above script is simply using listen method from rdev to watch keystrokes. All alphabet characters return in Some event and the others like Ctrl, Alt, Caplocks, ... return in None. So we've to read it by comparing event.event_type with EventType type.

One more thing, open src-tauri/src/main.rs and use the listener

// ./src-tauri/src/main.rs

// Prevents additional console window on Windows in release, DO NOT REMOVE!!
#![cfg_attr(not(debug_assertions), windows_subsystem = "windows")]

mod keyboard_listener;
use std::thread;
use tauri::Manager;

#[derive(Clone, serde::Serialize)]
struct Payload {
    mode: String,
    message: String,
}

// Learn more about Tauri commands at https://tauri.app/v1/guides/features/command
#[tauri::command]
fn greet(name: &str) -> String {
    format!("Hello, {}! You've been greeted from Rust!", name)
}

fn main() {
    tauri::Builder::default()
        .invoke_handler(tauri::generate_handler![greet])
        .setup(move |app| {
            let wv = app.get_window("main").unwrap();

            thread::spawn(move || {
                keyboard_listener::run_listener(move |s: &str, s1: &str| {
                    if let Err(err) = wv.emit(
                        "keypress",
                        Payload {
                            mode: String::from(s),
                            message: String::from(s1),
                        },
                    ) {
                        eprintln!("Error while emitting event: {:?}", err);
                    }
                })
            });

            Ok(())
        })
        .run(tauri::generate_context!())
        .expect("error while running tauri application");
}

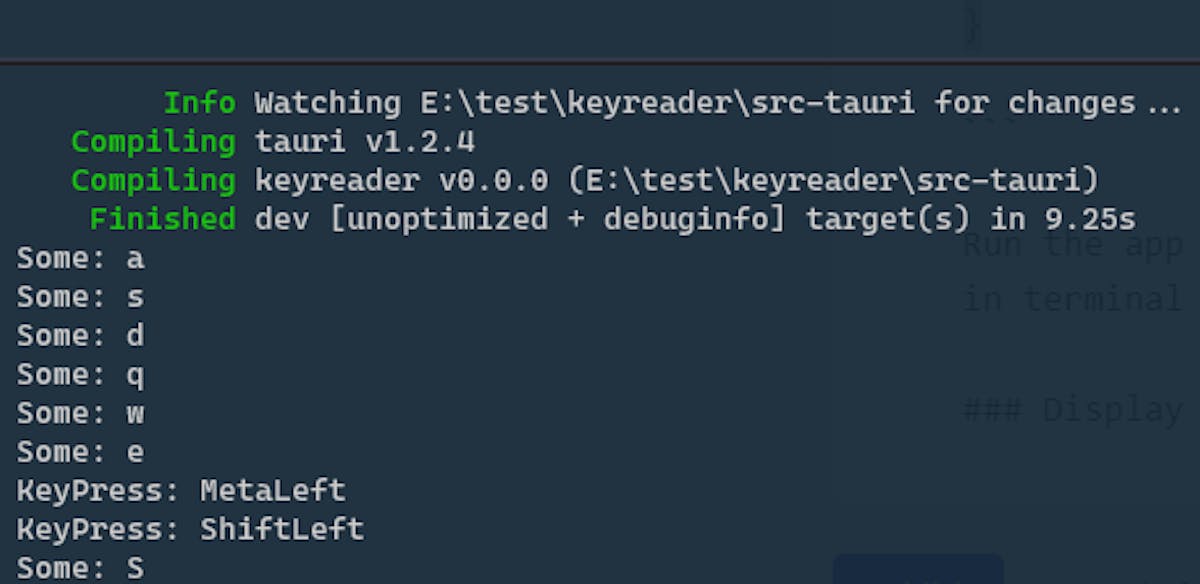

Run the app again and try to type something. If your got logs are shown in the terminal that means rdev works.

Display keystrokes on Reactjs

For now, register an event listener on the view. Open src/App.tsx and register a keypress event as follow

import { useEffect, useState } from "react";
import { listen } from "@tauri-apps/api/event";

export default function App() {
  const [alphabeticKeys, setAlphabeticKeys] = useState<string[]>(["NONE"]);

  useEffect(() => {
    listen("keypress", ({ payload }) => {
      let { message, mode } = payload as { message: string; mode: string };
      if (mode === "Some") {
        setAlphabeticKeys((prevTickers) => {
          let max = 15;
          let newTickers = [];
          const charCode = message.charCodeAt(0);

          if (charCode === 32) {
            message = "␣";
          }

          newTickers = [...prevTickers, ...[message]];

          const currLen = newTickers.length;
          newTickers = currLen > max ? newTickers.slice(1) : newTickers;

          return newTickers;
        });
        console.log(message);
      }
    });
  }, []);
  return (
    <div data-tauri-drag-region className="bg-black">
      <div className=" px-4 py-3 text-3xl text-white flex items-center gap-1 pointer-events-none">
        {alphabeticKeys.map((key, index) => {
          return <div key={index}>{key}</div>;
        })}
      </div>
    </div>
  );
}

I use Inter font for fixing UX bugs that make Esc character shorter than the others.

/*.........*/

@font-face {
  font-family: "Inter";
  src: url("/fonts/Inter-Regular.ttf") format("truetype");
  font-weight: normal;
  font-style: normal;
}

@font-face {
  font-family: "Inter";
  src: url("/fonts/Inter-Bold.ttf") format("truetype");
  font-weight: bold;
  font-style: normal;
}

:root {
  font-family: Inter, Avenir, Helvetica, Arial, sans-serif;
  font-size: 16px;
  line-height: 24px;
  font-weight: 400;

  color: #0f0f0f;
  background-color: transparent;

  font-synthesis: none;
  text-rendering: optimizeLegibility;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
  -webkit-text-size-adjust: 100%;
}

body {
  @apply flex items-center justify-center h-screen overflow-hidden;
}

Re-run the app one more time.

It's testing time guys

Make the background transparent and hide the title bar

Last thing to do for better UI is hide the title bar and make the background transparent. It's so simple, just open src-tauri/tauri.conf.json and add some config fields.

{
  // ...
  "tauri": {
    "allowlist": {
      // .... For custom titlebar to drag, close, ... window
      "window": {
        "all": false,
        "close": true,
        "hide": true,
        "show": true,
        "maximize": true,
        "minimize": true,
        "unmaximize": true,
        "unminimize": true,
        "startDragging": true
      }
    },
    "bundle": {
      // ..... Rename to build app
      "identifier": "com.keyreader.app",
    },
    // ....
    "windows": [
      {
        "fullscreen": false,
        "resizable": true,
        "title": "KeyReader",
        "width": 400,
        "height": 200,
        "decorations": false,  // turn of titlebar
        "transparent": true // make background transparency
      }
    ]
  }
}

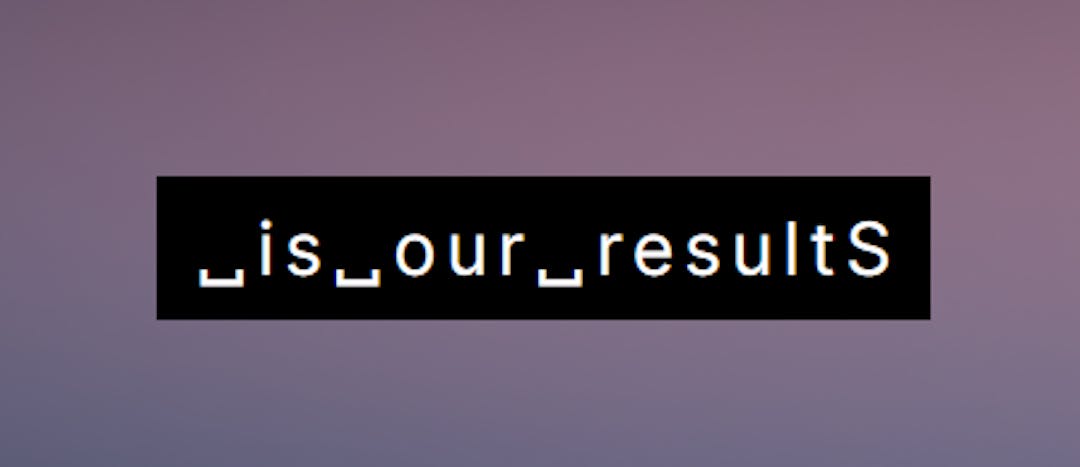

Wait for a few minutes to rebuild the app. And here is our result:

Modifier keys

Just now, I show you how to display alphabet keys. So what if modifier keys like Ctrl, Enter, Space, Alt, etc...?

You guys just use mode variable for checking these keys. For examples.

listen("keypress", ({ payload }) => {
  let { message, mode } = payload as { message: string; mode: string };
  let charCode = message.charCodeAt(0)

  if (mode === "Some") {/*...*/}
  if (mode === "KeyPress") {
    if (message=== "ControlRight") {
      message = "⌃"
    }

    // update state
  }
}

Still don’t get it? Scroll to the top and refer to my video or repo

Conclusion

So far, I just show you how to listen to keystrokes event from the keyboard using rdev. And send it to Tauri view by registering an event. Hope you guys learn something new about building desktop applications using Reacjts and Tauri.
