Virtual reality with React 360

As a software developer, I spend my time building websites and web apps, but for a long time, I’ve also had a side interest in virtual reality. I’ve named my Oculus Go “Betty” and get giddy talking about experiencing gondola rides through Venice, hopping on breathtaking roller coasters, and traveling through veins in the human body. Since I use React, mainly, I was excited to learn I could develop virtual reality experiences with a library I already know and love.

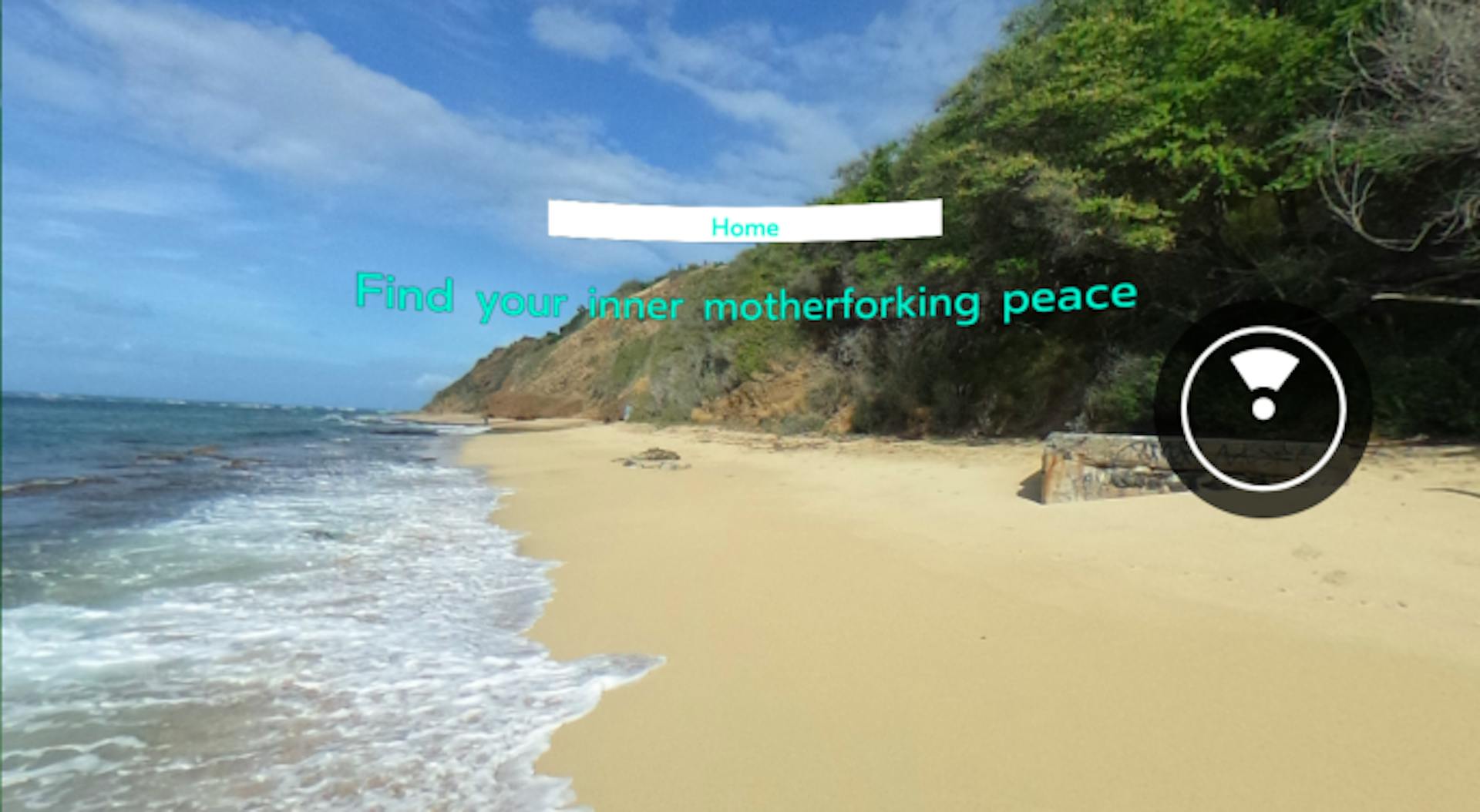

To try my hand at React VR, I recently created a virtual reality application called Find Your Zen, which allows the user to select an immersive meditation environment, each of which comes with its own mantra inspired by the very excellent show “The Good Place.” In May 2018, shortly after I built my app, Facebook released a revamped and rebranded version of React VR called React 360 with multiple changes and significant improvements.

As I ported my application over to React 360, I took note of some important differences between React VR and React 360. I wrote the following article for developers who possess a working knowledge of React. If you’re unfamiliar with the library, I recommend starting here first.

If you want an introduction to React VR (as well as Recompose, whose utility functions help manage my application’s state), you can find that here and here.

Viewing the finished demo code

$ git clone https://github.com/lilybarrett/find-your-zen.git
$ cd find-your-zen
$ npm i
$ npm start

File structure

The basic file structure for React VR was as follows:

  • index.vr.js = entry point for my app
  • vr folder = stores the code that launches my app, includes index.htmland client.js files
  • static_assets = stores images, audio files, and other external resources

And here’s the new file structure for React 360:

  • index.js = entry point for my app
  • client.js = sets up the “runtime,” which turns my React components into 3D elements in our VR landscape
  • index.html = as in the typical React application, provides a place for me to mount my React code
  • static_assets = stores images, audio files, and other external resources

I set up the rest of my folder structure as follows:

- components // shared components
- base-button
- content
- consts
- providers // Recompose providers live here
- scenes
- home-environment
- components
- menu
- title
- zen-button
- zens
- zen-environment
- components
- home-button
- mantra
- static-assets
- images
- sounds

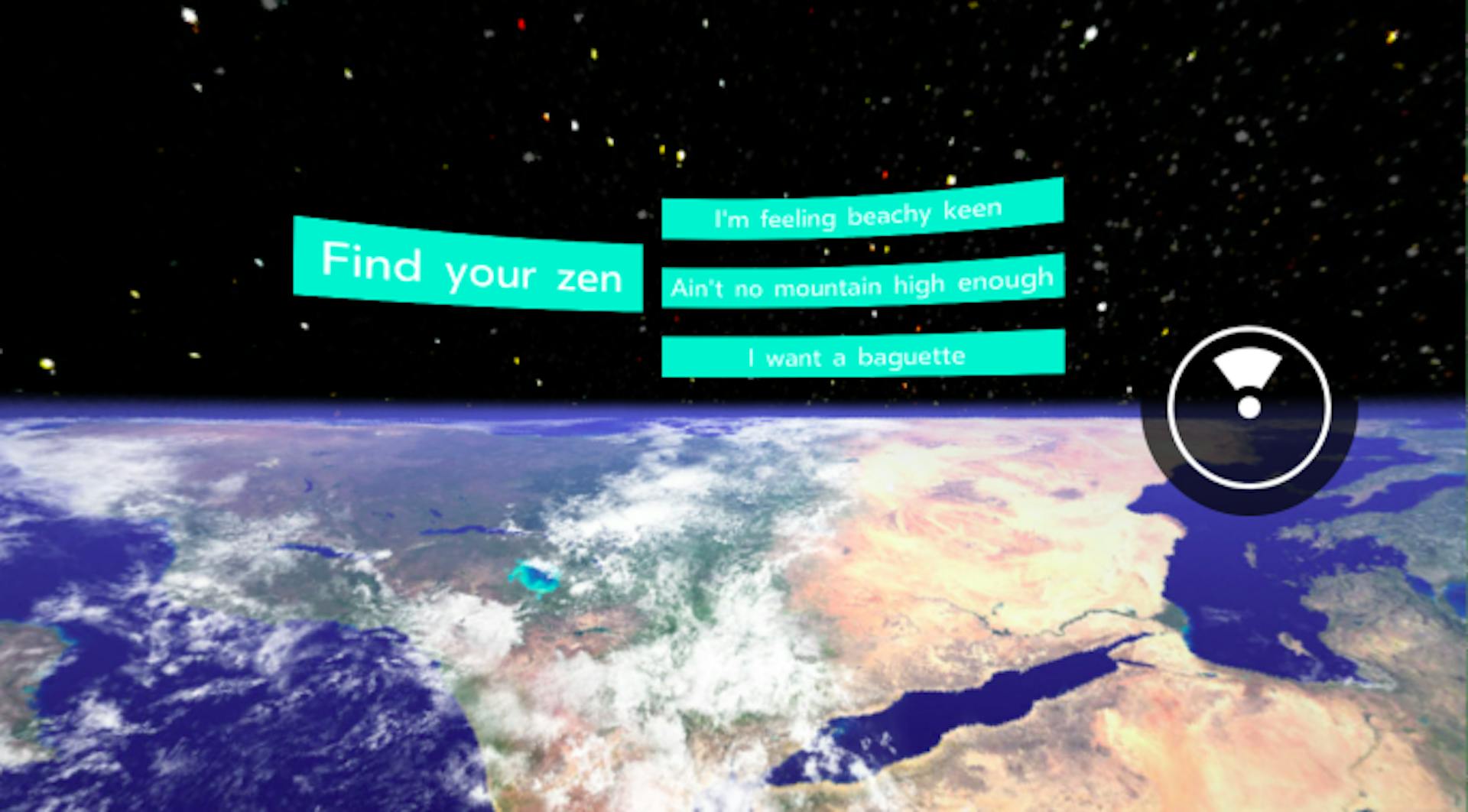

Shared components live in the top-level components folder. Stored in scenes,my HomeEnvironment — the first environment to load, where my user accesses a menu of meditation environments to explore — and ZenEnvironment scenes each have their own sets of relevant components. My state management is handled by Recompose providers and functionally composed into each component that needs access to state.

Mounting the app

In React VR, my client.js was pretty simple and didn’t give me too many configuration options:

// React VR application -- vr/client.js
// Auto-generated content.
// This file contains the boilerplate to set up your React app.
// If you want to modify your application, start in "index.vr.js"
import { VRInstance } from "react-vr-web";
function
init(bundle, parent, options) {
const vr = new
VRInstance(bundle, "MeditationApp", parent, {
cursorVisibility: "auto",
// Add custom options here
...options,
});
vr.render = function() {
// Any custom behavior you want to perform on each frame goes
here
};
// Begin the animation loop
vr.start();
return
vr;
}
window.ReactVR = {init};

In React 360, I can mount my application’s content to a surface or a location. Surfaces, as the docs say, “allow you to add 2D interfaces in 3D space, letting you work in pixels instead of physical dimensions.” In my case, I wrap the visual content of my application in an AppContent component, which I mount to React 360’s default, cylindrical surface. This surface projects the content onto the inside of a cylinder — centered in front of the user — with a 4 meter radius.

I can create my own custom surfaces in React 360, increasing or decreasing the radius or making the surface flat rather than cylindrical.

I also mount the entire app itself to React 360’s default location, which allows my app to take advantage of React 360’s runtime.

The new runtime is one of React 360’s significant advantages over React VR. Why? Separating out the rendering or “runtime” aspects of the application from the application code improves the latency: the time between a user action and the time the pixels in the view update in response to that action. If the data transfer is too slow, it results in a choppy, disorienting view for the user — similar to buffering on a Youtube video or static on a television screen.

As the React 360 docs further explain, web browsers are single-threaded, which means that as part of the app updates behind the scenes, that process could block or hinder data transfer. “This is especially problematic for users viewing your 360 experience on a VR headset, where significant rendering latency can break the sense of immersion,” the docs tell us, “By running your app code in a separate context, we allow the rendering loop to consistently update at a high frame rate.”

If the data transfer is too slow, it results in a choppy, disorienting view for the user — similar to buffering on a Youtube video or static on a television screen.

In my index.js, I register my MeditationApp (see second code block below) to mount to the default location — giving my entire application access to the runtime — while I register the content I want to display (again, stored in AppContent) to the default cylindrical surface.

// components/content.js
import React from "react";
import
{ View } from "react-360";
import
{ HomeEnvironment, ZenEnvironment } from "../../scenes";
import
{ withAppContext } from "../../providers";
const AppContent = withAppContext(() => (
<View>
<HomeEnvironment />
<ZenEnvironment />
</View>
));
export default AppContent;
// index.js
import React from "react";
import
{
AppRegistry,
View,
} from "react-360";
import
{ AppContent } from "./components";
import
{ withAppContext } from "./providers";
const MeditationApp = withAppContext(() => (
<View style={{
transform: [{ translate: [0, 0, -2] }]
}}>
<AppContent />
</View>
));
AppRegistry.registerComponent("AppContent", () => AppContent);
AppRegistry.registerComponent("MeditationApp", () => MeditationApp);

My client.js deals with mounting my component to locations and surfaces:

// client.js
import
{ ReactInstance, Surface } from "react-360-web";
function init(bundle, parent, options = {}) {
const r360 = new
ReactInstance(bundle, parent, {
fullScreen: true,
// Add custom options here
...options,
});
   r360.renderToSurface(
r360.createRoot("AppContent", { /* initial props */
}),
r360.getDefaultSurface()
);
   r360.renderToLocation(
r360.createRoot("MeditationApp", { /* initial props */
}),
r360.getDefaultLocation(),
);
   r360.compositor.setBackground(
r360.getAssetURL("images/homebase.png")
);
}
window.React360 = {init};

Playing audio

In my consts folder, I created a zens.js file in which to quickly store my data — including the correct audio file and image — for each environment:

const zens = [
{ id: 1,
mantra: "Find your inner motherforking peace",
image: "images/hawaii_beach.jpg",
audio: "sounds/waves.mp3",
text: "I'm feeling beachy keen",
},
{ id: 2,
mantra: "Breathe in peace, breathe out bullshirt",
image: "images/horseshoe_bend.jpg",
audio: "sounds/birds.mp3",
text: "Ain't no mountain high enough",
},
{ id: 3,
mantra: "Benches will be benches",
image: "images/sunrise_paris_2.jpg",
audio: "sounds/chimes.mp3",
text: "I want a baguette",
},
{ id: 4,
image: "images/homebase.png",
text: "Home"
}
]
export default zens;

To play audio in my React VR scenes, I used a Sound component, which took in a URL for a sound file in the static_assets folder as a source prop. To prevent audio from playing in environments where it didn’t belong — such as the home environment — I implemented logic via Recompose for “hiding” and “showing” the Sound component based on whether or not we were in an environment with no audio files associated with it.

// React VR -- components/audio.js
import React from "react";
import
{ Sound } from "react-vr";
import
zens from "../consts/zens.js";
import
{ compose } from "recompose";
import
{ asset } from "react-vr";
import
{ hideIf, usingAppContext } from "../providers/index.js";
const hideIfNoAudioUrl = hideIf(({ selectedZen }) => {
const zenAudio = zens[selectedZen - 1].audio;
return
zenAudio === null || zenAudio === undefined || zenAudio.length === 0;
});
export default compose(
usingAppContext,
hideIfNoAudioUrl,
)(({ selectedZen }) => {
const zenAudio = zens[selectedZen - 1].audio;
return
(
<Sound source={asset(zenAudio)} />
)
});

React 360 greatly improves upon this. For playing audio, I use the AudioModuleNative Module. Its playEnvironmental method allows me to provide a path (to the audio in our assets folder) and a volume at which to play said audio at a looping pace. Once the audio file stops playing, it’ll start again.

Along the way, I realized I need to tell my application when to stop playing a particular audio file when switching scenes. (Otherwise, while immersed in Find Your Zen, you may wind up listening to audio from your previous environment — i.e., church bells in a city square in Paris — after you navigate back to the home environment). I accomplish this with the AudioModule‘s stopEnvironmental method.

Keep reading to see this in action…

Using Images

In React VR, I used a Pano component to display a 360 degree photo. To display a specific image, Pano, like Audio, took in an assets URL as a sourceprop. Based on which environment the user selected, the app’s state updated to display an image for that environment.

// React VR -- components/wrapped-pano.js
import React from "react";
import
{ Pano } from "react-vr";
import
{ usingAppContext } from "../providers/index.js";
import
{ Audio } from "../components/index.js";
import
zens from "../consts/zens.js";
import
{ asset } from "react-vr";
export default usingAppContext(({ selectedZen }) => {
return
(
<Pano source={asset(zens[selectedZen - 1].image)} >
<Audio />
</Pano>
)
});

You may or may not have noticed that, in my React 360 application’s client.js, I write the following line after rendering my application’s components:

r360.compositor.setBackground(r360.getAssetURL("images/homebase.png"));

This line of code, which immediately sets the background image when the app is first mounted, uses the asset utility from React 360 to automatically look inside mystatic_assets folder for the correct image.

That’s all well and good, but I still want to change the image based on which environment the user selects. Thankfully, I can handle dynamic images from within a React event by using React 360’s Environment module. Here’s some sample usage:

Environment.setBackgroundImage(asset(someImage));

To pull it all together, here’s how I dynamically set my background image and audio based on which environment the user selects, using Recompose’s withState and withHandlers functions:

// providers/withStateAndHandlers.js
import React from "react";
import
{ withState, withHandlers, compose } from "recompose";
import
{ Environment, asset, NativeModules } from "react-360";
const { AudioModule } = NativeModules;
import
{ zens } from "../consts";
const withStateAndHandlers = compose(
withState("selectedZen", "zenClicked", 4),
withHandlers({
zenClicked: (props) => (id, evt) => {
Environment.setBackgroundImage(asset(zens[id - 1].image));
if
(zens[id - 1].audio !== null && zens[id - 1].audio !== undefined) {
AudioModule.playEnvironmental({
source: asset(zens[id - 1].audio),
volume: 0.3,
});
} else
{
AudioModule.stopEnvironmental();
}
props.zenClicked(selectedZen => id);
}
}),
)
export default withStateAndHandlers;

Styling the app

React 360, like React VR, uses Flexbox to easily adapt the application’s layout to any display, whether it be a laptop’s web browser or a phone screen or a VR headset. However, for parts of the application mounted to a location — like MeditationApp in my case — React 360 switches from Flexbox layout to a three-dimensional, meter based coordinate system. That’s why you see this code in my index.js:

// index.js
// other code goes here
const MeditationApp = withAppContext(() => (
<View style={{
transform: [{ translate: [0, 0, -2] }]
}}>
<AppContent />
</View>
));
// other code goes here

The values passed into transform are x, y, and z, in that order. x represents the orientation of an object to the right of the user; y represents the orientation upwards or downwards, and z represents the perceived distance away from the user.

In the example above, the View should be in the center and 2 perceived meters ahead of the user.

Transforms are all positioned relative to their parents.

Practices that worked well for me

StyleSheets

StyleSheet from react-native allowed me to use JavaScript to style my React components. See my code below:

// scenes/home-environment/components/zen-button/style.js
import
{ StyleSheet } from "react-360";
export default StyleSheet.create({
text: {
backgroundColor: "#29ECCE",
textAlign: "center",
color: "white",
marginTop: 30
}
})

Here, I create and export a StyleSheet object that allows me to reference styles in a terse, DRY manner in my component itself.

// scenes/home-environment/components/zen-button/index.js
import
React from "react";
import
{ BaseButton } from "../../../../components";
import
style from "./style";
const ZenButton = ({ text, buttonClick, selectedZen }) => {
return
(
<BaseButton
text={text}
selectedZen={selectedZen}
buttonClick={buttonClick}
textStyle={style.text}
/>
)
}
export default ZenButton;

State management

Because, at the end of the day, this is still just React, you can approach handling state in the same way you would in a typical React application: Redux, Recompose, Mobx, etc. I chose to use Recompose because I love how it allows me to build functional components. As mentioned earlier, I wrote some posts about Recompose in the context of React VR, which you can find here and here. I did not need to change anything about my state management approach when porting my application from React VR over to React 360.

Debugging React 360

When you Inspect Element on the application, you”ll see that React 360 bundles all its files into one giant blob that isn’t super easy to grok. Fortunately, because React 360 supports sourcemaps, we can still access the original files, use debugger, etc.
