Tutorial: Creating and managing a Node.js server on AWS, part 2

In part 1 we started a server, responding to HTTP requests on port 3000. In this tutorial we will look at 4 more concepts

  • Serving HTTP traffic on the standard port, 80
  • Keeping the Node.js process running
  • Deploying code into the server
  • Serving some HTML

Serving HTTP traffic on the standard port, 80

Paste this URL into a URL bar in a new tab.

http://imgur.com:80/

You will notice the 80 gets dropped in the URL bar. That’s because port 80 is the default port for HTTP traffic.

HTTPS traffic uses port 443. Try Hacker News.

https://news.ycombinator.com:443/

Because these ports are often public, you need special privileges to run processes using them. Also, it is not great to run Node.js on port 80 or 443 directly because you may want to open up a few different applications on these ports. With a router you will be able to send traffic from port 80 or 443 to any program you wish, depending on the headers of the incoming HTTP request.

There are few great choices for a router, but I find that nginx is generally the best tool for most things. It’s great for building your first ever app, or when you need to scale up to millions of visitors.

Before beginning, start your server if it is stopped and SSH into it (as shown in the last tutorial). Once logged in, we can install nginx.

Ubuntu comes with it’s own package manager, apt-get. Using apt-get, we can install nginx in one command.

sudo apt-get install nginx

Most Linux distributions come with a package manager, so Google your version if apt-get doesn’t work. apt-get runs nginx automatically after install so you should now have it running on port 80, check by entering your public DNS URL into a browser.

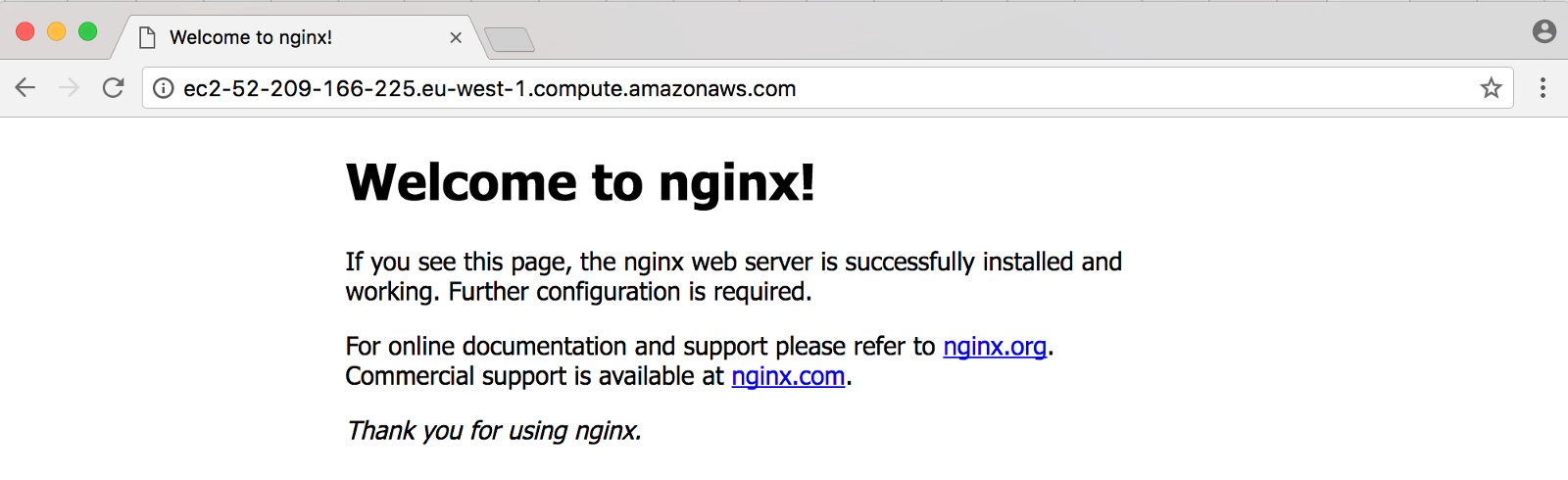

Default nginx page

If this doesn’t work, you might need to start it manually.

sudo /etc/init.d/nginx start

If you are still can’t reach the server then check out Stack Overflow or post a comment here.

We need to configure nginx to route port 80 traffic to port 3000. nginx has config placed in the /etc/nginx/sites-available folder where there is already a default config which serves the nginx welcome page we saw earlier.

You can take a look at this config using cat.

cat /etc/nginx/sites-available/default

How are nginx configs set up? Configs are stored in plain text files in sites-available with any name. Linking them into the sites-enabled folder will cause them to be read and used when nginx starts. All of the configs are combined together by nginx.

Let’s first remove the default config from sites-enabled, we will leave it in sites-available for reference.

sudo rm /etc/nginx/sites-enabled/default

Create a config file in sites-available and name it whatever you like.

sudo nano /etc/nginx/sites-available/tutorial

The following is the config we are going to use.

server {
listen 80;
server_name tutorial;
location / {
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header Host $http_host;
proxy_pass http://127.0.0.1:3000;
}
}

This will forward all HTTP traffic from port 80 to port 3000.

Link the config file in sites enabled (this will make it seem like the file is actually copied insites-enabled).

sudo ln -s /etc/nginx/sites-available/tutorial /etc/nginx/sites-enabled/tutorial

Read more about symbolic links here if they are unfamiliar.

Restart nginx for the new config to take effect.

sudo service nginx restart

If you did not stop/start the server since the last tutorial then you may still have your node application running.

# list background jobs
jobs

If your application shows up then no need to run it again. If it is not running then you need to start it.

node tutorial/index.js

Once the server is running, press ctrl+z, then resume it as a background task.

bg %1

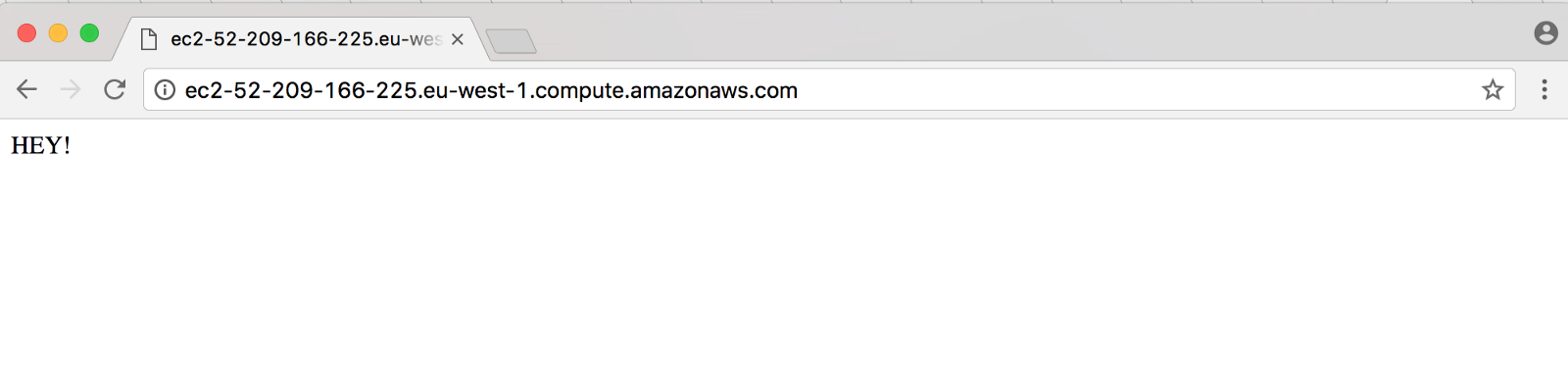

Now visit your server’s public DNS URL, using port 80.

The server is running on port 80!

Keeping the Node.js process running

It’s quite tedious using ctrl+z to pause a process, and then running it in the background. Also, doing it this way will not allow the Node.js process to restart when you restart your server after an update or crash.

Before moving forward, stop your running node process

# Nukes all Node processes
killall -9 node

To keep these processes running we are going to use a great NPM package called PM2. While in an SSH session, install PM2 globally.

npm i -g pm2

To start your server, simply use pm2 to execute index.js.

pm2 start tutorial/index.js

To make sure that your PM2 restarts when your server restarts

pm2 startup

This will print out a line of code you need to run depending on the server you are using. Run the code it outputs.

Finally, save the current running processes so they are run when PM2 restarts.

pm2 save

That’s it! You can log out/in to SSH, even restart your server and it will continue to run on port 80.

To list all processes use

pm2 ls

Your process will have a pretty generic name, something like index, which would be hard to differentiate if you had a few other microservices running on the server too. Let’s stop the process, remove it and start it back up with a nicer name.

# Use the number listed in pm2 ls
# to stop the daemon
pm2 stop index
# Remove it from the list
pm2 delete index
# Start it again, but give it a
# catchy name
pm2 start tutorial/index.js --name “Tutorial”

Great! Check out the PM2 docs to see what else you can do with process management.

Deploying code into the server

Instead of writing code in an SSH session, let’s push the code to a git repo in Github, SSH into the server and pull in the new code.

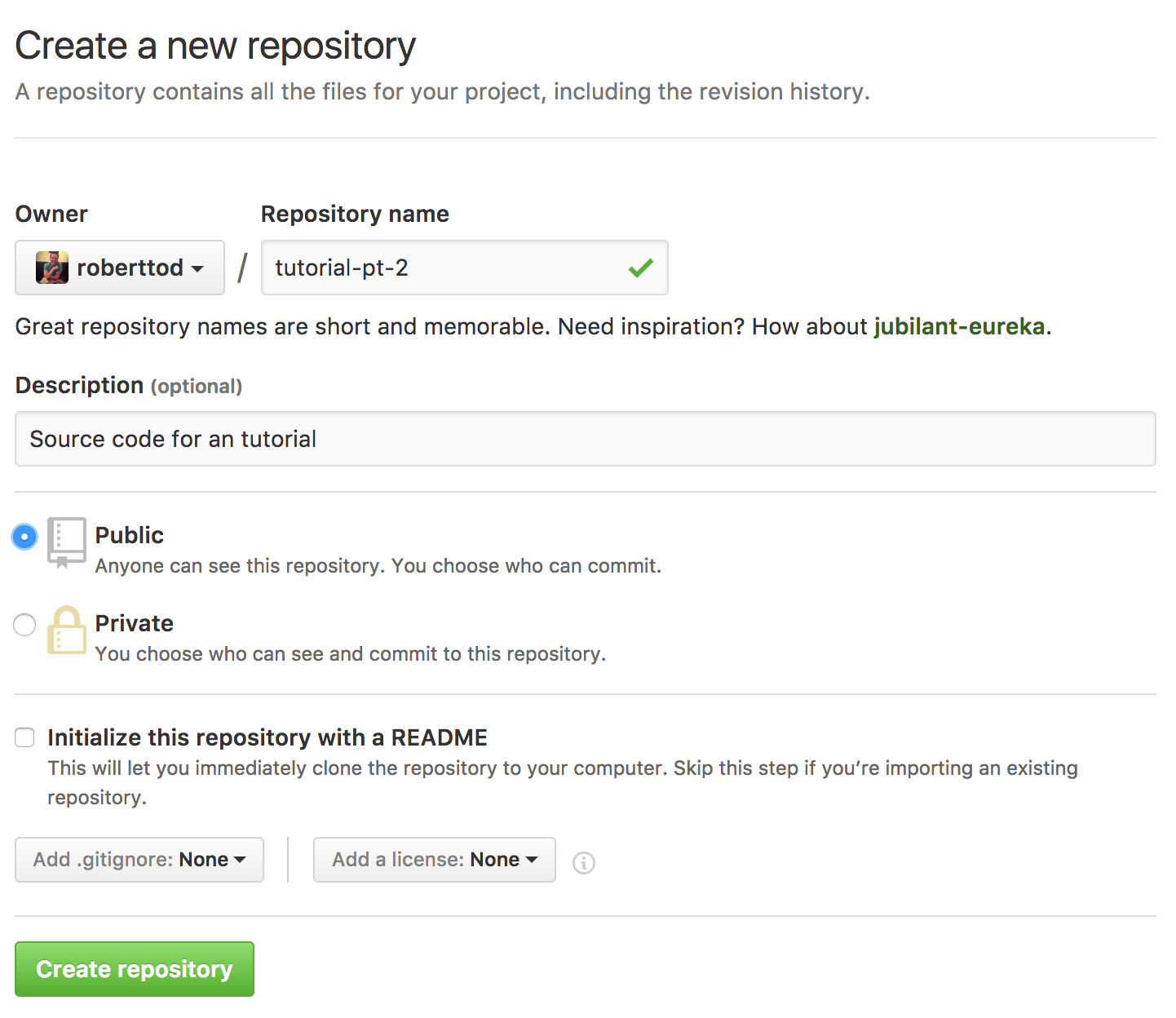

Go to Github or your favourite source control website, login and create a new repository named what you like. If you aren’t able to make it private, make it public (it’s okay, no one’s going to look anyway).

Make a new directory wherever you like to put your code projects locally (btw, to exit an SSH session just type exit). I named mine with gusto and imagination, “tutorial-pt-2".

cd ~/Code
mkdir tutorial-pt-2
cd tutorial-pt-2

Now set up your origin, make an empty commit and push it up, setting your upstream branch as master.

git init
git commit --allow-empty -m "Well this is my first commit, *yay*"
# Use your repo's origin URL here
git remote add origin git@github.com:roberttod/tutorial-pt-2.git
git push -u origin master

It’s nice to start with an empty commit :).

Like we did on the server run npm init and then create an index.js file using the same code from the last tutorial. P.S. I am missing out the ;s on purpose, check out Standard Style.

const express = require('express')
const app = express()
app.get('/', (req, res) => {
res.send('HEY!')
})
app.listen(3000, () => console.log('Server running on port 3000'))

NPM install express

npm install express --save

Also, let’s add a .gitignore file so that we don’t check in the node_modules directory. .DS_Store files always get added to directories by OSX, they contain folder meta data. We want to ignore these too.

node_modules
.DS_Store

In general, it is best to only check in code that you actually need checked in, if you ever find yourself with chunks of copied or library code in your git repo then there is probably a better way to do it.

Now add all your code and push it up

git add .
git commit -m "Ze server."
git push

Now we need to pull the code into the server. This is where it can be kind of tricky.

We need to SSH into the server, generate a SSH private/public key pair and then add it as a deployment key in source control (i.e. Github). Only when the server is allowed access to the remote repo will it be able to clone the code and pull down changes.

SSH into your server and generate the key pair.

# When prompted, use the default name.
# No need for a pass phrase.
ssh-keygen -t rsa

Show the contents of the file

cat ~/.ssh/id_rsa.pub

Select the key’s contents and copy it into Github. Deploy keys are added in a section called Deploy keys in the settings for your repo.

Paste your key and call it something meaningful.

Whenever you are logged in over SSH, you want the keys to be added so that they are used to authenticate with Github. To do this, add these lines to the top of your ~/.bashrc file.

# Start the SSH agent
eval `ssh-agent -s`
# Add the SSH key
ssh-add

This will make sure you use the keys whenever you log on to the server. To run the code without logging out, execute the .bashrc file

source ~/.bashrc

Now we can clone the repo! Remove any previous code on the server and in the user directory, clone the repo

# You should use your own git URL.
git clone git@github.com:roberttod/tutorial-pt-2.git

If it works, it will allow you to type “yes” to add github as a known host, then the repo will be downloaded.

In a nice world we like to completely avoid ever using SSH. For deployment, we are going to use PM2 in order for us to do the git cloning on the server for us, with some bonus features.

Before using PM2, remove the code you just pulled in from git into your server.

rm -rf ~/tutorial-pt-2

While you are still in the SSH session, ensure that there are no processes still running on PM2, if there are then remove them.

pm2 ls
# Only do this if a task is still running
pm2 delete tutorial

In your local version of the project, install PM2 globally

npm i -g pm2

Now we need to add a config file PM2 can read so that it knows how to deploy.

PM2 configs are fully explained in the PM2 docs. The config file can be auto generated but I prefer to just create my own from scratch, avoiding any config I don’t need.

The config file should be named ecosystem.config.js and should look like this

module.exports = {
apps: [{
name: 'tutorial-2',
script: './index.js'
}],
deploy: {
production: {
user: 'ubuntu',
host: 'ec2-52-209-166-225.eu-west-1.compute.amazonaws.com',
key: '~/.ssh/tutorial-2.pem',
ref: 'origin/master',
repo: 'git@github.com:roberttod/tutorial-pt-2.git',
path: '/home/ubuntu/tutorial-2',
'post-deploy': 'npm install && pm2 startOrRestart ecosystem.config.js'
}
}
}

You will need to add your own host in the config file.

How does PM2 use this config file? When you run pm2 deploy ..., PM2 SSHs into your server, clones your repo into the directory specified in path, then it runs the post-deploy on the server (so it starts your server using the PM2 installed globally on the server). After the deploy, you will be able to run pm2 ls on the server to see all the apps running, their names will be the same as specified in the config file.

Once the file is saved, setup the directories on the remote

pm2 deploy ecosystem.config.js production setup

If you run into any auth issues, look back at setting up the SSH agent to make sure you didn’t miss anything.

Once setup, commit and push your changes to Github so that when it clones it gets your ecosystem.config.js file, which is going to be used to start your app using PM2 on the server.

git add .
git commit -m "Setup PM2"
git push

Now you can run the deploy command

pm2 deploy ecosystem.config.js production

This should come up with an error, which will be that npm was not found.

The reason for this is because of some code in the .bashrc file of the server. This code stops the file from running if the shell is not interactive. Unlike using ssh, PM2 logs into the server in a non-interactive shell. NVM is set up in the .bashrc file so PM2 isn’t running NVM, which adds the npm executable (thus the error from PM2). Read more about interactive/non interactive shells.

SSH into your server and open up the ~/.bashrc file. The code that excludes non-interactive sessions is near the top.

# If not running interactively, don't do anything
case $- in
*i*) ;;
*) return;;
esac

This code is some magic bash shit. All we need to do is move the NVM code above this code, so it always executes. Find the following lines and move them above the case statement

export NVM_DIR="/home/ubuntu/.nvm"
[ -s "$NVM_DIR/nvm.sh" ] && . "$NVM_DIR/nvm.sh" # This loads nvm

Save and exit.

Back on your local terminal, try running the PM2 deploy again

pm2 deploy ecosystem.config.js production

It should work this time! And your server should still be running when you check in a browser.

Using a global PM2 on the server and a global PM2 on the client is a bit messy. It would be better if our code used the local version of the PM2 package. To do this, add a deploy and restart script to your package.json

...
"main": "index.js",
"scripts": {
"restart": "pm2 startOrRestart ecosystem.config.js",
"deploy": "pm2 deploy ecosystem.config.js production",
"test": "echo \"Error: no test specified\" && exit 1"
},
"repository": {
...

Install PM2 locally and save, using --save-dev

npm i pm2 --save-dev

For those not that familiar with NPM, adding --save or --save-dev adds the package, along with a version number to package.json. Any packages in the package.json file will be installed when running npm install, which happens in the PM2 post-deploy.

Before deploying, commit all your changes and push to git.

When you run npm deploy, it will now use the local version of PM2. Neat!

npm run-script deploy

In case you find that your app isn’t running, check the PM2 logs on your server, located in ~/.pm2/logs/.

To make sure the app restarts when the server restarts, SSH back into your server and run

pm2 save

The only PM2 process running should be your deployed server, so PM2 will ensure that is always kept running.

Serving HTML

Before concluding the tutorial, let’s use our deployment setup to change the server so that it serves HTML, rather than just responding with “Hey”.

Remove the route handler for / and set up a static directory that express will use to serve static files.

const express = require('express')
const app = express()
app.use(express.static('public'))
app.listen(3000, () => console.log('Server running on port 3000'))

By calling express.static with “public”, static files will be served from the public directory. If we add an index.html in /public, then this will be automatically served at / by express (if we left a custom / handler, then that would override this functionality).

Save a simple HTML file in public/index.html

<!DOCTYPE html>
<html>
<head>
<title>Erm hey.</title>
</head>
<body>
<img src="https://media.giphy.com/media/3o6Zt7aSSZLX6U5WtW/source.gif">
</body>
</html>

Commit these changes (perhaps you could check the server still works by running node index.js locally and visiting http://localhost:3000).

Deploy the changes

npm run-script deploy

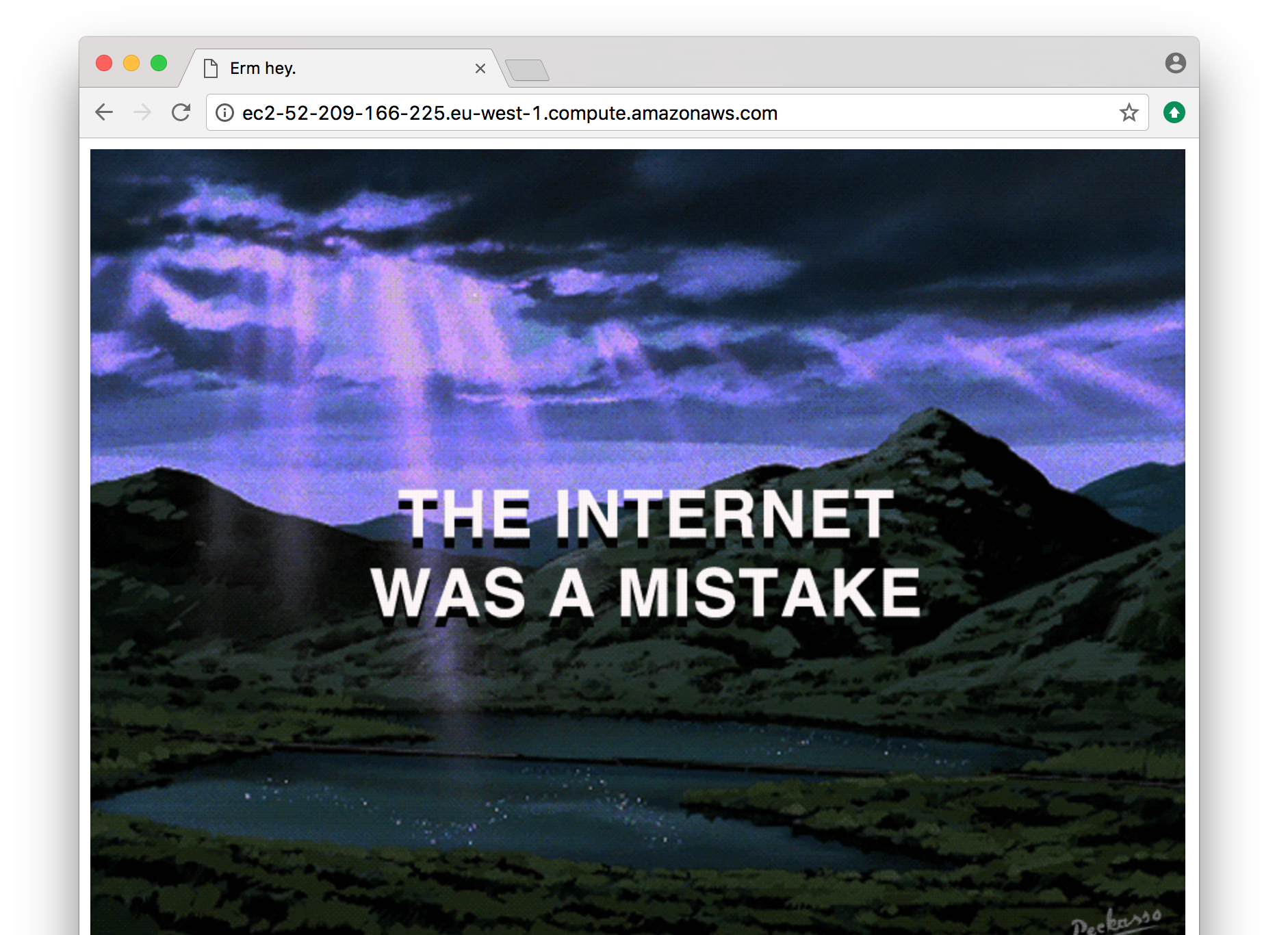

Your server will now respond with your static HTML page.

Conclusion

You should now have a simple express app that is fairly easy to deploy on EC2, running on port 80. I left my source code public in case you would like to take a look https://github.com/roberttod/tutorial-pt-2.

If you like this tutorial, I am doing a few more explaining how to setup Node with MySQL.
