How do you control the number of concurrent state machine executions that can access a shared resource?

Here at DAZN, we are migrat­ing from our lega­cy plat­form into a brave new world of microfron­tends and microser­vices. Along the way, we also dis­cov­ered the delights that AWS Step Func­tion has to offer, for exam­ple…

  • flex­i­ble error han­dling and retry
  • the under­stat­ed abil­i­ty to wait between tasks
  • the abil­i­ty to mix auto­mat­ed steps with activ­i­ties that require human interven­tion

In some cas­es, we need to con­trol the num­ber of con­cur­rent state machine exe­cu­tions that can access a shared resource. This might be a busi­ness require­ment. Or it could be due to scal­a­bil­i­ty con­cerns for the shared resource. It might also be a result of the design of our state machine which makes it dif­fi­cult to par­al­lelise.

We came up with a few solu­tions that fall into two gen­er­al cat­e­gories:

  1. Con­trol the num­ber of exe­cu­tions that you can start
  2. Allow con­cur­rent exe­cu­tions to start, but block an exe­cu­tion from enter­ing the crit­i­cal path until it’s able to acquire a sem­a­phore (i.e. a sig­nal to proceed)

Control the number of concurrent executions

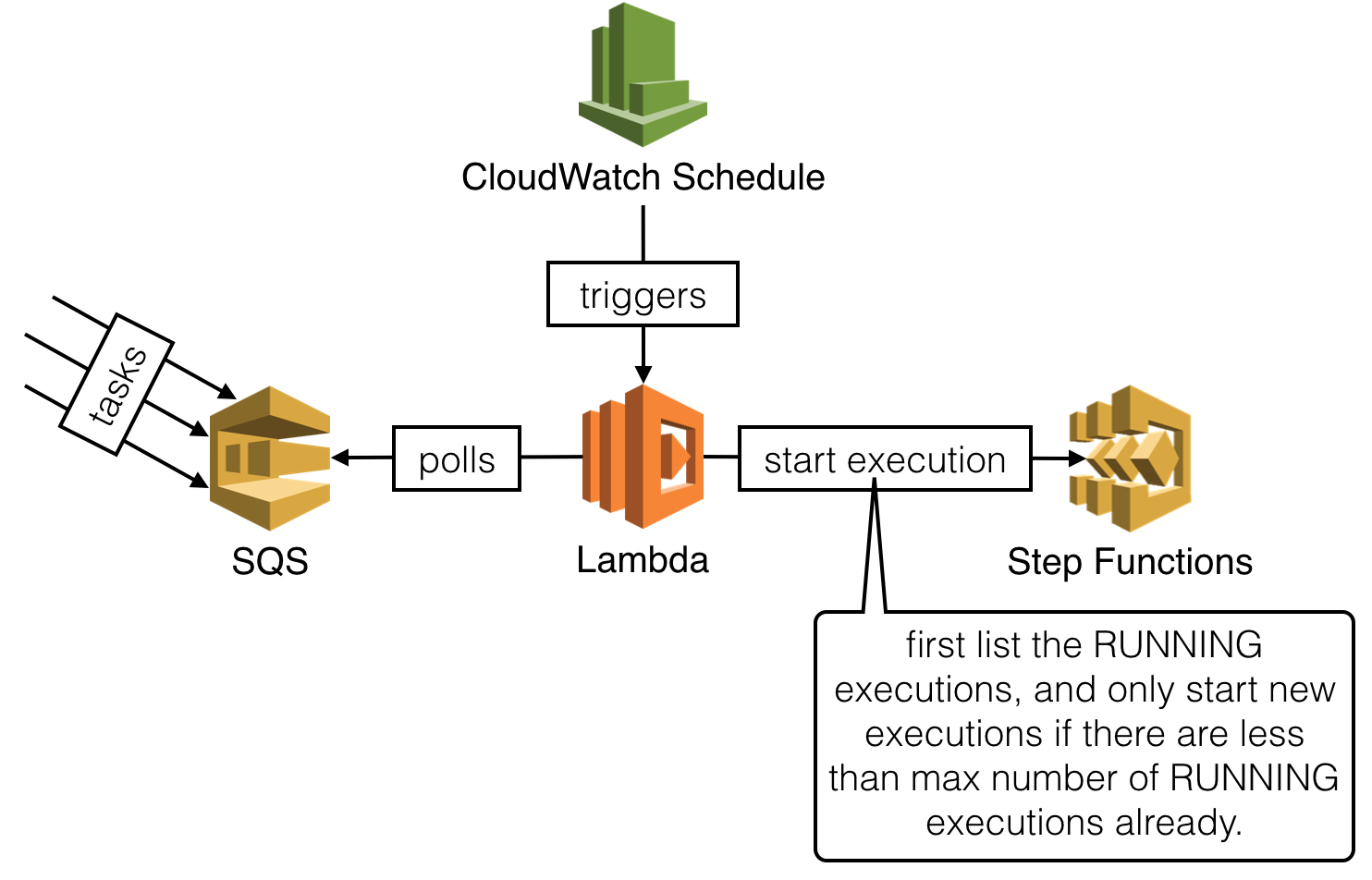

You can con­trol the MAX num­ber of con­cur­rent exe­cu­tions by intro­duc­ing a SQS queue. A Cloud­Watch sched­ule will trig­ger a Lamb­da func­tion to…

  1. check how many con­cur­rent exe­cu­tions there are
  2. if there are N exe­cu­tions, then we can start MAX-N exe­cu­tions
  3. poll SQS for MAX-N mes­sages, and start a new exe­cu­tion for each

We’re not using the new SQS trig­ger for Lamb­da here because the pur­pose is to slow down the cre­ation of new exe­cu­tions. Where­as the SQS trig­ger would push tasks to our Lamb­da func­tion eager­ly.

Also, you should use a FIFO queue so that tasks are processed in the same order they’re added to the queue.

Block execution using semaphores

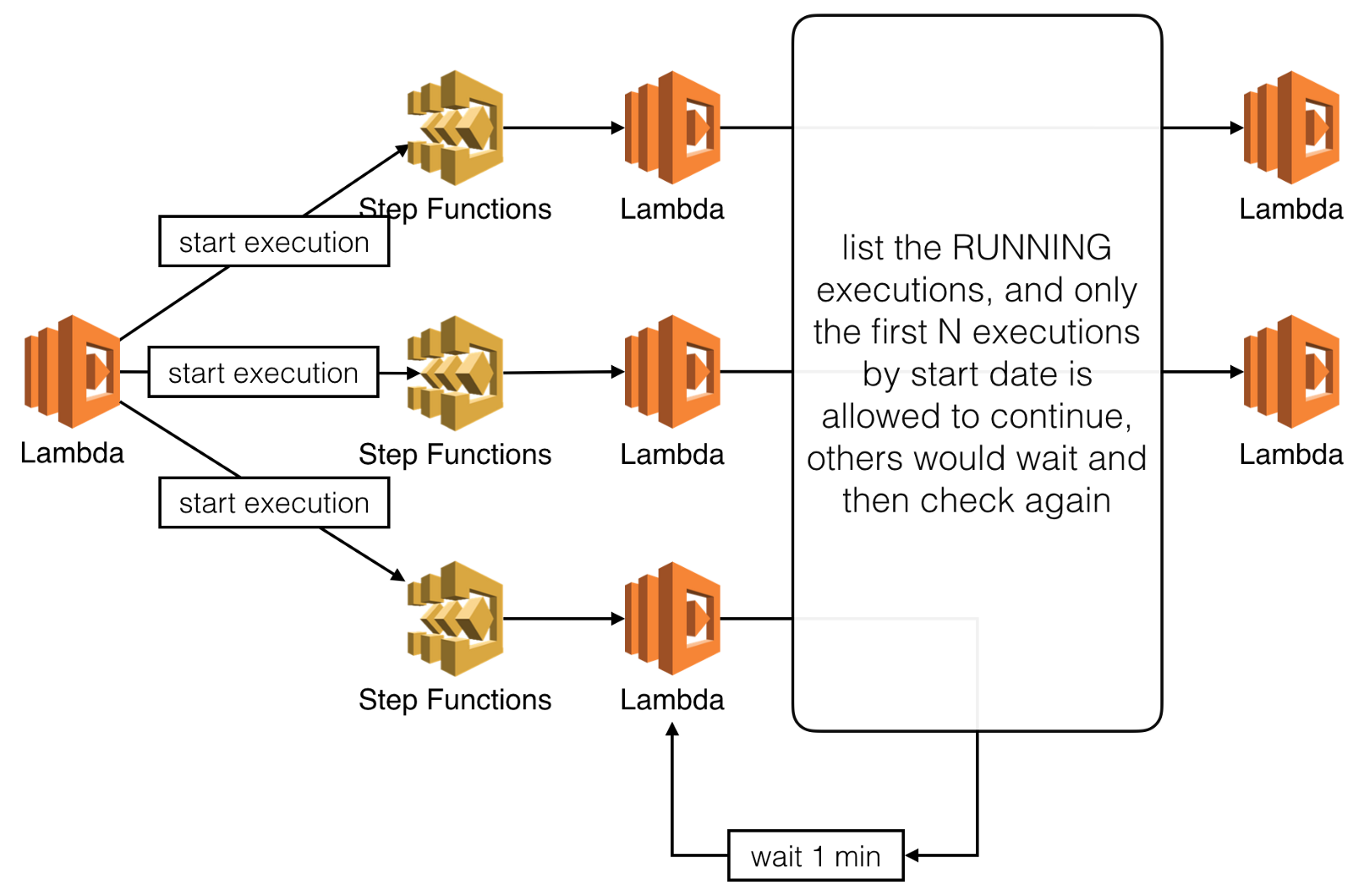

You can use the Lis­tEx­e­cu­tions API to find out how many exe­cu­tions are in the RUNNING state. You can then sort them by start­Date and only allow the eldest exe­cu­tions to tran­si­tion to states that access the shared resource.

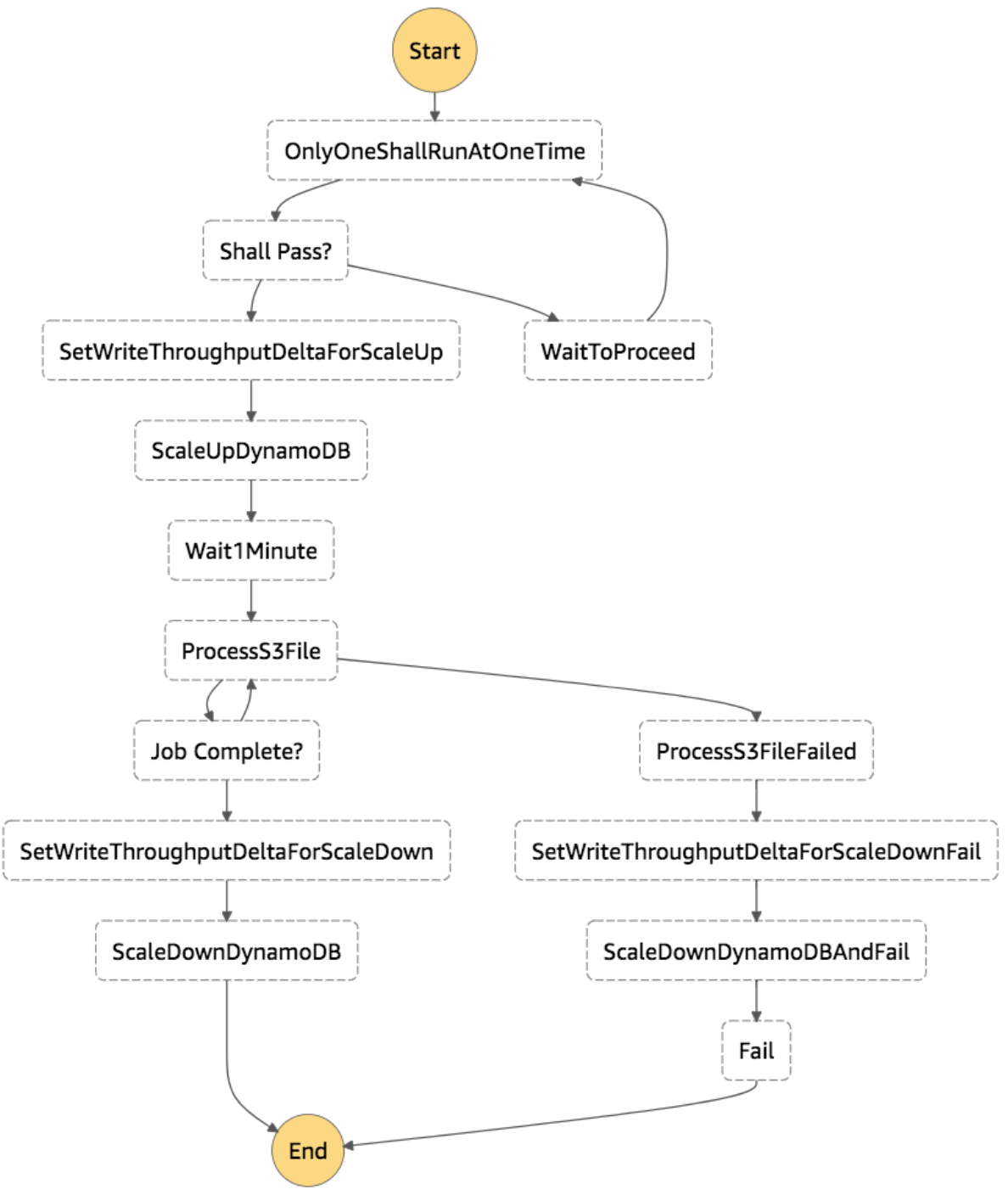

Take the fol­low­ing state machine for instance.

The Only­One­Shall­RunA­tOne­Time state invokes the one-shall-pass Lambda func­tion and returns a proceed flag. The Shall Pass? state then branch­es the flow of this exe­cu­tion based on the proceed flag.

OnlyOneShallRunAtOneTime:Type: TaskResource: arn:aws:lambda:us-east-1:xxx:function:one-shall-passNext: Shall Pass?Shall Pass?:Type: ChoiceChoices:- Variable: $.proceed # check if this execution should proceedBooleanEquals: trueNext: SetWriteThroughputDeltaForScaleUpDefault: WaitToProceed # otherwise wait and try again later WaitToProceed:Type: WaitSeconds: 60Next: OnlyOneShallRunAtOneTime

The tricky thing here is how to asso­ciate the Lamb­da invo­ca­tion with the corre­spond­ing Step Func­tion exe­cu­tion. Unfor­tu­nate­ly, Step Func­tions does not pass the exe­cu­tion ARN to the Lamb­da func­tion. Instead, we have to pass the exe­cu­tion name as part of the input when we start the exe­cu­tion.

const name = uuid().replace(/-/g, '_')const input = JSON.stringify({ name, bucketName, fileName, mode }) const req = { stateMachineArn, name, input }const resp = await SFN.startExecution(req).promise()

When the one_shall_pass func­tion runs, it can use the exe­cu­tion name from the input. It’s then able to match the invo­ca­tion against the exe­cu­tions returned by Lis­tEx­e­cu­tions.

In this par­tic­u­lar case, only the eldest exe­cu­tion can pro­ceed. All other executions would tran­si­tion to the Wait­To­Pro­ceed state.

module.exports.handler = async (input, context) => {const executions = await listRunningExecutions()`found ${executions.length} RUNNING executions`)

const oldest = _.sortBy(executions, x => x.startDate.getTime())[0]`the oldest execution is [${}]`)

if ( === {return { ...input, proceed: true }} else {return { ...input, proceed: false }}}

Compare the approaches

Let’s com­pare the two approach­es against the fol­low­ing cri­te­ria:

  • Scal­a­bil­i­ty. How well does the approach cope as the num­ber of con­cur­rent exe­cu­tions goes up?
  • Sim­plic­i­ty. How many mov­ing parts does the approach add?
  • Cost. How much extra cost does the approach add?


Approach 2 (block­ing exe­cu­tions) has two prob­lems when you have a large num­ber of con­cur­rent exe­cu­tions.

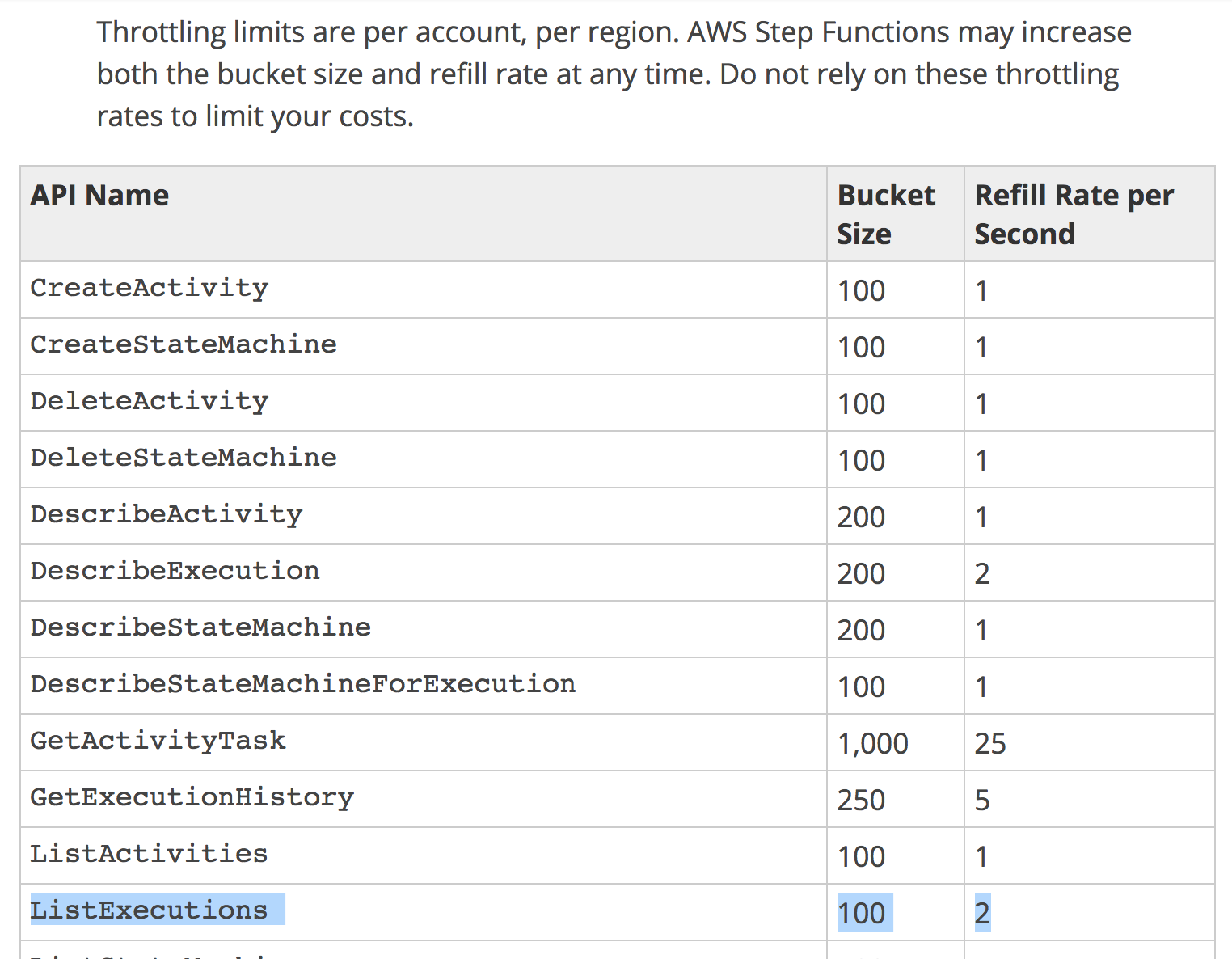

First, you can hit the region­al throt­tling lim­it on the ListExecutions API call.

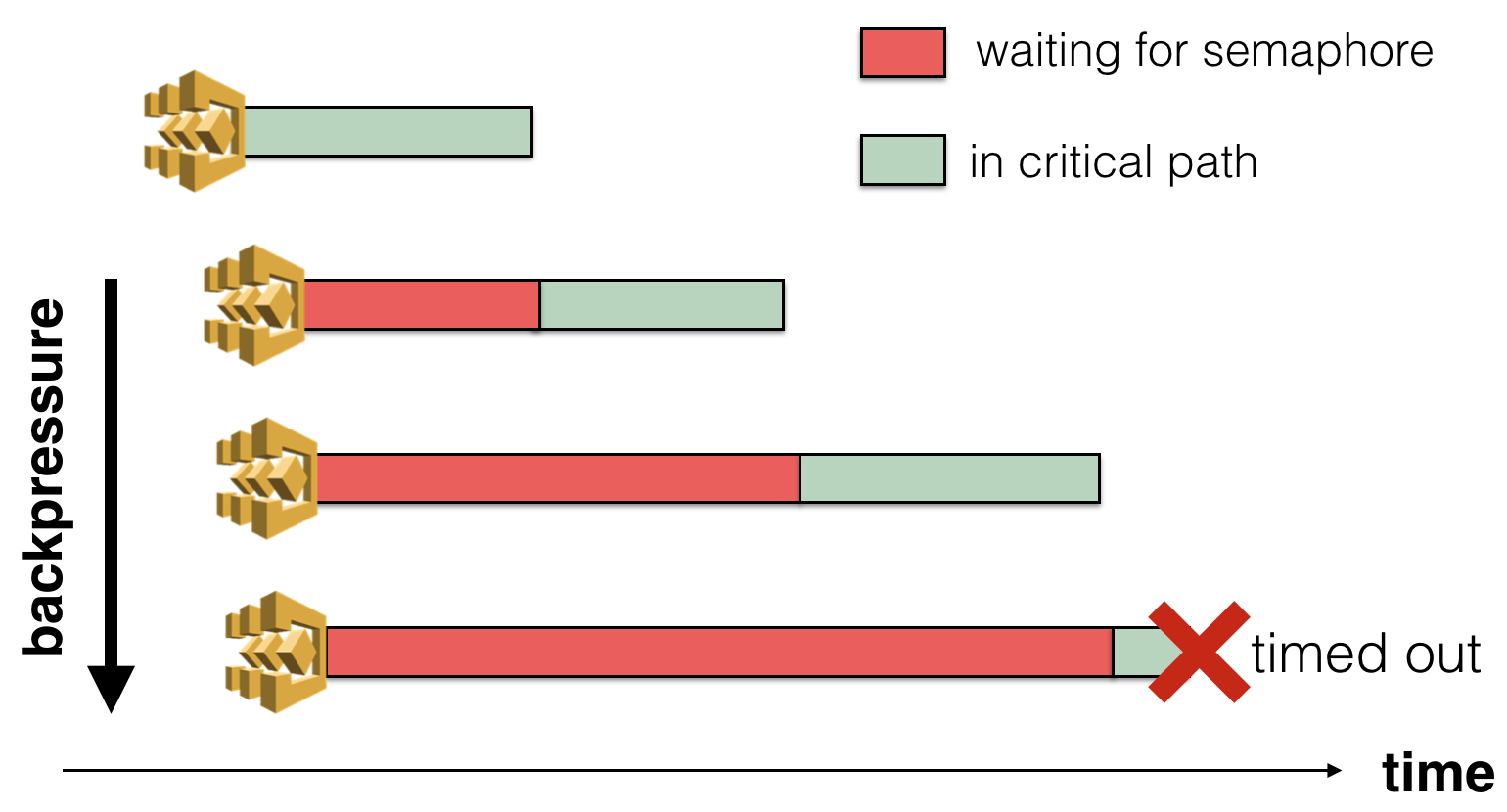

Sec­ond, if you have con­fig­ured time­out on your state machine (and you should!) then they can also time­out. This cre­ates back­pres­sure on the sys­tem.

Approach 1 (with SQS) is far more scal­able by com­par­i­son. Queued tasks are not start­ed until they are allowed to start so no back­pres­sure. Only the cron Lamb­da func­tion needs to list exe­cu­tions, so you’re also unlike­ly to reach API lim­its.


Approach 1 intro­duces new pieces to the infra­struc­ture — SQS, Cloud­Watch sched­ule and Lamb­da. Also, it forces the pro­duc­ers to change as well.

With approach 2, a new Lamb­da func­tion is need­ed for the addi­tion­al step, but it’s part of the state machine.


Approach 1 intro­duces min­i­mal base­line cost even when there are no exe­cu­tions. How­ev­er, we are talk­ing about cents here…

Approach 2 intro­duces addi­tion­al state tran­si­tions, which is around $25 per mil­lion. See the Step Func­tions pric­ing page for more details. Since each exe­cu­tion will incur 3 tran­si­tions per minute whilst it’s blocked, the cost of these tran­si­tions can pile up quick­ly.


Giv­en the two approach­es we con­sid­ered here, using SQS is by far the more scal­able. It is also more cost effec­tive as the num­ber of con­cur­rent exe­cu­tions goes up.

But, you need to man­age addi­tion­al infra­struc­ture and force upstream sys­tems to change. This can impact oth­er teams, and ulti­mate­ly affects your abil­i­ty to deliv­er on time.

If you do not expect a high num­ber of exe­cu­tions, then you might be bet­ter off going with the sec­ond approach.
