Today I’m trying to run some UITest on my app, which uses Facebook login. And here are some of my notes on it.

Challenges

• The challenges with Facebook is it uses Safari controller, we we deal mostly with web view for now. Starting from iOS 9+, Facebook decided to use safari instead of native facebook app to avoid app switching. You can read the detail here Building the Best Facebook Login Experience for People on iOS 9
• It does not have wanted accessibilityIdentifier or accessibilityLabel
• The webview content may change in the future 😸

Create a Facebook test user

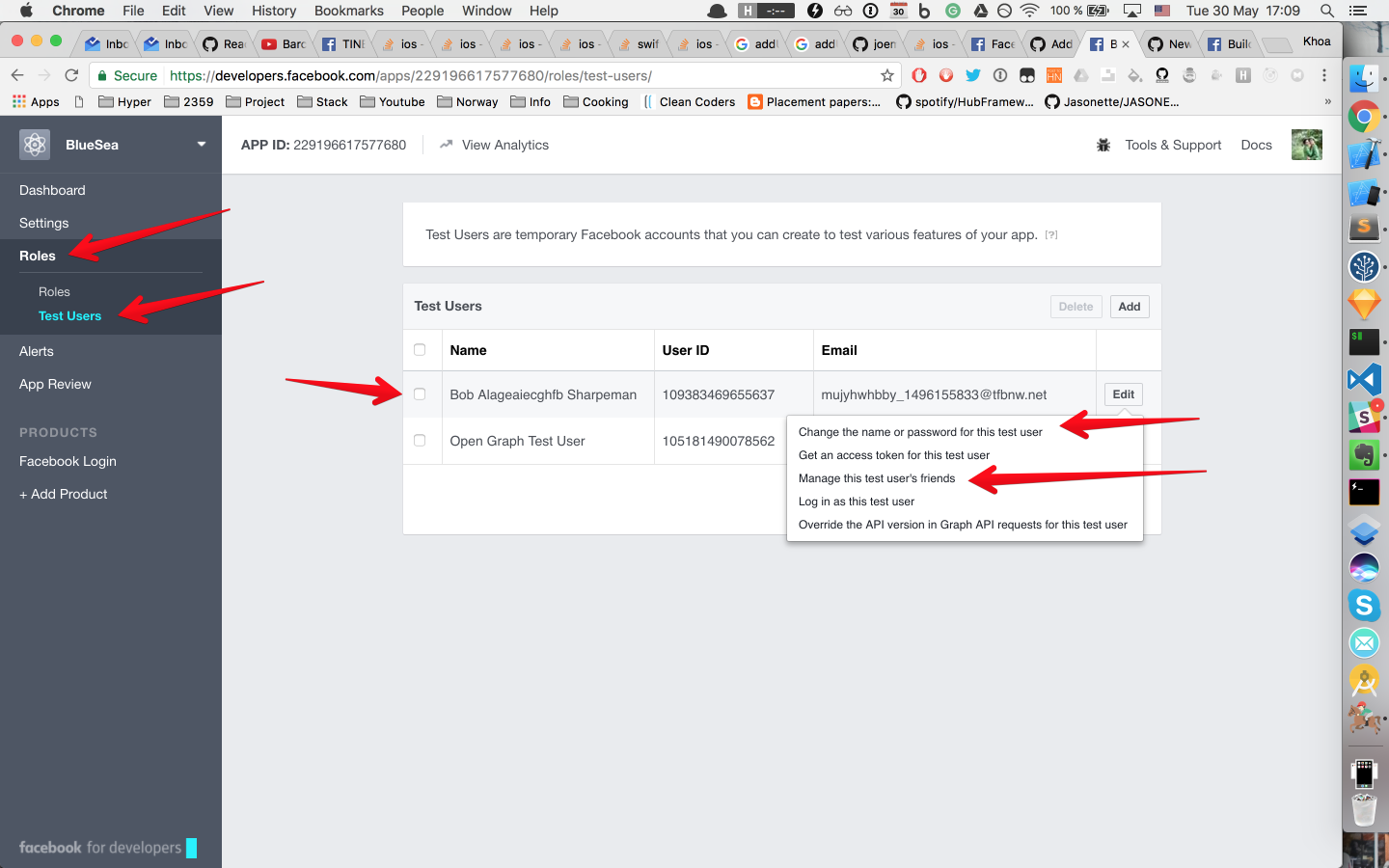

Luckily, you don’t have to create your own Facebook user to test. Facebook supports test users that you can manage permissions and friends, very handy

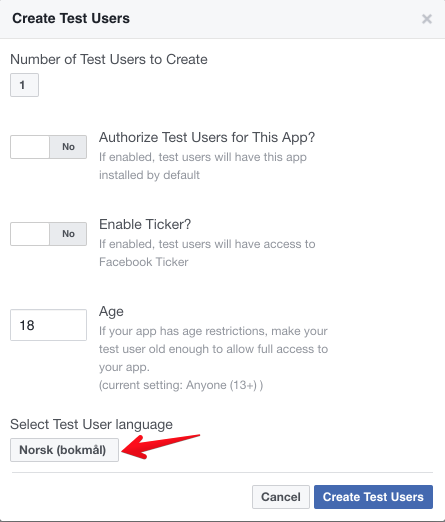

When creating the test user, you have the option to select language. That will be the displayed language in Safari web view. I choose Norwegian 🇳🇴 for now

Click the login button and show Facebook login

Here we use the default FBSDKLoginButton

var showFacebookLoginFormButton: XCUIElement {return buttons["Continue with Facebook"]}

And then tap it

app.showFacebookLoginFormButton.tap()

Check login status

When going to safari Facebook form, user may have already logged in or not. So we need to handle these 2 cases. When user has logged in, Facebook will say something like “you have already logged in” or the OK button.

The advice here is to put breakpoint and po app.staticTexts, po app.buttons to see which UI elements are at a certain point.

You can check for the static text, or simply just the OK button

var isAlreadyLoggedInSafari: Bool {return buttons["OK"].exists || staticTexts["Du har allerede godkjent Blue Sea."].exists}

Wait and refresh

But Facebook form is a webview, so its content is a bit dynamic. And UITest seems to cache content for fast query, so before checking staticTexts, we need to wait and refresh the cache

app.clearCachedStaticTexts()

This is the wait function

extension XCTestCase {func wait(for duration: TimeInterval) {let waitExpectation = expectation(description: "Waiting")

let when = DispatchTime.now() + duration
DispatchQueue.main.asyncAfter(deadline: when) {
  waitExpectation.fulfill()
}

// We use a buffer here to avoid flakiness with Timer on CI
waitForExpectations(timeout: duration + 0.5)

}}

Wait for element to appear

But a more solid approach would be to wait for element to appear. For Facebook login form, they should display a Facebook label after loading. So we should wait for this element

extension XCTestCase {/// Wait for element to appearfunc wait(for element: XCUIElement, timeout duration: TimeInterval) {let predicate = NSPredicate(format: "exists == true")let _ = expectation(for: predicate, evaluatedWith: element, handler: nil)

// Here we don't need to call \`waitExpectation.fulfill()\`

// We use a buffer here to avoid flakiness with Timer on CI
waitForExpectations(timeout: duration + 0.5)

}}

And call this before you do any further inspection on elements in Facebook login form

wait(for: app.staticTexts["Facebook"], timeout: 5)

If user is logged in

After login, my app shows the main controller with a map view inside. So a basic test would be to check the existence of that map

if app.isAlreadyLoggedInSafari {app.okButton.tap()

handleLocationPermission()// Check for the mapXCTAssertTrue(app.maps.element(boundBy: 0).exists)}

Handle interruption

You know that when showing the map with location, Core Location will ask for permission. So we need to handle that interruption as well. You need to ensure to call it early before the alert happens

fileprivate func handleLocationPermission() {addUIInterruptionMonitor(withDescription: "Location permission", handler: { alert inalert.buttons.element(boundBy: 1).tap()return true})}

There is another problem, this monitor won't be called. So the workaround is to call app.tap() again when the alert will happen. In my case, I call app.tap() when my map has been shown for 1,2 seconds, just to make sure app.tap() is called after alert is shown

For a more detailed guide, please read #48

If user is not logged in

In this case, we need to fill in email and password. You can take a look at the The full source codesection below. When things don't work or po does not show you the elements you needed, it's probably because of caching or you need to wait until dynamic content finishes rendering.

You need to wait for element to appear

Tap on the text field

You may get Neither element nor any descendant has keyboard focus, here are the workaround

• If you test on Simulator, make sure Simulator -> Hardware -> Keyboard -> Connect Hardware Keyboard is not checked
• wait a bit after tap

app.emailTextField.tap()

Clear all the text

The idea is to move the caret to the end of the textField, then apply each delete key for each character, then type the next text

extension XCUIElement {func deleteAllText() {guard let string = value as? String else {return}

let lowerRightCorner = coordinate(withNormalizedOffset: CGVector(dx: 0.9, dy: 0.9))
lowerRightCorner.tap()

let deletes = string.characters.map({ \_ in XCUIKeyboardKeyDelete }).joined(separator: "")
typeText(deletes)

}}

Change language

For my case, I want to test in Norwegian, so we need to find the Norwegian option and tap on that. It is identified as static text by UI Test

var norwegianText: XCUIElement {return staticTexts["Norsk (bokmål)"]}

wait(for: app.norwegianText, timeout: 1)app.norwegianText.tap()

The email text field

Luckily, email text field is detected by UI Test as text field element, so we can query for that. This uses predicate

var emailTextField: XCUIElement {let predicate = NSPredicate(format: "placeholderValue == %@", "E-post eller mobil")return textFields.element(matching: predicate)}

The password text field

UI Test can't seem to identify the password text field, so we need to search for it by coordinate

var passwordCoordinate: XCUICoordinate {let vector = CGVector(dx: 1, dy: 1.5)return emailTextField.coordinate(withNormalizedOffset: vector)}

This is the document for func coordinate(withNormalizedOffset normalizedOffset: CGVector) -> XCUICoordinate

Creates and returns a new coordinate with a normalized offset.The coordinate’s screen point is computed by adding normalizedOffset multiplied by the size of the element’s frame to the origin of the element’s frame.

Then type the password

app.passwordCoordinate.tap()app.typeText("My password")

We should not use app.passwordCoordinate.referencedElement because it will point to email text field ❗️ 😢

Run that test again

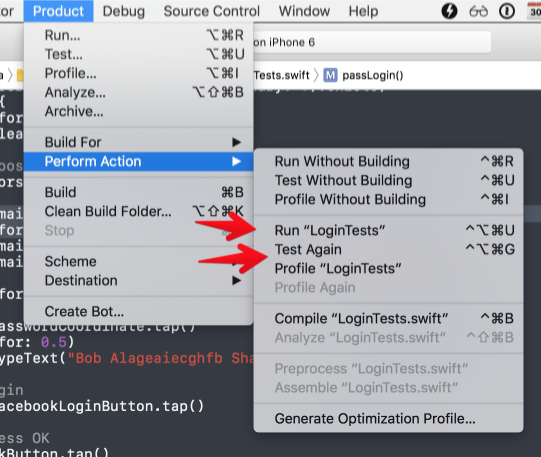

Go to Xcode -> Product -> Perform Actions -> Test Again to run the previous test again

Here are the full source code

One more thing

Thanks to the helpful feedback on my article Original story https://github.com/onmyway133/blog/issues/44, here are some more ideas

• To look for password text fields, we can actually use secureTextFields instead of coordinate
• The wait function should be made as an extension to XCUIElement so other element can use that. Or you can just use the old expectation style, which does not involve a hardcoded interval value.

Where to go from here

I found these guides to cover many aspects of UITests, worth taking a look

• UI-Testing-Cheat-Sheet
• Everything About Xcode UI Testing
