Integration tests are challenging in a standard application. They're even more challenging in a decoupled, asynchronous environment. If you're running them in a pipeline, you have to figure out all of the resource ARNs and make sure you have permission to access each of them. Also, what happens if your integration tests fail? Do you send a notification so someone can manually redeploy the previous version? Running integration tests in a CloudFormation custom resource simplifies a few of these issues. You can use references to other resources in the stack to get the required ARNs. You can use those same references to build execution rules for the integration test. Finally, if the integration tests fail, then CloudFormation will automatically roll back the deployment. An example project can be found in the GitHub project theBenForce/cdk-integration-tests How does it work? The idea came from the article . Essentially it comes down to leveraging two features of CloudFormation: and automatic rollbacks. Instead of creating an actual resource with your custom resource handler, you're going to execute your integration tests. Testing the Async Cloud with AWS CDK CustomResources CloudFormation Custom Resources A custom resource is an escape hatch in CloudFormation that allows you to manage external resources from your IaC template. The custom resource accepts the ARN of a lambda to be called, and any properties that you want to pass in. At deployment time, CloudFormation calls your lambda with all of the parameters supplied in the template and a few additional properties supplied by CloudFormation. The extra properties include the action to take (create, update, or delete) and a presigned S3 URL. When your function has finished execution, it needs to upload its result to the presigned URL that CloudFormation passed in. In addition to the final status, your lambda can add any output parameters that you want to reference within your CloudFormation template. UVU Test Runner The UVU test runner is a good library for running your integration tests in a lambda. It's lightweight and simple to use. It doesn't currently provide a programmatic interface for running tests, but that is being actively developed. Since all you need from the test runner is to know if the tests passed or failed, you won't need anything that advanced. The looks like a good alternative if you want to try something different. zora testing library Building a CDK construct Now that you know how the tests will work, you'll create a CDK construct that you can reuse throughout your project. Even if you aren't using the CDK, the process should be pretty easy to replicate in CloudFormation or Terraform. Custom Resource Lambda Handler Start by creating a new folder for your construct, call it . You're going to create the actual construct inside an index file later. Before you start working on that you'll create the handler lambda. IntegrationTests Install the package in your project. It provides some helper methods to make creating the custom resource handler easier. Once it's installed, create a file called inside of the directory. Add the following code to the file to handle basic custom resource interactions. cfn-lambda handlerLambda.ts IntegrationTests import CfnLambda from "cfn-lambda";

export const handler = CfnLambda({
	async AsyncCreate(properties) {
		return {
      FnGetAttrsDataObj: {
        TestPassed: true,
        Finished: new Date().toISOString(),
      },
    };
	},
	async AsyncUpdate(physicalId, properties) {
		return {
      FnGetAttrsDataObj: {
        TestPassed: true,
        Finished: new Date().toISOString(),
      },
    };
	},
	async AsyncDelete(physicalId, properties) {
		return {};
	}
}); Next, you need to create a method called that runs the test file that is passed into the construct. You'll add the test code to the lambda by doing a lazy import of an environment variable. You'll provide the value of the environment variable at build time, which will be able to see when it's bundling the lambda's source. runTests esbuild import {exec, suite} from 'uvu';

...

const runTests = async (properties: unknown) => {
    const {default: initTests} = await import(process.env.TEST_FILE!);
}; The method will need to accept a uvu test suite as its only parameter. You'll pass the custom resource's properties into the test suite's context so they can be accessed during runtime. You'll also need to call the test suite's method to make sure it's added to the list of tests to be executed. initTests run const runTests = async (properties: unknown) => {
    const {default: initTests} = await import(process.env.TEST_FILE!);

    const test = suite('Integration Test', properties);
    initTests(test);
    test.run();
}; Now you need to tell uvu to run all of the tests, then check the result. Unfortunately, uvu doesn't fully support the programmatic execution of tests, so you need to use a workaround to get the test results. Check to see if was set to 1, which means at least one of the tests failed. If you throw an exception, will pick it up and mark your custom resource's deployment as a failure. process.exitCode cfn-lambda const runTests = async (properties: unknown) => {
		...

    const result = await exec();

    if (process.exitCode) {
      throw new Error(`Tests Failed`);
    }
}; Now that you have the method, you need to call it from the create and update handlers. You can optionally return an object with set if you want to reference some values in your CloudFormation template. runTest FnGetAttrsDataObj async AsyncCreate(properties) {
  await runTests(properties);

  return {
    FnGetAttrsDataObj: {
      TestPassed: true,
      Finished: new Date().toISOString(),
    },
  };
},
async AsyncUpdate(physicalId, properties) {
  await runTests(properties);
  return {
    FnGetAttrsDataObj: {
      TestPassed: true,
      Finished: new Date().toISOString(),
    },
  };
}, That's all there is to the lambda. Really it's just a uvu test runner. Now you need to create the construct that deploys it and any tests that need to be executed. Creating the Resource Create an file in the directory. Add the following code to get started. index.ts IntegrationTests import * as cdk from "@aws-cdk/core";
import * as nodeLambda from "@aws-cdk/aws-lambda-nodejs";
import * as lambda from '@aws-cdk/aws-lambda';

interface IntegrationTestsProps {
  testEntry: string;
  timeout: cdk.Duration;

  /** These values will be passed into the context of your tests */
  properties?: Record<string, string>;
}

export class IntegrationTests extends cdk.Construct {
	private handler: lambda.IFunction;

	constructor(scope: cdk.Construct, id: string, props: IntegrationTestsProps) {
		super(scope, id);
	}
} You can see there are three properties that your construct will accept. The property accepts a path to the file that will be injected into the lambda handler that you created in the previous step. specifies the maximum amount of time that your lambda can spend running the integration tests. Finally, allows you to pass values into the custom resource that will be available when the tests execute. testEntry timeout properties Next, create the handler lambda. The only complicated part of this is injecting the property into your source code. You're going to use to take care of that. testEntry esbuild The construct uses to bundle lambda sources. It allows you to customize the build process using the property. NodejsFunction esbuild bundling The bundling parameter that you're going to use , which tells to replace global values with a constant. This replacement will happen before bundling, so when sees your import statement it will bundle the source code found at the provided path. is define esbuild esbuild this.handler = new nodeLambda.NodejsFunction(this, 'TestRunner', {
	entry: require.resolve('./handlerLambda.ts'),
	timeout: props.timeout,
	runtime: lambda.Runtime.NODEJS_14_X,
	bundling: {
		define: {
      "process.env.TEST_FILE": `"${props.testEntry}"`,
    },
	}
}); Now that the lambda is created, you can create a custom resource. Pass the lambda's ARN into the parameter. Also, provide a property that will change each deployment to ensure the test will be executed every time. serviceToken new cdk.CustomResource(this, 'IntegrationTests', {
	serviceToken: this.handler.functionArn,
	properties: {
		...props.properties,
		Version: new Date().toISOString(),
	}
}); Granting Permissions Your construct is all set up to execute any test that you pass into it. More than likely most of those tests will require access to an AWS resource. To make the process of granting permissions to your lambda simpler, change your construct to implement the interface. IntegrationTests iam.IGrantable export class IntegrationTests extends cdk.Construct implements iam.IGrantable { The interface only has one property: . This property is used with the methods of CDK constructs. For example, your function has the method that will give a principal permission to invoke it. IGrantable grantPrincipal grant* handler grantInvoke Since the handler lambda requires any permissions granted to your integration tests, simply return its property. grantPrincipal get grantPrincipal(): iam.IPrincipal {
      return this.handler.grantPrincipal;
    } Running some tests Now that you've finished building the construct, it's time to test it out. Create an empty stack and add an instance of the construct to it. IntegrationTests import * as cdk from '@aws-cdk/core';

    import { IntegrationTests } from '../constructs/integrationTests';

    export class TestStack extends cdk.Stack {
      constructor(scope: cdk.Construct, id: string, props: cdk.StackProps = {}) {
        super(scope, id, props);

        new IntegrationTests(this, `IntegrationTests`, {
          testEntry: require.resolve("./tests.ts"),
          timeout: cdk.Duration.seconds(5),
          properties: {
            Foo: "Bar"
          }
        });
      }
    } Creating some tests The property that you passed into the construct points to a file called in the same directory as . Create that file and add the following code to it. testEntry IntegrationTests tests.ts TestStack import {Test} from 'uvu';
import * as assert from 'uvu/assert';

interface TestContext {
    Foo: string;
}

export default (test: Test<TestContext>) => {
    test('First test', async (context) => {
        assert.equal(context.Foo, 'Bar', 'Foo should be Bar');
    });

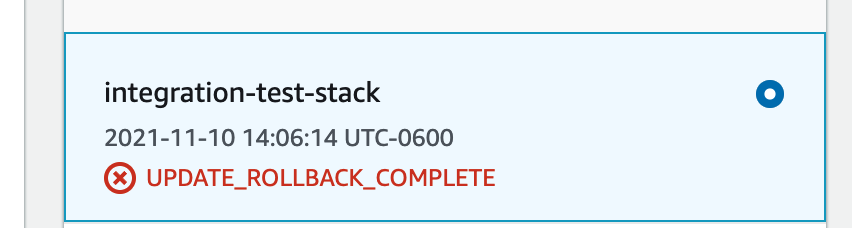

}; This code adds a single test that makes sure the property passed into is equal to . Foo IntegrationTests Bar Testing it Everything is set up now, you can run from your project's root directory and it should deploy successfully. npx cdk deploy To validate that your tests will actually roll back the stack when they fail, change the property that you passed into from to . Now deploy your stack again. This time it should fail, and if you open up the CloudFormation console you'll see a status of . Foo IntegrationTests Bar Fighters UPDATE_ROLLBACK_COMPLETE Summary In this tutorial, you've seen how to create a lambda-backed custom resource, how to inject code into a lambda using , and how to roll back deployments by throwing an error inside a custom resource handler. esbuild Cover Photo by on Scott Graham Unsplash Previously published . here
