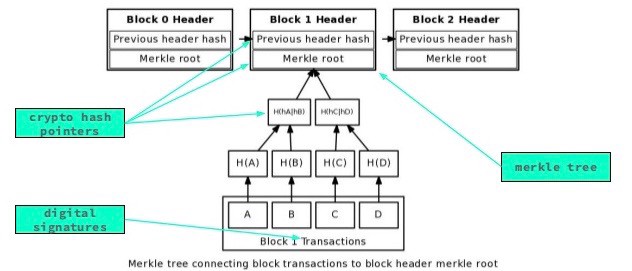

( ) A Merkle tree, as present in a typical blockchain The aim of this post is to provide an overview of the basic Merkle Tree data structure and a jumping off point for more advanced topics related to Merkle Trees. While taking the class on Coursera I learned the basics of how hash based data structures could be used to verify the integrity of data in peer-to-peer systems. One of the core data structures mentioned in the class was the , which is used in the to verify the existence of a transaction in a way that conserves both space and time quite effectively (more on that later in this post!). It wasn’t until I dug a little deeper into the Merkle Tree that I realized how prolific this data structure really was, and decided to build an example . Bitcoin and Cryptocurrency Technologies Merkle Tree Bitcoin blockchain Merkle Tree of my own If you’re curious about whether you should take the Bitcoin and Cryptocurrency Technologies class, you should read my reflections on it . here Explanation After construction, a Merkle Tree looks something like this: (A basic Merkle Tree. I’ve abbreviated the middle nodes as H(cd) and H(ab) respectively, but without this shorthand the root hash could also be called H(H(H(a) + H(b)) + H(H(c) + H(d)))) and are some data elements (files, public/private keys, JSON, etc) and is a hash function. If you’re unfamiliar, a hash function acts as a “digital fingerprint” of some piece of data by mapping it to a simple string with a low probability that any other piece of data will map to the same string. Each node is created by hashing the concatenation of its “parents” in the tree. You’ll notice that the Merkle tree here is a binary tree, most Merkle Trees are binary, but there are employed in platforms like Ethereum. Here we will just cover the binary case as it is by far the most common. a, b, c, d H non-binary Merkle Trees The tree can be constructed by taking nodes at the same height, concatenating their values, and hashing the result until the root is reached. A special case needs handled when only one node remains before the tree is complete, but other than that the tree construction is somewhat straightforward (more on this in the implementation section). Once built, data can be audited using the root hash in logarithmic time to the number of leaves (this is also known as a Merkle-Proof). Auditing works by recreating the branch containing the piece of data from the root to the piece of data being audited. In the example above, if we wanted to audit (assuming we have the root hash) we would need to be given H(d) and H(H(a) + H(b)). We would hash to get H(c), then concatenate and hash H(c) with H(d), then concatenate and hash the result of that with H(H(a) + H(b)). If the result was the same string as the root hash, it would imply that is truly a part of the data in the Merkle Tree. only c , c c In a case such as torrenting, another peer would provide the piece of data, H(d), and H(H(a) + H(b)). If you’re concerned about the security of this approach, recall that in a hash function it is computationally infeasible find some such that H(e) = H(c). This means that so long as the root hash is correct, it would be difficult for adversaries to lie about the data they were providing. c, e Outputting the authentication path of some data is as simple as recreating the branch leading up until the root. Traversing the entire tree to produce the leaves and their respective authentication data becomes important when using the Merkle Tree in digital signature schemes, and this can actually be accomplished in under logarithmic time. There are some clever (but complex) algorithms to accomplish this described in . this paper Selected Implementation Methods You can find a complete version of the code . I’ll explain the bulk of the tree creation and auditing methods. Note that both the and methods are instance methods from a larger class. here build_tree _audit def build_tree(self): stack = []
    self._handle_solo_node_case() self.root_hash == None: len(stack) >= and stack[ ].height == stack[ ].height:
            mom = stack.pop()
            dad = stack.pop()
            child_hash = self._md5sum(mom.hash + dad.hash)
            child = self.Node(mom, dad, child_hash)
            self.node_table[child_hash] = child
            mom.child = child
            dad.child = child child.height == self.max_height:
                self.root_hash = child.hash

            stack.append(child)
        elif len(self.leaves) > :
            leaf = self.leaves.pop()
            self.node_table[leaf.hash] = leaf
            stack.append(leaf)
        # Handle where last nodes not match height by # last node :
            stack[ ].height += self.is_built = True "" " Builds a merkle tree by adding leaves one at a time to a stack,
        and combining leaves in the stack when they are of the same height.
        Expected items to be an array of type Node.
        Also constructs node_table, a dict containing hashes that map to
        individual nodes for auditing purposes.
    " "" while if 2 -1 -2 if 0 case 2 do in "graduating" else -1 1 Building the tree works by adding leaves to a stack and checking to see if the top two nodes in the stack are the same height. When they are, the nodes have a “child” (the hash of the concatenation of their two hashes), and when they are not a new node is appended to the stack. A small edge case needs handled when the last two nodes are of different heights. The method above will fail in the single node case because no conditions will be met, so I added a small method to handle this for completeness. def _audit(self, questioned_hash, proof_hashes): proof_hash = proof_hashes.pop() not proof_hash self.node_table.keys(): False

    sibling = self.node_table[proof_hash]
    child = sibling.child

    # Because the order which the hashes are concatenated matters,
    # we must test to see questioned_hash is the or # its child (the hash is always build mother + father).
    if child.mom.hash == questioned_hash:
        actual_hash = self._md5sum(questioned_hash + sibling.hash)
    elif child.dad.hash == questioned_hash:
        actual_hash = self._md5sum(sibling.hash + questioned_hash) : False actual_hash != child.hash: False actual_hash == self.root_hash: True self._audit(actual_hash, proof_hashes) "" " Returns a boolean testing if questioned_hash
        is contained in the merkle tree.

        proof_hashes are the nodes to hash questioned_hash with
        in order from the bottom of the tree to the second-to-last
        level. len(proof_hashes) is expected to be the height of the
        tree, ceil(log2(n)), as one node is needed for proof per layer.
