Let's introduce a simple to-do manager. Its client (i.e. the browser window) sends a request to the server and receives a response. In order for another client to see any updates, it must make a request and receive this data. However, what do you do when a client requires users to monitor all updates on the fly? Unfortunately, classic HTTP does not solve this problem. Most likely, when you start to google some alternative, you will come across a lot of information about web sockets.


So what are sockets, why use them, and how do web applications work in general? I will explain all this further on with a simple example.


WebSocket is a protocol that, unlike HTTP, allows for constant two-way communication between client and server. As you can see in the illustration, in this case, the life cycle of a connection consists of three stages:


  1. Connection initialization—a handshake request over HTTP is made, after which the connections are updated to WebSocket.


  2. Data forwarding—sending a notification can take place from the client to the server and vice versa.


  3. Breaking the connection—both the client (for example, closing a tab) and the server (programmatically) can initiate the break.


Let's look at how to connect it all to a classic SpringBoot application.

Updating the dependencies in pom.xml


How do updates start with what? Correct—by adding the necessary dependencies.

  • For ease of use, Spring has many starters in a variety of colors and sizes. We are interested in sockets, so let's add the appropriate starter.
  • Since we'll be working with JSON format data, let's add JSON from Google.
  • In a few places, I will use some utilities that make URL parsing easier. Let's add a third dependency from Apache as well.


The previous preparation is complete. Let's move on to the Spring configuration.


What does Spring need for sockets?


Usually, a lot of this magic happens in classes marked with the corresponding Configuration annotation. It is important to add another one: @EnableWebSockets.


Its documentation says that we must implement the WebSocketConfigurer interface. As you can see, the interface has only one method. Here we can add notification handlers and handshake interceptors. This way we have a validation of the association. Given that we can't pass any parameters in the body or headers during socket initialization, the only way to identify the user is with URL parameters. This is also where we can read our token, validate it and, if it is valid, confirm the merge creation.


If it is necessary to provide a connection check

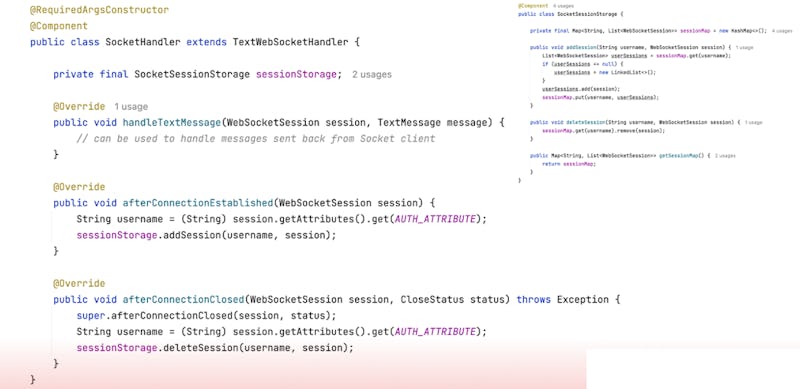

Let's move on to the next step—the action handler. In our example we plan to handle only text notifications, so we rely on the abstract class TextWebSocketHandler. We will send notifications only from the server to the client, so you can leave the handleTextMessage method empty.


Socket event handler


The connection repository will be a regular map, where the client is the user's username and the value is a listing of all his open sessions (browser tabs).


Example session archive


Sending notifications is now a simple task. Let's try to implement the ability to send notifications to everyone, as well as to one individual user.


Sending notifications


What does it look like in terms of the UI part? As I already mentioned, when we initialize a socket, we can't add either headers or request body. But it is always possible to pass parameters via URL, which we will do. Then we add all the necessary event listeners—here’s how it looks:


UI part


The usual SpringBoot Web application but with sockets!

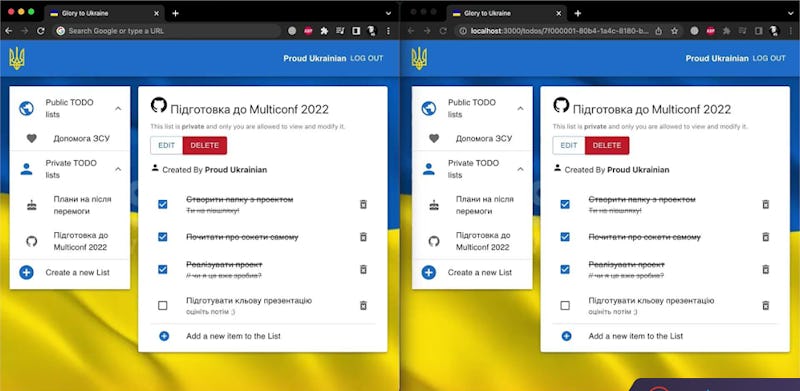

In reality, one client sends an HTTP request for updated data. Then in the controller, we call the notifyAll or notifyUser method from one of the previous schemes. This is where a bit of React magic comes in. As you can see, the data is updated in two windows at once:


The usual SpringBoot Web application but with sockets!

Everything is cool, everything works. But if it were that easy, I wouldn't be writing this article…


In enterprise projects, productivity is usually an important factor. However, often the same microservices can exist in multiple instances, accessed directly through Load Balancer. And depending on CPU load, RAM usage, or other parameters, new instances can be created or existing ones deleted. But how would a threaded implementation work in such a case?


Our endpoint map is saved in-memory in the middle of each instance. When we initialize WS connections, ELB chooses which service the request will be sent to, and the endpoint is stored only in it. When any service goes over the map, it's likely that some clients will never get the notification.


A little bit of production


To simulate a similar case, bring up the second instance of our SpringBoot application on a different port and simulate LoadBalancer behavior by adding the usual randomizer on the receiving host. In the header, we add a small label to understand which instance we will be sending the request to. As you can see, the data in one of the windows remain unchanged.


A little bit of production


What does it look like?

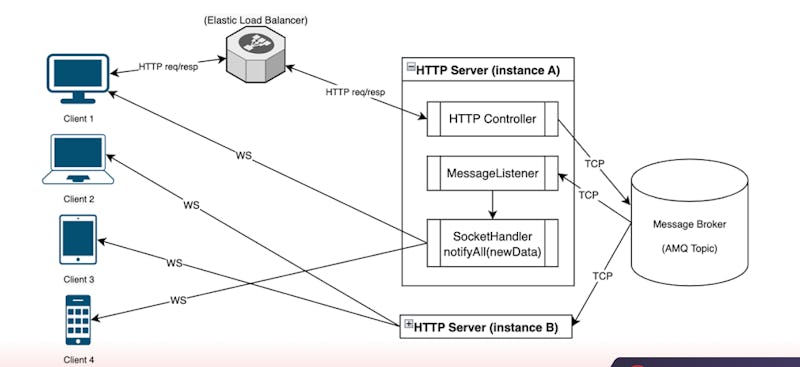

A successful way to solve the problem is to create a single event repository that will notify all of our instances that each one must send a notification to clients that are saved in themselves. Message Broker may come in handy here, but I chose ActiveMQ for the simple reason that it is one of the most popular today. So, let's keep coding…


SOLUTION - a unified repository of events


SOLUTION - a unified repository of events


As always, we update the dependencies first. I decided to use such a cool thing called Apache Camel. This is an open-source, cross-platform Java framework that allows you to integrate applications in a simple and straightforward way. Camel greatly simplifies the flow of data processing. It's especially useful if you need to build a chain of multiple handlers. It also integrates very easily with Spring.


Let's not break tradition and move on to Spring configurations. Here we need to add two bins:


  • ActiveMqConnectionFactory, to which we feed properties with application.properties.


  • ActiveMQComponent - A Camel component, which will further simplify the process of sending and receiving notifications from the broker.


Some more dependencies in pom.xml


Configuring SpringBoot

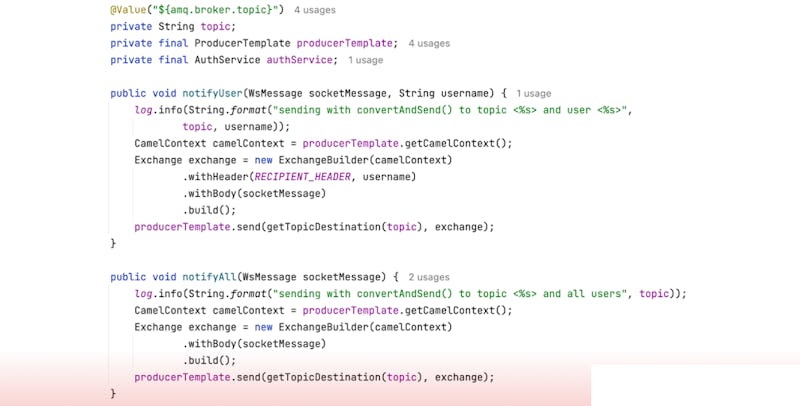

Next, we create two methods with the same signatures as before. Since I'm talking about both sockets and Camel, we won't dwell on it for a long time. The only thing I want to stress is the way we will pass information about the user we are sending the notification to. This is done with the Header, which can later be read when we receive a notification from the broker.


We are ready to send notifications


Once we have sent these notices, they must be received at each instance. This is where one of the reasons why I added Camel to the project comes in: it's incredibly easy to use. Here is an example of reading and logging a message:


It's time to get them


However, simply logging notifications is not enough. Next, you need to send it to all clients. To do this we create a handler:


  • Parse the notification body from plain String to JSON object and then to our Java object
  • Read the header we recorded earlier
  • Send it using the existing methods
  • Add it to our Data Flow in a row


One more handler...


One more handler...


Finally, we move on to the test. We have Maples connected to two different instances. Perform an update on one and observe the updates on two at once:


What does it look like now?


Now everything works ... I wish I could say that, but …


Everything will work fine when we operate with small volumes. But then again, there are a lot of systems in real projects that handle large amounts of data. Therefore, let us also have such an endpoint, which will completely rewrite all to-do lists which concern the current user. As an input, it takes an array of these lists, the size of which is limited only by your imagination.


Let's add one more endpoint


This way, notifications with updated lists will come from the broker and forward to all instances. However, notification brokers are not designed for this purpose. They work quickly and efficiently with small amounts of data. Otherwise, it can lead to problems with productivity and bottleneck formation. So how do we fix this?


Don't burden the brokers with notifications!It negatively affects their productivity


Let's take a refreshed approach. For this type of notification, we will send the whole updated object and information (specification) about which object has changed and how exactly. SpecProcessors on instances will then collect all the new data on their own and send it out to clients.


So what to do?

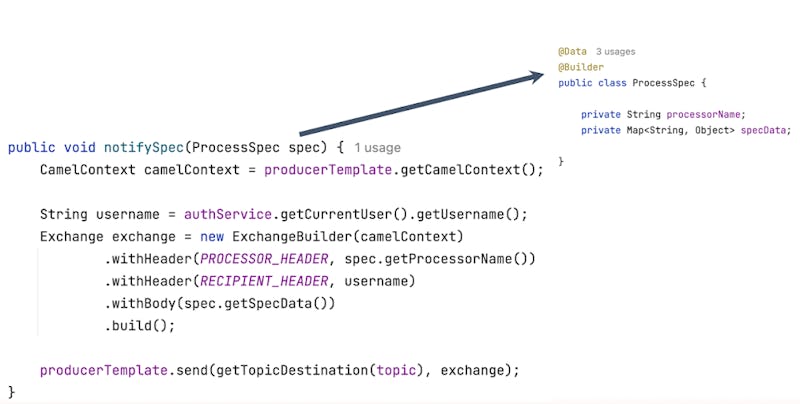

All we have to do is change a little bit of the data format that will be sent to the broker. Let's create a primitive version of the specification, which includes:


  • A class-name processor for processing notifications

  • Parameters in the card format


Next, we create a processor that will pull the updated data from the database, 3rd party service, or elsewhere, and pass it on.


New processor


After that, update our Data Flow in the router. If an appropriate processor is found, that is where the processing goes. Then a notification is sent to the clients via WebSockets. Here is a simplified diagram of how it works:


And let's update the routers (also easy)


Let's go back to where we started and see how it all evolved into a bidirectional system. This system can easily scale and does not put a strain on our resources:


Where we started


And what we have done


I hope that now when you need to implement sockets, you will think through the details in advance, and know what difficulties you may encounter and how to overcome them. And if you want to take a closer look at the code in this article, follow the links to the frontend and backend repositories:




Article by Roman Dashkivsky, Java Developer at NIX and speaker of the NIX MultiConf.
