Hi everyone! In this article I’d like to show you how to create **Flutter** application using **Redux**. If you don’t know what Flutter is, I encourage you to read my article [Flutter — 5 reasons why you may love it](https://medium.com/@pszklarska/flutter-5-reasons-why-you-may-love-it-55021fdbf1aa) . However, if you know what Flutter is and you’d like to create an application that is **well designed, easy to test and has very predictable behaviour** — then keep going with reading!

### What is Redux?

Firstly, let’s start with explaining what **Redux** is. [Redux](https://redux.js.org/) is an application architecture, made originally for JavaScript and now used in applications built with **reactive frameworks** (such as React Native or Flutter). Redux is simplified version of [Flux](https://facebook.github.io/flux/docs/overview.html) architecture, made by Facebook. But what’s all about with Redux? Basically, you need to know three things:

1.  there’s a **single source of truth** — your whole application state is kept only in one place (called store)
2.  the **state is read-only** — to change the application state you need to dispatch an action, and then new state is created
3.  changes are made with **pure functions** — a pure function (to simplify, it’s a function without side effects) takes the previous state and an action, and returns new state

Sounds cool, but what are the advantages of that solution?

*   we have **control over the state** — it means that we exactly know what caused state change, we don’t have duplicated state and we can easily follow data flow
*   pure **reducer functions are easy to test** — we can pass state, action and test if result is correct
*   application is **clearly structured** — we have different layers for actions, models, business logic, etc. — so you exactly know where to put another new feature
*   it’s great **architecture for more complicated** apps — you don’t need to pass state down the whole view tree from parent to child
*   and there’ one more…

#### Redux Time Travel

There’s one cool feature possible in Redux — 🎉 **Time Travel**! With Redux and [proper tools](https://pub.dartlang.org/packages/flutter_redux_dev_tools) you can **track your application state** over the time, inspect actual state and **recreate it at any time**. See this feature in action:

![](https://hackernoon.com/hn-images/1*KL-z2sJRBYEHrnzFASVvVw.gif)

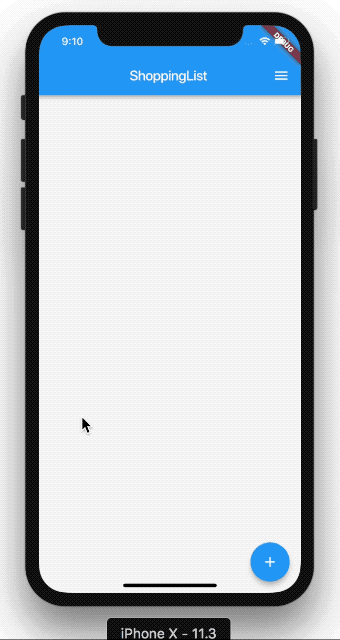

Time Travel in action — how cool is that?

### Redux Widgets on a simple example

All of the above rules makes data flow in Redux **unidirectional**. But what does it mean? In practice it’s all done with **actions, reducers, store and states**. Let’s imagine application that shows button counter:

![](https://hackernoon.com/hn-images/1*vM852avXATOs1_1Mq7Bn7w.png)

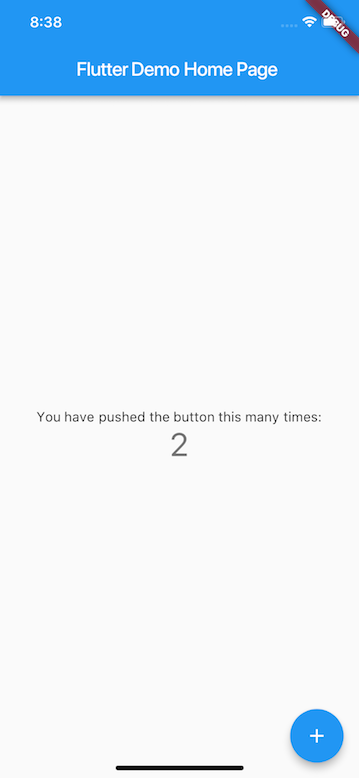

1.  Your application has some **state** at the beginning (number of clicks, which is 0)
2.  Based on that state **view** is rendered.
3.  If user taps on button, there’s **action** send (e.g. IncrementCounter)
4.  Action is received by **reducer**, which knows previous state (counter 0), receives action (IncrementCounter) and can return new state (counter 1)
5.  Your application has new **state** (counter 1)
6.  Based on new state, **view** is rendered again

So as you can see, generally it’s **all about the state**. You have single app **state**, the **state** is read-only for view, and to create new **state** you need to send action. Sending action fires reducer that creates and emits new application **state**. And history repeats itself.

![](https://hackernoon.com/hn-images/1*S_BZUDym3j0Vxjfi8D21Zg.png)

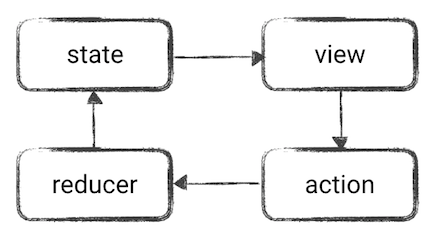

Redux Data Flow

### Example of Shopping List App with Redux

Let me show how Redux works in practice on more advances example. We’ll create a simple ShoppingCart application. In this application there will be functionalities for:

*   adding items
*   marking items as checked
*   and that’s basically all 😎

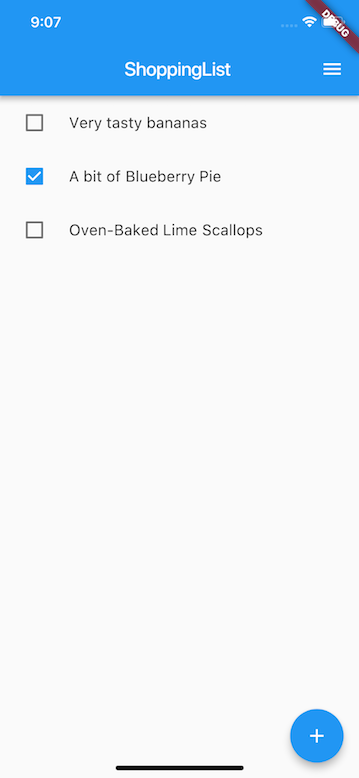

The application will look like this:

![](https://hackernoon.com/hn-images/1*F_VsjS0EfcjFI5S-fsTvRQ.png)

You can see the whole application code on GitHub:

[**pszklarska/FlutterShoppingCart**
_FlutterShoppingCart - Flutter example of shopping app using Redux architecture_github.com](https://github.com/pszklarska/FlutterShoppingCart "https://github.com/pszklarska/FlutterShoppingCart")[](https://github.com/pszklarska/FlutterShoppingCart)

Let’s start with coding! 👇

#### Prerequisite

In this article I’ll not show creating UI for this application. You can check the code for [**this Shopping List application before implementing Redux here**](https://github.com/pszklarska/FlutterShoppingCart/tree/a8120a23232a05d380384bb377f3994ef65ad221). We’ll start with coding from this point and we’ll add Redux to this application.

If you’ve never used Flutter before, I encourage you to try a [Flutter Codelabs from Google](https://codelabs.developers.google.com/codelabs/flutter/).

#### **Setup**

To run with Redux on Flutter, you need to add dependencies to your `pubspec.yaml` file:

flutter\_redux: ^0.5.2

You can check the newest version on [flutter\_redux](https://pub.dartlang.org/packages/flutter_redux) package page.

#### Model

Our application needs to manage adding and changing items, so we‘ll use simple `CartItem` model to store single item state. **Our whole application state will be just list of CartItems**. As you can see, CartItem is just a plain Dart object.

class **CartItem** {
  String name;
  bool checked;

  **CartItem**(this.name, this.checked);
}

> [Note: Here’s the full source code for this file.](https://github.com/pszklarska/FlutterShoppingCart/blob/4756839d5749dfa36073e830b208bb45cb5f8874/lib/model/CartItem.dart)

#### Actions

Firstly, we need to declare **actions**. Action is basically any **intent that can be invoked to change application state**. In our application we’ll have two actions, for adding and changing item:

class **AddItemAction** {
  final CartItem item;

  **AddItemAction**(this.item);
}

class **ToggleItemStateAction** {
  final CartItem item;

  **ToggleItemStateAction**(this.item);
}

> [Note: Here’s the full source code for this file](https://github.com/pszklarska/FlutterShoppingCart/blob/4756839d5749dfa36073e830b208bb45cb5f8874/lib/redux/actions.dart)

#### Reducers

Then, we need to tell our application what should be done with those actions. This is why **reducers** are for — they simply **take current application state and the action, then they create and return new application state**. We’ll have two reducers methods:

List<CartItem> **appReducers**(List<CartItem> items, dynamic action) {
  if (action is AddItemAction) {
    return **addItem(items, action)**;
  } else if (action is ToggleItemStateAction) {
    return **toggleItemState(items, action)**;
  }
  return items;
}

List<CartItem> **addItem**(List<CartItem> items, AddItemAction action) {
  return List.from(items)..add(action.item);
}

List<CartItem> **toggleItemState**(List<CartItem> items, ToggleItemStateAction action) {
  return items.map((item) => item.name == action.item.name ?
    action.item : item).toList();
}

> [Note: Here’s the full source code for this file.](https://github.com/pszklarska/FlutterShoppingCart/blob/4756839d5749dfa36073e830b208bb45cb5f8874/lib/redux/reducers.dart)

Method `appReducers()` delegates the action to proper methods. Both methods `addItem()` and `toggleItemState()` return new lists — that’s our new application state. As you can see, **you shouldn’t modify current list**. Instead of it, we create new lists every time.

#### StoreProvider

Now, when we have actions and reducers, we need to provide place for storing application state. It’s called **store** in Redux and it’s **single source of truth** for our application.

void main() {
  **final store = new Store<List<CartItem>>(
      appReducers,
      initialState: new List());**

  runApp(new FlutterReduxApp(store));
}

> [Note: Here’s the full source code for this file.](https://github.com/pszklarska/FlutterShoppingCart/blob/4756839d5749dfa36073e830b208bb45cb5f8874/lib/main.dart)

To create store, we need to pass **reducers** methods and **initial application state**. If we created the store, we must pass it to the **StoreProvider** to tell our application than it can be used by anyone who wants to request app state:

class FlutterReduxApp extends StatelessWidget {
  final Store<List<CartItem>> store;

  FlutterReduxApp(this.store);

  @override
  Widget build(BuildContext context) {
    **return new StoreProvider<List<CartItem>>(
      store: store,
      child: new ShoppingCartApp(),
    );**
  }
}

> [Note: Here’s the full source code for this file.](https://github.com/pszklarska/FlutterShoppingCart/blob/4756839d5749dfa36073e830b208bb45cb5f8874/lib/main.dart)

In the above example `ShoppingCartApp()` is main application widget.

#### StoreConnector

Currently we have everything except… actual adding and changing items. How to do that? To make it possible, we need to use **StoreConnector**. It’s a way to **get the store and make some action with it or read it’s state**.

Firstly, we’d like to **read current data and show this in a list**:

class ShoppingList extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return new **StoreConnector<List<CartItem>, List<CartItem>>**(
      **converter: (store) => store.state,
      builder: (context, list)** {
        return new ListView.builder(
            itemCount: list.length,
            itemBuilder: (context, position) =>
                **new ShoppingListItem(list\[position\]));**
      },
    );
  }
}

> [Note: Here’s the full source code for this file.](https://github.com/pszklarska/FlutterShoppingCart/blob/4756839d5749dfa36073e830b208bb45cb5f8874/lib/list/shopping_list.dart)

Code above wraps default `ListView.builder` with `StoreConnector`. StoreConnector can take current app state (which is `List<CartItem>`) and map this with `converter` function to anything. For purposes of this case, it’ll be the same state (`List<CartItem>`), because we need the whole list here.

Next, in `builder` function we get `list` — which is basically list of CartItems from `store`, which we can use for building ListView.

Ok, cool — we have reading data here. Now **how to set some data?**

To do it, we’ll use also **StoreConnector**, but in a slightly different way.

class AddItemDialog extends StatelessWidget {
  @override
  Widget build(BuildContext context) {
    return new StoreConnector<List<CartItem>, OnItemAddedCallback>(
        converter: (store) {      **return (itemName) =>
          store.dispatch(AddItemAction(CartItem(itemName, false)));** }**,** builder: (context, callback) {
      return new AddItemDialogWidget(**callback**);
    });
  }
}

**typedef OnItemAddedCallback = Function(String itemName);**

> [Note: Here’s the full source code for this file.](https://github.com/pszklarska/FlutterShoppingCart/blob/4756839d5749dfa36073e830b208bb45cb5f8874/lib/add_item/add_item_dialog.dart)

Let’s look at the code. We used **StoreConnector**, as in the previous example, but this time, instead of mapping list of CartItems, into the same list, we’ll map this into `OnItemAddedCallback`. This way we can pass callback to the `AddItemDialogWidget` and call it when user adds some new item:

class AddItemDialogWidgetState extends State<AddItemDialogWidget> {
  String itemName;

  **final OnItemAddedCallback callback;
  AddItemDialogWidgetState(this.callback);**

  @override
  Widget build(BuildContext context) {
    return new AlertDialog(
      ...
      actions: <Widget>\[
        ...
        new FlatButton(
            child: const Text('ADD'),
            **onPressed: () {**              ...              **callback(itemName);
            })**
      \],
    );
  }
}

> [Note: Here’s the full source code for this file.](https://github.com/pszklarska/FlutterShoppingCart/blob/4756839d5749dfa36073e830b208bb45cb5f8874/lib/add_item/add_item_dialog.dart)

Now, every time user press “ADD” button, the callback will dispatch `AddItemAction()` event.

Now we can do very similar thing for toggling item state:

class ShoppingListItem extends StatelessWidget {
  final CartItem item;

  ShoppingListItem(this.item);

  @override
  Widget build(BuildContext context) {
    return new **StoreConnector<List<CartItem>, OnStateChanged>**(
        converter: (store) {
      **return (item) => store.dispatch(ToggleItemStateAction(item));**
    }, builder: (context, callback) {
      return new ListTile(
        title: new Text(item.name),
        leading: new Checkbox(
            value: item.checked,
            **onChanged: (bool newValue) {
              callback(CartItem(item.name, newValue));
            }),**
      );
    });
  }
}

**typedef OnStateChanged = Function(CartItem item);**

> [Note: Here’s the full source code for this file.](https://github.com/pszklarska/FlutterShoppingCart/blob/4756839d5749dfa36073e830b208bb45cb5f8874/lib/list/shopping_list_item.dart)

As in the previous example, we use **StoreConnector** for mapping `List<CartItem>` into `OnStateChanged` callback. Now every time checkbox is changed (in `onChanged` method), the callback fires `ToggleItemStateAction` event.

### Summary

That’s all! In this article we created a simple Shopping List application using Redux architecture. In our application we can add some items and change their state. **Adding new features to this application is as simple as adding new actions and reducers.**

Here you can check the full source code for this application, including **Time Travel** widget:

[**pszklarska/FlutterShoppingCart**
_FlutterShoppingCart - Flutter example of shopping app using Redux architecture_github.com](https://github.com/pszklarska/FlutterShoppingCart "https://github.com/pszklarska/FlutterShoppingCart")[](https://github.com/pszklarska/FlutterShoppingCart)

Hope you liked this post and stay tuned for more! 🙌
