# An Introduction to LÖVE the 2D Game Engine

October 6th, 2022

If you are looking into starting with LÖVE, this guide compiles a lot of information that will help you to get started and save you hours of research.

### Coins Mentioned

Recently, I decided to spend a bit of time exploring LÖVE in my spare time. It uses Lua as programming language. Also, it’s an open-source engine available for free on Windows, Mac, and Linux. You can also build your game for iOS/Android and even WebGL.

Website: https://love2d.org/

I thought it would be easy, coming from Unity and different other languages. But it took me a bit of time to find the information or logic behind the language and engine.

So I decided to write this guide to help you get kick-started and easily transitioned to LÖVE.

# Guide

## Lua Language

Here are some examples of different things you may want to use:

### Variables

``````local x = 1 -- Only available in local scope
globalVar = 2 -- Global variable
``````

### Usual Operations

``````-- increment variable
i = i + 1

-- decrement variable
i = i - 1

-- concatenate the variable name with two strings
message = "Hello, my name is "..name.."!"

-- not equal operator (others are the same as others languages)
test = something ~= 0

-- logical operatiors: not, and, or
test1 = not something
test2 = something and somethingelse
test3 = something or somethingelse

-- tertiary operator (a ? b : c)
test = a and b or c
``````

Note: there is no `i++` in Lua to increment.

### If, elseif, else

``````if playerJumped then
-- Start jump animation
elseif playerCrouch then
-- Start crouch animation
else
-- Play idle animation
end
``````

### For Loops

``````-- Loop over i from 0 to 20 and increment by 1 at each cycle
for i = 0,20,1
do
-- Do something
end
``````

Note: you cannot have multiple variables in the for statement. If you need multiple variables look at doing a `while` loop instead.

### While Loops

``````local i = 0
while i < 20
do
-- Do something
i = i + 1
end
``````

### Functions

``````function f(argument1)
return something * argument1
end
``````

Note: all the primary types (numbers, boolean, nil, strings) are passed by values, everything else is passed by reference to the function.

### Classes and OOP

There is a native way of doing it, using the official language reference: https://www.lua.org/pil/16.1.html

But I found it a bit inelegantly and the function `setmetadatatable` is confusing.

So I found another solution that simplifies the code you need to write to create classes and child classes: https://gist.github.com/paulmoore/1429475

You only need to import the file `classes.lua` in your project, but definitely look at the examples.

But here is a quick example.

``````-- Load the classes helper file
local classes = require "classes"

local Enemy = classes.class() -- Create a class without any parent

Enemy.count = 0

function Enemy:init(name)
self.hp = 100
self.name = name
Enemy.count = Enemy.count + 1
end

-- static function
function Enemy.count()
return Enemy.count
end

local Orc = classes.class(Enemy) -- Create an Orc who is an enemy

function Orc:init(name, weapon)
self.super:init(name) -- call to parent constructor
self.weapon = weapon
end

-- Instantiate some orcs
local orcWithAxe = Orc.new("Zotor", "Axe")
``````

Notes:

• We use `new` to instantiate and define `init` in the class, which is called implicitly during the `new` operation.
• For static methods and variables, use the class name followed by a `.` then the name of the element you want to access.
• For object methods and attributes, use the variable name followed by a `:` then the name of the element you want to access.
• For private methods, don’t prefix the name of the function with the name of the class.

### Queues and Stacks

For that, I made a module based on the example provided by the official language reference. https://www.lua.org/pil/11.4.html

``````List = {}
function List.new ()
return {first = 0, last = -1}
end

function List.count(l)
return #table
end

function List.pushleft (list, value)
local first = list.first - 1
list.first = first
list[first] = value
end

function List.pushright (list, value)
local last = list.last + 1
list.last = last
list[last] = value
end

function List.popleft (list)
local first = list.first
if first > list.last then error("list is empty") end
local value = list[first]
list[first] = nil        -- to allow garbage collection
list.first = first + 1
return value
end

function List.popright (list)
local last = list.last
if list.first > last then error("list is empty") end
local value = list[last]
list[last] = nil         -- to allow garbage collection
list.last = last - 1
return value
end

return List
``````

Copy that in a file `list.lua` in your project. Then you can use it this way:

``````queue = List.new()
stack = List.new()

-- Enqueue values
List.pushright(queue, someValue)
List.pushright(queue, someValue)
List.pushright(queue, someValue)

-- Stack values
List.pushleft(stack, someValue)
List.pushleft(stack, someValue)
List.pushleft(stack, someValue)

-- Consume queue (FIFO)
local value1 = List.popleft(queue)
local value2 = List.popleft(queue)

-- Consume stack (LIFO)
local value3 = List.popleft(stack)
local value4 = List.popleft(stack)
``````

### Arrays and Tables (structured data)

Table is a specific type in Lua, it’s a bit like arrays in PHP, which can be associative or indexed.

``````-- same initialization
local array = {}
local table = {}

-- initializing array values
for i = 0,20,1
do
array[i] = i
end

-- initialization table values
table["x"] = 0
table["y"] = 0

-- or could be done at the declaration
local coords = {x=0, y=0}
``````

### Cron

If you want to schedule a specific action at a certain time, you want to use cron/timer. The easiest solution I found is to use the tool made by kikito: https://github.com/kikito/cron.lua

``````local cron = require 'cron'

local function printMessage()
print('Hello')
end

-- the following calls are equivalent:
local c1 = cron.after(5, printMessage)
local c2 = cron.after(5, print, 'Hello')

c1:update(2) -- will print nothing, the action is not done yet
c1:update(5) -- will print 'Hello' once

c1:reset() -- reset the counter to 0

-- prints 'hey' 5 times and then prints 'hello'
while not c1:update(1) do
print('hey')
end

-- Create a periodical clock:
local c3 = cron.every(10, printMessage)

c3:update(5) -- nothing (total time: 5)
c3:update(4) -- nothing (total time: 9)
c3:update(12) -- prints 'Hello' twice (total time is now 21)
``````

## LÖVE Engine Specifics

OK, Lua itself requires some learning, as you’ve seen. But LÖVE too!

### Structure

To run a game, you need a folder with at least a file `main.lua`.

Example of minimal structure:

``````function love.load()
-- Run once at game initialization
end

function love.keypressed(key, scancode, isrepeat)
-- Run each time a key on the keyboard is pressed
end

function love.mousepressed(x, y, button, istouch, presses)
-- Run each time a mouse button is pressed, supports multi-touch too
end

function love.update(dt)
-- Run at each frame before drawing it
-- This is where you handle most of your game logic
end

function love.draw()
-- Called at every frame to draw the game
end
``````

Note: There are other functions you may need, you can find the details here: https://love2d.org/wiki/love

### IDE

I advise you to use Visual Code with the extension https://marketplace.visualstudio.com/items?itemName=SK83RJOSH.love-launcher

Also, add a file `conf.lua` at the root of your folder, with the contents:

``````function love.conf(t)
t.console = true
end
``````

Now each time you press `Alt+L`, your game will pop plus the console window which can help to debug.

### Manipulate the Game Window

``````function love.load()
love.window.setMode(800, 600, {resizable=true, minwidth=400, minheight=300})
end
``````

### SVG Files

I found a nice package that adds support for SVG files to LÖVE. It is called TÖVE.

No active development since a couple of years ago, so be aware of that. But for me, it worked fine.

### Fixed Update

If you want to make your game at a constant frame rate, it’s not possible natively.

But I found that gist from Leandros: https://gist.github.com/Leandros/98624b9b9d9d26df18c4 that just does the job perfectly.

You need to copy/paste the code at the end of your main.lua and that’s it. Constant 60FPS.

You can tweak the FPS if you need.

### ECS (Entity Component System)

LÖVE is not natively using the paradigm ECS. But if you like ECS as I do, I found a tiny ECS framework for it. It was written in 2016, pretty old already, but it’s so tiny that it did age well.

If you want to use it, there’s only one file `tiny.lua` to copy to your project.

You can find a project using it here as an example: https://github.com/bakpakin/CommandoKibbles

### Post Processing Screen VFX

If you want to have some post-processing screen virtual effects, the easiest I found is to use moonshine: https://github.com/vrld/moonshine

It contains 16 effects like glow, vignette, crt, ... That you can chain as you want and change parameters on the fly.

If you want to create your own effect, you will have to start to write shaders and extend moonshine effects.

Check the GitHub README to understand how to use it.

### Screen Shake Effect

I found on the forum of LÖVE a reply from vrld that does the job: https://love2d.org/forums/viewtopic.php?p=193765#p193765

``````local t, shakeDuration, shakeMagnitude = 0, -1, 0
function startShake(duration, magnitude)
t, shakeDuration, shakeMagnitude = 0, duration or 1, magnitude or 5
end

function love.update(dt)
if t < shakeDuration then
t = t + dt
end
end

function love.draw()
if t < shakeDuration then
local dx = love.math.random(-shakeMagnitude, shakeMagnitude)
local dy = love.math.random(-shakeMagnitude, shakeMagnitude)
love.graphics.translate(dx, dy)
end
end
``````

## Game distribution

If you want to distribute your game, your starting point is the wiki at that address: love2d.org/wiki/Game_Distribution

### More details on WegGL

First, you need to install the tool from Davidobot: https://github.com/Davidobot/love.js

``````npm install -g love.js
``````

Then you will need a server and a web server running on it. On my end, I use Nginx, and this is how I configured my `location`:

``````location /beathoven/ {
alias /usr/share/nginx/html/beathoven/;
}
``````

After several tries looking at errors in the browser, I realize also I needed to edit the file `/etc/nginx/mime.types` to add the definition for wasm file:

``````    application/vnd.google-earth.kmz      kmz;
application/wasm                      wasm;
application/x-7z-compressed           7z;
``````

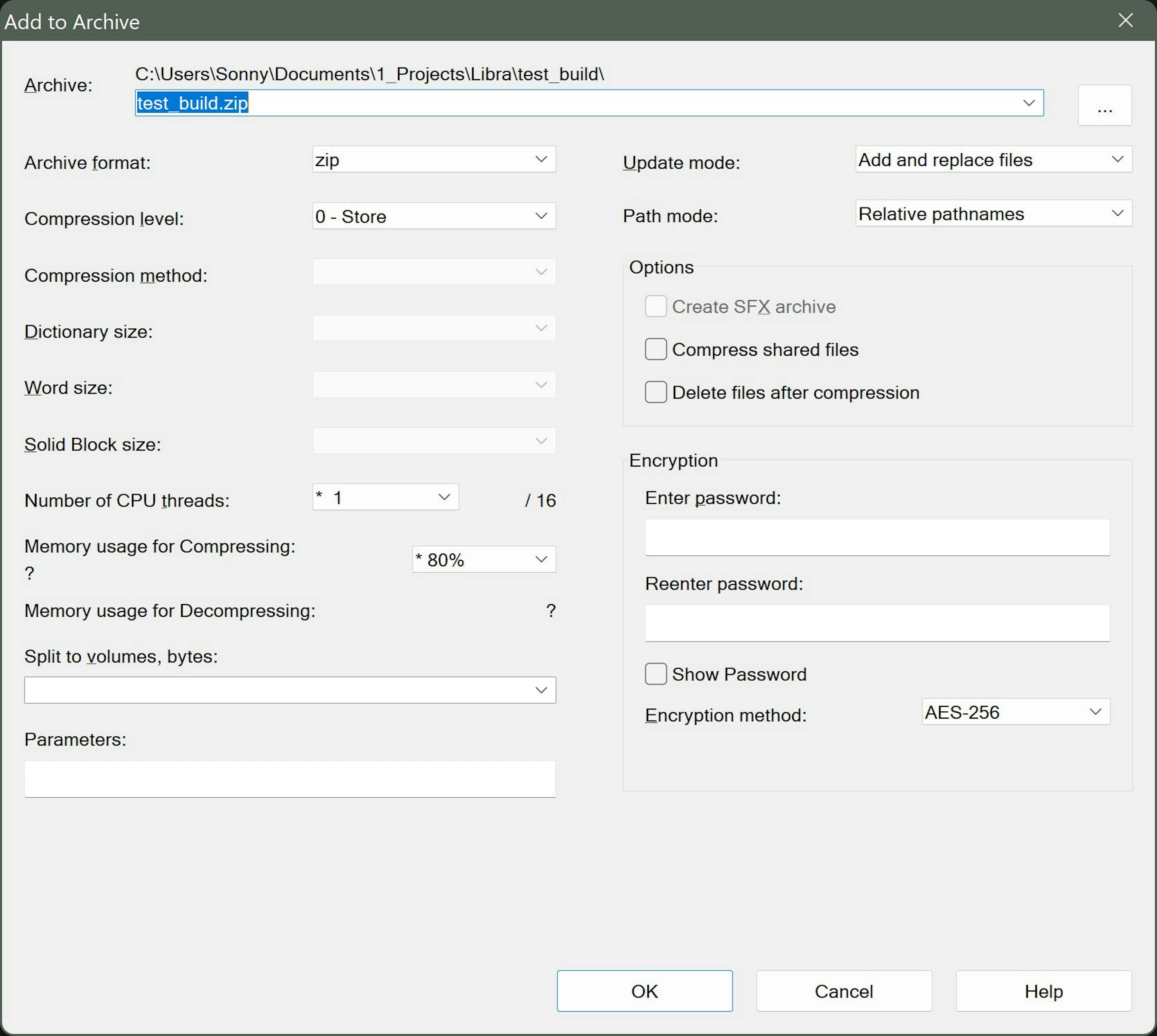

Use 7zip not tar on Windows

To package your game into a love file, you need to simply zip the files.

And since Windows 10, Windows includes a `tar` command line utility that you can use to make zip. But it looks like it’s not supported by the WebGL build. So I switched to 7Zip using the following parameters:

You can also use 7zip in the command line.

Example of building & deploy script

``````#!/bin/bash

tools/7za a -tzip Beathoven.zip assets/ gameobjects/ pages/ responsive/ utils/ fonts.lua main.lua -mx0
mv Beathoven.zip Beathoven.love

love.js -t Beathoven -c Beathoven.love game

ssh server rm -rf /usr/share/nginx/html/beathoven/*

scp -r game/* server:/usr/share/nginx/html/beathoven/
``````

# Conclusion

Obviously, I haven’t covered everything here, but I hope that it can give a nice introduction to help you get quickly productive with LÖVE and create some cool games!

Next week I’ll share about a Rhythm game called Beathoven I decided to make while exploring the possibilities of LÖVE.
