A Tale of Two (Docker Multi-Stage Build) Layers

by Patrick Lee ScottFebruary 26th, 2019
Read on Terminal Reader
Read this story w/o Javascript
tldt arrow

Too Long; Didn't Read

Docker is essentially an isolated environment for your code to run in. Just like you would provision a server, you provision a docker container. The Dockerfile is also a great place to run our unit tests, which is why I’ve decided to write the tests first. With tests in place, the next piece is getting our project ready for deployment. Using a multi-stage build is a good security measure as all build tooling is stripped out of the final layer of the Dockerfile.

Company Mentioned

Mention Thumbnail
featured image - A Tale of Two (Docker Multi-Stage Build) Layers
Patrick Lee Scott HackerNoon profile picture

Production Ready Dockerfiles for Node.js using SSR or Nginx

In the last article of this series, we finished adding unit tests to our project to reach 100% code coverage. With tests in place, the next piece is getting our project ready for deployment.

The last thing we need in place to get our application ready for production deployment is a Dockerfile.

The Dockerfile is also a great place to run our unit tests, which is why I’ve decided to write the tests first.

We have a few goals with our build:

  1. It should be secure
  2. It should be as slim as possible
  3. It should not build if quality standards are not met

With the goals in mind, let’s get started.

Docker is essentially an isolated environment for your code to run in. Just like you would provision a server, you provision a docker container. As discussed in A Better Way to Develop Node.js with Docker, most popular frameworks/languages have builds available from Docker Hub. Seems how we are using Node, we need an environment that runs node. We’ll start our Dockerfile with that.

But before we do, let’s talk about what happens when you run the command docker build. The first thing that happens is Docker determines the “context” in which the build is running. It sucks in everything from your currently directory as the context, except files or folders listed in the .dockerignore file.

We only want the bare minimum required for the build process, so let’s start by creating a .dockerignore file and ignoring everything else.




.cachecoveragedistnode_modules

Any other heavy folder that ends up in your project that is not needed for a successful build/test should also be ignored.

Here’s the difference in running docker build . -t ssr with and without the .dockerignore file:




➜ docker build . -t ssrSending build context to Docker daemon 166.6MB➜ docker build . -t ssrSending build context to Docker daemon 1.851MB

As you can see, it’s a pretty significant difference.

The build layer

Now let’s create the Dockerfile line by line:

FROM node:11.10.0-alpine AS build

First, as I mentioned, it’s a Node app, so it make sense to start with the official Node image. It’s production, and in production we want immutable, repeatable builds, and for that reason I used a specific Node version 11.10.0. Depending on your requirements you may want to choose the latest LTS version of Node 10. I just picked the newest available. You can find a list of the latest tags here: node Tags — Docker Hub.

Next, note the AS directive. This signals that this is not the final stage of the Dockerfile. Later on we can COPY artifacts out of this stage into our final container. The reason for this is to produce an image with the minimum number of artifacts. We can run more expensive commands in the first stage, and the bloat of their results will be stripped out in the next layer, leaving us with only the essentials to run the app.

As well as producing much smaller images, using a multi-stage build is also a good security measure as all build tooling, and thus, security vulnerabilities of the development tooling is stripped out of the final layer.

I’ve also decided to use an alpine version of node. This means the base OS is Alpine Linux, an ~5MB minimal linux distribution made for containerization.

Next, because we are using alpine and it does not come with many build tools, we should install the node-gyp collection of tools.




RUN apk add --update --no-cache \python \make \g++

With that we have all of the tooling in place for our builds and tests to run. You could potentially save 10 seconds or so off of the build time if the packages you are relying do not need to compile any of their dependencies using gyp by skipping the previous step. It will be stripped out of the final layer, however, so it’s not a huge savings, and many node dependencies do require it.

Our code is not yet inside of the container, which is pretty helpful in order to run it! Let’s copy it into a simply named src directory, and set that directory as our working directory. All future commands in this layer will be run in the specified working directory.


COPY . /srcWORKDIR /src

Next let’s install our Node dependencies.

RUN npm ci

npm ci works similarly to npm i, but skips the expensive dependency resolution step, and instead just installs the exact dependencies specified in your package-lock.json file. It’s basically a faster npm i for use in CI environments.

And now we can run our quality checks and build. If they do not pass, a new image will not be successfully created, and the build will fail. This is great for builds run as part of a Continuous Deployment pipeline.



RUN npm run lintRUN npm run buildRUN npm run test

I usually aim to fail as quickly as possible, and generally put test before build but our Server Side tests rely on having an application built in order to serve it, so in this case I’ve just flipped them.

Finally, for this layer, the last thing we want to do is now get rid of any development dependencies as they are no longer needed past this point.

RUN npm prune --production

That’s it for the first layer. Here’s the whole first layer in one place for readability:

FROM node:11.10.0-alpine AS build




RUN apk add --update --no-cache \python \make \g++


COPY . /srcWORKDIR /src

RUN npm ci



RUN npm run formatRUN npm run buildRUN npm run test

RUN npm prune --production

Now in the second layer we have a choice.

We built our application using a Node server to do streaming server side rendering. At this point in our Dockerfile we have a built client side application. We don’t necessarily need to use the server as well. We might decide we just want a statically served client-side only application instead. In the next part of the article I want to show you how you can go from here to either build a final layer using the original Node SSR server, or alternatively to package the application into a Nginx deployment.

Final Layer Option #1: Node Streaming SSR rendered app

First, let’s start with the Node SSR version of the Dockerfile, as it’s what the series has been focused on so far.

Directly under the first stage, we now want to add a second FROM statement. This time, we will not use AS because it is the final layer. We’ll also want to go ahead and expose the port that the application runs on, as well as set a working directory as we did before.

FROM node:11.10.0-alpine AS build

// ...

RUN npm prune --production

FROM node:11.10.0-alpine


ENV PORT=1234EXPOSE $PORT

WORKDIR /usr/src/service

Again, notice that we starting with the same alpine node image at a specific version. When we create a new layer, nothing is copied over from the previous layer automatically. It’s a fresh slate. We need to copy the artifacts, in the case of our Node application, a couple files and folders, into our final layer. Let’s do that next:


COPY --from=build /src/node_modules node_modulesCOPY --from=build /src/dist dist

Finally, we can run our app using node, but we want to set the user to not be root before doing so. The official Node image creates a user named node for this purpose.

USER node

CMD ["node", "./dist/server/index.js"]

When deploying, we should be relying on an orchestrator to manage restarting and scaling the application for us, such as Kubernetes or Docker Swarm, so there’s no need to use tools like pm2 or forever.

And that’s all!

Here’s the final Dockerfile:

FROM node:11-alpine AS build




RUN apk add --update --no-cache \python \make \g++


COPY . /srcWORKDIR /src

RUN npm ci



RUN npm run formatRUN npm run buildRUN npm run test

RUN npm prune --production

FROM node:11.10.0-alpine

EXPOSE 1234

WORKDIR /usr/src/service


COPY --from=build /src/node_modules node_modulesCOPY --from=build /src/dist dist

USER node

CMD ["node", "./dist/server/index.js"]

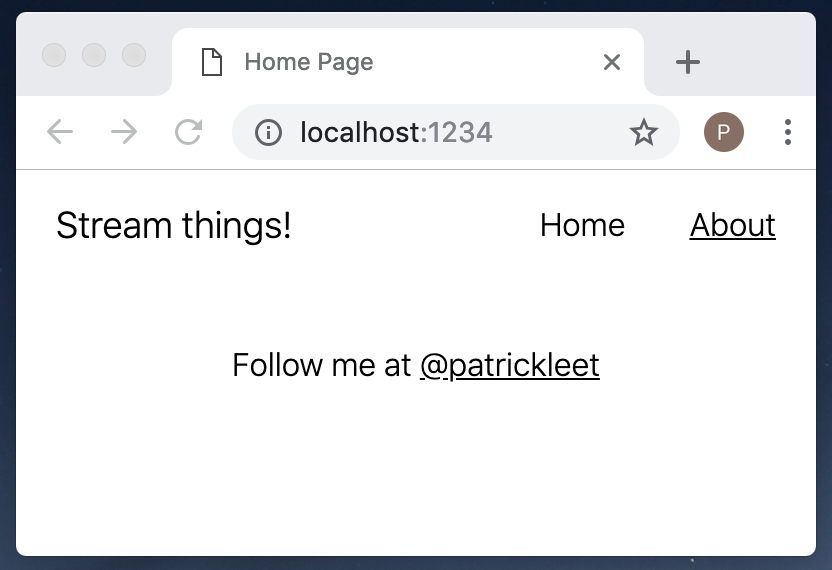

And building and running the app:



➜ docker build . -t ssr➜ docker run -p 1234:1234 ssr{"level":30,"time":1551155555272,"msg":"Listening on port 1234...","pid":1,"hostname":"d5b0db2acfbc","v":1}

If you’re paying attention or have read other Docker articles before you may notice that I haven’t defined a HEALTHCHECK. HEALTHCHECK is a command that is called when running in certain orchestrators, such as Docker Swarm. While running in Kubernetes, we instead rely on Kubernetes’ liveness and readiness probes.

For more info on writing healthchecks for node check out Effective Docker Healthchecks For Node.js. And just for completeness, our SSR Node server is quite simple, so in this case using something like curl would be just fine.

Here’s a modified version of the final stage with a HEALTHCHECK using curl defined.

// ... first layer ...

FROM node:11.10.0-alpine

RUN apk add --update --no-cache curl

EXPOSE 1234

WORKDIR /usr/src/service


COPY --from=build /src/node_modules node_modulesCOPY --from=build /src/dist dist




HEALTHCHECK --interval=5s \--timeout=5s \--retries=6 \CMD curl -fs http://localhost:1234/ || exit 1

USER node

CMD ["node", "./dist/server/index.js"]

Final Layer Option #2: Nginx to serve static client side app

Now, let’s create a second Dockerfile, an alternative way to finish our final stage.

We are gonna start with the same build layer, but this time, our final stage will use nginx to serve the application statically, rather than rendered on the server side with Node.

Before we do, we will need to create a new entry in our package.json’s script section. Add the following scripts:

"build:nginx": "rimraf dist && npm run generate-imported-components && npm run create-bundle:nginx",

"create-bundle:nginx": "cross-env BABEL_ENV=client parcel build app/index.html -d dist/client --public-url .",

The difference with the SSR build is the public url we set to . when we run the build because we want it to be relative to the index.html file in this case.

Now, create ./nginx/Dockerfile:

FROM node:11.10.0-alpine AS build




RUN apk add --update --no-cache \python \make \g++


COPY . /srcWORKDIR /src

RUN npm ci



RUN npm run formatRUN npm run build:nginxRUN npm run test

RUN npm prune --production

FROM nginx:1.15.8-alpine

RUN apk add --update --no-cache curl

WORKDIR /usr/src/service


COPY --from=build /src/dist ./distCOPY --from=build /src/nginx ./nginx




HEALTHCHECK --interval=5s \--timeout=5s \--retries=6 \CMD curl -fs http://localhost:1234/ || exit 1


RUN ["chmod", "+x", "./nginx/entrypoint.sh"]ENTRYPOINT [ "ash", "./nginx/entrypoint.sh" ]

There isn’t much new here, except instead of using a command, we are using an ENTRYPOINT. This allows you to run a script instead of a command. We also want to make sure to call it with ash the alpine linux version of sh. The RUN line just above is simply changing linux permissions to make the file executable.

The script that we will make in a moment will start nginx using a config file that we also need to create and store in an nginx folder.

Let’s start with the entrypoint.sh script. I’m gonna include two useful snippets inside that help with using environment variables commented out. We don’t need them for this project, but it’s a common requirement, such as when you want to use nginx as a proxy to a backend, or perhaps include an analytics token or key in the JS bundle.

#!/bin/bash













# This script can be used when you have webpack or parcel builds that# insert env variables at build time, usually as build args.# Just set the build args to an a unique string for replacement,# and do it post build instead. Uncomment `echo` through `done` and modify# to match your env variables# --- Start Insert ENV to JS bundle ---# echo "Inserting env variables"# for file in ./dist/**/*.js# do# echo "env sub for $file"# sed -i "s/REPLACE_MIXPANEL_TOKEN/${MIXPANEL_TOKEN}/g" $file# done# --- End Insert ENV to JS bundle ---






# And if you need env variables in Nginx, use this instead of `cp`# --- Start Insert ENV to Nginx---# echo "Injecting Nginx ENV Vars..."# envsubst '${GRAPHQL_URL}' < nginx/nginx.conf.template > /etc/nginx/nginx.conf# --- End Insert ENV to Nginx---cp nginx/nginx.conf.template /etc/nginx/nginx.conf


echo "Using config:"cat /etc/nginx/nginx.conf


echo "Starting nginx..."nginx -c '/etc/nginx/nginx.conf' -g 'daemon off;'

Basically all we do is copy over our Nginx config to the /etc/nginx folder, and then start it.

Here’s the nginx config — save it as./nginx/nginx.config.template. You can use environment variables in it if you uncomment the envsubst line above.



events {worker_connections 1024;}




http {server {include /etc/nginx/mime.types;listen 1234;

root   /usr/src/service/dist/client;
index  index.html;

gzip on;
gzip\_min\_length 1000;
gzip\_buffers 4 32k;
gzip\_proxied any;
gzip\_types text/plain application/javascript application/x-javascript text/javascript text/xml text/css;
gzip\_vary on;

location ~\* \\.(?:css|js|eot|woff|woff2|ttf|svg|otf) {
  # Enable GZip for static files
  gzip\_static on;

  # Indefinite caching for static files
  expires max;

  add\_header Cache-Control "public";
}


}}

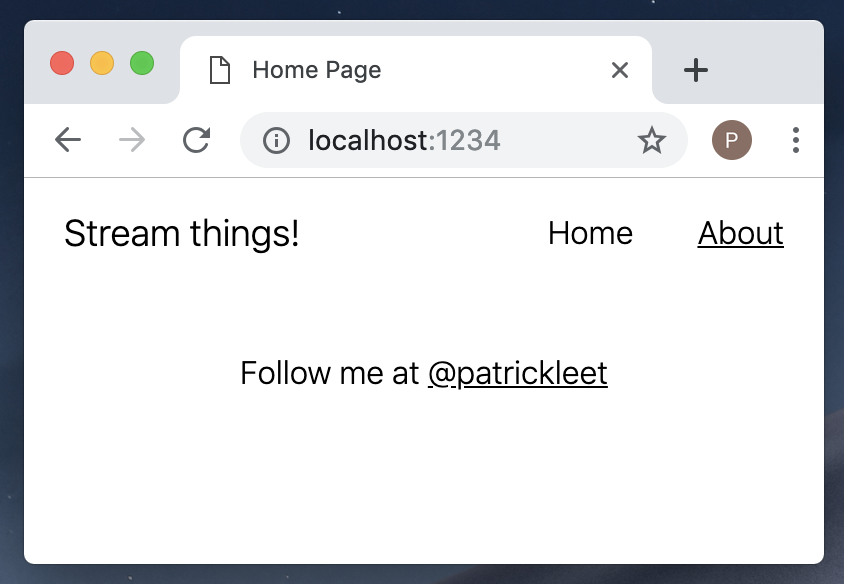

Let’s give it a run!

➜ docker run -p 1234:1234 nginx-server

Starting nginx...

Conclusion

In this article I’ve built on the previous boilerplate in order to add two different Dockerfiles that could be used for production. Depending on your use case, one may be more useful than another in certain situations.

That’s all for this part!

If you haven’t make sure you check out other articles in the series! This was part 5.


Part 1: Move over Next.js and Webpack 🤯_Simple Streaming Server Side Rendered (SSR) React + styled-components with Parcel_hackernoon.com


Part 2: A Better Way to Develop Node.js with Docker_And Keep Your Hot Code Reloading_hackernoon.com


Part 3: Enforcing Code Quality for Node.js_Using Linting, Formatting, and Unit Testing with Code Coverage to Enforce Quality Standards_hackernoon.com


Part 4: The 100% Code Coverage Myth_There’s a lot of advice around the internet right now saying that 100% coverage is not a worthwhile goal. Is it?_hackernoon.com

All of these articles are working on building out this boilerplate:


patrickleet/streaming-ssr-react-styled-components_streaming ssr react styled components with Parcel. Contribute to patrickleet/streaming-ssr-react-styled-components…_github.com

So be sure to give it a star if you’ve found this useful!

Until next time!

~ Patrick Lee Scott
