This tutorial is the third one from a series of tutorials that would help you build an abstractive text summarizer using tensorflow , today we would discuss the main building block for the text summarization task , begining from RNN why we use it and not just a normal neural network , till finally reaching seq2seq model

#### About Series

This is a series of tutorials that would help you build an abstractive text summarizer using tensorflow using multiple approaches , **_you don’t need to download the data nor you need to run the code locally on your device_** , as **data** is found on **google drive** , (you can simply copy it to your google drive , learn more [here](https://hackernoon.com/begin-your-deep-learning-project-for-free-free-gpu-processing-free-storage-free-easy-upload-b4dba18abebc)) , and the **code** for this series is written in Jupyter notebooks to run on **google colab** can be found [here](https://github.com/theamrzaki/text_summurization_abstractive_methods)

We have covered so far (code for this series can be found [here](https://github.com/theamrzaki/text_summurization_abstractive_methods))

0\. [Overview on the free ecosystem for deep learning](https://hackernoon.com/begin-your-deep-learning-project-for-free-free-gpu-processing-free-storage-free-easy-upload-b4dba18abebc)

1.  [Overview on the text summarization task and the different techniques for the task](https://hackernoon.com/text-summarizer-using-deep-learning-made-easy-490880df6cd)
2.  [Data used and how it could be represented for our task](https://hackernoon.com/abstractive-text-summarization-tutorial-2-text-representation-made-very-easy-ef4511a1a46)

so lets get started

### Quick Recap

our task is of text summarization , we call it abstractive as we teach the neural network to generate words not to merely copy words .

the data that would be used would be news and their headers , it can be found on my google drive , so you just copy it to your google drive without the need to download it ([more on this](https://hackernoon.com/abstractive-text-summarization-tutorial-2-text-representation-made-very-easy-ef4511a1a46))

We would represent the data using word embeddings , which is simply converting each word to a specific vector , we would create a dictionary for our words ([more on this](https://hackernoon.com/abstractive-text-summarization-tutorial-2-text-representation-made-very-easy-ef4511a1a46))

there are [different approaches](https://hackernoon.com/begin-your-deep-learning-project-for-free-free-gpu-processing-free-storage-free-easy-upload-b4dba18abebc) for this task , they are built over a corner stone concept , and they keep on developing and building up , they start from a network called seq2seq then they add up to be different networks that increase the overall accuracy , the code for these different approaches can be found [here](https://github.com/theamrzaki/text_summurization_abstractive_methods)

Today we would discuss what is seq2seq and why it is used in the first place , so lets start !!

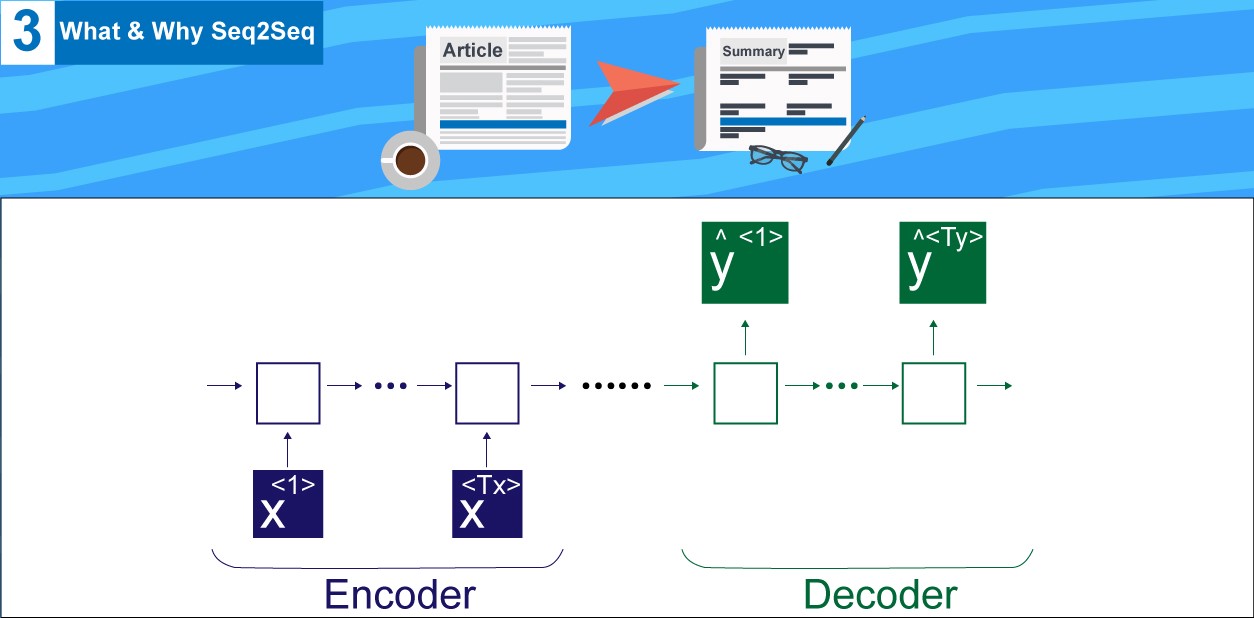

![](https://hackernoon.com/hn-images/1*0l4om4NAe6VzoQQybHmW4Q.jpeg)

> This tutorial has been based by the amazing work of **Andrew NG** , [his course on RNN](https://www.coursera.org/lecture/nlp-sequence-models/recurrent-neural-network-model-ftkzt) has been truly useful , i recommend you to see it

### 1- Why we use complex network structure not a simple neural network

this is truly an important question to be asked , in natural language tasks , it is important for the network to understand the word itself , not to link the word to a specific location , this is what we call (**sharing features accross different parts of text**)

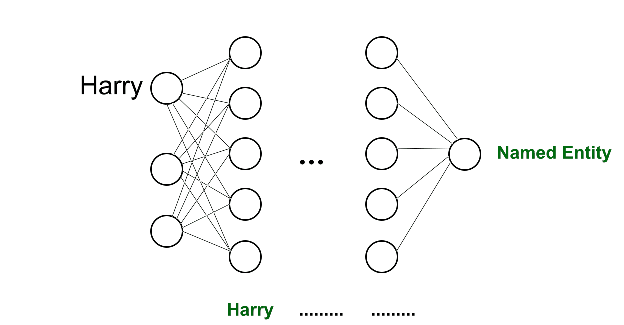

![](https://hackernoon.com/hn-images/1*UCFuiWrLtUSyH9F9cW5jXA.gif)

normal neural network inefficient for nlp

assume our task was identifying named entities within a text , as we can see in the previous gif , a normal neural network won’t be able to identify the name **Harry** if it is found in different parts of the text

so this is why we would need a new network for this task , this network is called (Recurrent Neural Network) RNN

![](https://hackernoon.com/hn-images/1*XYyKYn71g8flAXegcYsA1A.gif)

RNN for nlp

here using a RNN , the network was able to identify the name Harry if found in different parts of text .

RNN is the base of seq2seq , as we would see

### 2- What is RNN (Recurrent Neural Network)

Recurrent Neural Network is a type of neural network that **takes time into consideration** , each box (box with circles as seen in the gif)

![](https://hackernoon.com/hn-images/1*xYkzes6ElpC9EHnbPpOrVg.png)

RNN network

is the actually our network , and we use it multiple times , each time , is a step in time , as each time step we would feed it with a word from our sentence , it also takes the output from the previous time step ,

so to recap , RNN is

1.  takes time into consideration (runs multiple times in time)
2.  takes output from previous step

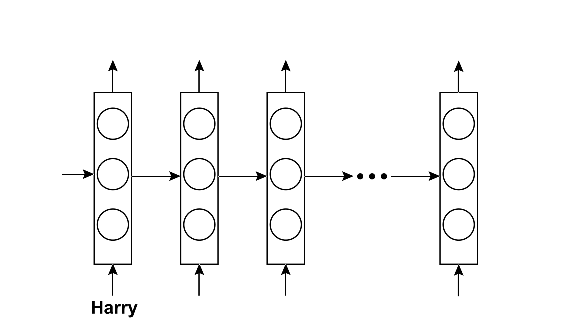

![](https://hackernoon.com/hn-images/1*o2i1AQnWOyQDBAdI2ScYTQ.gif)

RNN ex 1

here as we see , it takes the input from previous steps

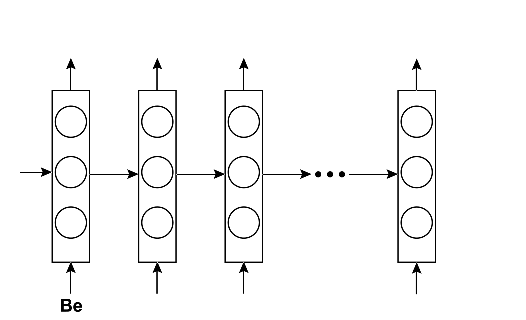

![](https://hackernoon.com/hn-images/1*nVGNidH08D4qos_b91rbag.gif)

RNN ex 2

and it can understand named entity recognition independent to the location , which is our needed behavior

### 3- RNN Feed-forward steps

like any other neural network , we would need a feed-forward step

![](https://hackernoon.com/hn-images/1*h6uMPsXIBq8A1d23hw8z5A.gif)

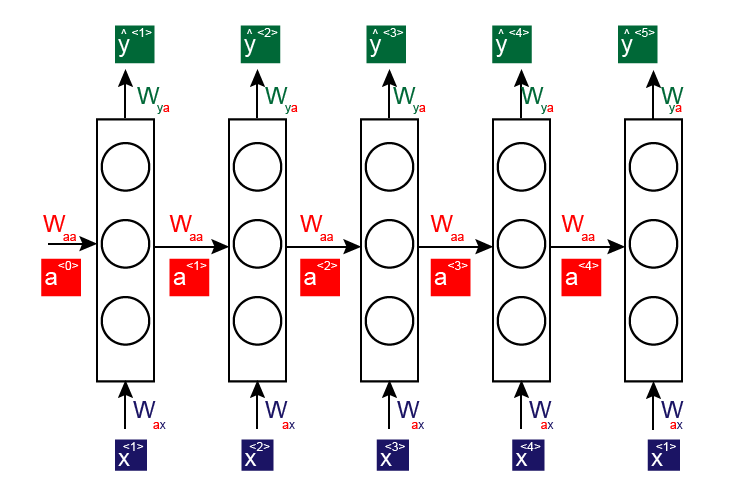

Here we would have

1.  X vectors (blue vector) (inputs , which would be words from our sentence)
2.  Y vectors (green vector)(outputs , would would be the words exported from each time step
3.  A vectors (red vectors) (activaations from each time step)

there are also 3 types of weights

1.  Wax vectors (blue) (that would be multiplied by input) , **same for all time steps**
2.  Wya vectors (green) ,(that would be multiplied by output) ,**same for all time steps**
3.  Waa vectors (red) (that would be multiplied by activations) , **same for all time steps**

![](https://hackernoon.com/hn-images/1*GEIC8EtQnJpDmITSc7AFhA.png)

the 2 main functions that govern our work are

![](https://hackernoon.com/hn-images/1*__8QSENV_CQlAZCk0RDCcg.jpeg)

which calculates the next activation parameter using the previous activation parameter and previous input with a bias , here we use activation function g which is mostly either tanh or relu

![](https://hackernoon.com/hn-images/1*7aJ8pGzwkucwwWLqM3O6SA.jpeg)

a

the other function is for calculating the output from each time step , here we use the activation parameter , with the bias , with also using a g activation function either tanh or relu

then we would need to calculate loss to be used for back propagation

the main used function is (training Loss)

![](https://hackernoon.com/hn-images/1*1AylTsdF3kKqo_wFiKq7Cg.png)

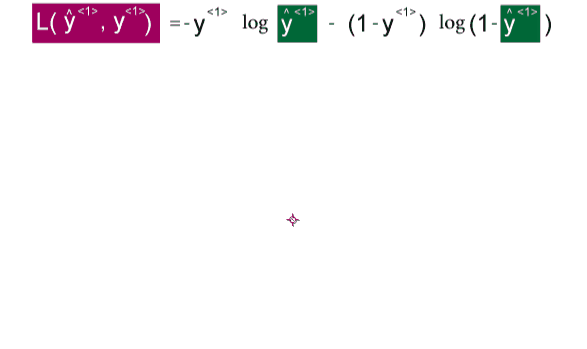

here we use the **generated output** yhat with the **given output** y

![](https://hackernoon.com/hn-images/1*lbgxUtRzUYDl9wSWMpWQ2A.gif)

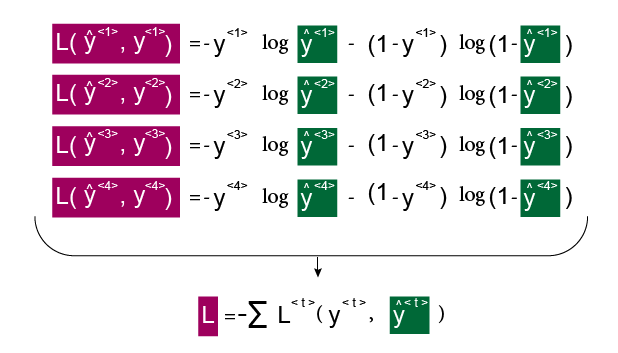

then we simply add them all to get the total loss

![](https://hackernoon.com/hn-images/1*t2TVeX9G0wrRlBsZeuV4wg.png)

now after that we have talked about training stage , we need to talk about running our network

### 4- RNN Running stage

now after training our network , we would need to run it ,this stage is also called sampling (_here we would sample random words according to trained language model, for illustration of how rnn runs_)

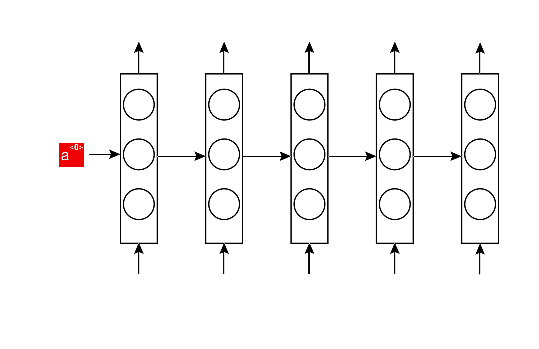

![](https://hackernoon.com/hn-images/1*BlZ-a3PGa8YYZDQiKFiObA.gif)

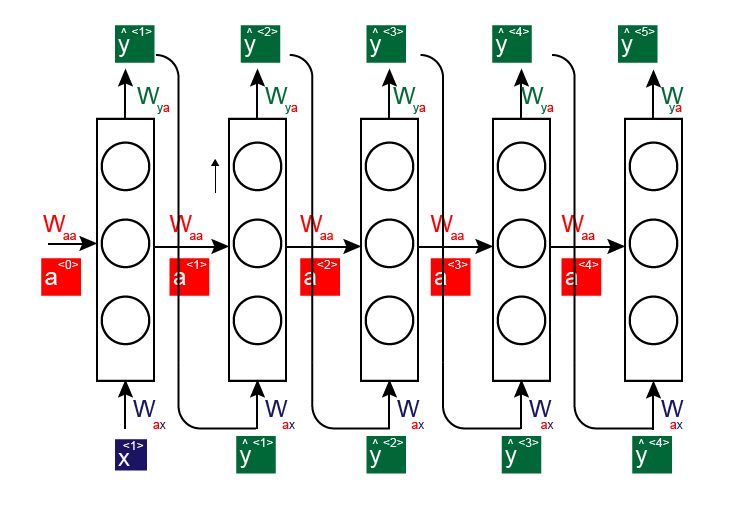

as we see , the inputs from a time step is forwarded to the other time step till we reach the final output , we would need a tokken <eot> , end of text then we would stop our running.

![](https://hackernoon.com/hn-images/1*fyWCGMbdvnrPW-gnZskBlQ.png)

Here we would calculate the cost of this run

the main function for this is

![](https://hackernoon.com/hn-images/1*QBNwmf0CT0RIV3oNCQyShA.png)

were we would use both the generated output and the original output

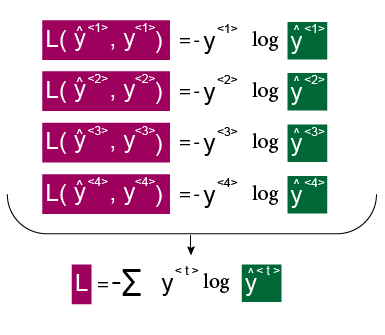

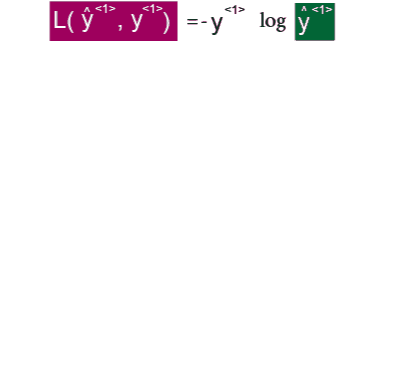

then we simply add them up to get the total output

![](https://hackernoon.com/hn-images/1*r8o6ZiJ4C9MTAjBdqKu5Sg.gif)

![](https://hackernoon.com/hn-images/1*ZgIntuGQAO8jtcB9T2E2xA.png)

In All of the above we only talked about one type of RNN , which is many-to-many architectures with same lengths for both input and output , this won’t be our case

As for text summarization , we need to have the ability to have different lengths for input and for output , for this we would finally talk about **Seq2Seq**

### 5- We Finally Reached Seq2Seq

we need a special network that takes input of length (Tx) , and generates another output of another different length (Ty) , this architecture is called Encoder Decoder .

Both Encoder Decoder here are RNN network , but encoder uses input , and generates an output state that is then used as input to decoder stage

![](https://hackernoon.com/hn-images/1*bnRvZDDapHF8Gk8soACtCQ.gif)

This architecture is used for both tasks

1.  Machine translation
2.  Text Summarization

### Recap

Today we have discussed

1.  why we use RNN for text summarization and not a simple neural network ,
2.  what is RNN (feed forward , running)
3.  Then we finally reached seq2seq architecture using encoder decoder

But we can even have a better architecture for text summarization , we can add modifications to RNN to increase its efficiency , and to solve some of its problems , we can also add attention mechanism which proved extremely beneficial for our task , we could also use beam search

All of these concepts would be discussed in the coming tutorial If GOD wills it .

> I truly hope you have enjoyed reading this tutorial , and i hope i have made these concepts clear , all the code for this series of tutorials are found [here](https://github.com/theamrzaki/text_summurization_abstractive_methods) , you can simply use google colab to run it , please review the tutorial and tell me what do you think about it , hope to see you again
