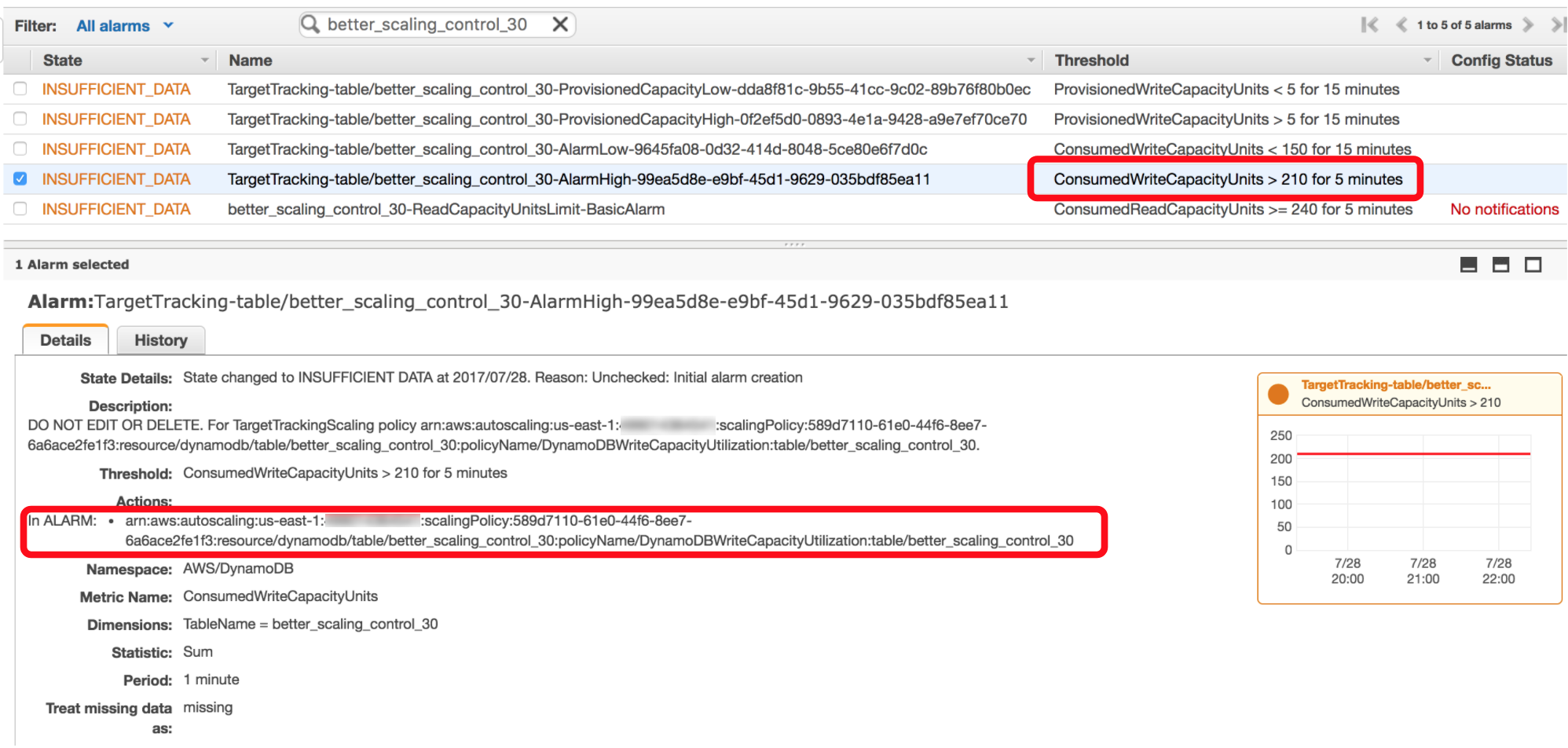

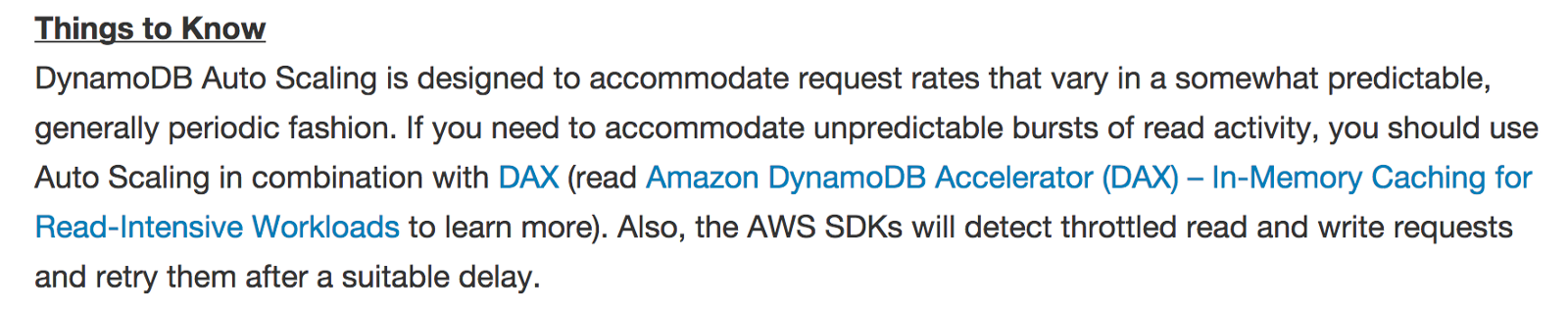

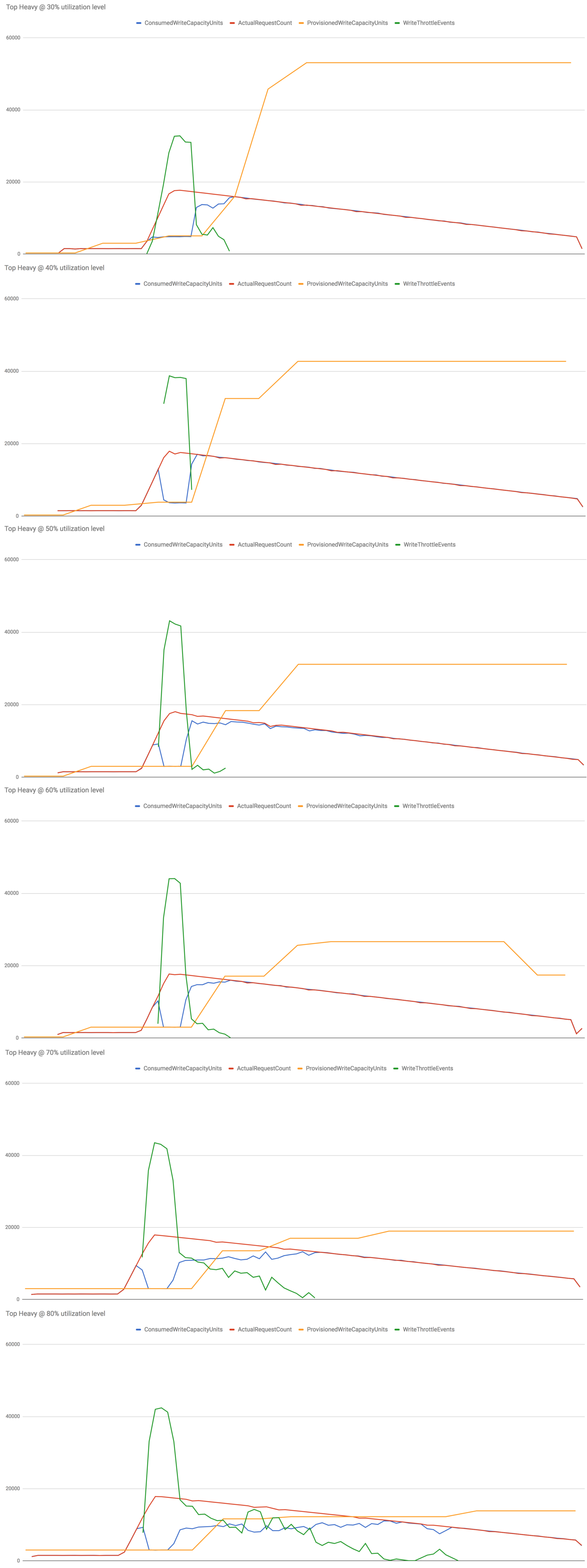

AWS announced the long awaited auto scaling capability for DynamoDB, but we found it takes too long to scale up and doesn’t scale up aggressively enough as it’s held back by using consumed capacity as scaling metric rather than actual request count. Here at we developed an in-house tech to auto scale DynamoDB throughput and have used it successfully in production for a few years. It’s even integrated with our tooling and scales up our DynamoDB tables according to the schedule of live events. This way, our tables are always provisioned just ahead of that inevitable spike in traffic at the start of an event. Space Ape Games LiveOps It looks as though the author’s test did not match the kind of workload that DynamoDB Auto Scaling is designed to accommodate: In our case, we also have a (typically around 1:1) because every action the players perform in a game changes their state in some way. So unfortunately we can’t use DAX as a get-out-of-jail free card. high write-to-read ratio How DynamoDB auto scaling works When you modify the auto scaling settings on a table’s read or write throughput, it automatically creates/updates CloudWatch alarms for that table — four for writes and four for reads. As you can see from the screenshot below, DynamoDB auto scaling uses CloudWatch alarms to trigger scaling actions. When the consumed capacity units breaches the utilization level on the table (which defaults to 70%) for 5 mins consecutively it will then scale up the corresponding provisioned capacity units. Problems with the current system, and how it might be improved From our own tests we found DynamoDB’s lacklustre performance at scaling up is rooted in 2 problems: The CloudWatch alarms requires 5 consecutive threshold breaches. When you take into account the latency in CloudWatch metrics (which typically are a few mins behind) it means . This reaction time is too slow. scaling actions occur up to 10 mins after the specified utilization level is first breached The . The consumed capacity units is itself constrained by the provisioned capacity units even though it’s possible to temporarily exceed the provisioned capacity units with . What this means is that once you’ve exhausted the saved burst capacity, the actual request count can start to outpace the consumed capacity units and scaling up is not able to keep pace with the increase in actual request count. We will see the effect of this in the results from the control group later. new provisioned capacity unit is calculated based on consumed capacity units rather than the actual request count burst capacity Based on these observations, we hypothesize that you can make two modifications to the system to improve its effectiveness: trigger scaling up after 1 threshold breach instead of 5, which is in-line with the mantra of . “scale up early, scale down slowly” instead of consumed capacity units, and calculate the new provisioned capacity units using actual request count as well. trigger scaling activity based on actual request count As part of this experiment, we also prototyped these changes (by hijacking the CloudWatch alarms) to demonstrate their improvement. Testing Methodology The most important thing for this test is a and way of generating the desired traffic patterns. reliable reproducible To do that, we have a recursive function that will make requests against the DynamoDB table under test every second. The items per second rate is calculated based on the elapsed time ( ) in seconds so it gives us a lot of flexibility to shape the traffic pattern we want. BatchWrite t Since a Lambda function can only run for a max of 5 mins, when is less than 2000 the function will recurse and pass the last recorded elapsed time ( ) in the payload for the next invocation. context.getRemainingTimeInMillis() t The result is a continuous, smooth traffic pattern you see below. We tested with 2 traffic patterns we see regularly. Bell Curve This should be a familiar traffic pattern for most — a slow & steady buildup of traffic from the trough to the peak, followed by a faster drop off as users go to sleep. After a period of steady traffic throughout the night things start to pick up again the next day. For many of us whose user base is concentrated in the North America region, the peak is usually around 3–4am UK time — the more reason we need to do its job and not wake us up! DynamoDB Auto Scaling This traffic pattern is characterised by a) steady traffic at the trough, b) slow & steady build up towards the peak, c) fast drop off towards the trough, and repeat. Top Heavy This sudden burst of traffic is usually precipitated by an event — a marketing campaign, a promotion by the app store, or in our case a scheduled event. LiveOps In most cases these events are predictable and we scale up DynamoDB tables ahead of time via our automated tooling. However, in the unlikely event of an unplanned burst of traffic (and it has happened to us a few times) a auto scaling system should scale up quickly and aggressively to minimise the disruption to our players. good This pattern is characterised by a) sharp climb in traffic, b) a slow & steady decline, c) stay at a stead level until the anomaly finishes and it goes back to the Bell Curve again. We tested these traffic patterns against several settings (default is 70%) to see how it handles them. We measured the performance of the system by: utilization level the % of successful requests (ie. consumed capacity / request count) the total no. of throttled requests during the test These results will act as our control group. We then tested the same traffic patterns against the 2 hypothetical auto scaling changes we proposed above. To prototype the proposed changes we hijacked the CloudWatch alarms created by DynamoDB auto scaling using CloudWatch events. When a API call is made, our function is invoked and replaces the existing CloudWatch alarms with the relevant changes — ie. set the to 1 minute for hypothesis 1. PutMetricAlarm change_cw_alarm EvaluationPeriods To avoid an invocation loop, the Lambda function will only make changes to the CloudWatch alarm if the EvaluationPeriod has not been changed to 1 min already. The change_cw_alarm function changed the breach threshold for the CloudWatch alarms to 1 min. For hypothesis 2, we have to take over the responsibility of scaling up the table as we need to calculate the new provisioned capacity units using a custom metric that tracks the actual request count. Hence why the for the CloudWatch alarm is also overridden here. AlarmActions The SNS topic is subscribed to a Lambda function which scales up the throughput of the table. Result (Bell Curve) The test is setup as following: table starts off with 50 write capacity unit traffic holds steady for 15 mins at 25 writes/s traffic then increases to peak level (300 writes/s) at a steady rate over the next 45 mins traffic drops off back to 25 writes/s at a steady rate over the next 15 mins traffic holds steady at 25 writes/s All the units in the diagrams are of SUM/min, which is how CloudWatch tracks and , but I had to normalise the (which is tracked as per second unit) to make them consistent. ConsumedWriteCapacityUnits WriteThrottleEvents ProvisionedWriteCapacityUnits Let’s start by seeing how the control group (vanilla DynamoDB auto scaling) performed at different utilization levels from 30% to 80%. I’m not sure why the and metrics didn’t match exactly when the utilization is between 30% and 50%, but seeing as there were no throttled events I’m going to put that difference down to inaccuracies in CloudWatch. total consumed units total request count I make several observations from these results: At 30%-50% utilization levels, write ops are never throttled — this is what we want to see in production. At 60% utilization level, the slow reaction time (problem 1) caused writes to be throttled early on as the system adjust to the steady increase in load but it was eventually able to adapt. At 70% and 80% utilization level, things really fell apart. The growth in the actual request count outpaced the growth of consumed capacity units, more and more write ops were throttled as the system failed to adapt to the new level of (as opposed to utilization measured by consumed capacity units, ie problem 2). actual utilization “allowed” Hypothesis 1 : scaling after 1 min breach Some observations: At 30%-50% utilization level, there’s no difference to performance. At 60% utilization level, the early throttled writes we saw in the control group is now addressed as we decreased the reaction time of the system. At 70%-80% utilization levels, there is negligible difference in performance. This is to be expected as the poor performance in the control group is caused by problem 2, so improving reaction time alone is unlikely to significantly improve performances in these cases. Hypothesis 2 : scaling after 1 min breach on actual request count Scaling on actual request count and using actual request count to calculate the new provisioned capacity units yields amazing results. There were at 30%-70% utilization levels. no throttled events Even at 80% utilization level both the and total no. of throttled events have improved significantly. success rate This is an acceptable level of performance for an autoscaling system, one that I’ll be happy to use in a production environment. Although, I’ll still lean on the side of caution and choose a utilization level at or below 70% to give the table enough headroom to deal with sudden spikes in traffic. Results (Top Heavy) The test is setup as following: table starts off with 50 write capacity unit traffic holds steady for 15 mins at 25 writes/s traffic then jumps to peak level (300 writes/s) at a steady rate over the next 5 mins traffic then decreases at a rate of 3 writes/s per minute Once again, let’s start by looking at the performance of the control group (vanilla DynamoDB auto scaling) at various utilization levels. Some observations from the results above: At 30%-60% utilization levels, most of the throttled writes can be attributed to the slow reaction time (problem 1). Once the table started to scale up the no. of throttled writes quickly decreased. At 70%-80% utilization levels, the system also didn’t scale up aggressively enough (problem 2). Hence we experienced throttled writes for much longer, resulting in a much worse performance overall. Hypothesis 1 : scaling after 1 min breach Some observations: Across the board the performance has improved, especially at the 30%-60% utilization levels. At 70%-80% utilization levels we’re still seeing the effect of problem 2 — not scaling up aggressively enough. As a result, there’s still a long tail to the throttled write ops. Hypothesis 2 : scaling after 1 min breach on actual request count Similar to what we observed with the traffic pattern, this implementation is significantly better at coping with sudden spikes in traffic at all utilization levels tested. Bell Curve Even at 80% utilization level (which really doesn’t leave you with a lot of head room) an impressive 94% of write operations succeeded (compared with 73% recorded by the control group). Whilst there is still a significant no. of throttled events, it compares favourably against the 500k+ count recorded by the vanilla DynamoDB auto scaling. Conclusions I like DynamoDB, and I would like to use its auto scaling capability out of the box but it just doesn’t quite match my expectations at the moment. I hope someone from AWS is reading this, and that this post provides sufficient proof (as you can see from the data below) that it can be vastly improved with relatively small changes. Feel free to play around with the demo, all the code is available . here _better-dynamodb-scaling - Make DynamoDB's autoscaling action happen faster_github.com theburningmonk/better-dynamodb-scaling Like what you’re reading? Check out my video course and learn how to run a serverless application in production. Production-Ready Serverless We will cover topics including: authentication & authorization with API Gateway & Cognito testing & running functions locally project organization strategies CI/CD centralised logging monitoring distributed tracing with X-Ray tracking correlation IDs performance & cost optimization error handling config management canary deployment VPC security leading practices for Lambda, Kinesis, and API Gateway and include all the latest changes announced at the recent AWS re:Invent conference! _See it. Do it. Learn it! Production-Ready Serverless: Operational Best Practices introduces you to leading patterns and…_bit.ly Production-Ready Serverless
