Table of contents Step 1: Installing the PlaneSections Library Step 2: Creating Beam Model Step 3: Create Support Conditions Step 4: Create Loadings on the Beam Step 5: Visualizing the Created Beam Step 6: Plotting Shear force and Bending Moment Diagram Result and Conclusion For those of us taking structural mechanics and strength of materials courses, we all know how difficult it can get when trying to verify our analysis results. This gets more complicated when doing beam analysis, as we are trying to get what our beam element’s shear force and bending moment diagram will look like. In addition, when given a reinforced concrete design project, we also start by analyzing our beam elements, which transfer wall and slab load to columns and from column to foundation. These analysis and cross-checking processes are tedious and time-consuming when verifying our results by hand. Hence, for those of us with an interest in developing finite element tools for structural analysis, this article addresses how to create a simple beam model, and plot its shear force and bending moment diagram using a python library called planeSections. This library is created by csbloom which is built upon openseesPy. PlaneSections is a lightweight finite element beam bending library built on OpenSeesPy. The aim of PlaneSections is to make beam analyses easier, allowing for faster documentation of structural calculations. Being built on OpenSees, the structural results are reliable, and there is lots of room to create more complex models. https://youtu.be/4lgD6Mv7qaA The planeSection library has four core modules which are as follows: The Builder module is used to create the beam and beam elements. The beam class is the core class of the module, and the one the user interacts with the most. The Analysis module is used to analyze the beam using OpenSeesPy and document the results. The Diagram module is used to plot the beam model. The Postprocess module is used to plot the responses of the beam from the analysis, including force diagrams and deflections. For an in-depth understanding of how to customize the existing planeSection library classes and methods, check the documentation out. This is the question we will work on: Question: A Beam 25 m long is supported at A and B and is loaded as shown above. Sketch the SF and BM diagrams. Step 1: Installing the PlaneSections Library #install the PlaneSections library using the python pip coommand in google colab

pip install planesections Step 2: Creating Beam Model # we are importing the planeSections library
import planesections as ps

#we are importing the plotBeamDiagram method for drawing our beam #model

from planesections.core import plotBeamDiagram

# Define node locations, and support conditions
L = 25 # beam length in meters
#lets instaniate or create a beam object using newEulerBeam2D #function passing the length of the beam
# as an argument
beam = ps.newEulerBeam2D(L)# we are importing the planeSections library
import planesections as ps

#we are importing the plotBeamDiagram method for drawing our beam #model

from planesections.core import plotBeamDiagram

# Define node locations, and support conditions
L = 25 # beam length in meters
# Let instantiate or create a beam object using newEulerBeam2D #function passing the length of the beam
# as an argument
beam = ps.newEulerBeam2D(L) Step 3: Create Support Conditions # Define beam with support conditions or fixities
# key for support conditions or fixities  = {'free':[0,0,0], 'roller': [0,1,0], 'pinned':[1,1,0], 'fixed':[1,1,1]}


pinned = [1,1,0] # support condition

# we invoke the setFixity method and pass the position of our beam # support as the first argument and #the support type as the second argument
beam.setFixity(0, pinned)
beam.setFixity(L*0.8, pinned) Step 4: Create Loadings on the Beam # Define point Loads and labels
Pz = -1000  # This represent 1kN in the downward direction
# we use the addLabel method of the beam object and the first argument specifies the distance from #starting length of our beam to #place our label and the label name as the second argument
beam.addLabel(0, label='A')
beam.addLabel(10, label='E')
beam.addLabel(20, label='B')

# addVerticalload method defines a point load where the first argument is the position of the load, the argument is the load #magntude and the third argument I the label indicating the load
#position on the beam

beam.addVerticalLoad(15, 2*Pz, label = 'D')

beam.addVerticalLoad(25, 3*Pz, label = 'C')



# Define distributed Loads
# the first argument is the point where the distributed load starts #and the second argument is where it #stops and the third argument is its magnitude

beam.addDistLoadVertical(0, L*0.4, 5*Pz) Step 5: Visualizing the Created Beam # drawing of the beam diagram using the plot plotBeamDiagram method #and our beam object as an argument

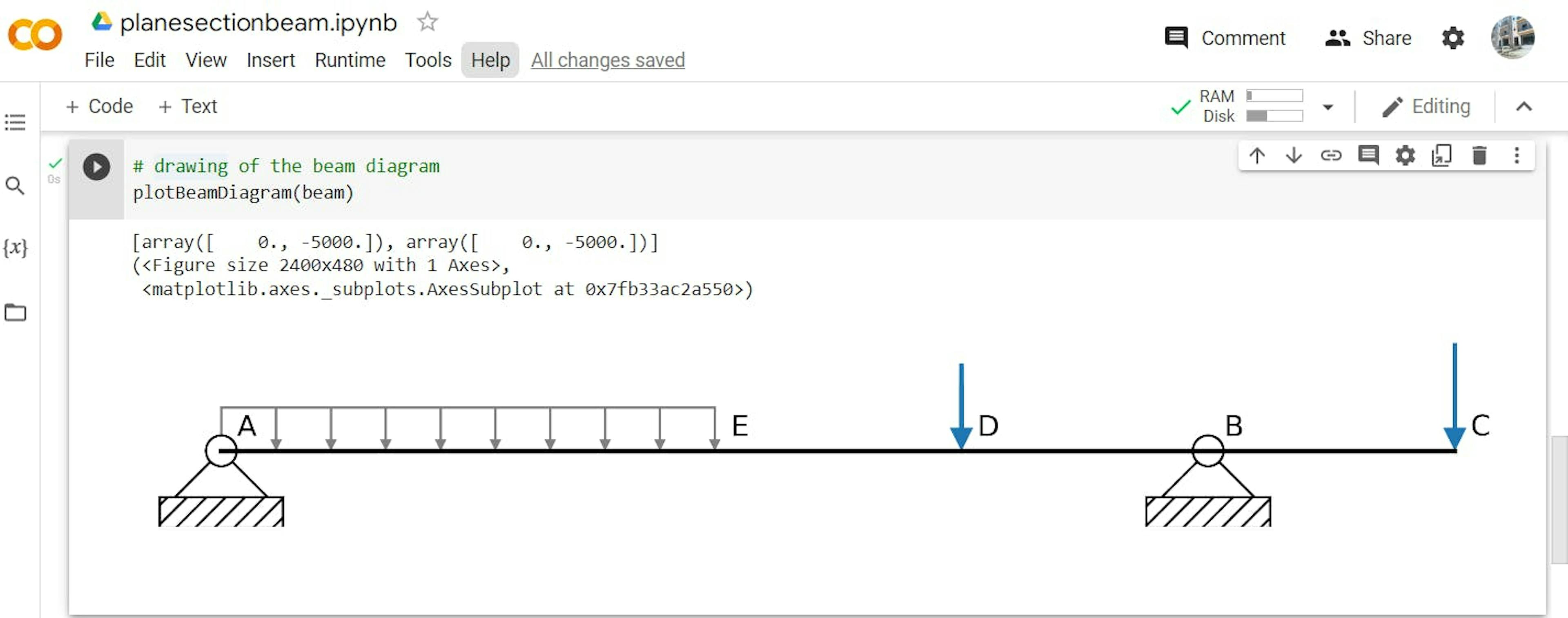

plotBeamDiagram(beam) Step 6: Plotting Shear force and Bending Moment Diagram # instantiate the analysis object
analysis = ps.OpenSeesAnalyzer2D(beam)
# Run the analysis
analysis.runAnalysis()


# Plot the ShearForce and Bending Moment Diagram

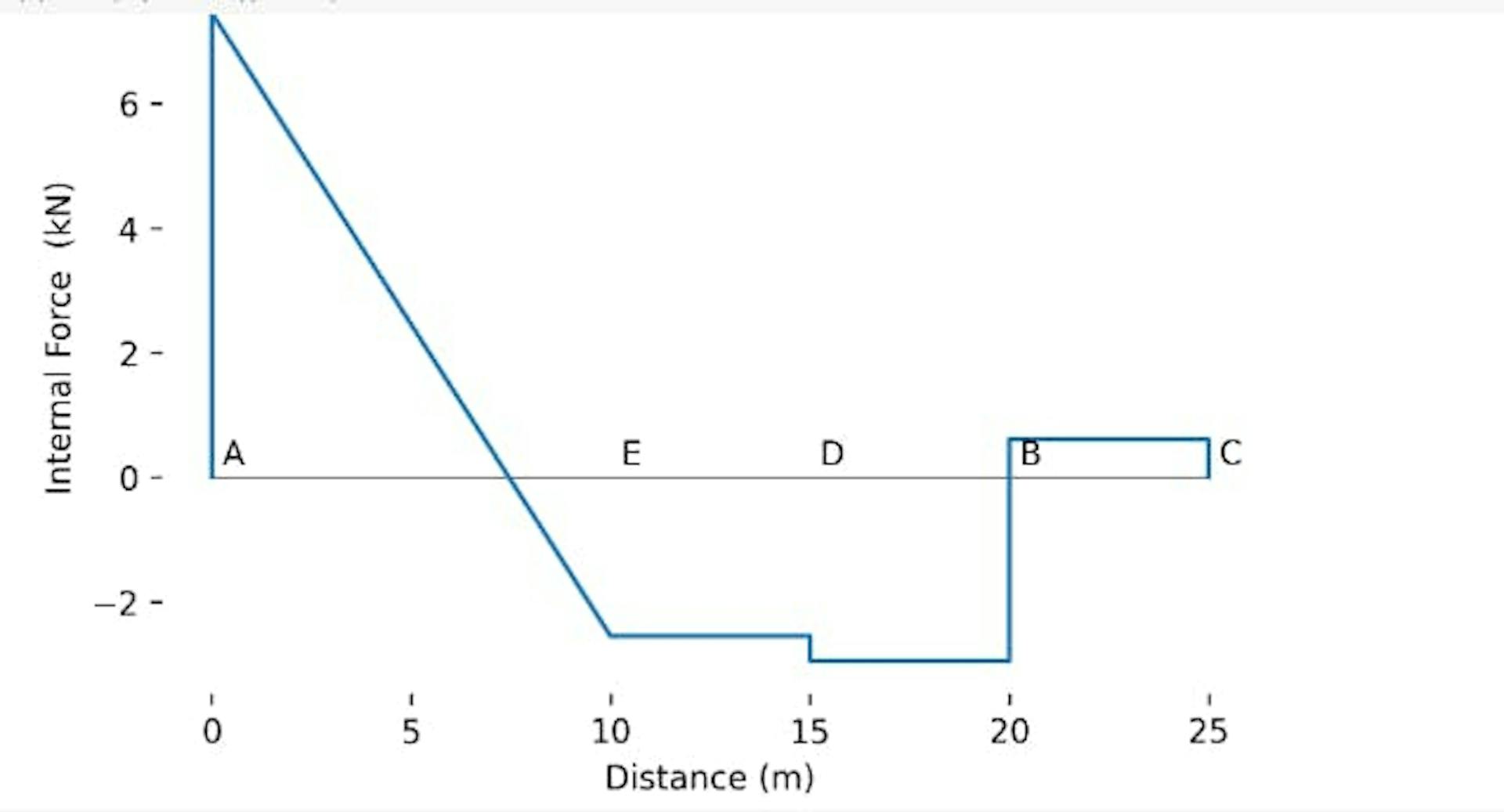

ps.plotShear2D(beam, scale = 0.0002, yunit = 'kN')

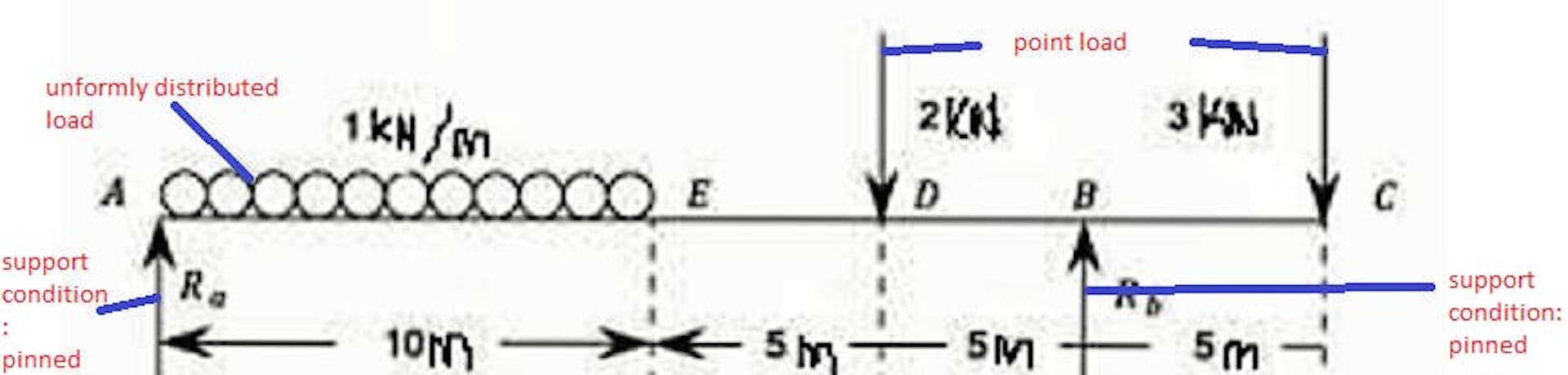

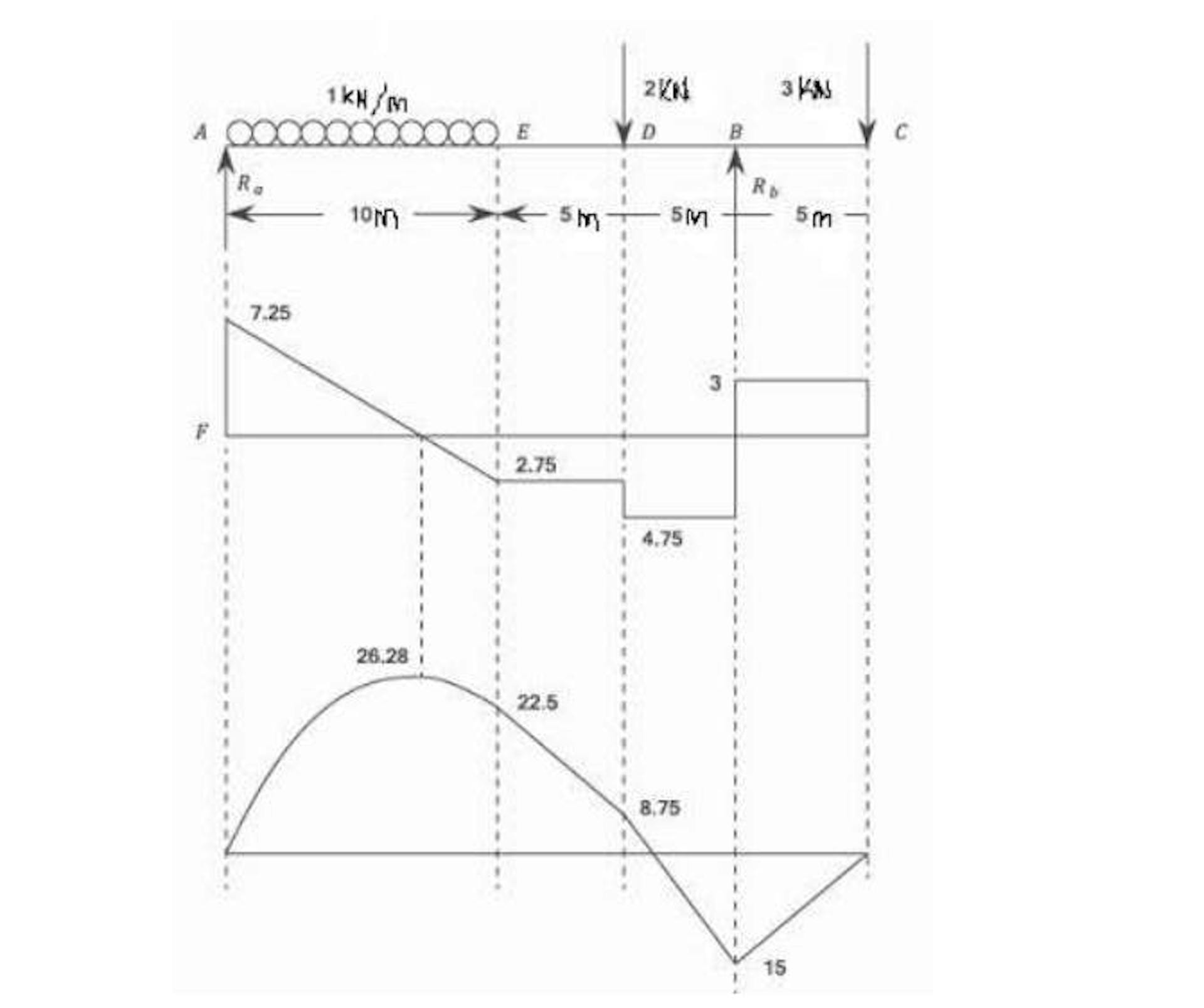

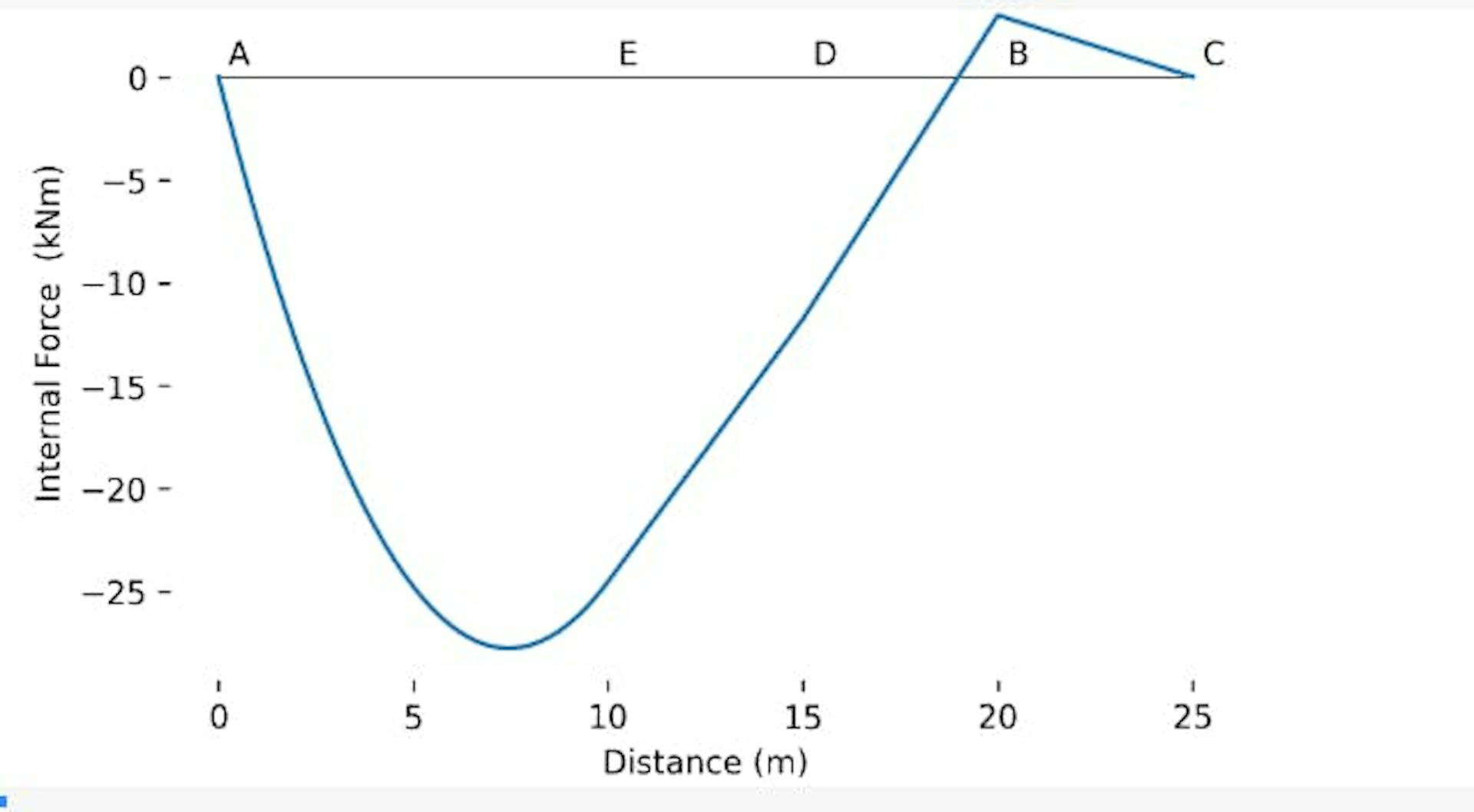

ps.plotMoment2D(beam, scale = 0.0002, yunit = 'kNm') Result and Conclusion The picture above is the result from the textbook where I got the question which is similar to my plot as shown in step 6. The planeSections and openseespy library are flexible for adding more functionalities. let’s explore the power of numerical methods and create our own finite element software. Also published here.
