Introduction: Addressing Real-Time IoT Challenges Consider the role of a lead engineer at SmartFlow, a technology firm responsible for processing sensor data in a smart city environment. The system manages substantial data volumes from traffic sensors, environmental monitors, and utility gauges to enable real-time decision-making, such as optimizing traffic flow or detecting infrastructure anomalies. During peak events, such as public gatherings or extreme weather, data volumes can increase dramatically, necessitating a robust, scalable solution. Apache Spark Streaming, equipped with its backpressure mechanism, provides the framework to address these demands. This article examines how SmartFlow leverages Spark Streaming’s backpressure to process IoT sensor data effectively. It includes detailed architectural diagrams and proposes a novel perspective: backpressure serves not only as a technical solution but as a resilience catalyst, enabling scalable and innovative IoT systems. The discussion combines rigorous technical analysis with practical insights, ensuring accessibility and depth for engineers and researchers. Problem Statement: Processing High-Volume Sensor Data SmartFlow processes approximately 60 million sensor readings daily, encompassing metrics such as temperature, traffic density, and energy consumption across a distributed network of devices. During high-demand scenarios, such as urban events or severe weather, data volumes may escalate to 250 million readings within hours. The system must: Ensure real-time processing: Timely analysis is critical to detect anomalies or optimize operations.
Accommodate volume fluctuations: Unpredictable data surges require dynamic scalability.
Maintain operational stability: System failures or data loss could disrupt critical city services. Ensure real-time processing: Timely analysis is critical to detect anomalies or optimize operations. Ensure real-time processing Accommodate volume fluctuations: Unpredictable data surges require dynamic scalability. Accommodate volume fluctuations Maintain operational stability: System failures or data loss could disrupt critical city services. Maintain operational stability Spark Streaming, built on Apache Spark’s distributed computing framework, processes data in micro-batches, facilitating near-real-time analytics. However, without proper management, excessive data inflow can overwhelm the system, leading to queued micro-batches and increased latency. The backpressure mechanism addresses this challenge by regulating data ingestion rates. Backpressure Mechanism: Dynamic Data Regulation Introduced in Spark 1.5, backpressure enables Spark Streaming to dynamically adjust data ingestion based on processing capacity. Unlike static rate limits, it employs a feedback-driven approach to maintain system stability under varying loads. For SmartFlow, this mechanism ensures consistent performance, even during significant data surges, by balancing throughput and reliability. The following sections detail how SmartFlow implements this solution. System Architecture: SmartFlow’s IoT Pipeline SmartFlow’s data processing pipeline integrates multiple components to manage sensor data efficiently. The architecture is illustrated below: Diagram Explanation: Diagram Explanation 🗄️ Kafka: Receives sensor data (e.g., sensor identifier, measurement, timestamp) in partitioned topics, enabling scalable data ingestion.

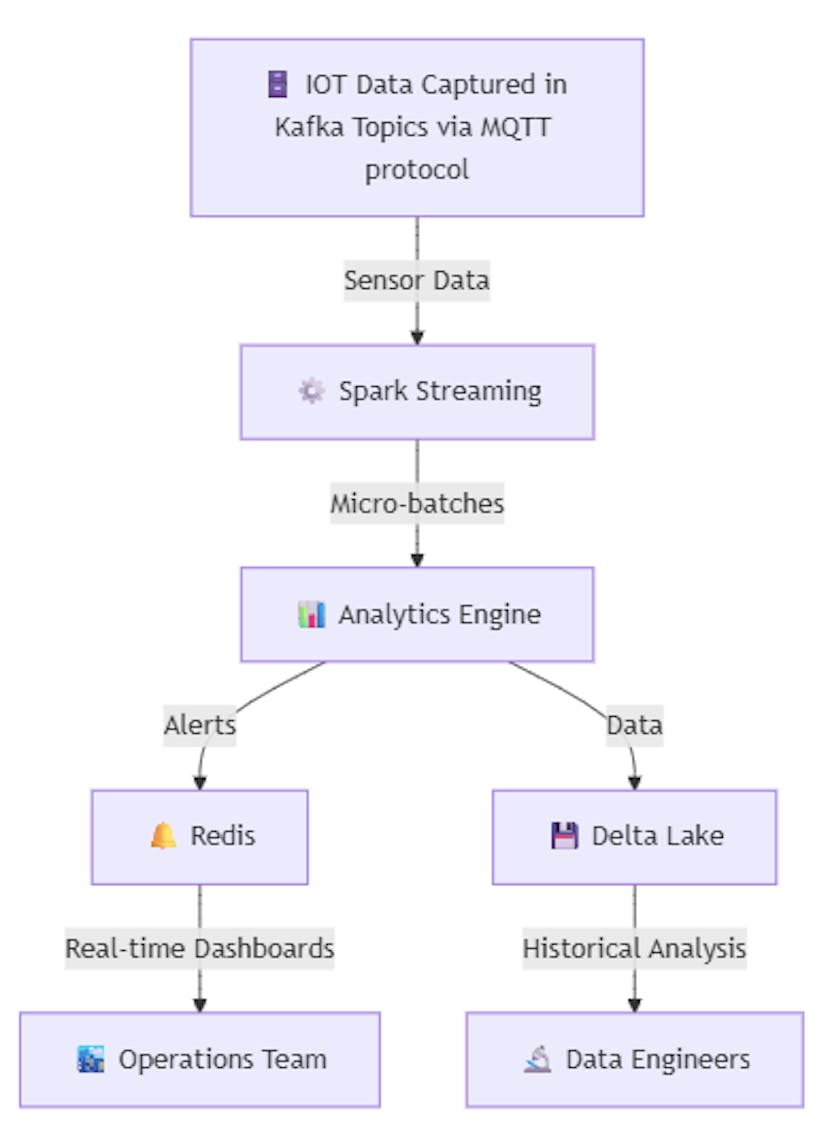

⚙️ Spark Streaming: Consumes data as a Discretized Stream (DStream), processing micro-batches at 300-millisecond intervals.
📊 Analytics Engine: Applies rule-based logic for anomaly detection and threshold-based alerts.
🔔 Redis: Stores real-time alerts for immediate access by city operations teams.
💾 Delta Lake: Archives processed data for historical analysis and regulatory compliance. 🗄️ Kafka: Receives sensor data (e.g., sensor identifier, measurement, timestamp) in partitioned topics, enabling scalable data ingestion. 🗄️ Kafka ⚙️ Spark Streaming: Consumes data as a Discretized Stream (DStream), processing micro-batches at 300-millisecond intervals. ⚙️ Spark Streaming 📊 Analytics Engine: Applies rule-based logic for anomaly detection and threshold-based alerts. 📊 Analytics Engine 🔔 Redis: Stores real-time alerts for immediate access by city operations teams. 🔔 Redis 💾 Delta Lake: Archives processed data for historical analysis and regulatory compliance. 💾 Delta Lake This architecture supports high-throughput processing, but volume spikes, such as those during a city-wide emergency, require dynamic regulation. Backpressure ensures the pipeline adapts to fluctuating loads without compromising performance. Backpressure Implementation: Feedback-Driven Control The backpressure mechanism utilizes a Proportional-Integral-Derivative (PID) controller to regulate data ingestion. The process involves: Monitoring Processing Duration: Spark measures the time required to process each micro-batch.
Adjusting Ingestion Rate: If processing exceeds the batch interval (e.g., 300 milliseconds), the PID controller reduces the rate of data retrieval from Kafka.
Optimizing Throughput: As processing stabilizes, the ingestion rate increases, ensuring maximum efficiency without system overload. Monitoring Processing Duration: Spark measures the time required to process each micro-batch. Monitoring Processing Duration Adjusting Ingestion Rate: If processing exceeds the batch interval (e.g., 300 milliseconds), the PID controller reduces the rate of data retrieval from Kafka. Adjusting Ingestion Rate Optimizing Throughput: As processing stabilizes, the ingestion rate increases, ensuring maximum efficiency without system overload. Optimizing Throughput The feedback loop is depicted below: Diagram Explanation: Diagram Explanation 🗄️ Input Rate: Sensor data enters from Kafka at variable rates.

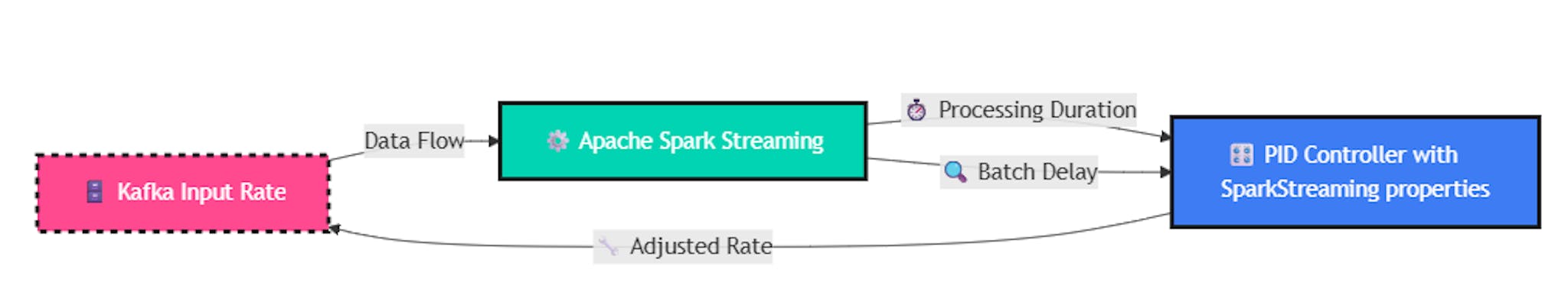

⏱️ Processing Duration: Spark tracks micro-batch processing times.
🎛️ PID Controller: Modulates the ingestion rate based on processing delays.
🔄 Feedback Loop: Continuously adjusts to maintain system stability and performance. 🗄️ Input Rate: Sensor data enters from Kafka at variable rates. 🗄️ Input Rate ⏱️ Processing Duration: Spark tracks micro-batch processing times. ⏱️ Processing Duration 🎛️ PID Controller: Modulates the ingestion rate based on processing delays. 🎛️ PID Controller 🔄 Feedback Loop: Continuously adjusts to maintain system stability and performance. 🔄 Feedback Loop This mechanism enables SmartFlow to manage data surges, such as a 20-fold increase during a storm, while maintaining low latency. Parameters such as spark.streaming.backpressure.pid.minRate can be configured to ensure a minimum throughput during low-volume periods. Novel Perspective: Backpressure as a Resilience Catalyst Backpressure transcends its role as a technical safeguard, serving as a catalyst for resilient and innovative IoT systems. In smart city applications, system reliability is paramount to public safety and operational continuity. Backpressure enables SmartFlow to: Facilitate Innovation: Engineers can develop advanced analytics, such as predictive maintenance models, without risking system instability.
Optimize Resource Utilization: Dynamic rate adjustment reduces the need for over-provisioned infrastructure, lowering operational costs.
Enhance Stakeholder Confidence:   Consistent performance fosters trust among city officials and residents. Facilitate Innovation: Engineers can develop advanced analytics, such as predictive maintenance models, without risking system instability. Facilitate Innovation Optimize Resource Utilization: Dynamic rate adjustment reduces the need for over-provisioned infrastructure, lowering operational costs. Optimize Resource Utilization Enhance Stakeholder Confidence:   Consistent performance fosters trust among city officials and residents. Enhance Stakeholder Confidence This perspective reframes backpressure as a strategic enabler, supporting scalable and forward-thinking IoT solutions. Implementation Example: The following Scala code configures backpressure in Spark Streaming: Implementation Example val sparkConf = new SparkConf()
sparkConf.set("spark.streaming.backpressure.enabled", "true")
sparkConf.set("spark.streaming.kafka.maxRatePerPartition", "6000")
sparkConf.set("spark.streaming.backpressure.pid.minRate", "1200") val sparkConf = new SparkConf()
sparkConf.set("spark.streaming.backpressure.enabled", "true")
sparkConf.set("spark.streaming.kafka.maxRatePerPartition", "6000")
sparkConf.set("spark.streaming.backpressure.pid.minRate", "1200") Practical Recommendations for Implementation To optimize the backpressure mechanism for IoT data processing: Enable Backpressure:
sparkConf.set("spark.streaming.backpressure.enabled", "true")

Activates dynamic rate adjustment to manage variable data volumes effectively.


Configure Initial Rate:
sparkConf.set("spark.streaming.backpressure.initialRate", "2000")

Set spark.streaming.backpressure.initialRate to 2000 messages per second per partition to prevent initial overload, adjusting based on cluster capacity and expected data rates.


Tune PID Parameters:
sparkConf.set("spark.streaming.backpressure.pid.minRate", "1200")
sparkConf.set("spark.streaming.backpressure.pid.proportional", "1.0")
sparkConf.set("spark.streaming.backpressure.pid.integral", "0.2")
sparkConf.set("spark.streaming.backpressure.pid.derived", "0.0")

Adjust spark.streaming.backpressure.pid.minRate to ensure a minimum throughput (e.g., 1200 messages per second per partition). Retain default values for spark.streaming.backpressure.pid.proportional (1.0), spark.streaming.backpressure.pid.integral (0.2), and spark.streaming.backpressure.pid.derived (0.0) for stable rate adjustments, or fine-tune for specific workloads requiring rapid response to capacity changes.


Specify Rate Estimator:
sparkConf.set("spark.streaming.backpressure.rateEstimator", "pid")

Use the default PID rate estimator (pid), as it is the only built-in option in Spark Streaming, suitable for most applications.


Monitor Performance: Utilize Spark’s web interface (available at http://<driver>:4040) to track batch processing delays and verify the efficacy of backpressure adjustments.


Enable Detailed Logging:
sparkConf.set("log4j.logger.org.apache.spark.streaming.scheduler.rate.PIDRateEstimator", "TRACE")

Configure log4j.logger.org.apache.spark.streaming.scheduler.rate.PIDRateEstimator=TRACE to capture detailed diagnostic logs for analyzing rate adjustments. Enable Backpressure:
sparkConf.set("spark.streaming.backpressure.enabled", "true")

Activates dynamic rate adjustment to manage variable data volumes effectively. Enable Backpressure: Enable Backpressure sparkConf.set("spark.streaming.backpressure.enabled", "true") sparkConf.set("spark.streaming.backpressure.enabled", "true") Activates dynamic rate adjustment to manage variable data volumes effectively. Configure Initial Rate:
sparkConf.set("spark.streaming.backpressure.initialRate", "2000")

Set spark.streaming.backpressure.initialRate to 2000 messages per second per partition to prevent initial overload, adjusting based on cluster capacity and expected data rates. Configure Initial Rate: Configure Initial Rate sparkConf.set("spark.streaming.backpressure.initialRate", "2000") sparkConf.set("spark.streaming.backpressure.initialRate", "2000") Set spark.streaming.backpressure.initialRate to 2000 messages per second per partition to prevent initial overload, adjusting based on cluster capacity and expected data rates. Tune PID Parameters:
sparkConf.set("spark.streaming.backpressure.pid.minRate", "1200")
sparkConf.set("spark.streaming.backpressure.pid.proportional", "1.0")
sparkConf.set("spark.streaming.backpressure.pid.integral", "0.2")
sparkConf.set("spark.streaming.backpressure.pid.derived", "0.0")

Adjust spark.streaming.backpressure.pid.minRate to ensure a minimum throughput (e.g., 1200 messages per second per partition). Retain default values for spark.streaming.backpressure.pid.proportional (1.0), spark.streaming.backpressure.pid.integral (0.2), and spark.streaming.backpressure.pid.derived (0.0) for stable rate adjustments, or fine-tune for specific workloads requiring rapid response to capacity changes. Tune PID Parameters: Tune PID Parameters sparkConf.set("spark.streaming.backpressure.pid.minRate", "1200")
sparkConf.set("spark.streaming.backpressure.pid.proportional", "1.0")
sparkConf.set("spark.streaming.backpressure.pid.integral", "0.2")
sparkConf.set("spark.streaming.backpressure.pid.derived", "0.0") sparkConf.set("spark.streaming.backpressure.pid.minRate", "1200")
sparkConf.set("spark.streaming.backpressure.pid.proportional", "1.0")
sparkConf.set("spark.streaming.backpressure.pid.integral", "0.2")
sparkConf.set("spark.streaming.backpressure.pid.derived", "0.0") Adjust spark.streaming.backpressure.pid.minRate to ensure a minimum throughput (e.g., 1200 messages per second per partition). Retain default values for spark.streaming.backpressure.pid.proportional (1.0), spark.streaming.backpressure.pid.integral (0.2), and spark.streaming.backpressure.pid.derived (0.0) for stable rate adjustments, or fine-tune for specific workloads requiring rapid response to capacity changes. Specify Rate Estimator:
sparkConf.set("spark.streaming.backpressure.rateEstimator", "pid")

Use the default PID rate estimator (pid), as it is the only built-in option in Spark Streaming, suitable for most applications. Specify Rate Estimator: Specify Rate Estimator sparkConf.set("spark.streaming.backpressure.rateEstimator", "pid") sparkConf.set("spark.streaming.backpressure.rateEstimator", "pid") Use the default PID rate estimator (pid), as it is the only built-in option in Spark Streaming, suitable for most applications. Monitor Performance: Utilize Spark’s web interface (available at http://<driver>:4040) to track batch processing delays and verify the efficacy of backpressure adjustments. Monitor Performance: Utilize Spark’s web interface (available at http://<driver>:4040) to track batch processing delays and verify the efficacy of backpressure adjustments. Monitor Performance Enable Detailed Logging:
sparkConf.set("log4j.logger.org.apache.spark.streaming.scheduler.rate.PIDRateEstimator", "TRACE")

Configure log4j.logger.org.apache.spark.streaming.scheduler.rate.PIDRateEstimator=TRACE to capture detailed diagnostic logs for analyzing rate adjustments. Enable Detailed Logging: Enable Detailed Logging sparkConf.set("log4j.logger.org.apache.spark.streaming.scheduler.rate.PIDRateEstimator", "TRACE") sparkConf.set("log4j.logger.org.apache.spark.streaming.scheduler.rate.PIDRateEstimator", "TRACE") Configure log4j.logger.org.apache.spark.streaming.scheduler.rate.PIDRateEstimator=TRACE to capture detailed diagnostic logs for analyzing rate adjustments. log4j.logger.org.apache.spark.streaming.scheduler.rate.PIDRateEstimator=TRACE Outcomes: SmartFlow’s Performance With backpressure enabled, SmartFlow processes 80 million sensor readings daily, maintaining latency below 35 milliseconds during 20-fold volume spikes. Anomaly detection accuracy improved by 20%, and infrastructure costs decreased by 25% due to optimized resource allocation. These results have solidified SmartFlow’s reputation as a reliable provider of smart city analytics. Conclusion: Enabling Scalable IoT Systems The backpressure mechanism empowers Spark Streaming to manage high-volume IoT data with precision and reliability. For SmartFlow, it ensures robust performance in dynamic smart city environments, supporting both operational efficiency and innovative analytics. This approach offers a model for scalable, resilient data processing across IoT, e-commerce, and other real-time applications. Engineers seeking to address similar challenges can leverage Spark Streaming and backpressure to build systems that are both robust and adaptable, ensuring sustained performance in the face of variable data demands.
