Grafana Loki: Architecture Summary and Running in Kubernetes

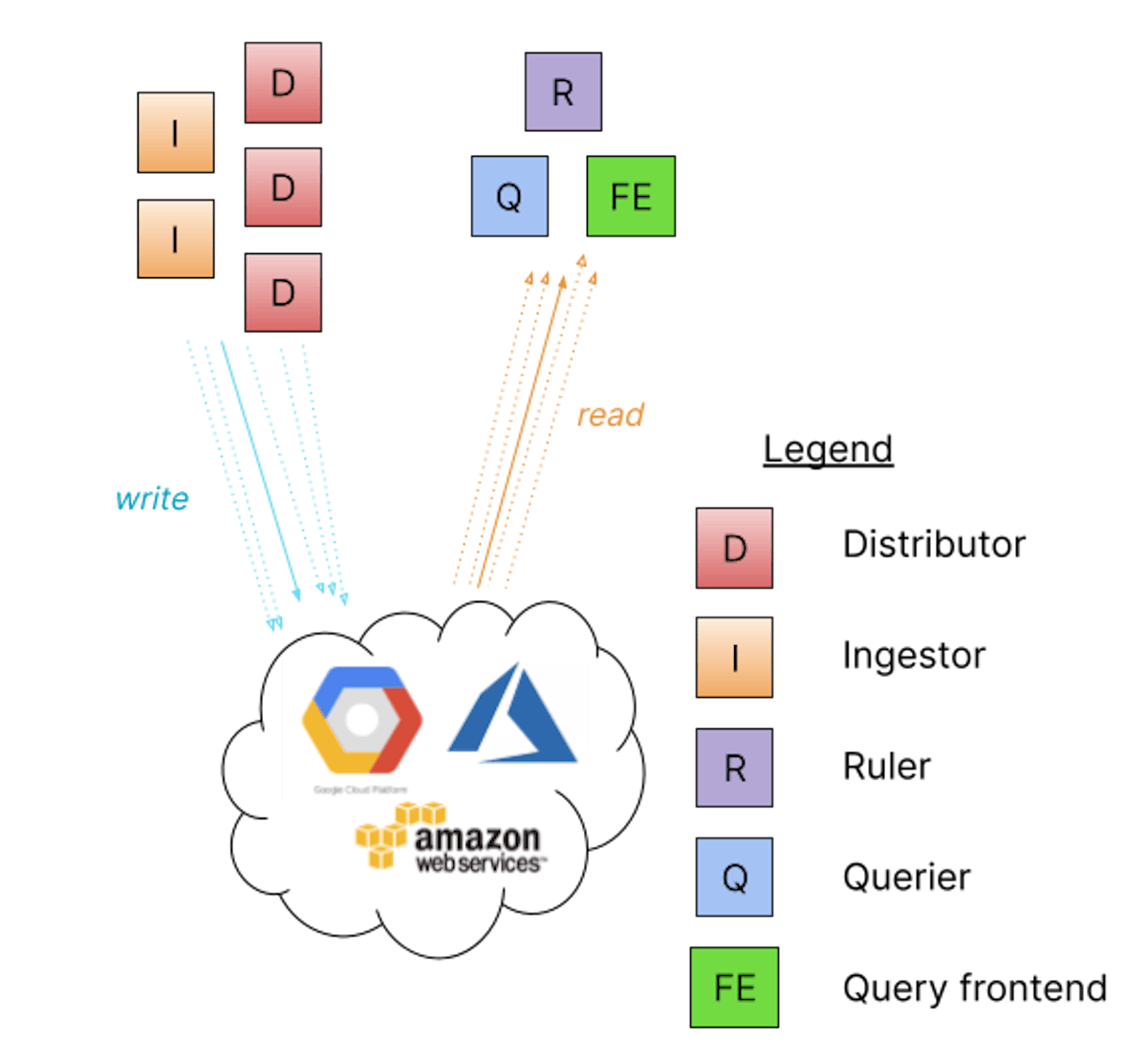

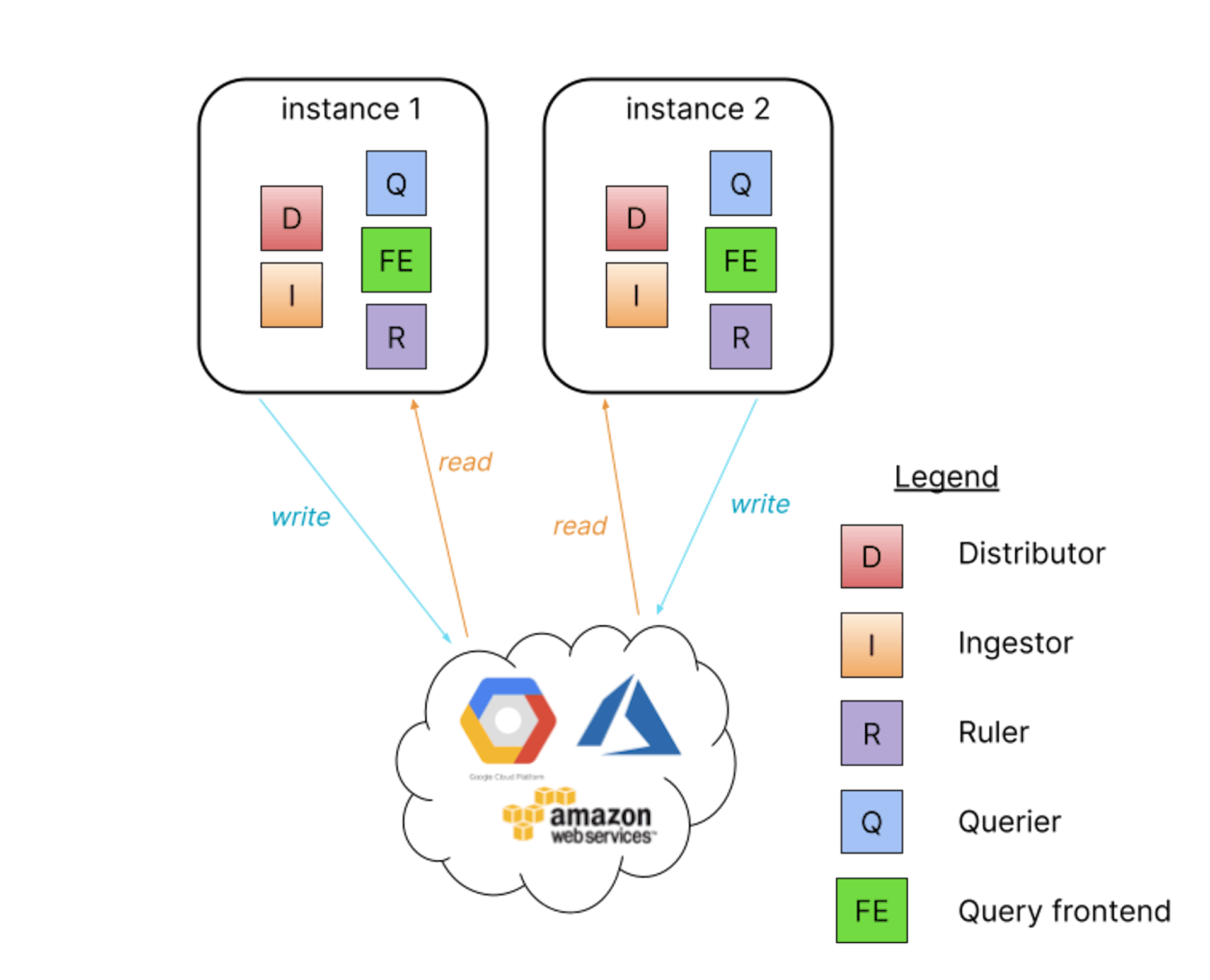

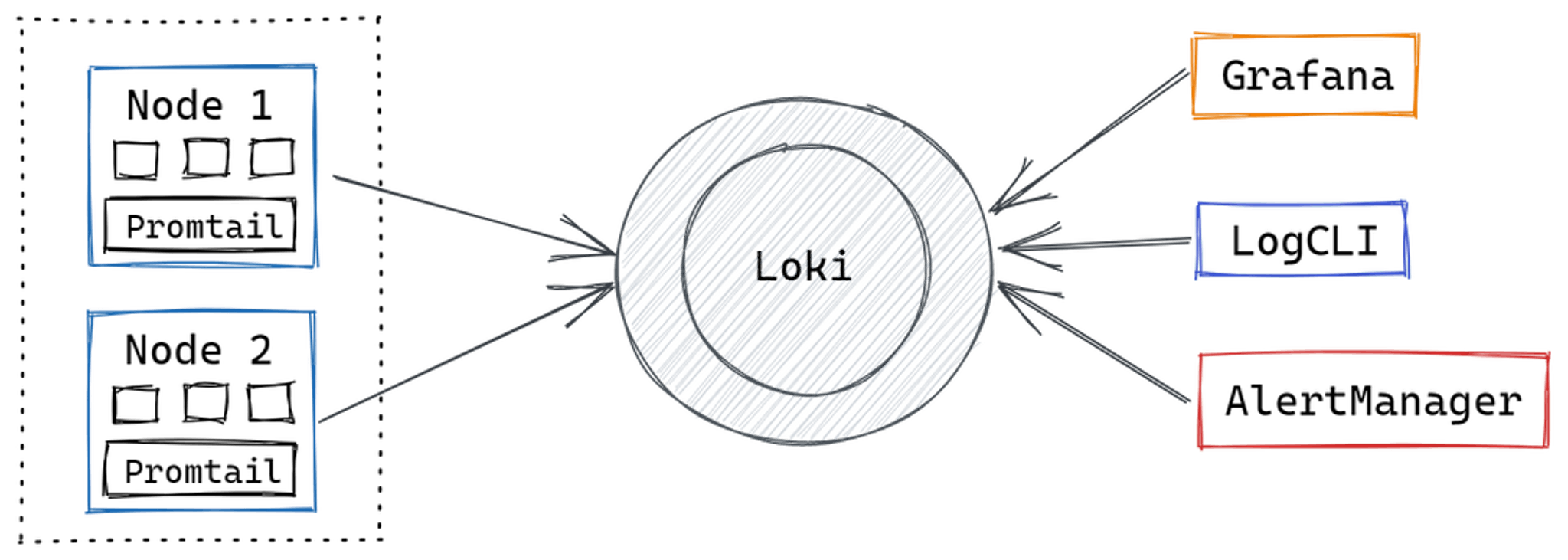

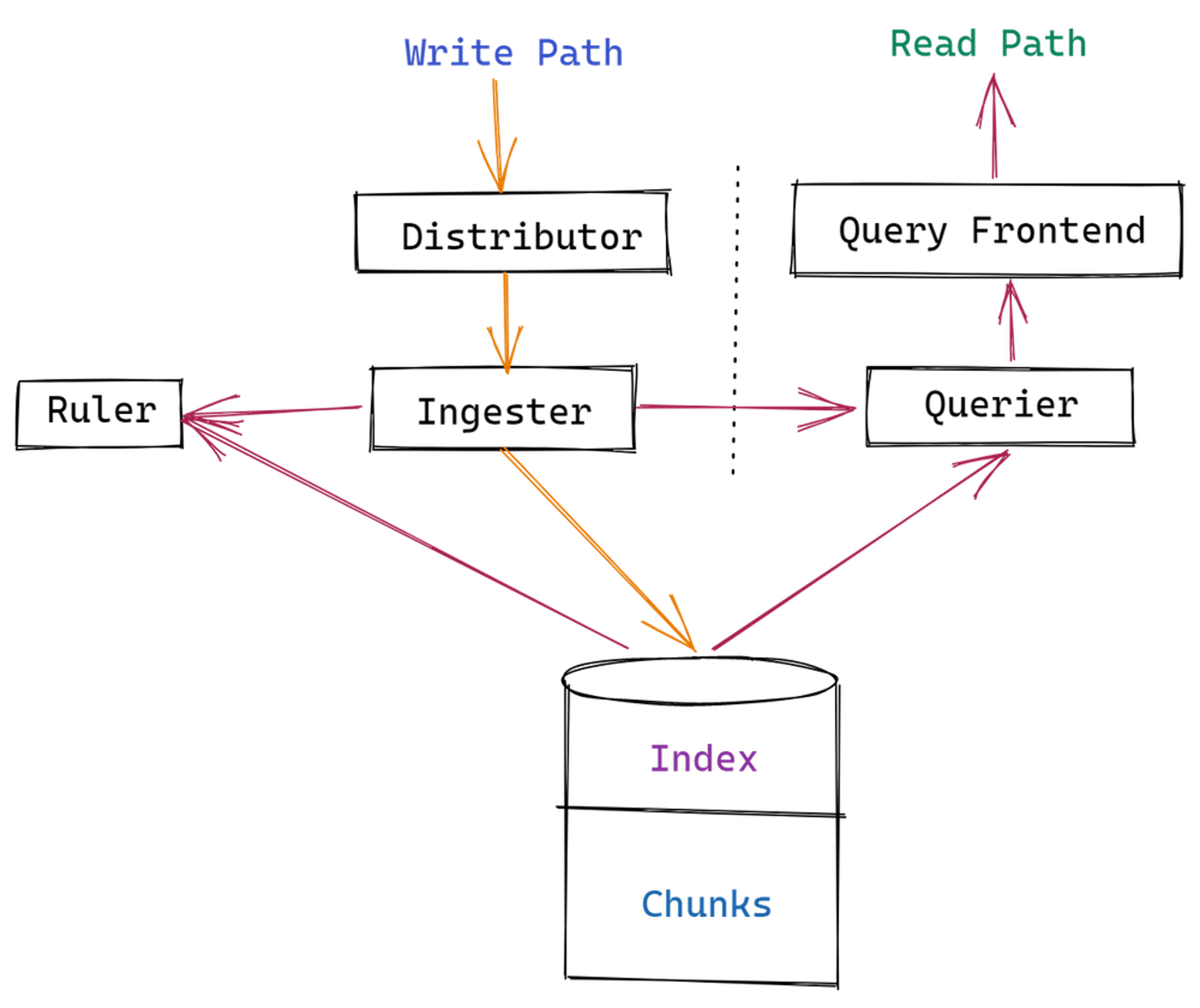

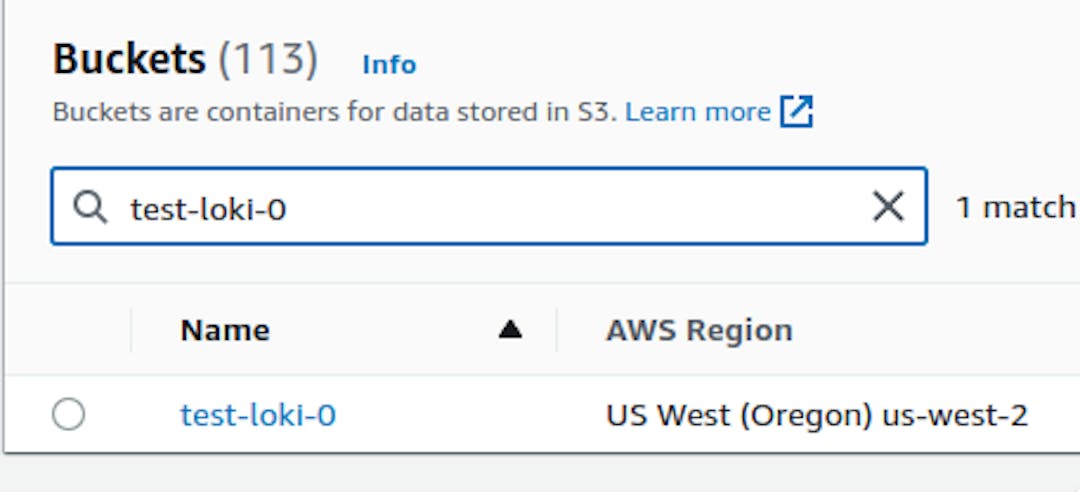

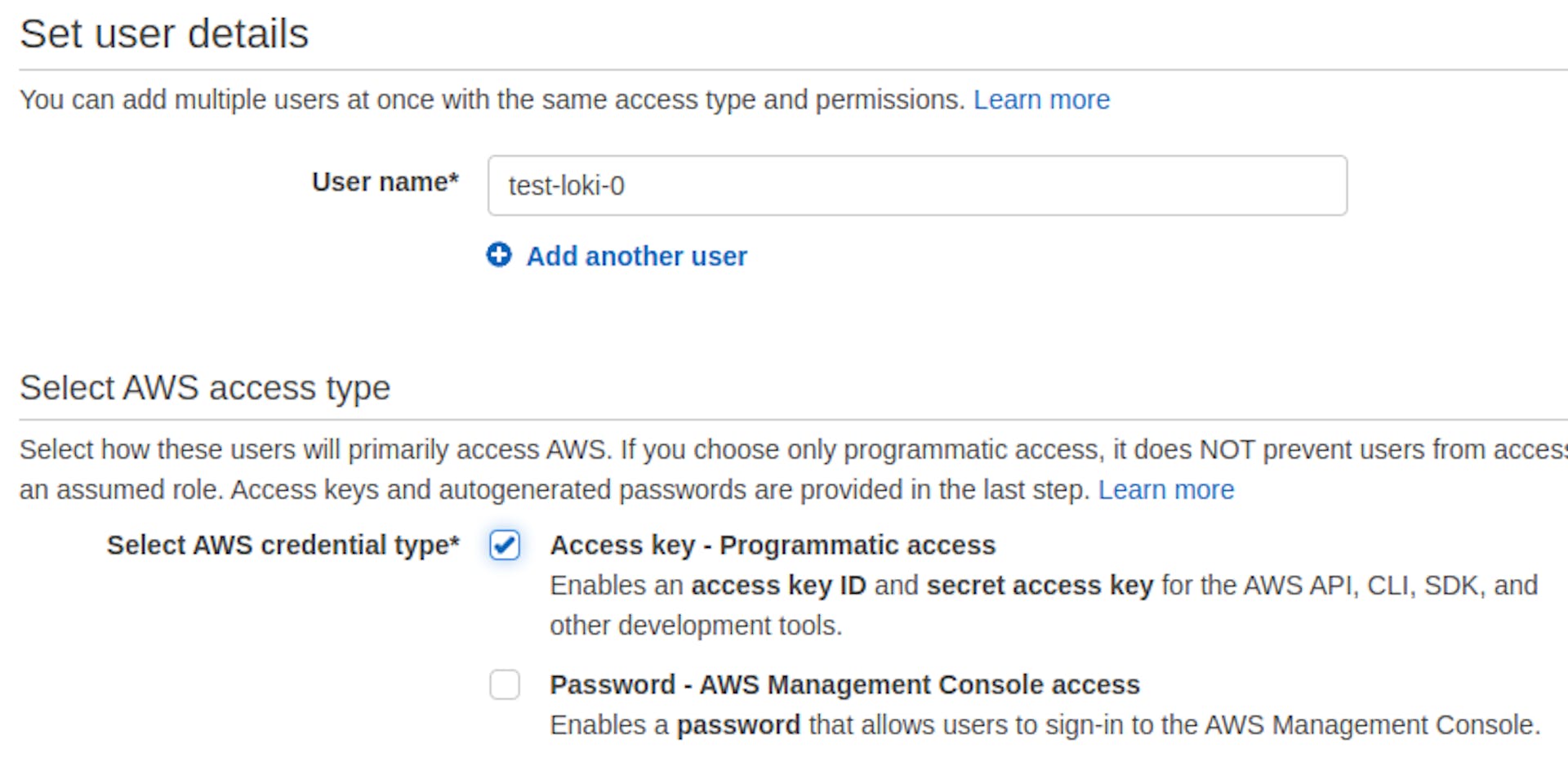

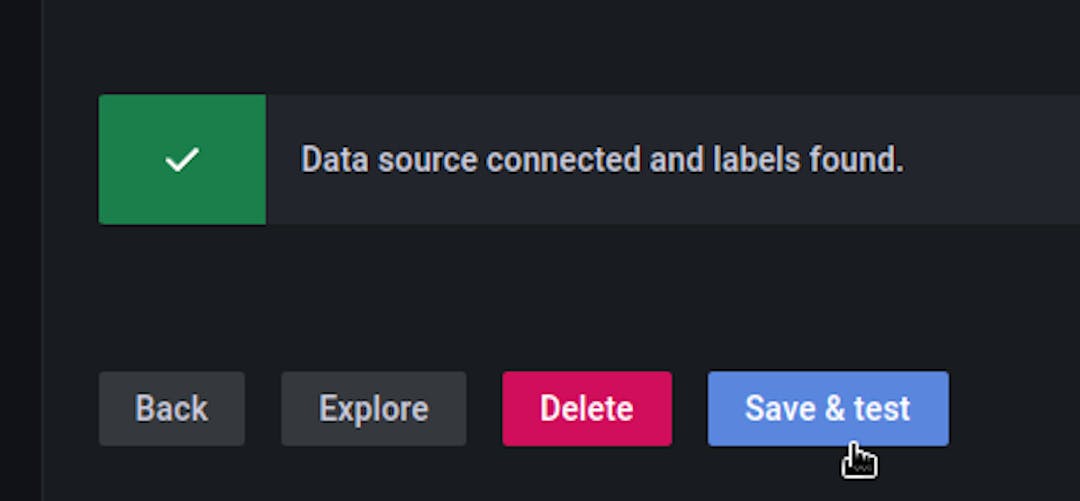

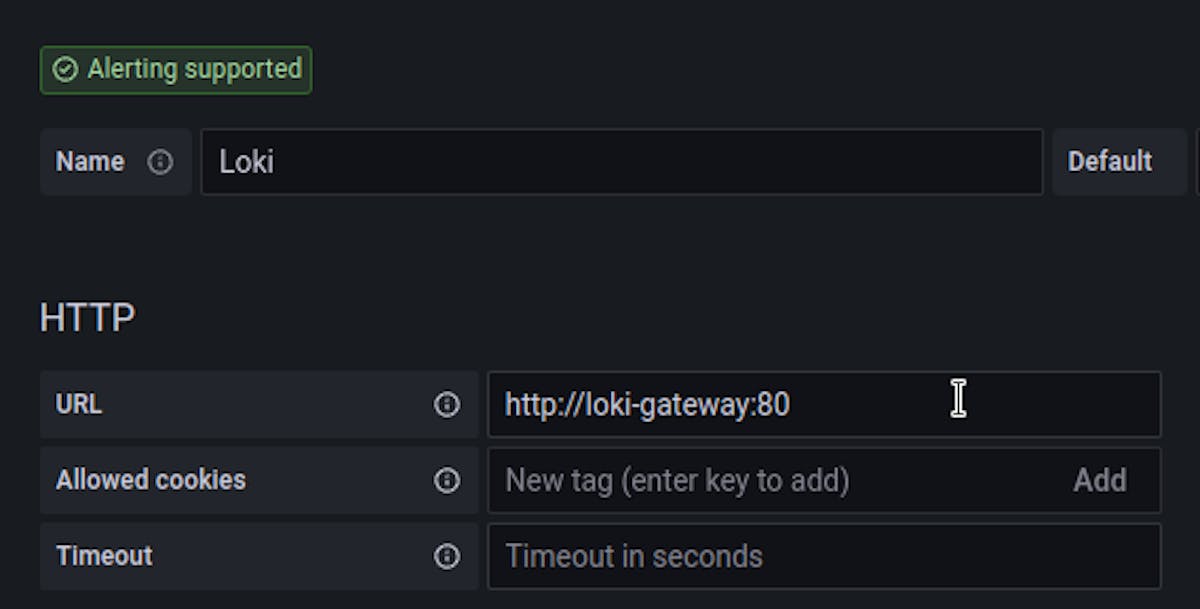

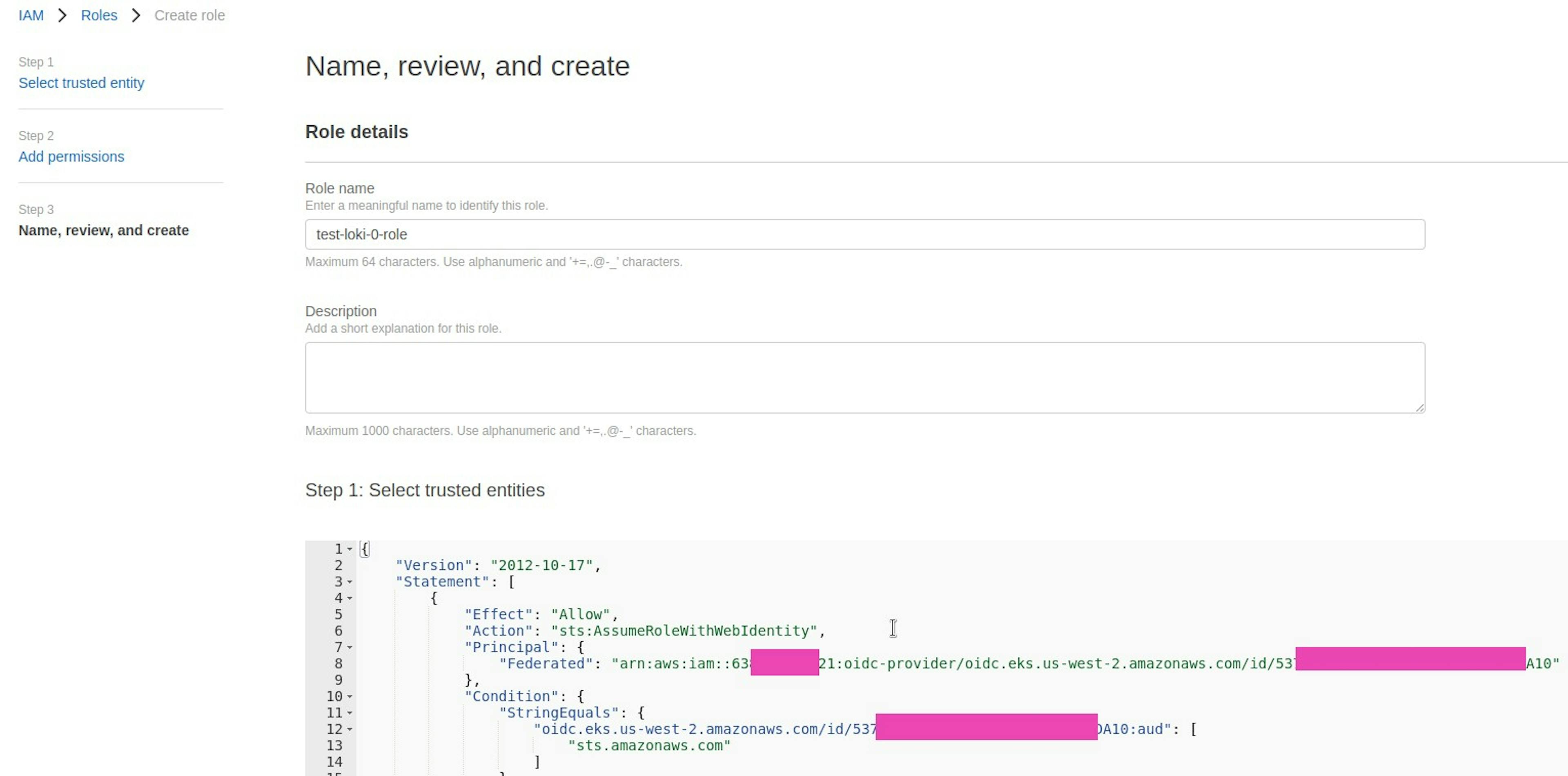

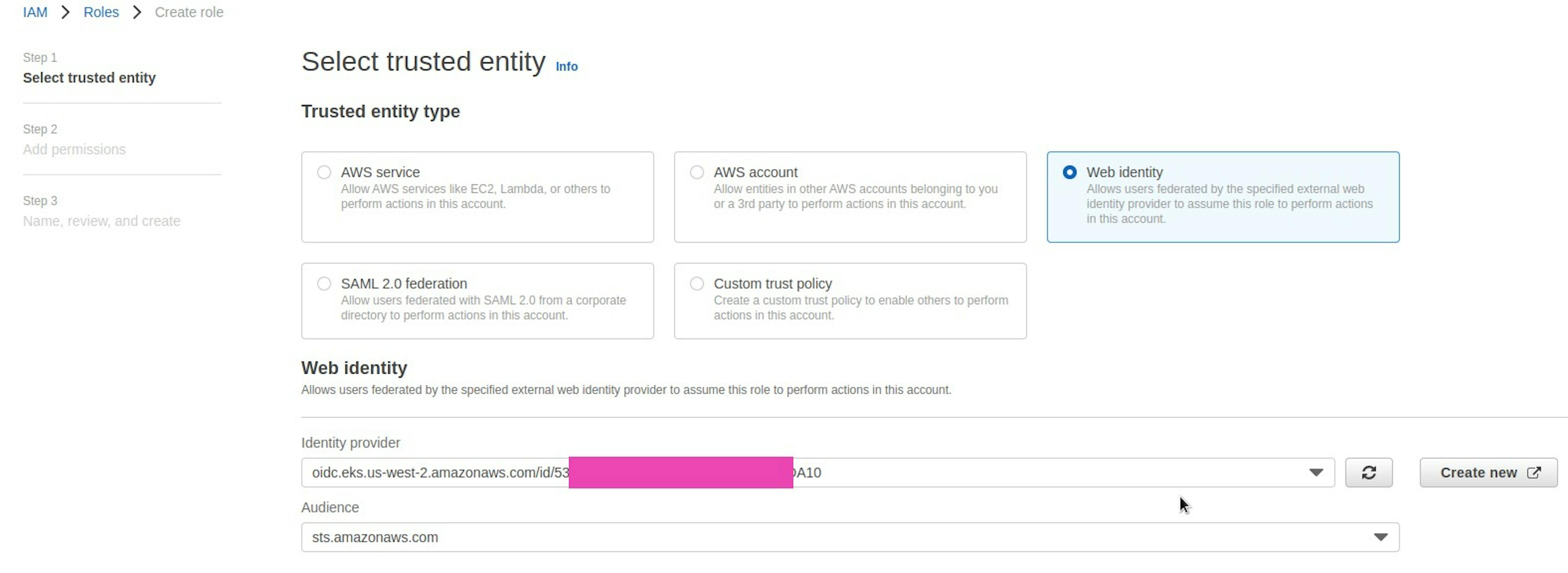

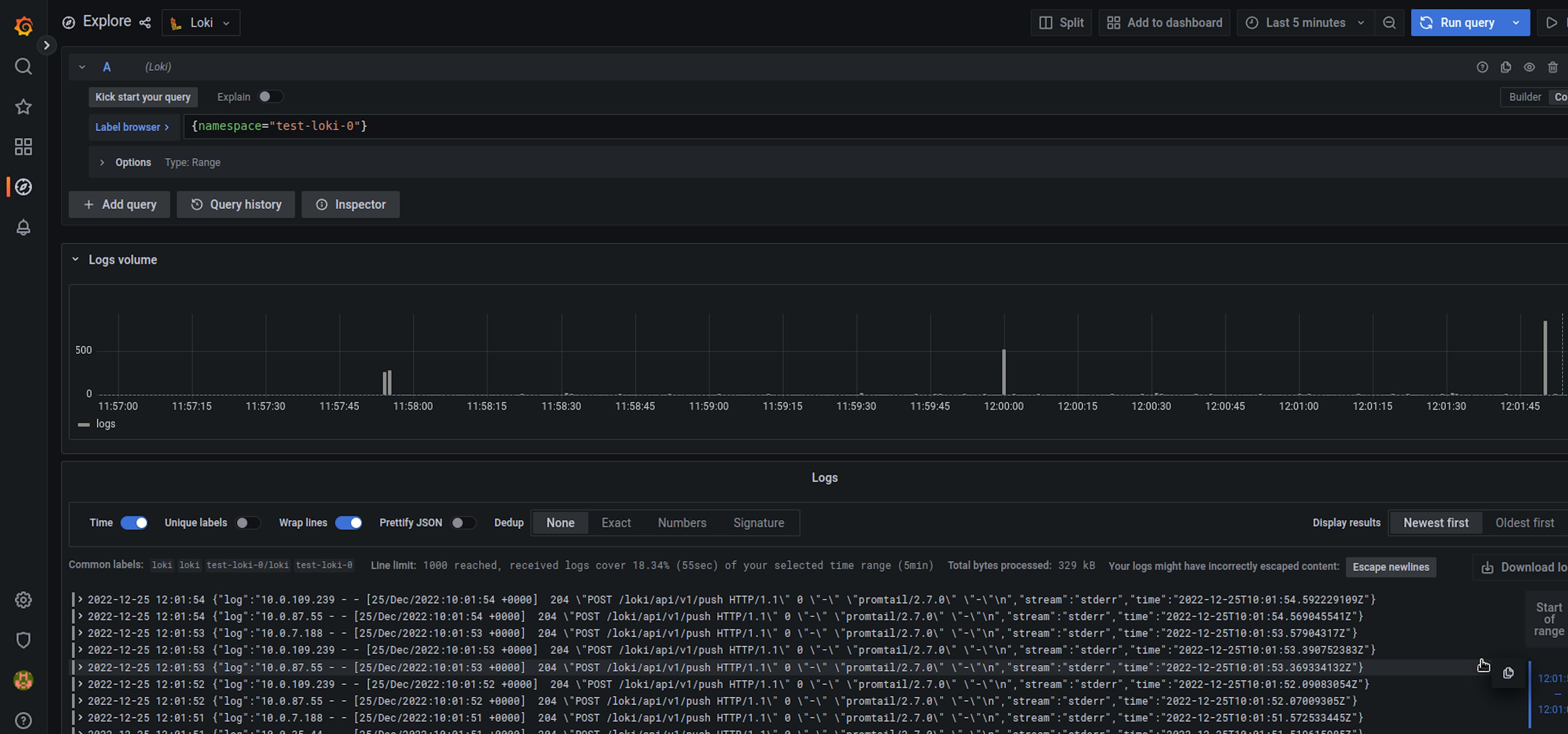

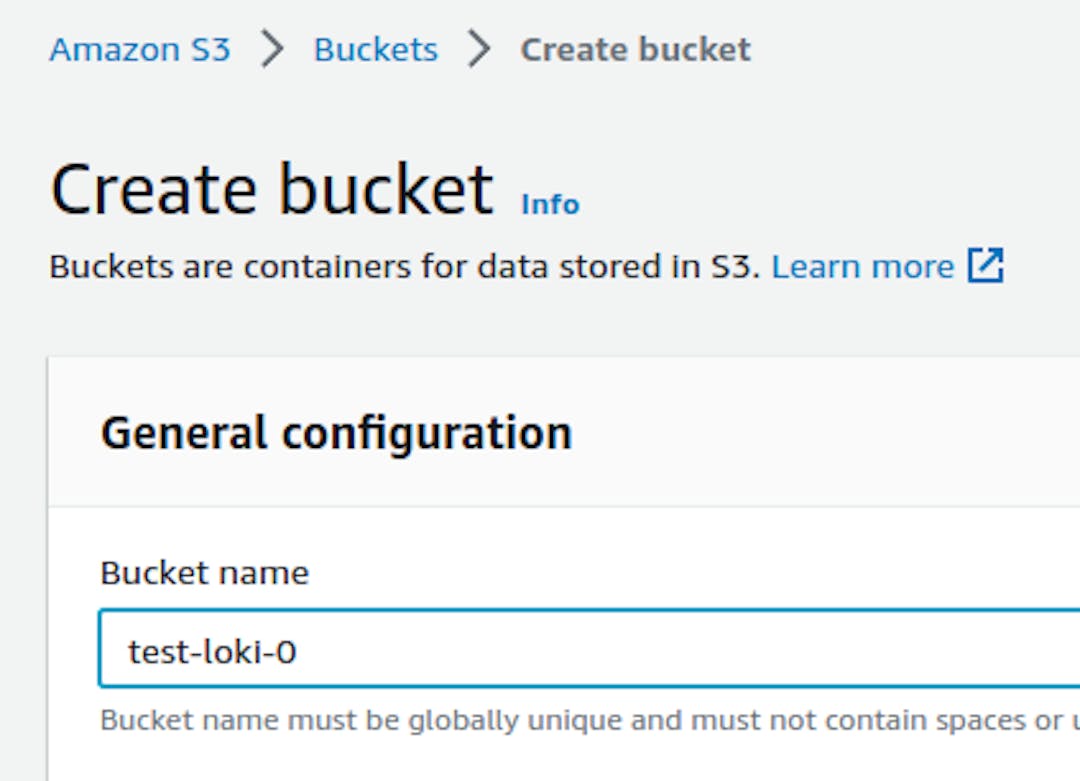

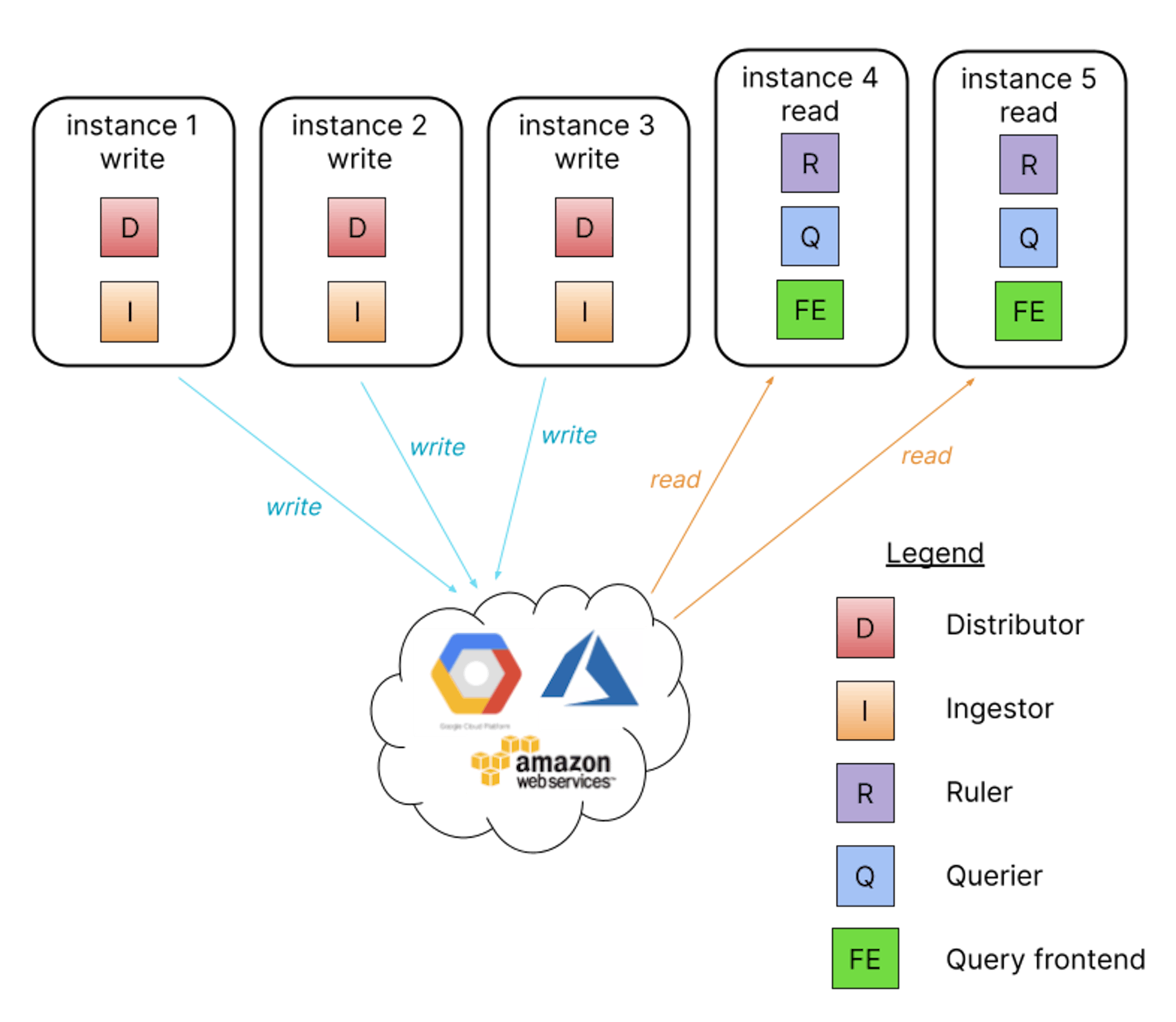

\ \ \ The last time I worked with Loki was when it was still in Beta, and it looked much simpler then than it does now. In this new project, there is no logging system at all, and since we all love the Grafana stack, we also decided to use Loki for logging. \ Although, to be honest, I thought that its setup would be much easier. Well, it wasn’t. A lot has changed, and actually, I had to get to know it essentially from scratch. \ What remains, as before, is a kind of documentation. As for me, the description of the architecture and components is still more or less normally described, but when it comes to configuration, you run into a lot of problems, especially related to storage and AWS S3 configuration (although while I was writing this post, [release 2.7](https://github.com/grafana/loki/releases) was rolled out, and the documentation was also updated – maybe it is better now). Still, I had to collect it piece by piece, but eventually, everything worked. \ So, in this post, let’s look at the general architecture and components, then install Loki on Kubernetes on AWS from a Helm chart. ## Grafana Loki Architecture Loki is built on a microservices architecture, with all microservices assembled into a single binary. To run the components, the `--target` option is used where you can define which part of Loki to run. Input data is divided into *streams* – that is, a stream of data, i.e., logs, that have a common `tenant_id` (“sender”), and a common set of tags/labels. We’ll talk more about streams in the [Storage](https://rtfm.co.ua/en/?p=28487#Grafana_Loki_Storage) part of this post. ## Loki Components The work of the system is divided into two main flows: **Read path** **–** reading (processing requests for data sampling), and **Write path** – writing this data into storage. General diagram of all components: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.384Z-clf8gy1cx000z0bs6eo95fo32 "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Grafana-Loki-s-Architecture.png) Here: * **[distributor](https://grafana.com/docs/loki/latest/fundamentals/architecture/components/#distributor)** (write path): deals with processing input data from clients – receives data from them, validates it, divides the data into blocks (*chunks*), and sends it to the ingester. It is preferable to have a LoadBalancer in front of the distributors so that the incoming streams are distributed among the instances of the distributors. It is a stateless component – it does not store any data. Also responsible for rate limits and tag preprocessing. * **[ingester](https://grafana.com/docs/loki/latest/fundamentals/architecture/components/#ingester)** (write, read path): responsible for writing data to the long-term storage and for transferring data to process requests to read it from clients. To prevent data loss in case of restarting an ingestor instance, they are usually started as several instances (see `replication_factor`) * **[querier](https://grafana.com/docs/loki/latest/fundamentals/architecture/components/#querier)** (read path): processes LogQL queries, downloading data from ingestors and/or long-term storage for a response – first, it queries the ingestor. If there is no data in the ingestor’s memory – then the querier goes to the datastore * **[query frontend](https://grafana.com/docs/loki/latest/fundamentals/architecture/components/#query-frontend)** (read path): an optional service that provides access to the querier API to speed up read operations. When using it, it stores incoming queries, and the querier calls it to dequeue a request for processing Also, Loki has additional components: * **[ruler](https://grafana.com/docs/loki/latest/rules/)**: alerts management * **[compactor](https://grafana.com/docs/loki/latest/operations/storage/retention/#compactor)**: reducing the size of indexes and managing the storage time of logs in the data store (retention) ## Data flow Briefly about the data processing process itself – read and write requests. [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.387Z-clf8gy1cz00100bs685da556r "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/grafana-loki-work.png) * Loki receives data from `promtail` (or other agents such as `fluentd`) * creates data blocks (chunks), an index, and loads them into a long-term storage * a user uses LogQL to fetch logs from Grafana * `ruler` checks the data and, if necessary, sends an alert to the Prometheus Alertmanager ### Read Path When receiving a data sampling request: 1. **querier** receives an HTTP request 2. forwards a request to **ingesters** to search for data in memory 3. if **ingesters** find the data in themselves, the **querier** returns them 4. if there is no data in the **ingesters,** the **querier** goes to the data store and receives them from there 5. **querier** returns a response via an HTTP connection as well ### Write Path When receiving new data: 1. **distributor** receives an HTTP/1 request to add data to a specific stream 2. **distributor** passes each stream to **ingester** 3. **ingester** creates a new chunk (“block of data”, see [Loki Storage](https://translate.google.com/website?sl=uk&tl=en&hl=en&client=webapp&u=https://grafana.com/docs/loki/latest/operations/storage/) ) or supplements an existing one 4. **distributor** responds OK to HTTP/1 request ## Launch modes Loki can be launched in three modes, each of which determines how the components will be launched – in the form of one or more Kubernetes pods. ### Monolithic mode The default type when using local `filesystem` data storage. [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.388Z-clf8gy1d000110bs6g5ij4o5w "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/11/monolithic-mode.png) Suitable for quick startup and small amounts of data, up to 100GB per day The balancing of requests is performed on a round-robin basis. Query parallelization is limited by the number of instances and the configuration of each instance. The main limitation is that you cannot use object stores such as AWS S3. ### Simple, scalable deployment mode The default type when using an object store. If your logs are more than a few hundred gigabytes but less than a few terabytes per day, or you want to isolate reading and writing paths, then you can deploy Loki in the simple, scalable deployment mode: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.388Z-clf8gy1d000120bs6d0tt0y7p "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/11/simple-scalable.png) In this mode, Loki is launched with two targets – read & write. Requires a load balancer that will route requests to instances with Loki components. ### Microservices mode And for the most complex cases, when you have terabytes of logs per day, it makes sense to deploy each service separately: * ingester * distributor * query-frontend * query-scheduler * querier * index-gateway * ruler * compactor [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.470Z-clf8gy1fa001j0bs6cqr05o65 "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/11/microservices-mode.png) Allows you to monitor and scale each component independently. ## Grafana Loki Storage See [Grafana Loki Storage](https://grafana.com/docs/loki/latest/operations/storage/) documentation. Loki uses two types of data to store logs – *chunks* and *indexes*. Loki receives data from multiple streams, where each stream is a `tenant_id` and a set of tags. When receiving new records from the stream, they are packed into chunks and sent to long-term storage, which can be AWS S3, a local file system, or databases such as AWS DynamoDB or Apache Cassandra. The indexes store information about the set of tags of each stream and have links to the chunks associated with this stream. Previously, Loki used two separate storages – one for indexes (for example, DynamoDB tables), and the second – directly for the data itself (for example, AWS S3). Somewhere from version 2.0, Loki got the ability to store indexes in the form of BotlDB files and to use the Single Store – single storage for both data blocks and indexes. See [Single Store Loki (boltdb-shipper index type)](https://grafana.com/docs/loki/latest/operations/storage/boltdb-shipper/). We will use the `boltdb-shipper` – it will create indexes locally and then push them to the shared object-store. The chunks will also be stored there. Also, in Loki 2.7, a new way of storing indexes has appeared – in the form of TSDB files, see [Grafana Loki 2.7 release: TSDB index, Promtail enhancements, and more](https://grafana.com/blog/2022/12/01/grafana-loki-2.7-release/). ### Loki streams, labels, and data storing An important point to consider when working with tags in Loki is how indexes and data blocks are formed: each separate set of tags forms a separate stream, and each separate stream has its own indexes and data blocks. That is, if you dynamically create tags/labels, for example `client_ip`, then you will have a separate set of files for each client IP, which will lead to the fact that separate GET/POST/DELETE requests will be performed for each such file, so at first, it will affect the cost of storage (as in the case of AWS S3, where each call is paid), and secondly, it may cause problems with the speed of processing requests. See. [Labels](https://grafana.com/docs/loki/latest/fundamentals/labels/#cardinality) and an excellent post – [Grafana Loki and what can go wrong with label cardinality](https://utcc.utoronto.ca/\~cks/space/blog/sysadmin/GrafanaLokiCardinalityProblem?showcomments). ## Loki Helm Charts In addition to documentation issues, Loki also has some difficulties with charts, as they were transferred between repositories and merged, and now some have become deprecated (although there are references to them in the documentation). \ Below is not about the setup, but just some details of the Loki Helm charts. \ So, there is a Helm repository of Grafana – ; add it: helm repo add grafana https://grafana.github.io/helm-charts \ If you open it in a browser, there will be a link to the documentation: > Chart documentation is available in [grafana directory](https://github.com/grafana/helm-charts/blob/main/charts/grafana/README.md). Follow the link, and you’ll get to the [git repository](https://github.com/grafana/helm-charts/tree/main/charts), which contains a list of charts: \ * `loki-canary` – relevant * `loki-distributed` – relevant * `loki-simple-scalable` – **deprecated**, moved to the * `loki-stack` – relevant * `loki` – **deprecated**, moved to the \ Also, they can be found when searching with Helm: ``` $ helm search repo grafana loki NAME CHART VERSION APP VERSION DESCRIPTION bitnami/grafana-loki 2.5.0 2.7.0 Grafana Loki is a horizontally scalable, highly... grafana/loki 3.3.4 2.6.1 Helm chart for Grafana Loki in simple, scalable... grafana/loki-canary 0.10.0 2.6.1 Helm chart for Grafana Loki Canary grafana/loki-distributed 0.65.0 2.6.1 Helm chart for Grafana Loki in microservices mode grafana/loki-simple-scalable 1.8.11 2.6.1 Helm chart for Grafana Loki in simple, scalable... ``` Maybe they left it for compatibility, okay, but it adds difficulties with the installation. You can download and unzip locally to see what’s there: helm pull grafana/loki --untar The default values – [here>>>](https://github.com/grafana/loki/blob/main/production/helm/loki/values.yaml). ## Helm Chart and Deployment Mode Another point that was a bit brain-wrenching: ok, we saw that Loki could be run with different Deployment modes, but how do we define this in the chart? There is no option in the values like `-target`. Below is some digging into the chart, which can be skipped if the default setup is fine with you. So, if installed with default values, we get the following components: ``` $ helm install loki grafana/loki ... Installed components: * grafana-agent-operator * gateway * read * write ``` And Pods: ``` $ kk get pod NAME READY STATUS RESTARTS AGE loki-canary-7vrj2 0/1 ContainerCreating 0 12s loki-gateway-5868b68c68-lwtfj 0/1 ContainerCreating 0 12s loki-grafana-agent-operator-684b478b77-zmw5t 1/1 Running 0 12s loki-logs-kwxcx 0/2 ContainerCreating 0 3s loki-read-0 0/1 ContainerCreating 0 12s loki-read-1 0/1 Pending 0 12s loki-read-2 0/1 Pending 0 12s loki-write-0 0/1 ContainerCreating 0 12s loki-write-1 0/1 Pending 0 12s loki-write-2 0/1 Pending 0 12s ``` That is, by default, it is set to the simple-scalable mode, while the documentation of the charts itself does not say anything about it, not even a word about how to set the deployment mode in general. But what if I want the Single Binary? Remove the installation: ``` $ helm uninstall loki release "loki" uninstalled ``` Let’s try to believe [the documentation](https://grafana.com/docs/loki/latest/installation/helm/install-monolithic/) and create our values: ```yaml loki: commonConfig: replication_factor: 1 storage: type: 'filesystem' ``` Install: ``` $ helm upgrade --install --values values-local.yaml loki grafana/loki ... Installed components: * grafana-agent-operator * loki ``` What? That is, just by redefining the storage – we’ve changed the deployment mode?!? … Okay… How does it work? Open the `templates/_helpers.tpl` file, which contains two templates – `loki.deployment.isScalable` and `loki.deployment.isSingleBinary`, which contain the same condition, only with different values: ```go ... {{- eq (include "loki.isUsingObjectStorage" . ) "false" }} ... ``` If *true* – then it’s `isScalable`, if it’s *false* – then `isSingleBinary`. Okay, what is the `isUsingObjectStorage`? Find it in the same helper: ```go ... {{/* Determine if deployment is using object storage */}} {{- define "loki.isUsingObjectStorage" -}} {{- or (eq .Values.loki.storage.type "gcs") (eq .Values.loki.storage.type "s3") (eq .Values.loki.storage.type "azure") -}} {{- end -}} ... ``` That is, if we use `.Values.loki.storage.type` with a value of `gcs`, `s3`or `azure` – the `loki.isUsingObjectStorage` will take the value of `true`, and Loki will be set to Simple Scale mode. It is far from obvious and not described in the documentation for the chart. ## Launching Grafana Loki Now, finally, let’s move on to running and configuring Loki. \ We will use AWS S3 for data storage, for work with indexes – `bottledb-shipper`, for setting the log storage period – `compactor`. \ For Loki authentication in AWS, we will use a ServiceAccount with AWS IAM Role, but I will also show an example with ordinary ACCESS/SECRET keys. ## Creating an AWS S3 bucket Let’s start by creating a basket. It is possible through AWS CLI and the `create-bucket`, or through Terraform: ```go resource "aws_s3_bucket" "loki_object_store" { bucket = "${var.client}-${var.environment}-loki-object-store" tags = { Name = "Grafana Loki Object Store" environment = var.environment service = var.service } } ``` Now, for simplicity, we will create through the AWS Console: [ \n ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.464Z-clf8gy1f4001i0bs6e75h4jte "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221212_094708.png) Remember the region, here it is the *us-west-2* : [ \n ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.464Z-clf8gy1f4001h0bs694ti9ify "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221212_144056.png) ## AWS IAM Role & Policy We will need a policy that allows access to the bucket, and a role, which will be connected to Kubernetes Pods with Loki instances. Back to the Loki documentation issues – the [Grafana Loki Storage](https://grafana.com/docs/loki/latest/operations/storage/#s3) page has an example of a policy for AWS S3 that… doesn’t pass validation in AWS IAM In general, I often had associations with [Microsoft Azure](https://rtfm.co.ua/ru/azure-pochemu-nikogda/) – you can’t trust the documentation there either, and everything has to be checked and collected piece by piece. ### Using ServiceAccount I described ServiceAccount and IAM configuration in detail in another post, the [Kubernetes: ServiceAccount from AWS IAM Role for Kubernetes Pod](https://rtfm.co.ua/en/kubernetes-serviceaccount-z-aws-iam-role-dlya-kubernetes-pod-2/), so in this one, let’s do it quickly. Go to the *AWS Console > IAM > Policies*, create a Policy: ```json { "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "s3:ListBucket", "s3:PutObject", "s3:GetObject", "s3:DeleteObject" ], "Resource": [ "arn:aws:s3:::test-loki-0", "arn:aws:s3:::test-loki-0/*" ] } ] } ``` Go to EKS, and find the OpenID Connect provider URL: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.463Z-clf8gy1f3001g0bs6008x6m9m "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221225_112805.jpg) Go to *IAM > Identity providers*, and find the OIDC ARN by the ID 537\*\*\*A10: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.462Z-clf8gy1f2001f0bs63u8hfgnc "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221225_113028.jpg) Go to *Roles*, create a role: select the *Web identity* type, select our Identity provider from the list, and specify *sts.amazon.com* in Audience : [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.406Z-clf8gy1di001e0bs698tf8hdt "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221225_113221.jpg) Connect the previously created policy: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.406Z-clf8gy1di001d0bs6fnqmbo51 "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221225_113252.png) Check the Trusted Policy, and save the new role: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.405Z-clf8gy1dh001c0bs69a165wsa "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221225_113436.jpg) Save the ARN of the role – we will use it later in the Loki parameters: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.404Z-clf8gy1dg001b0bs6e4wa9634 "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221225_114556.jpg) ### Using AWS Access and Secret Keys Another option is to use the `access_key_id`, `secret_access_key` options instead of the IAM role and ServiceAccount, see [s3-expanded-config.yaml](https://grafana.com/docs/loki/latest/configuration/examples/#s3-expanded-configyaml) : ```yaml ... storage_config: aws: bucketnames: bucket_name1, bucket_name2 endpoint: s3.endpoint.com region: s3_region access_key_id: s3_access_key_id secret_access_key: s3_secret_access_key insecure: false ... ``` It’s a bit simpler than ServiceAccount. The only question is how to store and pass secrets with the key. In this example, we will create a regular user through the AWS Console to which we will connect the policy. Go to *IAM > Roles*, create a Policy: ```json { "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "s3:ListBucket", "s3:PutObject", "s3:GetObject", "s3:DeleteObject" ], "Resource": [ "arn:aws:s3:::test-loki-0", "arn:aws:s3:::test-loki-0/*" ] } ] } ``` Create a user with the *Programmatic access*: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.400Z-clf8gy1dd001a0bs608ee1xls "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221212_141423.png) Connect this policy to the user: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.400Z-clf8gy1dc00190bs63bfz2w59 "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221212_141512.png) Save the keys: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.399Z-clf8gy1db00180bs6f9jze37f "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221212_142359.jpg) Move on to the Loki config – also got enough pain and suffering with the documentation and the chart. ## Running Grafana Loki on Kubernetes Well, now that it has become clear--both with the charts and how to set the Deployment Mode through the Loki Helm chart and in general--which chart to use, let’s try to run it. \ Let’s prepare a minimal config, in which we will first disable all its internal monitoring to reduce the number of pods – it will be easier to understand how it works, and for a start, we will use storage of the `filesystem` type to store data and indexes locally in the Pods: ```yaml loki: auth_enabled: false commonConfig: path_prefix: "/var/loki" replication_factor: 1 storage: type: "filesystem" schema_config: configs: - from: 2022-12-12 store: boltdb object_store: filesystem schema: v12 index: prefix: index_ period: 168h storage_config: boltdb: directory: /var/loki/index filesystem: directory: /var/loki/chunks test: enabled: false monitoring: dashboards: enabled: false rules: enabled: false alerts: enabled: false serviceMonitor: enabled: false selfMonitoring: enabled: false lokiCanary: enabled: false grafanaAgent: installOperator: false ``` Deploy to the namespace `test-loki-0`: ``` $ helm upgrade --install --namespace test-loki-0 --create-namespace --values loki-minimal-values.yaml loki grafana/loki ... Installed components: * loki ``` Check the Pod ``` $ kk -n test-loki-0 get pod NAME READY STATUS RESTARTS AGE loki-0 1/1 Running 0 118s ``` Okay – there is the only one, nothing unnecessary. The chart creates a StatefulSet that describes the creation of this Pod and configures various volumes: ``` $ kk -n test-loki-0 get sts NAME READY AGE loki 1/1 3m ``` And a ConfigMap with the config stored, supplemented by our `loki-minimal-values.yaml`: ``` $ kk -n test-loki-0 get cm loki -o yaml apiVersion: v1 data: config.yaml: | auth_enabled: false] common: path_prefix: /var/loki replication_factor: 1 storage: filesystem: chunks_directory: /var/loki/chunks rules_directory: /var/loki/rules ... ``` ## Grafana Loki S3 config I would give a lot to find somewhere a complete config for Grafana Loki with AWS S3 as in the example below, with authorization via ServiceAccount and AWS IAM – I’ve spent a lot of time trying to get it all to work. \ Actually, the config itself, then a little about the options and pitfalls I encountered: ```yaml loki: auth_enabled: false commonConfig: path_prefix: /var/loki replication_factor: 1 storage: bucketNames: chunks: test-loki-0 type: s3 schema_config: configs: - from: "2022-01-11" index: period: 24h prefix: loki_index_ store: boltdb-shipper object_store: s3 schema: v12 storage_config: aws: s3: s3://us-west-2/test-loki-0 insecure: false s3forcepathstyle: true boltdb_shipper: active_index_directory: /var/loki/index shared_store: s3 rulerConfig: storage: type: local local: directory: /var/loki/rules serviceAccount: create: true annotations: eks.amazonaws.com/role-arn: "arn:aws:iam::638***021:role/test-loki-0-role" write: replicas: 2 read: replicas: 1 test: enabled: false monitoring: dashboards: enabled: false rules: enabled: false alerts: enabled: false serviceMonitor: enabled: false selfMonitoring: enabled: false lokiCanary: enabled: false grafanaAgent: installOperator: false ``` So, here: * `auth_enabled: false` – disable authorization in Loki itself (as a result, we will receive a `tenant_id` named *fake* in the basket – that’s ok, although developers could come up with something more “beautiful” than the “fake”) * `storage.bucketNames.chunks` – need to specify the name of the basket for the chunks; otherwise, it will try to use local storage; not specified in the documentation; * `schema_config.configs.store`: * `boltdb-shipper` – set the use of the `boltdb-shipper` for indexes, since it is capable of Single Store, that is, both data blocks, aka chunks, and their indexes will be in the same basket * `object_store: s3` – specify the type of storage that is configured in `storage_config.aws.s3` (but here, we specify exactly as `schema_config.configs.store.s3`, not `schema_config.configs.store.aws.s3`) * `storage_config` – the biggest pain: * `aws.s3`: specify exactly in the form of `s3:// / `, otherwise, when connecting a ServiceAccount, Loki starts trying to go to *https://sts.dummy.amazonaws.com* for authorization – I couldn’t find out why, but when using a ServiceAccount, this format is required * `boltdb_shipper` – set the local path where it creates indexes – `active_index_directory`, and `shared_store` – where to send them later; I will take the config from the same`storage_config.aws.s3` * `rulerConfig.storage.type: local` – for now, specify a local directory for the `ruler` component, we will deal with alerts another time; if not specified, it will constantly write an error in the log that it cannot access its basket, which is written somewhere in the defaults. I don’t remember where exactly * `write.replicas: 2` – the minimum number of the write Pods so that Promatil can write data Update the Helm release: ``` $ helm upgrade --install --namespace test-loki-0 --values loki-values.yaml loki grafana/loki ... Installed components: * gateway * read * write ``` Now we have separate *read* and *write* Pods. The Gateway instance simply has an Nginx service to route requests: ``` $ kk -n test-loki-0 get pod NAME READY STATUS RESTARTS AGE loki-gateway-55b4798bdb-g9hkl 1/1 Running 0 48s loki-read-0 0/1 Pending 0 48s loki-write-0 0/1 Running 0 48s loki-write-1 0/1 Running 0 47s ``` Wait a minute for the pods to go into the *Running* state, check the logs *of the loki-write-0* Pod, and after the message: > msg=”joining memberlist cluster succeeded” reached_nodes=2 elapsed_time=1m39.087106032s check the bucket: ``` $ aws --profile development s3 ls test-loki-0 2022-12-25 11:53:13 251 loki_cluster_seed.json ``` And in a few more minutes, the *fake* and *index* directories should appear : ``` $ aws --profile development s3 ls test-loki-0 PRE fake/ PRE index/ 2022-12-25 11:53:13 251 loki_cluster_seed.json ``` In the *fake* – the chunks, in the *index* – indexes. Okay, looks like it works. Now after adding a `promatil`, which will write data – the `ingester` component will write blocks of data, and the `bottledb-shipper` will start creating indexes and push them to the bucket. ## Running Promtail Find the Service of the Loki Gateway: ``` $ kk -n test-loki-0 get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE loki-gateway ClusterIP 10.109.225.168 80/TCP 22m ... ``` Deploy the Promtail chart with the `--set` configure the `loki.serviceName` value: ``` $ helm upgrade --install --namespace test-loki-0 --set loki.serviceName=loki-gateway promtail grafana/promtail ``` Check the Pods: ``` kk -n test-loki-0 get pod NAME READY STATUS RESTARTS AGE loki-gateway-55b4798bdb-7dzlf 1/1 Running 0 5m32s loki-read-0 1/1 Running 0 5m32s loki-write-0 1/1 Running 0 5m32s loki-write-1 1/1 Running 0 5m32s promtail-6pw59 0/1 Running 0 17s promtail-8h78j 0/1 Running 0 17s promtail-jb6bz 0/1 Pending 0 17s ... ``` `promtail` are running, nice. Check the Gateway logs – it should show data from the `promtail`: ``` $ kk -n test-loki-0 logs -f loki-gateway-55b4798bdb-7dzlf ... 10.0.87.55 - - [25/Dec/2022:09:58:19 +0000] 204 "POST /loki/api/v1/push HTTP/1.1" 0 "-" "promtail/2.7.0" "-" 10.0.109.239 - - [25/Dec/2022:09:58:19 +0000] 204 "POST /loki/api/v1/push HTTP/1.1" 0 "-" "promtail/2.7.0" "-" ``` Now let’s install Grafana and connect Loki to it. ## Running Grafana Install from the same repository: ``` $ helm upgrade --install --namespace test-loki-0 grafana grafana/grafana ``` Get the *admin* user password: ``` $ kubectl get secret --namespace test-loki-0 grafana -o jsonpath="{.data.admin-password}" | base64 --decode ; echo ahUAdmUdpemotqICa6jGzvi9wiU01an5qZJx3WSb ``` Open Grafana’s port locally: ``` $ kk -n test-loki-0 port-forward svc/grafana 8080:80 ``` Open in a browser, log in, and go to *Configuration – Data Sources* : [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.398Z-clf8gy1db00170bs6aizo641s "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221212_152236.png) Click *Add data source*, choose the *Loki* : [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.395Z-clf8gy1d700160bs63g8kagsr "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221212_152341.png) Add Loki, specify *http://loki-gateway:80* in the URL : [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.394Z-clf8gy1d600150bs67qaaaz7l "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221212_152426.png) Save, test: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.394Z-clf8gy1d600140bs61q89feb5 "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221212_152503.png) Go to *Explore*, select Loki from the top, and check the logs: [ ![](https://cdn.hackernoon.com/images/KUZ9co0787UPdlPqflyyp18Ey1O2-2023-03-14T16:29:32.393Z-clf8gy1d500130bs6ec4z2xw4 "Grafana Loki: обзор и запуск в Kubernetes с AWS S3 storage и boltdb-shipper")](https://rtfm.co.ua/wp-content/uploads/2022/12/Screenshot_20221225_120215.png) Done. *** Also published [here](https://rtfm.co.ua/en/grafana-loki-architecture-and-running-in-kubernetes-with-aws-s3-storage-and-boltdb-shipper/).
