Generating BDD Tests With ChatGPT and Running Them With Playwright

by Vitaliy PotapovSeptember 22nd, 2023
Read on Terminal Reader
Read this story w/o Javascript
tldt arrow

Too Long; Didn't Read

This article discusses how the author uses Behavior Driven Development (BDD) for automated end-to-end testing in their projects. They rely on ChatGPT to generate BDD scenarios, reducing manual work. The guide covers defining user stories, generating step definitions, creating a Page Object Model, and running tests with Playwright. The author successfully generates and executes BDD scenarios, demonstrating the efficiency of using AI for test generation.
featured image - Generating BDD Tests With ChatGPT and Running Them With Playwright
Vitaliy Potapov HackerNoon profile picture

In my current projects, I follow the Behavior Driven Development (BDD) approach for automated end-to-end testing. Previously I was rather skeptical of Given-When-Then syntax, but now I actively use it. The main reason — I generate BDD scenarios with ChatGPT instead of writing them manually 😎


In this guide, I'll share the steps on how you can obtain AI-generated tests for your project and execute them in a real browser with Playwright.


For the demo, I will use a TodoList App built by the Playwright team. It is a web page with a list of to-do items. Users can create, complete, and filter items. The ultimate goal is to cover this app with end-to-end tests, writing minimal code manually and delegating maximum stuff to ChatGPT. Ideally, generated tests should run and pass without any edits. Let's figure out if it's possible!



TodoList App


Plan

My todo list for the article is the following:

  1. Define user story
  2. Generate step definitions
  3. Generate BDD scenarios
  4. Run tests
  5. Recap


1. Define user story

User story is a keystone for BDD. It is a description of user actions to achieve a specific outcome from a feature within the app. For testing TodoList let's stick to the following story:


As a user I want to manage items in todo list:
create items, complete items and filter to see only completed items.


Later I will use this story in ChatGPT prompts.


2. Generate step definitions

Step definition is an implementation of a user action. For example:


Given I open TodoApp page


transforms to the browser command:


await page.goto('https://demo.playwright.dev/todomvc/');


Or

When I click the button


transforms to:

await page.getByTestId('button').click();


Several step definitions can be grouped into Page Object Model — a class representing a particular page in test scenarios.


For the todo list I need a single TodoPage class with methods to create, complete and filter items. The problem here is that step definitions highly depend on the page HTML structure, so I wouldn't delegate it to AI. But... ChatGPT is a perfect candidate to generate the template for the class.


As an output, I expect TypeScript code that uses NPM packages @playwright/test and playwright-bdd - to be able to run these tests later with Playwright.


Initial prompt to generate TodoPage class:

Create Page Object Model 'TodoPage' in TypeScript
for the following feature:

As a user I want to manage items in todo list:
create items, complete items and filter to see only completed items.

* Use 'page' from '@playwright/test' as constructor parameter.
* Use Given, When, Then from 'playwright-bdd/decorators' as BDD decorators, for example: @Given('pattern {string}').
* Don't fill methods body.

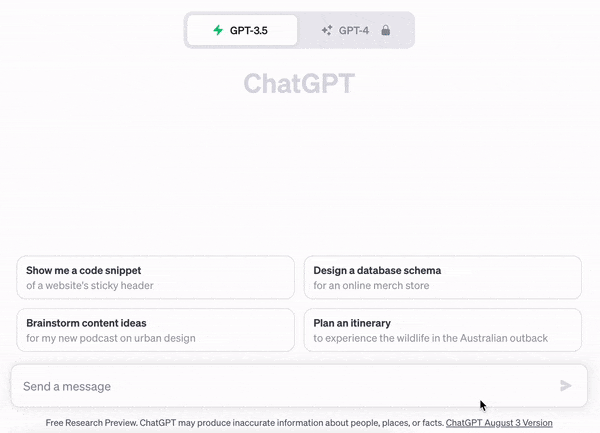

Sending this prompt to ChatGPT and waiting for the response… I always feel a bit hypnotized while code is being generated 😍


Generating code

Full ChatGPT response:

import { Page } from '@playwright/test';
import { Given, When, Then } from 'playwright-bdd/decorators';

export class TodoPage {
  private page: Page;

  constructor(page: Page) {
    this.page = page;
  }

  @Given('I am on the Todo page')
  async navigateToTodoPage() {
    // Implement navigation to the Todo page here
  }

  @When('I create a new todo item with text {string}')
  async createTodoItem(text: string) {
    // Implement creating a new todo item here
  }

  @When('I complete the todo item with text {string}')
  async completeTodoItem(text: string) {
    // Implement completing a todo item here
  }

  @When('I filter to see only completed items')
  async filterCompletedItems() {
    // Implement filtering completed items here
  }

  @Then('I should see the todo item with text {string}')
  async verifyTodoItemVisible(text: string) {
    // Implement verification logic here
  }

  @Then('I should not see the todo item with text {string}')
  async verifyTodoItemNotVisible(text: string) {
    // Implement verification logic here
  }

  @Then('I should see only completed todo items')
  async verifyOnlyCompletedItemsVisible() {
    // Implement verification logic here
  }

  @Then('I should see all todo items')
  async verifyAllItemsVisible() {
    // Implement verification logic here
  }
}


So far so good!

ChatGPT has generated correct class methods, marked them with decorators and passed parameters where needed.


Now I want to simplify the response. Instead of having 4 separate assertion methods, I want to use a single one that compares the whole list. It is cleaner than checking each item individually. I simply send this request into the chat and get what I need.


Second prompt:

Replace all verify methods with single method
that verifies list of visible items


ChatGPT output (notice the last method):

import { Page } from '@playwright/test';
import { Given, When, Then } from 'playwright-bdd/decorators';

export class TodoPage {
  private page: Page;

  constructor(page: Page) {
    this.page = page;
  }

  @Given('I am on the Todo page')
  async navigateToTodoPage() {
    // Implement navigation to the Todo page here
  }

  @When('I create a new todo item with text {string}')
  async createTodoItem(text: string) {
    // Implement creating a new todo item here
  }

  @When('I complete the todo item with text {string}')
  async completeTodoItem(text: string) {
    // Implement completing a todo item here
  }

  @When('I filter to see only completed items')
  async filterCompletedItems() {
    // Implement filtering completed items here
  }

  @Then('I should see the following todo items:')
  async verifyTodoItemsVisible(itemList: string[]) {
    for (const itemText of itemList) {
      // Implement verification logic for each itemText here
    }
  }
}


Fixed. ChatGPT replaced required methods and kept others untouched.


It's worth mentioning that running the same prompts may yield different results for you, worse or better. I've conducted numerous experiments, starting with a clean ChatGPT session. Here are some tips to refine the output:


  • make all methods async — sometimes ChatGPT generates synchronous methods

  • use {string} for string pattern parameters — to stick to Cucumber Expression syntax for parameters

  • create todo items inside scenario "xxx" — to fix scenario that uses data from another scenario, tests should be isolated

  • don't start method names with given/when/then — for better method names


Don't try to get an ideal response. ChatGPT can produce different answers, like a human! I use the following strategy:


  1. get the initial response

  2. improve it with subsequent commands

  3. finalize it manually


It is especially relevant for generating TodoPage class — anyway I still need to complete step implementations.

2.1 Fill step bodies

I can write step bodies manually inspecting HTML with devtools. However, my goal is to generate as much as possible. Fortunately, Playwright has a feature called codegen. It records all the actions on the web page and converts them into browser commands automatically.


Running codegen mode:

npx playwright codegen https://demo.playwright.dev/todomvc


The browser opens the provided URL and I perform the required actions. For example:


  1. create a few todo items

  2. mark them as completed

  3. filter


    Creating todo items

Generated code:

test('test', async ({ page }) => {
  await page.goto('https://demo.playwright.dev/todomvc/#/');
  await page.getByPlaceholder('What needs to be done?').fill('feed the dog');
  await page.getByPlaceholder('What needs to be done?').press('Enter');
  await page.getByPlaceholder('What needs to be done?').fill('feed the cat');
  await page.getByPlaceholder('What needs to be done?').press('Enter');
  await page.locator('li').filter({ hasText: 'feed the cat' }).getByLabel('Toggle Todo').check();
  await page.getByRole('link', { name: 'Completed' }).click();
});


Now I pick code blocks and paste them into the class template produced by ChatGPT.


In some cases, manual edits are required. For example, I will replace page.locator('li') selector with a more reliable page.getByTestId('todo-title').


Final TodoPage class with all the adjustments:

import { Page, expect } from '@playwright/test';
import { Given, When, Then, Fixture } from 'playwright-bdd/decorators';
import { DataTable } from '@cucumber/cucumber';

export @Fixture('todoPage') class TodoPage {
  private page: Page;

  constructor(page: Page) {
    this.page = page;
  }

  @Given('I am on the Todo page')
  async navigateToTodoPage() {
    await this.page.goto('https://demo.playwright.dev/todomvc/#/');
  }

  @When('I create a new todo item with text {string}')
  async createTodoItem(text: string) {
    await this.page.getByPlaceholder('What needs to be done?').fill(text);
    await this.page.getByPlaceholder('What needs to be done?').press('Enter');
  }

  @When('I complete the todo item with text {string}')
  async completeTodoItem(text: string) {
    await this.page.getByTestId('todo-item').filter({ hasText: text }).getByLabel('Toggle Todo').check();
  }

  @When('I filter to see only completed items')
  async filterCompletedItems() {
    await this.page.getByRole('link', { name: 'Completed' }).click();
  }

  @Then('I should see the following todo items:')
  async verifyTodoItemsVisible(itemList: DataTable) {
    await expect(this.page.getByTestId('todo-title')).toHaveText(itemList.raw().flat());
  }
}



3. Generate BDD scenarios

Let's construct BDD scenarios using the step definitions we've created. The key point here is to guide ChatGPT to utilize only specific steps. This enables us to execute the generated scenarios without the need for additional modifications.


Alternatively, you could generate scenarios first and then implement the corresponding steps. However, if you decide to re-generate the scenarios, you'll always need to update the step definitions.


To obtain a list of available steps, playwright-bdd offers a dedicated CLI command bddgen export. This command gathers step definitions from all files and displays them in plain text format in the terminal.


Run the command and get the list of steps:

npx bddgen export


Output:

List of all steps found by config: playwright.config.ts

* Given I am on the Todo page
* When I create a new todo item with text {string}
* When I complete the todo item with text {string}
* When I filter to see only completed items
* Then I should see the following todo items:


I select and copy these steps into my prompt.


The prompt to generate BDD scenarios:

Generate BDD scenarios as a single Gherkin file strictly using
only the following steps:

* Given I am on the Todo page
* When I create a new todo item with text {string}
* When I complete the todo item with text {string}
* When I filter to see only completed items
* Then I should see the following todo items:


ChatGPT output:

Feature: Todo List Management

  Scenario: Create a new todo item
    Given I am on the Todo page
    When I create a new todo item with text "Buy groceries"
    Then I should see the following todo items:
      | Todo Text       |
      | Buy groceries   |

  Scenario: Complete a todo item
    Given I am on the Todo page
    When I create a new todo item with text "Read a book"
    And I complete the todo item with text "Read a book"
    Then I should see the following todo items:
      | Todo Text     |
      | [x] Read a book |

  Scenario: Filter completed items
    Given I am on the Todo page
    When I create a new todo item with text "Walk the dog"
    And I create a new todo item with text "Water the plants"
    And I complete the todo item with text "Walk the dog"
    And I filter to see only completed items
    Then I should see the following todo items:
      | Todo Text         |
      | [x] Walk the dog |

  Scenario: Filter completed items with multiple completed items
    Given I am on the Todo page
    When I create a new todo item with text "Go for a run"
    And I create a new todo item with text "Write code"
    And I complete the todo item with text "Go for a run"
    And I complete the todo item with text "Write code"
    And I filter to see only completed items
    Then I should see the following todo items:
      | Todo Text        |
      | [x] Go for a run |
      | [x] Write code   |


I like the result: ChatGPT correctly uses Given-When-Then syntax, generates meaningful scenarios and applies only provided steps.


As before, I want to improve the output:


  1. Use Background keyword for common steps — it works like beforeEach()

  2. Remove [x] from items text — otherwise text assertion will fail

  3. Remove Todo Text header — it's redundant as there is only one column


I simply ask ChatGPT to do this.


Second prompt:

* Use "Background" for common steps.
* Don't use "[x]"
* Don't use "Todo Text" header


ChatGPT output:

Feature: Todo List Management

  Background:
    Given I am on the Todo page

  Scenario: Create a new todo item
    When I create a new todo item with text "Buy groceries"
    Then I should see the following todo items:
      | Buy groceries   |

  Scenario: Complete a todo item
    When I create a new todo item with text "Read a book"
    And I complete the todo item with text "Read a book"
    Then I should see the following todo items:
      | Read a book   |

  Scenario: Filter completed items
    When I create a new todo item with text "Walk the dog"
    And I create a new todo item with text "Water the plants"
    And I complete the todo item with text "Walk the dog"
    And I filter to see only completed items
    Then I should see the following todo items:
      | Walk the dog   |

  Scenario: Filter completed items with multiple completed items
    When I create a new todo item with text "Go for a run"
    And I create a new todo item with text "Write code"
    And I complete the todo item with text "Go for a run"
    And I complete the todo item with text "Write code"
    And I filter to see only completed items
    Then I should see the following todo items:
      | Go for a run   |
      | Write code     |


All requested edits are done. Now I'm thrilled to run these scenarios in a browser!

4. Run tests

Running BDD tests is not a built-in feature of Playwright, although one of the most voted. I leverage playwright-bdd integration for that. I only need to add configuration as all the steps and scenarios are already prepared.


For the sake of brevity, I'll skip the installation procedures here. You can find these instructions in a ready-to-run example on GitHub with all the files from the article. You can ask ChatGPT to generate your own BDD scenarios for the TodoList and run them within the example.


Playwright configuration is the following:

// playwright.config.ts
import { defineConfig } from '@playwright/test';
import { defineBddConfig } from 'playwright-bdd';

const testDir = defineBddConfig({
  paths: ['./features/todopage.feature'], // <- points to BDD scenarios
  importTestFrom: 'steps/fixtures.ts',    // <- points to step definitions
});

export default defineConfig({
  testDir,
  reporter: 'html',
});


Fixtures file that imports TodoPage class:

// steps/fixtures.ts
import { test as base } from 'playwright-bdd';
import { TodoPage } from './TodoPage';

export const test = base.extend<{ todoPage: TodoPage }>({
  todoPage: async ({ page }, use) => use(new TodoPage(page)),
});


Finally, run tests:

npx bddgen && npx playwright test


The output:

Running 4 tests using 1 worker
  4 passed (2.7s)

To open last HTML report run:

  npx playwright show-report


All tests passed! 🎉


HTML report with all the details: HTML report

5. Recap

I’m quite happy with the result. While I do need to fine-tune ChatGPT responses, I spend much less time compared to writing code manually. I like this way of creating tests — not a monotonous process that some teams tend to skip. It’s a modern take on pair programming, where your partner is AI. He is not ideal and can make mistakes, but very executive, incredibly well-read and always ready to tackle any task with great enthusiasm 😊


BDD proves to be a perfect format to generate with AI. It is clear and human-readable. ChatGPT arranges steps into correct logical chains, and a human easily validates the result and finds an error. At the same time, BDD scenarios are technical enough to be executed in a real browser with Playwright and other tools.


I believe there are many ways to improve the process. Feel free to share your experience in the comments!


Thanks for reading and happy testing ❤️


Also published here.
