An Image Engineer's Notes, Part 3: Inside the Camera’s 3A “Decision Intelligence”

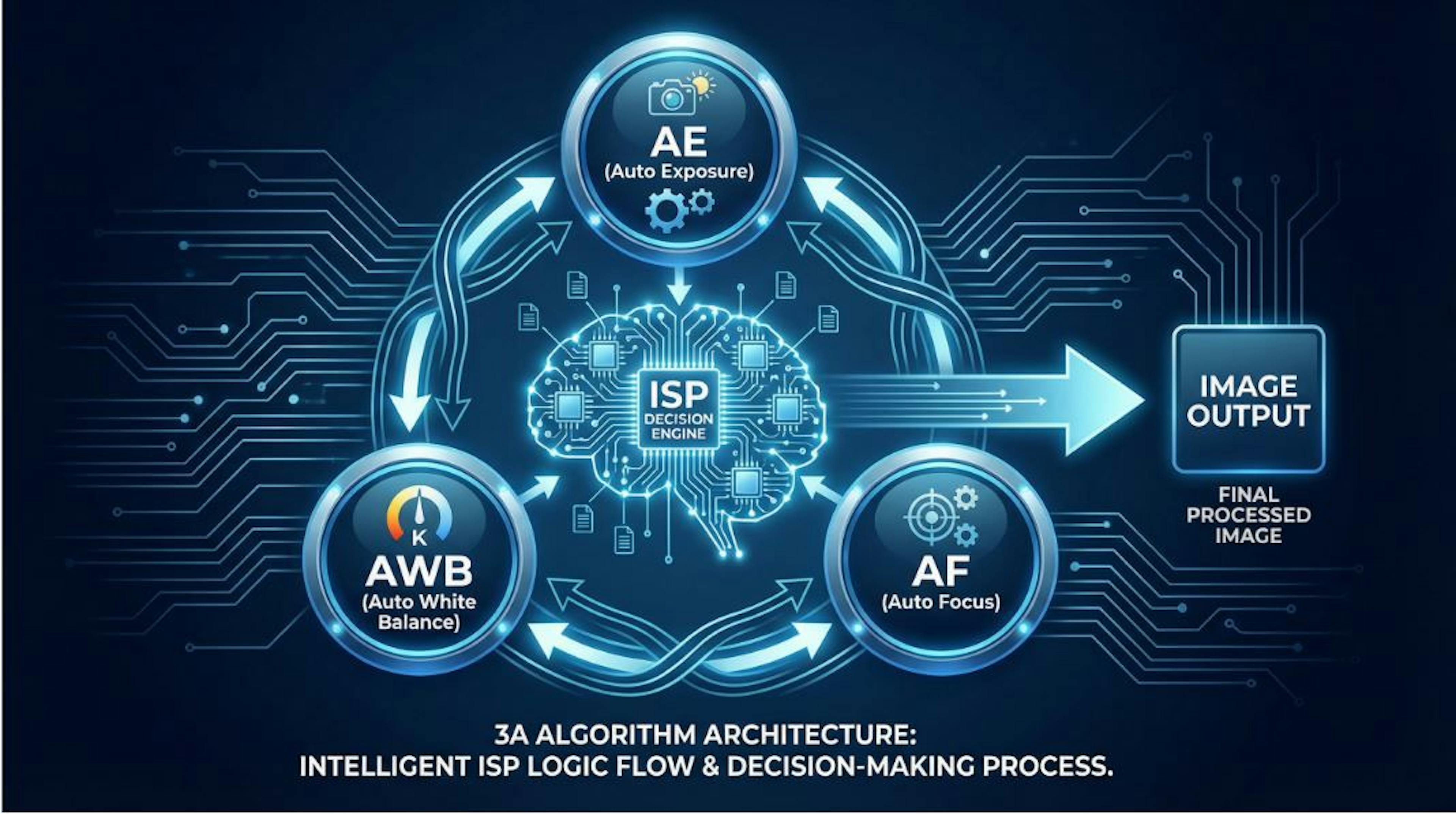

When a user picks up a smartphone or camera and takes a quick shot in "auto mode," a perfectly exposed, color-accurate, and sharply focused photo is instantly generated. Behind this magical moment lies the camera's Image Signal Processor (ISP) and its core "decision intelligence" ‒ the 3A algorithms ‒ working tirelessly. 3A refers to Auto Exposure (AE), Auto White Balance (AWB), and Auto Focus (AF). These three act like the camera's built-in professional photographers, collaborating to adapt to ever-changing shooting scenarios. 3A algorithms For image engineers, the quality of 3A algorithms directly determines the user's shooting experience. A good 3A system allows users to focus on composition and emotional expression; conversely, an immature 3A can lead to exposure errors, bizarre colors, or frequent out-of-focus shots. This article will delve into the mysteries of 3A. 1. AE (Auto Exposure): How to Measure Light Accurately? Auto Exposure (AE)'s primary task is to control image brightness, ensuring the frame is neither overexposed nor underexposed. The key lies in "metering," which involves assessing the scene's light intensity and automatically adjusting aperture, shutter speed, or ISO accordingly. Principles and Challenges of Metering Modes The camera's metering system is based on a fundamental assumption: it presumes all objects have an 18% reflectance, a "middle gray." When the overall scene brightness matches this standard, AE can provide accurate exposure parameters. However, the real world is full of exceptions. When shooting snow (high reflectance), the camera might mistakenly reduce exposure, turning white snow into gray; when shooting a black cat (low reflectance), it might increase exposure, making the black cat appear gray. To handle complex scenes, engineers have developed various metering modes: Matrix/Evaluative Metering: This is the most intelligent and commonly used mode. It divides the frame into multiple zones, independently analyzes the brightness, color, and even focus point of each zone, and then uses a vast internal image database and complex algorithms to calculate a balanced exposure value. This mode performs well in most scenarios and is the camera's default "all-rounder. Center-Weighted Metering: This mode prioritizes metering in the central area of the frame (approximately 20-30%), while also considering surrounding brightness with weighted averaging. It is suitable for situations where the main subject is in the center, such as traditional portraits. Spot Metering: Spot metering measures light only in a very small central area of the frame (about 1-5%), completely ignoring other regions. This gives photographers precise control, especially for high-contrast scenes like backlit portraits or stage photography. Matrix/Evaluative Metering: This is the most intelligent and commonly used mode. It divides the frame into multiple zones, independently analyzes the brightness, color, and even focus point of each zone, and then uses a vast internal image database and complex algorithms to calculate a balanced exposure value. This mode performs well in most scenarios and is the camera's default "all-rounder. Matrix/Evaluative Metering: Center-Weighted Metering: This mode prioritizes metering in the central area of the frame (approximately 20-30%), while also considering surrounding brightness with weighted averaging. It is suitable for situations where the main subject is in the center, such as traditional portraits. Center-Weighted Metering: Spot Metering: Spot metering measures light only in a very small central area of the frame (about 1-5%), completely ignoring other regions. This gives photographers precise control, especially for high-contrast scenes like backlit portraits or stage photography. Spot Metering: Engineer's Challenge: Handling High-Contrast Scenes One of the biggest challenges in image product development is handling high-contrast scenes like backlighting or sunrises/sunsets. In such situations, any single metering mode might fail. Good AE algorithms employ more sophisticated strategies in these cases, such as: Scene Recognition: Using AI to identify the scene as a "backlit portrait" or "sunset" and applying a specialized exposure curve. Face Priority AE: When a face is detected, prioritizing correct exposure for the face, even if the background becomes slightly overexposed. HDR (High Dynamic Range) Fusion: Automatically capturing multiple exposures and merging them into a single image with clear details in both highlights and shadows. Scene Recognition: Using AI to identify the scene as a "backlit portrait" or "sunset" and applying a specialized exposure curve. Scene Recognition: Face Priority AE: When a face is detected, prioritizing correct exposure for the face, even if the background becomes slightly overexposed. Face Priority AE: HDR (High Dynamic Range) Fusion: Automatically capturing multiple exposures and merging them into a single image with clear details in both highlights and shadows. HDR (High Dynamic Range) Fusion: 2. AWB (Auto White Balance): How Does the Camera Guess the Color of Light? Auto White Balance (AWB)'s goal is to correct color casts caused by different light source color temperatures, making white objects appear white under any lighting. The human eye has strong color constancy, automatically adapting to ambient light, but camera sensors do not; they merely record the color of light as it is. From "Gray World Assumption" to Machine Learning To understand AWB's challenges, one must first grasp the physical model of image formation. The "Observed Color" captured by the sensor is the product of the ambient "Illuminant Spectrum," the object's "Surface Reflectance," and the sensor's own "Sensor Response" curve: Observed Color = Illuminant Spectrum × Surface Reflectance × Sensor Response Observed Color = Illuminant Spectrum × Surface Reflectance × Sensor Response The camera can only measure the "Observed Color," and AWB's goal is to infer the "Illuminant Spectrum" from it for correction. However, since "Surface Reflectance" is unknown, this constitutes a classic "ill-posed problem" ‒ an equation with multiple unknowns that cannot be solved directly. This means the camera cannot simply rely on physical calculations to precisely determine the light source color. Therefore, traditional AWB algorithms are mostly based on statistical assumptions: Gray World Assumption: This is one of the most classic theories, assuming that in a color-rich image, the average of all colors will tend towards a neutral gray. The algorithm calculates the overall R, G, B averages of the frame; if the average deviates from gray, for example, being yellowish, the system will boost the blue channel gain to compensate. Perfect Reflector/White Patch Assumption: This assumption posits that the brightest point in the image should be white. The algorithm finds the brightest point in the frame and corrects it to white. Gray World Assumption: This is one of the most classic theories, assuming that in a color-rich image, the average of all colors will tend towards a neutral gray. The algorithm calculates the overall R, G, B averages of the frame; if the average deviates from gray, for example, being yellowish, the system will boost the blue channel gain to compensate. Gray World Assumption: Perfect Reflector/White Patch Assumption: This assumption posits that the brightest point in the image should be white. The algorithm finds the brightest point in the frame and corrects it to white. Perfect Reflector/White Patch Assumption: However, these simple assumptions often fail. For example, on a large green lawn, the gray world assumption might incorrectly add red to "neutralize" the green, leading to a purplish cast. In mixed lighting (e.g., an office near a window with both daylight and fluorescent light), traditional algorithms are often ineffective. Engineer's Challenge: Tuning under Complex Lighting Due to the limitations of the physical model mentioned above, AWB tuning is one of the most difficult aspects of image engineering. To cope with various complex light sources like office fluorescent lights, home incandescent lamps, or sunset glows, engineers must build a vast database of light sources. Modern AWB algorithms have long surpassed simple statistical assumptions, turning to more complex machine learning models: Light Source Estimation: The algorithm analyzes the color distribution characteristics of the scene and compares them with thousands of light source models in its database (e.g., D65 daylight, A-source incandescent light) to "guess" the current ambient light. Mixed Lighting Processing: Since applying independent white balance correction to different regions of the image (i.e., regional white balance) carries a very high perceptual risk, easily leading to color artifacts or unnatural transitions, actual implementations often adopt the following strategies: Global Optimal Solution: The algorithm estimates multiple potential light sources in the scene and calculates a "compromise gain" that balances color across all parts of the image. This method aims to maintain overall color continuity and naturalness, avoiding visual flaws caused by local corrections. Semantic Weighting: Utilizing AI scene recognition technology, the algorithm can identify key areas in the image, such as faces, skin tones, or specific objects. When calculating the global white balance gain, higher weights are given to these visual focal points to ensure the accuracy of the main subject's colors. Simultaneously, background areas may retain some ambient light atmosphere to achieve visual balance and naturalness. Light Source Estimation: The algorithm analyzes the color distribution characteristics of the scene and compares them with thousands of light source models in its database (e.g., D65 daylight, A-source incandescent light) to "guess" the current ambient light. Light Source Estimation: Mixed Lighting Processing: Since applying independent white balance correction to different regions of the image (i.e., regional white balance) carries a very high perceptual risk, easily leading to color artifacts or unnatural transitions, actual implementations often adopt the following strategies: Global Optimal Solution: The algorithm estimates multiple potential light sources in the scene and calculates a "compromise gain" that balances color across all parts of the image. This method aims to maintain overall color continuity and naturalness, avoiding visual flaws caused by local corrections. Semantic Weighting: Utilizing AI scene recognition technology, the algorithm can identify key areas in the image, such as faces, skin tones, or specific objects. When calculating the global white balance gain, higher weights are given to these visual focal points to ensure the accuracy of the main subject's colors. Simultaneously, background areas may retain some ambient light atmosphere to achieve visual balance and naturalness. Mixed Lighting Processing: Global Optimal Solution: The algorithm estimates multiple potential light sources in the scene and calculates a "compromise gain" that balances color across all parts of the image. This method aims to maintain overall color continuity and naturalness, avoiding visual flaws caused by local corrections. Semantic Weighting: Utilizing AI scene recognition technology, the algorithm can identify key areas in the image, such as faces, skin tones, or specific objects. When calculating the global white balance gain, higher weights are given to these visual focal points to ensure the accuracy of the main subject's colors. Simultaneously, background areas may retain some ambient light atmosphere to achieve visual balance and naturalness. Global Optimal Solution: The algorithm estimates multiple potential light sources in the scene and calculates a "compromise gain" that balances color across all parts of the image. This method aims to maintain overall color continuity and naturalness, avoiding visual flaws caused by local corrections. Global Optimal Solution: Semantic Weighting: Utilizing AI scene recognition technology, the algorithm can identify key areas in the image, such as faces, skin tones, or specific objects. When calculating the global white balance gain, higher weights are given to these visual focal points to ensure the accuracy of the main subject's colors. Simultaneously, background areas may retain some ambient light atmosphere to achieve visual balance and naturalness. Semantic Weighting: A good AWB system must not only perform accurately under common light sources but also remain stable under mixed lighting and monochromatic scenes, avoiding color shifts as the scene changes. This is crucial for a good user experience. 3. AF (Auto Focus): The Trade-off Between Speed and Accuracy Auto Focus (AF) is responsible for adjusting the lens to make the subject sharp. From early "hunting" autofocus to today's "point-and-shoot" precision, AF technology has undergone significant evolution. From Contrast Detection AF to Phase Detection AF (PDAF) Contrast Detection AF: Its principle is that the contrast at the focal point is highest when the image is sharpest. The camera continuously fine-tunes the lens until it finds the peak contrast. The advantage is high accuracy, but the disadvantage is slower speed. Phase Detection AF (PDAF): It uses special pixel structures on the sensor (such as microlens arrays or masked pixels) to separate light coming from different areas of the lens (e.g., left and right), forming two independent images. By comparing the relative displacement (i.e., image phase difference) between these two separated images, the algorithm can precisely determine whether the focus is in front or behind the subject, and how much distance the lens needs to move to achieve focus. This method eliminates the need for repeated searching, allowing the lens to be driven directly into position. Therefore, PDAF does not need to search back and forth; it can directly and quickly drive the lens into focus. Contrast Detection AF: Its principle is that the contrast at the focal point is highest when the image is sharpest. The camera continuously fine-tunes the lens until it finds the peak contrast. The advantage is high accuracy, but the disadvantage is slower speed. Contrast Detection AF Phase Detection AF (PDAF): It uses special pixel structures on the sensor (such as microlens arrays or masked pixels) to separate light coming from different areas of the lens (e.g., left and right), forming two independent images. By comparing the relative displacement (i.e., image phase difference) between these two separated images, the algorithm can precisely determine whether the focus is in front or behind the subject, and how much distance the lens needs to move to achieve focus. This method eliminates the need for repeated searching, allowing the lens to be driven directly into position. Therefore, PDAF does not need to search back and forth; it can directly and quickly drive the lens into focus. Phase Detection AF (PDAF): Engineer's Challenge: Balancing Focus Speed and Accuracy In the development of AF lens drivers, the core challenge for engineers is to strike a balance between speed and accuracy. While PDAF is incredibly fast, it has certain requirements for light and object contrast, and traditional DSLR lenses might suffer from focus shift issues. Contrast detection AF, though slower, uses information directly from the main sensor, ensuring absolute focus accuracy. Therefore, modern cameras mostly employ "Hybrid Auto Focus," combining both: First Step (Coarse Adjustment): Using PDAF to quickly move the lens close to the focal point. Second Step (Fine Adjustment): Switching to contrast detection AF for precise focus confirmation, ensuring optimal sharpness. First Step (Coarse Adjustment): Using PDAF to quickly move the lens close to the focal point. First Step (Coarse Adjustment): Second Step (Fine Adjustment): Switching to contrast detection AF for precise focus confirmation, ensuring optimal sharpness. Second Step (Fine Adjustment): Conclusion: The Collaborative Work of 3A ‒ A Millisecond-Level Team Effort Finally, it must be emphasized that AE, AWB, and AF are not independent modules but a Tightly Coupled Closed-loop Control System. Imagine a professional photography team: at the moment the shutter is pressed, the gaffer (AE), colorist (AWB), and camera assistant (AF) must communicate and coordinate precisely within milliseconds to capture a perfect photo. Tightly Coupled Closed-loop Control System In a real ISP, the 3A modules operate as such an efficient team: the statistical results of each frame are simultaneously used by the AE, AWB, and AF modules, influencing the decisions for the next frame. This means that the design of 3A is inherently a Multi-variable Optimization Problem, not three independent problems. They collectively pursue the optimization of overall image quality, rather than the extreme of a single parameter. Multi-variable Optimization Problem This highly coupled nature also brings engineering challenges. Consider a scenario where a user moves from a dimly lit indoor environment to a brightly sunlit outdoor one. The camera must adapt to drastic environmental changes in a very short time. If AF locks onto the subject first but AE adjusts too slowly, the image might instantly overexpose; if AWB attempts to correct color temperature but conflicts with AE's brightness judgment, it could lead to color flickering or unnaturalness. Instability or overly aggressive reactions from any single module can lead to: System Oscillation: The entire imaging system oscillates during adjustment, for example, brightness or color constantly jumping in the frame, unable to output stably. Slow Convergence: Due to the interdependencies between modules, without a well- coordinated mechanism, the system might take longer to achieve optimal exposure, white balance, and focus, severely impacting user experience. System Oscillation: The entire imaging system oscillates during adjustment, for example, brightness or color constantly jumping in the frame, unable to output stably. System Oscillation: Slow Convergence: Due to the interdependencies between modules, without a well- coordinated mechanism, the system might take longer to achieve optimal exposure, white balance, and focus, severely impacting user experience. Slow Convergence: Therefore, a top-tier 3A system must not only ensure the precision and efficiency of each module but also delicately balance their interactions, much like a well-trained photography team. AF locks the main subject, AE adjusts lighting based on the subject and environment, and AWB renders the most accurate colors for the scene. In recent years, manufacturers have also begun to integrate AI technology, using deep learning to enable 3A algorithms to more accurately "understand" the photographer's intent and even predict environmental changes, further enhancing collaborative efficiency. It is this invisible "decision intelligence" that makes every shutter press a reliable and enjoyable creative experience. Preview: In-depth Look at ISP and Image Quality In this article, we delved into how 3A algorithms serve as the camera's "decision intelligence," playing a crucial role in exposure, white balance, and focus. However, from the raw data captured by the sensor to the exquisite photos presented before us, there is a series of complex and precise processing steps, all orchestrated by the Image Signal Processor (ISP). In the next article, we will unveil the mysteries of the ISP, exploring how it transforms raw data into visible images and delving into its key modules, such as Demosaic, Denoise, Sharpening, and Color Mapping. We will analyze the impact of these post-processing steps on image quality and how image engineers balance and optimize these aspects to ultimately shape the camera's unique "image style." Stay tuned!
