A crash course on Serverless with AWS — Image resize on-the-fly with Lambda and S3

Zeet is sponsoring this blogpost for the next month. I tried it out the other day. It's like serverless but for running entire back ends. You can host and scale apps automagically. Pretty neat.

Handling large images has always been a pain in my side since I started writing code. Lately, it has started to have a huge impact on page speed and SEO ranking. If your website has poorly optimized images it won’t score well on Google Lighthouse. If it doesn’t score well, it won’t be on the first page of Google. That sucks.

TL;DR

I’ve built and open-sourced a snippet of code that automates the process of creating and deploying an image resize function and an S3 bucket with one simple command. Check out the code here.

But if you want to follow along and learn how to do it yourself, keep reading.

Where do we start?

Luckily enough, there is a way to solve the issue of bad image optimization with little to no hassle. Today we’ll build an AWS Lambda function to resize images on-the-fly.

The images will be stored in an S3 bucket and, once requested, will be served from it. If you need a resized version, you’ll request the image and supply the height and width. This will trigger a function. It’ll grab the existing image, resize it, return it back to the bucket and then serve it from the bucket.

This scenario will only resize an image for a given set of dimensions once. Every subsequent request to the image of that size will be served from the bucket. Pretty cool huh? Here’s a diagram, because who doesn’t love diagrams.

Because I already assume you know how to use the Serverless Framework and have already been introduced to the basics of serverless, Docker and AWS, I’ll immediately jump into the gist of things. Here’s an overview of what we’ll be doing.

• Create the project structure
• Create a secrets file
• Write the AWS Lambda function configuration
• Write AWS Lambda function source code
• Write S3 Bucket configuration
• Deploy with DockerTest with Dashbird

Note: Please install Docker and Docker Compose before continuing with this tutorial.

The funny thing here is that we need to use Docker to deploy this service because of Sharp. This image-resize module has binaries that need to be built on the same operating system as it will run on. Because AWS Lambda is running on Amazon Linux, we need to

npm install

sls deploy

With that all out of the way let’s build some stuff.

Create the project structure

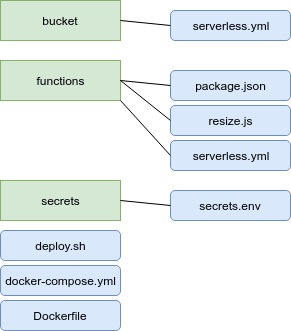

The best way of explaining this complex structure will be with an image.

Folders in green and files in blue. Check out the repo for further insight.

Create a secrets file

We’ll create a secrets.env file in the secrets folder to hold our secrets and inject them into our Docker container once it spins up.

SLS_KEY=XXX # replace with your IAM User key
SLS_SECRET=YYY # replace with your IAM User secret
STAGE=dev
REGION=us-east-1
BUCKET=images.yourdomain.com

Note: The

deploy.sh

secrets.json

Write the AWS Lambda function configuration

Open up the functions folder, and start by creating the

package.json

{
  "name": "image-resize",
  "version": "1.0.0",
  "description": "Serverless image resize on-the-fly.",
  "main": "resize.js",
  "dependencies": {
    "serverless-plugin-tracing": "^2.0.0",
    "sharp": "^0.18.4"
  }
}

No need to run any install, because we need to run the Docker container first. Note that we’re adding a tracing plugin to enable X-Ray because it’s awesome.

Moving on, let’s create the

serverless.yml

service: image-resize-on-the-fly-functions

plugins:
  - serverless-plugin-tracing

provider:
  name: aws
  runtime: nodejs8.10
  stage: ${env:STAGE, 'dev'}
  profile: serverless-admin # or change to 'default'
  tracing: true
  region: ${env:REGION, 'us-east-1'}
  environment:
    BUCKET: ${env:BUCKET}
    REGION: ${env:REGION}
  iamRoleStatements:
    - Effect: "Allow"
      Action:
        - "s3:ListBucket"
      Resource: "arn:aws:s3:::${env:BUCKET}"
    - Effect: "Allow"
      Action:
        - "s3:PutObject"
      Resource: "arn:aws:s3:::${env:BUCKET}"
    - Effect: "Allow"
      Action:
        - "xray:PutTraceSegments"
        - "xray:PutTelemetryRecords"
      Resource:
        - "*"

functions:
  resize:
    handler: resize.handler
    events:
      - http:
          path: resize
          method: get

As you can see we’re grabbing a bunch of values from the

env

BUCKET

Write AWS Lambda function source code

Only the code left now. Here’s what we’ll do. Because images can get quite large and we don’t want to risk loading several megabytes into the lambda function’s memory, I’ll show you how to use Node.js streams to read the image from an S3 stream, pipe it to Sharp, and then write it back to S3, once again, as a stream.

Ready? Let’s do it in two steps. First, define the helper functions we need in order to create the streams, then create the handler function itself which our lambda will invoke.

// resize.js

// require modules
const stream = require('stream')
const AWS = require('aws-sdk')
const S3 = new AWS.S3({
  signatureVersion: 'v4'
})
const sharp = require('sharp')

// create constants
const BUCKET = process.env.BUCKET
const URL = `http://${process.env.BUCKET}.s3-website.${process.env.REGION}.amazonaws.com`

// create the read stream abstraction for downloading data from S3
const readStreamFromS3 = ({ Bucket, Key }) => {
  return S3.getObject({ Bucket, Key }).createReadStream()
}
// create the write stream abstraction for uploading data to S3
const writeStreamToS3 = ({ Bucket, Key }) => {
  const pass = new stream.PassThrough()
  return {
    writeStream: pass,
    uploadFinished: S3.upload({
      Body: pass,
      Bucket,
      ContentType: 'image/png',
      Key
    }).promise()
  }
}
// sharp resize stream
const streamToSharp = ({ width, height }) => {
  return sharp()
    .resize(width, height)
    .toFormat('png')
}

Here we’re defining constants and the constructor functions for our streams. What’s important to note is that S3 doesn’t have a default method for writing to storage with a stream. So you need to create one. It’s doable with the

stream.PassThrough()

Moving on, let’s check out the handler. Just underneath the code above, paste this in.

exports.handler = async (event) => {
  const key = event.queryStringParameters.key
  // match a string like: '/1280x720/image.jpg'
  const match = key.match(/(\d+)x(\d+)\/(.*)/)
  // get the dimensions of the new image
  const width = parseInt(match[1], 10)
  const height = parseInt(match[2], 10)
  const originalKey = match[3]
  // create the new name of the image, note this has a '/' - S3 will create a directory
  const newKey = '' + width + 'x' + height + '/' + originalKey
  const imageLocation = `${URL}/${newKey}`

  try {
    // create the read and write streams from and to S3 and the Sharp resize stream
    const readStream = readStreamFromS3({ Bucket: BUCKET, Key: originalKey })
    const resizeStream = streamToSharp({ width, height })
    const {
      writeStream,
      uploadFinished
    } = writeStreamToS3({ Bucket: BUCKET, Key: newKey })

    // trigger the stream
    readStream
      .pipe(resizeStream)
      .pipe(writeStream)

    // wait for the stream to finish
    const uploadedData = await uploadFinished

    // log data to Dashbird
    console.log('Data: ', {
      ...uploadedData,
      BucketEndpoint: URL,
      ImageURL: imageLocation
    })

    // return a 301 redirect to the newly created resource in S3
    return {
      statusCode: '301',
      headers: { 'location': imageLocation },
      body: ''
    }
  } catch (err) {
    console.error(err)
    return {
      statusCode: '500',
      body: err.message
    }
  }
}

The query string parameters will look like this

/1280x720/image.jpg

newKey

/

1280x720


Once we trigger the streams and await the promise to resolve we can log out the data and return a 301 redirect to the location of the image in the bucket. Note that we will enable static website hosting on our bucket in the next paragraph.

Write S3 Bucket configuration

The bucket configuration will mostly consist of default CloudFormation templates, so if you’re a bit rusty, I’d advise you brush up a bit. But, the gist of it is simple enough to understand. Open up the bucket folder and create a

serverless.yml

service: image-resize-on-the-fly-bucket

custom:
  secrets: ${file(../secrets/secrets.json)} # will be created in our deploy.sh script

provider:
  name: aws
  runtime: nodejs8.10
  stage: ${env:STAGE, 'dev'}
  profile: serverless-admin # or change to 'default'
  region: us-east-1
  environment:
    BUCKET: ${env:BUCKET}

resources:
  Resources:
    ImageResizeOnTheFly:
      Type: AWS::S3::Bucket # creating an S3 Bucket
      Properties:
        AccessControl: PublicReadWrite
        BucketName: ${env:BUCKET}
        WebsiteConfiguration: # enabling the static website option
          ErrorDocument: error.html
          IndexDocument: index.html
          RoutingRules: # telling it to redirect for every 404 error
            -
              RedirectRule:
                HostName: ${self:custom.secrets.DOMAIN} # API Gateway domain
                HttpRedirectCode: "307" # temporary redirect HTTP code
                Protocol: "https"
                ReplaceKeyPrefixWith: "${self:provider.stage}/resize?key=" # route
              RoutingRuleCondition:
                HttpErrorCodeReturnedEquals: "404"
                KeyPrefixEquals: ""
    ImageResizeOnTheFlyPolicy:
      Type: AWS::S3::BucketPolicy # add policy for public read access
      Properties:
        Bucket:
          Ref: ImageResizeOnTheFly
        PolicyDocument:
          Statement:
            -
              Action:
                - "s3:*"
              Effect: "Allow"
              Resource:
                Fn::Join:
                  - ""
                  -
                    - "arn:aws:s3:::"
                    -
                      Ref: ImageResizeOnTheFly
                    - "/*"
              Principal: "*"

Once we enable the static website hosting option on our bucket, it will behave like any website. This lets us serve images from it and utilize the 404 error redirect rule.

If no image is found, the bucket will trigger the 404, which redirects to our lambda function. Then resize the original image to the requested dimensions, and put it back to the bucket at the exact route it was requested from.

Just like magic!

Deploy with Docker

Here comes the fun part! We’ll create a

Dockerfile

docker-compose.yml

.env

Starting with the

Dockerfile

FROM amazonlinux

# Create deploy directory
WORKDIR /deploy

# Install system dependencies
RUN yum -y install make gcc*
RUN curl --silent --location https://rpm.nodesource.com/setup_8.x | bash -
RUN yum -y install nodejs

# Install serverless
RUN npm install -g serverless

# Copy source
COPY . .

# Install app dependencies
RUN cd /deploy/functions && npm i --production && cd /deploy

#  Run deploy script
CMD ./deploy.sh ; sleep 5m

Because Amazon Linux is rather basic, we need to install both gcc and Node.js at the get-go. Then it’s as simple as any Dockerfile you’ve seen. Install the Serverless Framework globally, copy over the source code, install the npm modules in the functions directory and run the

deploy.sh

The

docker-compose.yml

.env

version: "3"
services:
  image-resize-on-the-fly:
    build: .
    volumes:
      - ./secrets:/deploy/secrets
    env_file:
      - ./secrets/secrets.env

That’s it. The Docker part is done. Let’s write some bash.

Starting out simple, we’ll define the initial variables, configure our serverless installation and deploy our function.

# deploy.sh

# variables
stage=${STAGE}
region=${REGION}
bucket=${BUCKET}
secrets='/deploy/secrets/secrets.json'

# Configure your Serverless installation to talk to your AWS account
sls config credentials \
  --provider aws \
  --key ${SLS_KEY} \
  --secret ${SLS_SECRET} \
  --profile serverless-admin

# cd into functions dir
cd /deploy/functions

# Deploy function
echo "------------------"
echo 'Deploying function...'
echo "------------------"
sls deploy

Once we have deployed it, we need to grab the domain name of our API Gateway endpoint and put it in a

secrets.json

serverless.yml

deploy.sh

# find and replace the service endpoint
if [ -z ${stage+dev} ]; then echo "Stage is unset."; else echo "Stage is set to '$stage'."; fi

sls info -v | grep ServiceEndpoint > domain.txt
sed -i 's@ServiceEndpoint:\ https:\/\/@@g' domain.txt
sed -i "s@/$stage@@g" domain.txt
domain=$(cat domain.txt)
sed "[email protected].$region.amazonaws.com@@g" domain.txt > id.txt
id=$(cat id.txt)

echo "------------------"
echo "Domain:"
echo "  $domain"
echo "------------------"
echo "API ID:"
echo "  $id"

rm domain.txt
rm id.txt

echo "{\"DOMAIN\":\"$domain\"}" > $secrets

Now you have a

secrets.json

deploy.sh

cd /deploy/bucket

# Deploy bucket config
echo "------------------"
echo 'Deploying bucket...'
sls deploy

echo "------------------"
echo 'Bucket endpoint:'
echo "  http://$bucket.s3-website.$region.amazonaws.com/"

echo "------------------"
echo "Service deployed. Press CTRL+C to exit."

There we have it! The coding part is done. Would you believe me we only need to run one command now? Open up a terminal window in the root of your project and run:

$ docker-compose up --build

Let it do its magic, and you’ll see everything get created automagically! Please note that the terminal will show you the bucket endpoint which you’ll use to access the images.

Test with Dashbird

The final step is to check if it all works. Let’s upload an image to the bucket, so we have something to resize. Go ahead and find an image you like and want to resize, or just take this one.

It’s rather huge and around 6 MB in size. Here’s the command you want to run to upload it.

$ aws s3 cp --acl public-read IMAGE s3://BUCKET

So, if your bucket name is images and your image name is the-earth.jpg, then it should look like this if you run the command from the directory where the image is located.

$ aws s3 cp --acl public-read the-earth.jpg s3://images

Keep in mind you need to have the AWS CLI installed on your machine, or upload the image through the AWS Console.

Now, try out to request the image through the bucket. Type into your browser the S3 bucket URL.

http://BUCKET.s3-website.REGION.amazonaws.com/the-earth.jpg

You’ll see the original image appear. But, now add dimensions to the URL.

http://BUCKET.s3-website.REGION.amazonaws.com/400x400/the-earth.jpg

This will trigger the resize function and create a 400x400 pixel version of the image. It’ll take a few hundred milliseconds to create and once it’s done, the browser will redirect you to the newly created image. When you try to refresh the URL you’ll see that it’s now fetching the new image, without calling the resize function.

Let’s check the logs in Dashbird and make sure it all works fine under the hood.

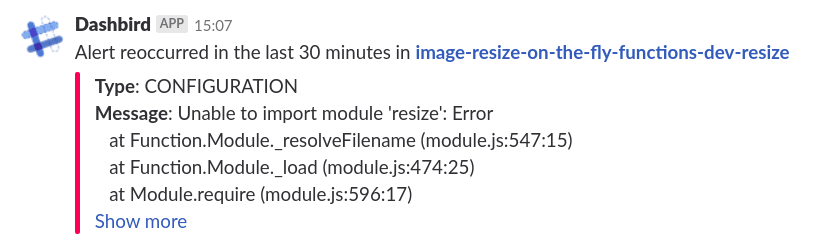

Looks fine, but I did make some beginner mistakes when I first tried setting up the function. One of them was forgetting to require a module before using it. Luckily I immediately got an alert that explained what was wrong. Slack alerts are life-savers.

The way I fixed the issue was with the live-tailing feature. It let me check the invocation logs with a few seconds of latency so I could debug the issue. Pretty cool.

Wrapping up

To conclude this little showdev session, I’d like to point out using serverless as a helper to support your existing infrastructure is incredible. It’s language agnostic and easy to use.

We at Dashbird use clusters of containers for our core features that interact heavily with our databases while offloading all the rest to lambda functions, queues, streams and other serverless services on AWS.

And, of course, here’s the repo once again, give it a star if you want more people to see it on GitHub. If you follow along with the instructions there, you’ll be able to have this image resize on-the-fly microservice up and running in no time at all.

If you want to read some of my previous serverless musings head over to my profile or join my serverless newsletter!

I had an absolute blast writing this open-source code snippet. Writing the article wasn’t that bad either! Hope you guys and girls enjoyed reading it as much as I enjoyed writing it. If you liked it, slap that tiny unicorn so more people here on dev.to will see this article. Until next time, be curious and have fun.
