Mastering Strategic Integration of Corporate Information Systems

Integrating corporate information systems is vital in today's business world. As companies grow, their information systems become more complex. These systems need to work together to provide clear and timely information.

Integration is more than a mere technical job; it's a strategic cornerstone for any company. It involves connecting disparate systems to enable effortless communication, ensuring smooth data flow across the organization. The ultimate goal is to centralize information, enabling data-driven decisions and efficient operations.

However, integration is far from simple. It demands a deep understanding of both the underlying technology and the specific business needs. Challenges such as reconciling different data formats and safeguarding information security render integration a multifaceted task that requires careful planning and management.

This article will explain what integration means for corporate information systems, define key terms, and delineate the main tasks. We will explore use cases for Event-driven architecture (EDA), ETL (Extract, Transform, Load), ESB (Enterprise Service Bus), and API Gateway in the context of solving information system integration challenges. Additionally, we will examine common challenges and present examples of software architectures that can be employed in integration.

Content Overview

• Definition of Information System (IS) Integration

• Tasks for Information System (IS) Integration

  • Data Exchange Between Various Applications and Systems
  • Resource Sharing
  • Business Process Coordination
  • Data Management Improvement
  • Ensuring Data Security in Information Systems
  • Enhancing Scalability

• Conclusion




Definition of Information System (IS) Integration

Information System (IS) integration is the process of combining and coordinating various information systems that may operate independently of each other into a unified infrastructure. The primary goal of IS integration is to facilitate communication and interaction between systems so that they can exchange data and resources to achieve common objectives.

IS integration can encompass various levels, such as the integration of applications, data, business processes, and systems. Different methods and technologies can be employed at each level, including Application Programming Interface (API), Enterprise Service Bus (ESB), Extract, Transform, Load (ETL), and Service-Oriented Architecture (SOA), among other integration tools and means.

This task is crucial for organizations that use different IS to carry out their business processes and operations. IS integration can help improve the productivity and efficiency of business processes, reduce the time and costs associated with task execution, and enhance the quality of data and information transparency.

Tasks for Information System (IS) Integration

Integrating Information Systems (IS) within an organization is a complex process comprising many different tasks. These tasks are not just technical challenges but vital steps that help different parts of a business work together more effectively. IS integration is about creating a unified and efficient technological environment, from sharing data between various applications to ensuring that all systems are secure and scalable. Here's a closer look at the main tasks involved in IS integration, each of which is critical in supporting the organization's goals and enhancing overall performance.

Please note that the examples used in this article are simplified for educational purposes. Real-world software systems used in production environments are often far more complex and multifaceted than can be described in a single article. The examples here are designed to illustrate key concepts and should not be taken as exhaustive representations of real-world scenarios.

1. Data Exchange Between Various Applications and Systems

Information System (IS) integration can enable data exchange between applications and systems operating on various platforms or using different data formats. This exchange is crucial for ensuring more accurate planning and inventory optimization.

Example: Integration of CRM and WMS Systems

Consider a company engaged in wholesale food distribution. They have a Customer Relationship Management (CRM) system for tracking customer orders and a Warehouse Management System (WMS) for monitoring product availability in the warehouse.

When a customer places an order through the CRM system, the system must send a request to the WMS system to check the availability of products in the warehouse and determine if the order can be fulfilled. If the products are in stock, the WMS system sends a confirmation back to the CRM system for order processing. If the products are unavailable, the WMS system sends a notification to the CRM system to inform the customer of the delay in fulfilling the order.

This communication can be implemented using an integration layer like an Enterprise Service Bus (ESB) or integration patterns like request-response and publish-subscribe. The CRM system can send requests to the WMS system through the integration layer, and the WMS system can send confirmations and notifications back to the CRM system through the same layer.

ESB (Enterprise Service Bus) is a centralized integration layer that manages, routes, and transforms messages between different systems. It can also offer additional functions like access control and monitoring.

Request-response is a two-way communication pattern where one system sends a request, and the other sends a response. On the other hand, Publish-subscribe is a one-way communication pattern where one system publishes a message, and another subscribes to that topic and receives messages.

Integrating the CRM and WMS systems allows the company to exchange data about orders and product availability in the warehouse, leading to more accurate planning and inventory optimization. This helps the company reduce order processing time and improve customer service quality. Organizations can create a cohesive environment that supports their business goals by employing strategies like ESB or specific integration patterns.

2. Resource Sharing

Information System (IS) integration can enable applications and systems to share resources such as databases, data storage, and more. This shared access is essential for maintaining a unified database with consistent information and avoiding data duplication.

Example: Sharing a Customer Database between CRM and WMS Systems

Imagine an organization with two systems: a Customer Relationship Management (CRM) system and a Warehouse Management System (WMS), as in our previous example. Both systems need to share a customer database to have a unified source of customer information.

We can use a RESTful API to create a standard interface through which both systems can access the customer database. This shared access can be managed using an API Gateway, serving as an entry point for both systems and handling the shared API.

For instance, when the CRM needs customer data, it sends a request to the API Gateway. The gateway then forwards the request to a microservice responsible for accessing the customer database. The microservice queries the database and returns the result to the CRM through the API Gateway.

Similarly, when the WMS needs access to the customer database, it sends a request to the API Gateway, which forwards it to the appropriate microservice. The microservice queries the database and returns the result to the WMS through the API Gateway.

Using a RESTful API and an API Gateway as an intermediary enables the CRM and WMS systems to share the customer database. This approach allows both systems to access shared resources and avoids data duplication. It ensures that all parts of the organization work with consistent and up-to-date information, enhancing efficiency and collaboration.

3. Business Process Coordination

Information System (IS) integration can facilitate the coordination of various business processes that are executed across different applications and systems. By automating these processes and creating a unified workflow, IS integration enhances the efficiency and effectiveness of business processes.

Example: Coordination between modules of an e-commerce application

Suppose we have an e-commerce application consisting of various modules such as order management, product management, warehouse management, etc. Each of these modules operates independently, but they need to be integrated for efficient operation and data management.

Utilizing Event-Driven Architecture (EDA) and Kafka

We can use an Event-Driven Architecture (EDA) to solve this challenge, allowing different modules to exchange messages and data through a centralized message broker, such as Apache Kafka.

First, we need to define the business processes that must be coordinated between the modules. For example, when creating a new order in the order management module, we need to check product availability in the warehouse management module and reserve the corresponding quantity. Then, in the product management module, we need to update the information about the number of products in the warehouse and on sale.

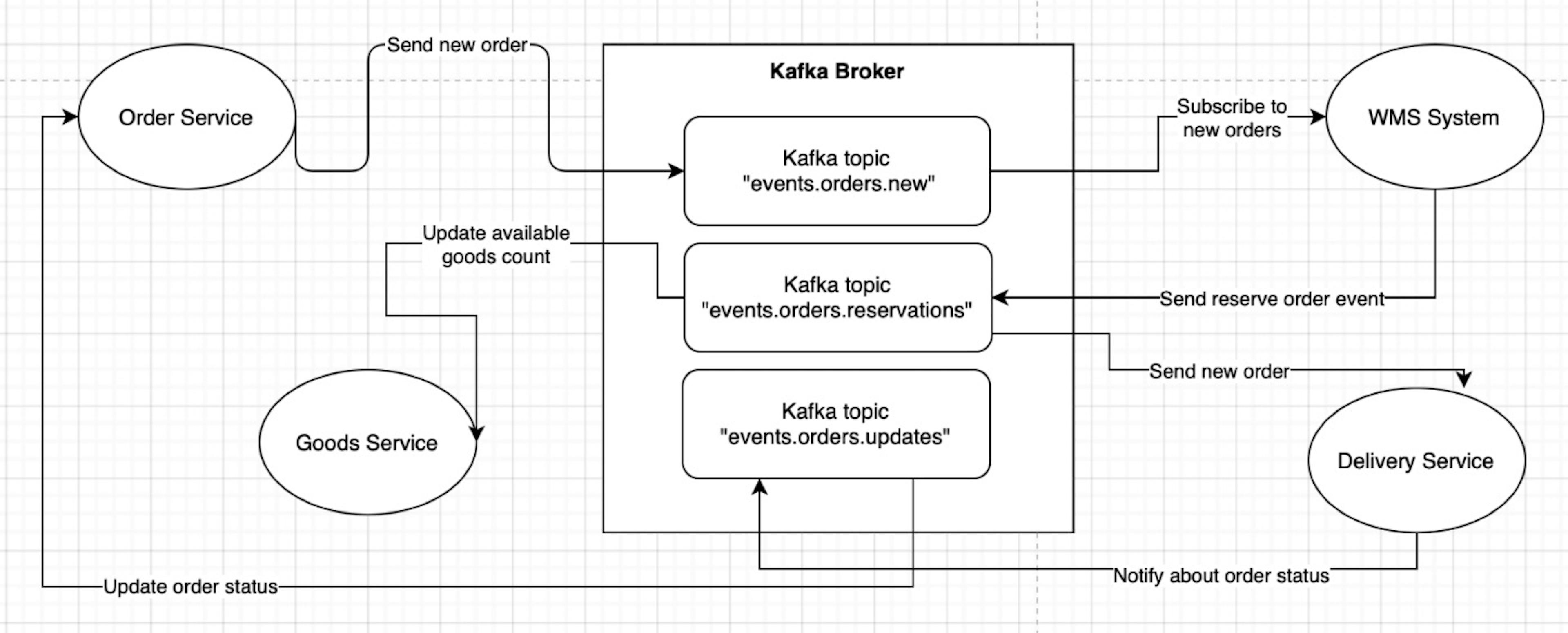

We can implement this process using an event-driven architecture and Kafka as the message broker. A "new order" event is generated and sent to Kafka when a new order is created in the order management module. The warehouse management module subscribes to this event and, upon receiving the message, checks the product availability in the warehouse and reserves it. Then, it sends a new "product reservation" event to Kafka, to which the product management module subscribes. This module updates the information about the product quantity in the warehouse and on sale and sends a new event, "product update" to Kafka. The warehouse management module subscribes to this event, completing the process.

Advantages of Event-Driven Architecture (EDA):

1. Faster Message Processing: EDA systems can quickly process messages thanks to the asynchronous approach and message-passing system. This allows more efficient handling of large data volumes and supports high application performance.
2. More Flexible Development Approach: In EDA applications, different components can be easily replaced or modified without affecting other components in the system. This ensures flexibility and ease of application development, as components can be developed, tested, and deployed independently.
3. Easier Scalability: EDA systems' components can be easily scaled horizontally, as each component can be deployed on a separate node and handle only its part of the messages. This ensures more straightforward overall system scalability.
4. Improved Reliability and Fault Tolerance: EDA systems can apply various error handling and redundancy mechanisms, ensuring higher reliability and fault tolerance.
5. Simpler Testing: EDA systems' testing can be simplified, as each component can be tested independently, enhancing overall application reliability and quality.
6. Better Support for Distributed Systems: EDA systems can efficiently operate in distributed environments like cloud platforms, providing a more flexible and scalable application architecture.

The integration of various e-commerce application modules using Event-Driven Architecture and Kafka ensures seamless business process coordination. This approach offers several advantages, including faster message processing, flexibility in development, more effortless scalability, improved reliability, better support for distributed systems, and more.

By employing EDA and Kafka, organizations can create more flexible, expandable systems that can quickly adapt to new modules or changes in existing processes.

4. Data Management Improvement

Information System (IS) integration is vital in enhancing data management by consolidating data from various sources and providing unified access. The ultimate goal is to achieve accurate and consistent information for decision-making.

Example: Business Analytics in an Electronics Sales Company

Access to data on sales, orders, supplies, inventory, etc., is essential for business analytics. These data may reside in different systems like CRM, ERP, warehouse management systems, and more. Integrating these data sources is crucial for gaining a comprehensive view and improving data management.

Utilizing ELT/ETL Tools

ELT/ETL tools like Apache NiFi, Talend, or Pentaho are crucial in data integration and management. Apache NiFi is an open-source data integration and flow automation system that enables data flow automation between systems. Talend, a cloud data integration platform, offers various data and application integration products to transform, enrich, and clean data. Pentaho, a Hitachi Vantara company, provides data integration and business analytics tools that deliver insights from data.

These tools can extract data from various sources, transform them into a unified format, and load them into a target database, creating a single access point for analysis and decision-making.

After loading the data, tools like Tableau or Power BI can be used for data analysis, visualization, creating dashboards, and real-time analysis. Tableau is a leading data visualization tool that allows users to create interactive and shareable dashboards, providing insights, trends, and patterns. Power BI, a business analytics service by Microsoft, offers interactive visualizations and business intelligence capabilities, transforming raw data into meaningful insights through easy-to-understand reports and visualizations.

This combination of tools ensures a streamlined process for handling data, from extraction to visualization, enhancing the efficiency and accuracy of data-driven decision-making.

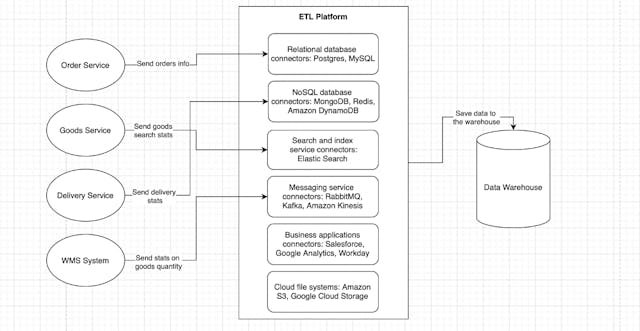

Let’s review the ETL process architecture for enhanced data management:

• Sources: The left section includes various data sources such as databases, web services, file systems, and other applications or systems containing the required information.




• ETL Platform: The ETL (Extract, Transform, Load) platform performs critical operations to enhance data management. It extracts data from sources, transforms them into the desired format, performs data cleansing, aggregation, filtering, and other transformations, and loads the data into the target data storage.




• Data Storage: The right section represents the central data repository where combined data from various sources are stored and made accessible. The data storage can be constructed using relational databases, data warehouses, or other data storage technologies.




• Users: The last part not shown on this diagram represents the end-users or applications that access the data from the data storage. These may include analysts, managers, business users, or other systems that utilize the data for decision-making, reporting, analysis, and other business processes.

The ETL process is executed regularly at a defined frequency, ensuring data updates in the storage and maintaining the information's relevance. During the ETL process, the data undergo various stages, including extraction, transformation, and loading, allowing the data to be processed and prepared for further use.

This architecture enhances data management by consolidating various data sources into a single, accessible, and reliable source. It ensures data consistency, accuracy, and timeliness for decision-making and business process analysis.

5. Ensuring Data Security in Information Systems

Integration of Information Systems (IS) can help secure data by creating a unified mechanism for authorization and authentication across various applications and systems.

For example, different company applications and systems should use a single authorization and authentication system to ensure secure access to data and applications. Imagine a company operating several applications like time-tracking, project, and document management systems. Each application has its own authorization and authentication system, meaning users must enter their credentials for each application separately. This can be inconvenient for users and may increase the risk of errors in entering credentials.

To solve this problem, the company can use a unified authorization and authentication system, allowing users to use the same credentials to access various applications and systems. This can be implemented by creating a centralized user account database used by the company's multiple applications and systems.

When users try to access one of the applications or systems, they will be redirected to an authorization page where they must enter their credentials. After successful authentication, the system will pass the credentials to the centralized database and grant access to the application or system. This way, the user won't have to enter their credentials to access another application or system, simplifying the authorization process and enhancing data and application security.

One example of such integration is SSO (Single Sign-On). SSO enables a user to authenticate once and gain access to all linked applications and systems without the need to re-enter credentials. For instance, an organization can use SSO to unify various systems like CRM, WMS, financial systems, etc. A user can authenticate once and access all systems without re-entering credentials. This enhances the user experience and reduces login time across different systems.

Another example is RBAC (Role-Based Access Control) — a method of managing resource access in an information system based on roles. In RBAC, each user is assigned a role that defines a set of access rights to system resources. An application of RBAC might be its use to manage data access in large companies where several departments have access to different data types. Roles can be defined for each department to restrict data access only to those users who need it.

RBAC can be applied in various systems, including operating systems, databases, management tools, etc. It provides more flexible and efficient access control, as it allows allocating access rights at the role level rather than the user level, simplifying the management and scalability of the system. However, implementing RBAC may require significant efforts in defining roles and access rights to resources, which may complicate the system management process.

6. Enhancing Scalability

Information Systems (IS) integration can significantly enhance the scalability of systems by unifying various systems into a single infrastructure that can scale as needed. For example, a company may use IS integration to combine different systems and applications into a unified infrastructure that can scale to ensure more efficient resource utilization and optimize business processes.

Suppose a company has several different systems and applications performing various tasks, such as a CRM system for order management, a WMS system for warehouse management, a manufacturing management system, and other applications.

The company may integrate these systems and applications into a unified infrastructure using a Kubernetes cluster to ensure efficient resource utilization and optimize business processes. Kubernetes provides horizontal scaling and automatic resource management, making it an ideal choice for integrating various systems and applications.

The company can use various approaches to integrate different applications and systems into a Kubernetes cluster. One approach is to use containerization of applications and systems with Docker, so each application or system is packaged into its container and can be run in the Kubernetes cluster. Kubernetes manages the automatic starting and stopping of containers and scales applications as needed.

Another approach is using a Service-Oriented Architecture (SOA) to integrate various applications and systems. In this case, each application or system acts as a service that can be run in the Kubernetes cluster as a separate microservice. Each microservice can be scaled as needed, and API management and other tools can facilitate integration between them.

In both cases, the company can use integration layers such as ESB or integration patterns like publish-subscribe or request-response to ensure effective communication between different systems and applications. As a result, the company can achieve a flexible, scalable, and efficient infrastructure to manage its business processes.

This approach to scalability through IS integration streamlines operations and provides a robust framework that can adapt to changing business needs. Organizations can build a cohesive and agile infrastructure that supports growth and innovation by leveraging modern technologies like Kubernetes and embracing integration methodologies.

Conclusion

The integration of Information Systems (IS) is a complex and strategic task that serves several essential functions within an organization. It's not just about connecting systems; it's about enhancing operational efficiency through the seamless integration of various applications, improving data management by unifying data sources and employing tools like ETL processes, ensuring robust security through unified authorization and authentication mechanisms like SSO and RBAC, and bolstering scalability by utilizing technologies like Kubernetes and Docker.

These tasks collectively contribute to creating a cohesive, agile, and secure infrastructure. In the ever-evolving digital landscape, understanding and implementing these principles of IS integration is vital for organizations aiming to stay competitive and responsive to the modern business world's dynamic demands.
