3 DESIGN GOALS

We considered several goals while designing MASC, while leaning on the experience we gained from the original version.


Diversity of Crypto-APIs (DG1): Effectively evaluating crypto-detectors requires considering misuse cases of existing crypto-APIs, which is challenging as crypto-APIs are as vast as the primitives

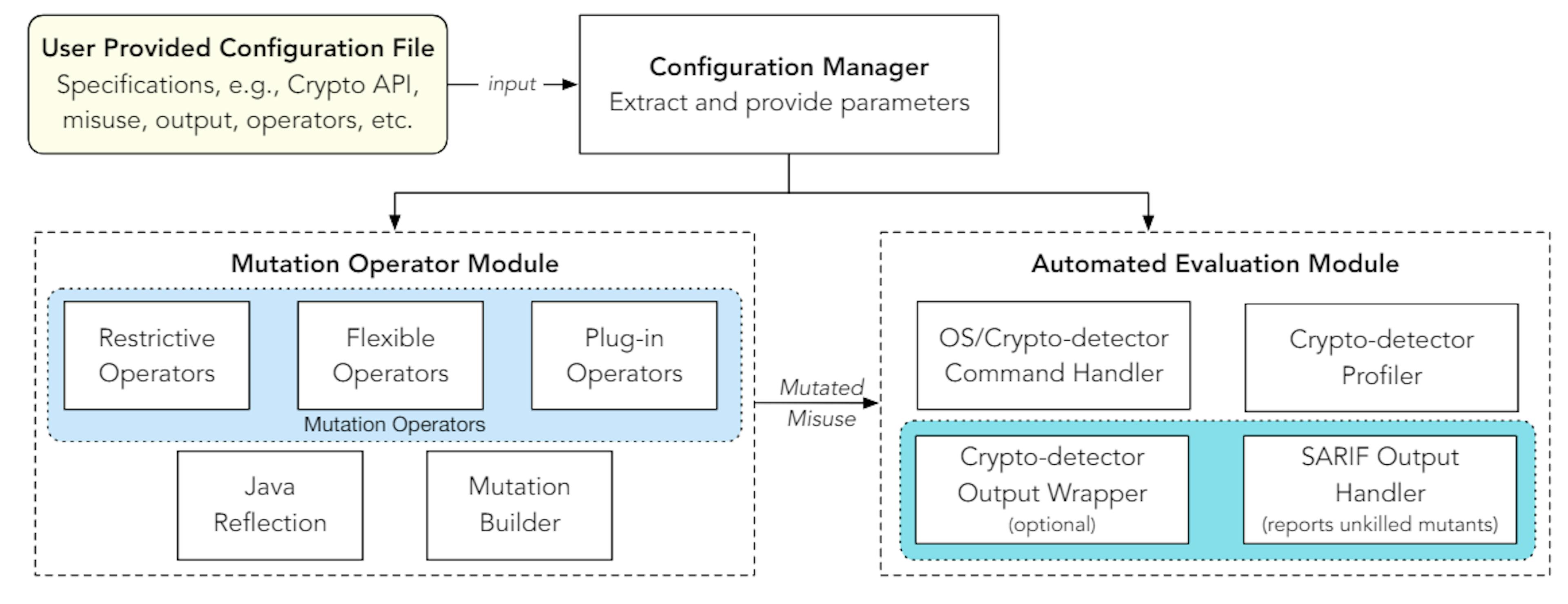

Figure 2: Architecture Overview of the Main Scope of MASC


they enable. To address this, the crypto-API mutation operators need to be decoupled from the crypto-APIs. Such implementation would mean that even in the case when new crypto APIs are introduced, MASC can still create mutated misuse cases as long as the new crypto-APIs follow existing design principles.


Open to Extension (DG2): While both original and current implementations of MASC come with 12 generalizable mutation operators, these represent a subset of different expressions of misuse cases. Hence, MASC should be open to extension by stakeholders so that they can create their own mutation operators that can be easily plugged-in to MASC, without needing to modify MASC.


Ease of Evaluating Crypto-detectors (DG3): While the original, semiautomated implementation of MASC required manual evaluating the target crypto-detector, such heavy-lifting manual effort can not be simply expected from end-users. Part of this manual effort was unavoidable due to the unique, varied outputs produced by cryptodetectors. However, with the recent focus on using crypto-detectors with CI/CD pipelines and the introduction of the de-facto SARIF [15] formatted outputs, it would become possible to not only automate the entire evaluation process, but also make it customizable.


Adapting to Users (DG4): Finally, MASC should be created in such a way that it is usable by users of varying skills and in different environments. For instance, it should be usable as a stand-alone binary in a windowless server environment as a component, and as a front-end based software that can leverage the binary of itself.
