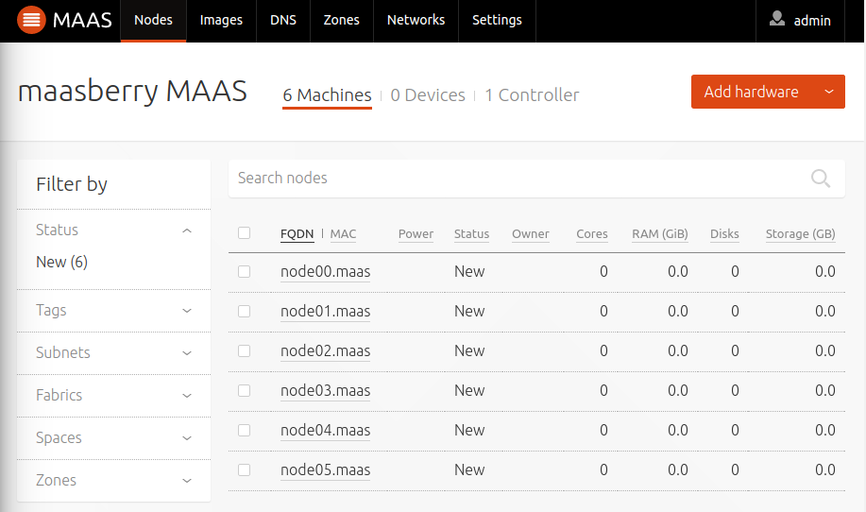

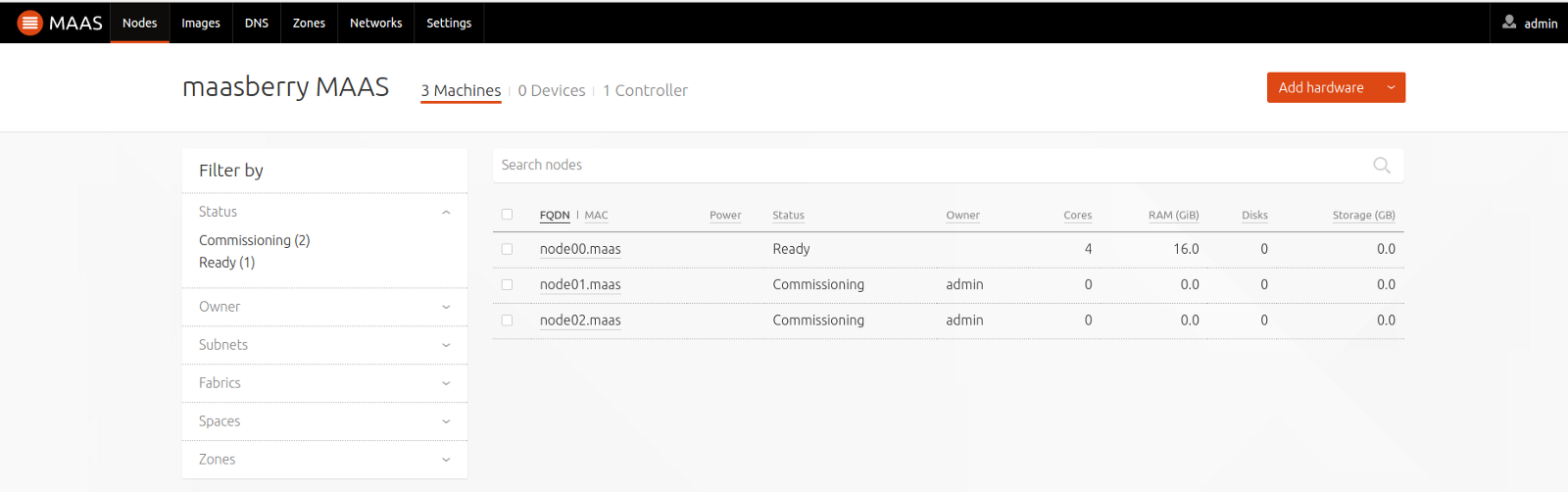

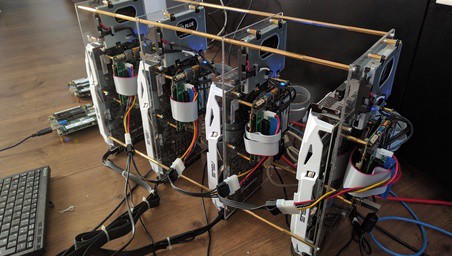

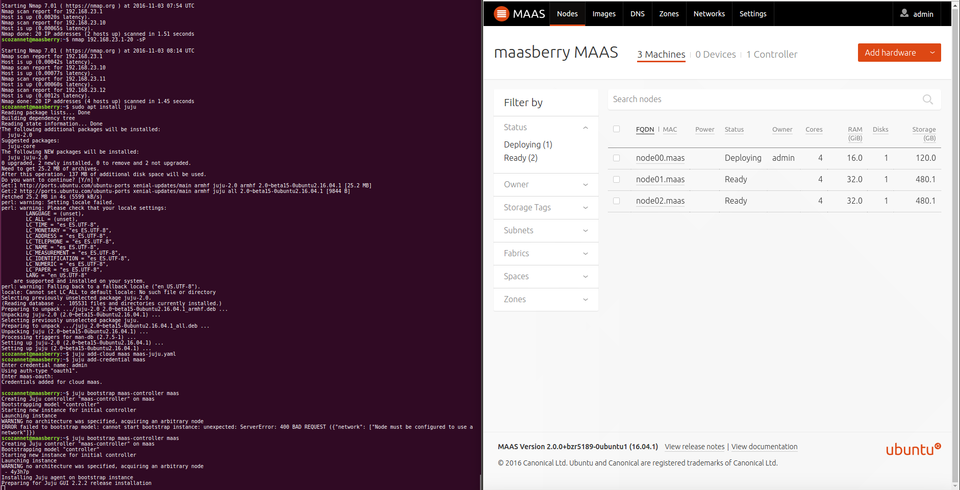

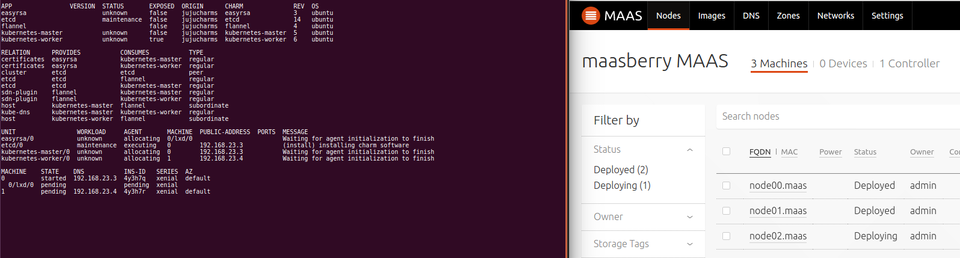

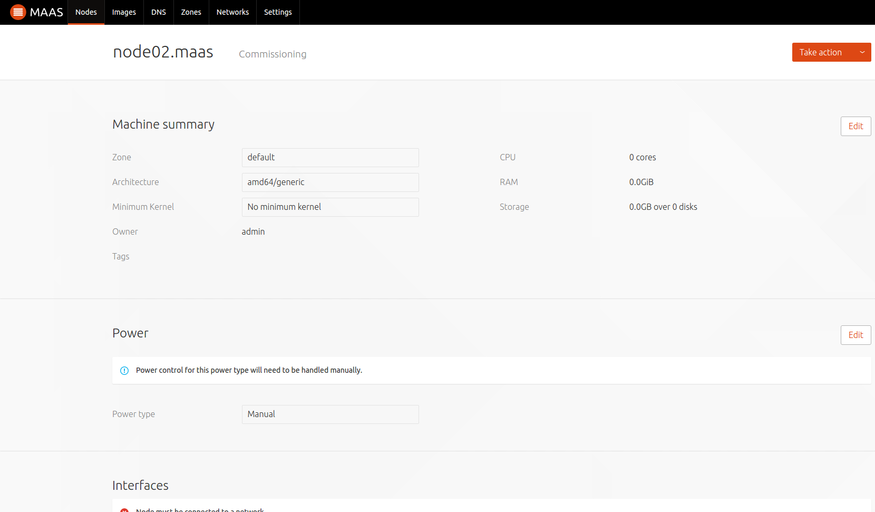

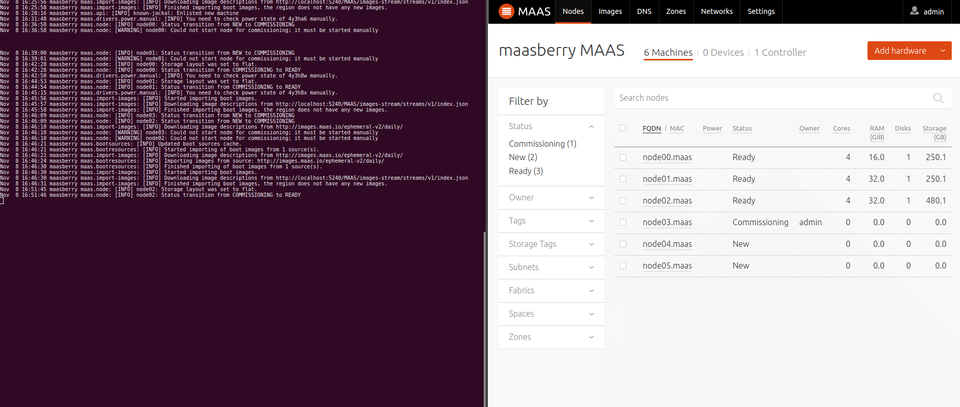

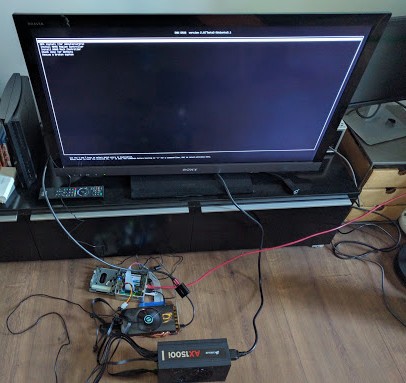

I don’t know if you have ever seen one of the Orange Boxes from Canonical These are really sleek machines. They contain 10 Intel NUCs, plus an 11th one for the . They are used as a demonstration tool for big software stacks such as OpenStack, Hadoop, and, of course, Kubernetes. management They are freely available from , so if you are an R&D team, or just interested in having a neat little cluster at home, I encourage you to have a look. TranquilPC However, despite their immense qualities they lack a critical piece of kit that Deep Learning geeks cherish: !! GPUs In this blog/tutorial we will learn how to build, install and configure a DIY GPU cluster that uses a similar architecture. We start with hardware selection and experiment, then dive into (Metal as a Service), a bare metal management system. Finally we look at to deploy on Ubuntu, add CUDA support, and enable it in the cluster. MAAS Juju Kubernetes Hardware: Adding fully fledged GPUs to Intel NUCs? When you look at them, it is hard to tell how to insert normal GPU cards into the tiny form factor of Intel NUCs. However they have a M.2 NGFF port. This is essentially a PCI-e 4x port, just in a different form factor. And, there is which converts M.2 into PCI-e 4x and which converts PCI-e 4x into 16x. this that Sooo… Theoritically, we connect GPUs to Intel NUCs. Let’s try out!! can POC: First node Let us start simple with a single Node Intel NUC and see if we can make a GPU to work with it. Already owning a NUC from the previous generation (NUC5i7SYH) and an old Radeon 7870, I just had to buy a PSU to power the GPU: for this, I found that the was the best deal on the market, capable of powering up to 10 GPUs!! Perfect if I wanted to scale this with more nodes. Corsair AX1500i Adapters: - - M.2 to PCI-e 4x Riser 4x -> 16x to activate power on a PSU without having it connected to a “real” motherboard. Thanks to Michael Iatrou (@iatrou) for pointing me there. Hack Obviously a screen, keyboard, cables…. Plug everything together and… It’s aliiiiiiive! Ubuntu boot screen from the additional GPU running at 4x At this point, we have proof it is possible, it’s time to start building a real cluster. Adding little brothers Let us build a 6 nodes cluster with 2 management nodes, and 4 GPU compute workers. Bill of material For each of the workers, you will need: is a good option for performance, but it does not have Intel AMT so you won’t be able to activate full automation of operations. Would you want to do something closer to the Orange Box with complete automation of the power cycle, you’d need to buy the older NUC5i5MYHE, which is the only reference with vPro (beside the board itself). More info . Intel NUC6i5RYH here RAM: 32GB DDR4 from Corsair SSD: 500GB Sandisk Ultra II Video Card: nVidia GTX1060 6GB Adapters: Same as before and also 4x Extenders Then for management nodes, 2x of the same above NUCs but without the GPU and with a smaller SSD. And now overall components: PSU: Corsair AX1500i Switch . You can take a lower end switch, I had one available that’s all. I didn’t do anything funky on the network side. Netgear GS108PE Raspberry Pi: Anything 2 or 3 version with 32GB micro SD Spacers ATX PSU Switch So just for reference, this is a costly setup but the ROI on g2 instances from AWS is about 20 days per node… Execution If it does not fit in the box, remove the box. So first the motherboard of the NUC has to be extracted. Using a PVC 3mm sheet and the spacers, we can have a nice layout. GPU view On one side for the PVC, we attach the GPU so the power connector is visible at the bottom, and the PCI-e port just slightly rises over the edge. The holes are 2.8mm so that the M3 spacers goes through but you need to screw them a little bit and they don’t move. Intel NUC view On the other side, we drill the fixation holes fro SSD and Intel NUC so that the PCI-e riser cable is aligned in front of the PCI-e port of the GPU. You’ll also have to drill the SSD metal support a little bit. As you can see on the picture, we place the riser between the PEC and the NUC so it looks nicer We repeat the operation 4 times for each node. Then using our 50mm M3 hexa, we attach them with 3 screws between each “blade”, book up everything to the network and… Tadaaaaa!! Close up view from the NUC side From the GPU side Software: Installation of the cluster Giving life to the cluster will require quite a bit of work on the software side. Instead of a manual process, we will leverage powerful management tooling. This will give us the ability to re-purpose our cluster in the future. The tool to manage the metal itself is (Metal As A Service). It is developed by Canonical to manage bare metal server fleets, and already powers the Ubuntu Orange Box. MAAS Then to deploy, we will be using , Canonical’s modelling tool, which has bundles to deploy the . Juju Canonical Distribution of Kubernetes Bare Metal Provisioning : Installing MAAS First of all we need to install MAAS on the Raspberry Pi 2. For the rest of this, we will assume that you have ready: a Raspberry Pi 2 or 3 installed with Ubuntu Server 16.04 The board ethernet port connected to a network that connects to internet, and configured an additional USB to ethernet adapter, connected to our cluster switch Network setup The default Ubuntu image does not auto install the USB adapter. First we shall query ifconfig to see a eth1 (or other name) in addition to our eth0 interface: $ /sbin/ifconfig -aeth0 Link encap:Ethernet HWaddr b8:27:eb:4e:48:c6inet addr:192.168.1.138 Bcast:192.168.1.255 Mask:255.255.255.0inet6 addr: fe80::ba27:ebff:fe4e:48c6/64 Scope:LinkUP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1RX packets:150573 errors:0 dropped:0 overruns:0 frame:0TX packets:39702 errors:0 dropped:0 overruns:0 carrier:0collisions:0 txqueuelen:1000RX bytes:217430968 (217.4 MB) TX bytes:3450423 (3.4 MB) eth1 Link encap:Ethernet HWaddr 00:0e:c6:c2:e6:82BROADCAST MULTICAST MTU:1500 Metric:1RX packets:0 errors:0 dropped:0 overruns:0 frame:0TX packets:0 errors:0 dropped:0 overruns:0 carrier:0collisions:0 txqueuelen:1000RX bytes:0 (0.0 B) TX bytes:0 (0.0 B) We can now edit with /etc/network/interfaces.d/eth1.cfg # hwaddress 00:0e:c6:c2:e6:82auto eth1iface eth1 inet staticaddress 192.168.23.1netmask 255.255.255.0 then start eth1 with $ sudo ifup eth1 and now we have a secondary interface setup. Base installation Let’s install first the requirements: $ sudo apt update && sudo apt upgrade -yqq$ sudo apt install -yqq — no-install-recommends \maas \bzr \isc-dhcp-server \wakeonlan \amtterm \wsmancli \juju \zram-config Let’s also use the occasion to fix the very annoying Perl Locales bug that affects pretty much every Rapsberry Pi around: $ sudo locale-gen en_US.UTF-8 Now let’s activate zram to virtually increase our RAM by 1GB by adding the below in /etc/rc.local modprobe zram && \echo $((1024*1024*1024)) | tee /sys/block/zram0/disksize && \mkswap /dev/zram0 && \swapon -p 10 /dev/zram0 && \exit 0 and do an immediate activation via $ sudo modprobe zram && \echo $((1024*1024*1024)) | sudo tee /sys/block/zram0/disksize && \sudo mkswap /dev/zram0 && \sudo swapon -p 10 /dev/zram0 DHCP Configuration DHCP will be handled by MAAS directly, so we don’t have to handle it. However the way it configures the default settings is pretty brutal, so you might want to tune that a little bit. Below is a file that would work and is a little fancier /etc/dhcp/dhcpd.conf authoritative;ddns-update-style none;log-facility local7; option subnet-mask 255.255.255.0;option broadcast-address 192.168.23.255;option routers 192.168.23.1;option domain-name-servers 192.168.23.1;option domain-name “maas”;default-lease-time 600;max-lease-time 7200; subnet 192.168.23.0 netmask 255.255.255.0 {range 192.168.23.10 192.168.23.49; host node00 {hardware ethernet B8:AE:ED:7A:B6:92;fixed-address 192.168.23.10;} ... ...} We need also to tell dhcpd to only serve requests on eth1 to prevent flowding our other networks. We do that by editing the INTERFACE option in so it looks like /etc/default/isc-dhcp-server # On what interfaces should the DHCP server (dhcpd) serve DHCP requests?# Separate multiple interfaces with spaces, e.g. “eth0 eth1”.INTERFACES=”eth1" and finally we restart DHCP with $ sudo systemctl restart isc-dhcp-server.service Simple Router Configuration In our setup, the Raspberry Pi is the point of contention of the network. While MAAS provides DNS and DHCP by default it does not operate as a gateway. Hence our nodes may very well end up blind from the Internet, which we obviously do not want. So first we activate IP forwarding in sysctl: sudo touch /etc/sysctl.d/99-maas.confecho “net.ipv4.ip_forward=1” | sudo tee /etc/sysctl.d/99-maas.confsudo sh -c “echo 1 > /proc/sys/net/ipv4/ip_forward” Then we need to link our eth0 and eth1 interfaces to allow traffic between them $ sudo iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE$ sudo iptables -A FORWARD -i eth0 -o eth1 -m state — state RELATED,ESTABLISHED -j ACCEPT$ sudo iptables -A FORWARD -i eth1 -o eth0 -j ACCEPT OK so now we have traffic passing, which we can test by plugging anything on the LAN interface and trying to ping some internet website. And we save that in order to make it survive a reboot sudo sh -c “iptables-save > /etc/iptables.ipv4.nat” and add this line in /etc/network/interfaces.d/eth1.conf up iptables-restore < /etc/iptables.ipv4.nat Configuring MAAS Pre requisites First of all create your administrative user: $ sudo maas createadmin — username=admin — email=it@madeden.com Then let’s get access to our API key, and login from the CLI: $ sudo maas-region apikey — username=admin Armed with the result of this command, just do: $ # maas login <profile-name> <hostname> <key>$ maas login admin <key> http://localhost/MAAS/api/2.0 Or you can just in one command: $ sudo maas-region apikey — username=admin | \maas login admin - http://localhost/MAAS/api/2.0 Now via the GUI, in the network tab, we rename our to match LAN, WAN and WLAN. fabrics Then we hit the LAN network, and via the button, we enable DHCP on it. Take Action The only thing we have to do is to start the nodes once. They will be handled by MAAS directly, and will appear in the GUI after a few minutes. They will have a random name, and nothing configured. First of all we will rename them. To ease things up, in our experiment, we will use node00 and node01 for the first non GPU nodes, then node02 to 04 being the gpu nodes. After we name them, we will also * tag them **cpu-only** for the 2 first management nodes* tag them **gpu** for the 4 workers. * Set the power method to **Manual** We then have something like Commissioning nodes This is where the fun begins. We need to “commission nodes”, said otherwise to record information about them (HDD, CPU count…) There is a in MAAS that blocks the deployment of systems. Look at comment #14 and apply it by editing . In the reboot section to add a delay so it looks like: bug /etc/maas/preseeds/curtin_userdata power_state:mode: rebootdelay: 30 Then we commission via the button and selecting , and leave unticked the all 3 other options. Right after that we manually power each of the nodes, and MAAS will do the rest, including power them down at the end of the process. The UI will then look like: Take Action Commission MAAS commissioning nodes MAAS from New To Commissioned When commissioning is successful, we see all the values for HDD size, nb cores and memory filled and the node also becomes Ready MAAS Logs at commissiionning Deploying with Juju Bootstrapping the environment First thing we need to do is connect Juju to MAAS. We create a configuration file for MAAS as provider, , with contents: maas-juju.yaml maas:type: maasauth-types: [oauth1]endpoint: http://<MAAS_IP>/MAAS Understand the MAAS_IP address as that from which Juju will interact with MAAS, including the nodes that are deployed. So you can use, in our setup, that of eth1 (192.168.23.1 ) You can find more details on this page Then we need to tell Juju to use MAAS: $ juju add-cloud maas maas-juju.yaml$ juju add-credential maas Juju needs to which brings up a first control node, which will host the Juju Controller, the initial database and various other requirements. This node is the reason we have 2 management nodes. The second one will be our k8s Master. bootstrap In our setup our nodes have only manual power since WoL was removed from MAAS with v2.0. This means we’ll need to trigger the bootstrap, wait for the node to be allocated, then start it manually. $ juju bootstrap maas-controller maasCreating Juju controller “maas-controller” on maasBootstrapping model “controller”Starting new instance for initial controllerLaunching instance # This is where we start the node manuallyWARNING no architecture was specified, acquiring an arbitrary node— 4y3h8wInstalling Juju agent on bootstrap instancePreparing for Juju GUI 2.2.2 release installationWaiting for addressAttempting to connect to 192.168.23.2:22Logging to /var/log/cloud-init-output.log on remote hostRunning apt-get updateRunning apt-get upgradeInstalling package: curlInstalling package: cpu-checkerInstalling package: bridge-utilsInstalling package: cloud-utilsInstalling package: tmuxFetching tools: curl -sSfw ‘tools from %{url_effective} downloaded: HTTP %{http_code}; time %{time_total}s; size %{size_download} bytes; speed %{speed_download} bytes/s ‘ — retry 10 -o $bin/tools.tar.gz <[ ]>Bootstrapping Juju machine agentStarting Juju machine agent (jujud-machine-0)Bootstrap agent installedBootstrap complete, maas-controller now available. https://streams.canonical.com/juju/tools/agent/2.0-beta15/juju-2.0-beta15-xenial-amd64.tgz And the MAAS GUI: Initial bundle deployment We deploy the bundle file below: k8s.yaml series: xenialservices:“kubernetes-master”:charm: “cs:~containers/kubernetes-master-6”num_units: 1to:— “0”expose: trueannotations:“gui-x”: “800”“gui-y”: “850”constraints: tags=cpu-onlyflannel:charm: “cs:~containers/flannel-5”annotations:“gui-x”: “450”“gui-y”: “750”easyrsa:charm: “cs:~containers/easyrsa-3”num_units: 1to:— “0”annotations:“gui-x”: “450”“gui-y”: “550”“kubernetes-worker”:charm: “cs:~containers/kubernetes-worker-8”num_units: 1to:— “1”expose: trueannotations:“gui-x”: “100”“gui-y”: “850”constraints: tags=gpuetcd:charm: “cs:~containers/etcd-14”num_units: 1to:— “0”annotations:“gui-x”: “800”“gui-y”: “550”relations:— — “kubernetes-master:kube-api-endpoint”— “kubernetes-worker:kube-api-endpoint”— — “kubernetes-master:cluster-dns”— “kubernetes-worker:kube-dns”— — “kubernetes-master:certificates”— “easyrsa:client”— — “kubernetes-master:etcd”— “etcd:db”— — “kubernetes-master:sdn-plugin”— “flannel:host”— — “kubernetes-worker:certificates”— “easyrsa:client”— — “kubernetes-worker:sdn-plugin”— “flannel:host”— — “flannel:etcd”— “etcd:db”machines:“0”:series: xenial“1”:series: xenial We can see that we have constraints on the nodes to force MAAS to pick up GPU nodes for the workers, and CPU node for the master. We pass the command $ juju deploy k8s.yaml That is it. This is the only command we will need to get a functional k8s running! added charm cs:~containers/easyrsa-3application easyrsa deployed (charm cs:~containers/easyrsa-3 with the series “xenial” defined by the bundle)added resource easyrsaannotations set for application easyrsaadded charm cs:~containers/etcd-14application etcd deployed (charm cs:~containers/etcd-14 with the series “xenial” defined by the bundle)annotations set for application etcdadded charm cs:~containers/flannel-5application flannel deployed (charm cs:~containers/flannel-5 with the series “xenial” defined by the bundle)added resource flannelannotations set for application flanneladded charm cs:~containers/kubernetes-master-6application kubernetes-master deployed (charm cs:~containers/kubernetes-master-6 with the series “xenial” defined by the bundle)added resource kubernetesapplication kubernetes-master exposedannotations set for application kubernetes-masteradded charm cs:~containers/kubernetes-worker-8application kubernetes-worker deployed (charm cs:~containers/kubernetes-worker-8 with the series “xenial” defined by the bundle)added resource kubernetesapplication kubernetes-worker exposedannotations set for application kubernetes-workercreated new machine 0 for holding easyrsa, etcd and kubernetes-master unitscreated new machine 1 for holding kubernetes-worker unitrelated kubernetes-master:kube-api-endpoint and kubernetes-worker:kube-api-endpointrelated kubernetes-master:cluster-dns and kubernetes-worker:kube-dnsrelated kubernetes-master:certificates and easyrsa:clientrelated kubernetes-master:etcd and etcd:dbrelated kubernetes-master:sdn-plugin and flannel:hostrelated kubernetes-worker:certificates and easyrsa:clientrelated kubernetes-worker:sdn-plugin and flannel:hostrelated flannel:etcd and etcd:dbadded easyrsa/0 unit to machine 0added etcd/0 unit to machine 0added kubernetes-master/0 unit to machine 0added kubernetes-worker/0 unit to machine 1deployment of bundle “k8s.yaml” completed Which translates in the GUI as: $ juju statusMODEL CONTROLLER CLOUD/REGION VERSIONdefault maas-controller maas 2.0-beta15 APP VERSION STATUS EXPOSED ORIGIN CHARM REV OSeasyrsa 3.0.1 active false jujucharms easyrsa 3 ubuntuetcd 2.2.5 active false jujucharms etcd 14 ubuntuflannel 0.6.1 false jujucharms flannel 5 ubuntukubernetes-master 1.4.5 active true jujucharms kubernetes-master 6 ubuntukubernetes-worker active true jujucharms kubernetes-worker 8 ubuntu RELATION PROVIDES CONSUMES TYPEcertificates easyrsa kubernetes-master regularcertificates easyrsa kubernetes-worker regularcluster etcd etcd peeretcd etcd flannel regularetcd etcd kubernetes-master regularsdn-plugin flannel kubernetes-master regularsdn-plugin flannel kubernetes-worker regularhost kubernetes-master flannel subordinatekube-dns kubernetes-master kubernetes-worker regularhost kubernetes-worker flannel subordinate UNIT WORKLOAD AGENT MACHINE PUBLIC-ADDRESS PORTS MESSAGEeasyrsa/0 active idle 0 192.168.23.3 Certificate Authority connected.etcd/0 active idle 0 192.168.23.3 2379/tcp Healthy with 1 known peers. (leader)kubernetes-master/0 active idle 0 192.168.23.3 6443/tcp Kubernetes master running.flannel/0 active idle 192.168.23.3 Flannel subnet 10.1.57.1/24kubernetes-worker/0 active idle 1 192.168.23.4 80/tcp,443/tcp Kubernetes worker running.flannel/1 active idle 192.168.23.4 Flannel subnet 10.1.67.1/24kubernetes-worker/1 active executing 2 192.168.23.5 (install) Container runtime available.kubernetes-worker/2 unknown allocating 3 192.168.23.7 Waiting for agent initialization to finishkubernetes-worker/3 unknown allocating 4 192.168.23.6 Waiting for agent initialization to finish MACHINE STATE DNS INS-ID SERIES AZ0 started 192.168.23.3 4y3h8x xenial default1 started 192.168.23.4 4y3h8y xenial default2 started 192.168.23.5 4y3ha3 xenial default3 pending 192.168.23.7 4y3ha6 xenial default4 pending 192.168.23.6 4y3ha4 xenial default or At the end of the process we have: $ juju statusMODEL CONTROLLER CLOUD/REGION VERSIONdefault maas-controller maas 2.0-beta15 APP VERSION STATUS EXPOSED ORIGIN CHARM REV OScuda false local cuda 0 ubuntueasyrsa 3.0.1 active false jujucharms easyrsa 3 ubuntuetcd 2.2.5 active false jujucharms etcd 14 ubuntuflannel 0.6.1 false jujucharms flannel 5 ubuntukubernetes-master 1.4.5 active true jujucharms kubernetes-master 6 ubuntukubernetes-worker 1.4.5 active true jujucharms kubernetes-worker 8 ubuntu RELATION PROVIDES CONSUMES TYPEcertificates easyrsa kubernetes-master regularcertificates easyrsa kubernetes-worker regularcluster etcd etcd peeretcd etcd flannel regularetcd etcd kubernetes-master regularsdn-plugin flannel kubernetes-master regularsdn-plugin flannel kubernetes-worker regularhost kubernetes-master flannel subordinatekube-dns kubernetes-master kubernetes-worker regularhost kubernetes-worker flannel subordinate UNIT WORKLOAD AGENT MACHINE PUBLIC-ADDRESS PORTS MESSAGEeasyrsa/0 active idle 0 192.168.23.3 Certificate Authority connected.etcd/0 active idle 0 192.168.23.3 2379/tcp Healthy with 1 known peers. (leader)kubernetes-master/0 active idle 0 192.168.23.3 6443/tcp Kubernetes master running.flannel/0 active idle 192.168.23.3 Flannel subnet 10.1.57.1/24kubernetes-worker/0 active idle 1 192.168.23.4 80/tcp,443/tcp Kubernetes worker running.flannel/1 active idle 192.168.23.4 Flannel subnet 10.1.67.1/24kubernetes-worker/1 active idle 2 192.168.23.5 80/tcp,443/tcp Kubernetes worker running.flannel/2 active idle 192.168.23.5 Flannel subnet 10.1.100.1/24kubernetes-worker/2 active idle 3 192.168.23.7 80/tcp,443/tcp Kubernetes worker running.flannel/3 active idle 192.168.23.7 Flannel subnet 10.1.14.1/24kubernetes-worker/3 active idle 4 192.168.23.6 80/tcp,443/tcp Kubernetes worker running.flannel/4 active idle 192.168.23.6 Flannel subnet 10.1.83.1/24 MACHINE STATE DNS INS-ID SERIES AZ0 started 192.168.23.3 4y3h8x xenial default1 started 192.168.23.4 4y3h8y xenial default2 started 192.168.23.5 4y3ha3 xenial default3 started 192.168.23.7 4y3ha6 xenial default4 started 192.168.23.6 4y3ha4 xenial default We now need kubectl to query the cluster. We need to relate to and the method for Hypriot OS this k8s issue $ curl -s | apt-key add -$ cat <<EOF > /etc/apt/sources.list.d/kubernetes.listdeb kubernetes-xenial mainEOF$ apt-get update$ apt-get install -y kubectl https://packages.cloud.google.com/apt/doc/apt-key.gpg http://apt.kubernetes.io/ $ kubectl get nodes — show-labelsNAME STATUS AGE LABELSnode02 Ready 1h beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=node02node03 Ready 1h beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=node03node04 Ready 57m beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=node04node05 Ready 58m beta.kubernetes.io/arch=amd64,beta.kubernetes.io/os=linux,kubernetes.io/hostname=node05 Adding CUDA CUDA does not have an official charm yet, so I wrote a hacky bash script to make it work, which you can find on GitHub To build the charm you’ll want a x86 computer rather than the Rpi. You will need juju, charm and charm-tools installed there, then run $ export JUJU_REPOSITORY=${HOME}/charms$ export LAYER_PATH=${JUJU_REPOSITORY}/layers$ export INTERFACE_PATH=${JUJU_REPOSITORY}/interfaces $ cd ${LAYER_PATH}$ git clone cuda$ cd juju-layer-cuda$ charm build https://github.com/SaMnCo/layer-nvidia-cuda Which will create a new folder called in JUJU_REPOSITORY, and another called cuda in there. Just scp that to the Raspberry Pi in a subfolder of your home. builds charms $ scp ${JUJU_REPOSITORY}/builds/cuda ${USER} :/home/${USER}/charms/cuda$ git clone cuda$ cd juju-layer-cuda$ charm build @raspberrypi https://github.com/SaMnCo/layer-nvidia-cuda To deploy the charm we just created, $ juju deploy — series xenial $HOME/charms/cuda$ juju add-relation cuda kubernetes-worker This will take some time (CUDA downloads gigabytes of code and binaries…), but ultimately we get to $ juju statusMODEL CONTROLLER CLOUD/REGION VERSIONdefault maas-controller maas 2.0-beta15 APP VERSION STATUS EXPOSED ORIGIN CHARM REV OScuda false local cuda 0 ubuntueasyrsa 3.0.1 active false jujucharms easyrsa 3 ubuntuetcd 2.2.5 active false jujucharms etcd 14 ubuntuflannel 0.6.1 false jujucharms flannel 5 ubuntukubernetes-master 1.4.5 active true jujucharms kubernetes-master 6 ubuntukubernetes-worker 1.4.5 active true jujucharms kubernetes-worker 8 ubuntu RELATION PROVIDES CONSUMES TYPEjuju-info cuda kubernetes-worker regularcertificates easyrsa kubernetes-master regularcertificates easyrsa kubernetes-worker regularcluster etcd etcd peeretcd etcd flannel regularetcd etcd kubernetes-master regularsdn-plugin flannel kubernetes-master regularsdn-plugin flannel kubernetes-worker regularhost kubernetes-master flannel subordinatekube-dns kubernetes-master kubernetes-worker regularjuju-info kubernetes-worker cuda subordinatehost kubernetes-worker flannel subordinate UNIT WORKLOAD AGENT MACHINE PUBLIC-ADDRESS PORTS MESSAGEeasyrsa/0 active idle 0 192.168.23.3 Certificate Authority connected.etcd/0 active idle 0 192.168.23.3 2379/tcp Healthy with 1 known peers. (leader)kubernetes-master/0 active idle 0 192.168.23.3 6443/tcp Kubernetes master running.flannel/0 active idle 192.168.23.3 Flannel subnet 10.1.57.1/24kubernetes-worker/0 active idle 1 192.168.23.4 80/tcp,443/tcp Kubernetes worker running.cuda/2 active idle 192.168.23.4 CUDA installed and availableflannel/1 active idle 192.168.23.4 Flannel subnet 10.1.67.1/24kubernetes-worker/1 active idle 2 192.168.23.5 80/tcp,443/tcp Kubernetes worker running.cuda/0 active idle 192.168.23.5 CUDA installed and availableflannel/2 active idle 192.168.23.5 Flannel subnet 10.1.100.1/24kubernetes-worker/2 active idle 3 192.168.23.7 80/tcp,443/tcp Kubernetes worker running.cuda/3 active idle 192.168.23.7 CUDA installed and availableflannel/3 active idle 192.168.23.7 Flannel subnet 10.1.14.1/24kubernetes-worker/3 active idle 4 192.168.23.6 80/tcp,443/tcp Kubernetes worker running.cuda/1 active idle 192.168.23.6 CUDA installed and availableflannel/4 active idle 192.168.23.6 Flannel subnet 10.1.83.1/24 MACHINE STATE DNS INS-ID SERIES AZ0 started 192.168.23.3 4y3h8x xenial default1 started 192.168.23.4 4y3h8y xenial default2 started 192.168.23.5 4y3ha3 xenial default3 started 192.168.23.7 4y3ha6 xenial default4 started 192.168.23.6 4y3ha4 xenial default Pretty awesome, we now have ! CUDERNETES We can individually connect on every GPU node and run $ sudo nvidia-smiWed Nov 9 06:06:44 2016+ — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — -+| NVIDIA-SMI 367.57 Driver Version: 367.57 || — — — — — — — — — — — — — — — -+ — — — — — — — — — — — + — — — — — — — — — — — +| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC || Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. ||= ==============|| 0 GeForce GTX 106… Off | 0000:02:00.0 Off | N/A || 28% 31C P0 27W / 120W | 0MiB / 6072MiB | 0% Default |+ — — — — — — — — — — — — — — — -+ — — — — — — — — — — — + — — — — — — — — — — — + + + + — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — -+| Processes: GPU Memory || GPU PID Type Process name Usage ||=============================================================================|| No running processes found |+ — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — -+ Good Job!! Enabling CUDA in Kubernetes By default, CDK will not activate GPUs when starting the API server and the Kubelet on workers. We need to do that manually (though this is on the roadmap) Master Update On the master node, update to add: /etc/default/kube-apiserver # Security ContextKUBE_ALLOW_PRIV=” — allow-privileged=true” Then restart the API service via $ sudo systemctl restart kube-apiserver So now the Kube API will accept requests to run privileged containers, which are required for GPU workloads. Worker nodes On every worker, to to add the GPU tag, so it looks like: /etc/default/kubelet # Security ContextKUBE_ALLOW_PRIV=” — allow-privileged=true” # Add your own!KUBELET_ARGS=” — experimental-nvidia-gpus=1 — require-kubeconfig — kubeconfig=/srv/kubernetes/config — cluster-dns=10.1.0.10 — cluster-domain=cluster.local” Then restart the service via $ sudo systemctl restart kubelet Testing the setup Now that we have CUDA GPUs enabled in k8s, let us test that everything works. We take a very simple job that will just run nvidia-smi from a pod and exit on success. The job definition is apiVersion: batch/v1kind: Jobmetadata:name: nvidia-smilabels:name: nvidia-smispec:template:metadata:labels:name: nvidia-smispec:containers:— name: nvidia-smiimage: nvidia/cudacommand: [ “nvidia-smi” ]imagePullPolicy: IfNotPresentsecurityContext:privileged: trueresources:requests:alpha.kubernetes.io/nvidia-gpu: 1limits:alpha.kubernetes.io/nvidia-gpu: 1volumeMounts:— mountPath: /dev/nvidia0name: nvidia0— mountPath: /dev/nvidiactlname: nvidiactl— mountPath: /dev/nvidia-uvmname: nvidia-uvm— mountPath: /usr/local/nvidia/binname: bin— mountPath: /usr/lib/nvidianame: libvolumes:— name: nvidia0hostPath:path: /dev/nvidia0— name: nvidiactlhostPath:path: /dev/nvidiactl— name: nvidia-uvmhostPath:path: /dev/nvidia-uvm— name: binhostPath:path: /usr/lib/nvidia-367/bin— name: libhostPath:path: /usr/lib/nvidia-367restartPolicy: Never What is interesting here is We do not have the abstraction provided by , so we have to specify manually the mount points for the char devices nvidia-docker We also need to share the drivers and libs folders In the resources, we have to both request and limit the resources with 1 GPU The container has to run privileged Now if we run this: $ kubectl create -f nvidia-smi-job.yaml$ # Wait for a few seconds so the cluster can download and run the container$ kubectl get pods -a -o wideNAME READY STATUS RESTARTS AGE IP NODEdefault-http-backend-8lyre 1/1 Running 0 11h 10.1.67.2 node02nginx-ingress-controller-bjplg 1/1 Running 1 10h 10.1.83.2 node04nginx-ingress-controller-etalt 0/1 Pending 0 6m <none>nginx-ingress-controller-q2eiz 1/1 Running 0 10h 10.1.14.2 node05nginx-ingress-controller-ulsbp 1/1 Running 0 11h 10.1.67.3 node02nvidia-smi-xjl6y 0/1 Completed 0 5m 10.1.14.3 node05 We see the last container has run and completed. Let us see the output of the run $ kubectl logs nvidia-smi-xjl6yWed Nov 9 07:52:42 2016+ — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — -+| NVIDIA-SMI 367.57 Driver Version: 367.57 || — — — — — — — — — — — — — — — -+ — — — — — — — — — — — + — — — — — — — — — — — +| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC || Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. ||= ==============|| 0 GeForce GTX 106… Off | 0000:02:00.0 Off | N/A || 28% 33C P0 29W / 120W | 0MiB / 6072MiB | 0% Default |+ — — — — — — — — — — — — — — — -+ — — — — — — — — — — — + — — — — — — — — — — — + + + + — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — -+| Processes: GPU Memory || GPU PID Type Process name Usage ||=============================================================================|| No running processes found |+ — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — -+ Perfect, we have the same result as if we had run nvidia-smi from the host, which means we are all good to operate GPUs! Conclusion So what did we achieve here? Kubernetes is the most versatile container management system around. It also shares some genes with Tensorflow, which itself got often demoed as containers, in a scale out fashion. It is only natural to fasten Deep Learning workload by adding GPUs at scale. This poor man GPU cluster is an example of what can be done for a small R&D team if they wanted to experiment with multi node scalability. We have a secondary benefit. You noticed that the deployment of k8s is completely automated here (beside the GPU inclusion), thanks to Juju and the team behind CDK. Well, the community behind Juju creates many charms, and there is a large collection of scale out applications that can be deployed at scale, like Hadoop, Kafka, Spark, Elasticsearch (…). In the end, the investment is only MAAS and a few commands. Juju’s ROI in R&D is a matter of days. Thanks Huge thanks to Marco Ceppi, Chuck Butler and Matt Bruzek at Canonical for the fantastic work on CDK, and responsiveness to my (numerous) questions.
