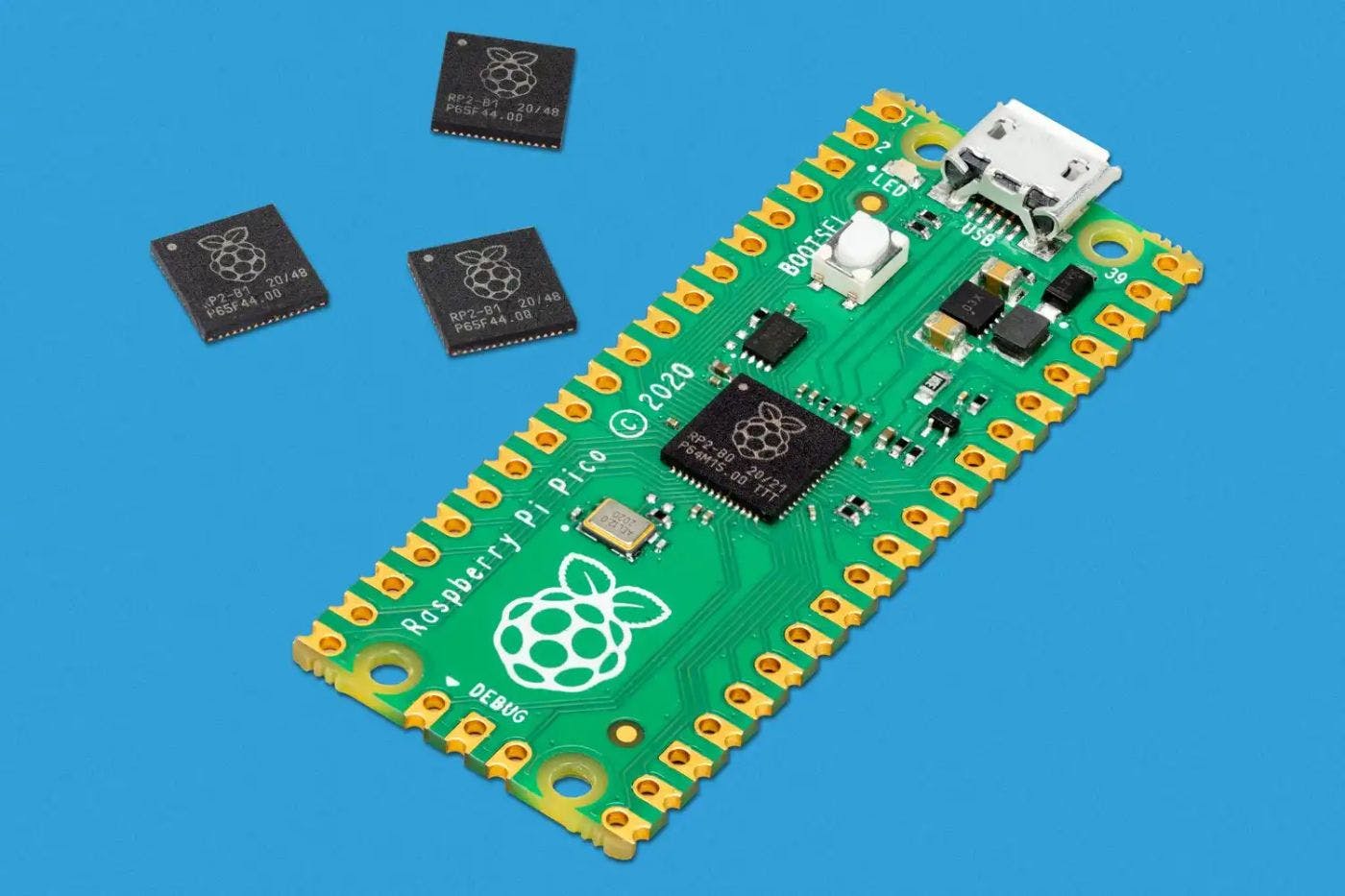

The RP2040 is a microcontroller developed by raspberry pi that has opened up a world of possibilities for DIY electronics enthusiasts. With its built-in USB 2.0 support, the RP2040 can function as a FULL SPEED (12Mbps) device as well as a LOW SPEED (1.5Mbps) and FULL SPEED host. In this blog post, we'll explore custom USB endpoints and how you can use them to create your own custom USB devices.
Before diving deep into the topic, let me give you a brief idea what a USB is and how it works.
We all know what a USB connector looks like and we use at least one USB device daily. USB stands for Universal Serial Bus. It is a standard interface used to connect various devices to a computer or other host devices. It was developed in the mid-1990s, and it has since become one of the most widely used methods for connecting peripherals to computers.
USB allows devices to be connected to a computer without requiring specialized hardware or software. It is a plug-and-play interface, meaning that devices can be connected and disconnected from a computer without needing to restart the computer (Referred to as HOST). The HOST is responsible for all the communication and the device cannot communicate anything on its own.
When a device(for ex. Mouse, keyboard, Printer) gets connected to the HOST (Computer) the HOST communicates with the device to know its capabilities through Device Descriptors and configuration descriptors. Once the HOST knows what the device is, it starts communicating with it with the help of device drivers.
Control Transfer - It is used to set and get USB configurations, set device address and other settings. All USB Devices must support Control Transfers.
Isochronous Transfer - This transfer is used when the data bandwidth required is high and error correction is not important. For Ex- Streaming audio and video
Interrupt Transfer - This transfer works by polling. It Polls the device periodically for any data. Keyboard and mouse use this transfer to report key strokes and movements.
Bulk Transfer - This transfer provides reliable data transfer but the bandwidth is not guaranteed every time. This is typically used for printers and scanners etc.
If you want to get more detail of how everything works I highly recommend you to check out USB Made Simple.
In this blog, I will be showing you how I created a composite USB device which can act as a USB keyboard and a custom Endpoint for communication and transferring data.
The Device structure is shown below. Here we have 1 configuration and 2 interfaces for the device (RP pico in our case).
Interface for a HID device (Human Interface Device), in our case it will be a Keyboard. Learn more about HID Devices here.
Interface for our custom Bulk Transfer End points, which we will use to transfer data from host to device.(To Control the on Board LED which you will see later).
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 0
bDeviceSubClass 0
bDeviceProtocol 0
bMaxPacketSize0 64
idVendor 0xcafe
idProduct 0x4014 // Vendor ID and Product ID pair is used to identify a device to load suitable drivers.
bcdDevice 1.00
iManufacturer 1 Raspberry Pi
iProduct 2 RP2040
iSerial 3 001
bNumConfigurations 1 //our device only has one Configuration
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0039
bNumInterfaces 2 //2 Interfaces, one for the HID keyboard and other for our custom endpoints
bConfigurationValue 1
iConfiguration 4
bmAttributes 0xa0
(Bus Powered)
Remote Wakeup
MaxPower 100mA //max current limit for our device USB2.0 supports uto 500mA
Interface Descriptor: //This is the Interface for HID keyboard
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 0
bInterfaceProtocol 0
iInterface 5
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 1.11
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 Report
wDescriptorLength 239
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0010 1x 16 bytes
bInterval 5
Interface Descriptor: //This is the Interface for our custom endpoints (for contolling the LED in this example)
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 2
bInterfaceClass 255 Vendor Specific Class
bInterfaceSubClass 0
bInterfaceProtocol 0
iInterface 6
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 0
I have used lsusb in ubuntu to see device descriptors. You can also use USBView on windows to do the same.
You can think of interfaces as functions (or a group of functions) which a device performs and endpoints as a dedicated channel or stream of data between host and device. (This is just to give you an idea)
USB2.0 Support 16 Endpoints (From 0 to 15) out of which Endpoint 0 is reserved (For device configuration and setup). Each Endpoint can be configured to act as a IN or OUT endpoint.
The direction of Endpoints are always from the perspective of the HOST.
IN means Data Transfer from device to HOSTOUT means Data Transfer from HOST to device
In our configuration we have used 1 IN endpoint for Keyboard (To send Keystrokes to the HOST), 1 IN Bulk endpoint to send data from device to HOST and 1 OUT Endpoint to send data from Host to device.
You can find the entire project code here Pyusb-RP-PICO.
Pressing Button on the RaspberryPi Pico
Result
2. Sending Data
The HOST Program is controlling the on Board LED.
