Raspberry Pi has been around for sometime and I was interested in Setting up MagicMirror using it, so went to Sim Lim Square and got one for S$ 70. Luckily the shop owner just had one model — Raspberry Pi 3 Model B+ without which, setting up this thing would have required buying an SD Card , Keyboard, etc.
This is not new information — rather gathered from several sources. I am just shouting out loud that “Yes — you don’t have buy any additional stuff ” — if you are able to locate a Pen Drive/USB drive and an Android phone charger (micro USB).
What do we need
- Raspberry Pi 3 Model B+ (yes, we need this specific model)
- Micro USB Charger (Android Phone charger are usually this)
- USB Drive (thumb/pen drive/stick) — 8 GB at least
- Mac or PC (though we will be using Mac for detailed steps in this article)
- Home or Office Wifi Network (for which you know the password and Network name)
- Raspbian Operating System (Raspbian Stretch with desktop)
- Etcher (use to burn USB Drive with OS Image)
- VNC Viewer (choose Operating System Windows or Mac or Linux) — Raspbian comes preloaded with VNC Server
- Special Unzip utilities, Standard OS ones don’t handle these file types [7-Zip (Windows) or The Unarchiver (Mac) or Unzip (Linux) ]
Lets get to work
Step 1: Preparing USB Drive by loading Operating System
- Install Etcher
- Plug in the USB Drive to Computer (warning — all data in USB Drive will be erased)
- Launch Etcher and Select the Raspian .img file.
- Select USB Drive that we just plugged in and Flash
- Eject and Plugin the USB Drive again, we will have to edit some files so that Raspberry automatically connects to Wifi network — this will help us to open a terminal to Raspberry when it boots.
Step 2: Enable SSH and Wifi Connection

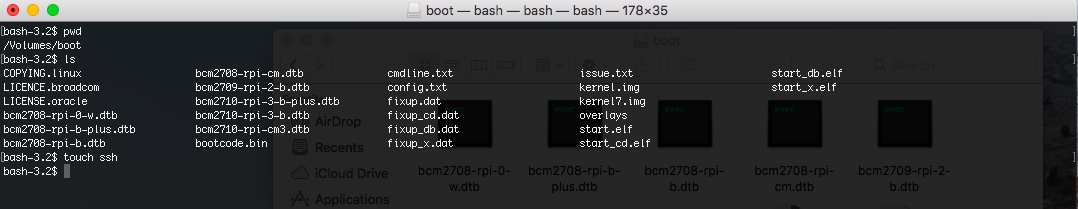

- Open Terminal on Computer and cd to USB Drive (in mac cd /Volumes/<usb name> (i called my drive boot)
- Enable SSH by creating a empty file
- Let move to setup Wifi Connection details so that Raspberry connects to your Wifi network and becomes available for us to Connect from Command Line

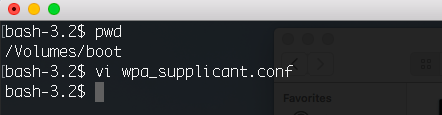

- Under the same root folder of USB, create file called wpa_supplicant.conf (vi is my preferred file editor, you can use TextEdit or Notepad too)
- Type in the below details or copy paste from below (press i key for insert mode, paste contents and to save — Esc :wq )
- Save the file and eject USB drive, we are all set for creating USB Bootable drive
Step 3: Selecting the micro USB Charger
There are several articles that go into detail of how much current(important) is required than voltage. Since most USB charges produce 5V output.
The suggested output required is 5V and 2.5 A if you have to run several peripherals (monitor, keyboard, Wifi, etc).

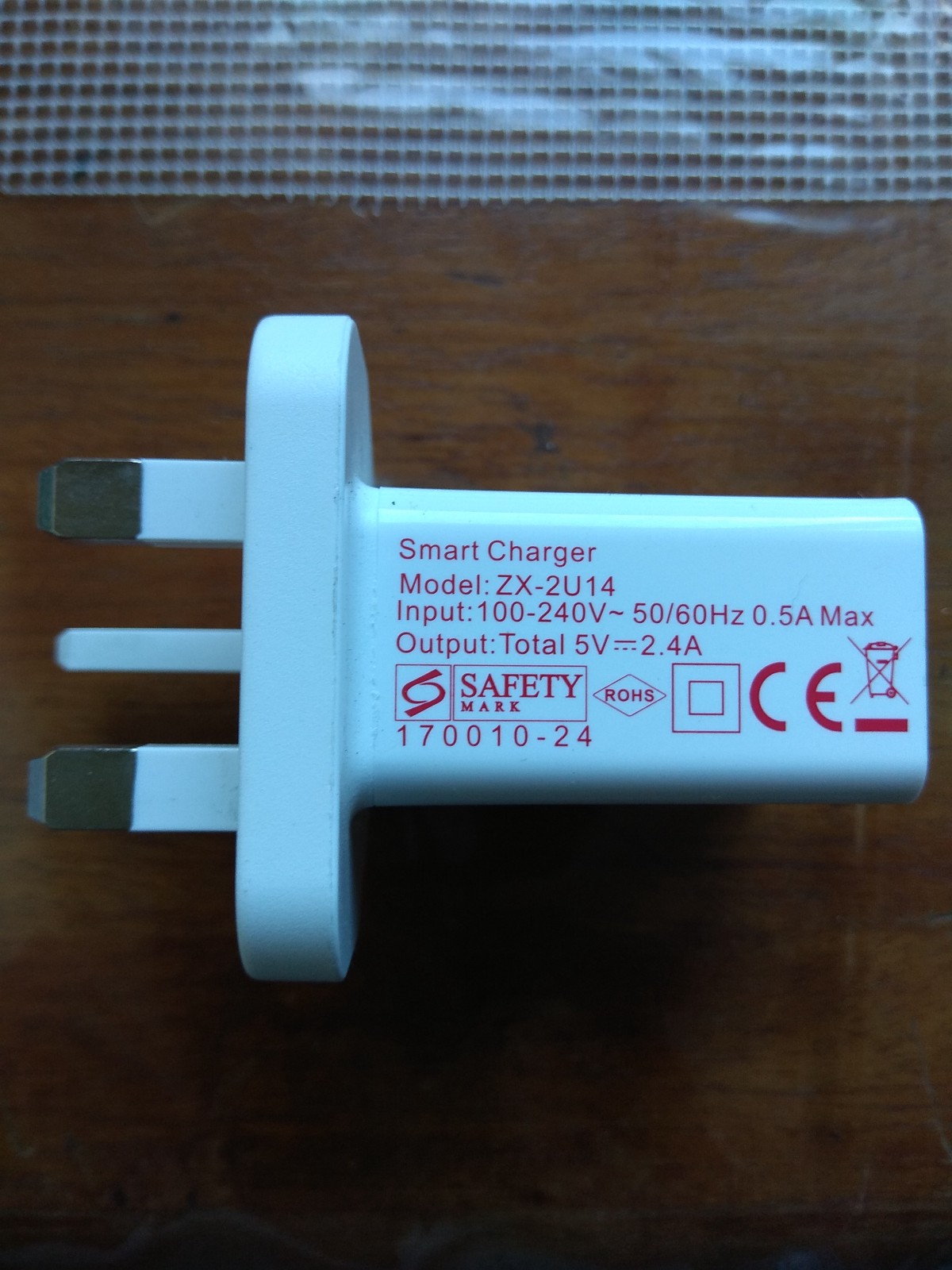

In our case, we just need one peripheral — Wifi . So anything more than 1.5 A should be good to start with. I was able to find a USB charger that produced 2.4A output. Find the thickest USB cable that you can find, thicker the cable — higher the current it can carry (discounting insulation thickness).
Step 4: Startup and Terminal Access
- Once Raspberry is powered on, Red light glows to confirm that it got power and ready to wow you.
- Then Green light next to Red LED starts to flicker, this is when Wifi Connection is being established.

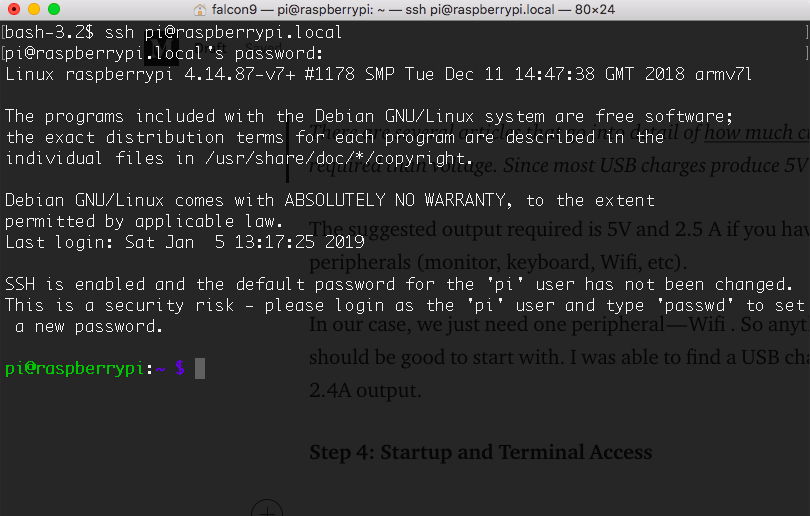

- Wait for about 20 seconds and then try to SSH (login) into Raspberry Pi
- By default hostname
raspberrypi.localis assigned and this can be used to connect from terminal. Open a terminal and connect
pi is the Username and
raspberrypi.local is the hostname. Default password for
pi account is
Step 5: View Desktop using VNC Viewer

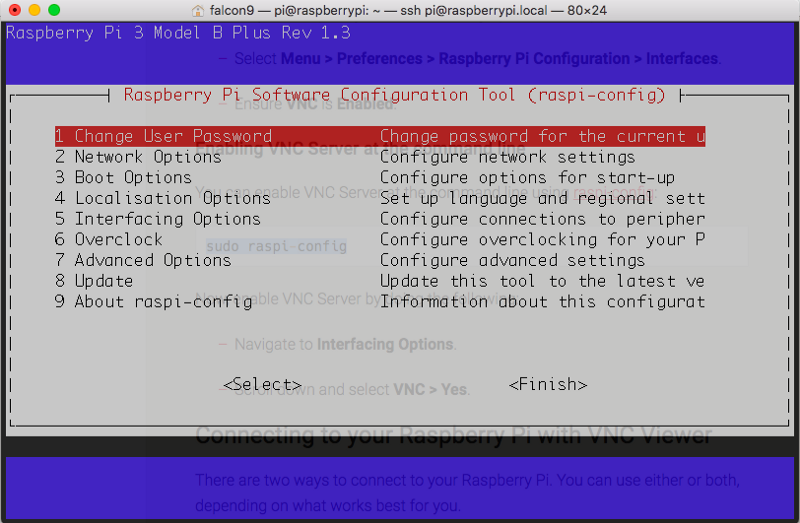

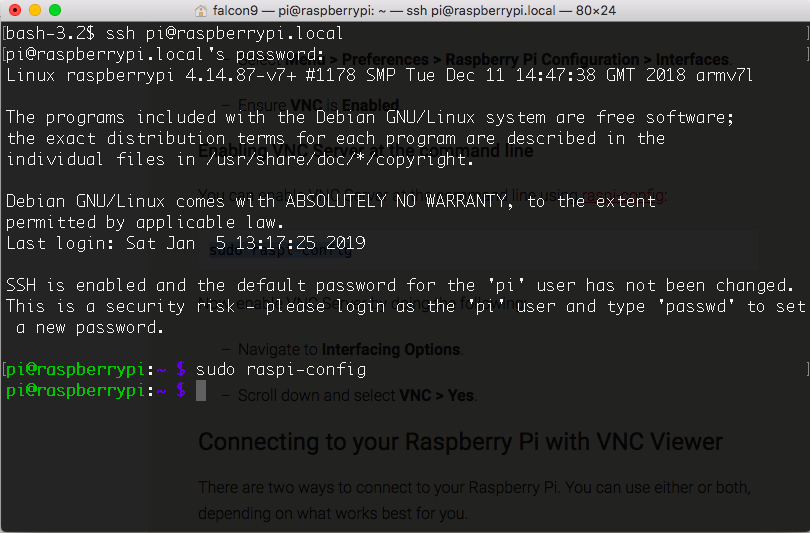

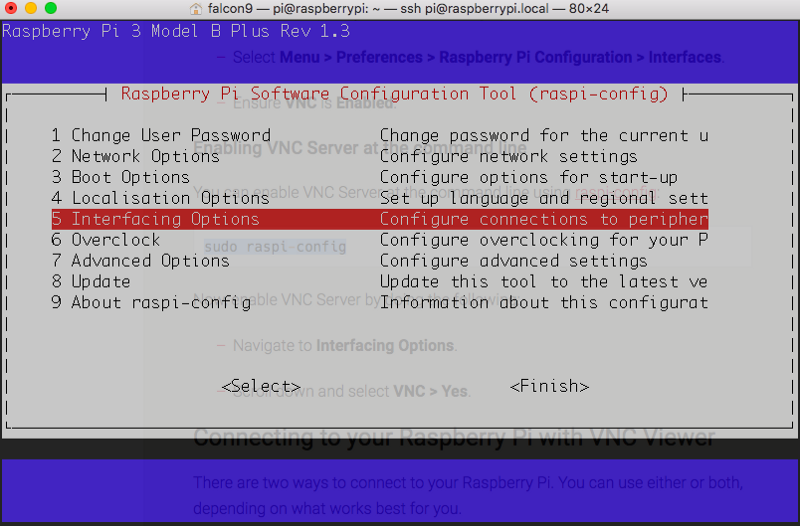

raspi-configto enable VNC Server

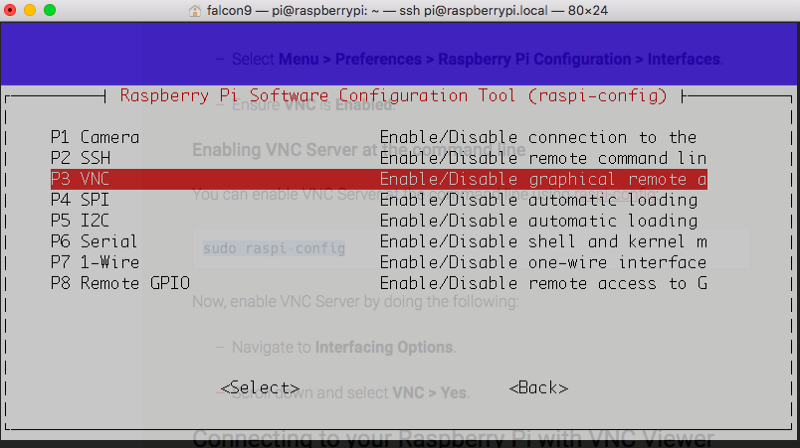

- This launches a nice CUI to select and enable VNC. Choose

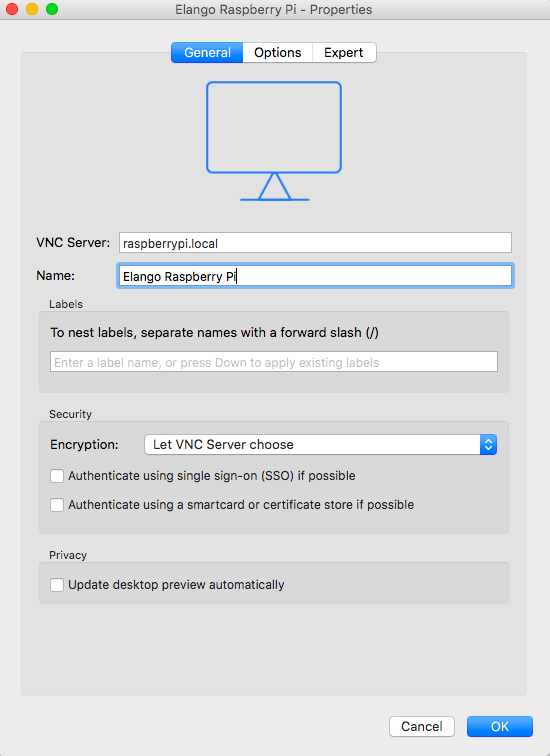

- Launch VNC Server on your Computer and add a New Connection.

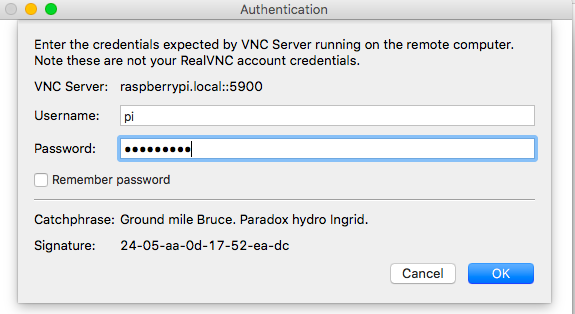

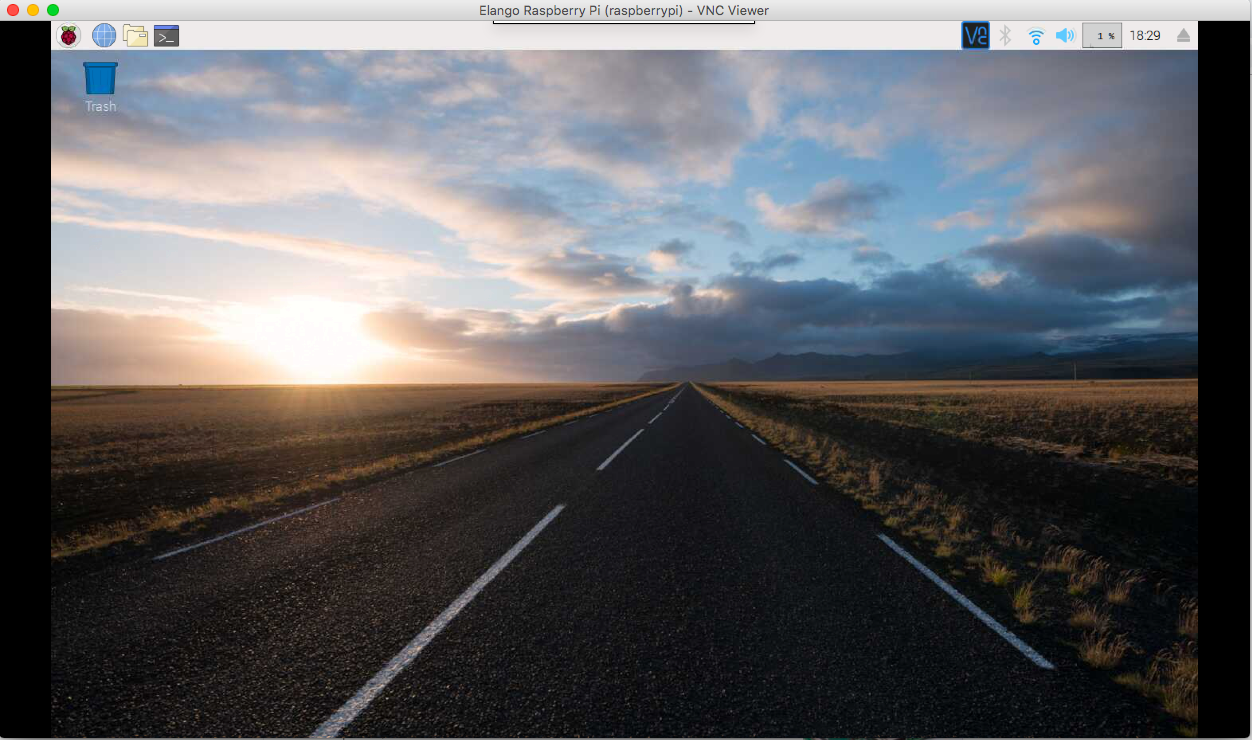

- Then Double Click on the Connection to launch VNC Connection, this will prompt for username and password.
