How to Implement Multi-Group Bar Chart and Interact With Highlighting by Grouping Dimension

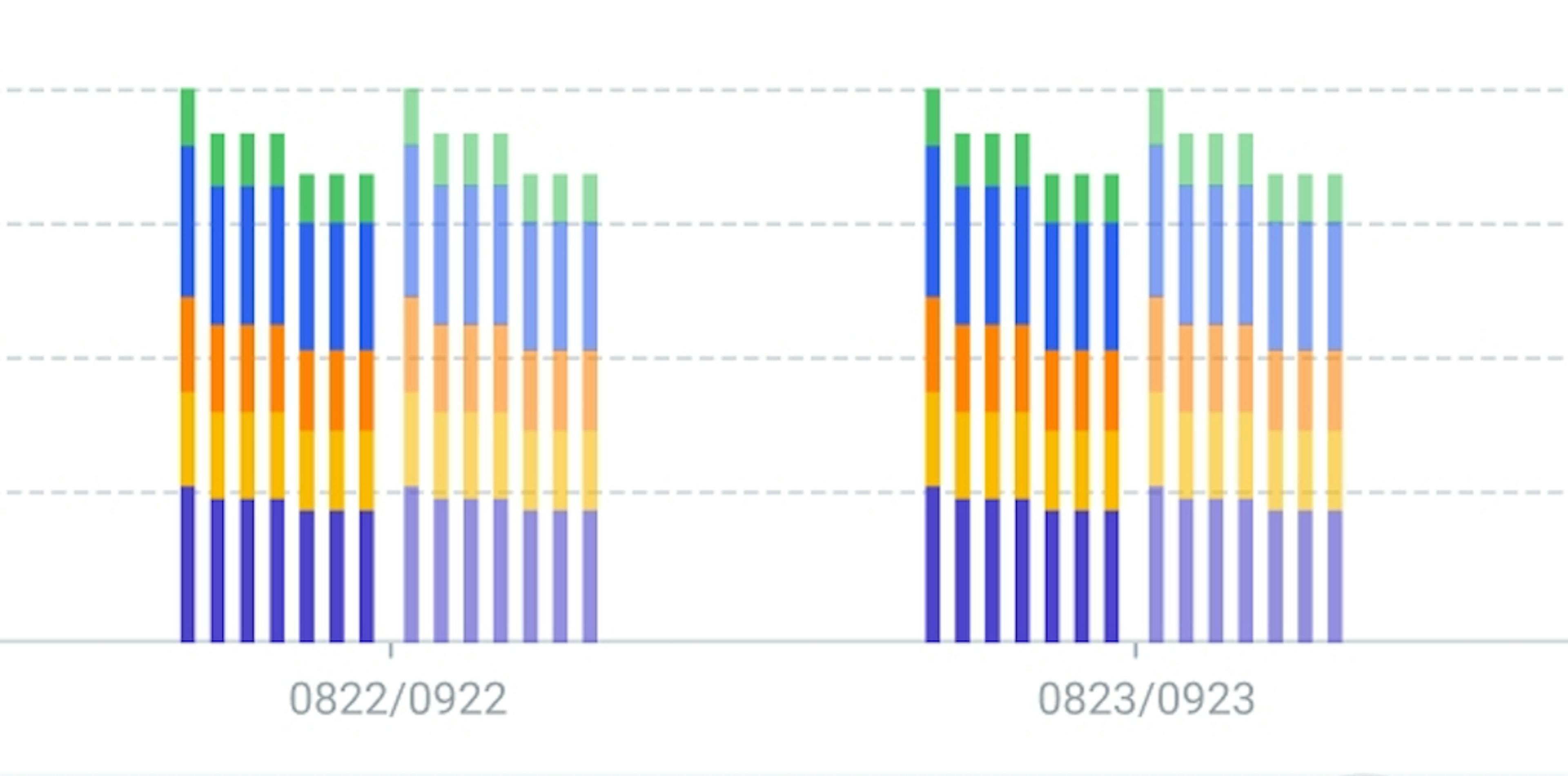

😊 I am a developer of VChart, so I will introduce the solution in VChart. Description Solution for implementing a multi-group bar chart similar to the following figure: Expect two groups to differentiate in style through color transparency. When the mouse hovers over a column block, all blocks of the same color are highlighted in linkage. Solution Requires 4 data fields: 3 grouping fields: There are 3 layers of grouping on the x-axis, corresponding to fields xField: ['type', 'type1', 'type2'] ; 1 series field: used to distinguish color series, seriesField: 'color' Highlight interaction: You can configure the built-in element-highlight-by-group interaction in VChart, specify the interaction highlighting state to be named 'highligh' , so as to add a stroke effect to the column in the graphic style: interactions:[ { type: 'element-highlight-by-group', highlightState:'highlight' } ], bar:{ state:{ highlight:{ stroke:"black", lineWidth:1, zIndex:100 } } }, Demo Code You can paste the code in the editor: https://visactor.io/vchart/demo/line-chart/basic-line const spec = { type: 'bar', height:400, data: [ { values: [ { type: 'Category One', min: 80, color: 'A', type1: 'p', type2: 'T' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T' }, { type: 'Category One', min: 75, color: 'C', type1: 'p', type2: 'T' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 80, color: 'A', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 75, color: 'C', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 76, color: 'A', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 65, color: 'C', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 80, color: 'A', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 75, color: 'C', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T4' }, ] } ], interactions:[ { type: 'element-highlight-by-group', highlightState:'highlight' } ], bar:{ style:{ fillOpacity:(data) => data.type1 === 'p' ? 1: 0.5 }, state:{ highlight:{ stroke:"black", lineWidth:1, zIndex:100 } } }, xField: ['type', 'type1', 'type2'], yField: 'min', seriesField: 'color', axes: [ { orient:"left", label:{ visible: false}, grid:{ style:{ lineDash:[4,4], stroke:'#dddddd'} } }, { orient:"bottom", paddingInner:[0.1,0.05,0.5] } ], tooltip:{ visible:false } }; const vchart = new VChart(spec, { dom: CONTAINER_ID }); vchart.renderSync(); // Just for the convenience of console debugging, DO NOT COPY! window['vchart'] = vchart; 😊 I am a developer of VChart, so I will introduce the solution in VChart. 😊 I am a developer of VChart, so I will introduce the solution in VChart. Description Solution for implementing a multi-group bar chart similar to the following figure: Expect two groups to differentiate in style through color transparency. When the mouse hovers over a column block, all blocks of the same color are highlighted in linkage. Expect two groups to differentiate in style through color transparency. Expect two groups to differentiate in style through color transparency. When the mouse hovers over a column block, all blocks of the same color are highlighted in linkage. When the mouse hovers over a column block, all blocks of the same color are highlighted in linkage. Solution Requires 4 data fields: 3 grouping fields: There are 3 layers of grouping on the x-axis, corresponding to fields xField: ['type', 'type1', 'type2'] ; 1 series field: used to distinguish color series, seriesField: 'color' Requires 4 data fields: 3 grouping fields: There are 3 layers of grouping on the x-axis, corresponding to fields xField: ['type', 'type1', 'type2'] ; 1 series field: used to distinguish color series, seriesField: 'color' Requires 4 data fields: 3 grouping fields: There are 3 layers of grouping on the x-axis, corresponding to fields xField: ['type', 'type1', 'type2'] ; 1 series field: used to distinguish color series, seriesField: 'color' 3 grouping fields: There are 3 layers of grouping on the x-axis, corresponding to fields xField: ['type', 'type1', 'type2'] ; 3 grouping fields: There are 3 layers of grouping on the x-axis, corresponding to fields xField: ['type', 'type1', 'type2'] ; xField: ['type', 'type1', 'type2'] 1 series field: used to distinguish color series, seriesField: 'color' 1 series field: used to distinguish color series, seriesField: 'color' seriesField: 'color' Highlight interaction: You can configure the built-in element-highlight-by-group interaction in VChart, specify the interaction highlighting state to be named 'highligh' , so as to add a stroke effect to the column in the graphic style: Highlight interaction: You can configure the built-in element-highlight-by-group interaction in VChart, specify the interaction highlighting state to be named 'highligh' , so as to add a stroke effect to the column in the graphic style: element-highlight-by-group 'highligh' interactions:[ { type: 'element-highlight-by-group', highlightState:'highlight' } ], bar:{ state:{ highlight:{ stroke:"black", lineWidth:1, zIndex:100 } } }, interactions:[ { type: 'element-highlight-by-group', highlightState:'highlight' } ], bar:{ state:{ highlight:{ stroke:"black", lineWidth:1, zIndex:100 } } }, Demo Code You can paste the code in the editor: https://visactor.io/vchart/demo/line-chart/basic-line You can paste the code in the editor: https://visactor.io/vchart/demo/line-chart/basic-line https://visactor.io/vchart/demo/line-chart/basic-line const spec = { type: 'bar', height:400, data: [ { values: [ { type: 'Category One', min: 80, color: 'A', type1: 'p', type2: 'T' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T' }, { type: 'Category One', min: 75, color: 'C', type1: 'p', type2: 'T' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 80, color: 'A', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 75, color: 'C', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 76, color: 'A', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 65, color: 'C', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 80, color: 'A', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 75, color: 'C', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T4' }, ] } ], interactions:[ { type: 'element-highlight-by-group', highlightState:'highlight' } ], bar:{ style:{ fillOpacity:(data) => data.type1 === 'p' ? 1: 0.5 }, state:{ highlight:{ stroke:"black", lineWidth:1, zIndex:100 } } }, xField: ['type', 'type1', 'type2'], yField: 'min', seriesField: 'color', axes: [ { orient:"left", label:{ visible: false}, grid:{ style:{ lineDash:[4,4], stroke:'#dddddd'} } }, { orient:"bottom", paddingInner:[0.1,0.05,0.5] } ], tooltip:{ visible:false } }; const vchart = new VChart(spec, { dom: CONTAINER_ID }); vchart.renderSync(); // Just for the convenience of console debugging, DO NOT COPY! window['vchart'] = vchart; const spec = { type: 'bar', height:400, data: [ { values: [ { type: 'Category One', min: 80, color: 'A', type1: 'p', type2: 'T' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T' }, { type: 'Category One', min: 75, color: 'C', type1: 'p', type2: 'T' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T1' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T2' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T3' }, { type: 'Category One', min: 70, color: 'A', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 40, color: 'B', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 40, color: 'D', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 50, color: 'C', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 30, color: 'E', type1: 'p', type2: 'T4' }, { type: 'Category One', min: 80, color: 'A', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 75, color: 'C', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T1' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T2' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T3' }, { type: 'Category One', min: 70, color: 'A', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 40, color: 'B', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 40, color: 'D', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 50, color: 'C', type1: 'p1', type2: 'T4' }, { type: 'Category One', min: 30, color: 'E', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 76, color: 'A', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 65, color: 'C', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T1' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T2' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T3' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p', type2: 'T4' }, { type: 'Category Two', min: 80, color: 'A', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 75, color: 'C', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T1' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T2' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T3' }, { type: 'Category Two', min: 70, color: 'A', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'B', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 40, color: 'D', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 50, color: 'C', type1: 'p1', type2: 'T4' }, { type: 'Category Two', min: 30, color: 'E', type1: 'p1', type2: 'T4' }, ] } ], interactions:[ { type: 'element-highlight-by-group', highlightState:'highlight' } ], bar:{ style:{ fillOpacity:(data) => data.type1 === 'p' ? 1: 0.5 }, state:{ highlight:{ stroke:"black", lineWidth:1, zIndex:100 } } }, xField: ['type', 'type1', 'type2'], yField: 'min', seriesField: 'color', axes: [ { orient:"left", label:{ visible: false}, grid:{ style:{ lineDash:[4,4], stroke:'#dddddd'} } }, { orient:"bottom", paddingInner:[0.1,0.05,0.5] } ], tooltip:{ visible:false } }; const vchart = new VChart(spec, { dom: CONTAINER_ID }); vchart.renderSync(); // Just for the convenience of console debugging, DO NOT COPY! window['vchart'] = vchart;
