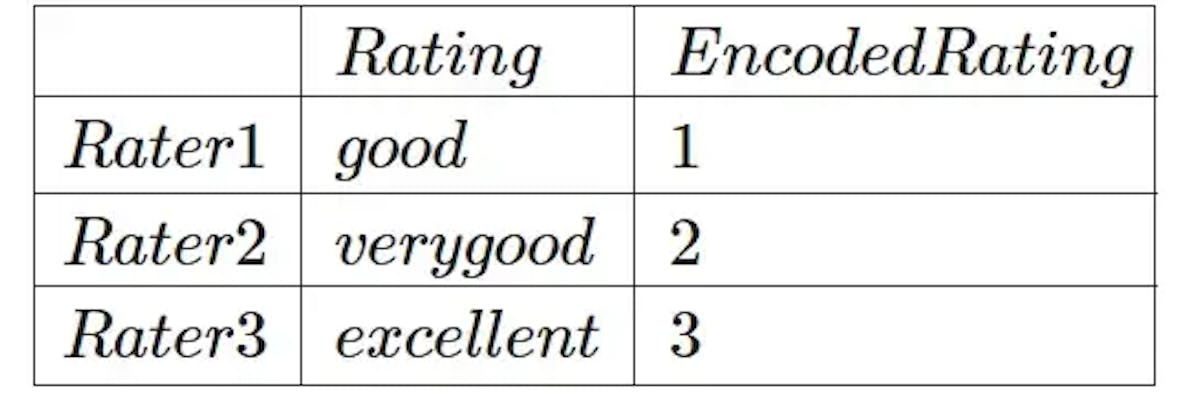

In real life, the raw data received is rarely in a format that we can take and use directly for our Therefore, some pre-processing is necessary to present the data in the right format, select informative data or reduce its dimension to be able to extract the most out of the data. machine learning models. In this post, we will talk about encoding to be able to use categorical data as features for our ML models, types of encoding, and when they are suitable. Other pre-processing techniques for features scaling, features selection, and dimension reduction are topics for another post… Let’s get started with encoding! Encoding Categorical Data Numerical data, as the name suggests, has features with only numbers (integers or floating-point). On the other hand, categorical data has variables that contain label values (text) and not numerical values. Machine learning models can only accept numerical input variables. What happens if we have a dataset with categorical data instead of numerical data? Then we have to convert the data that contains categorical variables to numbers before we can train an ML model. . This is called encoding The two most popular encoding techniques are Ordinal Encoding and One-Hot Encoding. Ordinal Encoding: This technique is used to encode categorical variables which have a natural rank order. Ex. good, very good, excellent could be encoded as 1,2,3. One-Hot Encoding: This technique is used to encode categorical variables which do not have a natural rank order. Ex. Male or female do not have any ordering between them. Ordinal Encoding In this technique, each category is assigned an integer value. Ex. Miami is 1, Sydney is 2 and New York is 3. However, it is important to realize that this introduced an ordinality to the data which the ML models will try to use to look for relationships in the data. Therefore, using this data where no ordinal relationship exists (ranking between the categorical variables) is not a good practice. Maybe as you may have realized already, the example we just used for the cities is actually not a good idea. Because Miami, Sydney, and New York do not have any ranking relationship between them. In this case, the One-Hot encoder would be a better option which we will see in the next section. Let’s create a better example for ordinal encoding. Ordinal encoding transformation is available in the scikit-learn library. So let’s use the OrdinalEncoder class to build a small example: # example of a ordinal encoding
import numpy as np
import pandas as pd
from sklearn.preprocessing import OrdinalEncoder

# define data
data = np.asarray([['good'], ['very good'], ['excellent']])
df = pd.DataFrame(data, columns=["Rating"],  index=["Rater 1", "Rater 2", "Rater 3"])
print("Data before encoding:")
print(df)

# define ordinal encoding
encoder = OrdinalEncoder()

# transform data
df["Encoded Rating"] = encoder.fit_transform(df)
print("\nData after encoding:")
print(df) Data before encoding:
            Rating
Rater 1       good
Rater 2  very good
Rater 3  excellent

Data after encoding:
            Rating  Encoded Rating
Rater 1       good             1.0
Rater 2  very good             2.0
Rater 3  excellent             0.0 In this case, the encoder assigned the integer values according to the alphabetical order which is the case for text variables. Although we usually do not need to explicitly define the order of the categories, as ML algorithms will be able to extract the relationship anyway, for the sake of this example we can define an explicit order of the categories using the categories variable of the OrdinalEncoder. import numpy as np
import pandas as pd
from sklearn.preprocessing import OrdinalEncoder

# define data
data = np.asarray([['good'], ['very good'], ['excellent']])
df = pd.DataFrame(data, columns=["Rating"], index=["Rater 1", "Rater 2", "Rater 3"])
print("Data before encoding:")
print(df)

# define ordinal encoding
categories = [['good', 'very good', 'excellent']]
encoder = OrdinalEncoder(categories=categories)

# transform data
df["Encoded Rating"] = encoder.fit_transform(df)
print("\nData after encoding:")
print(df) Data before encoding:
            Rating
Rater 1       good
Rater 2  very good
Rater 3  excellent

Data after encoding:
            Rating  Encoded Rating
Rater 1       good             0.0
Rater 2  very good             1.0

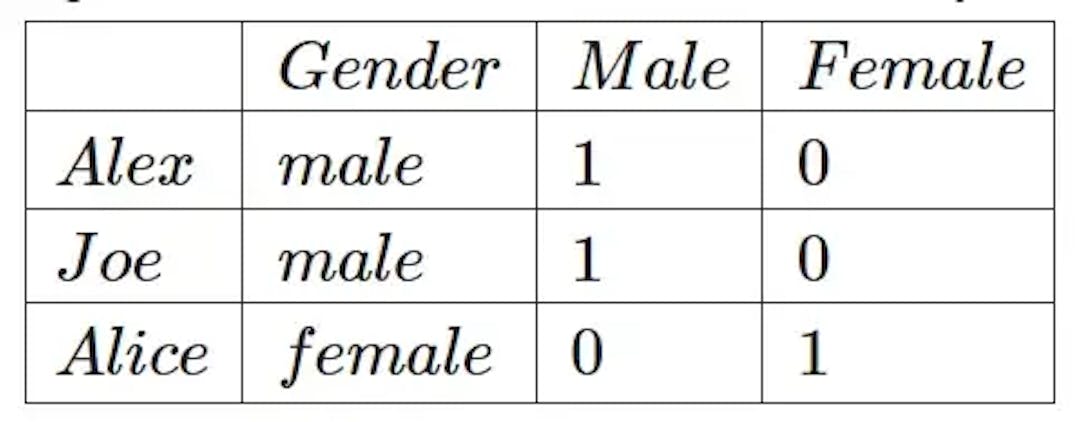

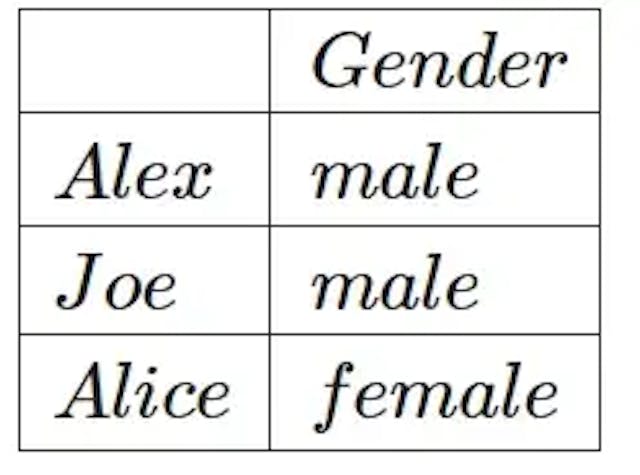

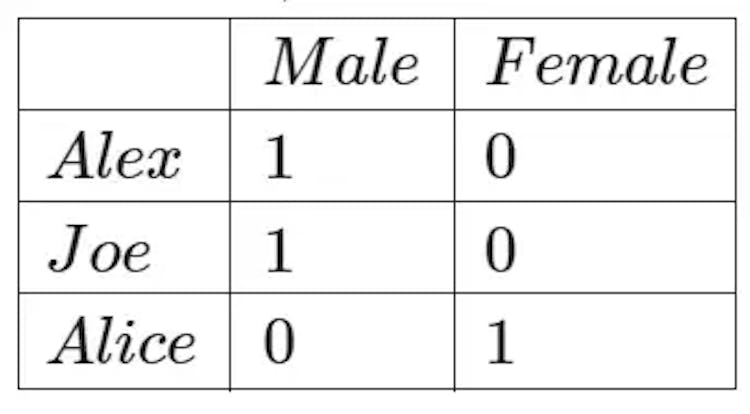

Rater 3  excellent             2.0 Label Encoding LabelEncoder class from scikit-learn is used to encode the Target labels in the dataset. It actually does exactly the same thing as OrdinalEncoder, however, it expects only a one-dimensional input which comes in very handy when encoding the target labels in the dataset. One-Hot Encoding As we mentioned previously, for categorical data where there is no ordinal relationship, ordinal encoding is not the suitable technique because it results in making the model look for natural order relationships within the categorical data which does not actually exist and could worsen the model performance. This is where the One-Hot encoding comes into play. This technique works by creating a new column for each unique categorical variable in the data and representing the presence of this category using a binary representation (0 or 1). Looking at the previous example: The simple table transforms to the following table where we have a new column representing each unique categorical variable (male and female) and a binary value to mark if it exists for that. Just like OrdinalEncoder class, scikit-learn library also provides us with the OneHotEncoder class which we can use to encode categorical data. Let’s use it to encode a simple example: from sklearn.preprocessing import OneHotEncoder

# define data
data = np.asarray([['Miami'], ['Sydney'], ['New York']])
df = pd.DataFrame(data, columns=["City"], index=["Alex", "Joe", "Alice"])
print("Data before encoding:")
print(df)

# define onehot encoding
categories = [['Miami', 'Sydney', 'New York']]
encoder = OneHotEncoder(categories='auto', sparse=False)

# transform data
encoded_data = encoder.fit_transform(df)

#fit_transform method return an array, we should convert it to dataframe
df_encoded = pd.DataFrame(encoded_data, columns=encoder.categories_, index= df.index)
print("\nData after encoding:")
print(df_encoded) Data before encoding:
           City
Alex      Miami
Joe      Sydney
Alice  New York

Data after encoding:
      Miami New York Sydney
Alex    1.0      0.0    0.0
Joe     0.0      0.0    1.0
Alice   0.0      1.0    0.0 As we can see, the encoder generated a new column for each unique categorical variable and assigned 1 if it exists for that specific sample and 0 if it does not. This is a powerful method to encode non-ordinal categorical data. However, it also has its drawbacks… As you can imagine for a dataset with many unique categorical variables, one-hot encoding would result in a huge dataset because each variable has to be represented by a new column. For example, if we had a column/feature with 10,000 unique categorical variables (high cardinality), one-hot encoding would result in 10,000 additional columns resulting in a very sparse matrix and a huge increase in memory consumption and computational cost (which is also called the curse of dimensionality). For dealing with categorical features with high cardinality, we can use target encoding… Target Encoding Target encoding (aka called mean encoding) is a technique where the number of occurrences of a categorical variable is taken into account along with the target variable to encode the categorical variables into numerical values. Basically, it is a process where we replace the categorical variable with the mean of the target variable. We can explain it better using a simple example dataset… Group the table for each categorical variable to calculate its probability for target = 1: Then we take these probabilities that we calculated for target=1, and use them to encode the given categorical variable in the dataset: Similar to ordinal encoding and one-hot encoding, we can use the TargetEncoder class but this time we import it from the category_encoders library: from category_encoders import TargetEncoder

# define data
fruit = ["Apple", "Banana", "Banana", "Tomato", "Apple", "Tomato", "Apple", "Banana", "Tomato", "Tomato"]
target = [1, 0, 0, 0, 1, 1, 0, 1, 0, 0]
df = pd.DataFrame(list(zip(fruit, target)), columns=["Fruit", "Target"])
print("Data before encoding:")
print(df)

# define target encoding
encoder = TargetEncoder(smoothing=0.1) #smoothing effect to balance categorical average vs prior.Higher value means stronger regularization.

# transform data
df["Fruit Encoded"] = encoder.fit_transform(df["Fruit"], df["Target"])
print("\nData after encoding:")
print(df) Data before encoding:
    Fruit  Target
0   Apple       1
1  Banana       0
2  Banana       0
3  Tomato       0
4   Apple       1
5  Tomato       1
6   Apple       0
7  Banana       1
8  Tomato       0
9  Tomato       0

Data after encoding:
    Fruit  Target  Fruit Encoded
0   Apple       1       0.666667
1  Banana       0       0.333333
2  Banana       0       0.333333
3  Tomato       0       0.250000
4   Apple       1       0.666667
5  Tomato       1       0.250000
6   Apple       0       0.666667
7  Banana       1       0.333333
8  Tomato       0       0.250000
9  Tomato       0       0.250000 We have achieved the same table as what we have calculated manually ourselves… Advantages of target encoding Target encoding is a simple and fast technique and it does not add additional dimensionality to the dataset. Therefore, it is a good encoding method for datasets involving features with high cardinality (unique categorical variables of more than 10.000). Disadvantages of target encoding Target encoding makes use of the distribution of the target variable which can result in overfitting and data leakage. Data leakage in the sense that we are using the target classes to encode the feature may result in rendering the feature in a biased way. This is why there is a smoothing parameter while initializing the class. This parameter helps us reduce this problem (in our example above, we deliberately set it to a very small value to achieve the same results as our hand calculation). In this post, we covered encoding methods to convert categorical data to numerical data to be able to use it as features in our machine learning models! If you liked this content, feel free to follow me for more free machine-learning tutorials and courses! Also published here.
