Create a Serverless REST API with Node.JS, AWS Lambda, DynamoDB & API Gateway

In this post, I will show you how to build a RESTful API in Node.JSfollowing the Serverless approach using AWS Lambda, API Gateway & DynamoDB.

Serverless computing is a cloud computing execution model in which the cloud provider dynamically manages the allocation of machine resources

All the code is available on my Github

1 — API Specification

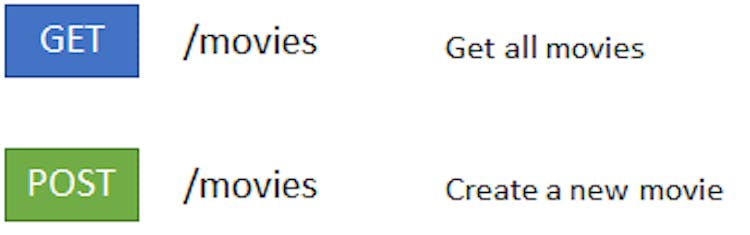

The REST API service will expose endpoints to manage a store of movies. The operations that our endpoints will allow are:

2 — DynamoDB Table

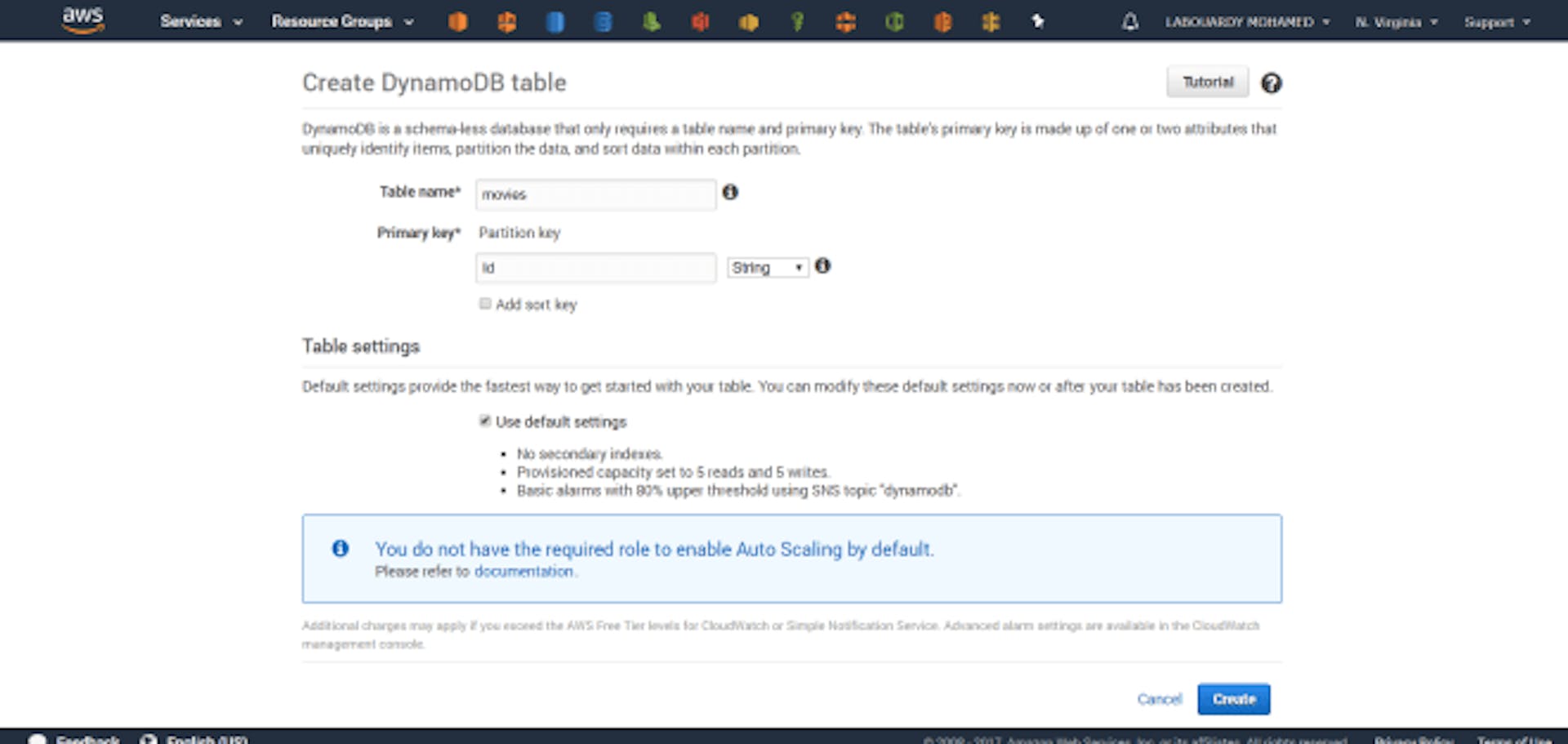

Go to DynamoDB Console, then click on “Create table” button, and fill the table name and set a primary key:

3 — Write a new Movie Lambda Function

The code is self explanatory, I have used the put method to insert a new movie item and uuid library to generate a random unique id for the movie item:

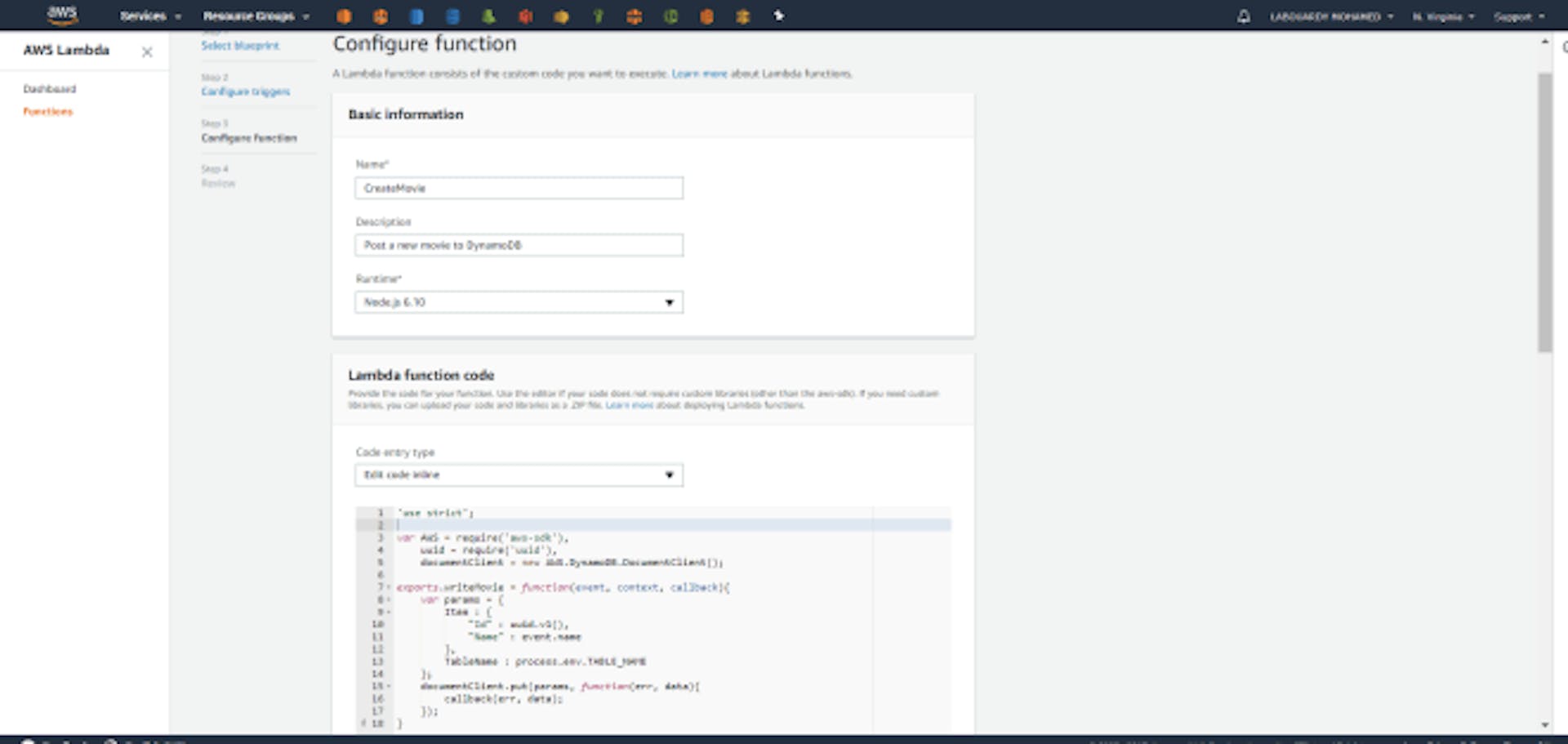

Go to the Lambda Dashboard and create a new function as below:

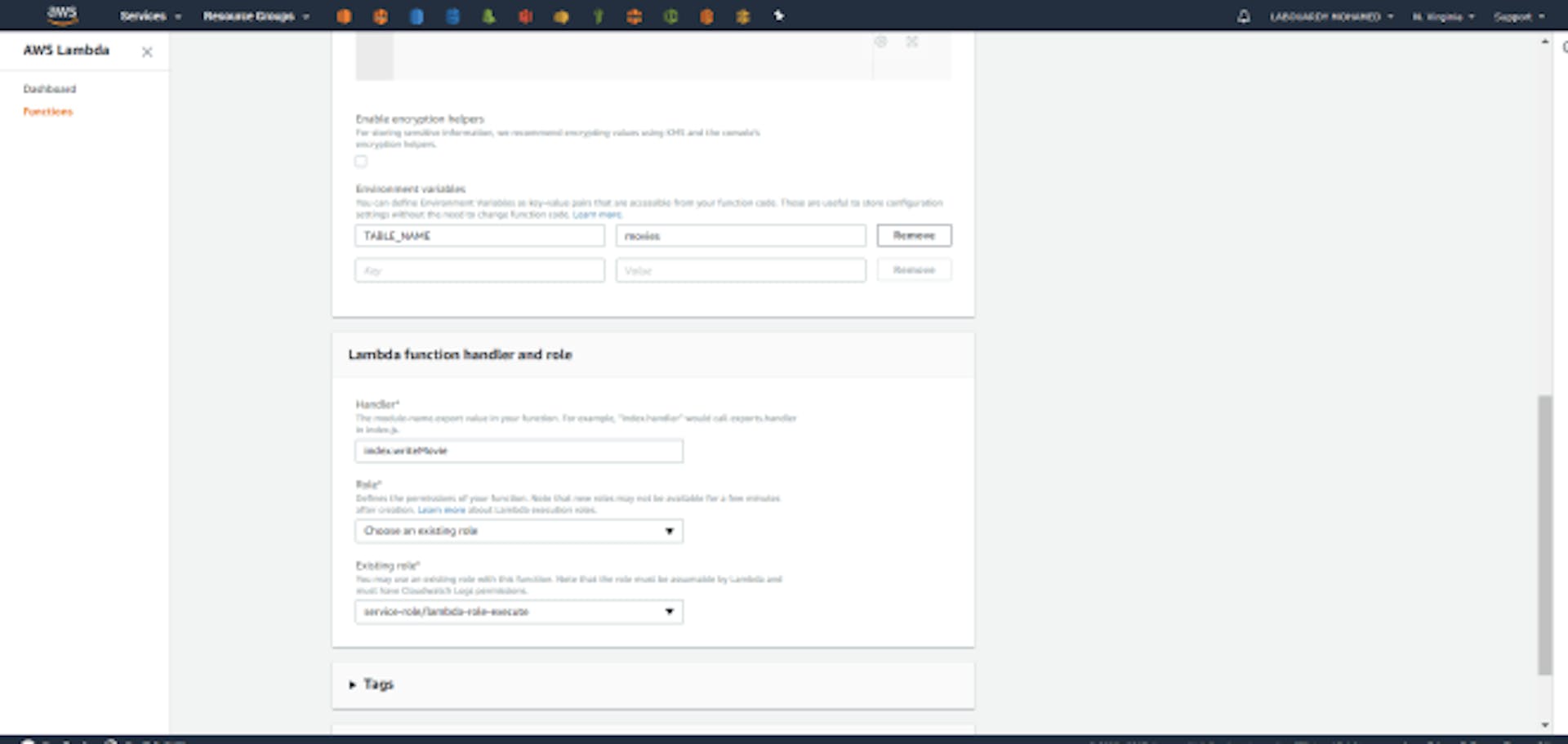

Add the DynamoDB table name as an environment variable and update the handler name to the function name in the code above:

Note: you should use a IAM Role with permission to access DynamoDB& Lambda.

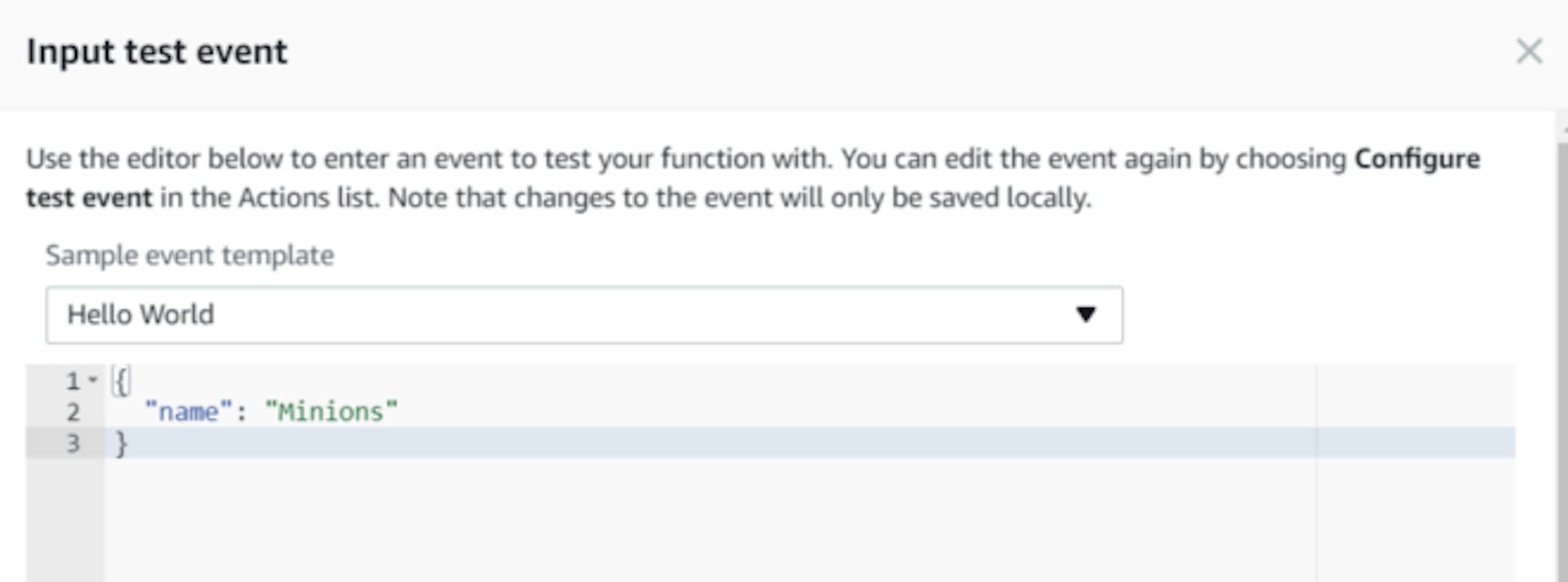

Once created, you can click on “Test” and send a JSON as below:

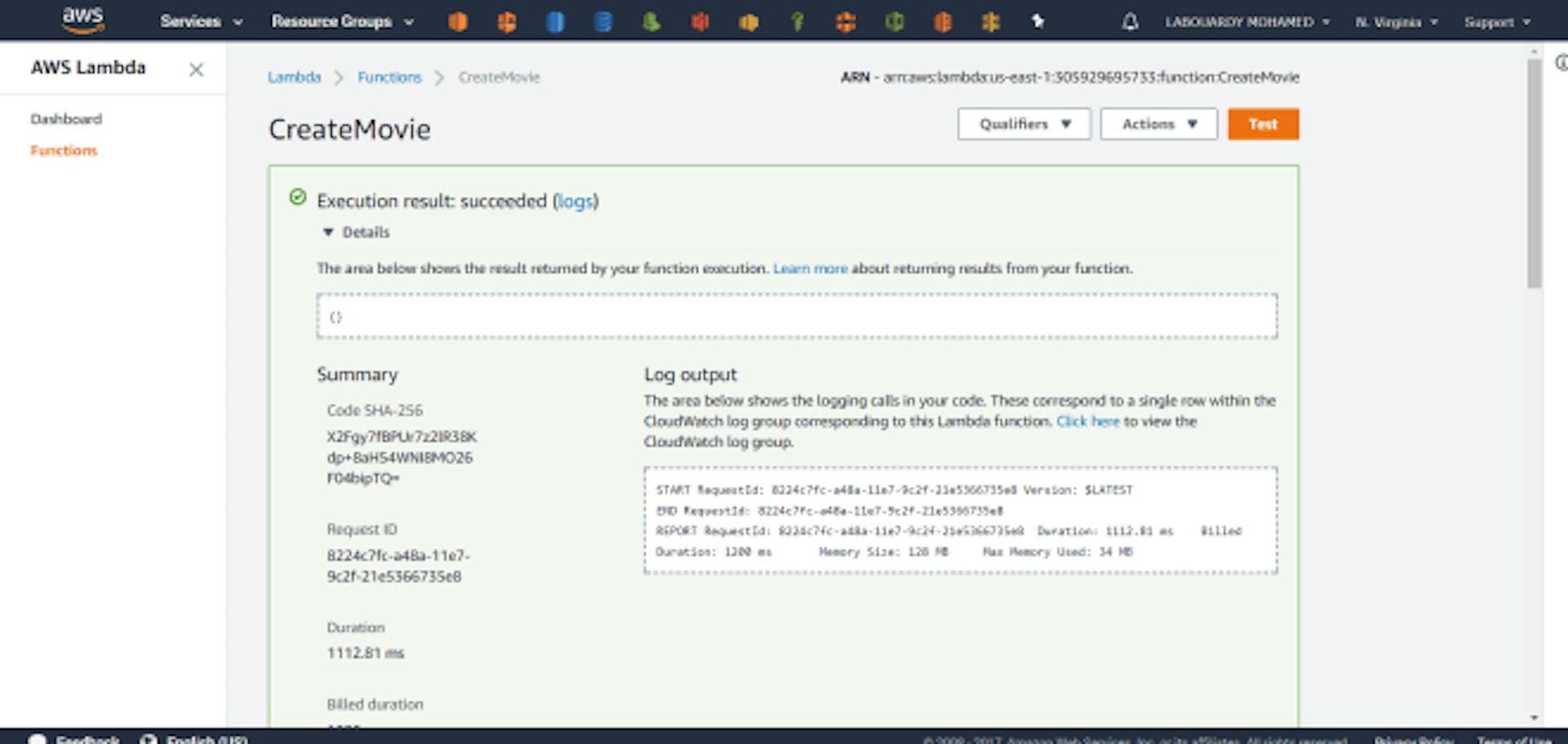

The item has been successfuly inserted into DynamoDB:

4 — List all Movies Lambda Function

The code is self explanatory, I used scan method to fetch all items from the table:

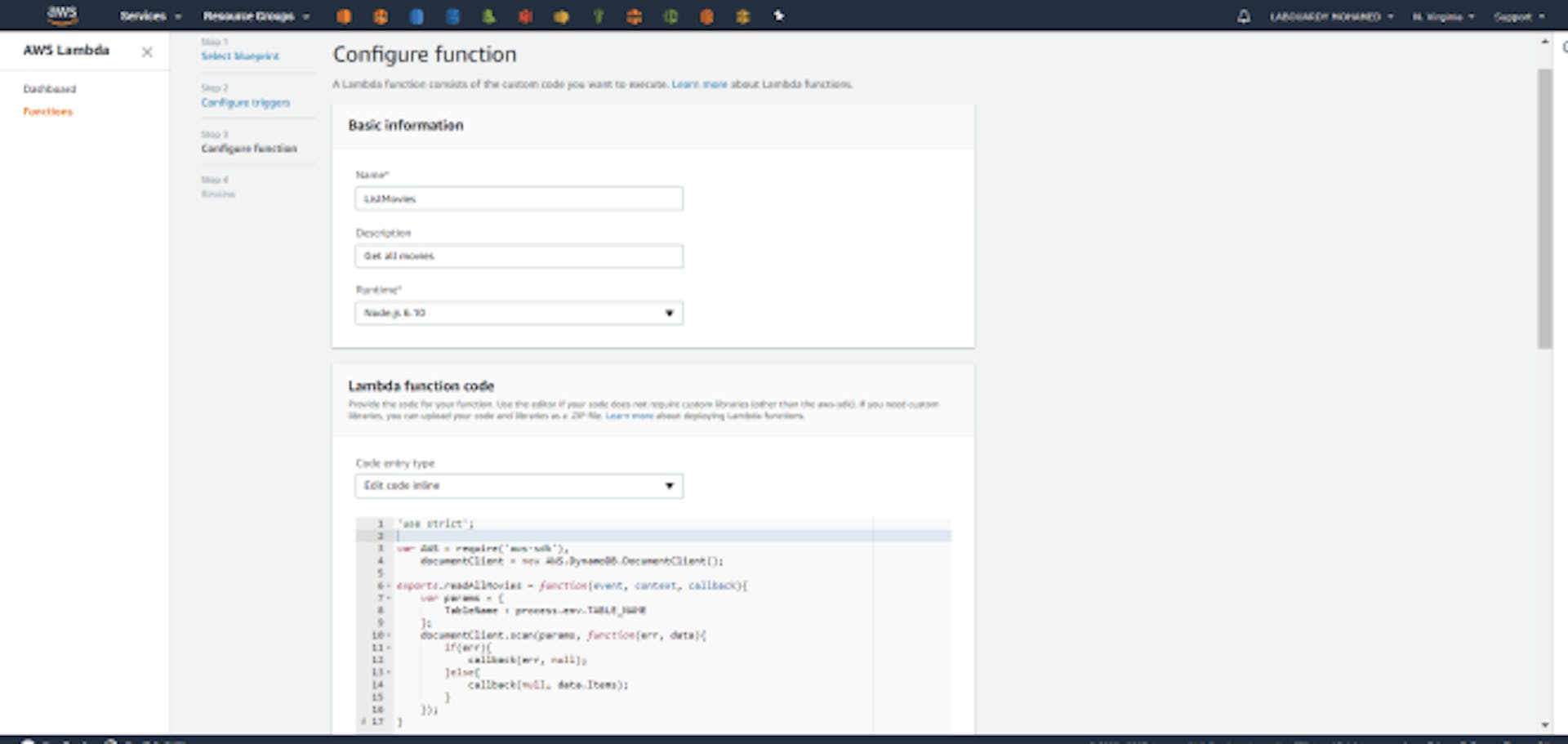

Fill the function configuration as below:

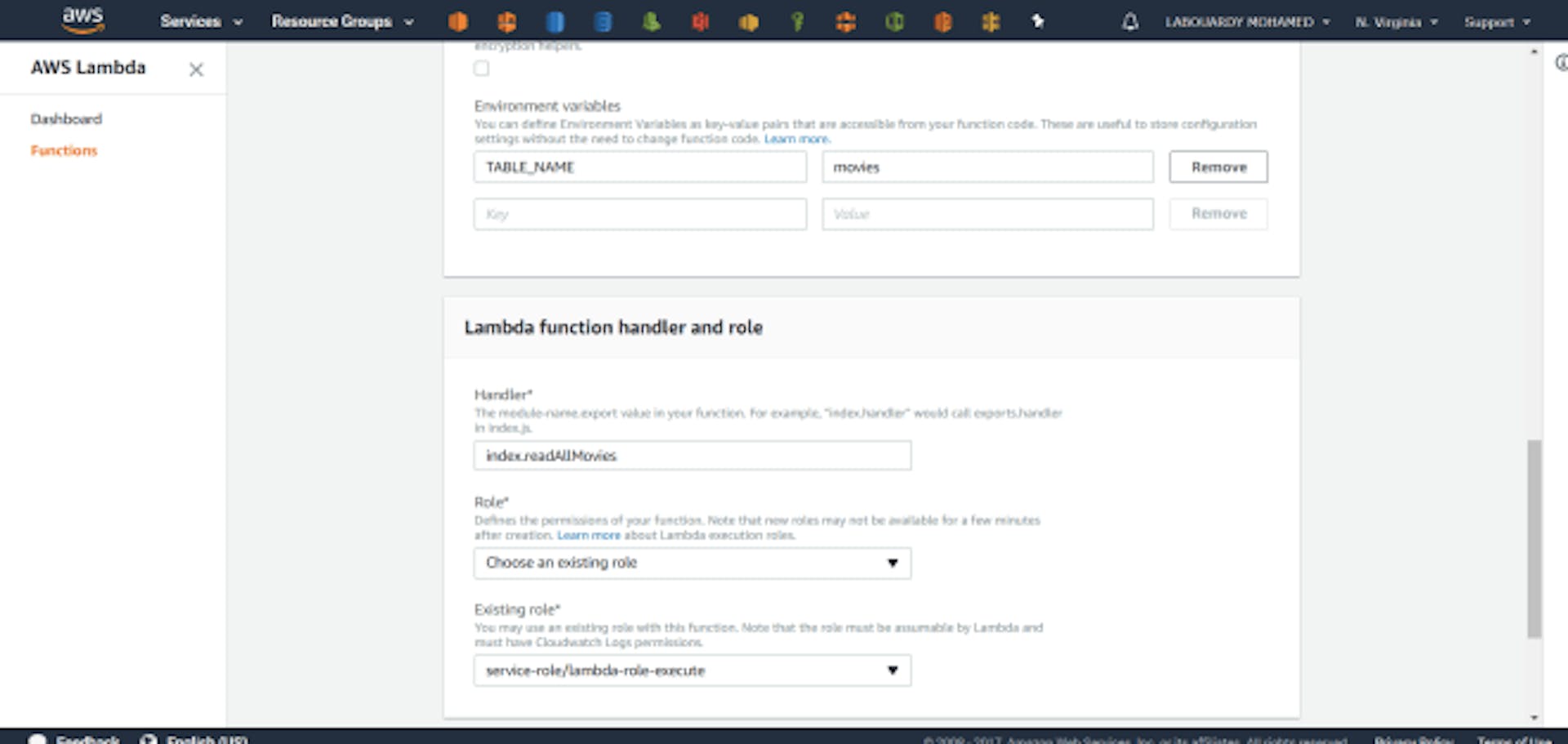

Similar to the write function, we need to add DynamoDB table name as an environment variable:

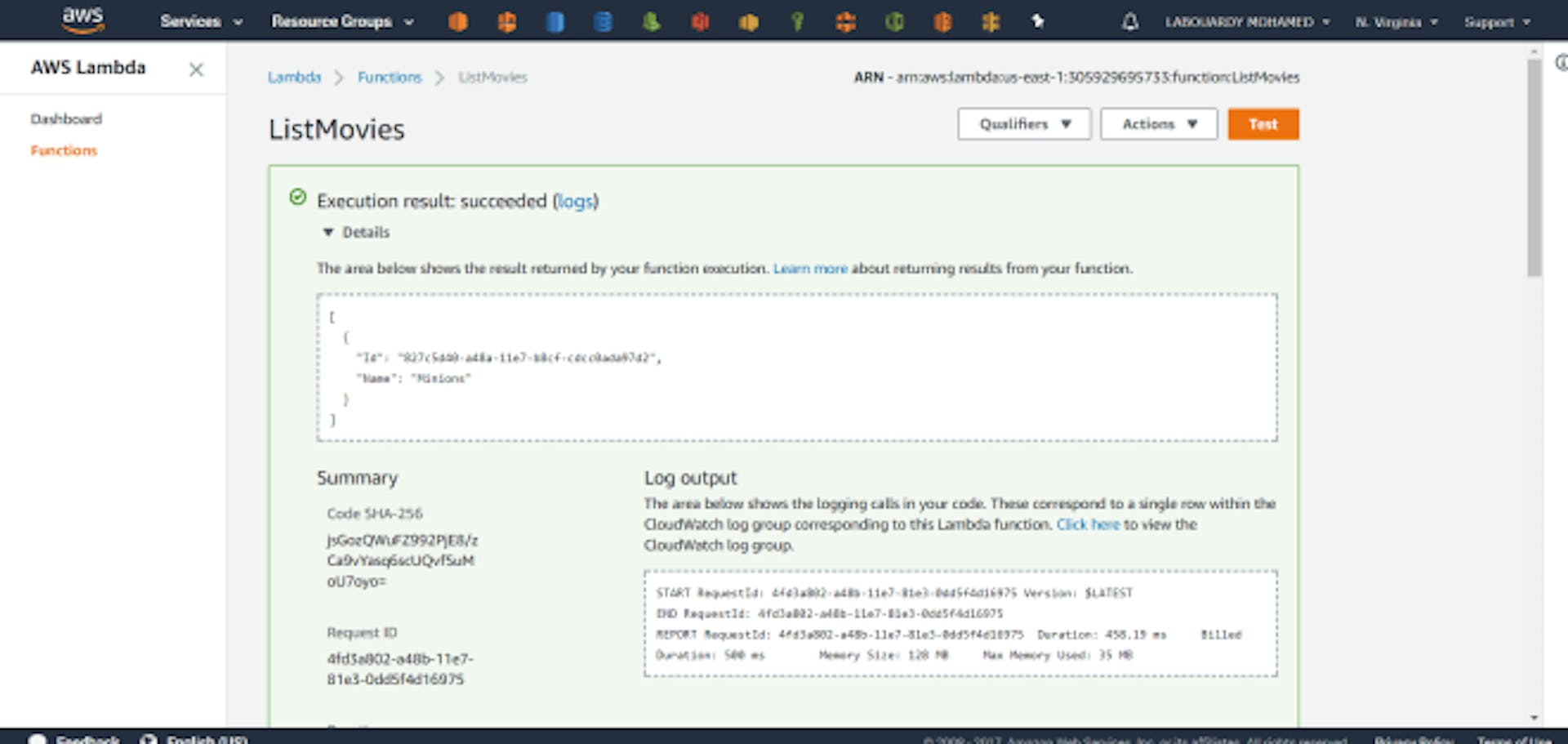

Once created, you could test the function by clicking on the “Test” button:

Congratulation !

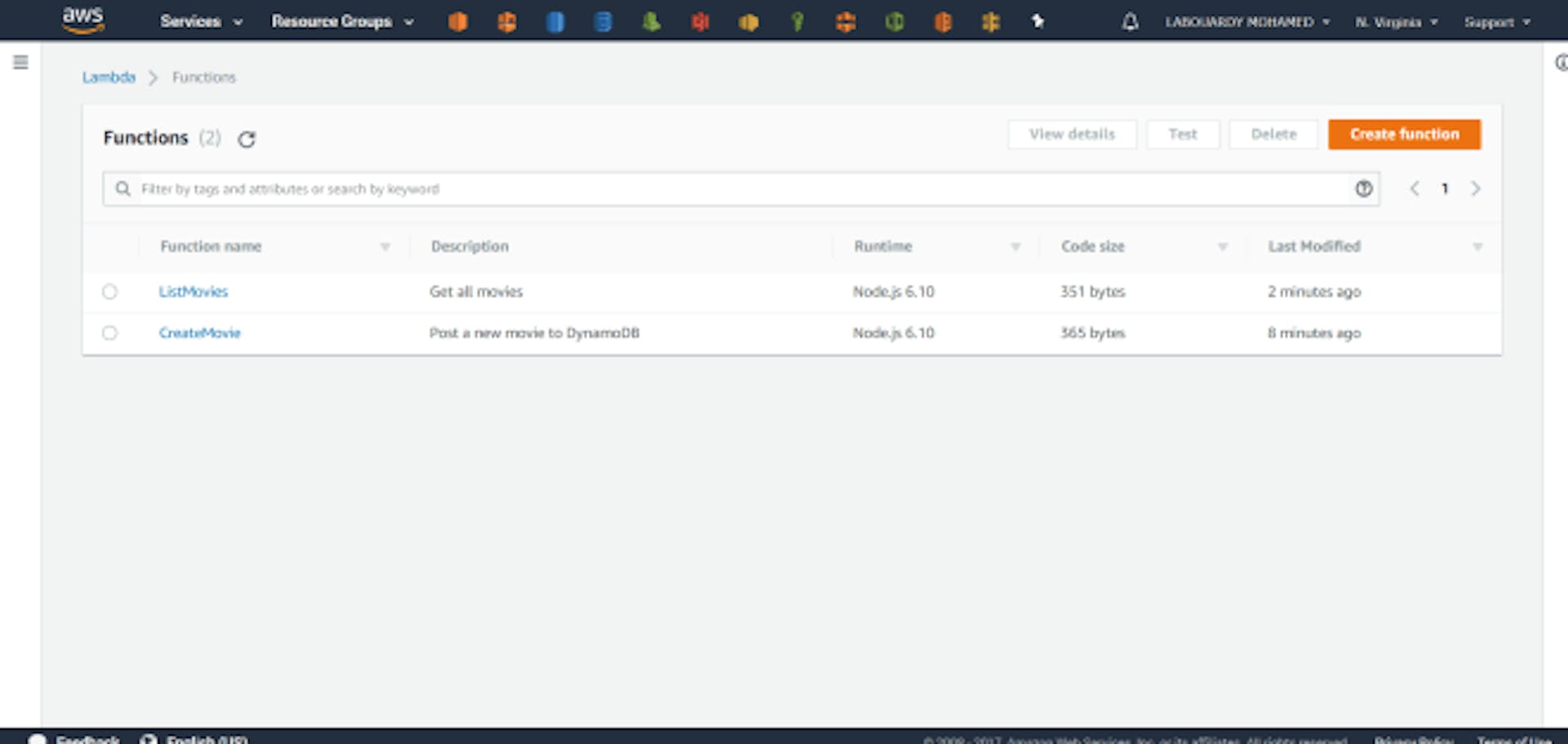

We have successfuly created our Lambda functions:

5 — Setup API Gateway

Go to API Gateway Console and create a new API.

5.1 — GET /movies

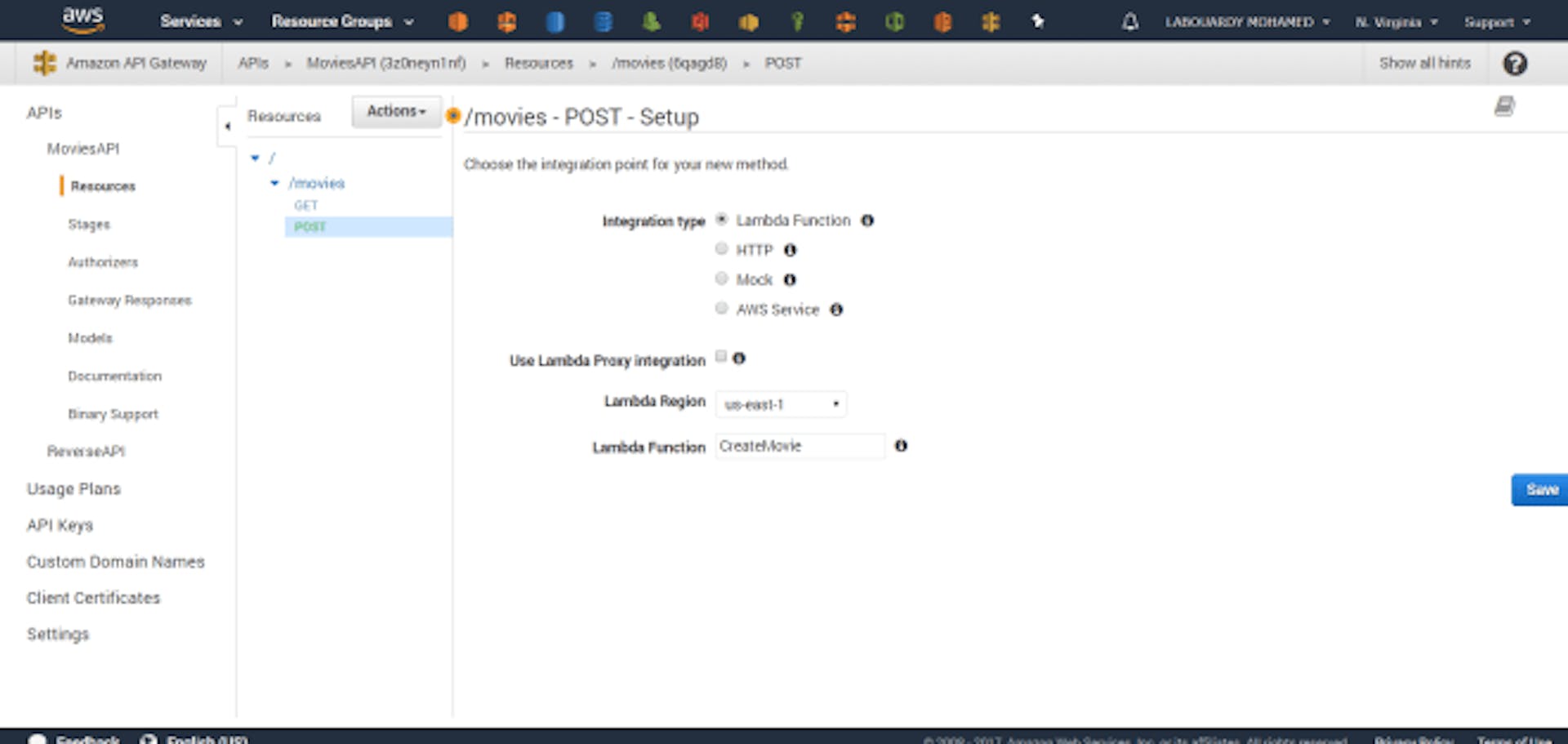

5.2 — POST /movies

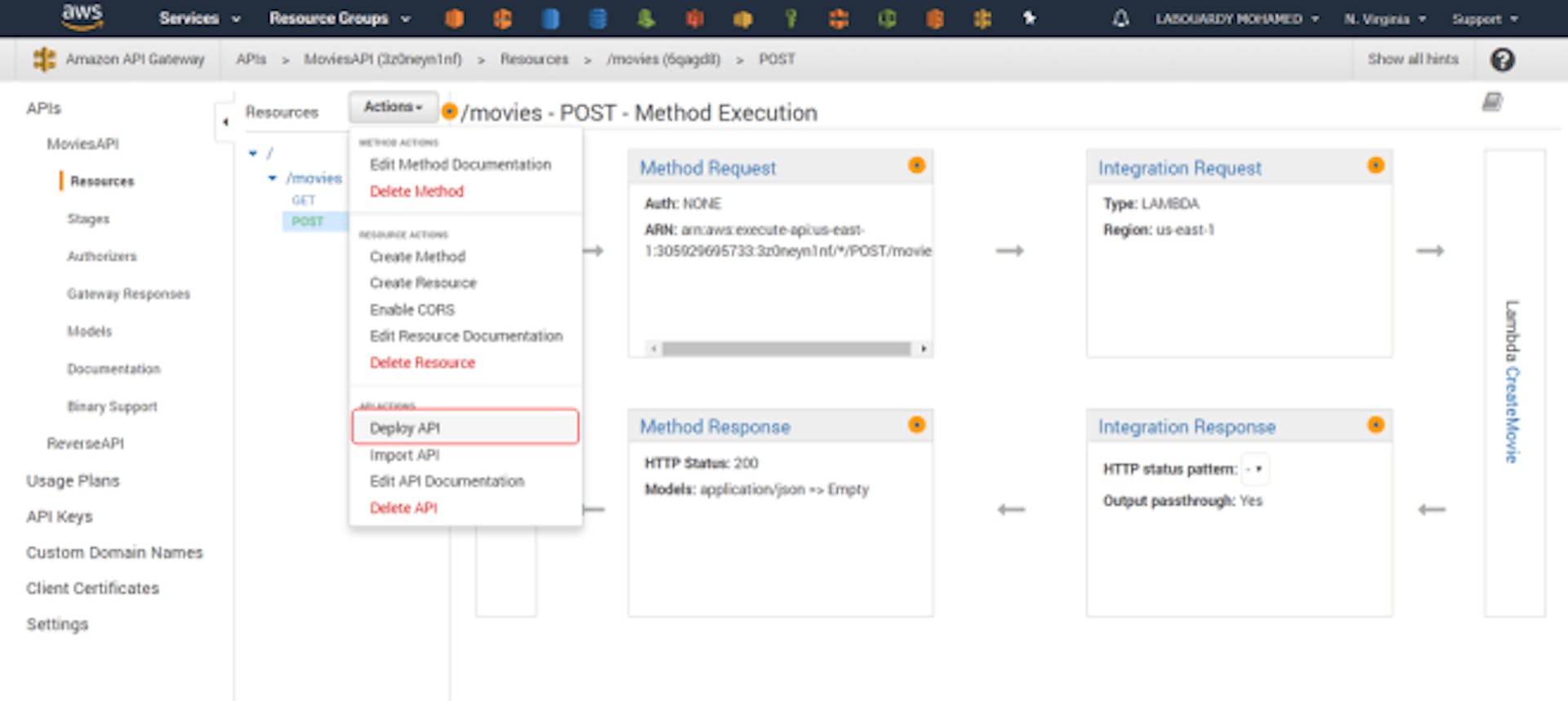

Once done, deploy the API:

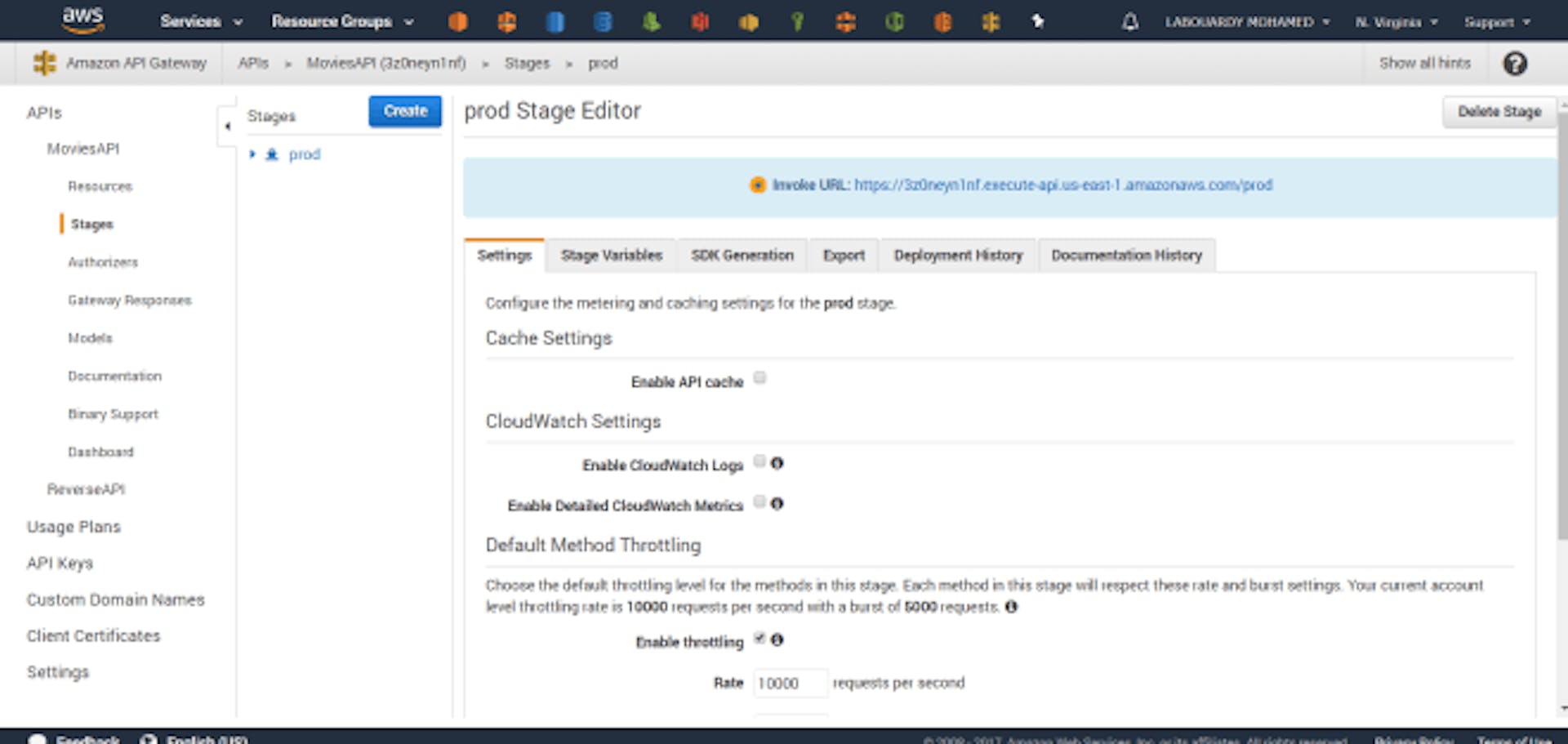

Copy down the API Invoke URL:

6 — Test

Let’s test it out:

6.1 — Create a Movie

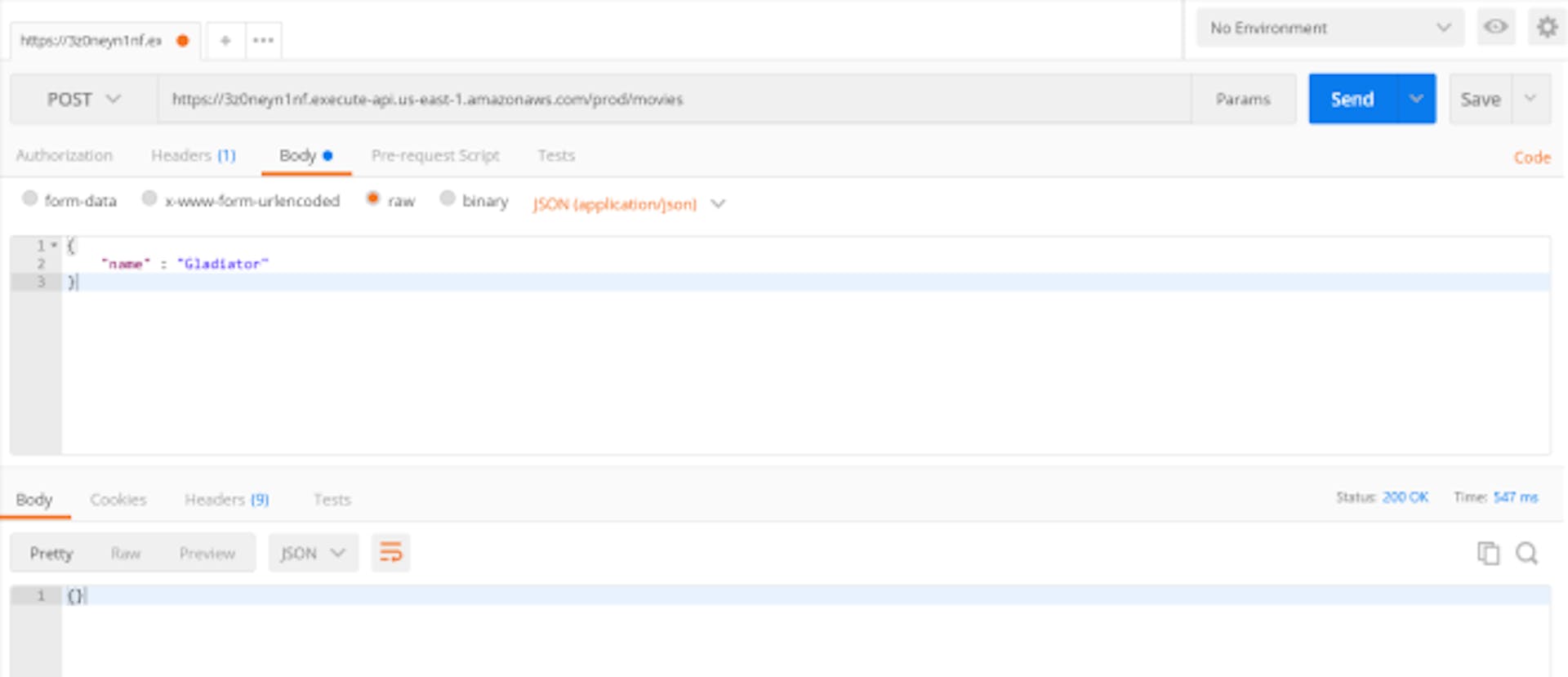

With Postman:

With cURL:

|curl -sSX POST -d ‘{“name”:”Gladiator”}’ https://3z0neyn1nf.execute-api.us-east-1.amazonaws.com/prod/movies

6.2 — List Movies

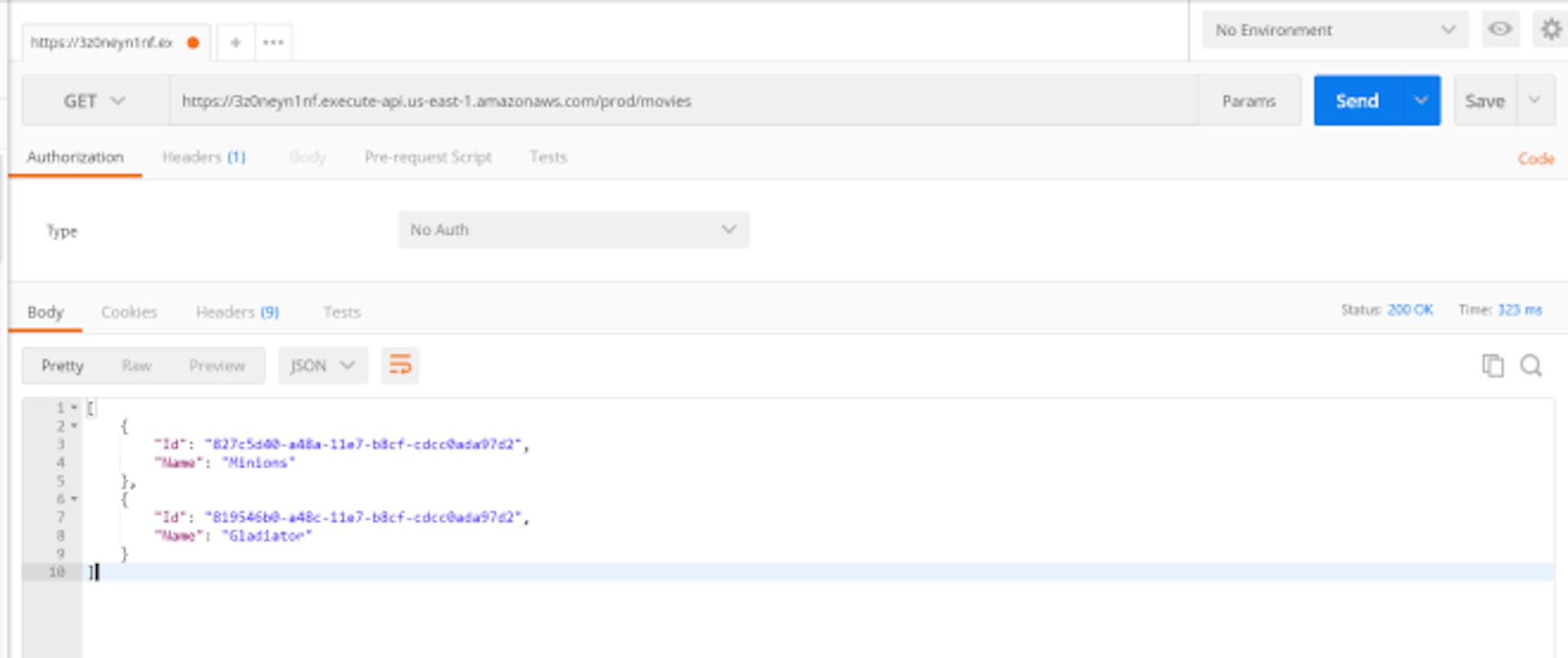

With Postman:

With cURL:

|curl -sSX GET https://3z0neyn1nf.execute-api.us-east 1.amazonaws.com/prod/movies

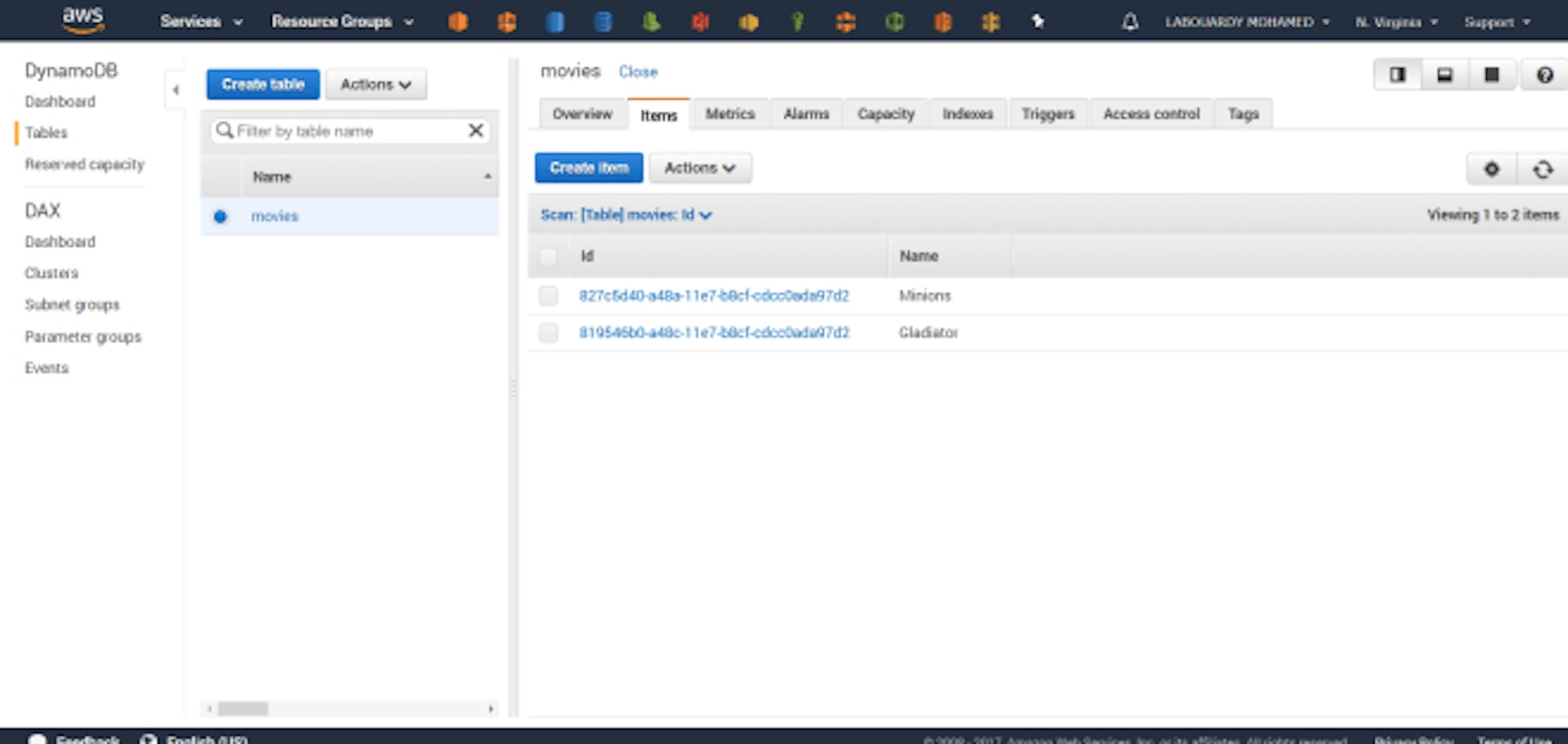

If we check our DynamoDB Table
