Monitoring your system is required. It helps you detect any issues before they cause any major downtime that effect your customers and damage your business reputation. It helps you also to plan growth based on the real usage of your system. But collecting metrics from different data sources isn’t enough, you need to personalize your monitoring to meet your own business needs and define the right alerts so that any abnormal changes in the system will reported.

In this post, I will show you how to setup a resilient continuous monitoring platform with only open source projects & how to define an event alert to report changes in the system.


Clone the following Github repository:

git clone https://github.com/mlabouardy/terraform-aws-labs.git

1 — Terraform & AWS

In the tick-stack/terraform directory, update the variables.tfvars file with your own AWS credentials (make sure you have the right IAM policies) :

region = “AWS REGION”

access_key = “YOUR AWS ACCESS KEY ID”

secret_key = “YOUR AWS SECRET KEY”

key_name = “YOUR SSH KEY PAIR”

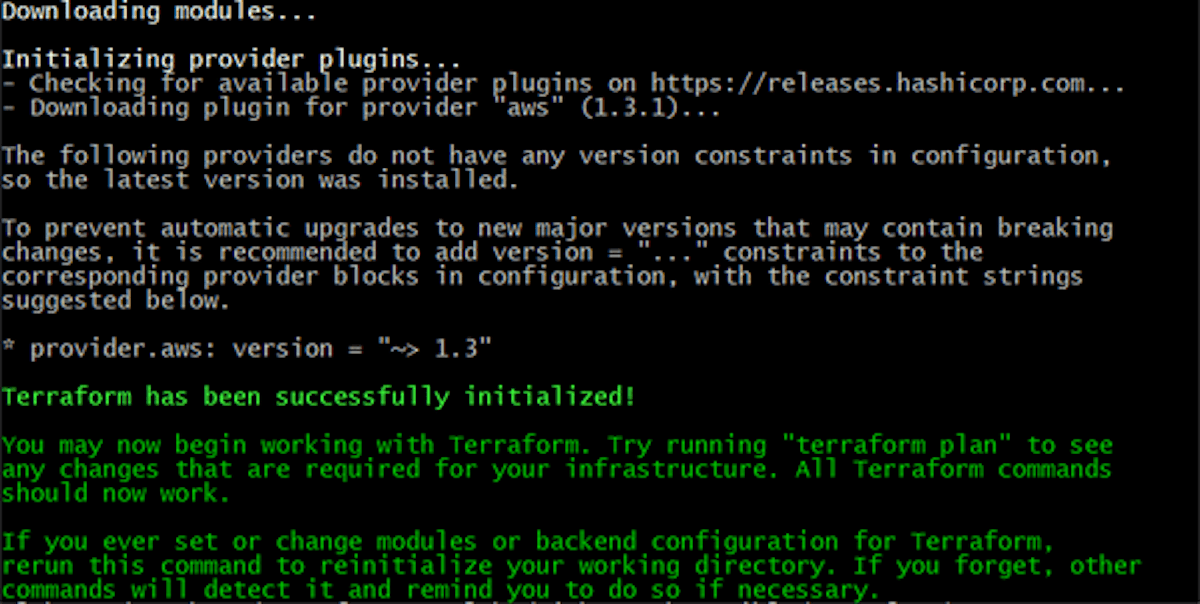

Issue the following command to download the AWS provider plugin:

terraform init

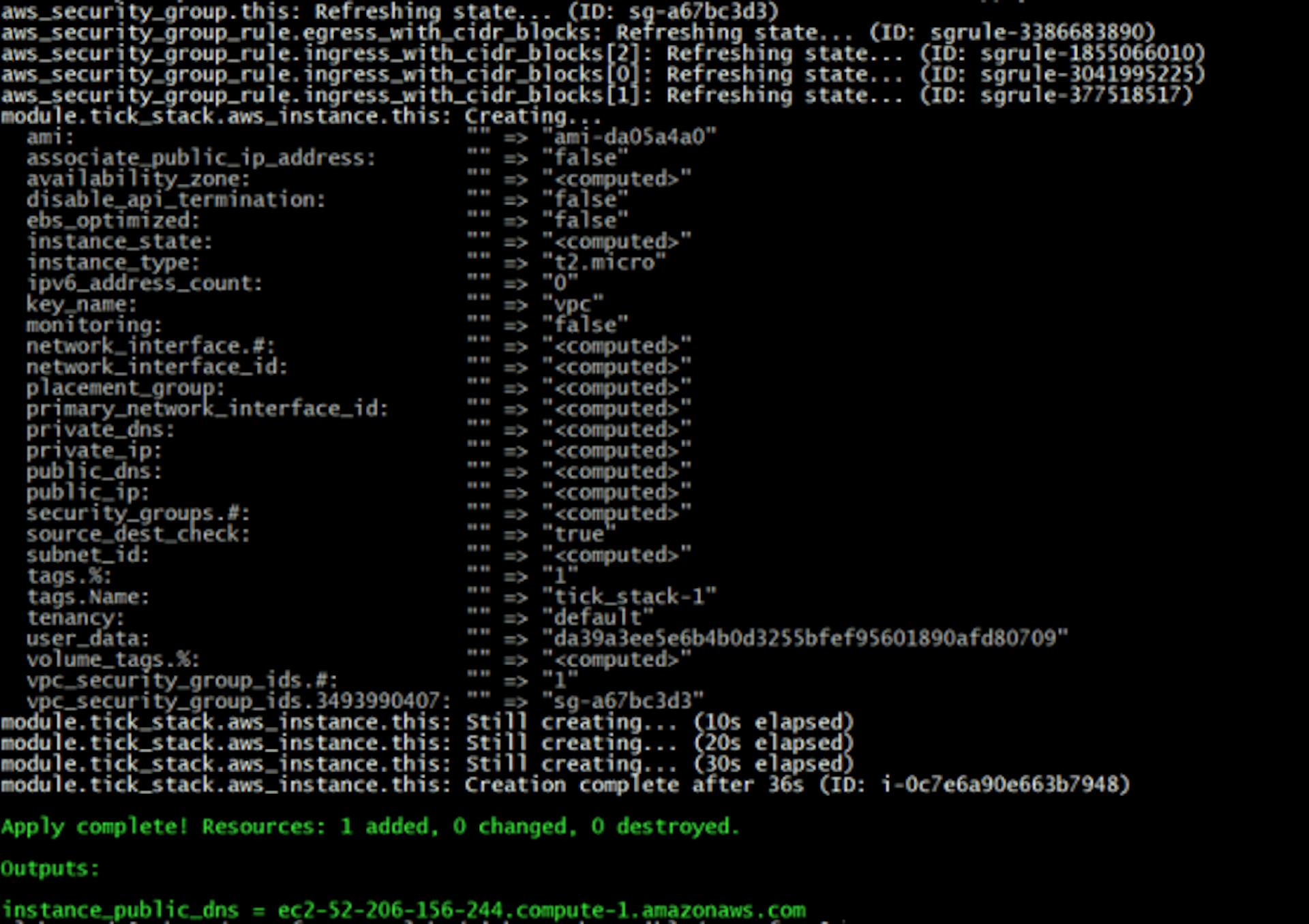

Issue the following command to provision the infrastructure:

terraform apply — var-file=variables.tfvars


2 — Ansible & Docker

Update the inventory file with your instance DNS name:

[servers]

ec2–52–206–156–244.compute-1.amazonaws.com

Then, install the Ansible custom role:

ansible-galaxy install mlabouardy.tick

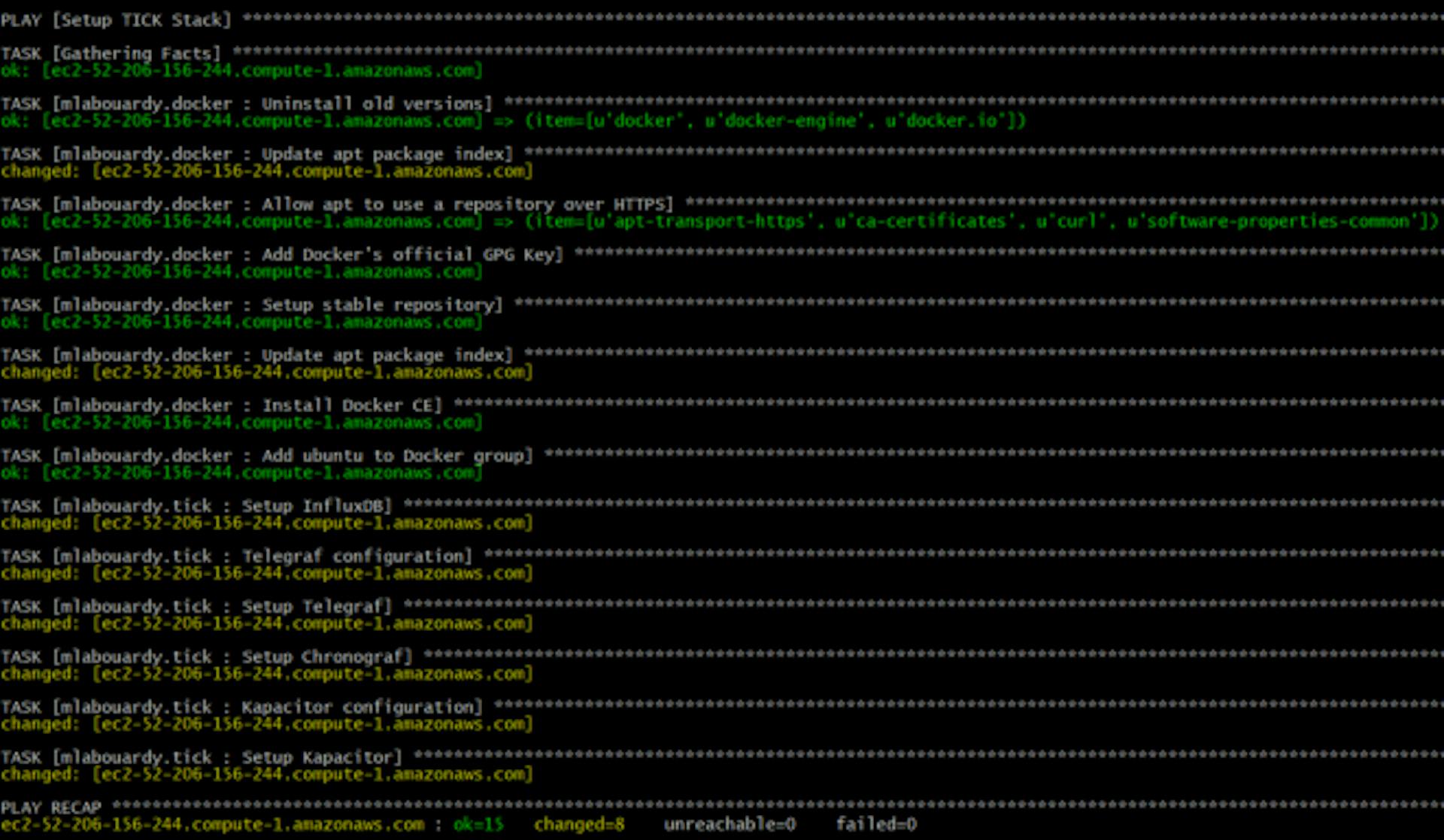

Execute the Ansible Playbook:

ansible-playbook — private-key=aws.pem -i inventory playbook.yml

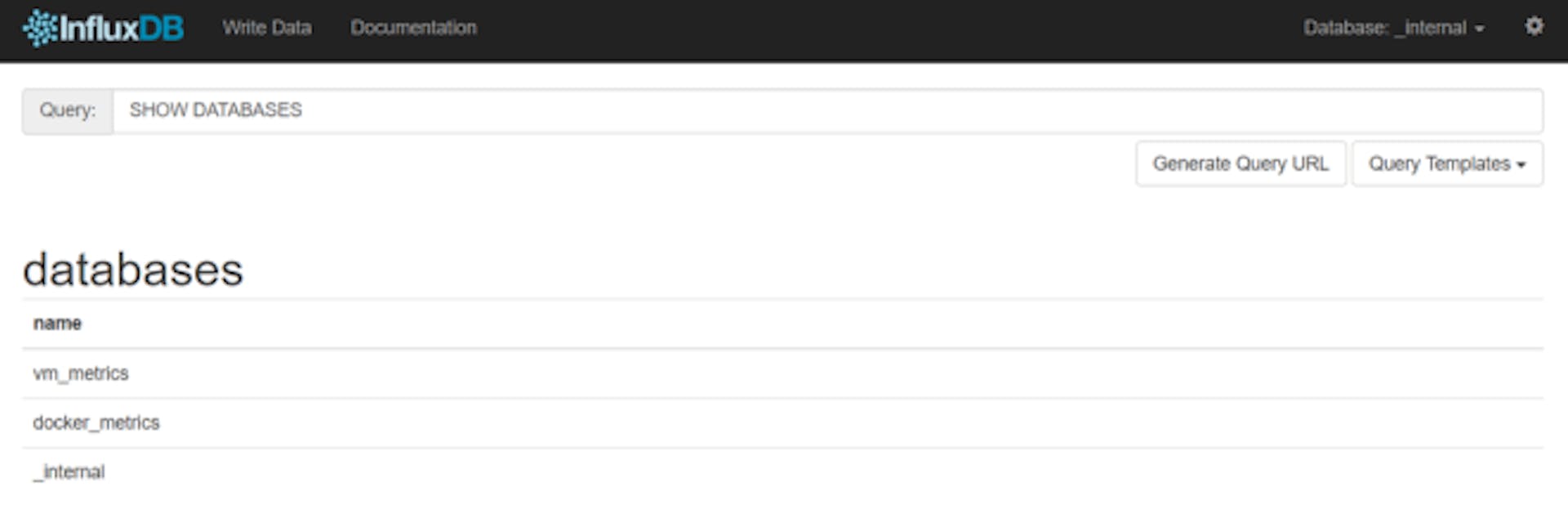

Point your browser to http://DNS_NAME:8083, you should see InfluxDB Admin Dashboard:

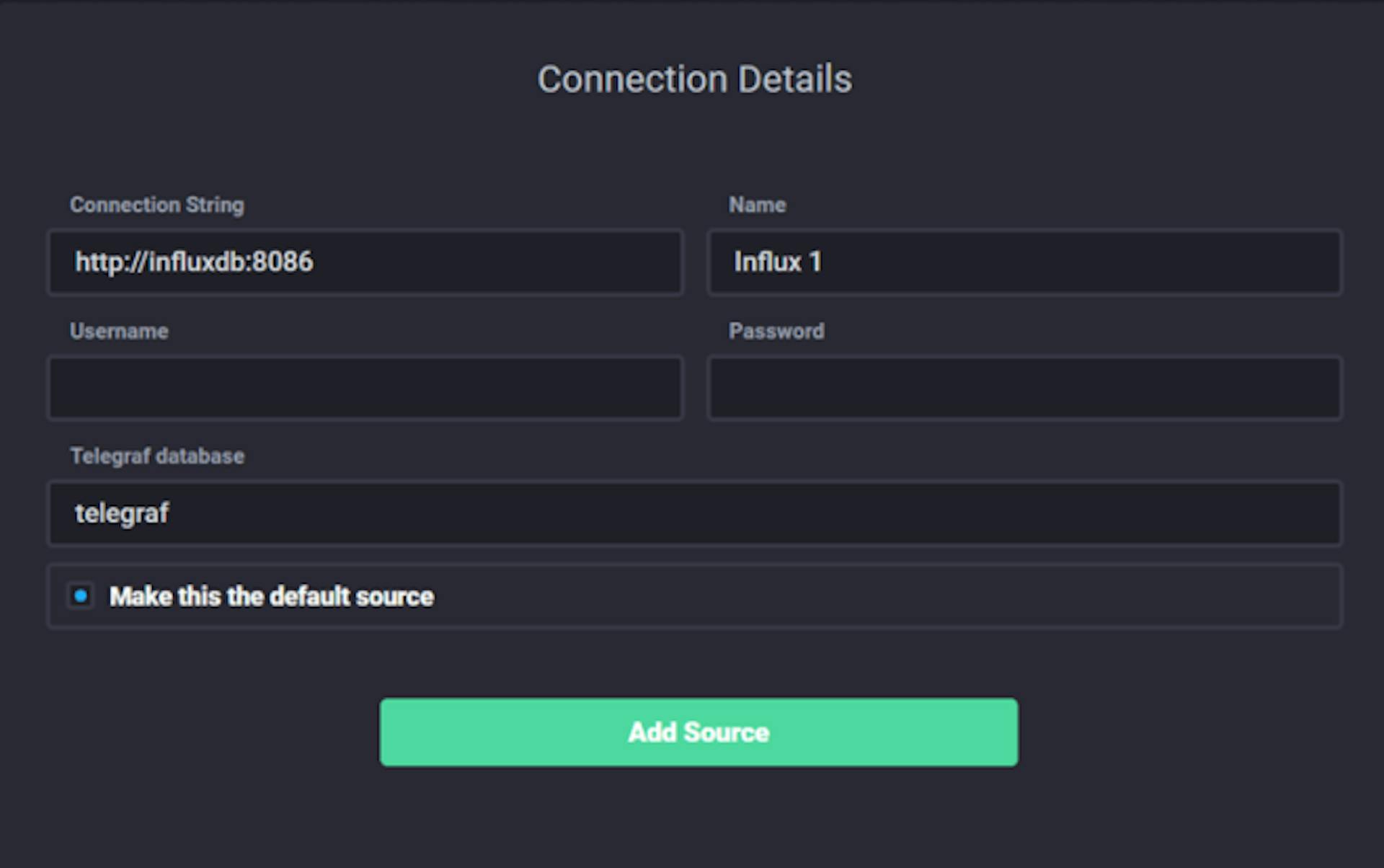

Now, create an InfluxDB Data Source in Chronograf(http://DNS_NAME:8888):

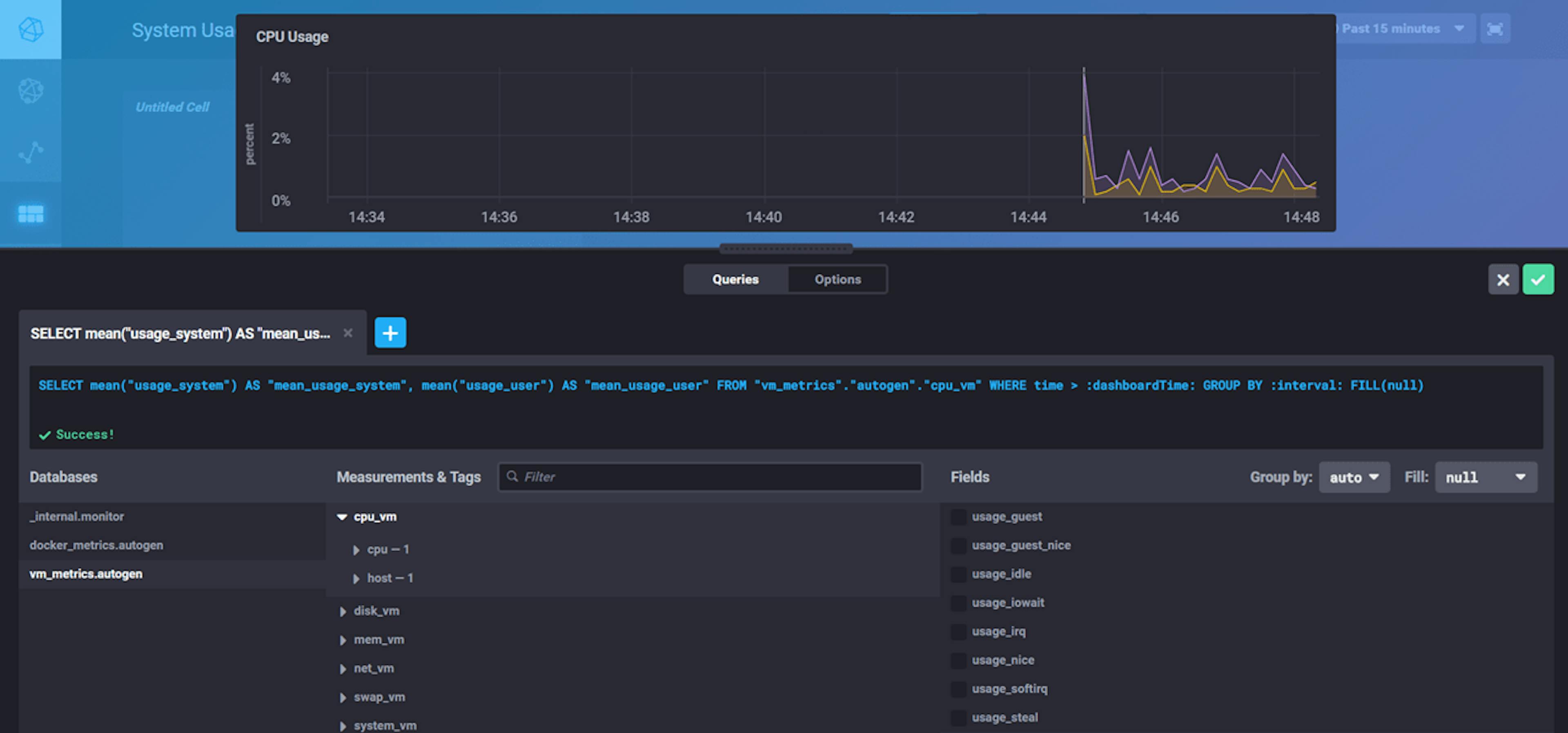

Create a new Dashboard as follow:

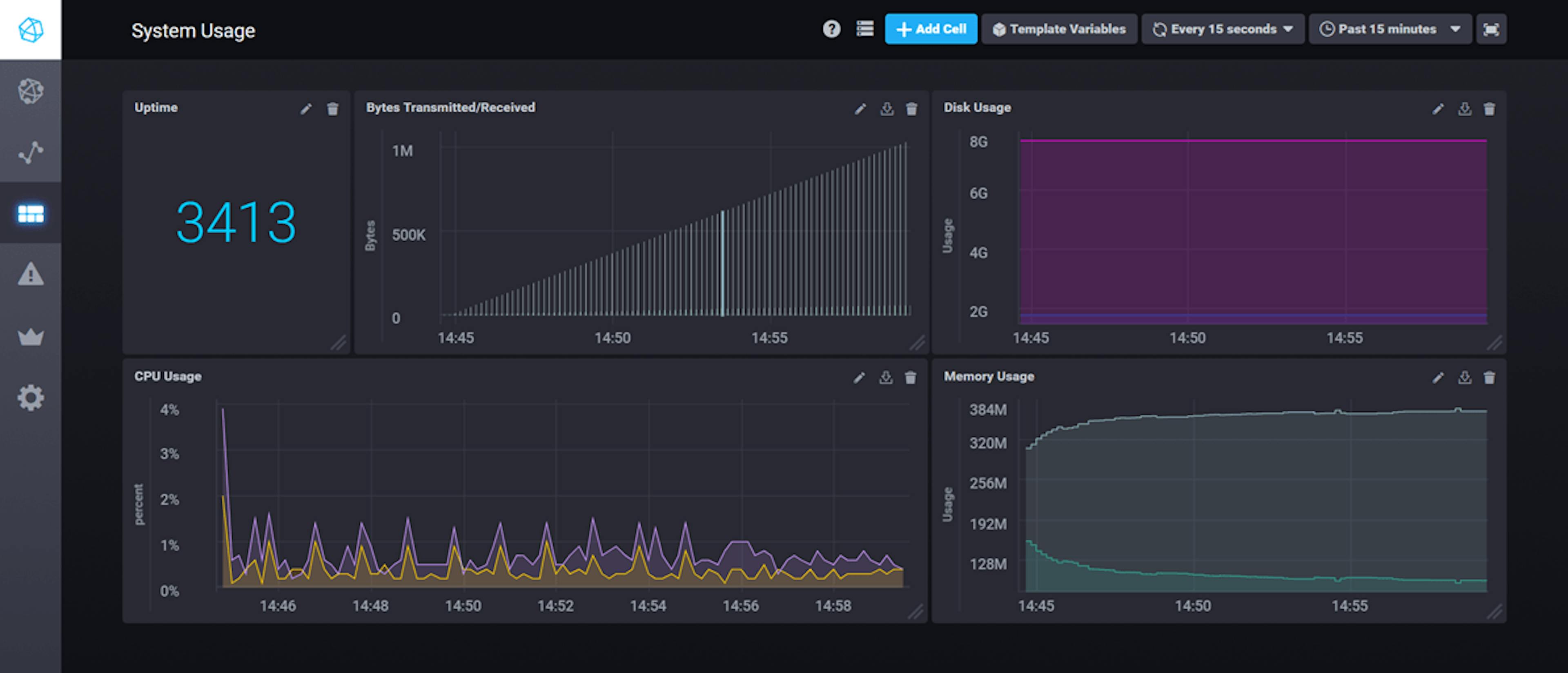

You can create multiple graphs to visualize different types of metrics:


Note: For in depth details on how to create interactive & dynamic dashboards in Chronograf check my previous tutorial.

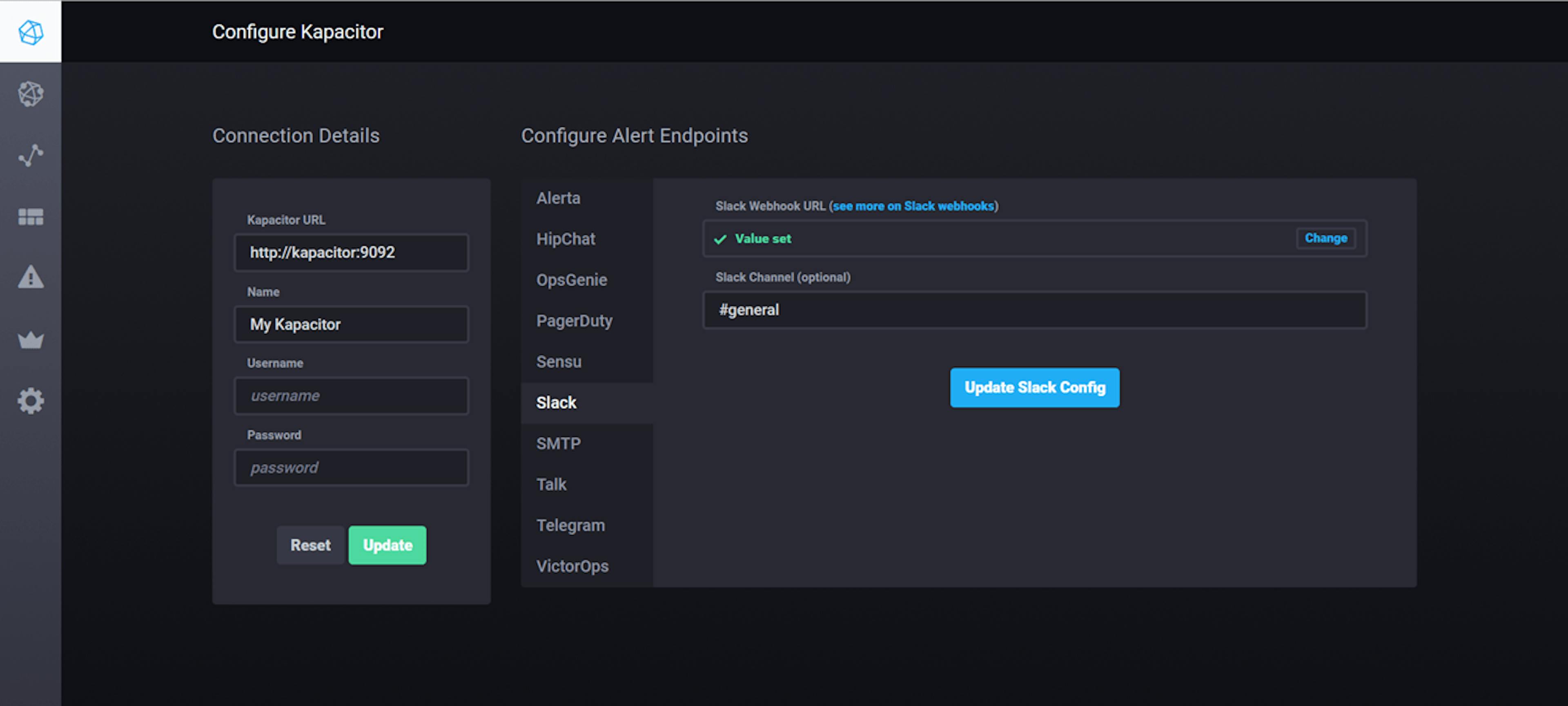

You need to elaborate on the data collected to do something like alerting. So make sure to enable Kapacitor:

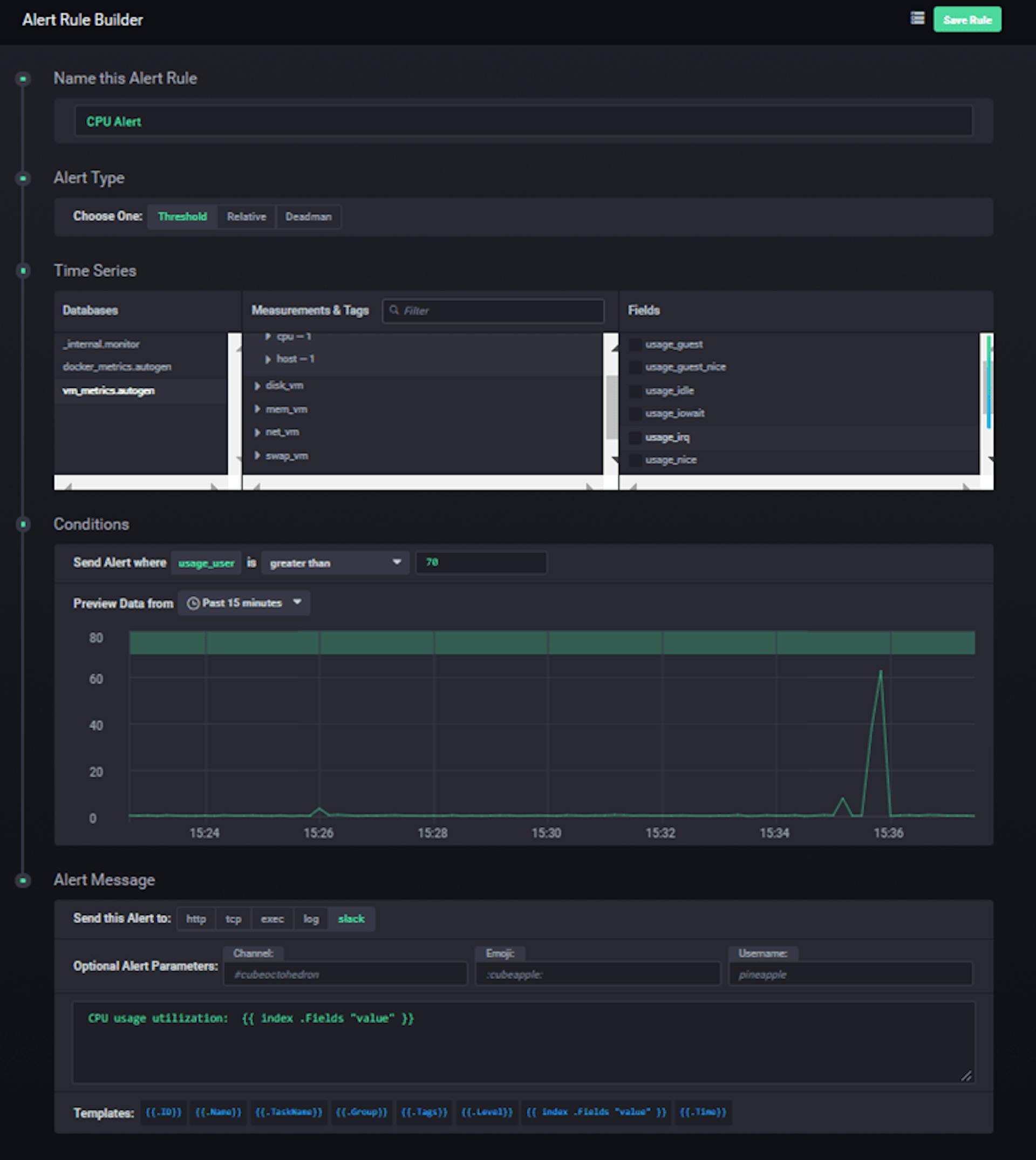

Define a new alert to send a Slack notification if the CPU utilization is higher than 70%.


To test it out, we need to generate some workload. For this case, I used stress:

apt-get install stress

Stressing the CPU:

stress — cpu 4 — timeout 20s

After few seconds, you should receive a Slack notification.
