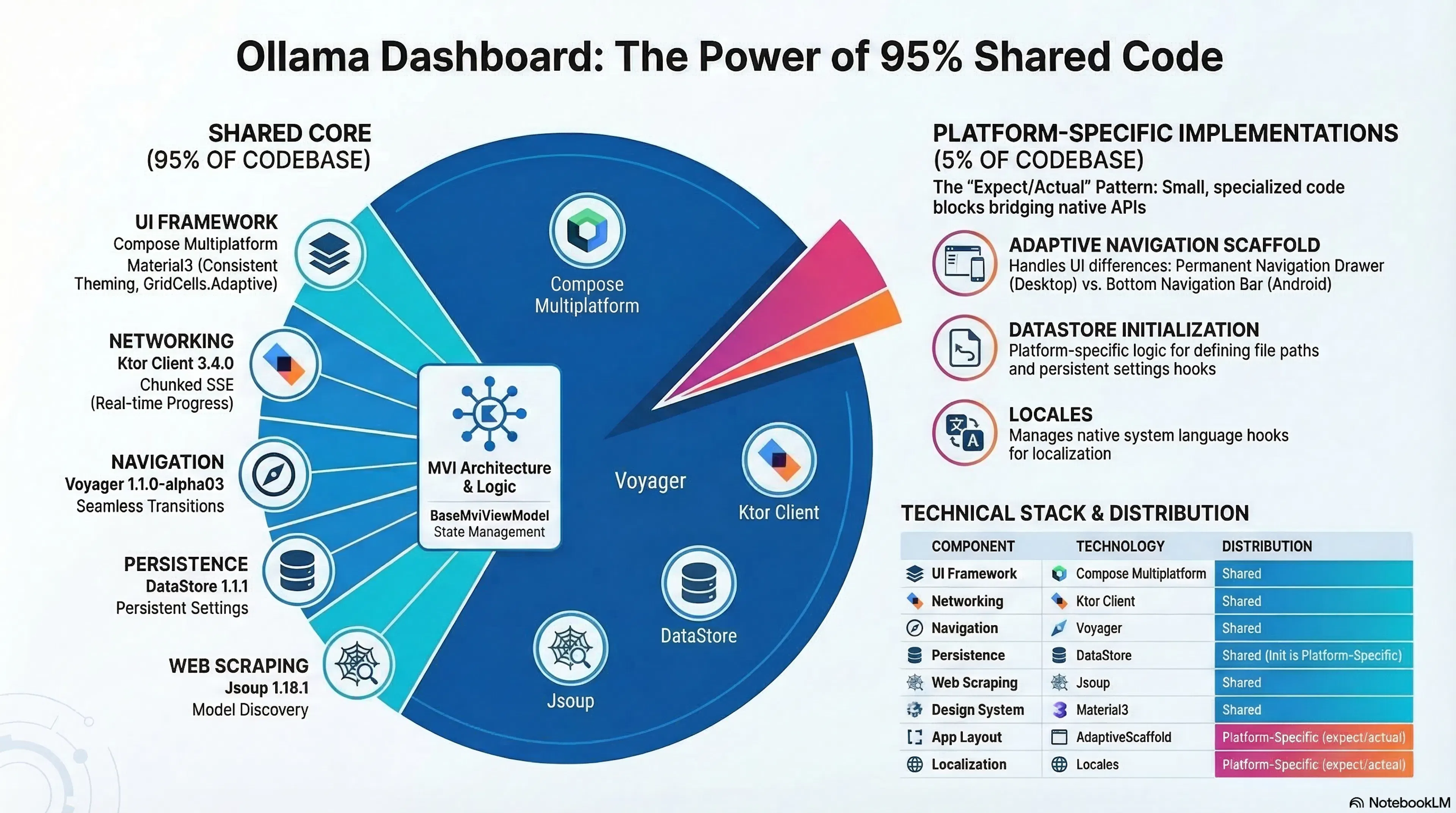

Building a Cross‑Platform Ollama Dashboard with 95% Shared Code

Local LLMs are great - until you have to manage them on multiple machines. Ollama makes it easy to run models like Qwen, Mistral, and Gemma on consumer hardware, but most tools stop at “chat UI”. This tutorial shows how to build a production-ready admin dashboard for Ollama that runs on Android and Desktop with about 95% shared Kotlin Multiplatform code. 95% You will: Build a Compose Multiplatform app with a shared UI layer for Android and Desktop. Implement MVI for predictable state, navigation, and one-time effects. Integrate with Ollama’s API for model lifecycle, registry discovery, VRAM monitoring, and streaming downloads. Build a Compose Multiplatform app with a shared UI layer for Android and Desktop. Implement MVI for predictable state, navigation, and one-time effects. Integrate with Ollama’s API for model lifecycle, registry discovery, VRAM monitoring, and streaming downloads. Full source code is here: HerdManager Full source code is here: HerdManager HerdManager Prerequisites and Project Setup You should be comfortable with Kotlin, coroutines, and basic Compose. Ollama must be installed and running on at least one machine. Install and start Ollama: ollama serve ollama serve Verify: ollama list ollama list The default API endpoint is http://localhost:11434/api. http://localhost:11434/api Step 1: Project initialization The source code for step 1 is here: PHASE-1 The source code for step 1 is here: PHASE-1 PHASE-1 Create a new Compose Multiplatform project (Android + Desktop): kmp init HerdManager --compose kmp init HerdManager --compose This generates a shared codebase targeting Android and Desktop (JVM). Add versions to libs.versions.toml for consistent dependency management: libs.versions.toml [versions] kotlin = "2.3.0" compose = "1.10.0" ktor = "3.4.0" voyager = "1.1.0-alpha03" datastore = "1.1.1" [libraries] ktor-client-core = { group = "io.ktor", name = "ktor-client-core", version.ref = "ktor" } voyager-navigator = { group = "cafe.adriel.voyager", name = "voyager-navigator", version.ref = "voyager" } jsoup = { group = "org.jsoup", name = "jsoup", version = "1.18.1" } [versions] kotlin = "2.3.0" compose = "1.10.0" ktor = "3.4.0" voyager = "1.1.0-alpha03" datastore = "1.1.1" [libraries] ktor-client-core = { group = "io.ktor", name = "ktor-client-core", version.ref = "ktor" } voyager-navigator = { group = "cafe.adriel.voyager", name = "voyager-navigator", version.ref = "voyager" } jsoup = { group = "org.jsoup", name = "jsoup", version = "1.18.1" } Target stack: Kotlin 2.3.0+ and Compose Multiplatform 1.10.0 Ktor Client 3.4.0 DataStore 1.1.1 Voyager 1.1.0-alpha03 Jsoup 1.18.1 Material3 for theming Kotlin 2.3.0+ and Compose Multiplatform 1.10.0 Ktor Client 3.4.0 DataStore 1.1.1 Voyager 1.1.0-alpha03 Jsoup 1.18.1 Material3 for theming Step 2: Implementing the MVI Core The source code for step 2 is here: PHASE-2 The source code for step 2 is here: PHASE-2 PHASE-2 To keep behavior consistent across platforms, the app uses Model‑View‑Intent (MVI). Every screen declares: Intent: user actions (e.g., PullModel, DeleteModel) State: immutable snapshot of UI data Effect: one-time events (toasts, dialogs) that must not re-fire on recompositionTutorial-Building-a-Cross-Platform-Ollama-Dashboard.pdf+1 Intent: user actions (e.g., PullModel, DeleteModel) Intent PullModel DeleteModel State: immutable snapshot of UI data State Effect: one-time events (toasts, dialogs) that must not re-fire on recompositionTutorial-Building-a-Cross-Platform-Ollama-Dashboard.pdf+1 Effect BaseMviViewModel The shared base ViewModel encapsulates state and effect handling: abstract class BaseMviViewModel : ScreenModel { private val _state = MutableStateFlow(initialState()) val state: StateFlow = _state.asStateFlow() private val _effect = Channel () val effect: Flow = _effect.receiveAsFlow() abstract fun initialState(): S abstract fun onIntent(intent: I) protected fun reduceState(reducer: S.() -> S) { _state.value = _state.value.reducer() } protected fun sendEffect(effect: E) { screenModelScope.launch { _effect.send(effect) } } } abstract class BaseMviViewModel : ScreenModel { private val _state = MutableStateFlow(initialState()) val state: StateFlow = _state.asStateFlow() private val _effect = Channel () val effect: Flow = _effect.receiveAsFlow() abstract fun initialState(): S abstract fun onIntent(intent: I) protected fun reduceState(reducer: S.() -> S) { _state.value = _state.value.reducer() } protected fun sendEffect(effect: E) { screenModelScope.launch { _effect.send(effect) } } } Example contract for the Models screen: sealed interface ModelListIntent : MviIntent { data object Refresh : ModelListIntent data class DeleteModel(val modelName: String) : ModelListIntent data class ConfirmDelete(val modelName: String) : ModelListIntent } data class ModelListState( val models: List = emptyList(), val isLoading: Boolean = false, val isDeleting: Boolean = false, val modelToDelete: String? = null, val error: String? = null ) : MviState sealed interface ModelListEffect : MviEffect { data object ShowModelDeletionSuccess : ModelListEffect data class ShowDeleteConfirmation(val modelName: String) : ModelListEffect } sealed interface ModelListIntent : MviIntent { data object Refresh : ModelListIntent data class DeleteModel(val modelName: String) : ModelListIntent data class ConfirmDelete(val modelName: String) : ModelListIntent } data class ModelListState( val models: List = emptyList(), val isLoading: Boolean = false, val isDeleting: Boolean = false, val modelToDelete: String? = null, val error: String? = null ) : MviState sealed interface ModelListEffect : MviEffect { data object ShowModelDeletionSuccess : ModelListEffect data class ShowDeleteConfirmation(val modelName: String) : ModelListEffect } This pattern gives you testable state transitions and clean one-time effects across Android and Desktop. Step 3: Designing an Adaptive Cross‑Platform UI The source code for step 3 is here: PHASE-3 The source code for step 3 is here: PHASE-3 PHASE-3 Navigation should feel native on each form factor, but the UI logic stays shared. The app uses an AdaptiveScaffold abstraction with expect/actual implementations. AdaptiveScaffold expect/actual Shared declaration: @Composable expect fun AdaptiveScaffold( selectedRoute: String, onRouteSelected: (String) -> Unit, language: String, content: @Composable (Modifier) -> Unit ) @Composable expect fun AdaptiveScaffold( selectedRoute: String, onRouteSelected: (String) -> Unit, language: String, content: @Composable (Modifier) -> Unit ) On Desktop: renders a PermanentNavigationDrawer on the left. On Android: renders a bottom NavigationBar. On Desktop: renders a PermanentNavigationDrawer on the left. PermanentNavigationDrawer On Android: renders a bottom NavigationBar. NavigationBar Inside each route, layouts reuse the same Compose components. The Models screen, for example, uses a responsive grid: LazyVerticalGrid( columns = GridCells.Adaptive(minSize = 300.dp), contentPadding = PaddingValues(16.dp), verticalArrangement = Arrangement.spacedBy(16.dp), horizontalArrangement = Arrangement.spacedBy(16.dp) ) { items(models) { model -> ModelCard( model = model, onDelete = { viewModel.onIntent(ModelListIntent.DeleteModel(model.name)) }, onShowDetails = { viewModel.onIntent(ModelListIntent.ShowDetails(model)) } ) } } LazyVerticalGrid( columns = GridCells.Adaptive(minSize = 300.dp), contentPadding = PaddingValues(16.dp), verticalArrangement = Arrangement.spacedBy(16.dp), horizontalArrangement = Arrangement.spacedBy(16.dp) ) { items(models) { model -> ModelCard( model = model, onDelete = { viewModel.onIntent(ModelListIntent.DeleteModel(model.name)) }, onShowDetails = { viewModel.onIntent(ModelListIntent.ShowDetails(model)) } ) } } Step 4: Model Management and API Integration The source code for step 4 is here: PHASE-3 The source code for step 4 is here: PHASE-3 PHASE-3 The dashboard talks to Ollama through an OllamaApiService wrapper. OllamaApiService Typical endpoints: /api/tags – list installed models /api/ps – list running models /api/delete – delete a model /api/show – model metadata /api/tags – list installed models /api/tags /api/ps – list running models /api/ps /api/delete – delete a model /api/delete /api/show – model metadata /api/show Ktor client calls: suspend fun getModels(): List = client.get("/api/tags").body ().models suspend fun deleteModel(name: String) = client.delete("/api/delete") { setBody(DeleteRequest(model = name)) } suspend fun getRunningModels(): List = client.get("/api/ps").body ().models suspend fun getModels(): List = client.get("/api/tags").body ().models suspend fun deleteModel(name: String) = client.delete("/api/delete") { setBody(DeleteRequest(model = name)) } suspend fun getRunningModels(): List = client.get("/api/ps").body ().models Optimistic deletion When the user deletes a model: Show a confirmation dialog via ModelListEffect.ShowDeleteConfirmation. On confirm, immediately remove the model from state.models. Call /api/delete in the background. If it fails, restore the original list and send an error effect. Show a confirmation dialog via ModelListEffect.ShowDeleteConfirmation. ModelListEffect.ShowDeleteConfirmation On confirm, immediately remove the model from state.models. state.models Call /api/delete in the background. /api/delete If it fails, restore the original list and send an error effect. This keeps the UI responsive while still handling failures gracefully. Real‑time VRAM monitoring with polling The Running tab polls /api/ps at a configurable interval (1–60 seconds) and highlights VRAM usage. /api/ps Polling job: private fun startPolling() { pollingJob?.cancel() pollingJob = screenModelScope.launch { do { refresh() // fetch from /api/ps delay(state.value.pollingIntervalMs) } while (isActive) } } private fun startPolling() { pollingJob?.cancel() pollingJob = screenModelScope.launch { do { refresh() // fetch from /api/ps delay(state.value.pollingIntervalMs) } while (isActive) } } Settings driven behavior: screenModelScope.launch { observeSettingsUseCase().collectLatest { settings -> val pollingIntervalMs = settings.refreshInterval * 1000L val pollingEnabled = settings.pollingEnabled reduceState { copy( pollingEnabled = pollingEnabled, pollingIntervalMs = pollingIntervalMs ) } if (pollingEnabled) { if (isActive) startPolling() else stopPolling() } else { stopPolling() } } } screenModelScope.launch { observeSettingsUseCase().collectLatest { settings -> val pollingIntervalMs = settings.refreshInterval * 1000L val pollingEnabled = settings.pollingEnabled reduceState { copy( pollingEnabled = pollingEnabled, pollingIntervalMs = pollingIntervalMs ) } if (pollingEnabled) { if (isActive) startPolling() else stopPolling() } else { stopPolling() } } } Step 5: Registry Discovery and Streaming Pull Progress The source code for step 5 is here: PHASE-5 The source code for step 5 is here: PHASE-5 PHASE-5 Ollama does not expose an official registry API, so the app uses Jsoup to scrape https://ollama.com/search. https://ollama.com/search Registry scraping with Jsoup object OllamaLibraryScraper { fun fetchModels(query: String, page: Int): Result > = runCatching { val url = when { query.isEmpty() && page == 1 -> "https://ollama.com/search" query.isEmpty() -> "https://ollama.com/search?page=$page" page == 1 -> "https://ollama.com/search?q=$query" else -> "https://ollama.com/search?q=$query&page=$page" } val html: String = runBlocking { httpClient.get(url) { headers { append("User-Agent", "Mozilla/5.0") } }.bodyAsText() } val doc = Jsoup.parse(html) parseModelsFromHtml(doc) } private fun parseModelsFromHtml(doc: Document): List { return doc.select("li[x-test-model]").mapNotNull { element -> // Extract name, description, pull count, capabilities } } } object OllamaLibraryScraper { fun fetchModels(query: String, page: Int): Result > = runCatching { val url = when { query.isEmpty() && page == 1 -> "https://ollama.com/search" query.isEmpty() -> "https://ollama.com/search?page=$page" page == 1 -> "https://ollama.com/search?q=$query" else -> "https://ollama.com/search?q=$query&page=$page" } val html: String = runBlocking { httpClient.get(url) { headers { append("User-Agent", "Mozilla/5.0") } }.bodyAsText() } val doc = Jsoup.parse(html) parseModelsFromHtml(doc) } private fun parseModelsFromHtml(doc: Document): List { return doc.select("li[x-test-model]").mapNotNull { element -> // Extract name, description, pull count, capabilities } } } The UI adds real-time filtering and scroll-based pagination (e.g., 30 models per page). Streaming /api/pull with SSE /api/pull Pulling a model streams progress as JSON lines over Server-Sent Events. The app uses preparePost and a custom parser: preparePost fun pullModel(modelName: String): Flow > = callbackFlow { val call = client.preparePost("/api/pull") { timeout { requestTimeoutMillis = INFINITE.inWholeMilliseconds connectTimeoutMillis = 30_000 } contentType(ContentType.Application.Json) setBody(PullRequest(model = modelName, stream = true)) } call.execute { response -> val channel = response.bodyAsChannel() var buffer = ByteArray(4096) var position = 0 var partialLine = "" while (true) { val bytesRead = channel.readAvailable(buffer, 0, buffer.size - position) if (bytesRead (partialLine).let { Result.success(it) }) } break } position += bytesRead val fullData = buffer.decodeToString(0, position) val lines = fullData.split('\n') partialLine = lines.last() lines.dropLast(1).forEach { line -> val trimmed = line.trimEnd('\r') if (trimmed.isNotEmpty()) { try { val progress = json.decodeFromString (trimmed) trySend(Result.success(progress)) } catch (e: Exception) { trySend(Result.failure(e)) } } } val remaining = partialLine.encodeToByteArray() buffer = ByteArray(4096) remaining.copyInto(buffer) position = remaining.size } } awaitClose { cancel() } }.flowOn(Dispatchers.IO) fun pullModel(modelName: String): Flow > = callbackFlow { val call = client.preparePost("/api/pull") { timeout { requestTimeoutMillis = INFINITE.inWholeMilliseconds connectTimeoutMillis = 30_000 } contentType(ContentType.Application.Json) setBody(PullRequest(model = modelName, stream = true)) } call.execute { response -> val channel = response.bodyAsChannel() var buffer = ByteArray(4096) var position = 0 var partialLine = "" while (true) { val bytesRead = channel.readAvailable(buffer, 0, buffer.size - position) if (bytesRead (partialLine).let { Result.success(it) }) } break } position += bytesRead val fullData = buffer.decodeToString(0, position) val lines = fullData.split('\n') partialLine = lines.last() lines.dropLast(1).forEach { line -> val trimmed = line.trimEnd('\r') if (trimmed.isNotEmpty()) { try { val progress = json.decodeFromString (trimmed) trySend(Result.success(progress)) } catch (e: Exception) { trySend(Result.failure(e)) } } } val remaining = partialLine.encodeToByteArray() buffer = ByteArray(4096) remaining.copyInto(buffer) position = remaining.size } } awaitClose { cancel() } }.flowOn(Dispatchers.IO) The UI subscribes to this Flow to render: Flow Percentage completed Total size Pulling details Percentage completed Total size Pulling details Step 6: Configuration, Theming, and Localization The source for step 6 is here: PHASE-6 The source for step 6 is here: PHASE-6 PHASE-6 The Settings screen centralizes configuration shared across platforms. Settings model and DataStore data class Settings( val serverUrl: String, val refreshInterval: Int, val pollingEnabled: Boolean, val language: String = "en", val themeMode: ThemeMode = ThemeMode.SYSTEM ) data class Settings( val serverUrl: String, val refreshInterval: Int, val pollingEnabled: Boolean, val language: String = "en", val themeMode: ThemeMode = ThemeMode.SYSTEM ) Persist settings: suspend fun saveSettings(settings: Settings) { dataStore.edit { prefs -> prefs[SERVER_URL_KEY] = settings.serverUrl prefs[POLLING_ENABLED_KEY] = settings.pollingEnabled prefs[REFRESH_INTERVAL_KEY] = settings.refreshInterval prefs[LANGUAGE_KEY] = settings.language prefs[THEME_MODE_KEY] = settings.themeMode.name } } suspend fun saveSettings(settings: Settings) { dataStore.edit { prefs -> prefs[SERVER_URL_KEY] = settings.serverUrl prefs[POLLING_ENABLED_KEY] = settings.pollingEnabled prefs[REFRESH_INTERVAL_KEY] = settings.refreshInterval prefs[LANGUAGE_KEY] = settings.language prefs[THEME_MODE_KEY] = settings.themeMode.name } } Dirty-state tracking shows Save/Discard buttons only when there are unsaved edits. Theme mode and Material3 val isDarkTheme = when (settings?.themeMode) { ThemeMode.LIGHT -> false ThemeMode.DARK -> true else -> isSystemInDarkTheme() } val colorScheme = if (isDarkTheme) darkColorScheme() else lightColorScheme() MaterialTheme(colorScheme = colorScheme) { // App content } val isDarkTheme = when (settings?.themeMode) { ThemeMode.LIGHT -> false ThemeMode.DARK -> true else -> isSystemInDarkTheme() } val colorScheme = if (isDarkTheme) darkColorScheme() else lightColorScheme() MaterialTheme(colorScheme = colorScheme) { // App content } Localization uses Compose Resources with @StringResource and expect/actual for locale handling so the UI recomposes when language changes. @StringResource Wrap‑Up With Compose Multiplatform and MVI, you now have an Ollama admin dashboard that: Manages model lifecycle (list, pull, delete) with streaming progress. Discovers registry models via scraping when no official API exists. Monitors running models and VRAM in real time with configurable polling. Shares around 95% of the codebase between Android and Desktop while still feeling native on each platform. Manages model lifecycle (list, pull, delete) with streaming progress. Discovers registry models via scraping when no official API exists. Monitors running models and VRAM in real time with configurable polling. Shares around 95% of the codebase between Android and Desktop while still feeling native on each platform. Clone the repository, point it at your Ollama server, and start managing local LLMs like a proper multi-platform service instead of a single chat window. Contributions, issues, and feature ideas are welcome in the GitHub repo - his dashboard is designed to grow with the Ollama ecosystem. GitHub repo
