Beginner’s Guide to Tor on Ubuntu

Tor is a software that enables you to hide your identity on the internet. It is an open network that helps defend against traffic analysis and grants you a high level of privacy.

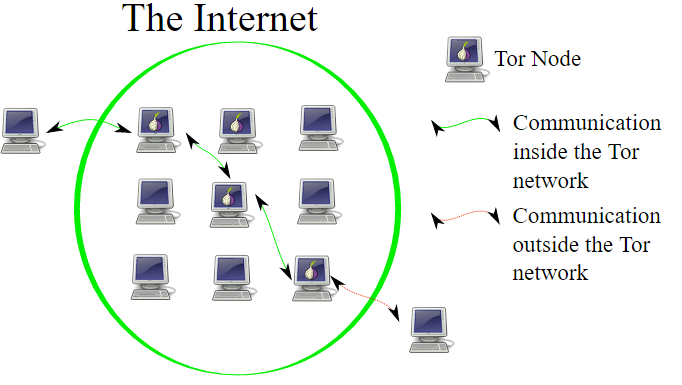

Tor protects you by bouncing your communications around a distributed network of relays run by volunteers all around the world (known as onion routing): it prevents somebody watching your Internet connection from learning what sites you visit, and it prevents the sites you visit from learning your physical location.

Wait, I’ve heard about onions, but what is this Onion Routing?

In onion routing, the data to be sent is encapsulated in layers of encryption, just like the layers of an onion. Then, the resulting encrypted data is transmitted through a series of network nodes called onion routers, each of which “peels” away (or decrypts) a single layer of the encryption, uncovering the data’s next destination. Upon decrypting the final layer, the data arrives at its destination. The sender remains anonymous because each intermediary knows only the location of the immediately preceding and following nodes.

How to Install Tor on Ubuntu

Follow these steps to install Tor on Ubuntu:

1. Adding Source Entries

First find out which version of Ubuntu you are using. Then choose that version from the following list and add those lines to the file /etc/apt/sources.list using the editor you use or simply by cat command.

$ sudo cat >> /etc/apt/sources.list

• If you are using Ubuntu 14.xx

deb http://deb.torproject.org/torproject.org trusty maindeb-src http://deb.torproject.org/torproject.org trusty main

• If you are using Ubuntu 15.xx

deb http://deb.torproject.org/torproject.org wily maindeb-src http://deb.torproject.org/torproject.org wily main

• If you are using Ubuntu 16.xx

deb http://deb.torproject.org/torproject.org xenial maindeb-src http://deb.torproject.org/torproject.org xenial main

2. Adding GPG Key

Add the gpg key used to sign the packages by running the following commands in your terminal:

$ sudo gpg — keyserver keys.gnupg.net — recv 886DDD89$ sudo gpg — export A3C4F0F979CAA22CDBA8F512EE8CBC9E886DDD89 | sudo apt-key add -

3. Installing Tor

Now run the following commands to install Tor.

$ sudo apt-get update$ sudo apt-get install tor deb.torproject.org-keyring

Using Tor

1. Configuring Tor

Tor puts the torrc file in /usr/local/etc/tor/torrc if you compiled tor from source, and /etc/tor/torrc or/etc/torrc if you installed a pre-built package.

Tor comes with a control port, which can be used to, duh, control tor. It is highly recommended that in order to communicate with tor using the control port, you set up an authentication method to prevent anyone else from accessing it. The recommended way is to use a password. If you choose to use a password for authentication first run this command to get a hashed password to be used in the config file in the next step:

$ tor --hash-password "passwordhere"16:AC5FB526B90B4ED06027C6C4343EF87075B63B9A25822EE198622EE4D6

Open the torrc file (if you followed the above installation procedure, then your torrc file most probably will be located at /etc/tor/torrc) and uncomment these lines: 1. ControlPort2. CookieAuthentication OR HashedControlPassword (if you choose to uncomment HashedControlPassword, copy the hashed password you got in the previous step and paste it there)These lines are shown below:

# This provides a port for our script to talk with. If you set this then be# sure to also set either CookieAuthentication *or* HashedControlPassword!## You could also use ControlSocket instead of ControlPort, which provides a# file based socket. You don't need to have authentication if you use# ControlSocket. For this example however we'll use a port.

ControlPort 9051 # <--- uncomment this ControlPort line

# Setting this will make Tor write an authentication cookie. Anything with# permission to read this file can connect to Tor. If you're going to run# your script with the same user or permission group as Tor then this is the# easiest method of authentication to use.

CookieAuthentication 1 #either uncomment this or below password line

# Alternatively we can authenticate with a password. To set a password first# get its hash...## % tor --hash-password "my_password"# 16:E600ADC1B52C80BB6022A0E999A7734571A451EB6AE50FED489B72E3DF## ... and use that for the HashedControlPassword in your torrc.

HashedControlPassword 16:E600ADC1B52C80BB6022A0E999A7734571A451EB6AE50FED489B72E3DF

Cookie authentication simply means that your credential is the content of a file in Tor’s DataDirectory.

Now restart Tor by using this command:

$ sudo /etc/init.d/tor restart

2. How to authenticate with Tor Control Port

If you want to authenticate with Tor to communicate with the Tor control port (e.g. to start a new session), you can do this: (you can just use AUTHENTICATE, without any password if you chose cookie authentication)

$ echo -e 'AUTHENTICATE "passwordhere"\r\nsignal NEWNYM\r\nQUIT' | nc 127.0.0.1 9051

Tor opens a SOCKS proxy on port 9050 by default. To use SOCKS directly, you can point your application directly at Tor (localhost port 9050). For applications that do not use proxies, you can use torsocks.

3. How to install torsocks

To install torsocks you can either directly run this command:

$ sudo apt-get install torsocks

ALTERNATIVELY, To install it directly from source (this gets you the latest version and recent patches):

$ git clone https://git.torproject.org/torsocks.git$ cd torsocks$ ./autogen.sh$ ./configure$ make$ sudo make install

Now let’s use torsocks! First, let’s get the public ip address.

$ curl 'https://api.ipify.org'75.119.16.140

So, it says 75.119.16.140 is my public ip, now use torsocks before the curl command:

$ torsocks curl 'https://api.ipify.org'31.45.26.14

As you can see, we now have a different ip address that was used to browse on the internet.

4. Signalling Tor Control to create a new circuit (or path)

You can tell Tor control to initiate a new Tor circuit. An important thing to note here is that a new circuit does not necessarily mean a new IP address. To do this, we use a command already introduced above:

$ echo -e 'AUTHENTICATE "passwordhere"\r\nsignal NEWNYM\r\nQUIT' | nc 127.0.0.1 9051

ALTERNATIVELY, if you want to use telnet:

$ telnet localhost 9051Trying 127.0.0.1...Connected to localhost.Escape character is '^]'.AUTHENTICATE "my_password"250 OKSIGNAL NEWNYM250 OKQUIT250 closing connectionConnection closed by foreign host.

5. Use a Python Controller Library for Tor

Stem is an officially supported Python controller library for Tor. You can find all about how to install Stem and a few good tutorials to start with here.

This article is for educational purposes only.
