Exploratory data analysis is one of the most important parts of any machine learning workflow and Natural Language Processing is no different.
But which tools you should choose to explore and visualize text data efficiently?
In this article (originally posted by Shahul Es on the Neptune blog), we will discuss and implement nearly all the major techniques that you can use to understand your text data and give you a complete(ish) tour into Python tools that get the job done.
Before we start: Dataset and Dependencies
In this article, we will use a million news headlines dataset from Kaggle. If you want to follow the analysis step-by-step you may want to install the following libraries:

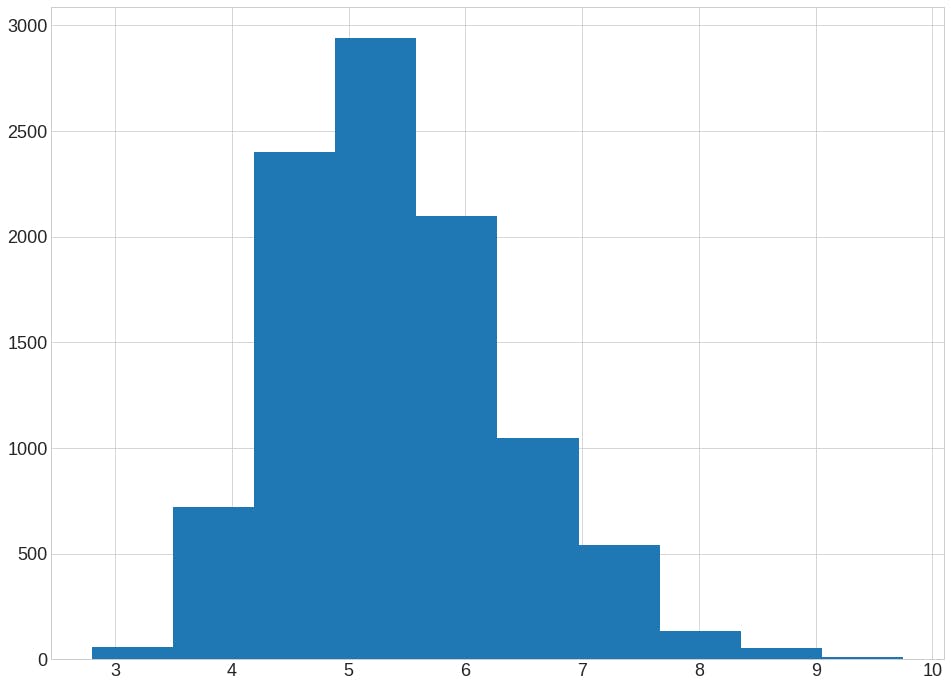

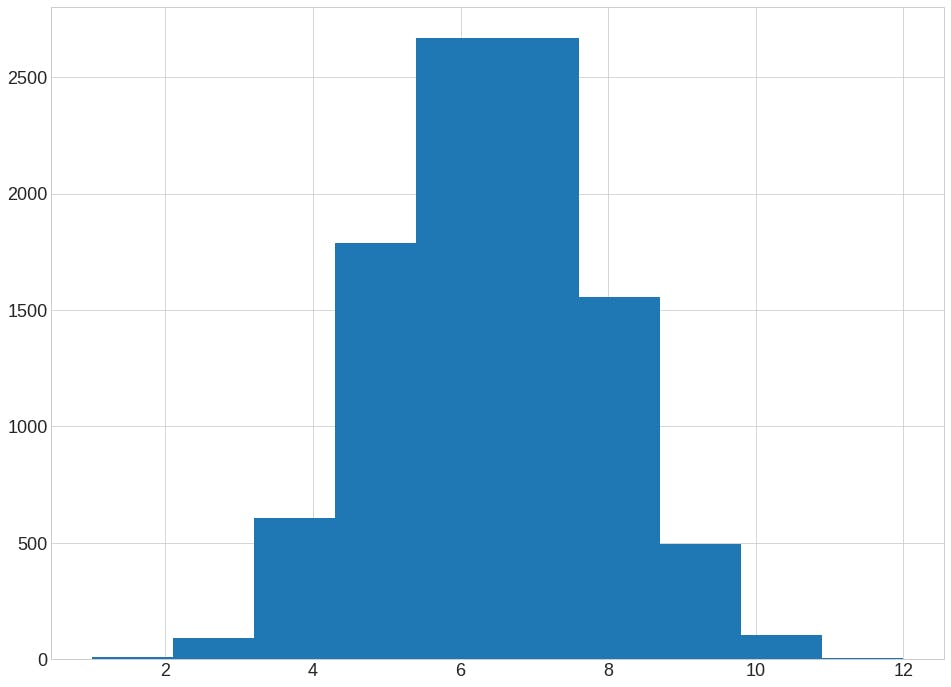

The average word length ranges between 3 to 9 with 5 being the most common length. Does it mean that people are using really short words in news headlines?
Let’s find out.
One reason why this may not be true is stopwords. Stopwords are the words that are most commonly used in any language such as “the”,” a”,” an” etc. As these words are probably small in length these words may have caused the above graph to be left-skewed.
Analyzing the amount and the types of stopwords can give us some good insights into the data.
To get the corpus containing stopwords you can use the nltk library. Nltk contains stopwords from many languages. Since we are only dealing with English news I will filter the English stopwords from the corpus.
corpus=[word for i in new for word in i]
from collections import defaultdict
for word in corpus:
if word in stop:

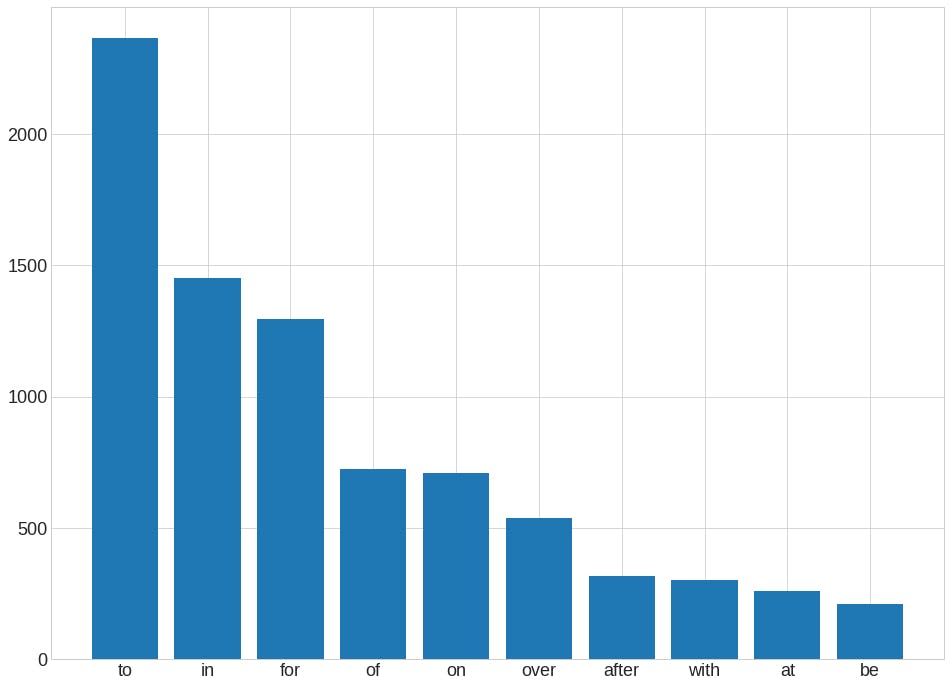

We can evidently see that stopwords such as “to”,” in” and “for” dominate in news headlines.
So now we know which stopwords occur frequently in our text, let’s inspect which words other than these stopwords occur frequently.
We will use the counter function from the collections library to count and store the occurrences of each word in a list of tuples. This is a very useful function when we deal with word-level analysis in natural language processing.
x, y= ,
for word,count in most[:40]:
if (word notin stop):

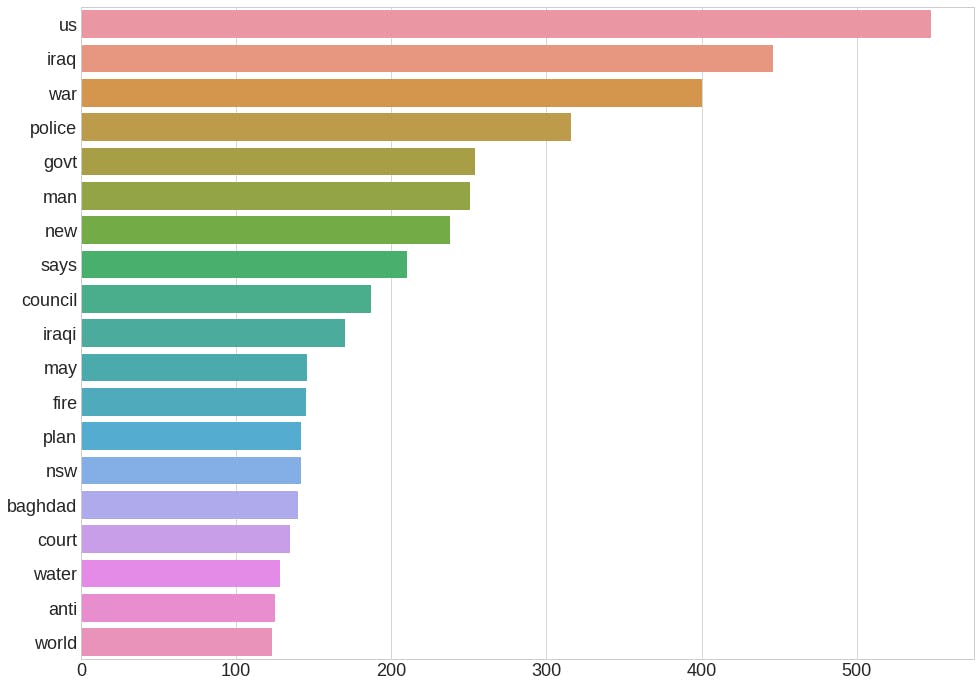

Wow! The “us”, “Iraq” and “war” dominate the headlines over the last 15 years.
Here ‘us’ could mean either the USA or us (you and me). us is not a stopword, but when we observe other words in the graph they are all related to the US — Iraq war and “us” here probably indicate the USA.
Ngrams are simply contiguous sequences of n words. For example “riverbank”,” The three musketeers” etc. If the number of words is two, it is called bigram. For 3 words it is called a trigram and so on.
Looking at most frequent n-grams can give you a better understanding of the context in which the word was used.

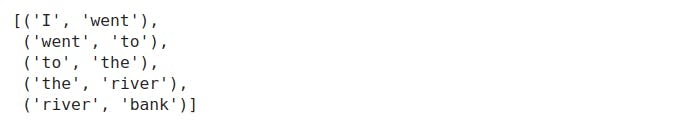

To implement n-grams we will use ngrams function from nltk.util. For example:
from nltk.util import ngrams
Now that we know how to create n-grams lets visualize them.
To build a representation of our vocabulary we will use Countvectorizer.Countvectorizer is a simple method used to tokenize, vectorize and represent the corpus in an appropriate form. It is available in sklearn.feature_engineering.text

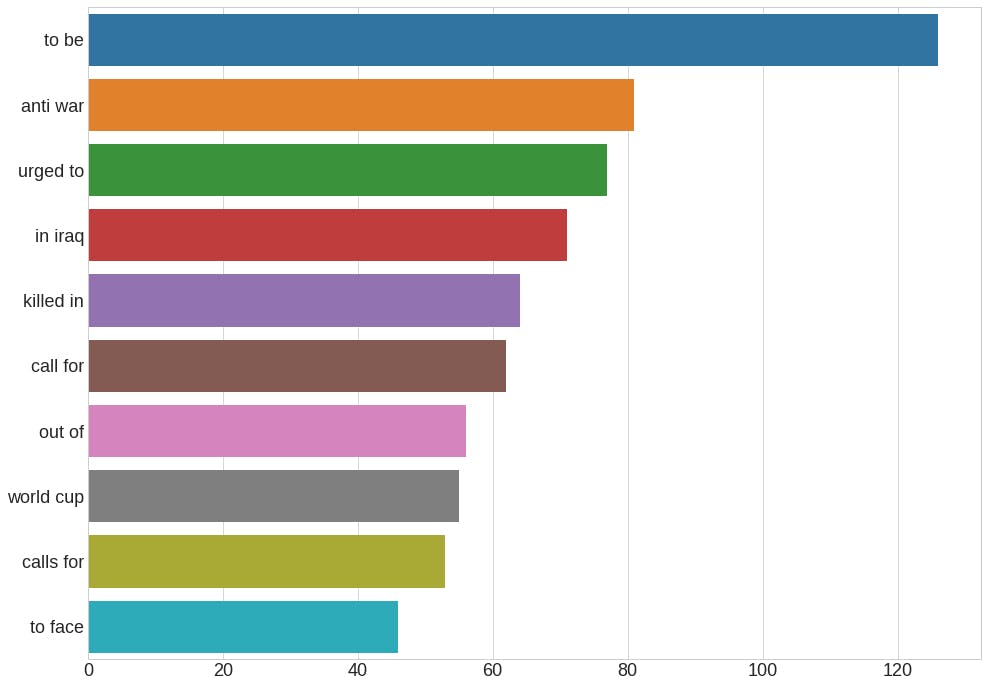

So with all this, we will analyze the top bigrams in our news headlines.

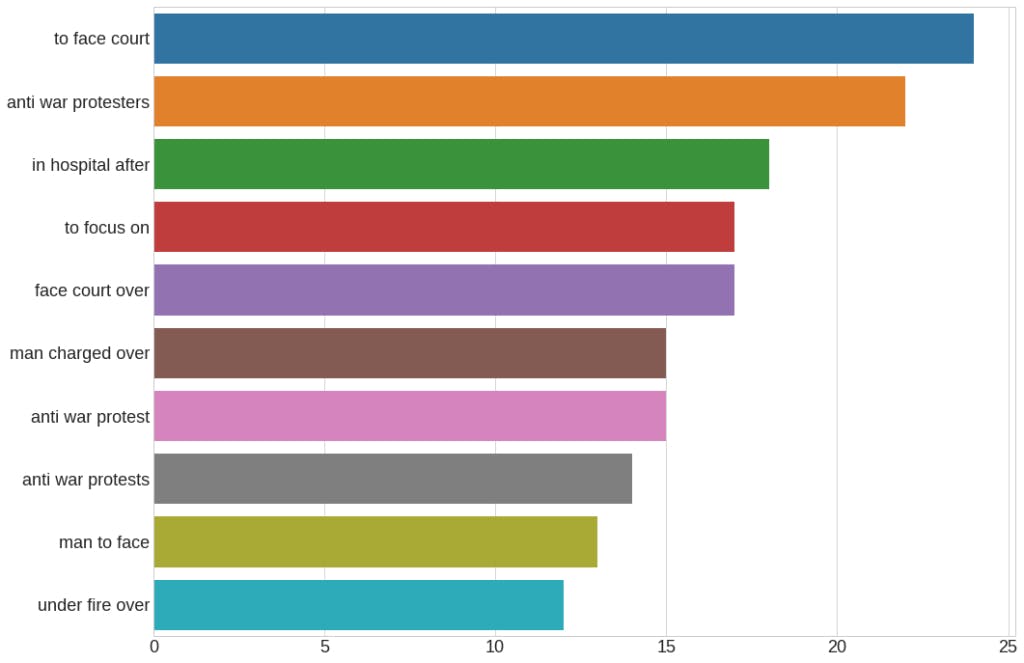

We can see that many of these trigrams are some combinations of “to face court” and “anti war protest”. It means that we should put some effort into data cleaning and see if we were able to combine those synonym terms into one clean token.
Topic Modeling exploration with pyLDAvis
Topic modeling is the process of using unsupervised learning techniques to extract the main topics that occur in a collection of documents.
Latent Dirichlet Allocation (LDA) is an easy to use and efficient model for topic modeling. Each document is represented by the distribution of topics and each topic is represented by the distribution of words.
Once we categorize our documents in topics we can dig into further data exploration for each topic or topic group.
But before getting into topic modeling we have to pre-process our data a little. We will:
tokenize: the process by which sentences are converted to a list of tokens or words.remove stopwordslemmatize: reduces the inflectional forms of each word into a common base or root.convert to the bag of words: Bag of words is a dictionary where the keys are words(or ngrams/tokens) and values are the number of times each word occurs in the corpus.
With NLTK you can tokenize and lemmatize easily:
for news in df['headline_text']:
words=[w for w in word_tokenize(news) if (w notin stop)]
words=[lem.lemmatize(w) for w in words if len(w)>2]
Now, let’s create the bag of words model using gensim
bow_corpus = [dic.doc2bow(doc) for doc in corpus]

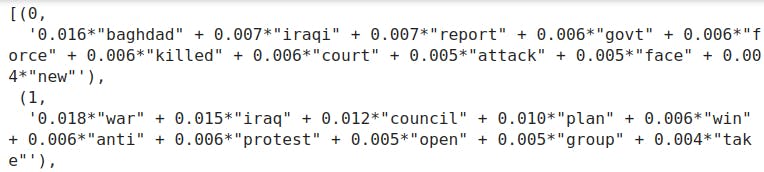

The topic 0 indicates something related to the Iraq war and police. Topic 3 shows the involvement of Australia in the Iraq war.
You can print all the topics and try to make sense of them but there are tools that can help you run this data exploration more efficiently. One such tool is pyLDAvis which visualizes the results of LDA interactively.
vis = pyLDAvis.gensim.prepare(lda_model, bow_corpus, dic)
On the left side, the area of each circle represents the importance of the topic relative to the corpus. As there are four topics, we have four circles.
The distance between the center of the circles indicates the similarity between the topics. Here you can see that the topic 3 and topic 4 overlap, this indicates that the topics are more similar.On the right side, the histogram of each topic shows the top 30 relevant words. For example, in topic 1 the most relevant words are police, new, may, war, etc
So in our case, we can see a lot of words and topics associated with war in the news headlines.
Wordcloud is a great way to represent text data. The size and color of each word that appears in the wordcloud indicate it’s frequency or importance.
Creating wordcloud in python with is easy but we need the data in a form of a corpus. Luckily, I prepared it in the previous section.

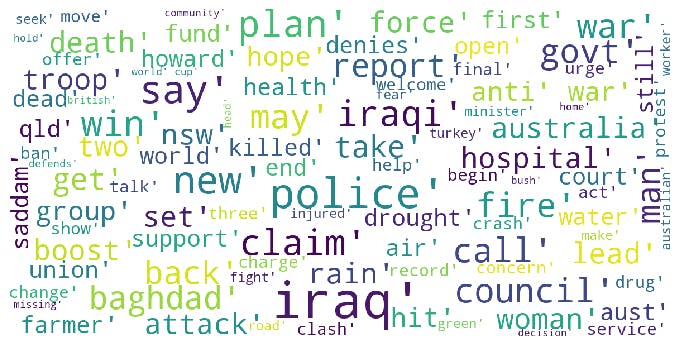

Again, you can see that the terms associated with the war are highlighted which indicates that these words occurred frequently in the news headlines.
There are many parameters that can be adjusted. Some of the most prominent ones are:
stopwords: The set of words that are blocked from appearing in the image.max_words: Indicates the maximum number of words to be displayed.max_font_size: maximum font size.
There are many more options to create beautiful word clouds. For more details, you can refer here.
Sentiment analysis is a very common natural language processing task in which we determine if the text is positive, negative or neutral. This is very useful for finding the sentiment associated with reviews, comments which can get us some valuable insights out of text data.
There are many projects that will help you do sentiment analysis in python. I personally like TextBlob and Vader Sentiment.
Textblob is a python library built on top of nltk. It has been around for some time and is very easy and convenient to use.
The sentiment function of TextBlob returns two properties:
polarity: is a floating-point number that lies in the range of [-1,1] where 1 means positive statement and -1 means a negative statement.subjectivity: refers to how someone’s judgment is shaped by personal opinions and feelings. Subjectivity is represented as a floating-point value which lies in the range of [0,1].
I will run this function on our news headlines.
from textblob import TextBlob
TextBlob('100 people killed in Iraq').sentiment
TextBlob claims that the text “100 people killed in Iraq” is negative and is not an opinion or feeling but rather a factual statement. I think we can agree with TextBlob here.
Now that we know how to calculate those sentiment scores we can visualize them using a histogram and explore data even further.
apply(lambda x : polarity(x))
The next library we are going to discuss is VADER. Vader works better in detecting negative sentiment. It is very useful in the case of social media text sentiment analysis.
VADER or Valence Aware Dictionary and Sentiment Reasoner is a rule/lexicon-based, open-source sentiment analyzer pre-built library, protected under the MIT license.
VADER sentiment analysis class returns a dictionary that contains the probabilities of the text for being positive, negative and neutral. Then we can filter and choose the sentiment with most probability.
We will do the same analysis using VADER and check if there is much difference.

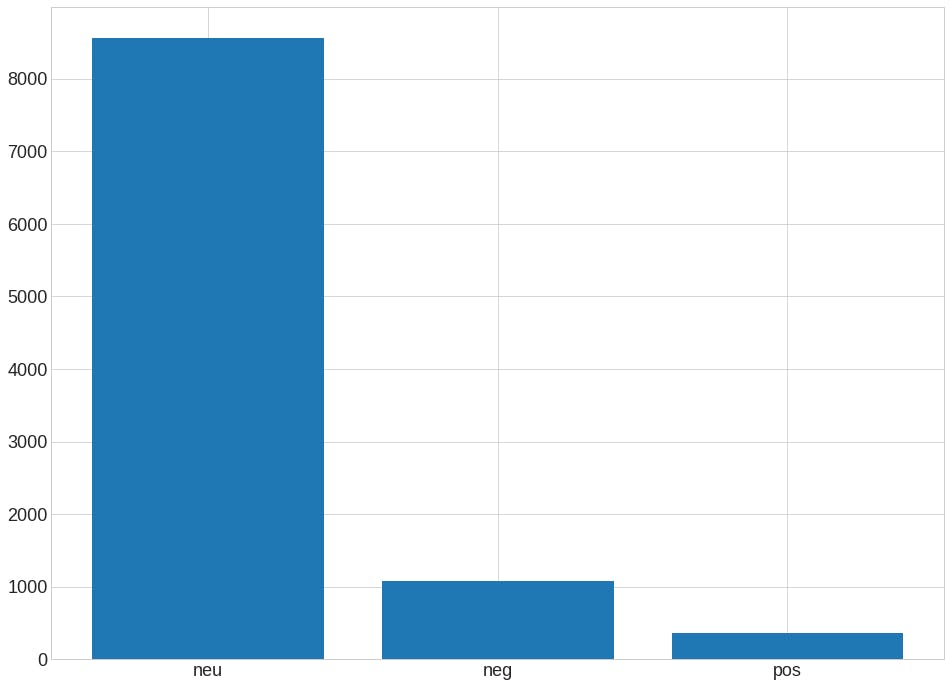

Yep, there is a slight difference in distribution. Even more headlines are classified as neutral 85 % and the number of negative news headlines has increased (to 13 %).
Named Entity Recognition
Named entity recognition is an information extraction method in which entities that are present in the text are classified into predefined entity types like “Person”,” Place”,” Organization”, etc. By using NER we can get great insights about the types of entities present in the given text dataset.
Let us consider an example of a news article.
In the above news, the named entity recognition model should be able to identify entities such as RBI as an organization, Mumbai and India as Places, etc.
There are three standard libraries to do Named Entity Recognition:
In this tutorial, I will use spaCy which is an open-source library for advanced natural language processing tasks. It is written in Cython and is known for its industrial applications. Besides NER, spaCy provides many other functionalities like pos tagging, word to vector transformation, etc.
One of the nice things about Spacy is that we only need to apply nlp function once, the entire background pipeline will return the objects we need.
doc=nlp('India and Iran have agreed to boost the economic viability \
of the strategic Chabahar port through various measures, \
including larger subsidies to merchant shipping firms using the facility, \
people familiar with the development said on Thursday.')
[(x.text,x.label_) for x in doc.ents]
We can see that India and Iran are recognized as Geographical locations (GPE), Chabahar as Person and Thursday as Date.
We can also visualize the output using displacy module in spaCy.
from spacy import displacy

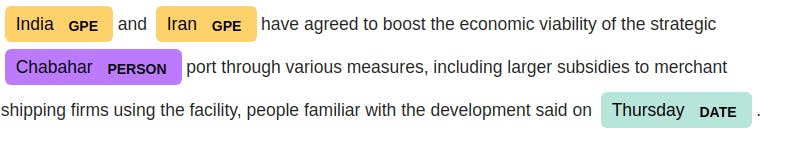

This creates a very neat visualization of the sentence with the recognized entities where each entity type is marked in different colors.
Now that we know how to perform NER we can explore the data even further by doing a variety of visualizations on the named entities extracted from our dataset.
First, we will run the named entity recognition on our news headlines and store the entity types.
return [X.label_ for X in doc.ents]
apply(lambda x : ner(x))
ent=[x for sub in ent for x in sub]

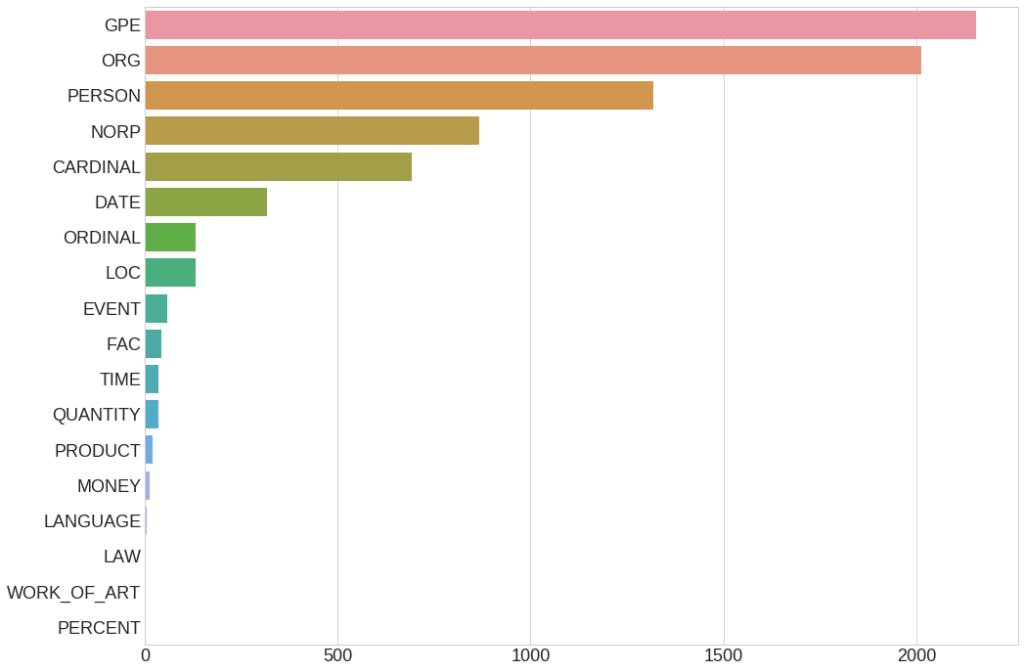

Now we can see that the GPE and ORG dominate the news headlines followed by the PERSON entity.

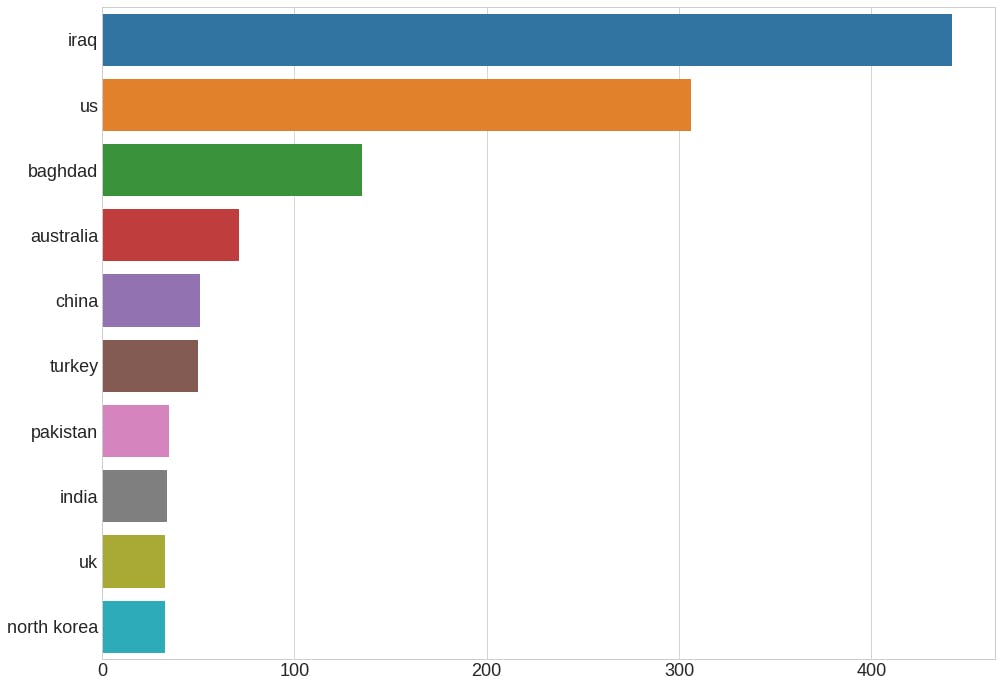

We can also visualize the most common tokens per entity. Let’s check which places appear the most in news headlines.
return [X.text for X in doc.ents if X.label_ == ent]
gpe=news['headline_text'].apply(lambda x: ner(x))
gpe=[i for x in gpe for i in x]

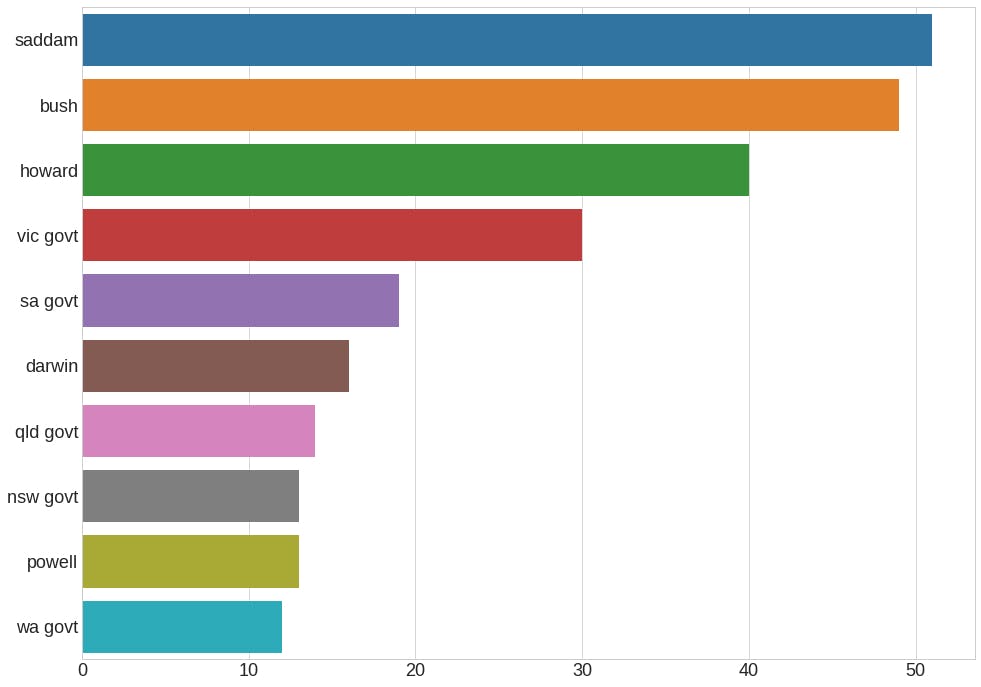

Saddam Hussain and George Bush were the presidents of Iraq and the USA during wartime. Also, we can see that the model is far from perfect classifying “vic govt” or “nsw govt” as a person rather than a government agency.
Exploration through Parts of Speach Tagging in python
Parts of speech (POS) tagging is a method that assigns part of speech labels to words in a sentence. There are eight main parts of speech:
Noun (NN)- Joseph, London, table, cat, teacher, pen, city
This is not a straightforward task, as the same word may be used in different sentences in different contexts. However, once you do it, there are a lot of helpful visualizations that you can create that can give you additional insights into your dataset.
I will use the nltk to do the parts of speech tagging but there are other libraries that do a good job (spacy, textblob).
Let’s look at an example.

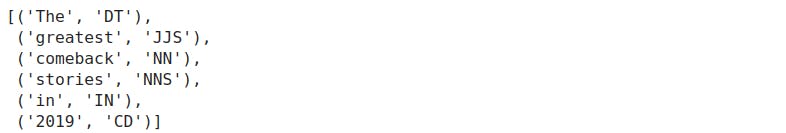

sentence="The greatest comeback stories in 2019"

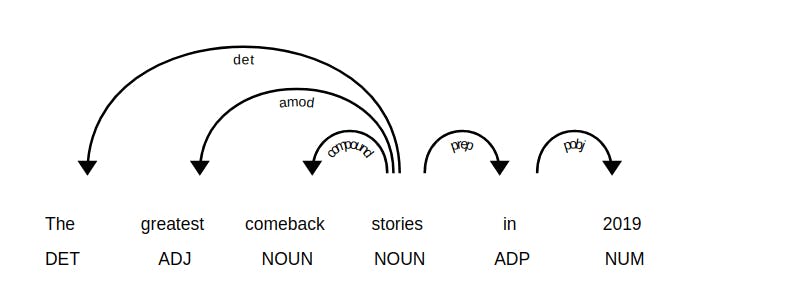

You can also visualize the sentence parts of speech and its dependency graph with spacy.displacy module.
We can observe various dependency tags here. For example, DET tag denotes the relationship between the determiner “the” and the noun “stories”.
You can check the list of dependency tags and their meanings here.
Ok, now that we now what POS tagging is, let’s use it to explore our headlines dataset.
tags=news['headline_text'].apply(lambda x : pos(x))
tags=[x for l in tags for x in l]

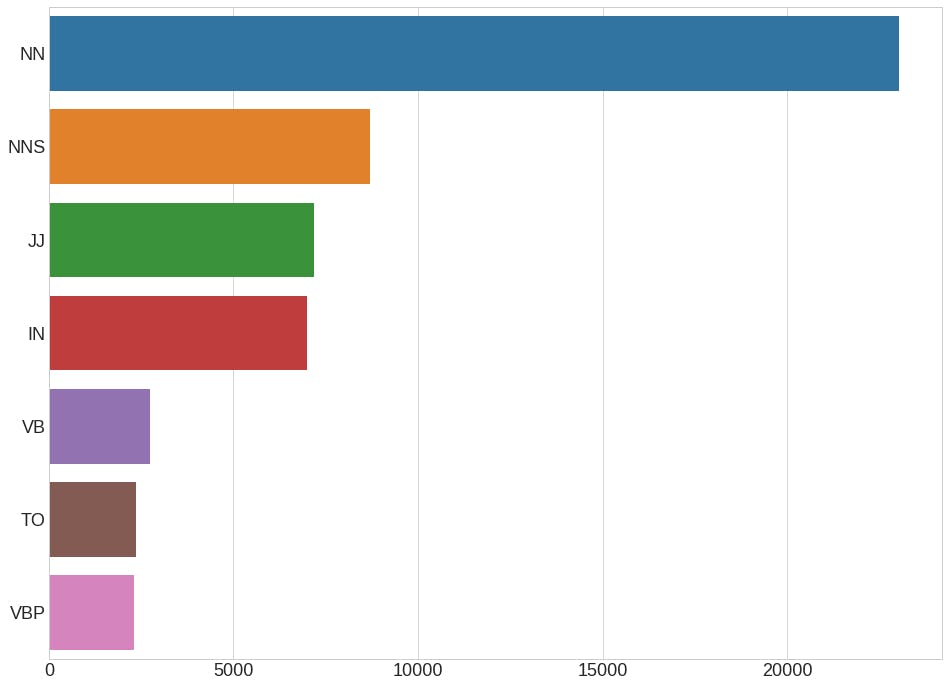

We can clearly see that the noun (NN) dominates in news headlines followed by the adjective (JJ). This is typical for news articles while for artistic forms higher adjective(ADJ) frequency could happen quite a lot.
You can dig deeper into this by investigating which singular noun occur most commonly in news headlines. Let us find out.
for word,tag in pos:
words=news['headline_text'].apply(lambda x : get_adjs(x))
words=[x for l in words for x in l]

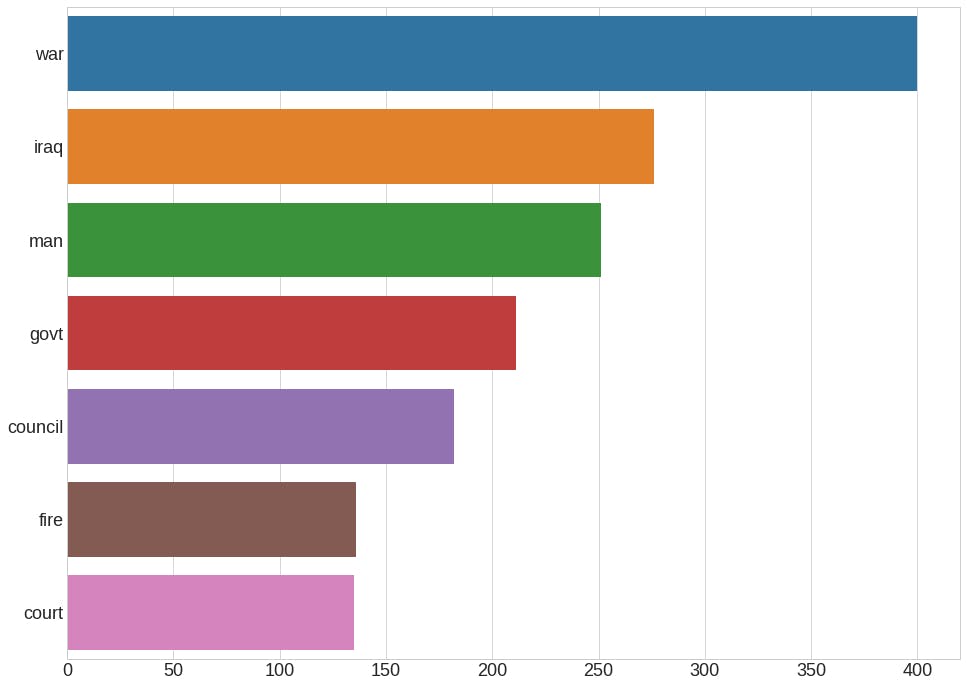

Nouns such as “war”, “iraq”, “man” dominate in the news headlines. You can visualize and examine other parts of speech using the above function.
Exploring through text complexity
It can be very informative to know how readable (difficult to read) the text is and what type of reader can fully understand it. Do we need a college degree to understand the message or a first-grader can clearly see what the point is?
You can actually put a number called readability index on a document or text. Readability index is a numeric value that indicates how difficult (or easy) it is to read and understand a text.
There are many readability score formulas available for the English language. Some of the most prominent ones are:
Textstat is a cool Python library that provides an implementation of all these text statistics calculation methods. Let’s use Textstat to implement Flesch Reading Ease index.
Now, you can plot a histogram of the scores and visualize the output.
from textstat import flesch_reading_ease
apply(lambda x : flesch_reading_ease(x)).hist()

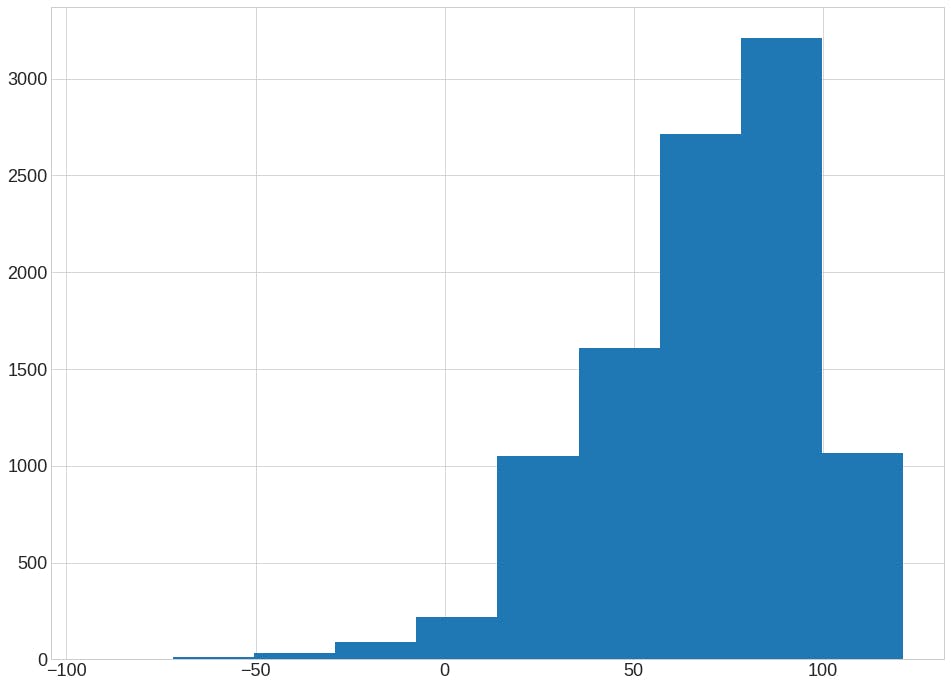

Almost all of the readability scores fall above 60. This means that an average 11-year-old student can read and understand the news headlines. Let’s check all news headlines that have a readability score below 5.

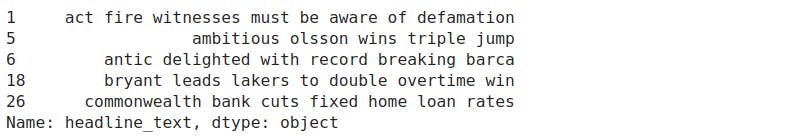

x=[i for i in range(len(reading)) if reading[i]<5]
You can see some of the complex words being used in news headlines like “capitulation”,” interim”,” entrapment” etc. These words may have caused the scores to fall under 5.
In this article, we discussed and implemented various exploratory data analysis methods for text data. Some common, some lesser-known but all of them could be a great addition to your data exploration toolkit.
Hopefully, you will find some of them useful in your current and future projects.
To make data exploration even easier, I have created a “Exploratory Data Analysis for Natural Language Processing Template” that you can use for your work.
