Reverse Engineering Broadcom Chips To Enable Packet Traffic Arbitration for 2.4GHz Co-Existence

Most consumer radio products (think 802.11b/g/n, a.k.a WiFi, Bluetooth, Zigbee, Thread...) nowadays somehow make use of the ISM band around 2.4GHz. This band was chosen by multiple technologies for a series of reasons, the prominent one being that it's unlicensed. Its success, however, brought with it a key problem as well: overcrowding and interference.

While most of us have experienced inter-device interference (ever scanned for WiFi and got back a list of 666 networks in range?), a more subtle form is what you could call intra-device interference, i.e. that experienced by devices that host more than one radio. The typical example in consumer electronics would be devices that support both WiFi and Bluetooth, but more esoteric combinations exist.

The problem is simple to understand: let's say you have a WiFi radio with its antenna and a Bluetooth radio right next to it with its own antenna. They don't know about each other, so there is a high chance that they might transmit at the same time (the higher their combined duty cycle, the higher the chance). If they do, and if they happen to be transmitting close in the frequency domain, their transmissions will interfere with each other.

Mitigation strategies

Interference is usually solved by multiplexing over whichever domain possible.

Physical separation

Physical domain multiplexing would be a fancy expression for "keeping the antennas far from each other", which is one of the best practices in designing these systems. However, this approach is usually limited by the size of the product you're designing. If the PCB is a few centimeters long, that's as far as you can place antennas.

Frequency separation

Frequency domain multiplexing can potentially help a lot more. A good example of this is channel management in 802.11b/g/n: the 2.4GHz spectrum is divided in up to 14 channels (or as few as 11 in certain countries) each with a bandwidth of 22 MHz and a channel separation of 5 MHz, and WiFi access points select the channel that looks the least busy.

Bluetooth uses a more dynamic approach called frequency hopping, in which the spectrum is split into a high number of channels and the radios jump from one to another following a pseudo-random pattern. This makes it less likely that a single, strong source of interference can disrupt a connection; however, a "uniformly" noisy 2.4GHz environment, or a very close source with strong harmonics, will still be an issue.

802.15.4 (the standard on which Zigbee and Thread are based) uses 16 channels, (unintuitively) numbered from 11 to 26, with a bandwidth of 2 MHz and a channel separation of 5 MHz. Channel management is similar to WiFi, with the whole network being on the same channel and no frequency hopping. Channel changes are allowed, but a policy on when and how to do that is not standardised.

Packet Traffic Arbitration as a solution

PTA (Packet Traffic Arbitration) tries to help with time domain multiplexing. What that means is that one of the radios can act as a master, the other as a slave, and the master will decide (arbitrate) access to the air medium to avoid that the radios transmit (or, to a degree, expect to receive) something at the same time.

PTA is described in IEEE 802.15.2 (2003) Clause 6. However, PTA is a recommendation, not a standard, so implementations vary in the details. The most common form of it uses 3 signals, usually called REQUEST, PRIORITY and GRANT.

The slave can assert REQUEST to signal that it needs to access the air medium. Optionally, it can assert PRIORITY to influence the master's arbitration in its own favour.

The master is responsible of asserting GRANT in response when it sees fit. This is where implementations diverge in the details of how this decision is taken. Some keep GRANT asserted whenever they are not transmitting, even if REQUEST is not asserted. Others will GRANT immediately on REQUEST if the medium is free, otherwise complete their transmission and then GRANT.

However the GRANT happens, once it is asserted the slave will transmit and de-assert REQUEST when the medium is no longer required. This is also implementation dependent, as some slaves will de-assert immediately after transmitting while others, expecting an immediate reply, will wait some time before releasing the medium.

There are also 4 wire (using an extra FREQ signal), 2 wire (omitting PRIORITY) and 1 wire (using just GRANT) variations, which are however less common. In any case, the master role is usually assigned to the WiFi radio in the system, as WiFi is usually the technology with the highest duty cycle among the ones involved.

Getting practical with the CYW43143 and EFR32

For a series of reasons, PTA has not been used much recently. The most frequent use case (certainly the one that shifts the biggest amount of ICs) would be Bluetooth + WiFi in laptops and mobile phones, which is better served by so called combo chips. These integrate 2.4GHz WiFi, Bluetooth and 5GHz WiFi in one package, eliminating the need for PTA traces between 2 chips while also saving on BoM cost and PCB surface, which are both at a premium on mass marketed, portable devices.

However, at Elimo Engineering, in a recent design we needed to do PTA at all costs. The system had the CYW43143 WiFi 2.4GHz radio (originally by Broadcom, then acquired by Cypress, in turn acquired by Infineon). The other 2.4GHz technology involved was Thread, a mesh network stack based on 802.15.4 (same as Zigbee) and IPv6. This of course ruled out a wifi-bluetooth combo chip. Our radio choice was a Silicon Labs EFR32.

The board was based on an Allwinner A13 SoC running a heavily customised build of OpenWrt.The board already followed best practices to separate the antennas and frequency separation does not help much (Thread is less frequency-agile than WiFi, in which Access Points can move channel at any point in time); as a result, interference did occur frequently and PTA came to the rescue. Kind of.

Enabling PTA

The EFR32 played nice; Silicon Labs provides several libraries (called plugins) with its Thread stack, and one of them is a PTA library, which can be configured to use up to 3 wires, with different polarities, different request logics etc. The only significant limitation is that it only implements slave logic, but that was not a problem in our case (the 43143 only implements a master, so they fit perfectly).

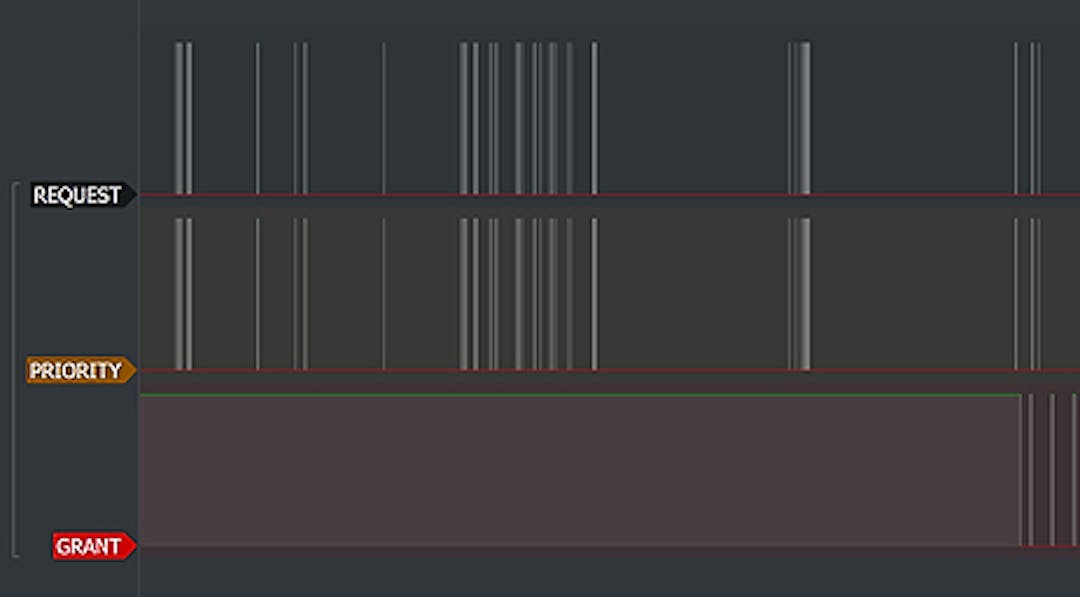

After a bit of configuration and a rebuild, the EFR32 was using REQUEST and PRIORITY as expected, as verified with a logic analyser (via the trusty sigrok!).

First trouble

As you can see from the GRANT line trace above, though, something was wrong on the other side. Despite running a ping at 1Hz on the Thread network, the (active low) GRANT line being stuck low meant that the 43143 was essentially not doing any arbitration and always giving the go ahead.

This was the result of ignorance and (wrongly) assuming that the functionality would be enabled either by the

brcmfmac

brcmfmac

The Cypress application note about coexistence (AN214852) covers both the proprietary, Cypress-only SECI interface (which can only be used between Cypress chips) and the "standard" PTA interface, and for the latter it mentions that certain NVRAM parameters need to be set.

USB - SDIO disagreements

So far so good, except that setting NVRAM parameters is not as straightforward as you might hope. A look at the

brcmfmac

/lib/firmware/brcm

nvram.txt

In our system, however, we use a USB interface to the 43143, and unfortunately the approach the

brcmfmac

Compare the code from

brcmfmac/usb.c

/* request firmware here */
ret = brcmf_fw_get_firmwares(dev, 0, brcmf_usb_get_fwname(devinfo), NULL, brcmf_usb_probe_phase2);
if (ret) {
brcmf_err("firmware request failed: %d\n", ret);
goto fail;
}

... to the one from

brcmfmac/sdio.c

ret = brcmf_fw_get_firmwares(sdiodev->dev, BRCMF_FW_REQUEST_NVRAM, sdiodev->fw_name, sdiodev->nvram_name, brcmf_sdio_firmware_callback);

OpenWrt to the rescue

Thanks to the help of a couple of folks (PaulFertser and rmilecki) from the

#openwrt-devel

First, the blob that is loaded for USB devices is a fairly standard TRX binary format.

$ ./otrx check brcmfmac43143.bin
Found a valid TRX version

Second, the blob contains the nvram parameters as zero terminated ASCII strings, and they are all just appended at the end.

$ strings brcmfmac43143.bin

[SNIP]

extpagain2g=0
pdetrange2g=0
triso2g=3
antswctl2g=0
maxp2ga0=82
mcsbw202gpo=0x75333333
mcsbw402gpo=0x97544444
legofdmbw202gpo=0x75310000
cckbw202gpo=0x1111
swctrlmap_2g=0x0a050a05,0x0a050a05,0x00000000,0x00000000,0x000
xtalfreq=20000
otpimagesize=154
tempthresh=120
temps_period=5
temp_hysteresis=5
rssismf2g=0x8
rssismc2g=0x8
rssisav2g=0x2
loopbw2g=100
txalpfpu=1
aci_detect_en_2g=1
rxgaintempcoeff2g=60
$

Together with

otrx

Easy, right? Nah.

Deciphering the scripture

Unfortunately, there is no documentation about said parameters outside of AN214852 and, even there, you are only given an example for a "4343W board" without explaining how to adapt them to other boards/ICs or what they do specifically.

Of course the example parameters for the 4343W did not work on the 43143, so some guesswork was needed.

As you can see in the logic trace above, using the values in the AN, the GRANT line was being toggled once in a while, and it was no longer stuck low. A sign that PTA was enabled, but something more was wrong. In fact, you can also see that the GRANT line was only sporadically toggling.

Time to dig into the meaning of coexistence parameters from the AN:

boardflags=0x1
zbcxpadnum=0x040201
zbcxfnsel=0x233
zbcxgcigpio=0x123

and a few lines below, this slightly confusing addition:

Boardflags=0x00000001 /* SECI coex */
Boardflags2=0x00000080 /* Board support legacy 3/4 wire */

This is accompanied by the following parameter bit maps:

So, the general idea was that

boardflags

boardflags2

0x01

0x80

zbcxpadnum

0x010204

zbcxgcigpio

0x123

The key problem however was hiding behind

zbcxfnsel

0x233

0x333

zbcxfnsel

Taking it for a spin

Let's add the parameters we decided above to the binary (see the last two lines):

Now, TRX has a CRC, so these changes make the CRC wrong; luckily,

otrx

$ ./otrx check brcmfmac43143.bin
Invalid data crc32: 0x4dc00fe3 instead of 0x2a665d76

Let's fix the CRC (taking into account the binary endianness, we need to reverse the CRC bytes)

Now, let's place this new binary in

/lib/firmware/brcm/

brcmfmac

A test with

iperf3

As hoped, the 43143 is now a PTA master and the EFR32 correctly honours the GRANT signal.
