TensorFlow Sparse Tensors Explained With Examples

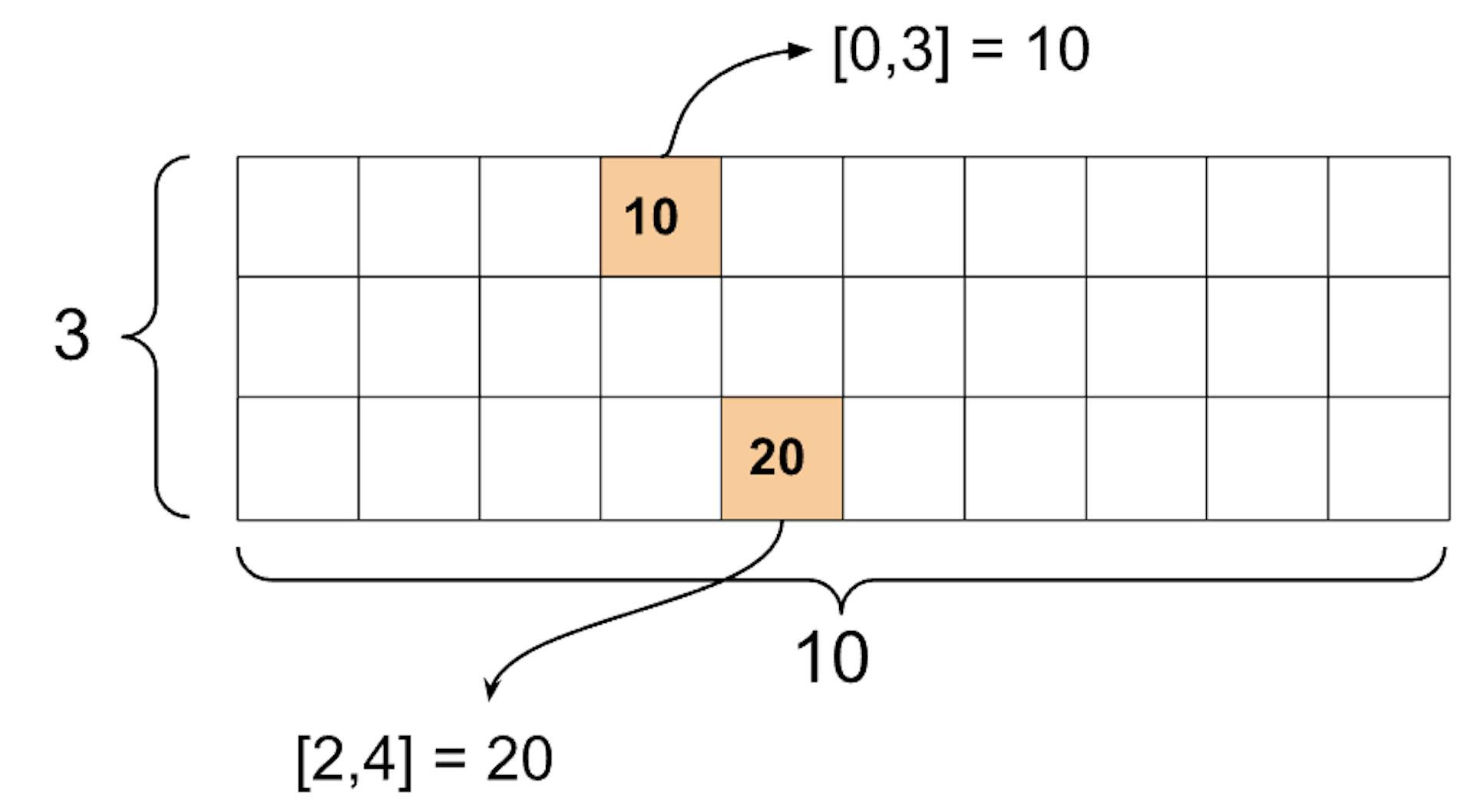

Content Overview Sparse tensors in TensorFlow Creating a tf.sparse.SparseTensor Manipulating sparse tensors Using tf.sparse.SparseTensor with other TensorFlow APIs tf.keras tf.data tf.train.Example tf.function Further reading and resources Sparse tensors in TensorFlow Creating a tf.sparse.SparseTensor Manipulating sparse tensors Using tf.sparse.SparseTensor with other TensorFlow APIs tf.keras tf.data tf.train.Example tf.function Further reading and resources When working with tensors that contain a lot of zero values, it is important to store them in a space- and time-efficient manner. Sparse tensors enable efficient storage and processing of tensors that contain a lot of zero values. Sparse tensors are used extensively in encoding schemes like TF-IDF as part of data pre-processing in NLP applications and for pre-processing images with a lot of dark pixels in computer vision applications. TF-IDF Sparse tensors in TensorFlow TensorFlow represents sparse tensors through the tf.sparse.SparseTensor object. Currently, sparse tensors in TensorFlow are encoded using the coordinate list (COO) format. This encoding format is optimized for hyper-sparse matrices such as embeddings. tf.sparse.SparseTensor The COO encoding for sparse tensors is comprised of: values: A 1D tensor with shape [N] containing all nonzero values. indices: A 2D tensor with shape [N, rank], containing the indices of the nonzero values. dense_shape: A 1D tensor with shape [rank], specifying the shape of the tensor. values: A 1D tensor with shape [N] containing all nonzero values. values [N] indices: A 2D tensor with shape [N, rank], containing the indices of the nonzero values. indices [N, rank] dense_shape: A 1D tensor with shape [rank], specifying the shape of the tensor. dense_shape [rank] A nonzero value in the context of a tf.sparse.SparseTensor is a value that's not explicitly encoded. It is possible to explicitly include zero values in the values of a COO sparse matrix, but these "explicit zeros" are generally not included when referring to nonzero values in a sparse tensor. nonzero nonzero tf.sparse.SparseTensor values Note: tf.sparse.SparseTensor does not require that indices/values be in any particular order, but several ops assume that they're in row-major order. Use tf.sparse.reorder to create a copy of the sparse tensor that is sorted in the canonical row-major order. Note: tf.sparse.SparseTensor does not require that indices/values be in any particular order, but several ops assume that they're in row-major order. Use tf.sparse.reorder to create a copy of the sparse tensor that is sorted in the canonical row-major order. Note: tf.sparse.SparseTensor tf.sparse.reorder Creating a tf.sparse.SparseTensor tf.sparse.SparseTensor Construct sparse tensors by directly specifying their values, indices, and dense_shape. values indices dense_shape import tensorflow as tf import tensorflow as tf 2024-10-25 01:24:09.202320: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:477] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered WARNING: All log messages before absl::InitializeLog() is called are written to STDERR E0000 00:00:1729819449.223893 16549 cuda_dnn.cc:8310] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered E0000 00:00:1729819449.230517 16549 cuda_blas.cc:1418] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered 2024-10-25 01:24:09.202320: E external/local_xla/xla/stream_executor/cuda/cuda_fft.cc:477] Unable to register cuFFT factory: Attempting to register factory for plugin cuFFT when one has already been registered WARNING: All log messages before absl::InitializeLog() is called are written to STDERR E0000 00:00:1729819449.223893 16549 cuda_dnn.cc:8310] Unable to register cuDNN factory: Attempting to register factory for plugin cuDNN when one has already been registered E0000 00:00:1729819449.230517 16549 cuda_blas.cc:1418] Unable to register cuBLAS factory: Attempting to register factory for plugin cuBLAS when one has already been registered st1 = tf.sparse.SparseTensor(indices=[[0, 3], [2, 4]], values=[10, 20], dense_shape=[3, 10]) st1 = tf.sparse.SparseTensor(indices=[[0, 3], [2, 4]], values=[10, 20], dense_shape=[3, 10]) W0000 00:00:1729819451.911465 16549 gpu_device.cc:2344] Cannot dlopen some GPU libraries. Please make sure the missing libraries mentioned above are installed properly if you would like to use GPU. Follow the guide at https://www.tensorflow.org/install/gpu for how to download and setup the required libraries for your platform. Skipping registering GPU devices... W0000 00:00:1729819451.911465 16549 gpu_device.cc:2344] Cannot dlopen some GPU libraries. Please make sure the missing libraries mentioned above are installed properly if you would like to use GPU. Follow the guide at https://www.tensorflow.org/install/gpu for how to download and setup the required libraries for your platform. Skipping registering GPU devices... When you use the print() function to print a sparse tensor, it shows the contents of the three component tensors: print() print(st1) print(st1) SparseTensor(indices=tf.Tensor( [[0 3] [2 4]], shape=(2, 2), dtype=int64), values=tf.Tensor([10 20], shape=(2,), dtype=int32), dense_shape=tf.Tensor([ 3 10], shape=(2,), dtype=int64)) SparseTensor(indices=tf.Tensor( [[0 3] [2 4]], shape=(2, 2), dtype=int64), values=tf.Tensor([10 20], shape=(2,), dtype=int32), dense_shape=tf.Tensor([ 3 10], shape=(2,), dtype=int64)) It is easier to understand the contents of a sparse tensor if the nonzero values are aligned with their corresponding indices. Define a helper function to pretty-print sparse tensors such that each nonzero value is shown on its own line. values indices def pprint_sparse_tensor(st): s = " " def pprint_sparse_tensor(st): s = " " print(pprint_sparse_tensor(st1)) print(pprint_sparse_tensor(st1)) You can also construct sparse tensors from dense tensors by using tf.sparse.from_dense, and convert them back to dense tensors by using tf.sparse.to_dense. tf.sparse.from_dense tf.sparse.to_dense st2 = tf.sparse.from_dense([[1, 0, 0, 8], [0, 0, 0, 0], [0, 0, 3, 0]]) print(pprint_sparse_tensor(st2)) st2 = tf.sparse.from_dense([[1, 0, 0, 8], [0, 0, 0, 0], [0, 0, 3, 0]]) print(pprint_sparse_tensor(st2)) st3 = tf.sparse.to_dense(st2) print(st3) st3 = tf.sparse.to_dense(st2) print(st3) tf.Tensor( [[1 0 0 8] [0 0 0 0] [0 0 3 0]], shape=(3, 4), dtype=int32) tf.Tensor( [[1 0 0 8] [0 0 0 0] [0 0 3 0]], shape=(3, 4), dtype=int32) Manipulating sparse tensors Use the utilities in the tf.sparse package to manipulate sparse tensors. Ops like tf.math.add that you can use for arithmetic manipulation of dense tensors do not work with sparse tensors. tf.sparse tf.math.add Add sparse tensors of the same shape by using tf.sparse.add. tf.sparse.add st_a = tf.sparse.SparseTensor(indices=[[0, 2], [3, 4]], values=[31, 2], dense_shape=[4, 10]) st_b = tf.sparse.SparseTensor(indices=[[0, 2], [3, 0]], values=[56, 38], dense_shape=[4, 10]) st_sum = tf.sparse.add(st_a, st_b) print(pprint_sparse_tensor(st_sum)) st_a = tf.sparse.SparseTensor(indices=[[0, 2], [3, 4]], values=[31, 2], dense_shape=[4, 10]) st_b = tf.sparse.SparseTensor(indices=[[0, 2], [3, 0]], values=[56, 38], dense_shape=[4, 10]) st_sum = tf.sparse.add(st_a, st_b) print(pprint_sparse_tensor(st_sum)) Use tf.sparse.sparse_dense_matmul to multiply sparse tensors with dense matrices. tf.sparse.sparse_dense_matmul st_c = tf.sparse.SparseTensor(indices=([0, 1], [1, 0], [1, 1]), values=[13, 15, 17], dense_shape=(2,2)) mb = tf.constant([[4], [6]]) product = tf.sparse.sparse_dense_matmul(st_c, mb) print(product) st_c = tf.sparse.SparseTensor(indices=([0, 1], [1, 0], [1, 1]), values=[13, 15, 17], dense_shape=(2,2)) mb = tf.constant([[4], [6]]) product = tf.sparse.sparse_dense_matmul(st_c, mb) print(product) tf.Tensor( [[ 78] [162]], shape=(2, 1), dtype=int32) tf.Tensor( [[ 78] [162]], shape=(2, 1), dtype=int32) Put sparse tensors together by using tf.sparse.concat and take them apart by using tf.sparse.slice. tf.sparse.concat tf.sparse.slice sparse_pattern_A = tf.sparse.SparseTensor(indices = [[2,4], [3,3], [3,4], [4,3], [4,4], [5,4]], values = [1,1,1,1,1,1], dense_shape = [8,5]) sparse_pattern_B = tf.sparse.SparseTensor(indices = [[0,2], [1,1], [1,3], [2,0], [2,4], [2,5], [3,5], [4,5], [5,0], [5,4], [5,5], [6,1], [6,3], [7,2]], values = [1,1,1,1,1,1,1,1,1,1,1,1,1,1], dense_shape = [8,6]) sparse_pattern_C = tf.sparse.SparseTensor(indices = [[3,0], [4,0]], values = [1,1], dense_shape = [8,6]) sparse_patterns_list = [sparse_pattern_A, sparse_pattern_B, sparse_pattern_C] sparse_pattern = tf.sparse.concat(axis=1, sp_inputs=sparse_patterns_list) print(tf.sparse.to_dense(sparse_pattern)) sparse_pattern_A = tf.sparse.SparseTensor(indices = [[2,4], [3,3], [3,4], [4,3], [4,4], [5,4]], values = [1,1,1,1,1,1], dense_shape = [8,5]) sparse_pattern_B = tf.sparse.SparseTensor(indices = [[0,2], [1,1], [1,3], [2,0], [2,4], [2,5], [3,5], [4,5], [5,0], [5,4], [5,5], [6,1], [6,3], [7,2]], values = [1,1,1,1,1,1,1,1,1,1,1,1,1,1], dense_shape = [8,6]) sparse_pattern_C = tf.sparse.SparseTensor(indices = [[3,0], [4,0]], values = [1,1], dense_shape = [8,6]) sparse_patterns_list = [sparse_pattern_A, sparse_pattern_B, sparse_pattern_C] sparse_pattern = tf.sparse.concat(axis=1, sp_inputs=sparse_patterns_list) print(tf.sparse.to_dense(sparse_pattern)) tf.Tensor( [[0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0] [0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0] [0 0 0 0 1 1 0 0 0 1 1 0 0 0 0 0 0] [0 0 0 1 1 0 0 0 0 0 1 1 0 0 0 0 0] [0 0 0 1 1 0 0 0 0 0 1 1 0 0 0 0 0] [0 0 0 0 1 1 0 0 0 1 1 0 0 0 0 0 0] [0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0] [0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0]], shape=(8, 17), dtype=int32) tf.Tensor( [[0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0] [0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0] [0 0 0 0 1 1 0 0 0 1 1 0 0 0 0 0 0] [0 0 0 1 1 0 0 0 0 0 1 1 0 0 0 0 0] [0 0 0 1 1 0 0 0 0 0 1 1 0 0 0 0 0] [0 0 0 0 1 1 0 0 0 1 1 0 0 0 0 0 0] [0 0 0 0 0 0 1 0 1 0 0 0 0 0 0 0 0] [0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0]], shape=(8, 17), dtype=int32) sparse_slice_A = tf.sparse.slice(sparse_pattern_A, start = [0,0], size = [8,5]) sparse_slice_B = tf.sparse.slice(sparse_pattern_B, start = [0,5], size = [8,6]) sparse_slice_C = tf.sparse.slice(sparse_pattern_C, start = [0,10], size = [8,6]) print(tf.sparse.to_dense(sparse_slice_A)) print(tf.sparse.to_dense(sparse_slice_B)) print(tf.sparse.to_dense(sparse_slice_C)) sparse_slice_A = tf.sparse.slice(sparse_pattern_A, start = [0,0], size = [8,5]) sparse_slice_B = tf.sparse.slice(sparse_pattern_B, start = [0,5], size = [8,6]) sparse_slice_C = tf.sparse.slice(sparse_pattern_C, start = [0,10], size = [8,6]) print(tf.sparse.to_dense(sparse_slice_A)) print(tf.sparse.to_dense(sparse_slice_B)) print(tf.sparse.to_dense(sparse_slice_C)) tf.Tensor( [[0 0 0 0 0] [0 0 0 0 0] [0 0 0 0 1] [0 0 0 1 1] [0 0 0 1 1] [0 0 0 0 1] [0 0 0 0 0] [0 0 0 0 0]], shape=(8, 5), dtype=int32) tf.Tensor( [[0] [0] [1] [1] [1] [1] [0] [0]], shape=(8, 1), dtype=int32) tf.Tensor([], shape=(8, 0), dtype=int32) tf.Tensor( [[0 0 0 0 0] [0 0 0 0 0] [0 0 0 0 1] [0 0 0 1 1] [0 0 0 1 1] [0 0 0 0 1] [0 0 0 0 0] [0 0 0 0 0]], shape=(8, 5), dtype=int32) tf.Tensor( [[0] [0] [1] [1] [1] [1] [0] [0]], shape=(8, 1), dtype=int32) tf.Tensor([], shape=(8, 0), dtype=int32) If you're using TensorFlow 2.4 or above, use tf.sparse.map_values for elementwise operations on nonzero values in sparse tensors. tf.sparse.map_values st2_plus_5 = tf.sparse.map_values(tf.add, st2, 5) print(tf.sparse.to_dense(st2_plus_5)) st2_plus_5 = tf.sparse.map_values(tf.add, st2, 5) print(tf.sparse.to_dense(st2_plus_5)) tf.Tensor( [[ 6 0 0 13] [ 0 0 0 0] [ 0 0 8 0]], shape=(3, 4), dtype=int32) tf.Tensor( [[ 6 0 0 13] [ 0 0 0 0] [ 0 0 8 0]], shape=(3, 4), dtype=int32) Note that only the nonzero values were modified – the zero values stay zero. Equivalently, you can follow the design pattern below for earlier versions of TensorFlow: st2_plus_5 = tf.sparse.SparseTensor( st2.indices, st2.values + 5, st2.dense_shape) print(tf.sparse.to_dense(st2_plus_5)) st2_plus_5 = tf.sparse.SparseTensor( st2.indices, st2.values + 5, st2.dense_shape) print(tf.sparse.to_dense(st2_plus_5)) tf.Tensor( [[ 6 0 0 13] [ 0 0 0 0] [ 0 0 8 0]], shape=(3, 4), dtype=int32) tf.Tensor( [[ 6 0 0 13] [ 0 0 0 0] [ 0 0 8 0]], shape=(3, 4), dtype=int32) Using tf.sparse.SparseTensor with other TensorFlow APIs tf.sparse.SparseTensor Sparse tensors work transparently with these TensorFlow APIs: tf.keras tf.data tf.Train.Example protobuf tf.function tf.while_loop tf.cond tf.identity tf.cast tf.print tf.saved_model tf.io.serialize_sparse tf.io.serialize_many_sparse tf.io.deserialize_many_sparse tf.math.abs tf.math.negative tf.math.sign tf.math.square tf.math.sqrt tf.math.erf tf.math.tanh tf.math.bessel_i0e tf.math.bessel_i1e tf.keras tf.keras tf.data tf.data tf.Train.Example protobuf tf.Train.Example tf.function tf.function tf.while_loop tf.while_loop tf.cond tf.cond tf.identity tf.identity tf.cast tf.cast tf.print tf.print tf.saved_model tf.saved_model tf.io.serialize_sparse tf.io.serialize_sparse tf.io.serialize_many_sparse tf.io.serialize_many_sparse tf.io.deserialize_many_sparse tf.io.deserialize_many_sparse tf.math.abs tf.math.abs tf.math.negative tf.math.negative tf.math.sign tf.math.sign tf.math.square tf.math.square tf.math.sqrt tf.math.sqrt tf.math.erf tf.math.erf tf.math.tanh tf.math.tanh tf.math.bessel_i0e tf.math.bessel_i0e tf.math.bessel_i1e tf.math.bessel_i1e Examples are shown below for a few of the above APIs. tf.keras tf.keras A subset of the tf.keras API supports sparse tensors without expensive casting or conversion ops. The Keras API lets you pass sparse tensors as inputs to a Keras model. Set sparse=True when calling tf.keras.Input or tf.keras.layers.InputLayer. You can pass sparse tensors between Keras layers, and also have Keras models return them as outputs. If you use sparse tensors in tf.keras.layers.Dense layers in your model, they will output dense tensors. tf.keras sparse=True tf.keras.Input tf.keras.layers.InputLayer tf.keras.layers.Dense The example below shows you how to pass a sparse tensor as an input to a Keras model if you use only layers that support sparse inputs. x = tf.keras.Input(shape=(4,), sparse=True) y = tf.keras.layers.Dense(4)(x) model = tf.keras.Model(x, y) sparse_data = tf.sparse.SparseTensor( indices = [(0,0),(0,1),(0,2), (4,3),(5,0),(5,1)], values = [1,1,1,1,1,1], dense_shape = (6,4) ) model(sparse_data) model.predict(sparse_data) x = tf.keras.Input(shape=(4,), sparse=True) y = tf.keras.layers.Dense(4)(x) model = tf.keras.Model(x, y) sparse_data = tf.sparse.SparseTensor( indices = [(0,0),(0,1),(0,2), (4,3),(5,0),(5,1)], values = [1,1,1,1,1,1], dense_shape = (6,4) ) model(sparse_data) model.predict(sparse_data) 1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 87ms/step array([[ 1.8707037e-02, 7.7025330e-01, 2.2425324e-01, -1.9139588e+00], [ 0.0000000e+00, 0.0000000e+00, 0.0000000e+00, 0.0000000e+00], [ 0.0000000e+00, 0.0000000e+00, 0.0000000e+00, 0.0000000e+00], [ 0.0000000e+00, 0.0000000e+00, 0.0000000e+00, 0.0000000e+00], [-6.2435389e-02, -4.5783034e-01, 1.2970567e-03, -1.8046319e-01], [-8.0019468e-01, 9.0452707e-01, 2.1884918e-02, -1.3622781e+00]], dtype=float32) 1/1 ━━━━━━━━━━━━━━━━━━━━ 0s 87ms/step array([[ 1.8707037e-02, 7.7025330e-01, 2.2425324e-01, -1.9139588e+00], [ 0.0000000e+00, 0.0000000e+00, 0.0000000e+00, 0.0000000e+00], [ 0.0000000e+00, 0.0000000e+00, 0.0000000e+00, 0.0000000e+00], [ 0.0000000e+00, 0.0000000e+00, 0.0000000e+00, 0.0000000e+00], [-6.2435389e-02, -4.5783034e-01, 1.2970567e-03, -1.8046319e-01], [-8.0019468e-01, 9.0452707e-01, 2.1884918e-02, -1.3622781e+00]], dtype=float32) tf.data tf.data The tf.data API enables you to build complex input pipelines from simple, reusable pieces. Its core data structure is tf.data.Dataset, which represents a sequence of elements in which each element consists of one or more components. tf.data tf.data.Dataset Building datasets with sparse tensors Build datasets from sparse tensors using the same methods that are used to build them from tf.Tensors or NumPy arrays, such as tf.data.Dataset.from_tensor_slices. This op preserves the sparsity (or sparse nature) of the data. tf.Tensor tf.data.Dataset.from_tensor_slices dataset = tf.data.Dataset.from_tensor_slices(sparse_data) for element in dataset: print(pprint_sparse_tensor(element)) dataset = tf.data.Dataset.from_tensor_slices(sparse_data) for element in dataset: print(pprint_sparse_tensor(element)) Batching and unbatching datasets with sparse tensors You can batch (combine consecutive elements into a single element) and unbatch datasets with sparse tensors using the Dataset.batch and Dataset.unbatch methods respectively. Dataset.batch Dataset.unbatch batched_dataset = dataset.batch(2) for element in batched_dataset: print (pprint_sparse_tensor(element)) batched_dataset = dataset.batch(2) for element in batched_dataset: print (pprint_sparse_tensor(element)) unbatched_dataset = batched_dataset.unbatch() for element in unbatched_dataset: print (pprint_sparse_tensor(element)) unbatched_dataset = batched_dataset.unbatch() for element in unbatched_dataset: print (pprint_sparse_tensor(element)) You can also use tf.data.experimental.dense_to_sparse_batch to batch dataset elements of varying shapes into sparse tensors. tf.data.experimental.dense_to_sparse_batch Transforming Datasets with sparse tensors Transform and create sparse tensors in Datasets using Dataset.map. Dataset.map transform_dataset = dataset.map(lambda x: x*2) for i in transform_dataset: print(pprint_sparse_tensor(i)) transform_dataset = dataset.map(lambda x: x*2) for i in transform_dataset: print(pprint_sparse_tensor(i)) tf.train.Example tf.train.Example is a standard protobuf encoding for TensorFlow data. When using sparse tensors with tf.train.Example, you can: tf.train.Example tf.train.Example Read variable-length data into a tf.sparse.SparseTensor using tf.io.VarLenFeature. However, you should consider using tf.io.RaggedFeature instead. Read arbitrary sparse data into a tf.sparse.SparseTensor using tf.io.SparseFeature, which uses three separate feature keys to store the indices, values, and dense_shape. Read variable-length data into a tf.sparse.SparseTensor using tf.io.VarLenFeature. However, you should consider using tf.io.RaggedFeature instead. tf.sparse.SparseTensor tf.io.VarLenFeature tf.io.RaggedFeature Read arbitrary sparse data into a tf.sparse.SparseTensor using tf.io.SparseFeature, which uses three separate feature keys to store the indices, values, and dense_shape. tf.sparse.SparseTensor tf.io.SparseFeature indices values dense_shape tf.function tf.function The tf.function decorator precomputes TensorFlow graphs for Python functions, which can substantially improve the performance of your TensorFlow code. Sparse tensors work transparently with both tf.function and concrete functions. tf.function tf.function concrete functions @tf.function def f(x,y): return tf.sparse.sparse_dense_matmul(x,y) a = tf.sparse.SparseTensor(indices=[[0, 3], [2, 4]], values=[15, 25], dense_shape=[3, 10]) b = tf.sparse.to_dense(tf.sparse.transpose(a)) c = f(a,b) print(c) @tf.function def f(x,y): return tf.sparse.sparse_dense_matmul(x,y) a = tf.sparse.SparseTensor(indices=[[0, 3], [2, 4]], values=[15, 25], dense_shape=[3, 10]) b = tf.sparse.to_dense(tf.sparse.transpose(a)) c = f(a,b) print(c) tf.Tensor( [[225 0 0] [ 0 0 0] [ 0 0 625]], shape=(3, 3), dtype=int32) tf.Tensor( [[225 0 0] [ 0 0 0] [ 0 0 625]], shape=(3, 3), dtype=int32) Distinguishing missing values from zero values Most ops on tf.sparse.SparseTensors treat missing values and explicit zero values identically. This is by design — a tf.sparse.SparseTensor is supposed to act just like a dense tensor. tf.sparse.SparseTensor tf.sparse.SparseTensor However, there are a few cases where it can be useful to distinguish zero values from missing values. In particular, this allows for one way to encode missing/unknown data in your training data. For example, consider a use case where you have a tensor of scores (that can have any floating point value from -Inf to +Inf), with some missing scores. You can encode this tensor using a sparse tensor where the explicit zeros are known zero scores but the implicit zero values actually represent missing data and not zero. Note: This is generally not the intended usage of tf.sparse.SparseTensors; and you might want to also consider other techniques for encoding this such as for example using a separate mask tensor that identifies the locations of known/unknown values. However, exercise caution while using this approach, since most sparse operations will treat explicit and implicit zero values identically. Note: This is generally not the intended usage of tf.sparse.SparseTensors; and you might want to also consider other techniques for encoding this such as for example using a separate mask tensor that identifies the locations of known/unknown values. However, exercise caution while using this approach, since most sparse operations will treat explicit and implicit zero values identically. Note: tf.sparse.SparseTensor Note that some ops like tf.sparse.reduce_max do not treat missing values as if they were zero. For example, when you run the code block below, the expected output is 0. However, because of this exception, the output is -3. tf.sparse.reduce_max 0 -3 print(tf.sparse.reduce_max(tf.sparse.from_dense([-5, 0, -3]))) print(tf.sparse.reduce_max(tf.sparse.from_dense([-5, 0, -3]))) tf.Tensor(-3, shape=(), dtype=int32) tf.Tensor(-3, shape=(), dtype=int32) In contrast, when you apply tf.math.reduce_max to a dense tensor, the output is 0 as expected. tf.math.reduce_max print(tf.math.reduce_max([-5, 0, -3])) print(tf.math.reduce_max([-5, 0, -3])) tf.Tensor(0, shape=(), dtype=int32) tf.Tensor(0, shape=(), dtype=int32) Further reading and resources Refer to the tensor guide to learn about tensors. Read the ragged tensor guide to learn how to work with ragged tensors, a type of tensor that lets you work with non-uniform data. Check out this object detection model in the TensorFlow Model Garden that uses sparse tensors in a tf.Example data decoder. Refer to the tensor guide to learn about tensors. tensor guide Read the ragged tensor guide to learn how to work with ragged tensors, a type of tensor that lets you work with non-uniform data. ragged tensor guide Check out this object detection model in the TensorFlow Model Garden that uses sparse tensors in a tf.Example data decoder. TensorFlow Model Garden tf.Example Originally published on the TensorFlow website, this article appears here under a new headline and is licensed under CC BY 4.0. Code samples shared under the Apache 2.0 License. Originally published on the TensorFlow website, this article appears here under a new headline and is licensed under CC BY 4.0. Code samples shared under the Apache 2.0 License. Originally published on the TensorFlow website, this article appears here under a new headline and is licensed under CC BY 4.0. Code samples shared under the Apache 2.0 License. TensorFlow TensorFlow
