6.5. Example 2.3: Restructuring a Patricia-Merkle Tree Fragment Through Leaf Pair Swapping

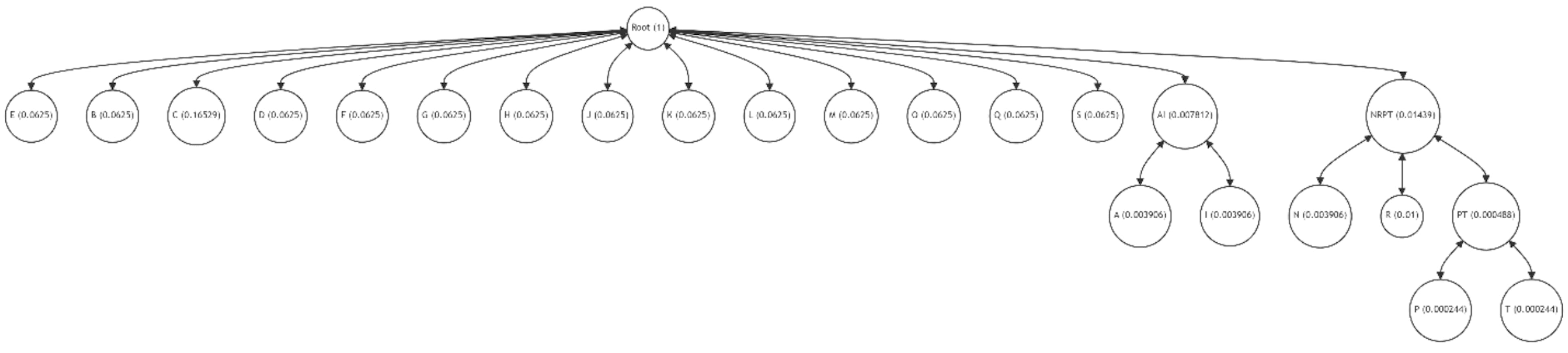

Imagine we have a fragment of the Patricia-Merkle tree with leaves (and probabilities) assigned as follows (see Figure 31):

A (0.003906), B (0.0625), C (0.16529), D (0.0625), E (0.0625), F (0.0625), G (0.0625), H (0.0625), I (0.003906), J (0.0625), K (0.0625), L (0.0625), M (0.0625), N (0.003906), O (0.0625), P (0.000244), Q (0.0625), R (0.01), S (0.0625), T (0.000244).

Thus, even a small number of algorithm iterations allows for a significant reduction in discrepancy (1) and optimization of the tree structure, reducing the average path length.

This example underscores the potential of our restructuring algorithm to enhance the efficiency of Patricia-Merkle trees in blockchain applications. By judiciously swapping the positions of leaf pairs, we can significantly improve the tree's structure, aligning it closer to the optimal configuration. This process not only minimizes the average path length but also contributes to the overall efficiency and scalability of blockchain operations, particularly in systems like Ethereum where Patricia-Merkle trees play a crucial role in data integrity verification.
