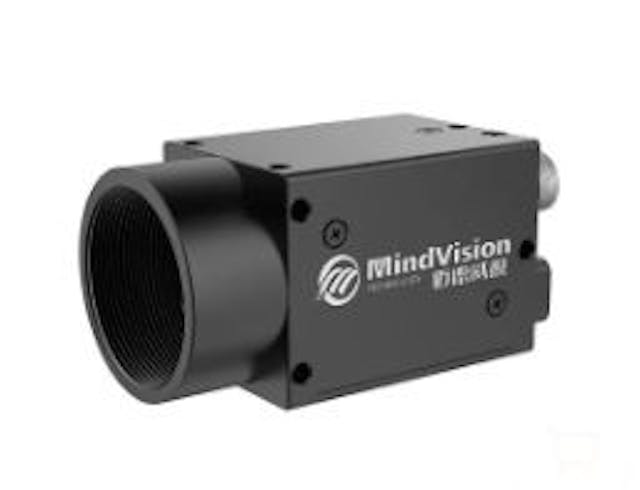

An area scan camera is a type of digital camera that captures images in a two-dimensional frame, making it ideal for applications requiring high-resolution, static, or slow-motion imaging. Unlike line scan cameras, which capture images one line at a time, area scan cameras provide full-frame images in a single exposure. This guide explores the technology behind area scan cameras, their key features, and their diverse industrial and scientific applications.

How an Area Scan Camera Works An area scan camera consists of a sensor array that captures light intensity across a grid of pixels. When the shutter is activated, all pixels are exposed simultaneously, producing a complete image. The two main sensor types used in area scan cameras are:

CCD (Charge-Coupled Device): Known for high sensitivity and low noise, ideal for low-light conditions. CMOS (Complementary Metal-Oxide-Semiconductor): Offers faster readout speeds and lower power consumption. The choice between CCD and CMOS depends on factors like speed, resolution, and lighting conditions.

Key Features of Area Scan Cameras Resolution: Ranges from standard VGA to ultra-high-definition (e.g., 20+ megapixels). Frame Rate: Determines how many images the camera can capture per second. Pixel Size: Affects light sensitivity and dynamic range. Interface Options: Includes USB3, GigE, Camera Link, and CoaXPress. Triggering Modes: Supports external triggers for synchronized imaging. Applications of Area Scan Cameras

Industrial Inspection Area scan cameras are widely used in automated quality control systems to detect defects in manufacturing processes. Examples include:

PCB inspection Surface flaw detection Dimensional measurement 2. Medical Imaging In medical diagnostics, area scan cameras enable high-precision imaging in:

Microscopy Endoscopy X-ray imaging 3. Traffic and Surveillance Traffic monitoring systems use area scan cameras for:

License plate recognition Traffic flow analysis Security surveillance 4. Scientific Research Researchers utilize area scan cameras in:

Astronomy (star tracking, telescope imaging) Biology (cell imaging, fluorescence microscopy) Advantages Over Line Scan Cameras While line scan cameras excel in continuous motion applications (e.g., conveyor belt scanning), area scan cameras offer:

Simpler setup (no need for precise synchronization with moving objects) Better image quality for stationary or slow-moving subjects Easier integration into existing vision systems Choosing the Right Area Scan Camera When selecting an area scan camera, consider:

Resolution requirements (higher resolution for detailed imaging) Speed needs (high-speed applications require faster frame rates) Lighting conditions (low-light environments may need CCD sensors) Interface compatibility (ensure the camera works with your system) Future Trends in Area Scan Camera Technology Advancements in area scan camera technology include:

Higher resolutions with smaller pixel sizes Improved low-light performance AI-powered image processing for real-time analytics

Area Scan Camera: A Comprehensive Guide to Technology and Applications
