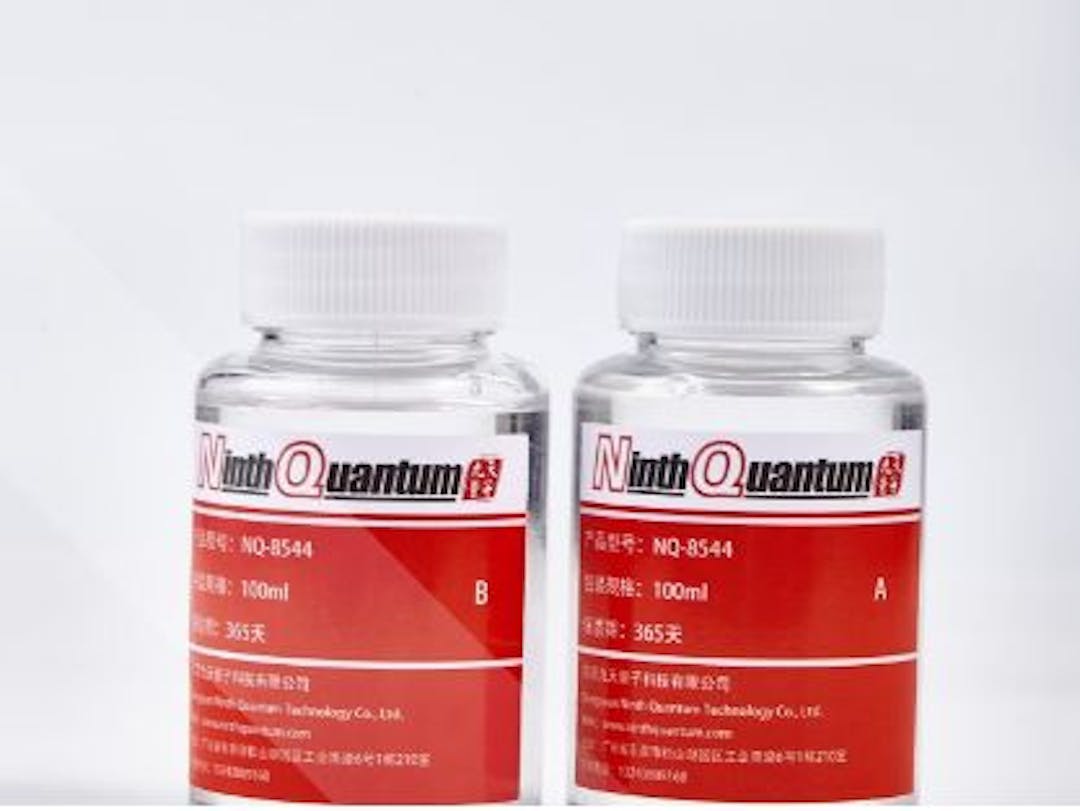

Our company can customize thermal conductive silicone sheets with a thermal conductivity ranging from 1.0 to 15W. We also have products such as thermal conductive sealants, thermal conductive adhesives, and liquid adhesives. Regarding exports, our products have low thermal resistance and excellent flame retardancy. We can customize various sizes according to customers' requirements, and the colors can also be customized. For products of the same type, we also have thermal conductive silicone.

Our technicians have been engaged in the industry for more than 10 years and possess rich experience.

In the relentless pursuit of smaller, faster, and more powerful electronic devices, from smartphones to supercomputers, a critical challenge consistently emerges: heat. Excessive heat is the nemesis of electronic performance, leading to throttled speeds, reduced lifespan, and outright failure. While processors (CPUs) and graphics cards (GPUs) often steal the spotlight in discussions about performance, a humble yet vital component works silently in the shadows to manage the thermal chaos—the thermal conductive gasket. This article delves into the world of these essential materials, exploring their function, types, applications, and the critical role they play in the ecosystem of thermal management.

Understanding the Fundamental Challenge: Heat Dissipation

At the heart of every electronic device, integrated circuits (ICs) perform billions of operations per second. This immense computational activity generates waste energy in the form of heat. If this heat is not efficiently transferred away from the sensitive components, temperatures can soar, causing a cascade of problems. Semiconductor materials behave poorly at high temperatures; electron mobility decreases, leading to slower switching speeds and increased electrical resistance, which in turn generates even more heat—a vicious cycle known as thermal runaway.

To prevent this, engineers employ heat sinks—often made of aluminum or copper—designed to absorb and dissipate heat into the surrounding air. However, a seemingly insignificant problem lies at the interface between the heat-generating component and the heat sink: microscopic air gaps. Even surfaces that appear perfectly flat to the naked eye are riddled with imperfections and irregularities at a microscopic level. Air is a notoriously poor conductor of heat, and these trapped pockets act as an insulating barrier, severely impeding the flow of heat.

This is where the thermal conductive gasket enters the stage as a pivotal solution.

What Exactly is a Thermal Conductive Gasket?

A thermal conductive gasket is a soft, compliant, and thermally conductive material strategically placed between two surfaces to eliminate air gaps and create a low-thermal-resistance path for heat to travel. Think of it as a specialized seal that doesn't keep water or air out, but rather lets heat flow through efficiently. Its primary functions are:

Filling Interstitial Air Gaps: The gasket conforms under pressure to fill all the microscopic voids between the uneven surfaces of the component and the heat sink.
Providing a Conductive Pathway: Made from materials with inherently high thermal conductivity, the gasket acts as a bridge, allowing heat to transfer from the hot component to the cooling solution effectively.
Electrical Isolation: In many cases, these gaskets also provide electrical insulation, preventing short circuits between the electronic component and the often-metallic heat sink.
Stress Relief and Cushioning: The compliant nature of the gasket can absorb mechanical stress and vibrations, protecting delicate solder joints and components from physical damage.

The Anatomy of Performance: Materials Matter

Not all thermal conductive gasket are created equal. Their performance is dictated by the materials from which they are constructed. Key materials include:

Silicone Elastomers: Silicone is the most common base material due to its excellent flexibility, wide temperature tolerance, and durability. It is inherently an electrical insulator.
Thermal Fillers: Pure silicone is not a good thermal conductor. Therefore, it is impregnated with high-thermal-conductivity ceramic or metal powders. The type, size, shape, and concentration of these fillers determine the final properties of the gasket. Common fillers include:
Ceramic Fillers: Aluminum Oxide (Al₂O₃), Boron Nitride (BN), and Aluminum Nitride (AlN). These offer a good balance of thermal performance and electrical insulation.
Metal Fillers: Aluminum (Al) or Silver (Ag) particles. These provide superior thermal conductivity but are electrically conductive, making them suitable only for applications where electrical isolation is not required.
Carrier Materials: Some gaskets are reinforced with glass fiber or polyimide films to enhance their mechanical strength and prevent tearing during installation.

The performance of a gasket is typically measured by two main parameters:

Thermal Conductivity: Measured in Watts per meter-Kelvin (W/m·K), this indicates the material's inherent ability to conduct heat. Values for gaskets can range from 1.0 W/m·K for basic products to over 15 W/m·K for advanced formulations.
Thermal Impedance: This is a more practical measurement, as it accounts for not only the material's conductivity but also its thickness and the resistance at its interfaces. A lower impedance value signifies better overall performance in a real-world application.

Diverse Applications Across Industries

The thermal conductive gasket is a ubiquitous component found in virtually every sector that relies on electronics.

Consumer Electronics: In ultra-thin laptops, tablets, and 5G smartphones, space is at an absolute premium. Traditional thermal pastes can pump out over time, and rigid materials don't fit. A pre-cut, compliant thermal conductive gasket is the ideal solution for transferring heat from a system-on-a-chip (SoC) to the device's chassis, which acts as a distributed heat sink.
Telecommunications and Networking: Network switches, routers, and base station equipment house high-power processors that must operate 24/7. Gaskets are used to cool power amplifiers, FPGAs, and ASICs, ensuring network stability and longevity.
Automotive Electronics: The modern automobile is a computer on wheels. Advanced Driver-Assistance Systems (ADAS), infotainment units, and power inverters for electric vehicles generate significant heat in harsh environments. Thermal conductive gasket are used for their ability to withstand temperature cycling, vibration, and exposure to chemicals while providing reliable cooling.
Industrial and Aerospace: In these critical applications, reliability is non-negotiable. Gaskets are used to cool motor drives, power supplies, and avionics. Materials used here must often meet stringent standards for outgassing, flammability, and long-term performance under extreme stress.

Selecting the Right Gasket: A Design Consideration

Choosing the appropriate thermal conductive gasket is a careful balancing act for an engineer. The selection process involves evaluating:

Thermal Performance Requirements: How much heat needs to be dissipated?
Interface Pressure: How much clamping force can the assembly apply? Softer gaskets conform under low pressure but may be less durable.
Gap Tolerance: What is the expected gap between the two surfaces that needs to be filled?
Electrical Requirements: Is electrical insulation mandatory?
Environmental Factors: Will the gasket be exposed to moisture, chemicals, vibration, or extreme temperatures?

Conclusion: An Essential Enabler of Innovation

The thermal conductive gasket may not be as glamorous as the latest microchip, but it is an indispensable enabler of the technological progress those chips represent. As electronic devices continue to shrink in size while expanding in capability, the thermal challenge will only intensify. The evolution of gasket materials—toward higher conductivity, better compliance, and greater reliability—will continue to be a critical field of innovation. This small, often overlooked component truly is the unsung hero, standing between the blazing power of modern computing and the cool, stable operation users depend on every day. It is a perfect example of how a simple, elegant material solution can solve a complex engineering problem and keep the digital world running smoothly.
