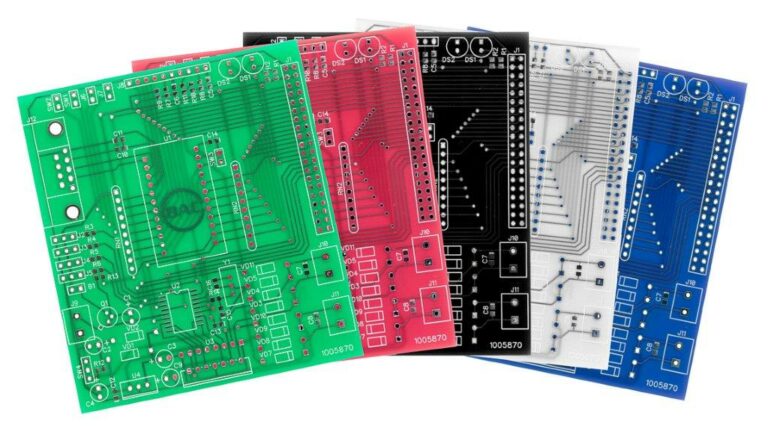

As consumers, we demand electronics products that are ever more capable (and smaller) than their predecessors. Today, PCB layout designers need

to account for increasing design complexities and challenges, including component pitch shrinkage, signal integrity, manufacturability, yield, and

thermal management.

PCB layout designers require every bit of help they can get to plan, prototype, and eventually fabricate innovative electronics products. Specialized

help comes in the form of leading printed circuit board fabrication services from one of the very best PCB manufacturers in the business: Bay Area

Circuits.

PCB Layout Design Fundamentals: Pitch Shrinks

Intricate and complex printed circuit board designs are described as ‘fine-pitch’ and their layout must account for:

● Precise component placement and orientation

● Adherence to trace widths, clearances, and spacing

● Via strategies

● Power and ground plane design/reference planes

● Signal integrity (SI), return path control, and impedance matching

● EMI and crosstalk mitigation

● Thermal management and heat dissipation

● Design for manufacturability testing procedures

With coarse-pitch components, there are greater tolerances and hence more margin for error. However, with fine-pitch, tolerance levels are much

tighter, and a slight misalignment can lead to a potential loss of functionality and durability.

Prototyping & Fine-Pitch PCB Development

Prototyping early-stage PCB layout designs before full-scale printed circuit board fabrication is a critical step. Here’s why:

1. Validate manufacturability early

A prototype run lets you test layout rules and pad/via strategies to ensure that they work on real manufacturing processes. Unexpected issues often

surface: mask shifts, plating anomalies, misregistration errors, warpage, solder bridging, or yield defects. Fixing these after full production can be very

costly.

2. Electrical and performance validation

Test signal integrity (eye diagrams, reflections, cross-talk), power integrity (voltage drop, ground bounce), thermal behavior, and mechanical stress in a

physical board environment. Simulation is valuable, but real-world prototyping catches unforeseen issues (e.g, stray capacitance, dielectric variation,

and assembly yield).

3. Iterate tolerance and margin adjustments

Prototypes allow the fine-tuning of pad sizes, clearances, mask slugs, trace transitions, and via strategies. You may need more clearance or slight

adjustments to produce a higher yield.

4. Assembly process tuning

With prototypes, real reflow profiles, stencil design (aperture sizes), solder paste deposition, and pick-and-place accuracy are all tested. Fine-pitch designs often require tight control, and a prototype run helps you refine the assembly recipe and catch paste issues, tombstoning, or bridging before ramping to high-volume printed circuit board fabrication.

5. Risk reduction before scaling

When going into full production, you don’t want surprises. Prototype PCB fabrication de-risks the process. It is far cheaper to iterate on a single PCB layout with small quantities than to scrap a mass-produced lot. Because of all these benefits, any design flow targeting fine pitch should reserve schedule and budget margin for prototypes and iterations.

Fine-Pitch PCB Layout Design - Frequently Asked Questions

Q: What makes fine-pitch PCBs more difficult to manufacture?

A: With fine-pitch PCBs, there is less margin for error during imaging, etching, plating, and solder mask alignment. At the assembly stage, smaller pads

can increase the risk of solder bridging and misalignment.

Q: What do PCB designers need to be aware of when creating fine-pitch designs?

A: Fine-pitch PCB designs are acutely sensitive to variations in copper thicknesses and solder mask shifting. Prototyping allows designers and engineers to test physical boards to identify issues before mass production begins.

Q: How can prototype PCB fabrication services help with fine-pitch manufacturing?

A: Partnering with a leading prototype printed circuit board manufacturer, such as Bay Area Circuit, gives designers access to an incredibly experienced team, as well as DFM feedback at a very early stage in the production cycle.

Speak to the expert team at Bay Area Circuits for help with all aspects of PCB layout design:

Call: 510-933-9000

Email: support@bacircuits.com

Visit the Website: bayareacircuits.com
