Introduction to Thermal Management Materials

Effective thermal management is a cornerstone of modern electronics design. As devices become more powerful and compact, dissipating generated heat efficiently is paramount to ensure reliability, performance, and longevity. While traditional methods like mechanical fastening combined with thermal pads or greases are common, they present limitations in automation, structural integrity, and long-term stability. This is where advanced materials, specifically thermal conductive adhesive, come to the fore. These substances offer a unique combination of robust bonding and efficient heat conduction, providing an elegant solution for challenging assembly scenarios.

What is Thermal Conductive Adhesive?

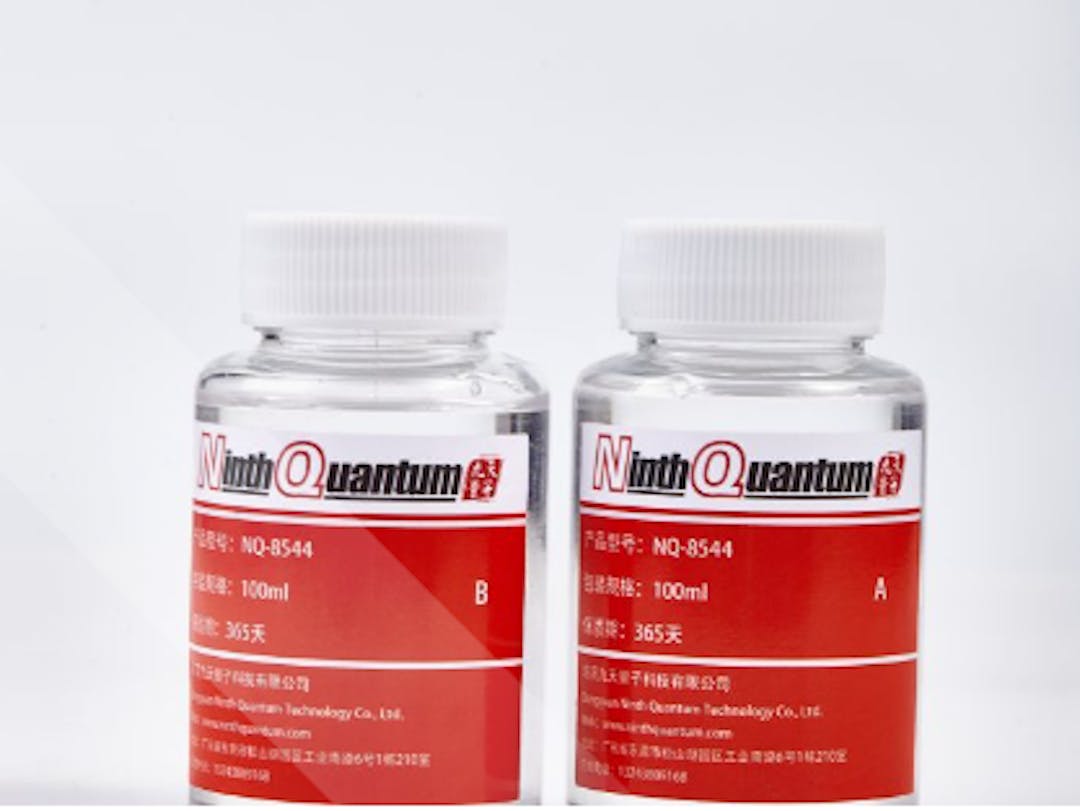

A thermal conductive adhesive is a specialized material, typically formulated as a single or two-part epoxy, silicone, or acrylic, that serves the dual purpose of mechanically bonding components and transferring heat away from a heat-generating source. Unlike standard adhesives, which are often thermal insulators, these products are engineered to have high thermal conductivity.

The fundamental mechanism involves filling the microscopic air gaps between two surfaces—for instance, between a semiconductor chip and a heat sink. Air is a poor conductor of heat, so even the most meticulously machined surfaces have imperfections that trap air, creating thermal resistance. The thermal conductive adhesive displaces this air, creating a continuous, low-resistance pathway for heat to flow. This is achieved by loading the adhesive polymer matrix (the "glue" part) with a high concentration of thermally conductive fillers. Common filler materials include:

Ceramics: Aluminum oxide (Al₂O₃), boron nitride (BN), and aluminum nitride (AlN).
Metals: Silver (Ag) or aluminum (Ag) flakes.
Carbon-based materials: Graphite or graphene.

The choice of filler significantly impacts the adhesive's final properties, including its thermal performance, electrical insulation characteristics, and cost.

Key Properties and Advantages

The adoption of thermal conductive adhesive is driven by a set of distinct advantages over traditional thermal interface materials (TIMs):

Permanent Structural Bonding: This is the most significant benefit. The adhesive forms a strong, permanent mechanical bond that locks components in place. This eliminates the need for additional mechanical fasteners like clips, screws, or brackets, saving space, weight, and assembly cost. It also enhances reliability by preventing components from loosening due to vibration or shock.
Superior Thermal Performance: By creating a thin, continuous bond line, a high-performance thermal conductive adhesive can offer thermal conductivity values ranging from 1.0 to over 10 W/mK (Watts per meter-Kelvin), significantly outperforming standard thermal pads and rivaling or exceeding the performance of many thermal greases.
Enhanced Design Flexibility: Engineers are freed from the constraints of designing and accommodating clamping mechanisms. This allows for more innovative and compact product designs, as components can be bonded in orientations or locations where clamping is impossible.
Improved Electrical Isolation: Many formulations are designed to be electrically insulating, preventing short circuits while managing heat. This is a critical safety and functionality feature in high-density electronic assemblies.
Process Automation and Efficiency: These adhesives, particularly those supplied as pastes, are well-suited for automated dispensing systems like screen printing or robotic dispensing. This enables high-volume, precise, and consistent application, reducing manufacturing time and potential human error associated with manual placement of pads or grease application.

Primary Applications Across Industries

The unique properties of thermal conductive adhesive make it indispensable in numerous high-tech industries.

Consumer Electronics: In smartphones, tablets, and laptops, these adhesives are used to attach heat spreaders to processors, bond LEDs to substrates, and manage heat in compact, sealed designs where no other retention method is viable.
Automotive Electronics: The harsh environment of automobiles—with extreme temperature cycles, constant vibration, and exposure to chemicals—demands robust solutions. Thermal conductive adhesive is used to bond power converters, LED headlights, infotainment system processors, and sensors to their cooling elements, ensuring they remain securely attached and cool throughout the vehicle's life.
LED Lighting: High-brightness LEDs generate substantial heat that must be dissipated to prevent premature failure and color shifting. Adhesives are used to directly bond the LED module to a metal-core printed circuit board (MCPCB) or a heat sink, forming both a critical thermal path and a strong mechanical joint.
Aerospace and Defense: The extreme reliability requirements in these sectors make the permanent bond and vibration resistance of thermal conductive adhesive highly valuable. They are used in avionics, radar systems, satellite communication equipment, and power supplies.
Power Electronics: In applications like motor drives, power supplies, and inverters, large amounts of heat are generated by components like IGBTs and MOSFETs. Adhesives are used to bond these devices to heat sinks, providing efficient cooling and structural integrity in high-power-density modules.

How to Select the Right Thermal Conductive Adhesive

Choosing the appropriate adhesive requires careful consideration of several factors beyond just thermal conductivity:

Thermal Conductivity (k-value): Measured in W/mK, this indicates the material's inherent ability to conduct heat. Higher values are better for more demanding applications.
Electrical Insulation: Determine if the bond line needs to be electrically insulating or conducting. Ceramic-filled epoxies are typically insulators, while silver-filled epoxies are conductive.
Bond Strength and Mechanical Properties: Consider the shear and tensile strength required. The adhesive must withstand operational stresses without cracking or debonding.
Cure Process: Understand the cure schedule (time and temperature). Some adhesives cure at room temperature, while others require heat to achieve full properties. This must align with the manufacturing process.
Minimum Bond Line Thickness: A thinner, consistent bond line generally provides lower thermal resistance. The adhesive should be able to fill gaps without excessive squeeze-out.
Chemical and Environmental Resistance: The cured adhesive must withstand exposure to potential chemicals, moisture, and temperature extremes specific to its operating environment.

Conclusion

Thermal conductive adhesive represents a sophisticated convergence of material science and thermal engineering. It moves beyond the limitations of traditional thermal management methods by integrating the essential functions of heat dissipation and structural attachment into a single, reliable, and efficient process. For engineers striving to create smaller, more powerful, and more reliable electronic products, understanding and effectively implementing these advanced materials is not just an option—it is a critical necessity for overcoming the relentless thermal challenges of modern technology. By carefully selecting the right formulation based on thermal, electrical, and mechanical requirements, designers can unlock new levels of performance and innovation in their applications.
