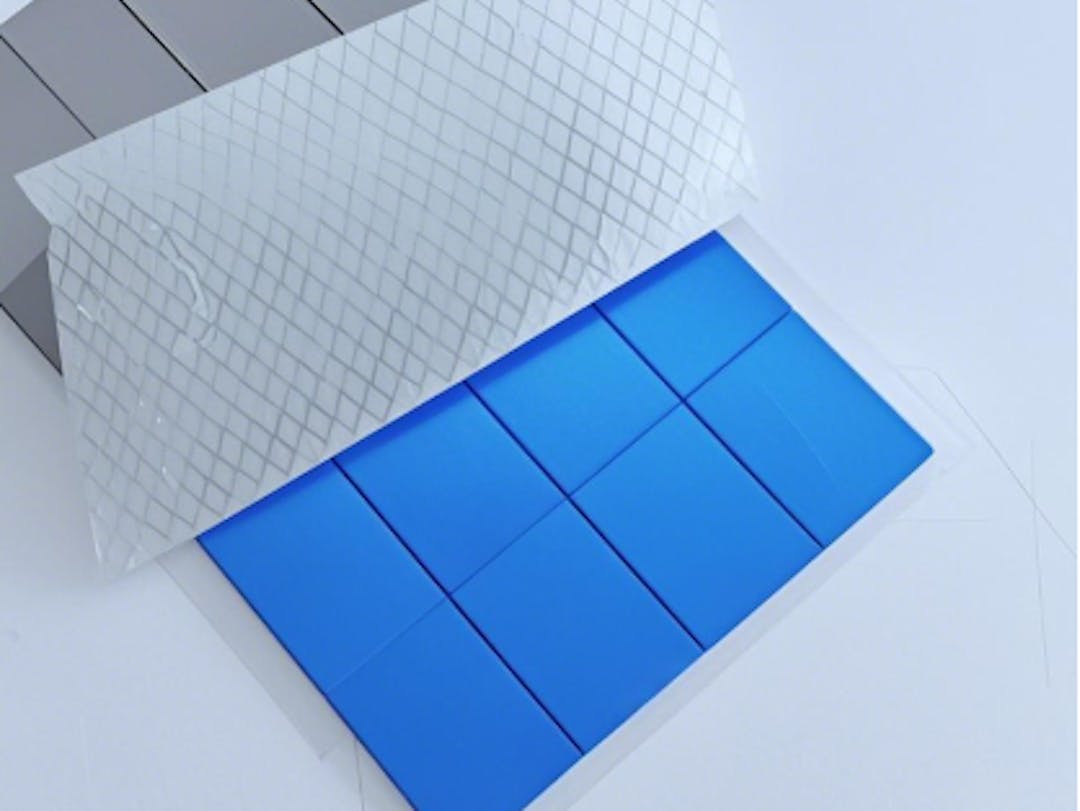

Our company can customize thermal conductive silicone sheets with a thermal conductivity ranging from 1.0 to 15W. We also have products such as thermal conductive sealants, thermal conductive adhesives, and liquid adhesives. Regarding exports, our products have low thermal resistance and excellent flame retardancy. We can customize various sizes according to customers' requirements, and the colors can also be customized. For products of the same type, we also have thermal conductive silicone.

Our technicians have been engaged in the industry for more than 10 years and possess rich experience.

In the relentless pursuit of miniaturization and increased performance, the world of electronics faces a formidable challenge: heat. As processors become faster and devices become more compact, managing the resultant thermal energy is no longer a secondary consideration but a primary engineering imperative. While heatsinks and fans are the most visible components in a cooling solution, a critical, often overlooked element bridges the gap between a heat-generating component and its cooling apparatus. This element is thermal conductive adhesive, a specialized material that is fundamentally reshaping thermal management strategies across countless industries.

Understanding the Fundamental Science of Thermal Conductive Adhesive

At its core, thermal conductive adhesive is a material designed to perform two simultaneous and equally vital functions: it acts as a robust structural adhesive, bonding components together, while also efficiently transferring heat from a source to a sink. To appreciate its value, one must understand the problem it solves.

Even the most perfectly machined heatsink and component surface have microscopic imperfections and air gaps. Air is an excellent thermal insulator, with a very low thermal conductivity of approximately 0.024 W/mK. These trapped air pockets create significant thermal resistance, hindering heat flow and causing components to operate at temperatures far higher than intended. Traditional thermal greases or pads address this by filling these gaps, but they offer no mechanical bonding strength.

This is where thermal conductive adhesive diverges. It replaces the insulating air with a material engineered for high thermal conductivity, often ranging from 1.0 to over 10 W/mK, while providing a permanent, structural bond. This dual functionality is achieved through a composite material typically consisting of:

Polymer Matrix: This is the "adhesive" part of the system, usually an epoxy, silicone, or acrylic. This matrix provides the mechanical properties—cure strength, flexibility, and environmental resistance.
Thermally Conductive Fillers: These are fine particles dispersed throughout the polymer matrix, responsible for the primary heat-transfer function. Common fillers include:
Ceramic Powders: Aluminum oxide (Al₂O₃) and boron nitride (BN) are widely used due to their excellent electrical insulation and good thermal conductivity.
Metal Powders: Aluminum (Al) or silver (Ag) fillers can offer very high thermal conductivity, particularly silver-filled epoxies. However, these are typically electrically conductive, limiting their use to specific applications.
Advanced Fillers: For the most demanding applications, materials like synthetic diamond or graphene are being incorporated to push the boundaries of thermal performance.

The synergy between the adhesive matrix and the filler particles creates a material that is greater than the sum of its parts, enabling both strong attachment and efficient thermal dissipation.

Key Properties and Performance Metrics

Selecting the right thermal conductive adhesive requires a careful balance of several key properties:

Thermal Conductivity: Measured in Watts per meter-Kelvin (W/mK), this is the most critical metric for heat transfer performance. Higher values indicate a greater ability to conduct heat.
Electrical Insulation: For most electronics applications, the adhesive must be electrically insulating to prevent short circuits. The choice of filler (e.g., ceramic vs. metal) directly dictates this property.
Bond Strength and Mechanical Properties: The adhesive must form a bond strong enough to hold components securely, often under conditions of vibration and thermal cycling. The rigidity or flexibility of the cured adhesive (its modulus of elasticity) is also important to prevent stress fractures.
Application Method and Cure Schedule: Adhesives come as single or two-part systems and may cure at room temperature or require heat to accelerate the process. The viscosity dictates whether they are suitable for dispensing by syringe, screen printing, or stenciling.
Thermal Stability: The adhesive must maintain its properties across the device's operating temperature range, which can be from -55°C to over 150°C for automotive or industrial applications.
Minimum Bond Line Thickness: A thin, consistent layer of adhesive is ideal for minimizing thermal resistance. The ability of the adhesive to maintain this thin gap without being squeezed out is crucial.

Diverse Applications Across Industries

The unique value proposition of thermal conductive adhesive has led to its adoption in a vast array of sectors.

Consumer Electronics: Inside smartphones, tablets, and laptops, these adhesives are used to bond memory chips, power management ICs, and other components to the device's chassis or dedicated heat spreaders, turning the entire structure into a passive cooling solution.
LED Lighting: High-brightness LEDs generate substantial heat, which, if not managed, drastically reduces their lifespan and light output. Thermal conductive adhesive is used to attach LED chips to metal-core printed circuit boards (MCPCBs) and to bond the entire MCPCB to an aluminum heat sink, creating a seamless thermal path.
Automotive Electronics: The harsh environment under the hood demands reliability. Adhesives are used to secure sensors, power converters, and control modules, providing vibration resistance while dissipating heat from components operating in high-temperature ambient conditions.
Aerospace and Defense: In avionics and radar systems, where weight is paramount and reliability is non-negotiable, these adhesives offer a lightweight alternative to mechanical fasteners for attaching heatsinks to sensitive components, ensuring performance under extreme G-forces and temperature fluctuations.
Medical Devices: From imaging equipment like MRI and CT scanners to portable diagnostic tools, thermal conductive adhesive manages heat in compact, high-power assemblies, ensuring device accuracy and patient safety.

Advantages Over Traditional Thermal Interface Materials

The shift towards thermal conductive adhesive is driven by several distinct advantages:

Simplified Assembly and Reduced Weight: It eliminates the need for mechanical fasteners like clips, screws, and brackets, streamlining the bill of materials and assembly process. This also reduces overall weight—a critical factor in aerospace and automotive design.
Improved Reliability: Mechanical fasteners can loosen over time due to vibration, compromising the thermal interface. A cured adhesive bond is permanent and maintains consistent pressure and contact, leading to long-term thermal stability.
Design Flexibility: Adhesives can be applied in precise patterns and can bond uneven or irregular surfaces that are difficult to manage with pads or greases. They can also create a seal against environmental contaminants like moisture and dust.
Space Efficiency: In incredibly compact designs, there is simply no room for a clip or screw. An adhesive bondline, which can be less than 100 microns thick, is the only viable solution.

Thermal Conductive Adhesive: The Unsung Hero in Modern Electronics Thermal Management
