In the relentless pursuit of smaller, faster, and more powerful electronic devices, a critical battle is constantly being waged against an invisible enemy: heat. Excessive heat is the arch-nemesis of electronic components, leading to throttled performance, reduced lifespan, and ultimately, catastrophic failure. While processors, graphics cards, and power management ICs often steal the spotlight, there exists a humble, yet indispensable, component that stands as the first line of defense in thermal management—the thermal conductive silicone pad.

This article delves into the world of thermal conductive silicone pads, exploring their composition, functionality, key properties, and the critical role they play in ensuring the reliability and longevity of the technology we depend on every day.

What Exactly is a Thermal Conductive Silicone Pad?

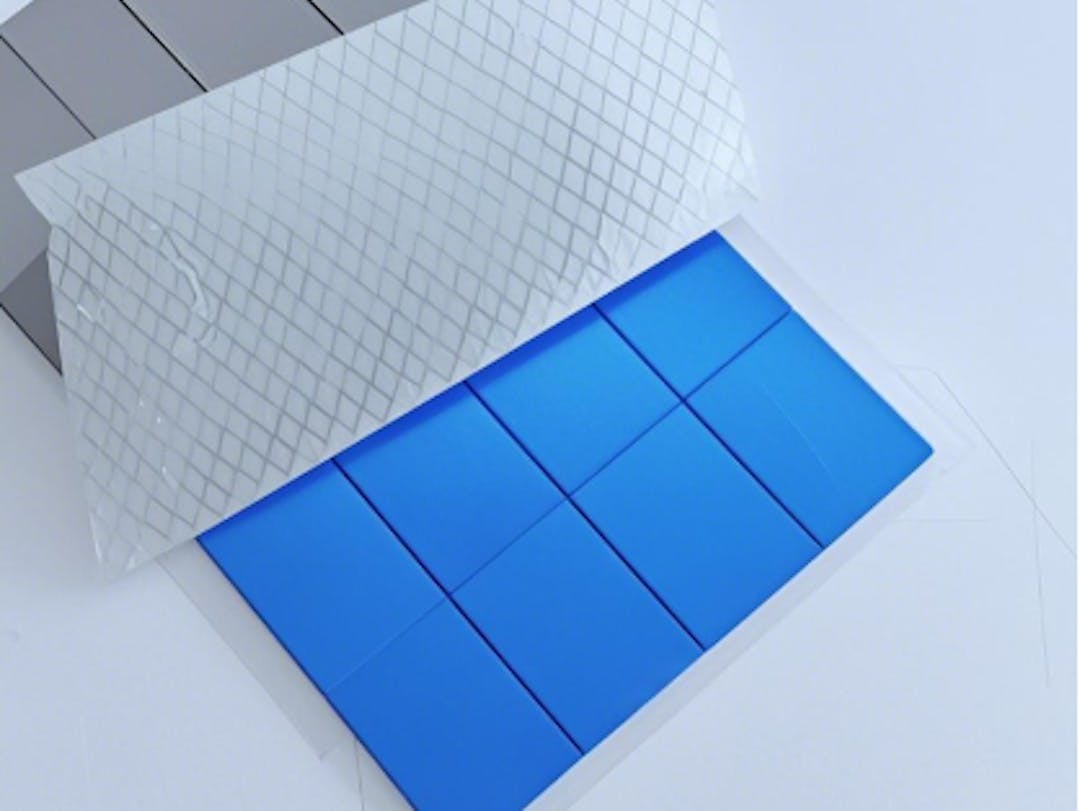

A thermal conductive silicone pad is a soft, compliant, and solid sheet material engineered to efficiently transfer heat between two surfaces. It belongs to a category known as Thermal Interface Materials (TIMs), which are specifically designed to fill the microscopic air gaps that inevitably exist between a heat-generating component (like a CPU or GPU) and a heat-dissipating device (such as a heat sink or cold plate).

Air is a poor conductor of heat. These tiny air pockets act as insulating barriers, significantly impeding heat flow. The primary function of a thermal conductive silicone pad is to displace this air with a material that has a much higher thermal conductivity, thereby creating a low-resistance pathway for heat to travel from the hot component to the cooling solution.

The Anatomy of Performance: How They Are Made

The effectiveness of a thermal conductive silicone pad stems from its unique composition. It is typically a two-part system:

Silicone Polymer Matrix: This provides the pad with its fundamental physical characteristics. The silicone elastomer is what makes the pad soft, flexible, and elastic. This flexibility allows it to conform to uneven surfaces, compensate for tolerances, and absorb mechanical stress and vibration, protecting delicate components.
Thermally Conductive Fillers: Pure silicone rubber is itself a thermal insulator. The conductive properties are imparted by loading the polymer matrix with a high percentage of ceramic or metal oxide fillers. Common fillers include:
Boron Nitride: Offers an excellent balance of high thermal conductivity and electrical insulation.
Aluminum Oxide (Alumina): A cost-effective and widely used filler that provides good thermal performance and high electrical insulation.
Zinc Oxide: Another popular option with good thermal properties.
Silicon Carbide: Provides very high thermal conductivity but is electrically conductive, limiting its use to applications where electrical isolation is not required.

The type, size, shape, and concentration of these filler particles directly determine the pad's key performance metrics, primarily its thermal conductivity, which is measured in Watts per meter-Kelvin (W/m·K).

Key Properties and Advantages Over Other TIMs

Thermal conductive silicone pads offer a unique set of advantages that make them the preferred choice for a vast array of applications:

Conformability and Gap-Filling: Their inherent softness allows them to compress and fill large irregular gaps (often from 0.5mm up to 5mm or more) that liquid pastes cannot, without the need for high mounting pressure.
Electrical Insulation: Most formulations are excellent electrical insulators, preventing short circuits between components and heat sinks, which is a critical safety feature.
Ease of Application and Reusability: They are supplied in pre-cut sheets or rolls, making application simple and clean. Unlike thermal paste, they are not messy and can often be reused during maintenance or rework, reducing waste and cost.
Mechanical Cushioning: The elastomeric nature provides shock absorption and damping, protecting components from physical damage due to vibration or impact.
Durability and Long-Term Stability: They do not dry out, pump out, or migrate over time. A high-quality thermal conductive silicone pad will maintain its performance and physical properties for the entire lifespan of the device, resisting aging, weathering, and chemical degradation.

While thermal pastes (grease) might offer slightly higher pure thermal performance for perfectly flat surfaces, they lack the mechanical, electrical, and practical benefits that make pads so versatile.

Critical Applications: Where You'll Find Them

The use of thermal conductive silicone pad technology is ubiquitous across industries:

Consumer Electronics: Smartphones, tablets, and laptops use them to manage heat from processors and batteries, often stacking multiple components with a single pad.
Telecommunications: In network switches, routers, and 5G infrastructure, they cool high-power ASICs, FPGAs, and power amplifiers on PCBs.
Automotive Electronics: Under the hood, they are essential for cooling power converters, LED headlights, infotainment systems, and especially in electric vehicle battery packs and motor controllers, managing immense heat loads.
Industrial and Power Electronics: They are used on IGBT modules, SCRs, and other power semiconductors in motor drives, UPS systems, and industrial automation equipment.
LED Lighting: High-brightness LEDs generate significant heat; thermal conductive silicone pads transfer this heat to the fixture's housing, preventing LED degradation and color shift.

Selecting the Right Pad: A Matter of Balance

Choosing the appropriate thermal conductive silicone pad is not just about picking the highest thermal conductivity rating. Engineers must consider a balance of properties:

Thermal Conductivity: Ranges from ~1.0 W/m·K for basic applications to over 12.0 W/m·K for high-performance computing.
Hardness (Shore A): Softer pads (lower Shore A value) conform better but can be harder to handle. Harder pads offer more structural support.
Thickness: Must be chosen to match the specific gap between the component and heat sink under compression.
Electrical Insulation Strength: A critical parameter for high-voltage applications.
Compression Set: The pad's ability to spring back after prolonged compression, ensuring long-term reliability.

Conclusion

In the grand architecture of electronic devices, the thermal conductive silicone pad may not be the most glamorous component, but its role is absolutely fundamental. It is a masterpiece of material science, elegantly solving the complex problems of heat transfer, electrical isolation, and mechanical stress in a single, simple-to-use product. As electronic systems continue to evolve, becoming more powerful and more densely integrated, the demand for advanced, reliable thermal management solutions will only grow. The thermal conductive silicone pad, in its continuous evolution, will undoubtedly remain an unsung hero, quietly and efficiently ensuring that our technological world keeps its cool.
