In the realm of modern technology, the intricate world of electronics is fundamentally built upon a critical, yet often unseen, process: PCB board assembly. This multifaceted procedure transforms a bare printed circuit board (PCB) into a fully functional circuit assembly, forming the very heart of every electronic device we use today. From smartphones and laptops to medical equipment and automotive systems, the assembly of components onto a PCB is a precise and fascinating discipline that merges engineering design with meticulous manufacturing execution. This guide delves deep into the world of PCB board assembly, exploring its key stages, technological advancements, and the critical considerations that ensure the creation of reliable and high-performance electronic products.

What is PCB Board Assembly?

PCB board assembly is the comprehensive process of soldering or attaching electronic components onto a fabricated printed circuit board. The bare PCB itself is a non-conductive substrate, typically made from fiberglass (FR4), with thin layers of copper circuitry etched onto its surface to provide electrical pathways. PCB board assembly is the subsequent phase where these pathways are populated with the necessary components—resistors, capacitors, integrated circuits (ICs), connectors, and more—to bring the designed electronic circuit to life. It is a crucial bridge between the theoretical design of a circuit and its physical, operational reality. The complexity of this assembly can vary dramatically, from a simple board with a few components to a high-density interconnect (HDI) board with thousands of miniature parts.

The Key Stages of the PCB Assembly Process

The journey from a bare board to a populated assembly is a structured sequence of operations, each requiring precision and control.

1. Solder Paste Application

The process typically begins with the application of solder paste. This is a mixture of tiny spheres of solder and a sticky flux material. Using a stencil—a thin metal sheet with laser-cut holes that correspond to the solder pads on the PCB—solder paste is precisely deposited onto the board. A squeegee blade moves across the stencil, pushing paste through the holes and onto the pads. The accuracy of this stage is paramount, as it dictates the quality of the subsequent solder joints.

2. Component Placement

Once the solder paste is applied, the board moves to the pick-and-place machine. This automated robotic system reads the board's design data and meticulously picks up surface-mount technology (SMT) components from reels or trays and places them onto their designated locations on the solder paste-covered pads. Modern high-speed placers can accurately position tens of thousands of components per hour with incredible precision, handling parts that are smaller than a grain of sand.

3. Soldering Reflow

With all SMT components in place, the assembled board travels through a reflow oven. This oven subjects the board to a carefully controlled temperature profile. The board passes through several zones: a preheat zone to gradually raise the temperature, a thermal soak zone to activate the flux, a reflow zone where the temperature peaks and the solder paste melts (reflows) to form permanent electrical and mechanical connections, and finally a cooling zone to solidify the joints. This process ensures strong and reliable connections for all surface-mounted components.

4. Through-Hole Component Insertion and Soldering

While SMT components dominate modern electronics, many assemblies still require through-hole technology (THT) components. These components have leads that are inserted into drilled holes on the PCB. This insertion can be done manually for low-volume projects or automatically using specialized insertion machines. The soldering for THT components is often accomplished using wave soldering, where the bottom side of the board is passed over a wave of molten solder that wicks up into the plated-through holes, creating solid connections. For mixed-technology boards, selective soldering—where a small solder wave targets specific areas—is also common.

5. Inspection and Quality Control

Quality assurance is integrated throughout the PCB board assembly process. Post-soldering inspection is critical. Automated Optical Inspection (AOI) uses high-resolution cameras to scan the board and compare it to the design data, checking for defects like misaligned components, bridging (short circuits), or insufficient solder. For complex boards with hidden connections, such as Ball Grid Arrays (BGAs), Automated X-ray Inspection (AXI) is used to see through the component and verify the integrity of the solder joints beneath.

6. Testing and Functional Verification

The final critical step is testing. This ensures the assembled board operates as intended. Basic tests include In-Circuit Test (ICT), which uses a bed-of-nails fixture to access test points on the board and check for correct values and connections. More comprehensive is the Functional Circuit Test (FCT), where the board is powered up and stimulated to verify its performance matches the original design specifications. Any failures are diagnosed, repaired, and retested.

Advanced Technologies in PCB Assembly

The field of PCB board assembly is continuously evolving to meet the demands of smaller, faster, and more complex electronics.

Chip-Scale Packages (CSP) and 01005 Components: Assembly lines now routinely handle components that are nearly microscopic, requiring extreme precision in paste printing and placement.
Ball Grid Array (BGA) Rework: Specialized stations with precise thermal controls allow for the removal and replacement of individual BGA packages, which have solder balls hidden underneath them.

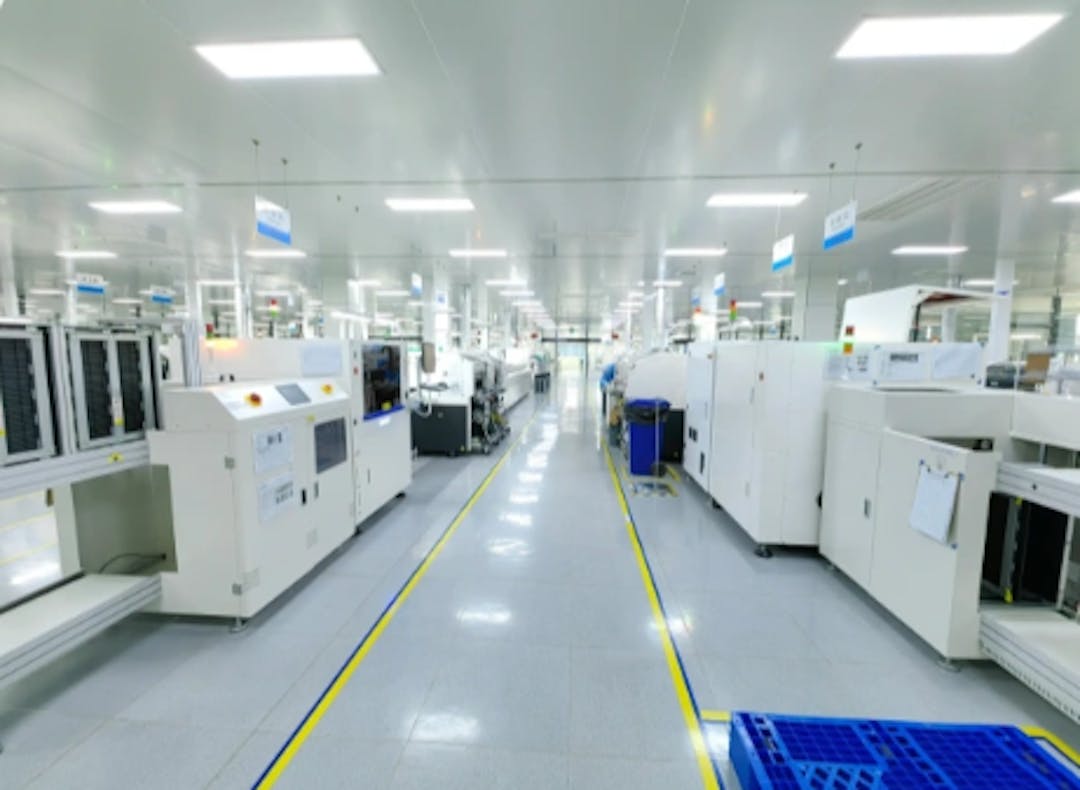

Automation and Industry 4.0: Modern assembly factories are highly automated, with machines communicating data in real-time. This connectivity allows for predictive maintenance, process optimization, and traceability for every component on every board built.
Conformal Coating: To protect the assembled board from environmental hazards like moisture, dust, chemicals, and temperature extremes, a thin polymeric film is often applied. This conformal coating process can be automated through spraying, dipping, or selective dispensing.

Conclusion

PCB board assembly is far more than just a simple manufacturing step; it is a sophisticated symphony of advanced machinery, meticulous processes, and rigorous quality control. It is the essential act of creation that turns a design schematic into a tangible, powerful piece of technology that powers our world. Understanding the nuances of this process—from solder paste printing to final functional testing—is crucial for anyone involved in electronics design and manufacturing. As devices continue to shrink and become more integrated, the precision and innovation within PCB board assembly will only continue to advance, pushing the boundaries of what is possible in electronic engineering.
