The curse of resolution in physics simulations
Imagine watching water flow through sand at two different zoom levels. At low zoom, you see the overall current pushing through the domain. At high zoom, individual sand grains create turbulence and complex flow patterns that wouldn't be visible from far away. To capture both, you need the high-zoom video, which takes forever to compute. Yet you can't simply use the low-zoom version because those tiny grain-scale interactions fundamentally change how the bulk flow behaves.
This is the core tension in finite element methods, the standard tool scientists use to approximate solutions to the differential equations governing physical systems. In these methods, computational cost scales brutally with resolution. Double your resolution in two dimensions and you create 16 times more elements. In three dimensions, that's 64 times more. This isn't a problem you solve by throwing more compute at it indefinitely. High-resolution simulations are accurate but prohibitively expensive. Coarse simulations are fast but miss crucial small-scale details that ripple through the big picture.
The multiscale structures in physics aren't incidental; they're fundamental. Small-scale heterogeneity in materials, turbulent fluctuations in fluids, grain-boundary effects in crystals, all these phenomena affect macroscopic behavior in ways that can't simply be averaged away. Yet capturing them requires the computational horsepower of a high-resolution simulation, creating a genuine impasse between speed and accuracy.
Why traditional multiscale methods don't quite solve it
Researchers have known for decades that you need something smarter than brute-force high-resolution simulation. The traditional approach looks like dividing a puzzle into pieces. You solve the problem at a coarse scale, figure out how that coarse solution influences the fine scale, then solve the fine-scale problem in each region, coupling the results back together. Mathematically, this works. Computationally, it's more involved than it sounds.
Methods like homogenization and multiscale finite element methods are mathematically rigorous and can provide guarantees about their approximations. But they require solving auxiliary problems, like the "cell problems" in homogenization theory, to understand how fine scales feed back into coarse scales. For complex materials or irregular geometries, these auxiliary problems can be nearly as expensive as the original simulation. You're trading one hard problem for several smaller hard problems, which is an improvement but not revolutionary.
The core limitation is that multiscale methods still require explicit computation of fine-scale corrections. You don't truly escape the resolution curse; you just distribute the work differently. For time-dependent problems or when you need to run many similar simulations, this overhead becomes prohibitive.
Super-resolution as learned multiscale correction
What if you bypassed mathematical derivation entirely and instead let a neural network learn the relationship between coarse and fine scales from examples? You run many simulations at both coarse and fine resolution, showing the network thousands of pairs, and ask it to learn the underlying pattern. Then, for new problems, you run only the cheap coarse simulation and let the network fill in the fine details.
This reframes the multiscale problem fundamentally. Instead of asking "how do I mathematically derive the fine-scale correction from the coarse solution," you ask "what statistical relationship exists between coarse-resolution snapshots of physics and fine-resolution snapshots?" Train a network to learn that relationship, and it becomes a reusable tool.
The brilliant insight is that you don't need to hand-derive the multiscale coupling. You're leveraging an assumption about the physical world: that small-scale structures follow patterns that are learnable and repeatable across different scenarios. If those patterns truly reflect the underlying physics, the network should generalize beyond its training distribution. It should work on upsampling factors it never saw, on material properties it never explicitly trained on.

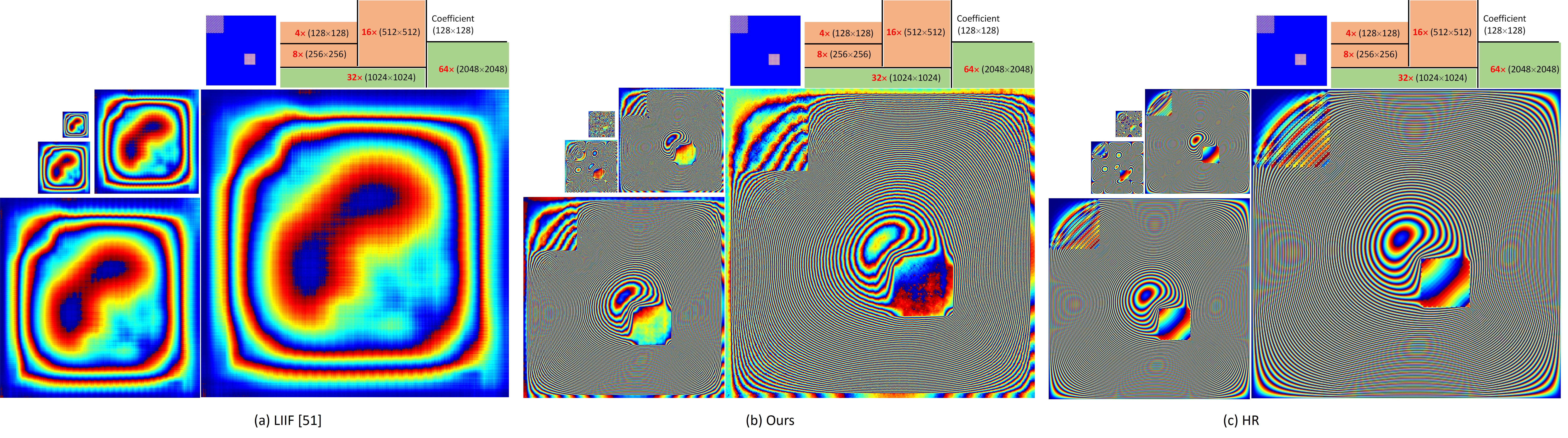

Continuous super-resolution bridges coarse and fine scales. The orange region shows in-distribution scenarios (upsampling factors up to 16x), while the blue region shows out-of-distribution tests where the method extrapolates to 32x and beyond.
This is where the paper departs from typical deep learning applications. It's not just applying image super-resolution to scientific data. It's asking whether neural networks can learn and extrapolate the structure of multiscale physics.
The architecture: local implicit transformers learn across scales
Building a network that handles both coarse context and fine reconstruction simultaneously requires solving a specific technical challenge. How do you make a neural network that respects multiscale structure, preserves both large-scale features and fine details, and works at arbitrary query locations, not just fixed grid points?
The answer involves two key components working in concert. First, local implicit neural representations (LIIF) treat space as continuous rather than discrete. Instead of the network learning a grid of pixel values, it learns a continuous function that can predict the field value at any spatial coordinate, like x=0.1234, y=0.5678. The coarse module processes the coarse finite element solution and extracts features. The fine module takes those features plus a query coordinate and outputs the fine-resolution prediction at that specific location.
Second, a transformer architecture handles the multiscale learning. Transformers excel at learning long-range dependencies and attention patterns, which maps directly to the physics: the fine-scale behavior at one location depends on coarse features potentially across a large region. The transformer learns which parts of the coarse domain matter for predicting details at any given location.

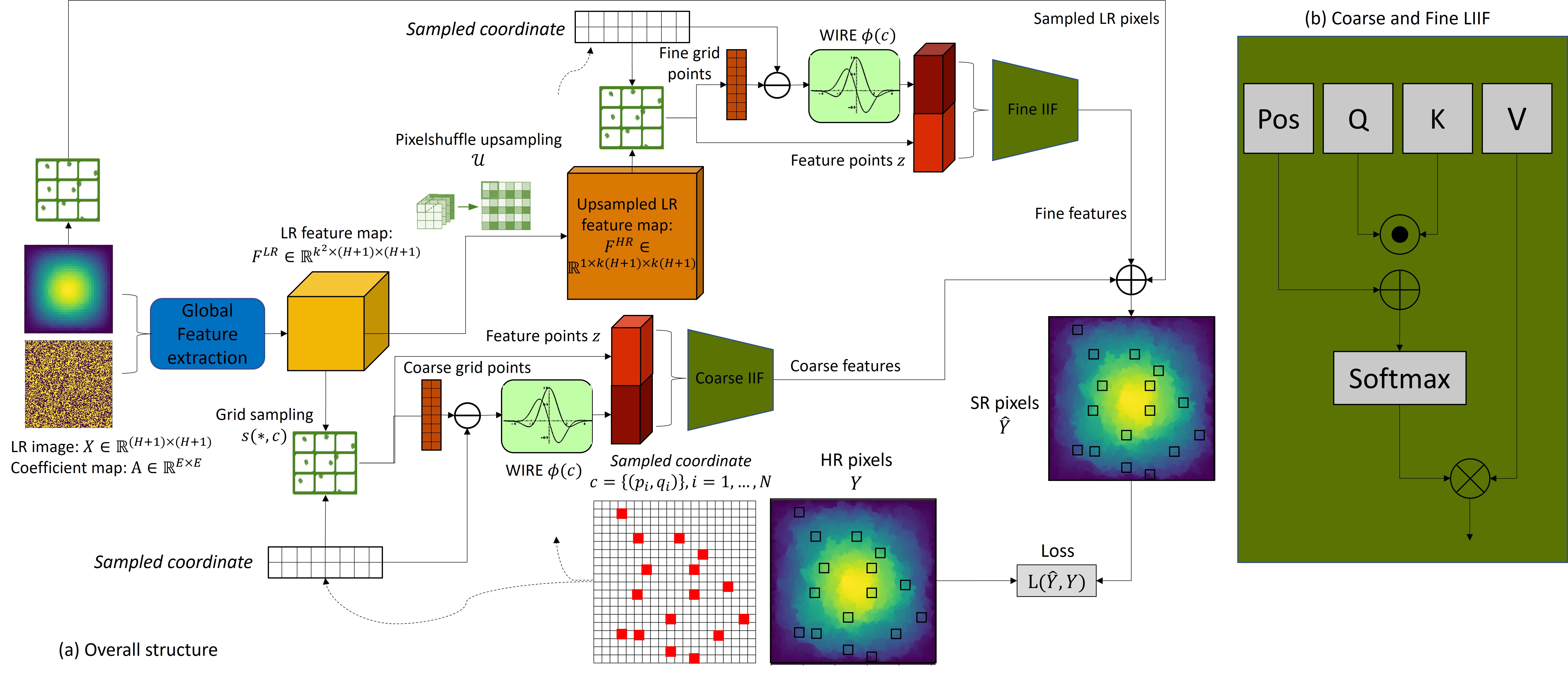

The architecture processes coarse finite element data through feature extraction, then uses a local implicit function in the transformer to predict fine-scale corrections at arbitrary spatial coordinates.
The elegance of this design is that it separates the two jobs cleanly. The coarse module sees the big picture. The fine module handles spatial interpolation and detail generation. The transformer connects them by learning which coarse features to attend to for each fine-scale prediction.
The frequency problem: why Gabor wavelets fix neural network blindness
Here's a subtle but critical problem that most practitioners would miss. Neural networks are biased learners. When you show them spatial data and ask them to predict values, they naturally learn smooth, low-frequency features first. Their internal "perception" gravitates toward blurry versions of the input. For multiscale corrections, this is backwards. You desperately need the network to pay serious attention to high-frequency details that create the fine structure.
This isn't a failure of the network; it's a feature of how they learn. Low-frequency functions are often the "easy" solution that reduces loss quickly and smoothly. Standard positional encodings help somewhat, but the paper proposes something more targeted: Gabor wavelets as coordinate encodings.
Gabor functions are sinusoidal waves modulated by a Gaussian envelope, and they're particularly good at capturing localized frequency structure. By encoding the spatial coordinates using Gabor wavelets instead of simple sinusoids, the network gets a built-in curriculum that encourages it to respect fine-scale structure from the start. It's like giving the network glasses that make high-frequency details visually prominent.
The impact is visible in frequency-space analysis. Using radial power spectral density (RAPSD), you can decompose how much energy the predicted field contains at each frequency scale.

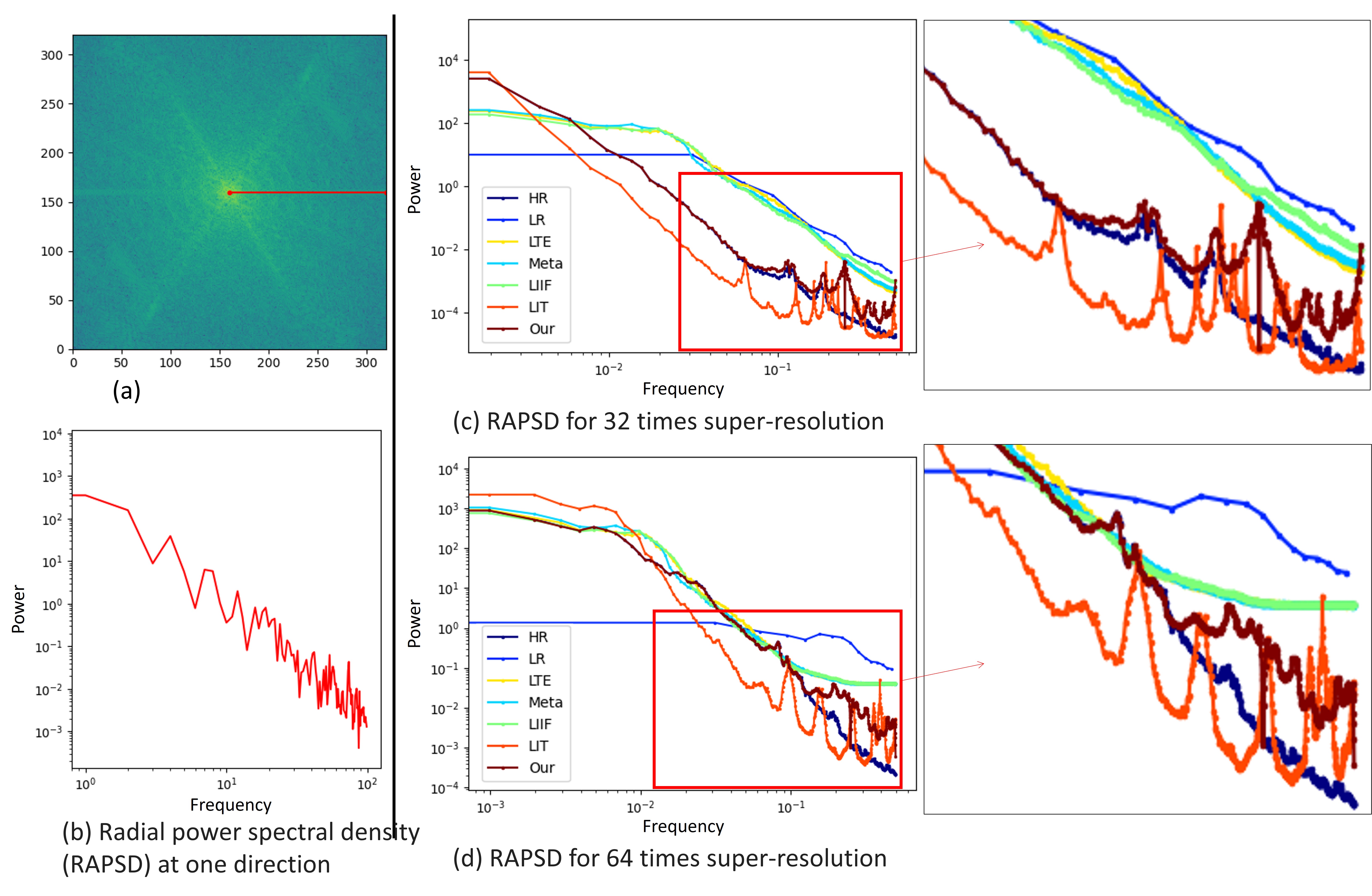

Frequency analysis via radial power spectral density (RAPSD) shows that the proposed method preserves high-frequency content that simpler approaches lose, matching the ground truth spectrum more closely.
The proposed method maintains the correct frequency spectrum. Competitors without this frequency-aware encoding produce outputs that are systematically too smooth, missing the sharp transitions and fine textures that characterize physical fields.
Comparing patches instead of pixels: stochastic cosine similarity
If you want a neural network to produce physically realistic fine details, you can't just compare its prediction to ground truth pixel-by-pixel. A pixel-level loss function like mean squared error will push the network toward a blurry average of many possible fine structures, which looks wrong to human eyes and doesn't capture the structural patterns of real physical fields. The paper recognizes that "perception is often preferred over distortion," meaning scientists care whether the fine-scale pattern looks and behaves like real physics, not just whether numbers match exactly.
The solution is stochastic cosine similarity (SCS), which compares local regions (patches) rather than individual points. Instead of asking "does prediction[pixel i] match ground_truth[pixel i]?", it asks "does the pattern of features in prediction[region j] match the pattern in ground_truth[region j]?" Cosine similarity measures how aligned two vectors are in direction, ignoring their magnitude. This encourages the network to get the structure right even if it's shifted slightly or scaled differently. Stochastic means you sample random patches during training, giving the network diverse supervision across the domain.

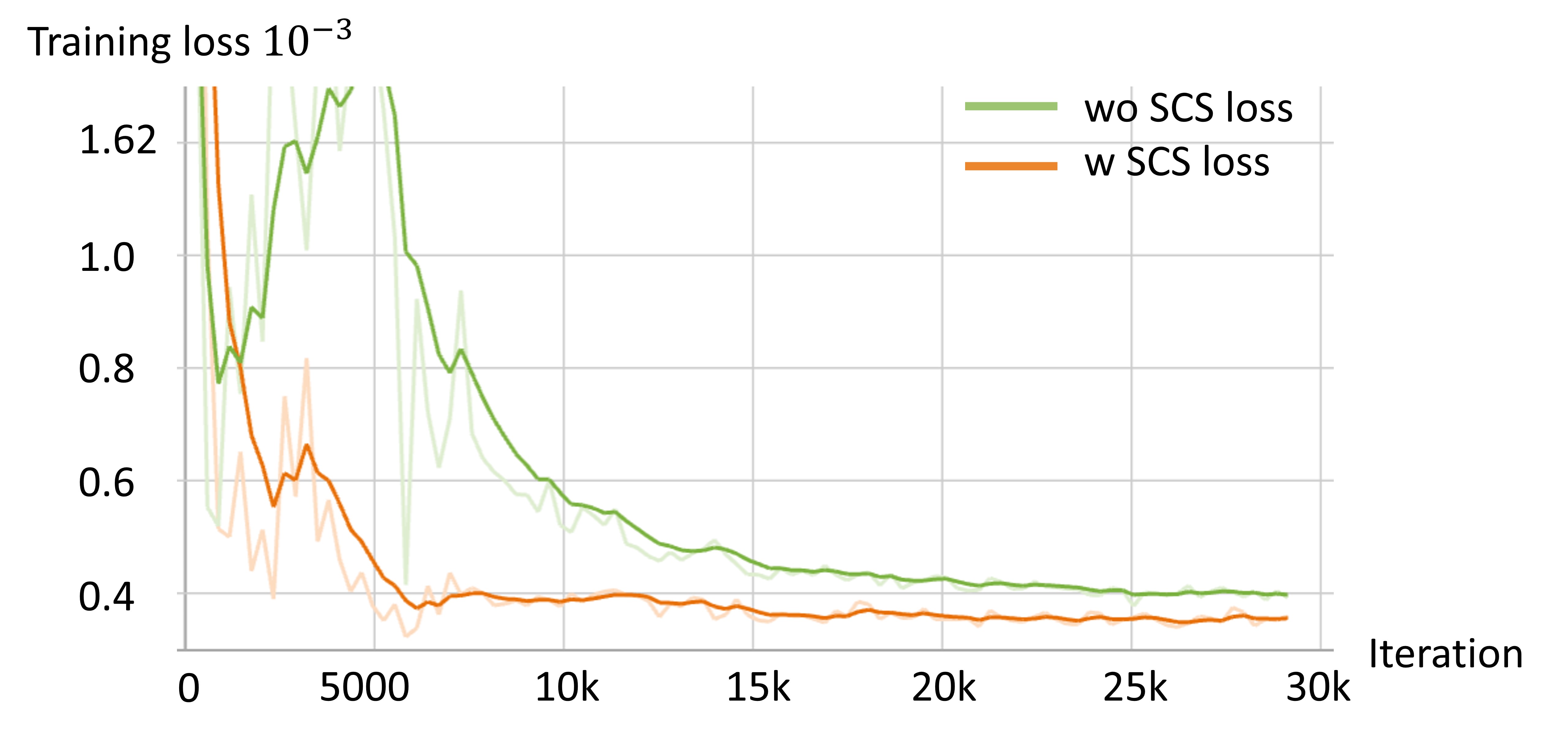

Training curves show that incorporating stochastic cosine similarity loss improves convergence and final reconstruction quality compared to standard pixel-level losses.
This is a subtle but important detail that bridges the gap between mathematical accuracy and visual/structural fidelity. A network optimized only for pixel-level MSE will produce outputs that look blurry but have low numerical error. A network optimized with SCS learns to preserve the local structure and patterns that make the field look physically plausible to human inspection and domain-expert evaluation.
In-distribution versus out-of-distribution: how far can the pattern generalize
There's a critical question hidden in every learning-based approach to scientific computing: how much can the network actually generalize? If you train on simulations with upsampling factor up to 16x, can it handle 32x? If you train on one type of material coefficient, can it work on completely different physical scenarios?
The distinction matters enormously. Any neural network can memorize training data. The real test of whether you've learned a physics-driven pattern, rather than just captured statistical artifacts of your training set, is whether it works on new configurations and extrapolation scenarios.
The experiments are structured to test both regimes carefully. The network trains on coarse-fine pairs with upsampling factors up to 16x. Then it's tested on 32x upsampling it never saw during training, as well as scenarios with different material properties represented by different coefficient maps. This tests not just the model's capacity to interpolate, but its ability to extrapolate the learned multiscale patterns.
Visual comparison shows the method handles both in-distribution cases (left, upsampling factor 16x) and out-of-distribution extrapolation (right, upsampling factor 32x). The reconstructed field structure remains recognizable even beyond the training regime.
The results show the method generalizes reasonably well out-of-distribution, though with some expected degradation as you push further from the training regime. This is the critical finding because it justifies calling this a "learned multiscale correction strategy" rather than just image super-resolution applied to finite element data. The network has learned something about how multiscale structure works in general, not just memorized specific examples.
To understand how the network adapts across different physical scenarios, the approach includes conditioning on material properties. By feeding different coefficient maps to the encoder, the network learns to adjust its multiscale correction strategy based on the physical parameters.
Conditional super-resolution demonstrates that the model adapts its correction pattern based on different coefficient maps and upsampling factors, showing learned flexibility across physical scenarios.
The network learns that different materials and heterogeneities require different fine-scale correction patterns, and it captures this adaptability in its weights.
What the numbers actually tell us
At the end, you need empirical validation: is this actually better than alternatives? How much better? The paper compares against other super-resolution methods, other learning approaches like basic neural networks and other implicit neural representation variants, and standard finite element upsampling baselines.
The comparison metrics matter enormously because, as noted earlier, pixel-level error doesn't capture what scientists actually care about. The paper includes both traditional metrics (mean squared error, mean absolute error) and perceptual metrics that measure whether the fine-scale structure aligns with ground truth.

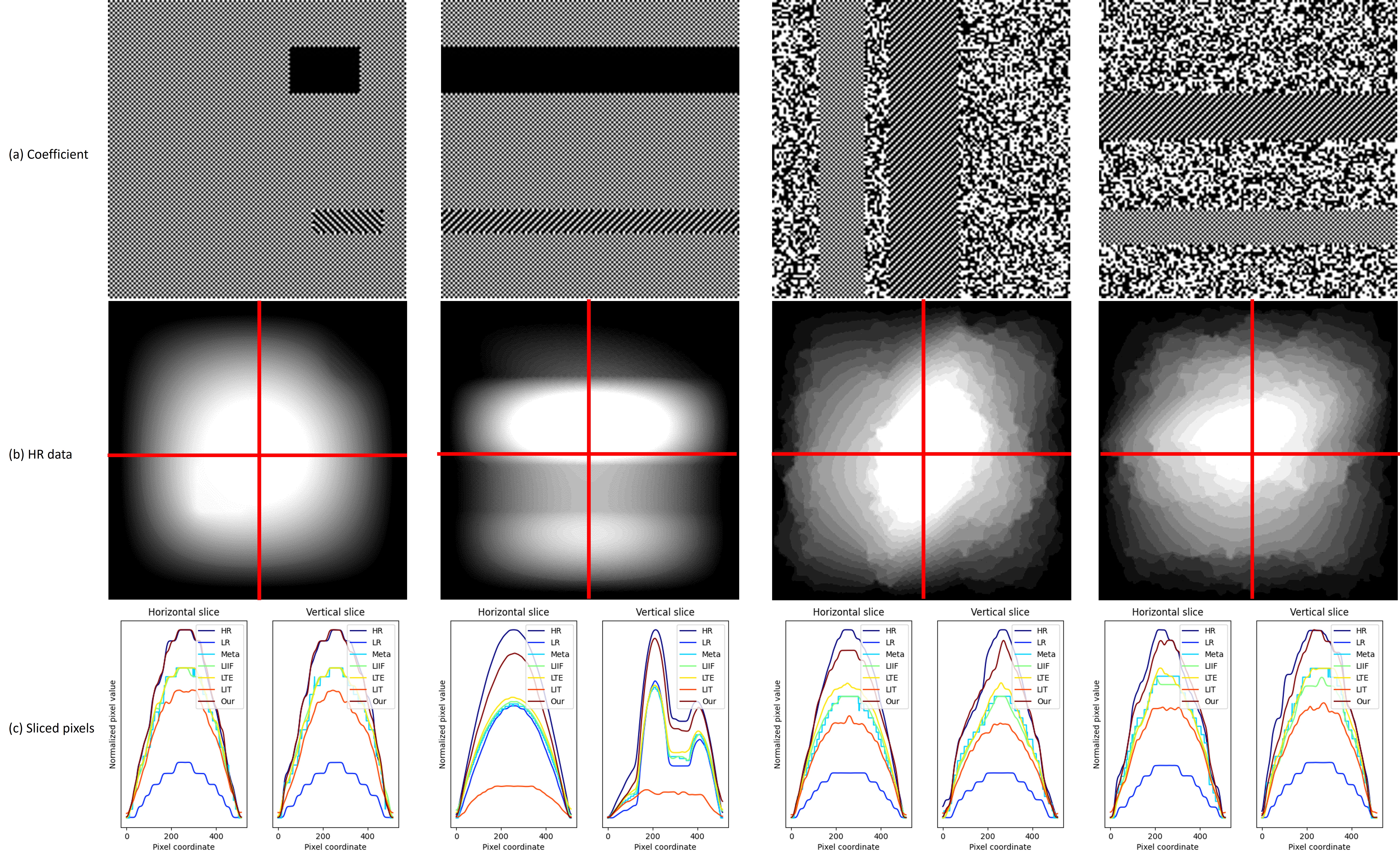

Sliced pixel comparisons show the proposed method follows sharp transitions and fine details more closely than competitors, especially at boundaries and high-frequency regions.
When you slice specific pixel sequences and compare methods, the proposed approach tracks the ground truth more faithfully than alternatives. Competitors either miss sharp transitions entirely or smear them out, while this method preserves fine structure with fidelity.

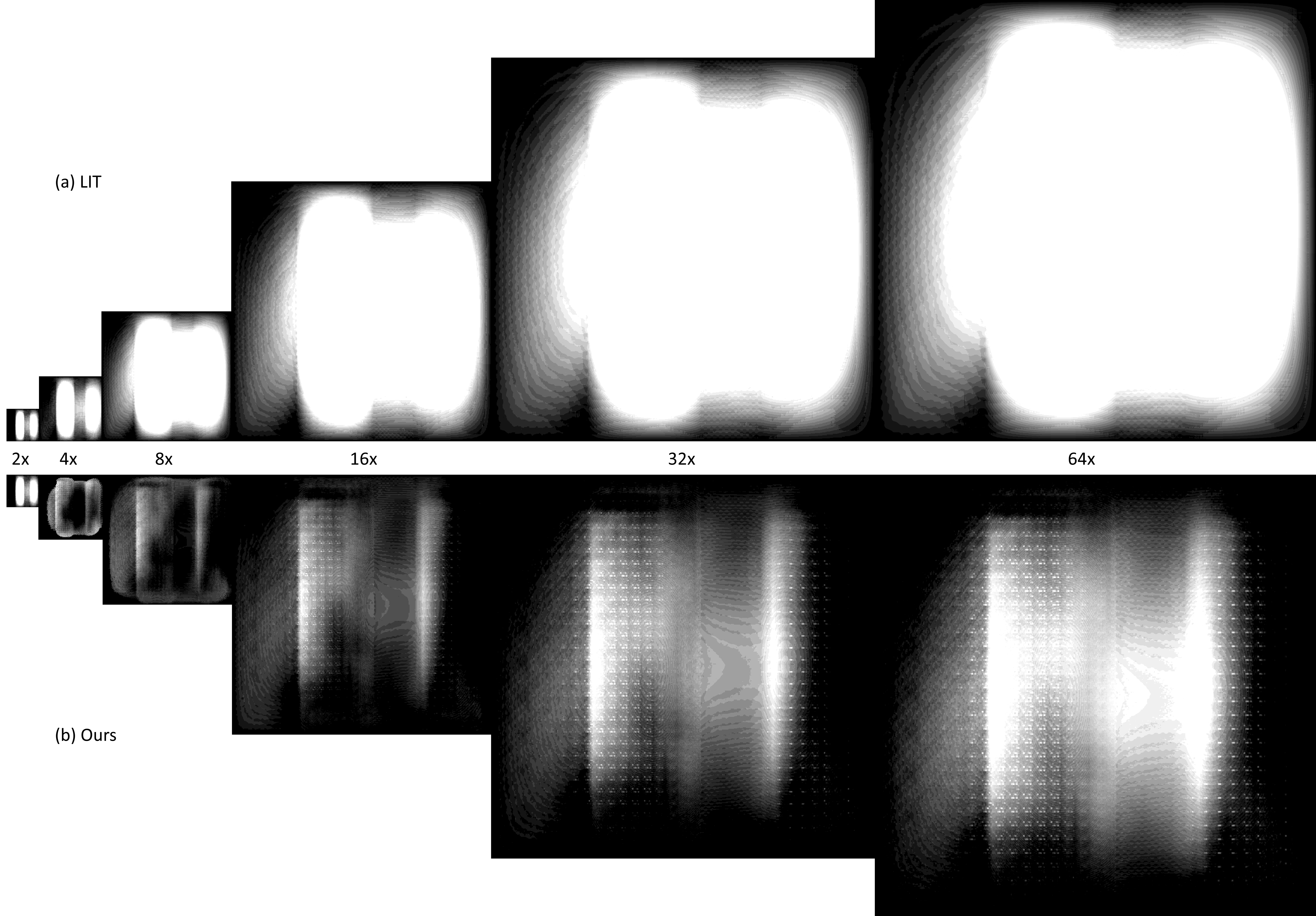

Residual visualizations reveal where the improvements are largest.
Residual differences between the proposed method and simpler local implicit transformer baselines show that gains are concentrated in high-frequency regions and sharp transitions.
The visualization multiplies residuals by 20 times for visibility, but the pattern is clear: the proposed method reduces errors especially where fine structure matters most, at boundaries and transitions between regions with different properties.
The paper also tests the method on real-world soil pattern data, demonstrating that the learned patterns transfer to actual scientific data beyond the synthetic training regime.

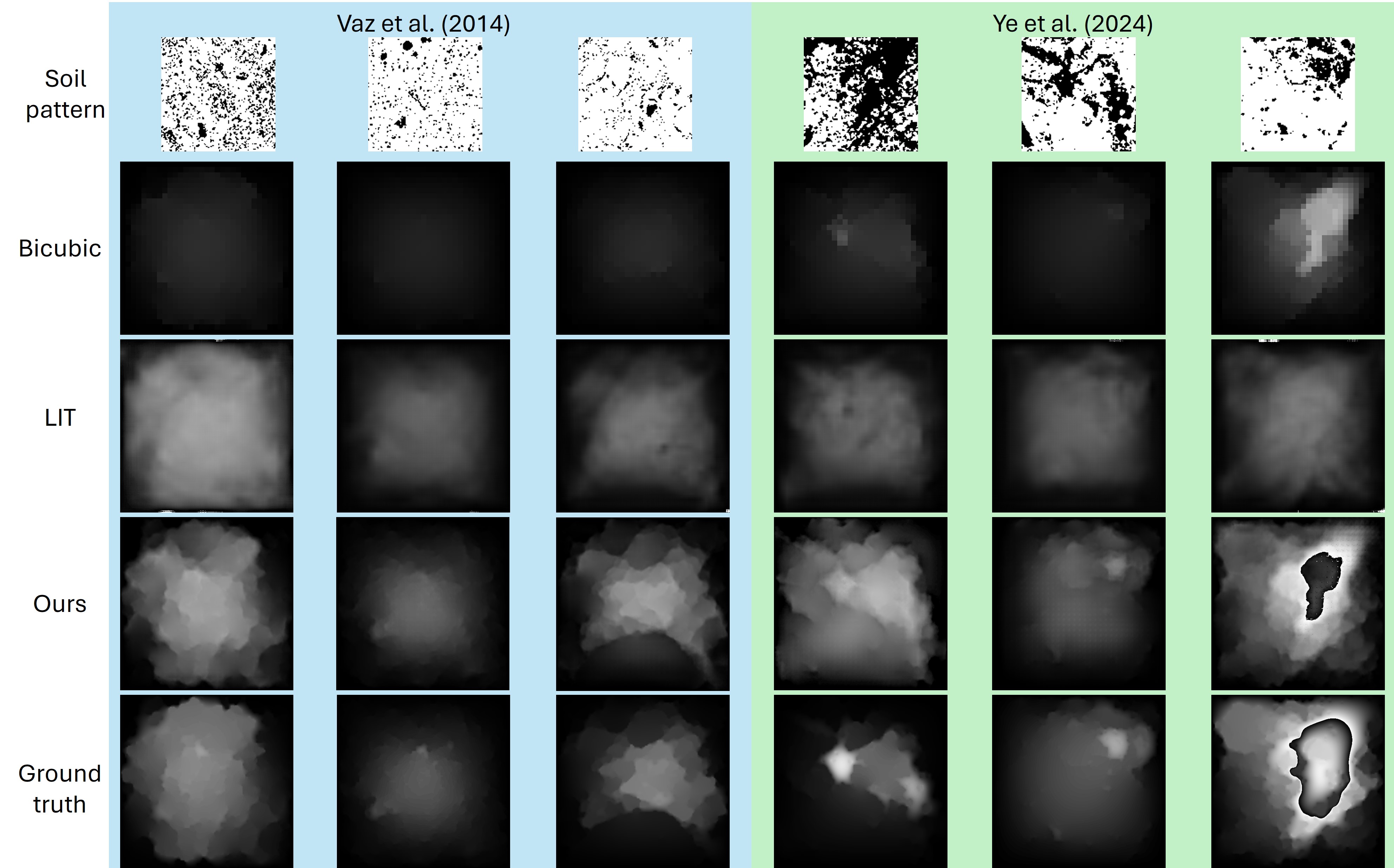

Real-world soil patterns show that the method generalizes to natural spatial heterogeneity, successfully reconstructing fine-scale structure from coarse observations.
This connection to real data is important because it grounds the work in practical utility. The method isn't just clever on carefully-curated synthetic examples; it works on the types of data scientists actually encounter.
Why this matters beyond the numbers
The paper ultimately succeeds because it solves a three-part problem elegantly. First, it reframes multiscale simulation as a learned-pattern problem, replacing hand-derived mathematical relationships with neural network induction from examples. Second, it builds neural network architecture specifically designed for multiscale structure: local implicit representations for continuous spatial prediction, transformers to learn long-range dependencies, and Gabor wavelets to overcome the frequency bias in neural networks. Third, it uses perceptual supervision via stochastic cosine similarity to ensure the learned patterns are physically meaningful, not just mathematically smooth.
The individual components are solid engineering. But their combination creates something genuinely useful: a system that learns a generalizable multiscale correction that works even on unseen scenarios, generating high-frequency details that reflect actual physics rather than neural network artifacts.
For scientists and engineers, this offers a practical advantage. Run expensive multiscale simulations once to train a network. Then use that network to quickly augment fast coarse simulations with plausible fine-scale structure. It's not a replacement for rigorous multiscale mathematics, but it's a powerful complement, trading theoretical guarantees for computational speed and practical effectiveness. In domains like material science, fluid dynamics, and geophysics, where multiscale phenomena dominate and compute resources are finite, this kind of learned correction becomes genuinely valuable.
