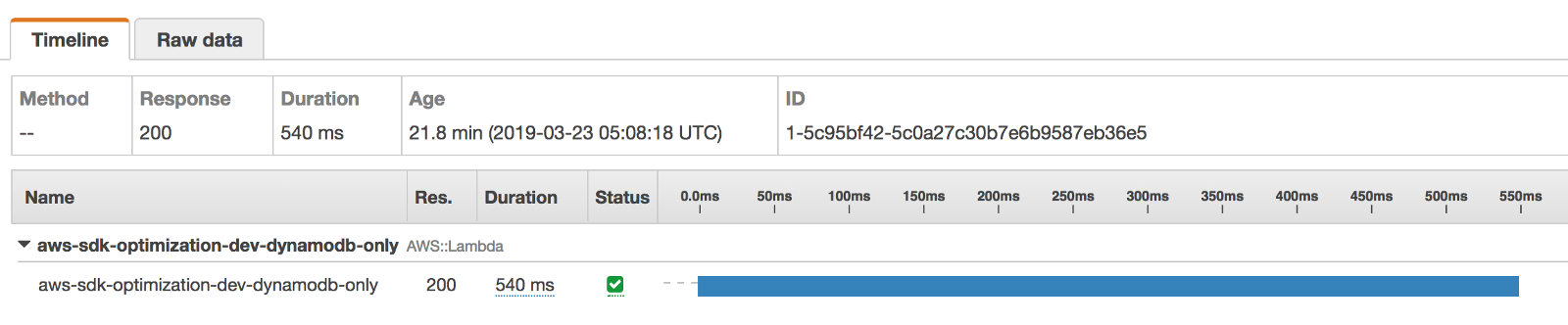

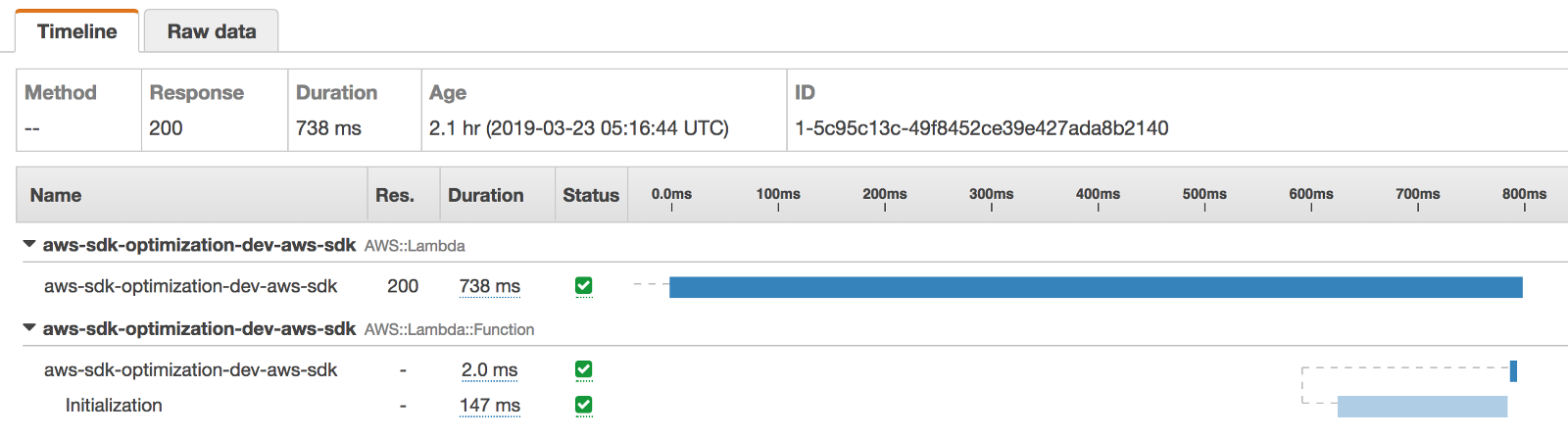

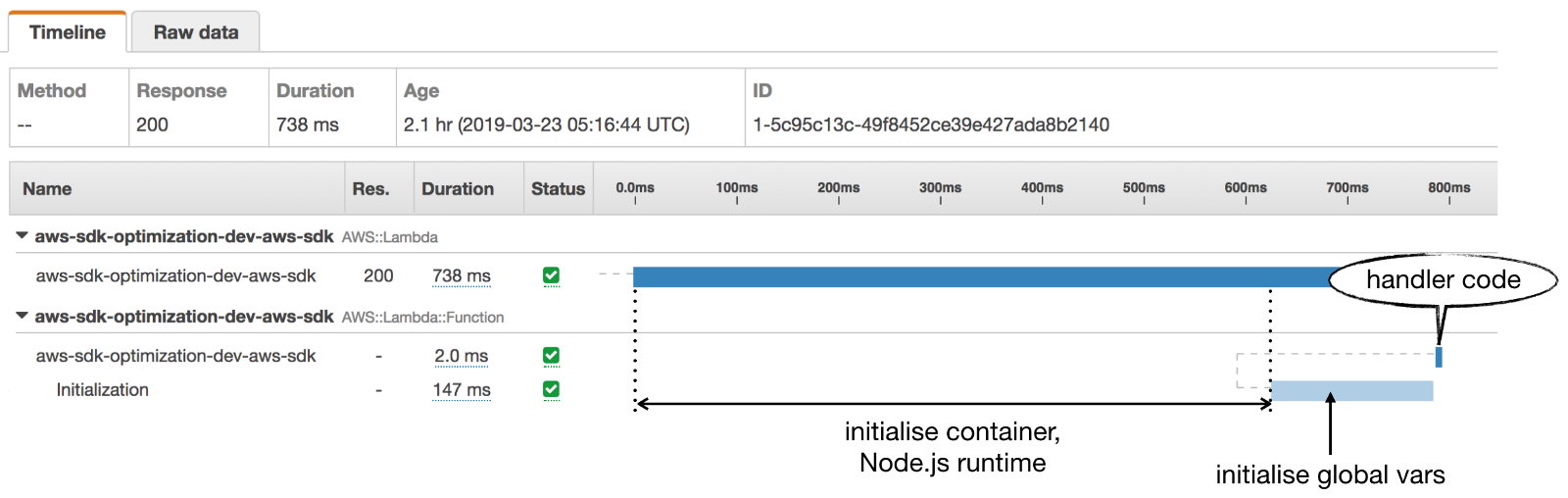

If you’re not familiar with how cold start works within the context of AWS Lambda, then read this post first. When a Node.js Lambda function cold starts, a number of things happen: the Lambda service has to find a server with enough capacity to host the new container the new container is initialized the Node.js runtime is initialized your handler module is initialized, which includes initializing any global variables and functions you declare outside the handler function If you enable active tracing for a Lambda function, you will be able to see how much time is spent on these steps in X-Ray. Unfortunately, the time it takes to initialize the container and the Node.js runtime are not recorded as segments. But you can work out from the difference in durations. Here, refers to the time it takes to initialize the handler module. Initialization The above trace is for the function below, which requires the AWS SDK and nothing else. As you can see, this simple added 147ms to the cold start. require const AWS = require('aws-sdk')module.exports.handler = async () => {} Consider this the cost of doing business when your function needs to interact with AWS resources. But, if you only need to interact with one service (e.g. DynamoDB), you can save some initialization time with this one-liner. const DynamoDB = require('aws-sdk/clients/dynamodb')const documentClient = new DynamoDB.DocumentClient() It requires the DynamoDB client directly without initializing the whole AWS SDK. I ran an experiment to see how much cold start time you can save with this simple change. Credit goes to my colleague Justin Caldicott for piquing my interest and doing a lot of the initial analysis. In addition to the AWS SDK, we often require the XRay SDK too and use it to auto-instrument the AWS SDK. Unfortunately, the package also has some additional baggages that we don’t need. By default it supports Express.js apps, MySQL and Postgres. If you are only interested in instrumenting the AWS SDK and / modules then you only need the . aws-xray-sdk http https aws-xray-sdk-core Methodology I tested a number of configurations: no AWS SDK requiring only the DynamoDB client requiring the full AWS SDK requiring the XRay SDK only (no AWS SDK) requiring the XRay SDK and instrumenting the AWS SDK requiring the XRay SDK Core and instrumenting the AWS SDK requiring the XRay SDK Core and instrumenting only the DynamoDB client Each of these functions are traced by X-Ray. Sample rate set to 100% so we don’t miss anything. We are only interested in the duration of the segment as it corresponds to the time for initializing these dependencies. Initialization The case is our control group. We can see how much time each additional dependency adds to our duration. no AWS SDK Initialization To collect a statistically significant sample set of data, I decided to automate the process using Step Functions. The state machine takes an input . { functionName, count } The step adds the current UTC timestamp to the execution state. This is necessary as we need the start time of the experiment to fetch the relevant traces from X-Ray. SetStartTime The step triggers the desired number of cold starts for the specified function. To trigger cold starts, I programmatically updates an environment variable before invoking the function. That way, I ensure that every invocation is a cold start. Loop The step makes sure that all the traces are published to XRay before we attempt to analyze them. Wait30Seconds The step fetches all the relevant traces in XRay and outputs several statistics around the duration. Analyze Initialization Each configuration is tested over 1000 cold starts. Occasionally the XRay traces are incomplete (see below). These incomplete traces are excluded in the step. Analyze where is the AWS::Lambda:Function segment? Each configuration is also tested with WebPack as well (using the plugin). serverless-webpack Thanks to Erez Rokah for the suggestion. The Results These are the time for all the test cases. Initialization Key observations: WebPack improves the time across the board. Initialization Without any dependencies, time averages only 1.72ms without WebPack and 0.97ms with WebPack. Initialization Adding AWS SDK as the only dependency adds an average of 245ms without WebPack. This is fairly significant. Adding WebPack doesn’t improve things significantly either. Requiring only the DynamoDB client (the one-liner change discussed earlier) saves up to 176ms! In 90% of the cases, the saving was over 130ms. With WebPack, the saving is even more dramatic. The cost of requiring the XRay SDK is about the same as AWS SDK. There’s no statistically significant difference between using the full XRay SDK and XRay SDK Core. With or without WebPack. Hi, my name is . I’m an and the author of . I have run production workload at scale in AWS for nearly 10 years and I have been an architect or principal engineer with a variety of industries ranging from banking, e-commerce, sports streaming to mobile gaming. I currently work as an independent consultant focused on AWS and serverless. Yan Cui AWS Serverless Hero Production-Ready Serverless You can contact me via , and . Email Twitter LinkedIn Check out my new course, . Complete Guide to AWS Step Functions In this course, we’ll cover everything you need to know to use AWS Step Functions service effectively. Including basic concepts, HTTP and event triggers, activities, design patterns and best practices. Get your copy . here Come learn about operational for AWS Lambda: CI/CD, testing & debugging functions locally, logging, monitoring, distributed tracing, canary deployments, config management, authentication & authorization, VPC, security, error handling, and more. BEST PRACTICES You can also get off the face price with the code . 40% ytcui Get your copy . here
