IMPROVED LATHE CHUCK.

The annexed engravings represent a new lathe chuck, which may be constructed of any size, which holds tools with great firmness, and which is provided with an improved device for taking up wear and for the separate adjustment of the jaws. The implement is made of the best steel, by special machinery, so that its parts are interchangeable.


VINTON'S LATHE CHUCK.

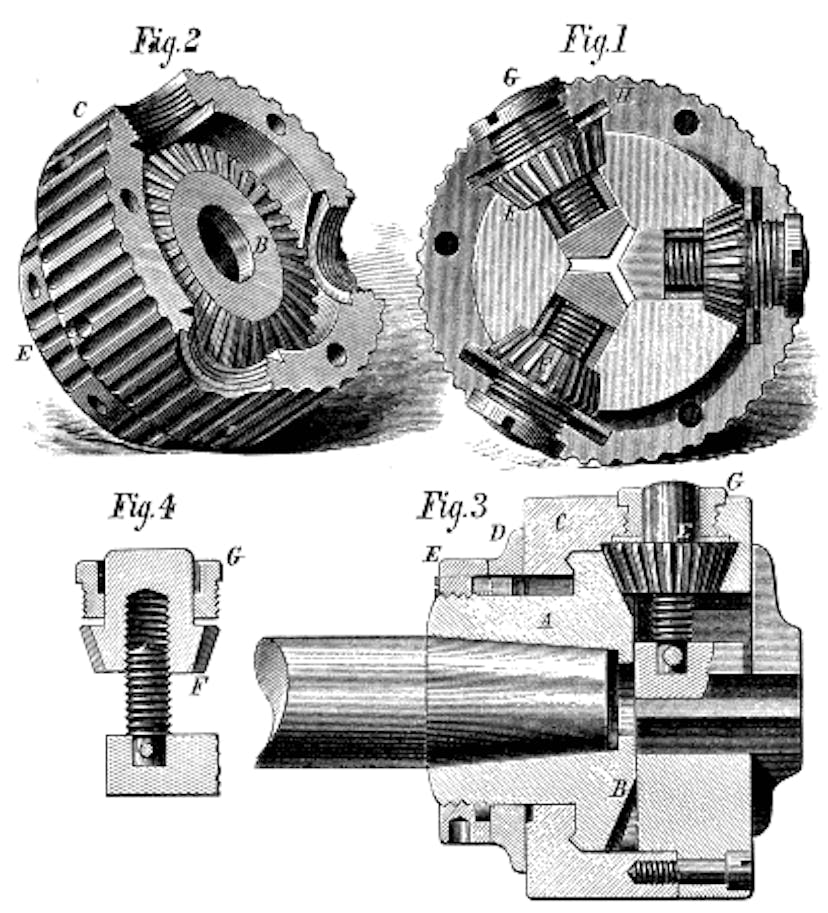

Figs. 1 and 2 represent the chuck taken apart so as to exhibit the interior. Figs. 3 and 4 are sectional views. A is a collar which encircles the spindle, and has formed on its outer face a bevel gear wheel, B. C, Fig. 3, is the rear portion of the shell of the chuck inclosing the forward part of the collar, A. Also on said collar, A, is a washer, D, which rests against the shell, C, and a nut, E, which travels on a thread formed on the collar. As it is necessary, as will be explained further on, to turn the entire shell in order to move the jaws, the use of the nut just described is to jam the part, C, and the enlarged portion of the collar, A, tightly together, and so rigidly hold the jaws in any position in which they may be adjusted. Fig. 1 represents the outer face of the chuck with the jaws and their working mechanism. Within the chuck, each jaw has attached to it a screw, E. This enters a bevel wheel, F. As the jaws are incapable of any but radial motion, it follows that, when the chuck is rotated bodily and the bevel wheels engage on the motionless gear wheel, B, the effect of the rotation of said bevel wheels is to cause the jaws to travel toward or from the center of the chuck face. And it will be further clear that this motion must be simultaneous in all the jaws. As the outer portion of the chuck is rigidly secured to the shell, C, by screws, of course when that shell is jammed, as already stated, by the nut, E, it becomes impossible to turn the chuck bodily; and hence the bevel wheels cannot be rotated around the main gear wheel, and consequently the position of the jaws cannot be altered. The above comprises the mechanism proper of the device, that is to say, all that is necessary for moving or clamping the jaws.


There is, however, another feature of considerable importance yet to be described, and that is the device for taking up any play of the jaws due to wear, and which enables each to be adjusted so that the motion of all may be uniform. By referring to Fig. 4, it will be seen that, above the bevel wheel, there is a projection, into the threaded interior of which, as already explained, the jaw screw enters. Surrounding this projection is a sleeve, G, the outer surface of which is threaded to fit a similarly threaded aperture, cut partly in the shell and partly in the face plate. The upper portion of the sleeve is notched to receive a wrench or driver; and beneath the sleeve an armed washer, H, is slipped over the projection. The arms of this washer enter recesses in the face plate. It will be evident that, by turning the sleeve, F, so that the screw works inward, the jaw and all its appendages will be moved bodily in corresponding direction. But its movement is limited by the arms of the washer, G, which, through the narrowness of the recesses, are allowed only just enough play to compensate for slight changes in the jaw. As the above device is applied to every jaw, it follows that any one of them may be nicely adjusted from the outside, so that all are caused to grasp the tool accurately. The spindle, instead of being solid as represented, may be made hollow. Patented to J.H. Vinton, August 18, 1874. For further information, address the manufacturer, Mr. F. Armstrong, Bridgeport, Conn.
