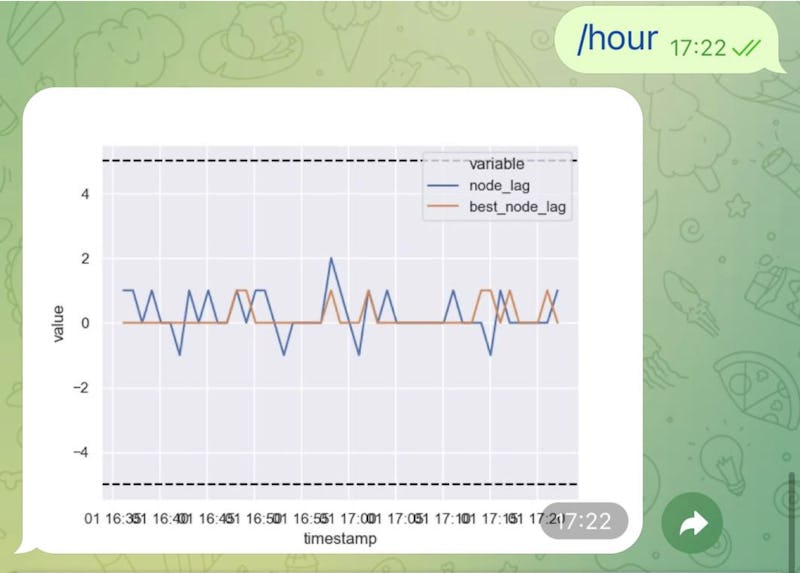

Hello everyone! In the previous articles ( and ), I described my experience with the development of an alerting and state checking system for a service operating on a remote server, with communication occurring through a Telegram bot. This way of communication is convenient because the phone with Telegram is always at hand, and sometimes it's even too much effort to take out the laptop when you can quickly check everything in Telegram. part 1 part 2 In this part, I will describe the process of regularly collecting data and forming graphs on the functioning of the service, which can also be obtained through the bot. After a couple of days of using the service described in previous articles, I felt the need to also get graphs directly in Telegram, rather than going for the laptop, opening csv files in Jupyter notebook, etc. And I thought, why not do it? I had doubts that the graphs would not look very good if created blindly, automatically. For instance, labels might overlap with lines or axes. But in the end, using the Seaborn library instead of the usual Matplotlib, without any special settings, it is possible to achieve quite decent graphs. Let's start as usual with creating a virtual environment: cd ~ virtualenv -p python3.8 up_env source ~/up_env/bin/activate and installing the necessary dependencies: pip install python-telegram-bot pip install "python-telegram-bot[job-queue]" --pre pip install --upgrade python-telegram-bot==13.6.0 pip install numpy pip install seaborn pip install web3 # add here anything you need As in the previous article, the file does not undergo any changes in this case and remains the same: functions.py import numpy as np import multiprocessing from web3 import Web3 # add those libraries needed for your task # Helper function that checks a single node def get_last_block_once(rpc): try: w3 = Web3(Web3.HTTPProvider(rpc)) block_number = w3.eth.block_number if isinstance(block_number, int): return block_number else: return None except Exception as e: print(f'{rpc} - {repr(e)}') return None # Main function to check the status of the service that will be called def check_service(): # pre-prepared list of reference nodes # for any network, it can be found on the website https://chainlist.org/ list_of_public_nodes = [ 'https://polygon.llamarpc.com', 'https://polygon.rpc.blxrbdn.com', 'https://polygon.blockpi.network/v1/rpc/public', 'https://polygon-mainnet.public.blastapi.io', 'https://rpc-mainnet.matic.quiknode.pro', 'https://polygon-bor.publicnode.com', 'https://poly-rpc.gateway.pokt.network', 'https://rpc.ankr.com/polygon', 'https://polygon-rpc.com' ] # parallel processing of requests to all nodes with multiprocessing.Pool(processes=len(list_of_public_nodes)) as pool: results = pool.map(get_last_block_once, list_of_public_nodes) last_blocks = [b for b in results if b is not None and isinstance(b, int)] # define the maximum and median value of the current block med_val = int(np.median(last_blocks)) max_val = int(np.max(last_blocks)) # determine the number of nodes with the maximum and median value med_support = np.sum([1 for x in last_blocks if x == med_val]) max_support = np.sum([1 for x in last_blocks if x == max_val]) return max_val, max_support, med_val, med_support A significant difference from the two previous scripts to launch the bot is that to create a graph and then send it through the bot, you first need to collect data, or rather, collect it at some regularity. Since, unlike alerting, here I want the data to be written regardless of the operability of the bot itself (for example, downtime during bot updates), the script for data collection will be put into a separate file and will be run through cron at some regularity. So, the code for the data collection script : data_collection.py import datetime import csv # Import necessary functions from functions import get_last_block_once, check_service # File path for logging LOG_FILE = '../logs.csv' # Address of the node whose state I am monitoring (public node in this case) OBJECT_OF_CHECKING = 'https://polygon-mainnet.chainstacklabs.com' # Function to save one measurement to a CSV file def save_log(log_data): with open(LOG_FILE, mode='a', newline='') as log_file: log_writer = csv.writer(log_file) log_writer.writerow(log_data) if __name__ == '__main__': # Call the main function for checking the network state max_val, max_support, med_val, med_support = check_service() # Call the function for checking the state of the node being monitored last_block = get_last_block_once(OBJECT_OF_CHECKING) # Current date and time timestamp_string = datetime.datetime.now().strftime("%Y-%m-%d %H:%M:%S") # Formulate data string and save to file log_data = [timestamp_string, max_val, max_support, med_val, med_support, last_block] save_log(log_data) This script is run through cron with a regularity, for example, every 5 minutes. To open cron settings: crontab -e In the settings file, we save the line to run the script in the created environment, and separately log errors in another file: up_env * * * * * cd ~; source up_env/bin/activate; cd /path/to/script; python data_collection.py >> ~/collect.log 2>&1 As stated in the file, data will be saved in the file. We will use them to build graphs. Now let's move on to the script describing the work of the Telegram bot. Import the necessary dependencies and set the constants: data_collection.py ../logs.csv import telegram from telegram.ext import Updater, CommandHandler, Filters # For reading data and building charts import pandas as pd import seaborn as sns import matplotlib.pyplot as plt import datetime import io # Here I can specify a limited circle of bot users by listing their usernames ALLOWED_USERS = ['your_telegram_account', 'someone_else'] # The node address whose status I am tracking (also a public node in this case) OBJECT_OF_CHECKING = 'https://polygon-mainnet.chainstacklabs.com' # Threshold for highlighting critical lag THRESHOLD = 5 # Data file LOG_FILE = '../logs.csv' We describe a function that collects a graph and sends it to the user: def send_pics(update, context, interval): try: # Get the user user = update.effective_user # Filter out bots (just in case) if user.is_bot: return # Check if the user is in the allowed list username = str(user.username) if username not in ALLOWED_USERS: return except Exception as e: print(f'{repr(e)}') return # Read data from a file (file does not have a header) df = pd.read_csv(LOG_FILE, header=None, names=[ 'timestamp_string', 'max_val', 'max_support', 'med_val', 'med_support', 'block_number' ]) # Convert a string to a date/time type df['timestamp'] = pd.to_datetime(df['timestamp_string']) # Determine the starting point from which the data will be reflected on the graph now = datetime.datetime.now() # Multiple intervals are available - week, day, hour if interval == 'week': one_x_ago = now - datetime.timedelta(weeks=1) elif interval == 'day': # day one_x_ago = now - datetime.timedelta(days=1) else: one_x_ago = now - datetime.timedelta(hours=1) # Filter the dataframe df = df[df['timestamp'] >= one_x_ago] # Create columns with lags for the selected node and for the node with the highest block value cols_to_show = ['node_lag', 'best_node_lag'] df['node_lag'] = df['block_number'] - df['med_val'] df['best_node_lag'] = df['max_val'] - df['med_val'] # Create a graph with seaborn plt.figure() sns.set(rc={'figure.figsize': (11, 4)}) # set figure size sns.lineplot(x='timestamp', y='value', hue='variable', data=df[['timestamp']+cols_to_show].melt('timestamp', var_name='variable', value_name='value')) # Add a "corridor" for easier comparison with the threshold plt.axhline(y=THRESHOLD, color='black', linestyle='--') plt.axhline(y=-THRESHOLD, color='black', linestyle='--') # Save the image to a buffer buf = io.BytesIO() plt.savefig(buf, format='png') buf.seek(0) # Send the image to the user context.bot.send_photo(chat_id=user.id, photo=buf) # "Close" the graph object plt.close() In this case, in the code, you can choose intervals for display: hour day week Their selection is carried out through the corresponding bot commands , , , which look like this in the code: /hour /day /week # Handler for the command to display the chart for the last hour def hour(update, context): send_pics(update, context, 'hour') # Handler for the command to display the chart for the last day def day(update, context): send_pics(update, context, 'day') # Handler for the command to display the chart for the last week def week(update, context): send_pics(update, context, 'week') All that remains is to initialize the bot and "bind" the commands to their handlers: # Your Telegram bot token obtained through BotFather token = "xxx" # Create a bot instance bot = telegram.Bot(token=token) updater = Updater(token=token, use_context=True) dispatcher = updater.dispatcher # Connect command handlers to the bot's commands dispatcher.add_handler(CommandHandler("hour", hour, filters=Filters.chat_type.private)) dispatcher.add_handler(CommandHandler("day", day, filters=Filters.chat_type.private)) dispatcher.add_handler(CommandHandler("week", week, filters=Filters.chat_type.private)) # Start the bot updater.start_polling() In addition to this, for convenience, you can add real buttons for commands via BotFather. Finally the result looks like this: PS . I noticed that the labels under the time axis were overlapping, but this problem can be easily solved by adding a rotation of 15 degrees with the command "plt.xticks(rotation=15)", executed after plotting the graphs. That's all, if there are any questions, I will be glad to answer them. The source code of the project is available in the on GitHub. If this tutorial seemed useful to you, feel free to put a star on GitHub, I would appreciate it 🙂 repository
