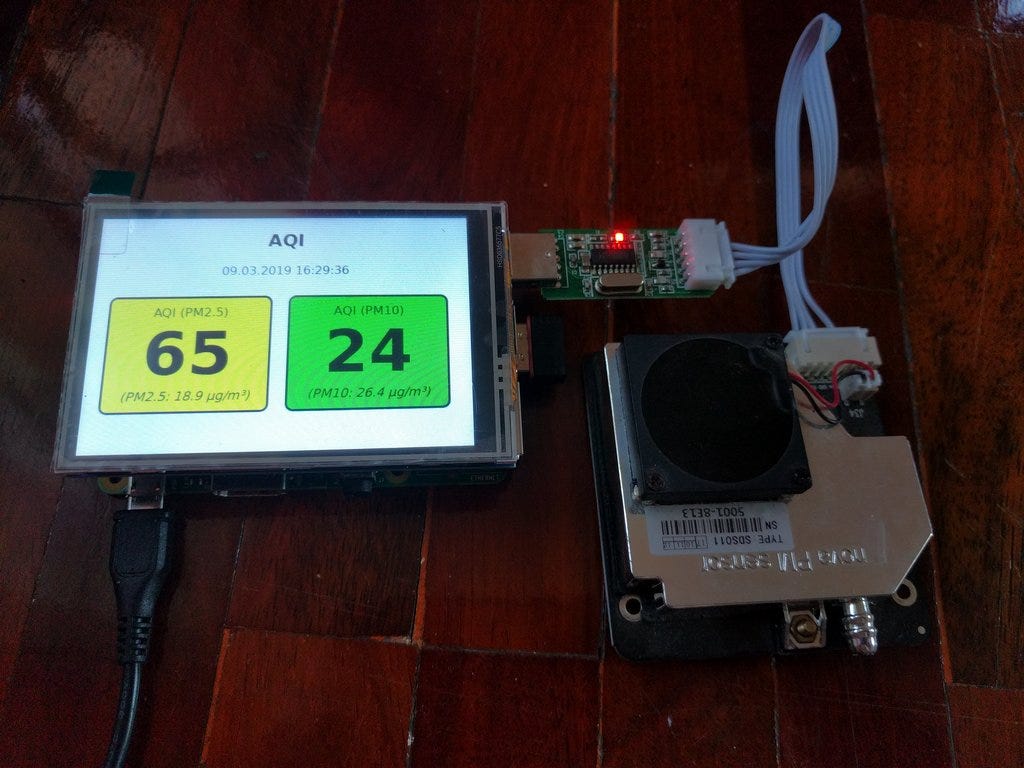

About a year ago I wrote about with a Raspberry Pi and a cheap sensor. Make sure to read that article first! We’ve been using this setup in our school and privately for a few years now. However, this project has one disadvantage: it is not portable, but depends on a WLAN network or a wired network connection. You actually cannot access the measurements if the Raspberry Pi and the smartphone or computer are not in the same network. That’s why some time ago we added a small screen to the Raspberry Pi so that you can read the values directly from the device. How to set up this screen for our mobile fine particulate matter sensor and which additional configurations are necessary, I would like to describe in this article. how to measure the air quality Setting up the screen for the Raspberry Pi On or AliExpress there are different displays for the Raspberry Pi. These range from ePaper screens to LCDs with touch function. We chose a with touch, that has a resolution of 320×480 pixels (model MPI3501). You can simply plug this screen onto the GPIO pins. It costs only 10–20$. It’s also nice that a 3,5″ display is about the same size like a Raspberry Pi. Amazon 3,5″ LCD If you put on the screen and start the Raspberry Pi, the screen stays white. That normal, because the driver is missing. You have to install the appropriate drivers for the display first. To do this, log in via SSH and execute the following commands: $ rm -rf LCD-show$ git clone $ chmod -R 755 LCD-show$ cd LCD-show/ https://github.com/goodtft/LCD-show.git Depending on the screen model you have to execute the appropriate command to install the drivers. In our case (for the model MPI3501): $ sudo ./LCD35-show This command installs the appropriate drivers and then restarts the Raspberry Pi. Installing the Pixel Desktop and Setting Up Autostart Here is what we want: if the Raspberry Pi boots up we want to display our small website with the measurements. So first you have to install the pixel desktop environment (if you have used Raspian Lite before) with $ sudo apt install raspberrypi-ui-mods Then the Chromium browser (we need it to display the website): $ sudo apt install chromium-browser By default, the autologin is not configured for the user “pi”. However, this is necessary so that the measured values can be displayed directly after the start. Otherwise you will only see the login screen. You can configure the autologin with the tool: raspi-config In the menu select . 3 Boot Options → B1 Desktop / CLI → B4 Desktop Autologin There is one step missing to start chromium right after bootup with our website. Create the folder : /home/pi/.config/lxsession/LXDE-pi/ $ mkdir -p /home/pi/config/lxsession/LXDE-pi/ Then create the file in this folder. autostart $ nano /home/pi/.config/lxsession/LXDE-pi/autostart and paste the following code: #@unclutter@xset s off@xset -dpms@xset s noblank # Open Chrome in full screen mode after boot@chromium-browser — incognito — kiosk http://localhost If you want to hide the mouse pointer, you have to install the package and remove the comment character at the beginning of the file: unclutter autostart $ sudo apt install unclutter Since I made a few small changes to the code last year, it is recommended to re-download the script and the files of the AQI website (see the for how to do this). original article Conclusion With the touch screen added you now have a mobile particulate matter sensor! We use it at our school to check the quality of the air in the classrooms or to do comparative measurements. With this setup, you are no longer dependent on a network connection or WLAN. You can use the small measuring station everywhere — with a power bank even independent of the power grid. Originally published at openschoolsolutions.org .
