One of the roles of the Kubernetes controller is to monitor objects for the desired vs actual states and then send requests to change the existing state to the desired state at a controlled rate. The controller requests the Kubernetes API server to retrieve an object’s information. However, frequently retrieving data from the API server is costly and time-consuming. This is where Informer comes in, It is a client-side library that continuously watches for Kubernetes resources and keeps an in-memory copy of resources, which a given index can retrieve. But how is it different from the raw watch command? Informers and watch both use resourceVersion to keep track of the objects. If you run a command kubectl get pod <pod-name> -o yaml you will notice a field called resourceVersion. apiVersion: v1
kind: Pod
metadata:
  annotations:
    cni.projectcalico.org/podIP: 192.168.62.137/32
    kubernetes.io/psp: node-exporter
  creationTimestamp: "2021-12-12T14:35:11Z"
  labels:
    run: redis
  name: redis
  namespace: default
  resourceVersion: "39593432"
  uid: 233eaa4e-600f-4169-a617-538e5cbaa750 Informers use watch streams to get real-time updates. They relist all the objects periodically and store them in a cache while raw watch operations don't provide caching. You'd need to implement your own caching and event handling. Additionally, missing events are probable in the case of using just a raw watch. For instance, we set up a watch operation to monitor Kubernetes jobs. If a network partition occurs, temporarily disconnecting our watch from the Kubernetes API server, we might miss critical events. During this disconnection, a job could be created and then quickly deleted. Once the network connection is restored, our watch operation resumes, but it has no way of knowing about the job that was briefly created and deleted during the outage.  In this case, the informer would come in handy. SharedInformer As various controllers may be watching over a particular resource and each controller has its informer, which maintains its cache, this could lead to synchronization issues. To solve this problem, it is usually recommended to use sharedInformers as they have a shared cache that multiple controllers can use. In SharedInformers, only one watch is opened on the Kubernetes API server regardless of the number of consumers, without adding extra overhead. The implementation of informers is present in the client-go library. It is the official client library used internally by Kubernetes itself.  Now let’s take a look at the components of SharedIndexInformer which is an instantiation of SharedInformer consisting of add and get Indexers ability (Indexer is a storage interface that lets you list objects using multiple indexing functions). type SharedIndexInformer interface {
    SharedInformer
    // AddIndexers add indexers to the informer before it starts.
    AddIndexers(indexers Indexers) error
    GetIndexer() Indexer
} The recommended way to create an informer is using sharedInformerFactory. Below is an example code that will create and start a pod Informer. factory := informers.NewSharedInformerFactory(client, 10*time.Minute)
podsInformer := factory.Core().V1().Pods().Informer()

stopCh := make(chan struct{})
factory.Start(stopCh) Components of sharedIndexInformer Reflector The reflector consists of the ListerWatcher interface and thus opens a stream to check for events and proactively sends requests over regular intervals. // ListerWatcher is any object that knows how to perform an initial list and start a watch on a resource.
// /tools/cache/listwatch.go
type ListerWatcher interface {
Lister
Watcher

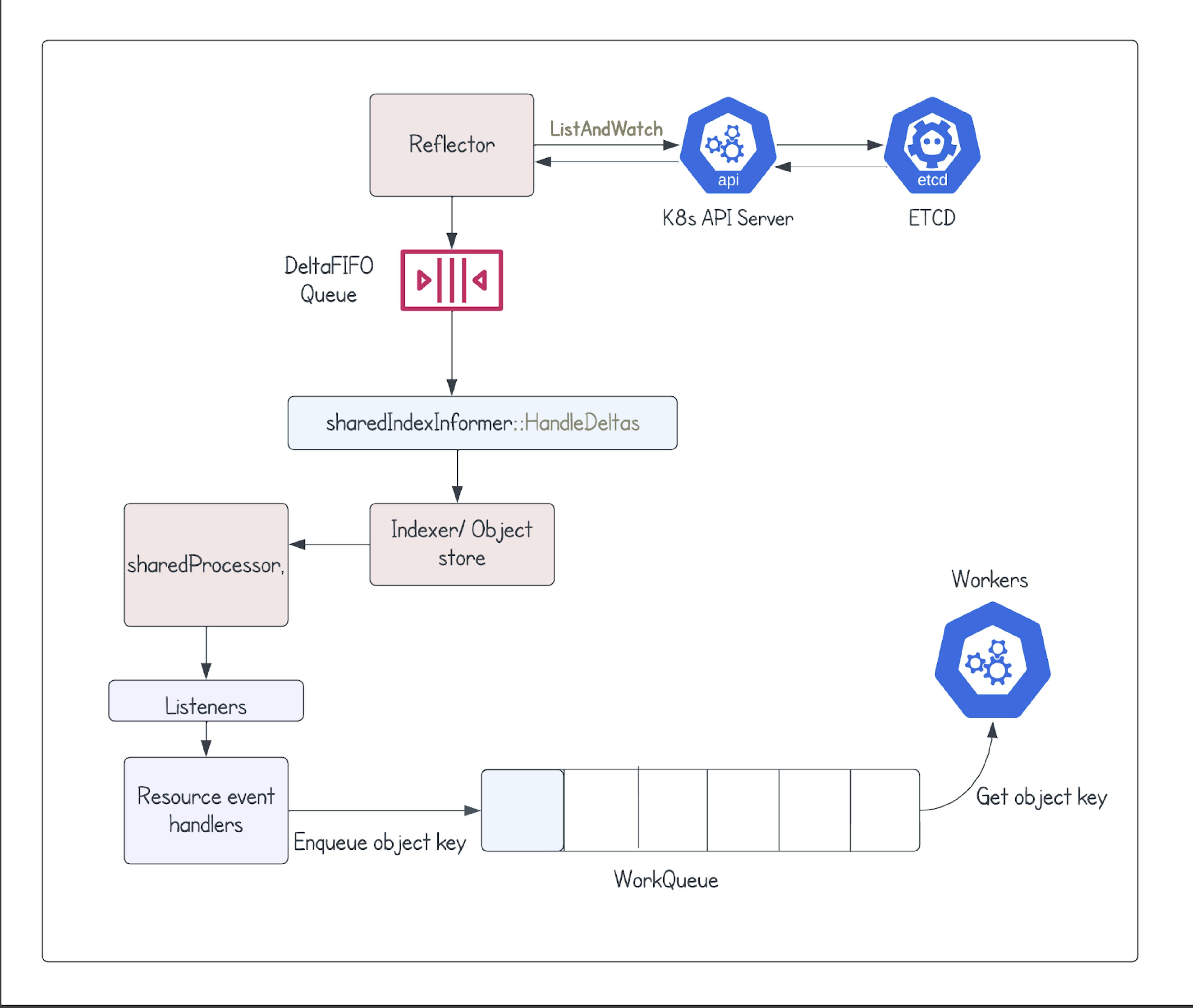

} This ensures the controller is not only edge (event) triggered but also level triggered, so if an event is missed, it doesn’t affect the environment. You can learn more about edge and level-triggered logic from James Bowes’s article - “Level Triggering and Reconciliation in Kubernetes”. Delta FIFO The Reflector uses Delta FIFO queues to store information about state changes. It is the main channel between the Reflector and the Indexer. It contains the changed object and type of the change/Delta (Added, Updated, Deleted, Replaced, and Sync) and ensures no duplicates. Indexer Indexer is a local storage for storing resource objects with its indexing feature; it helps reduce the number of API calls made to etcd. The Indexer implements thread-safe operations, allowing concurrent reads and serialized writes. SharedProcessor SharedProcessor distributes the information to all registered event handlers Finally, here is an overview of the function calls involved after invoking SharedInformer: Feel free to reach out if you have any questions :) One of the roles of the Kubernetes controller is to monitor objects for the desired vs actual states and then send requests to change the existing state to the desired state at a controlled rate. The controller requests the Kubernetes API server to retrieve an object’s information. Kubernetes However, frequently retrieving data from the API server is costly and time-consuming. This is where Informer comes in, It is a client-side library that continuously watches for Kubernetes resources and keeps an in-memory copy of resources, which a given index can retrieve. But how is it different from the raw watch command? Informers and watch both use resourceVersion to keep track of the objects. If you run a command kubectl get pod <pod-name> -o yaml you will notice a field called resourceVersion. kubectl get pod <pod-name> -o yaml apiVersion: v1
kind: Pod
metadata:
  annotations:
    cni.projectcalico.org/podIP: 192.168.62.137/32
    kubernetes.io/psp: node-exporter
  creationTimestamp: "2021-12-12T14:35:11Z"
  labels:
    run: redis
  name: redis
  namespace: default
  resourceVersion: "39593432"
  uid: 233eaa4e-600f-4169-a617-538e5cbaa750 apiVersion: v1
kind: Pod
metadata:
  annotations:
    cni.projectcalico.org/podIP: 192.168.62.137/32
    kubernetes.io/psp: node-exporter
  creationTimestamp: "2021-12-12T14:35:11Z"
  labels:
    run: redis
  name: redis
  namespace: default
  resourceVersion: "39593432"
  uid: 233eaa4e-600f-4169-a617-538e5cbaa750 Informers use watch streams to get real-time updates. They relist all the objects periodically and store them in a cache while raw watch operations don't provide caching. You'd need to implement your own caching and event handling. Additionally, missing events are probable in the case of using just a raw watch. For instance, we set up a watch operation to monitor Kubernetes jobs. If a network partition occurs, temporarily disconnecting our watch from the Kubernetes API server, we might miss critical events. During this disconnection, a job could be created and then quickly deleted. Once the network connection is restored, our watch operation resumes, but it has no way of knowing about the job that was briefly created and deleted during the outage.  In this case, the informer would come in handy. SharedInformer As various controllers may be watching over a particular resource and each controller has its informer, which maintains its cache, this could lead to synchronization issues. To solve this problem, it is usually recommended to use sharedInformers as they have a shared cache that multiple controllers can use. In SharedInformers, only one watch is opened on the Kubernetes API server regardless of the number of consumers, without adding extra overhead. The implementation of informers is present in the client-go library. It is the official client library used internally by Kubernetes itself.  Now let’s take a look at the components of SharedIndexInformer which is an instantiation of SharedInformer consisting of add and get Indexers ability (Indexer is a storage interface that lets you list objects using multiple indexing functions). client-go type SharedIndexInformer interface {
    SharedInformer
    // AddIndexers add indexers to the informer before it starts.
    AddIndexers(indexers Indexers) error
    GetIndexer() Indexer
} type SharedIndexInformer interface {
    SharedInformer
    // AddIndexers add indexers to the informer before it starts.
    AddIndexers(indexers Indexers) error
    GetIndexer() Indexer
} The recommended way to create an informer is using sharedInformerFactory . sharedInformerFactory Below is an example code that will create and start a pod Informer. factory := informers.NewSharedInformerFactory(client, 10*time.Minute)
podsInformer := factory.Core().V1().Pods().Informer()

stopCh := make(chan struct{})
factory.Start(stopCh) factory := informers.NewSharedInformerFactory(client, 10*time.Minute)
podsInformer := factory.Core().V1().Pods().Informer()

stopCh := make(chan struct{})
factory.Start(stopCh) Components of sharedIndexInformer Reflector The reflector consists of the ListerWatcher interface and thus opens a stream to check for events and proactively sends requests over regular intervals. // ListerWatcher is any object that knows how to perform an initial list and start a watch on a resource.
// /tools/cache/listwatch.go
type ListerWatcher interface {
Lister
Watcher
} // ListerWatcher is any object that knows how to perform an initial list and start a watch on a resource.
// /tools/cache/listwatch.go
type ListerWatcher interface {
Lister
Watcher
} This ensures the controller is not only edge (event) triggered but also level triggered, so if an event is missed, it doesn’t affect the environment. You can learn more about edge and level-triggered logic from James Bowes’s article - “ Level Triggering and Reconciliation in Kubernetes ”. Level Triggering and Reconciliation in Kubernetes Delta FIFO The Reflector uses Delta FIFO queues to store information about state changes. It is the main channel between the Reflector and the Indexer. It contains the changed object and type of the change/Delta (Added, Updated, Deleted, Replaced, and Sync) and ensures no duplicates. Indexer Indexer is a local storage for storing resource objects with its indexing feature; it helps reduce the number of API calls made to etcd. The Indexer implements thread-safe operations, allowing concurrent reads and serialized writes. SharedProcessor SharedProcessor distributes the information to all registered event handlers Finally, here is an overview of the function calls involved after invoking SharedInformer: Finally, here is an overview of the function calls involved after invoking SharedInformer: Feel free to reach out if you have any questions :)
