Continuous delivery of react app with Jenkins and Docker

It’s the second part of article — React app from scratch. I’ll show you how to create a CD process to make your app better from scratch.

Before we start I’ll put useful links.

First part of article:

Other my article — how to start using Docker:

If your project is open source — you can use Travis CI. You just need to create .travis.yml like this:

language: node_js
node_js:
- "8"
- "9"
script:
- npm test

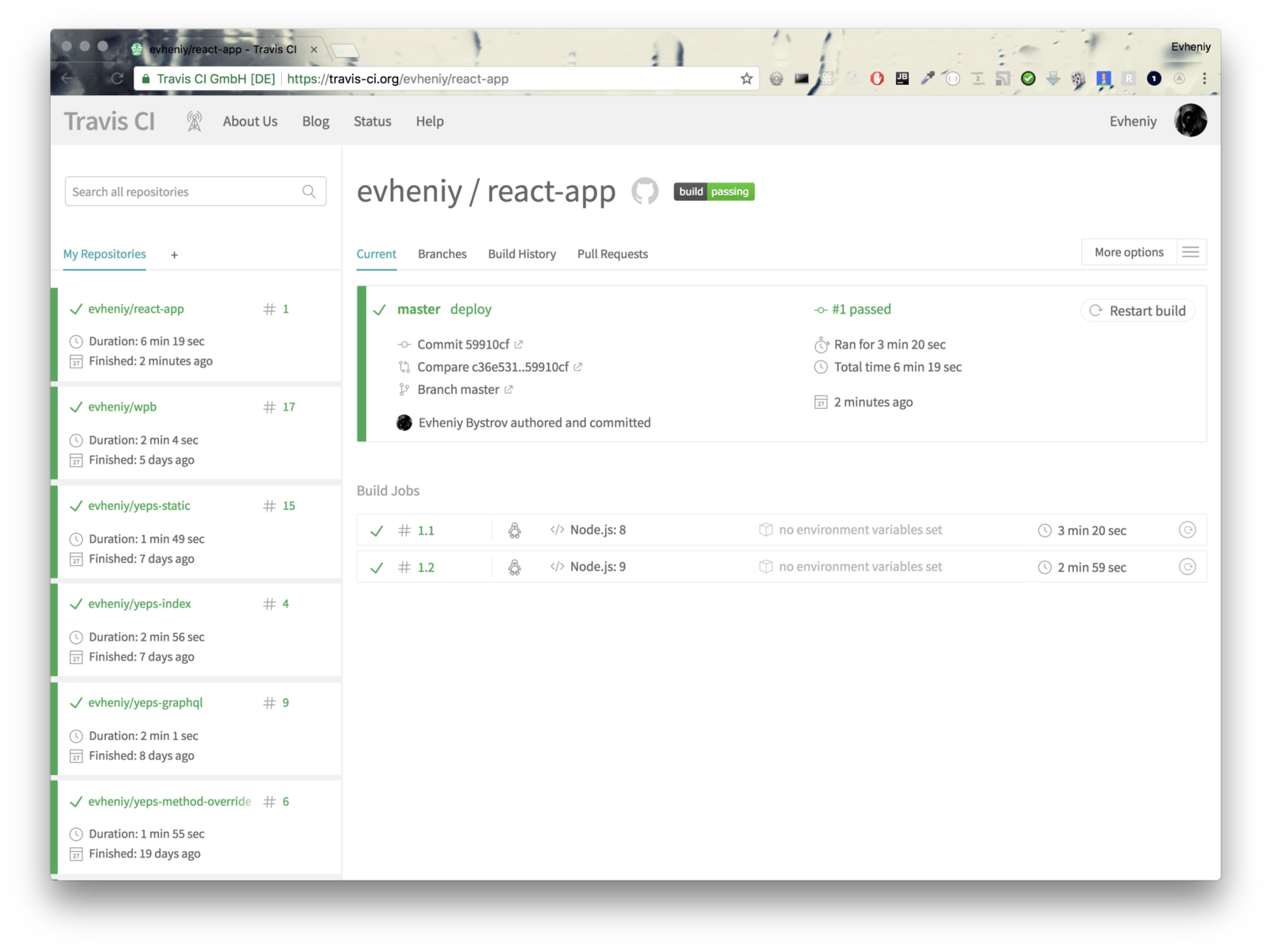

And see result:

But I want to show you how to create CI/CD environment from scratch.

We will use Jenkins with Docker. Jenkins has official image on docker hub.

All configs you can find on github: https://github.com/evheniy/react-app/tree/master/jenkins

Jenkins

To run Jenkins using official image from docker hub we need to run next command:

docker run --name jenkins -p 8080:8080 jenkins

But we need to store our data if we need to update image or restart container. So we need to map volume to host machine:

docker run -p 8080:8080 -v $PWD/jenkins:/var/jenkins_home jenkins

We will use docker not only for running Jenkins. With docker we can run docker registry and we can test and create images for our react app.

Registry

To run docker registry using docker image on docker hub run:

docker run -d -p 5000:5000 --restart always --name registry registry

To push a new image to registry use next commands:

docker pull ubuntu
docker tag ubuntu localhost:5000/ubuntu
docker push localhost:5000/ubuntu

Docker compose

To run registry with Jenkins I’ll use docker-compose.

But before I’ll create Dockerfile for Jenkins. We need it for running docker inside docker.

touch Dockerfile

And put:

FROM jenkins/jenkins:lts

USER root

Here I use latest image of Jenkins and run it as root.

Now we are ready to use docker-compose.

Let’s create docker-compose file for running Jenkins and docker repository in one command:

touch docker-compose.yml

And one more. As we need to run docker inside docker we need to add more volumes. But first run command:

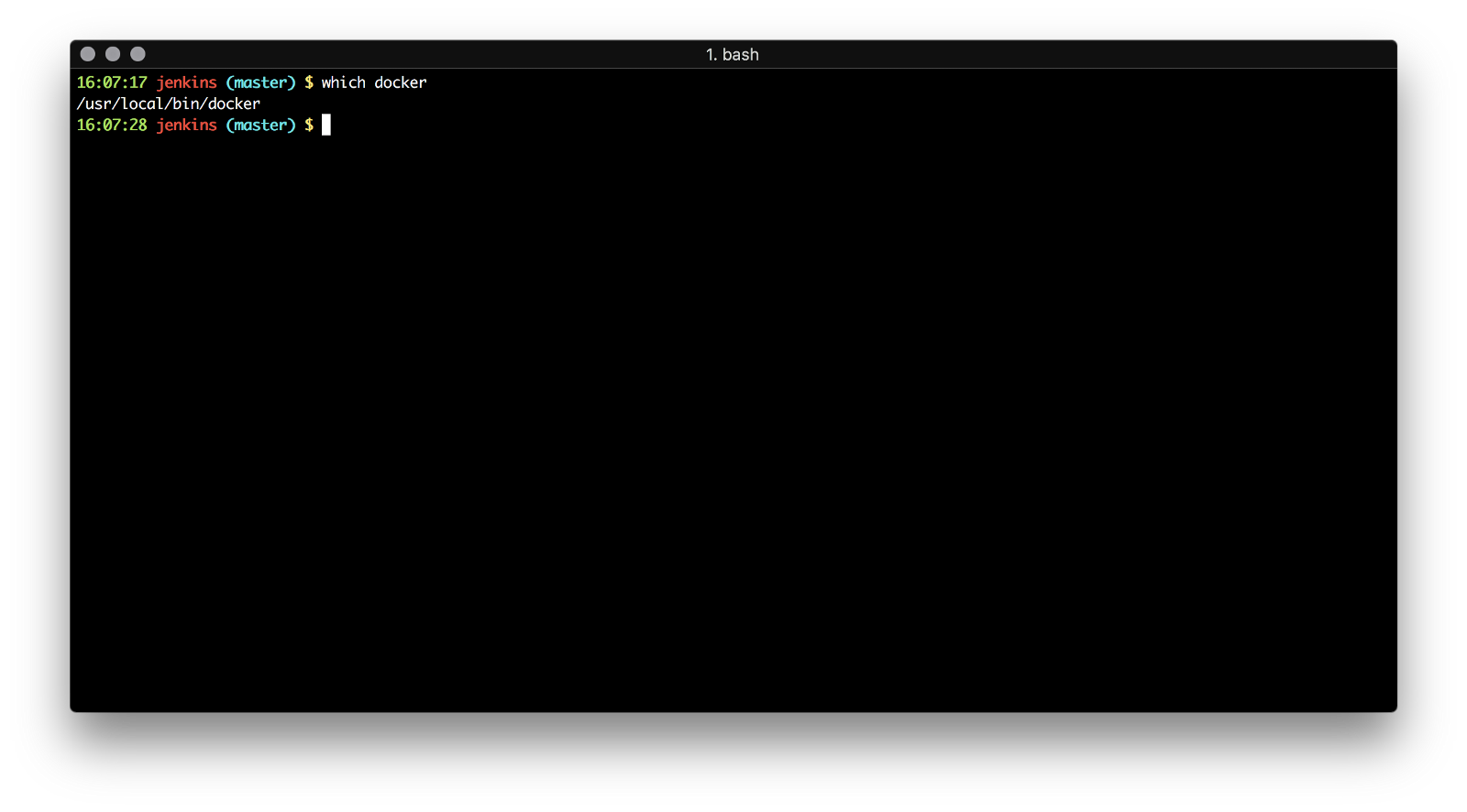

which docker

And put next code:

version: '3'

services:

jenkins:
build:
.
container_name: jenkins
privileged: true
restart: always
ports:
- 8080:8080
volumes:
- ./jenkins_home:/var/jenkins_home
- /var/run/docker.sock:/var/run/docker.sock
- /usr/local/bin/docker:/usr/bin/docker

registry:
image:
registry
container_name: registry
restart: always
ports:
- 5000:5000

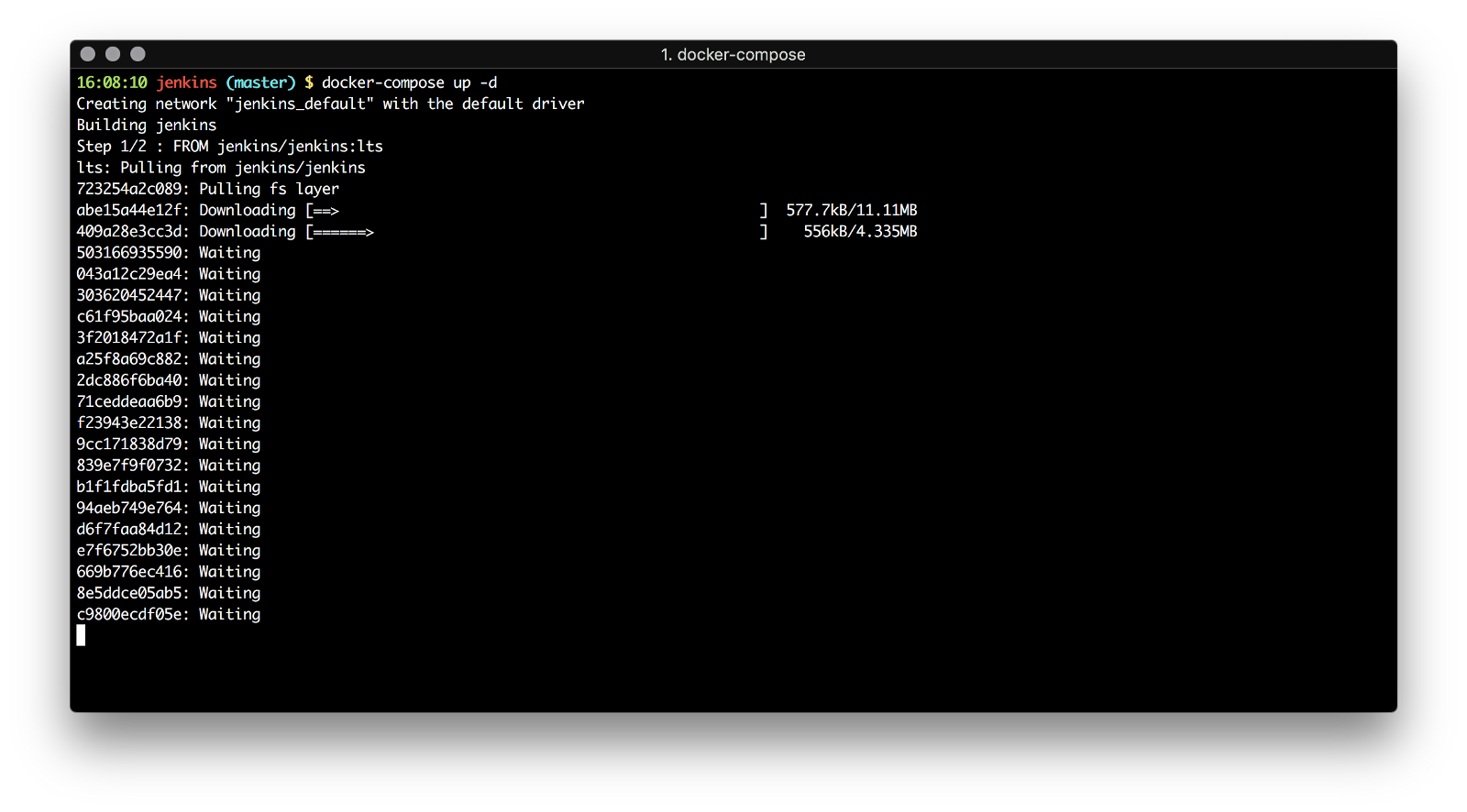

To run it use

docker-compose up -d

And to stop:

docker-compose stop

To bring everything down (with volumes):

docker-compose down --volumes

Or if you want to remove docker images:

docker-compose down --rmi all

So let’s run it and configure Jenkins to use pipeline.

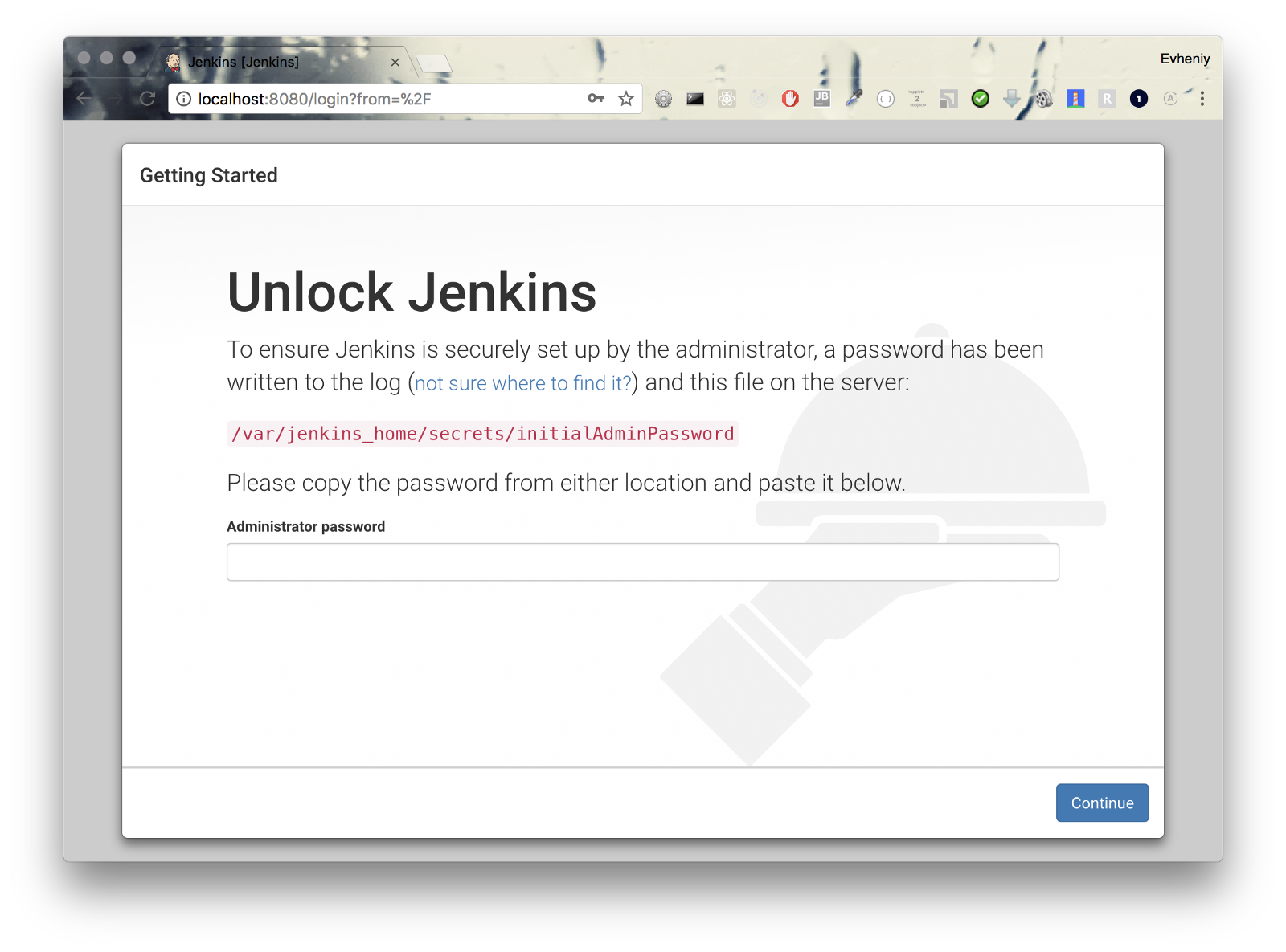

Open http://localhost:8000/:

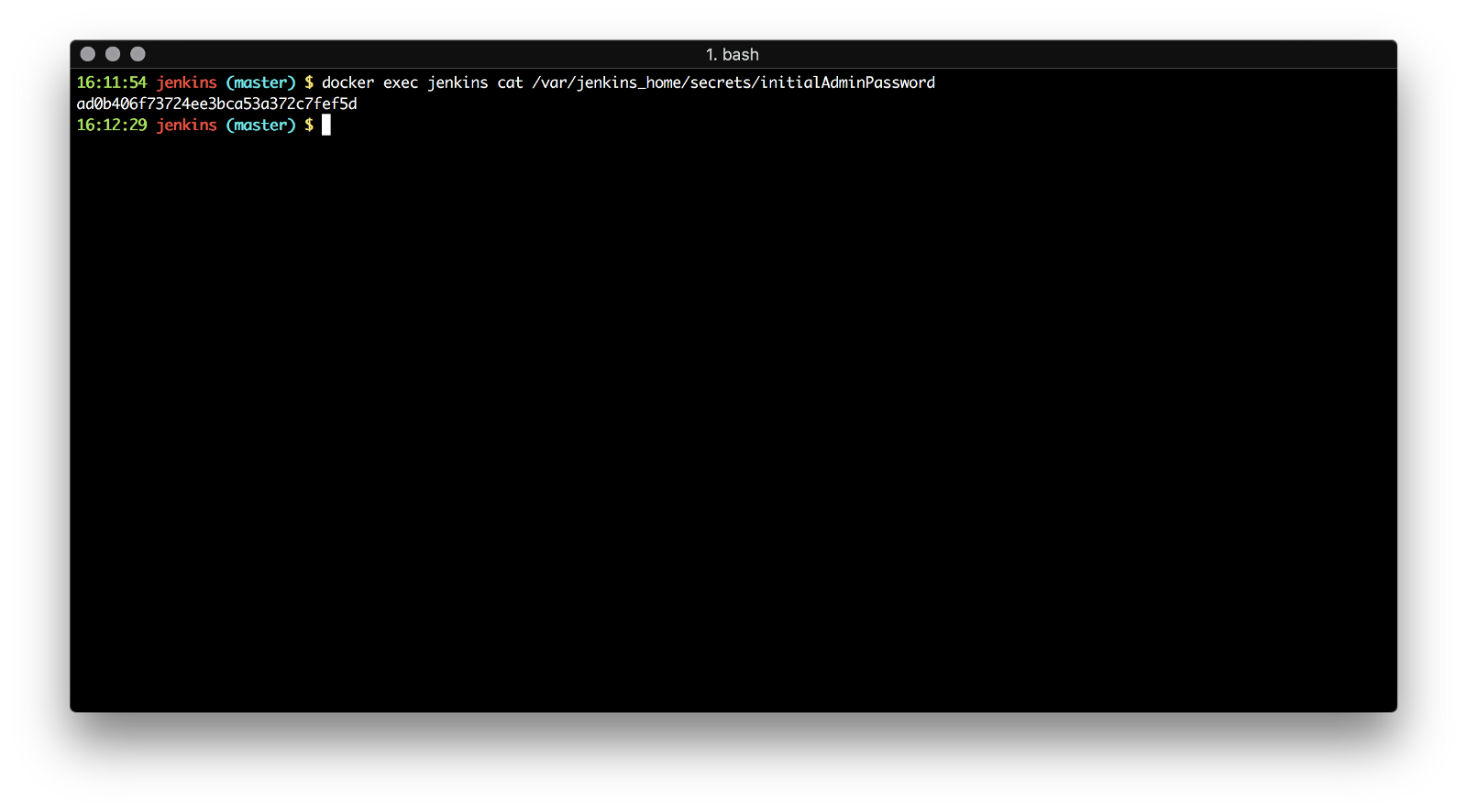

To see the password just run (we need it only once):

docker exec jenkins cat /var/jenkins_home/secrets/initialAdminPassword

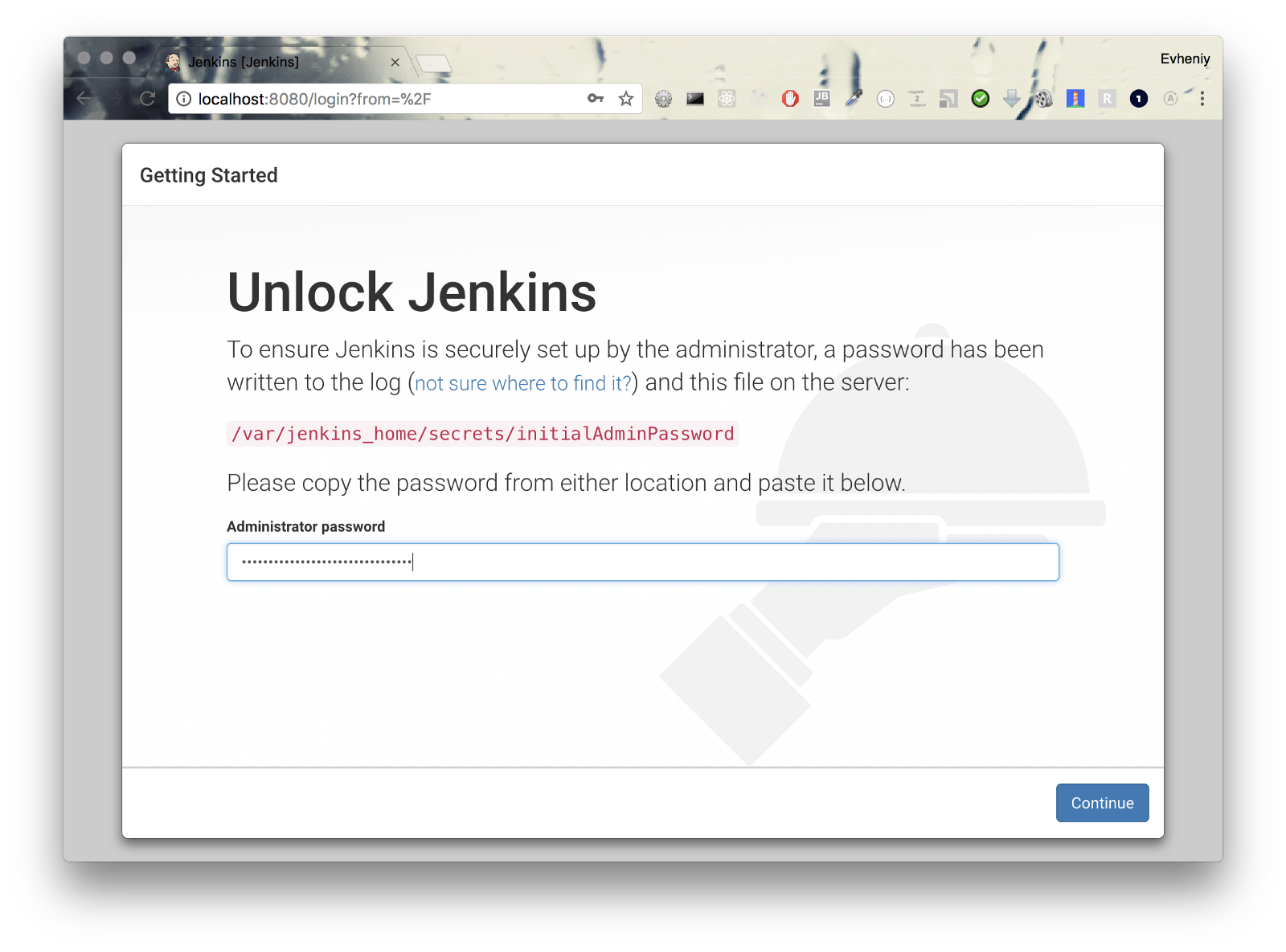

And enter it on page:

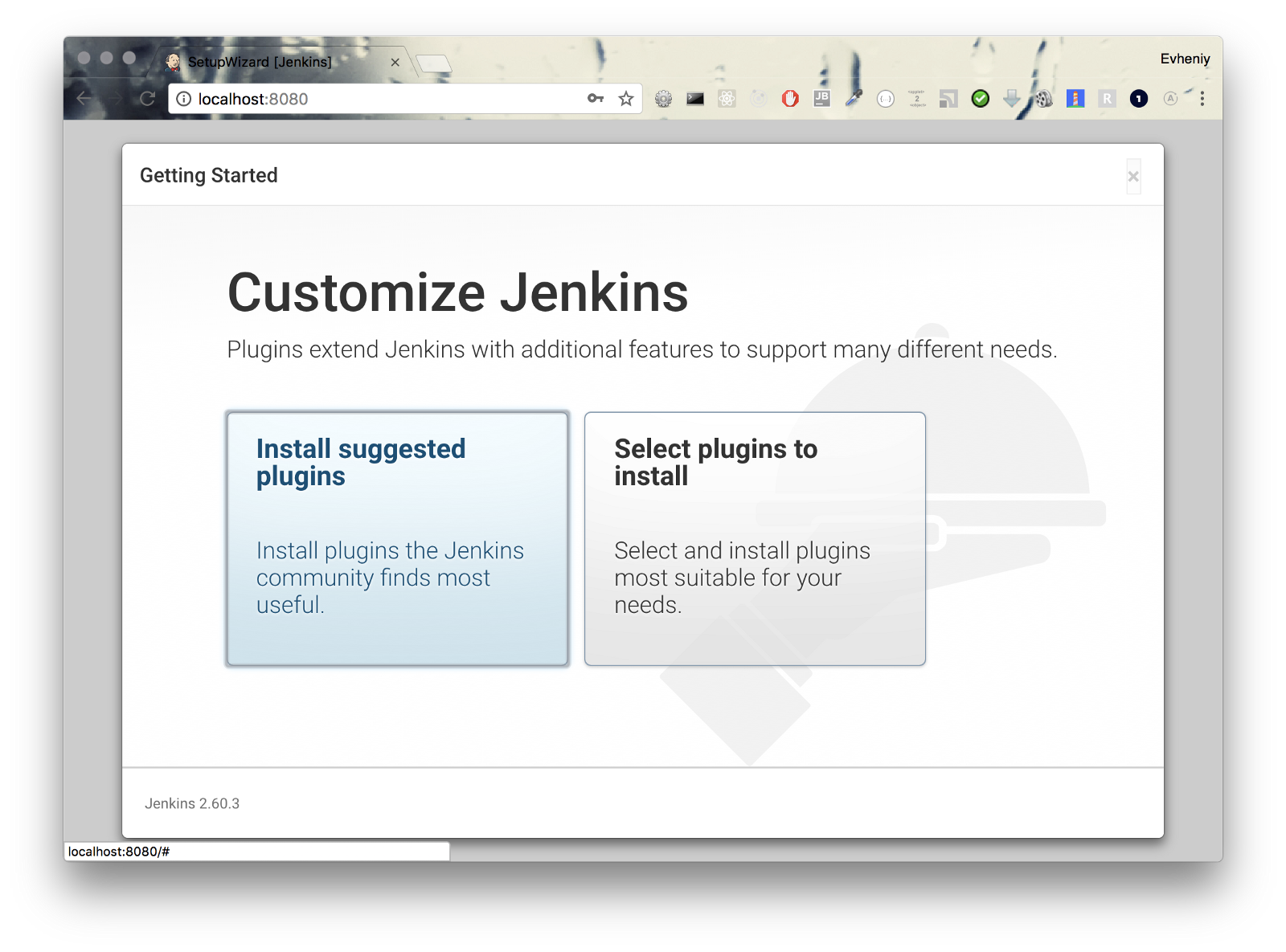

And as it’s our first run we see configuration page:

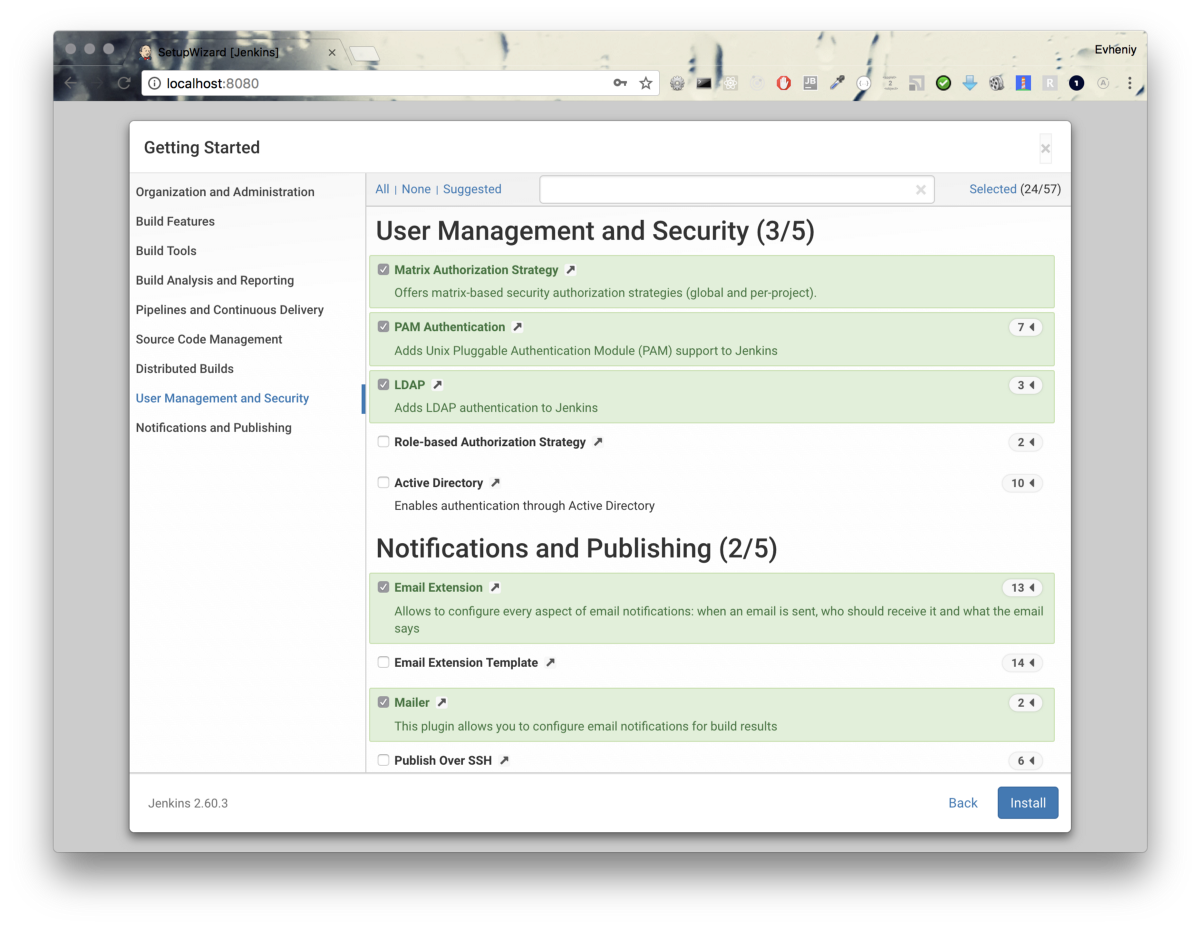

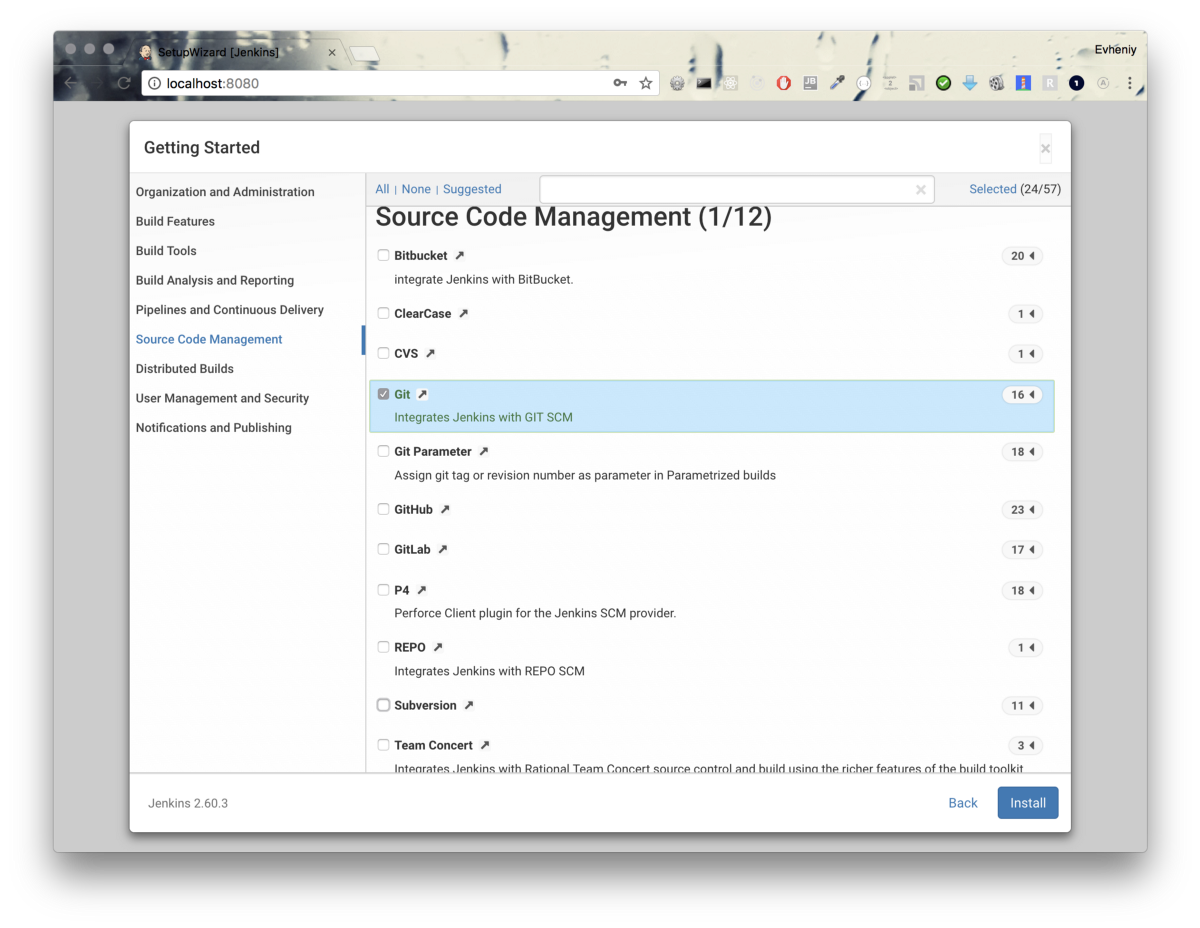

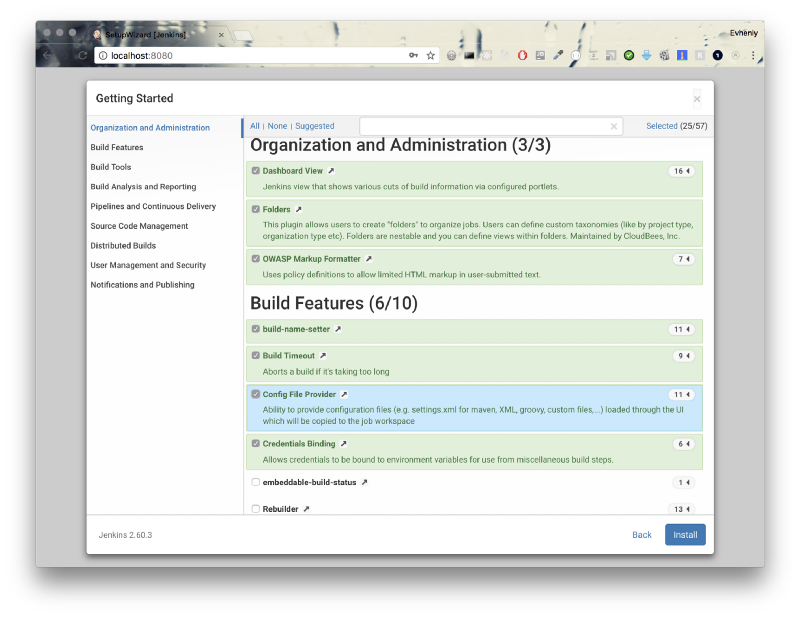

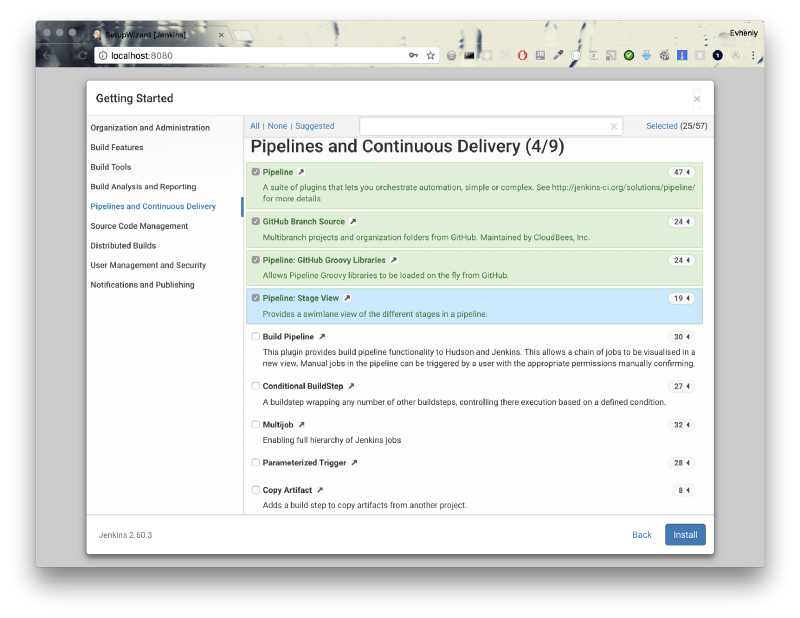

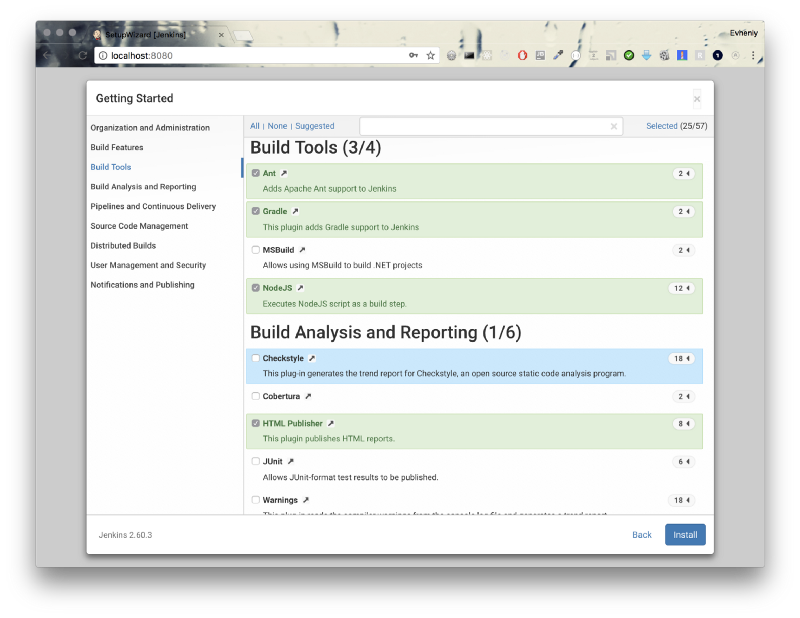

I choose the second point and check next plugins:

Click install and wait:

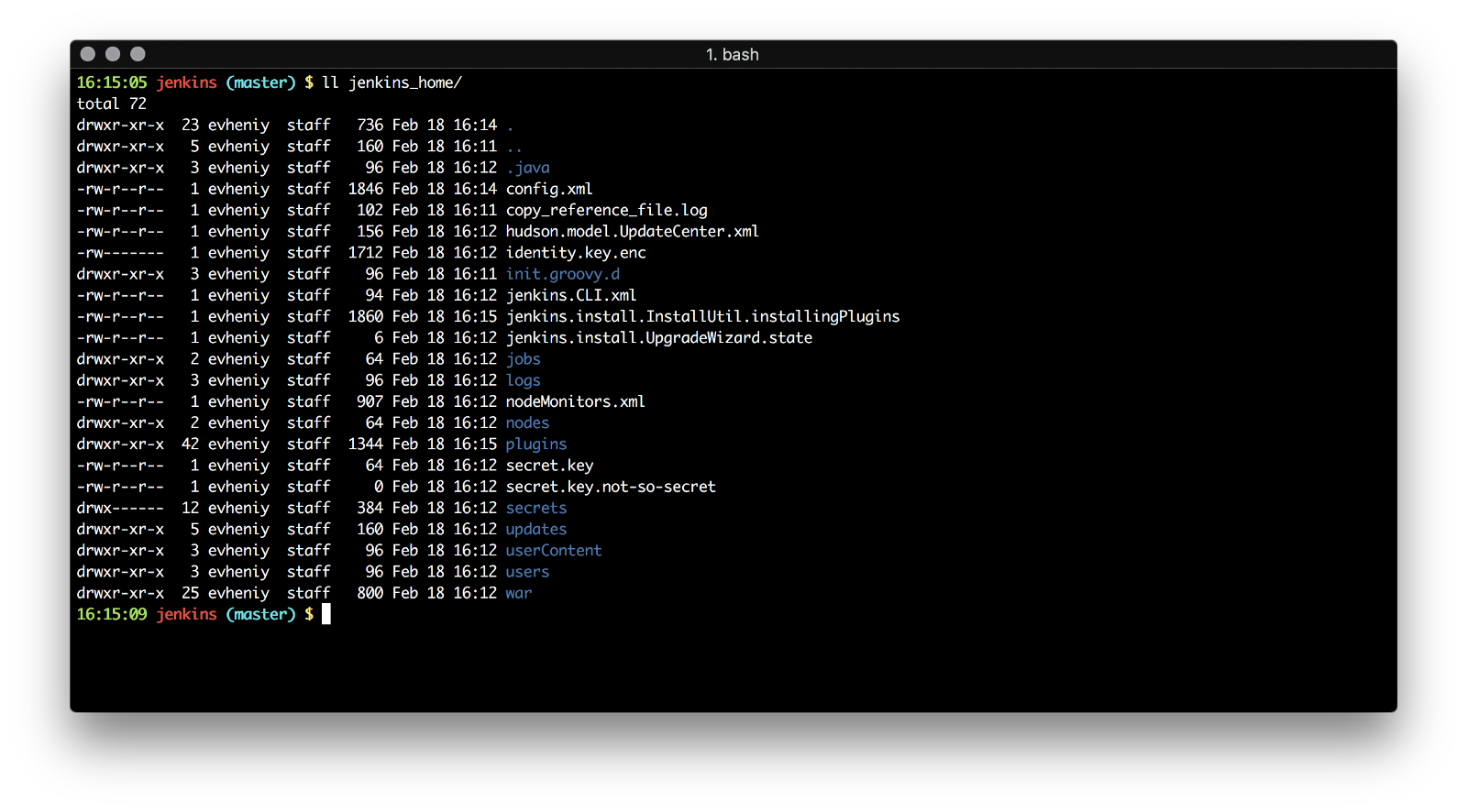

If you check directory we have a lot of Jenkins files:

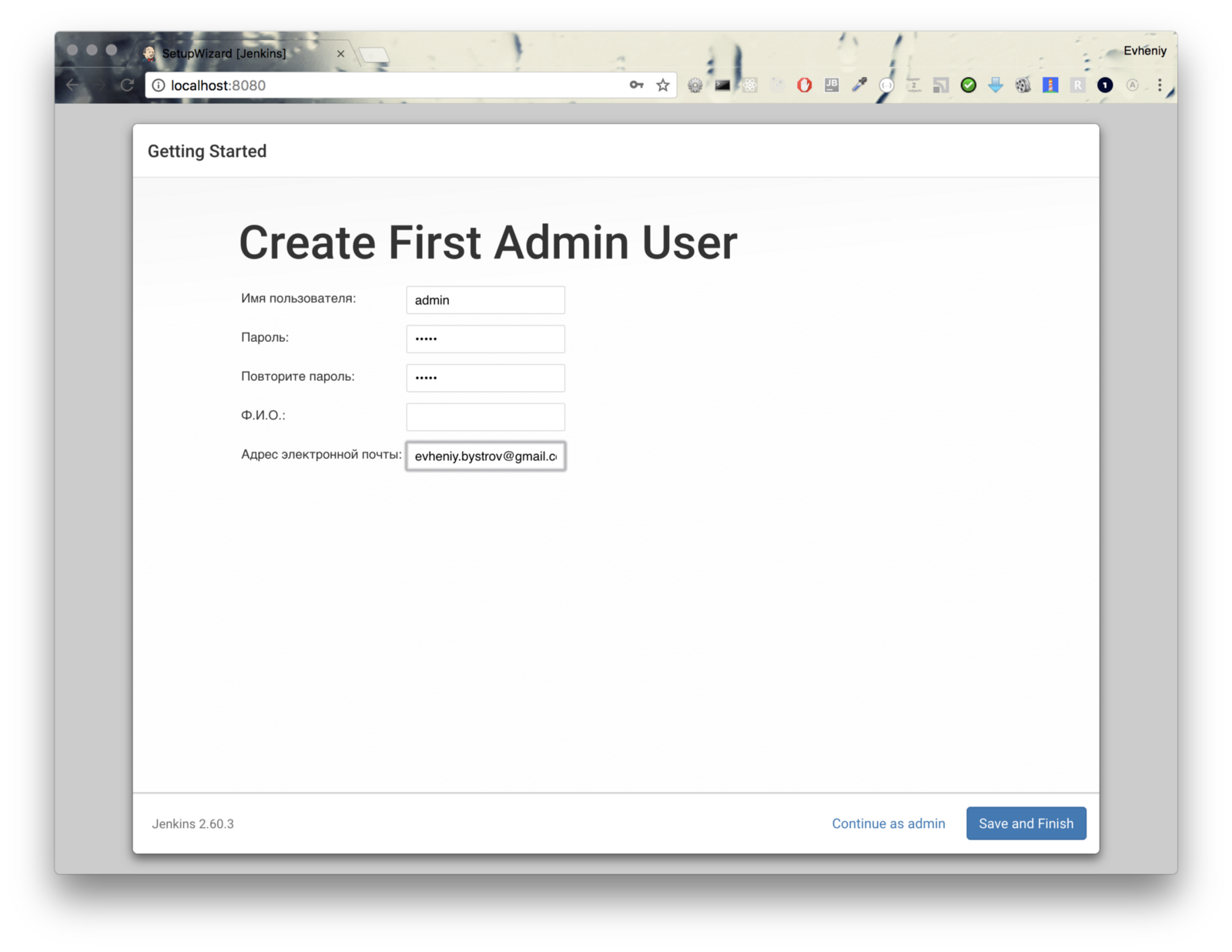

After you need to create a new user:

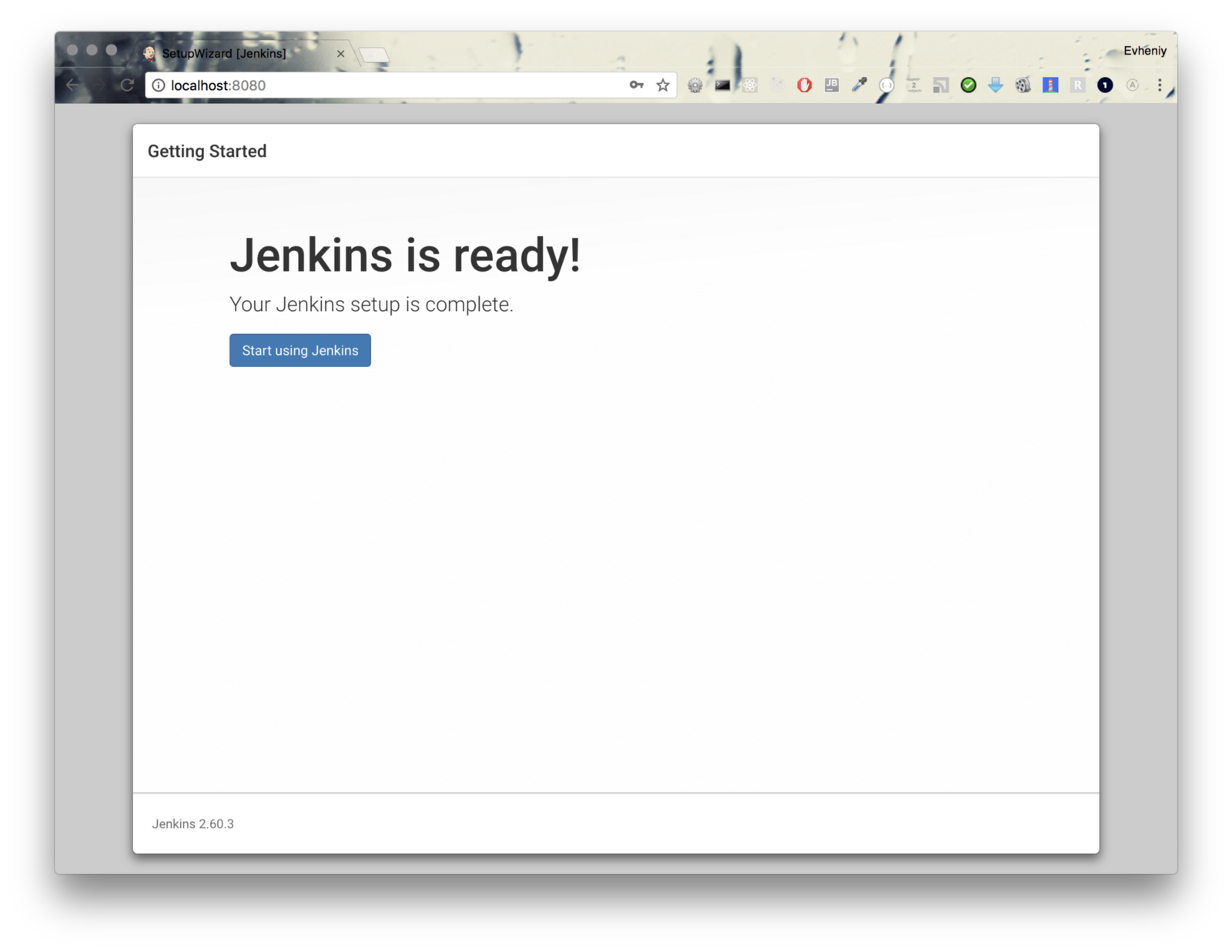

And that’s all. Jenkins is ready.

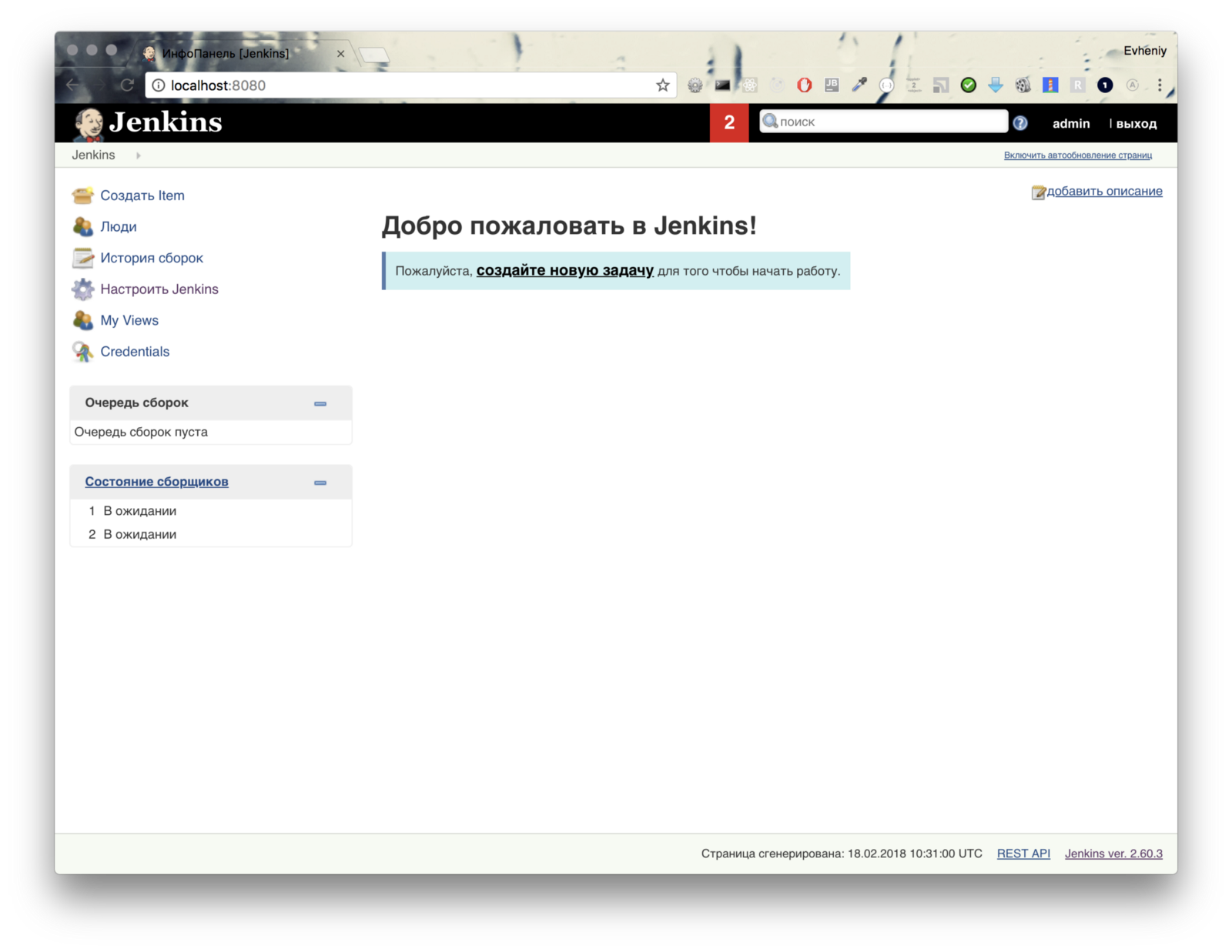

Next we need to create a new build. You can make it from start page:

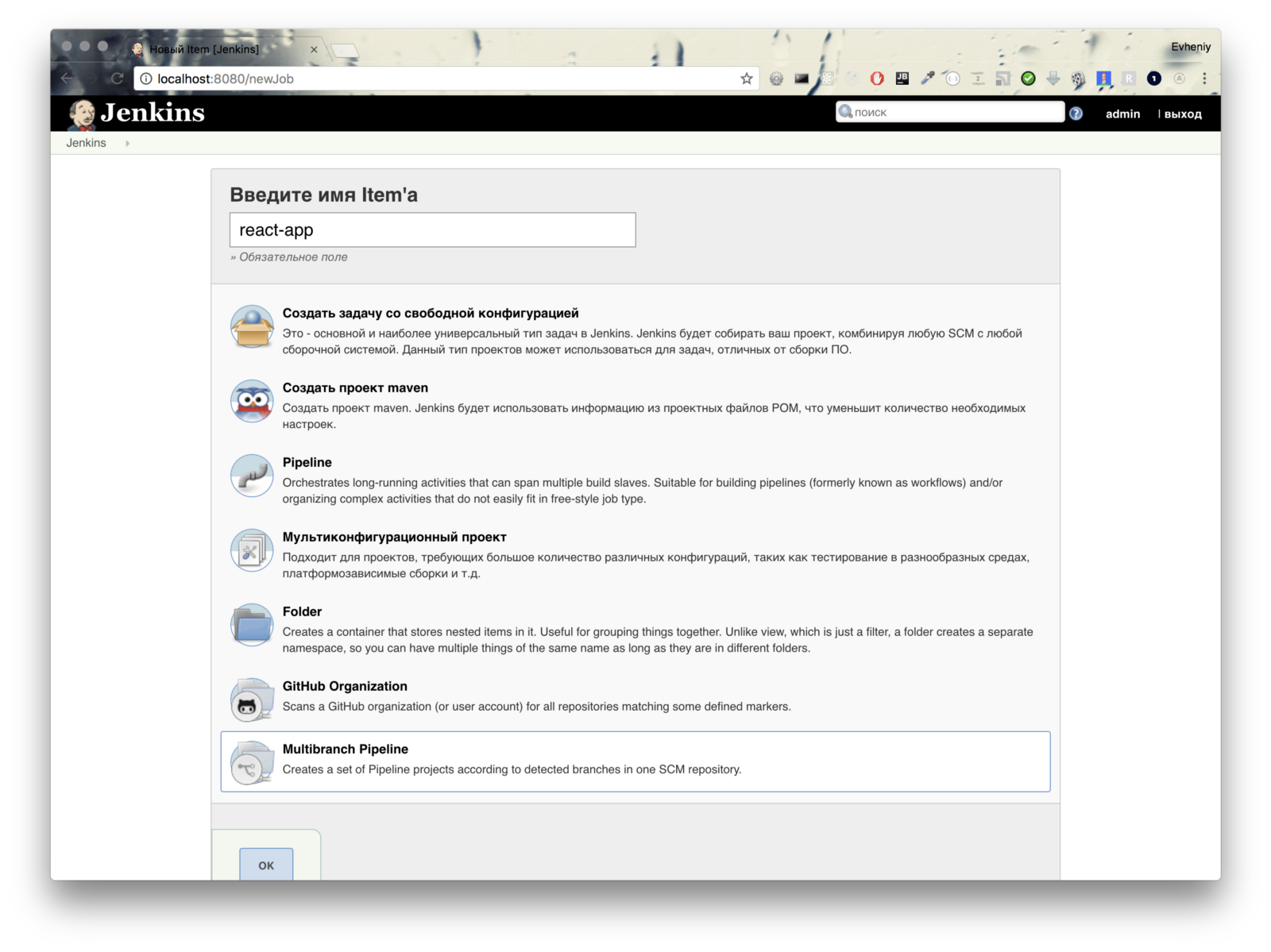

On first step we need to enter name and choose type of our build configurations:

I use multibranch pipeline configuration.

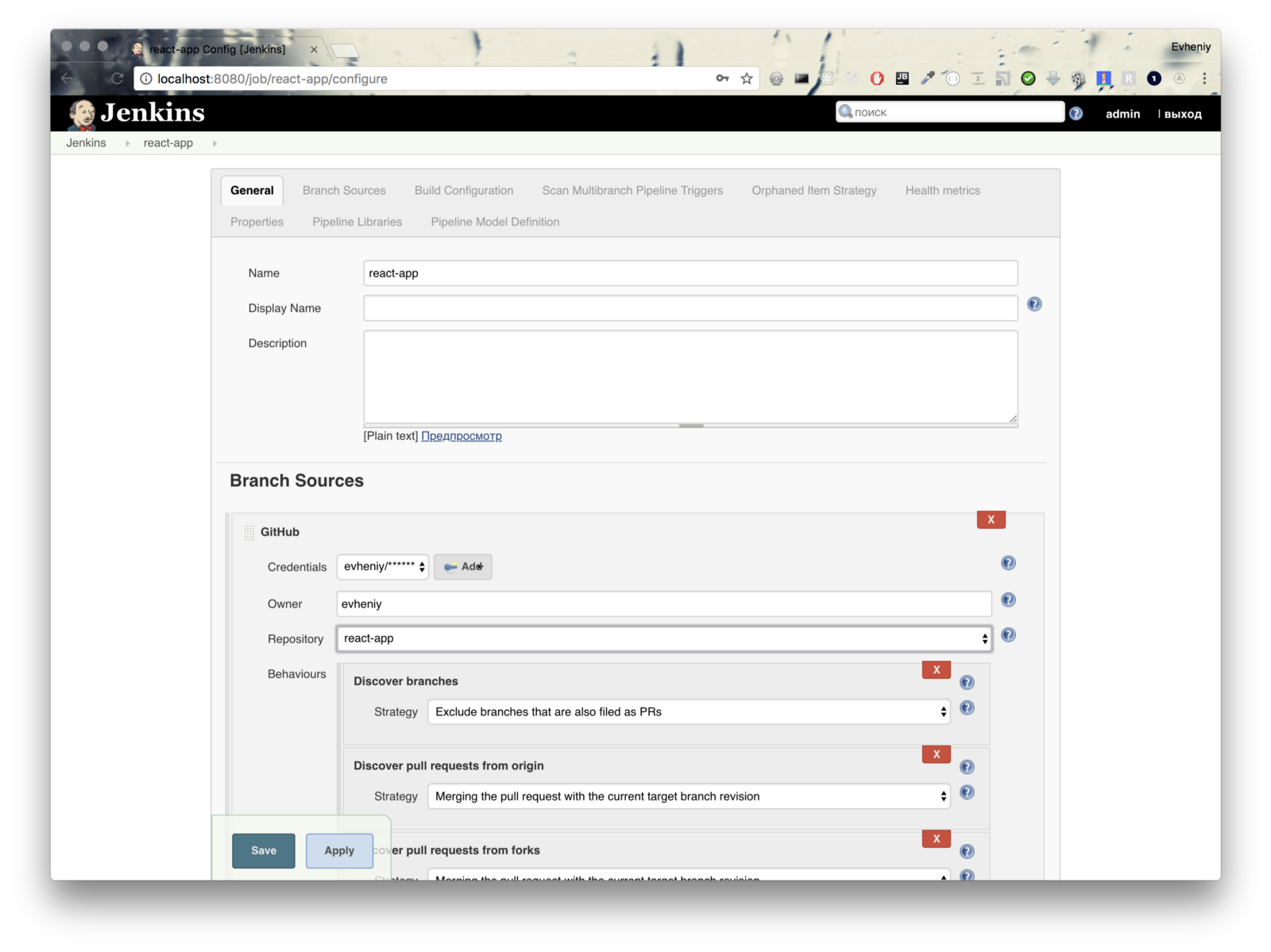

Next we need to configure our build (name, access to github)

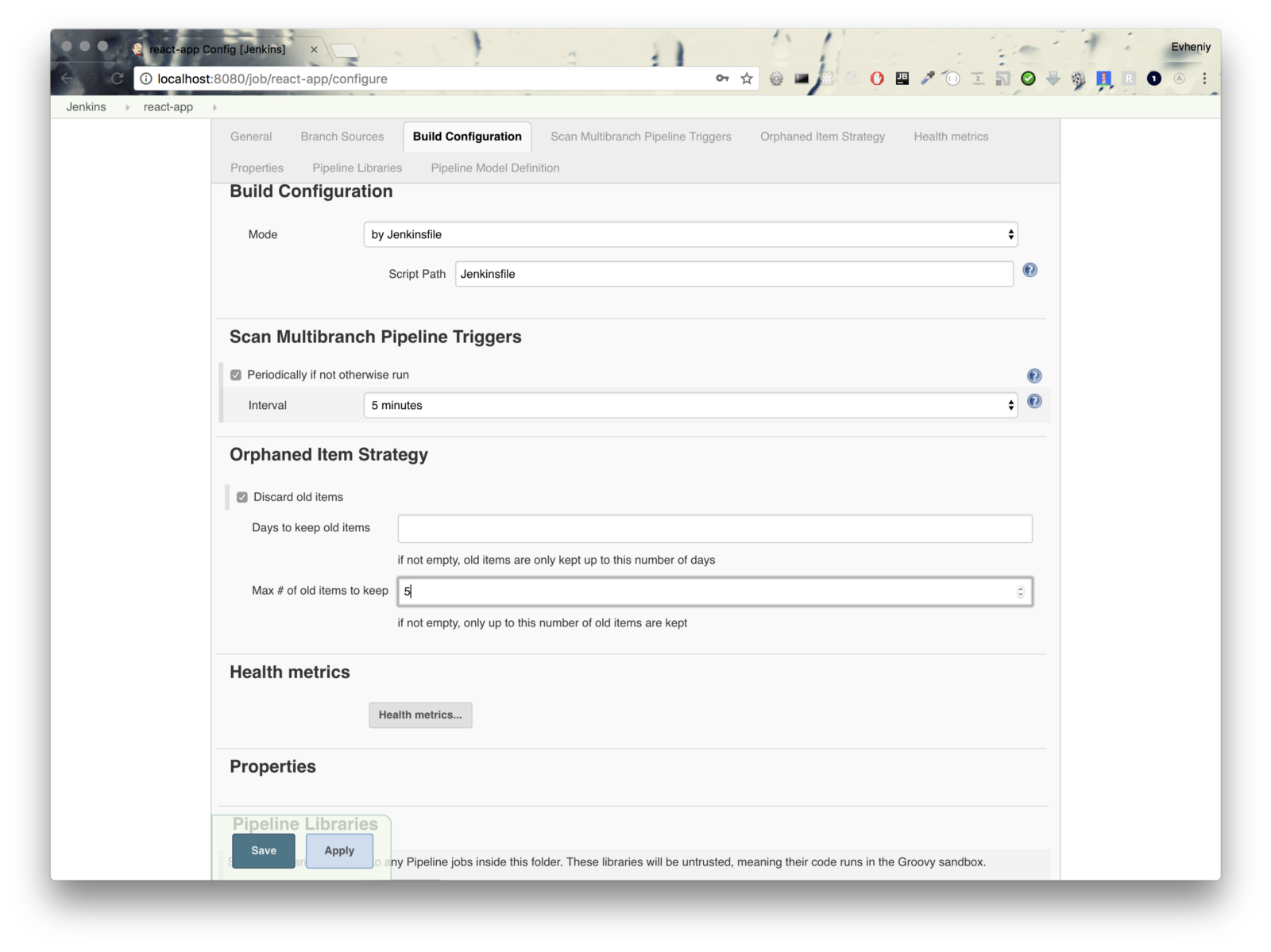

And some other configs like cleaning and scanning time.

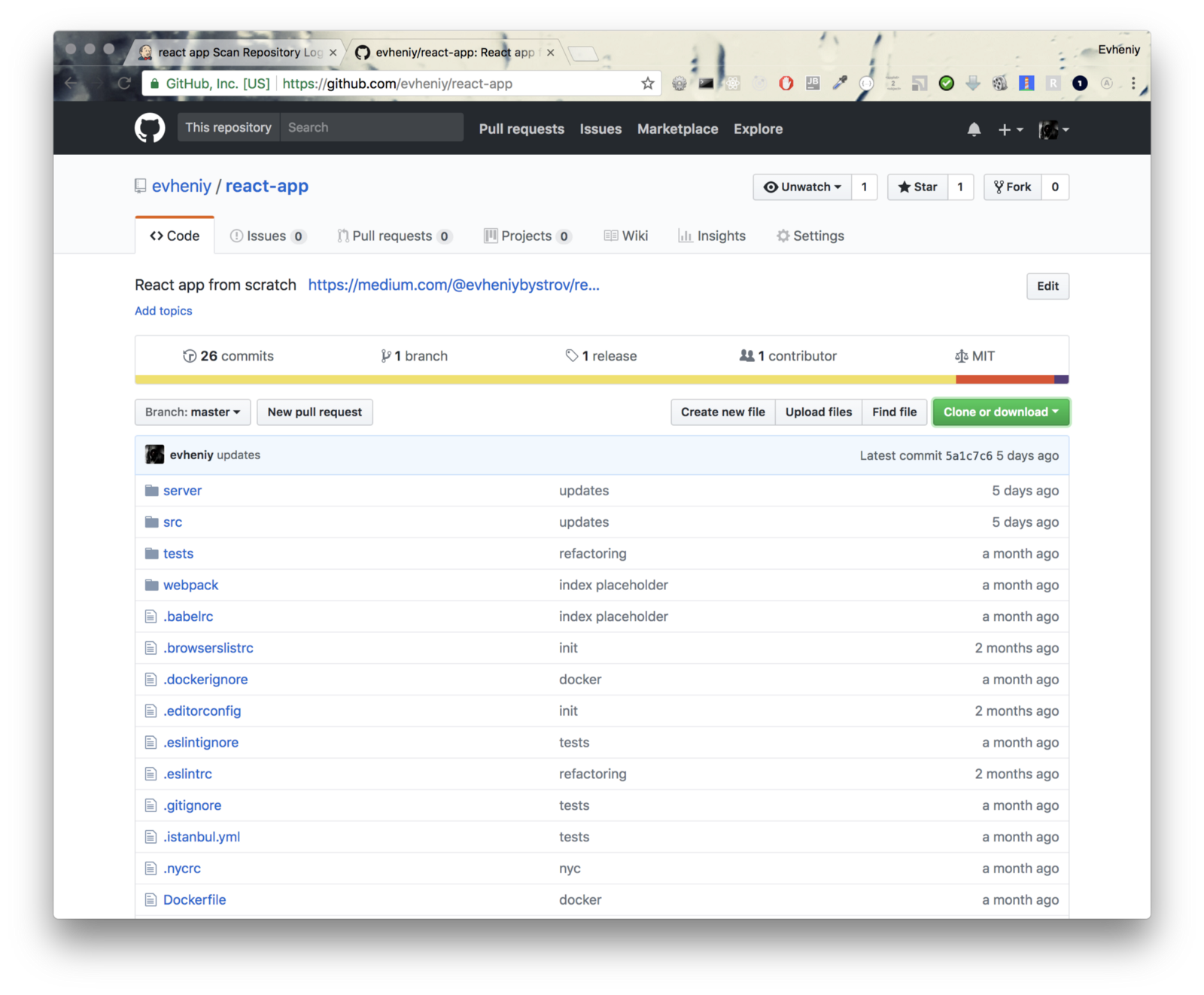

As I made it for react-app I use the same github repo (https://github.com/evheniy/react-app)

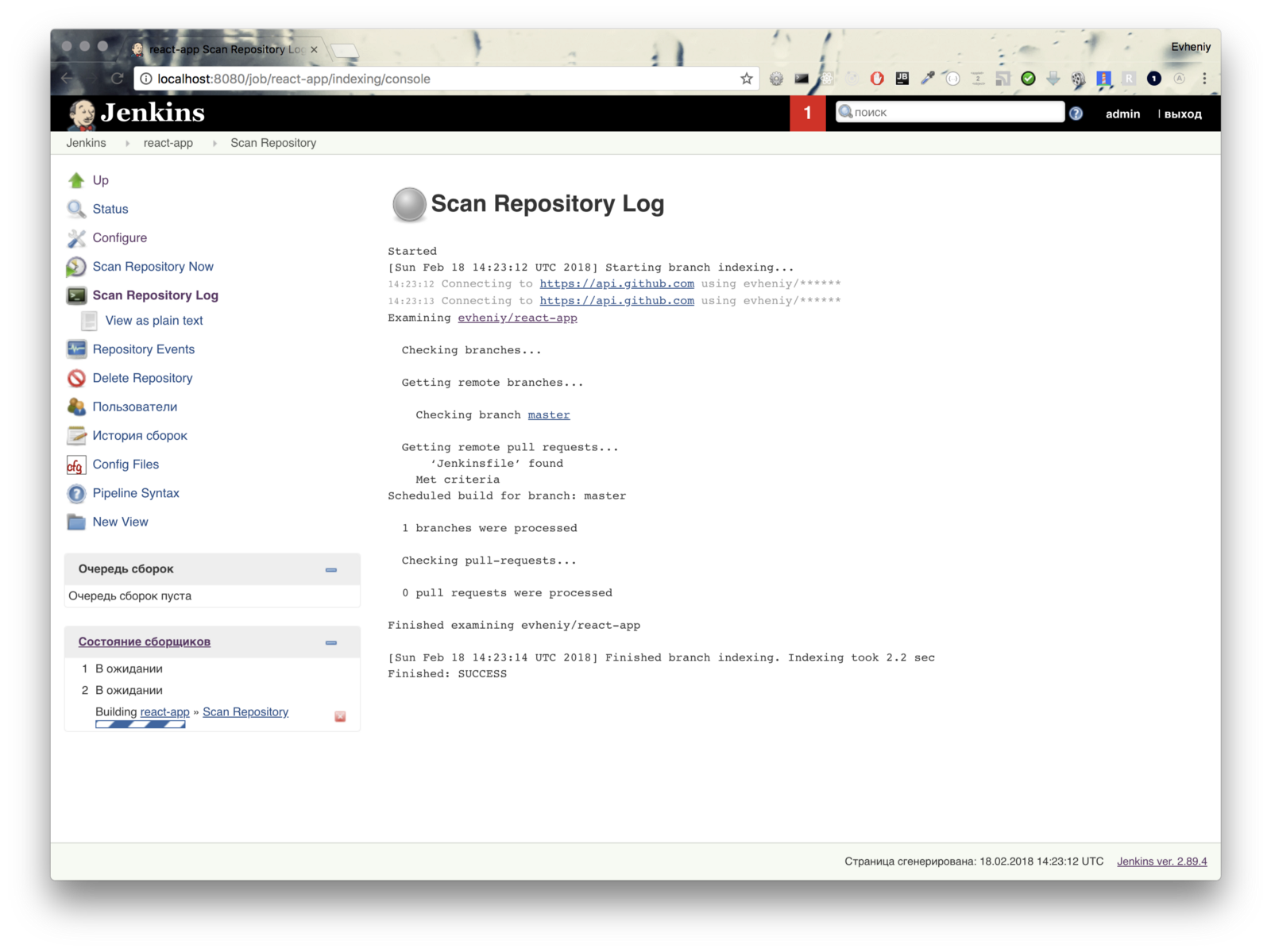

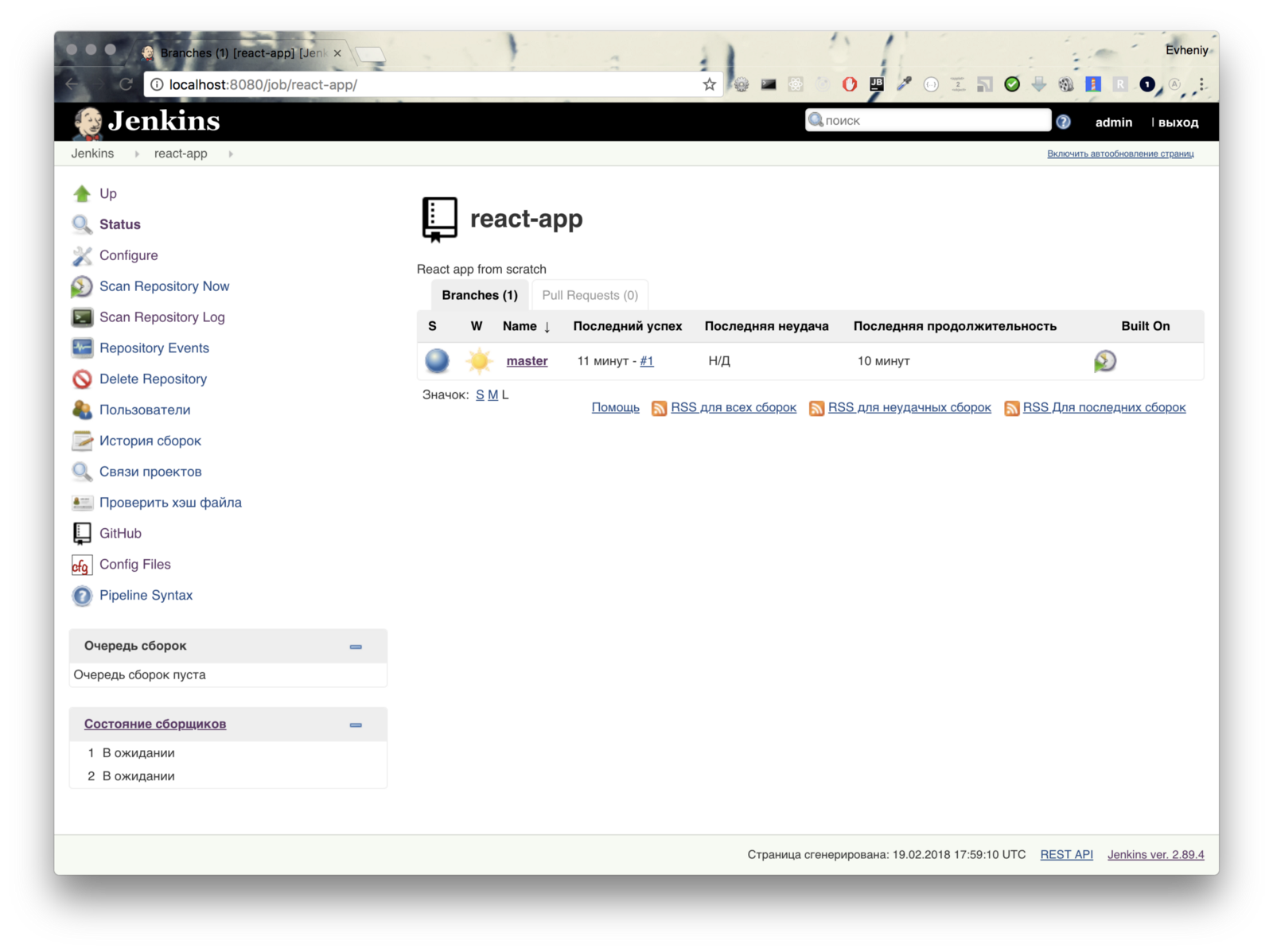

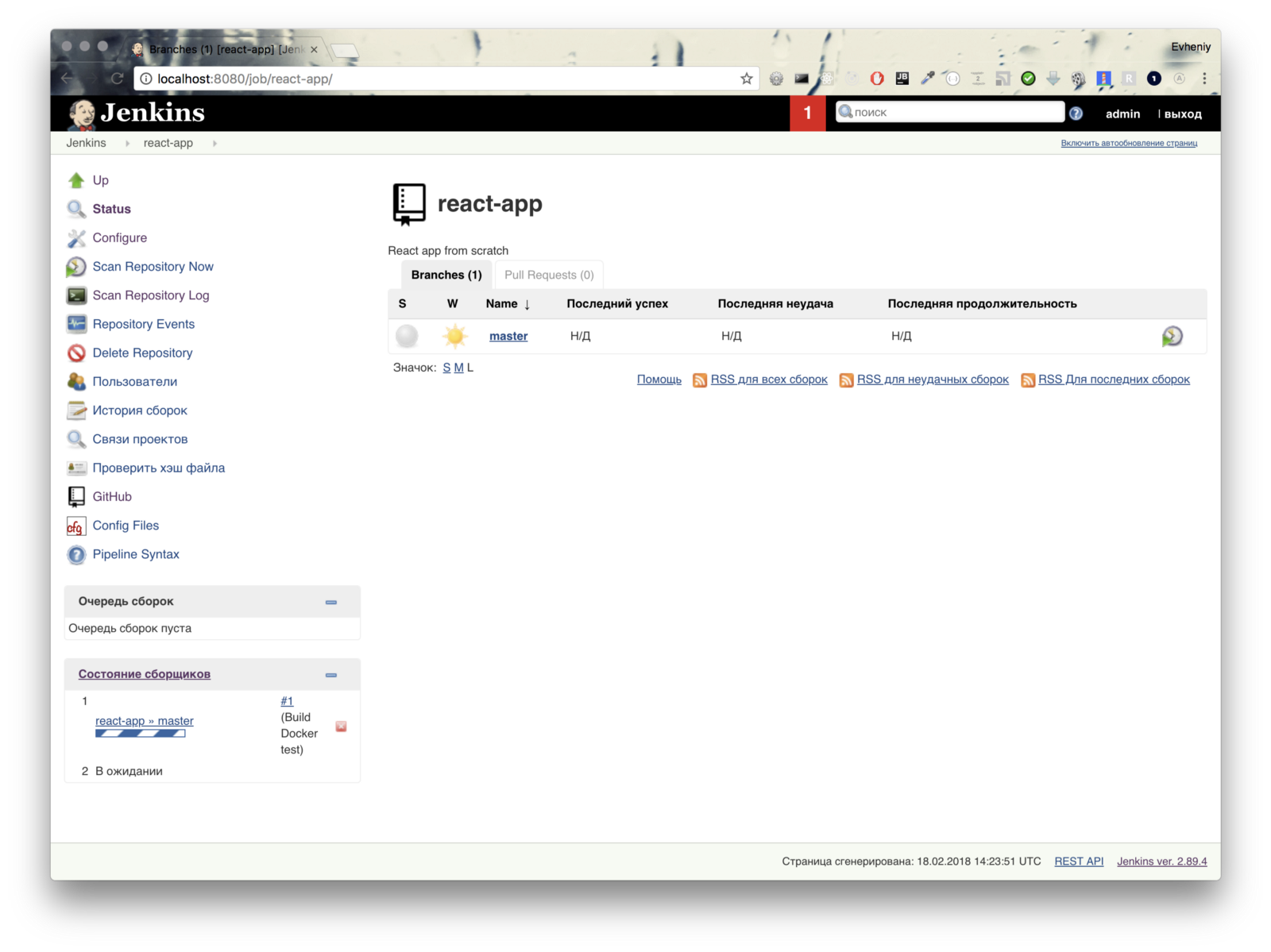

And after Jenkins scans it

Configs

Next step is creating Jenkinsfile, Dockerfile, Dockerfile.test and save it on github:

node {
try {
stage('Checkout') {
checkout scm
}
stage('Environment') {
sh 'git --version'
echo "Branch: ${env.BRANCH_NAME}"
sh 'docker -v'
sh 'printenv'
}
stage('Build Docker test'){
sh 'docker build -t react-test -f Dockerfile.test --no-cache .'
}
stage('Docker test'){
sh 'docker run --rm react-test'
}
stage('Clean Docker test'){
sh 'docker rmi react-test'
}
stage('Deploy'){
if(env.BRANCH_NAME == 'master'){
sh 'docker build -t react-app --no-cache .'
sh 'docker tag react-app localhost:5000/react-app'
sh 'docker push localhost:5000/react-app'
sh 'docker rmi -f react-app localhost:5000/react-app'
}
}
}
catch (err) {
throw err
}
}

Dockerfile

# Extending image
FROM node:carbon

RUN apt-get update
RUN apt-get upgrade -y
RUN apt-get -y install autoconf automake libtool nasm make pkg-config git apt-utils

# Create app directory
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app

# Versions
RUN npm -v
RUN node -v

# Install app dependencies
COPY package.json /usr/src/app/
COPY
package-lock.json /usr/src/app/

RUN
npm install

# Bundle app source
COPY . /usr/src/app

# Port to listener
EXPOSE 3000

# Environment variables
ENV NODE_ENV production
ENV PORT 3000
ENV PUBLIC_PATH "/"

RUN npm run start:build

# Main command
CMD [ "npm", "run", "start:server" ]

Dockerfile.test

# Extending image
FROM node:carbon

RUN apt-get update
RUN apt-get upgrade -y
RUN apt-get -y install autoconf automake libtool nasm make pkg-config git apt-utils

# Create app directory
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app

# Versions
RUN npm -v
RUN node -v

# Install app dependencies
COPY package.json /usr/src/app/
COPY
package-lock.json /usr/src/app/

RUN
npm install

# Bundle app source
COPY . /usr/src/app

# Environment variables
ENV NODE_ENV test

# Main command
CMD [ "npm", "test" ]

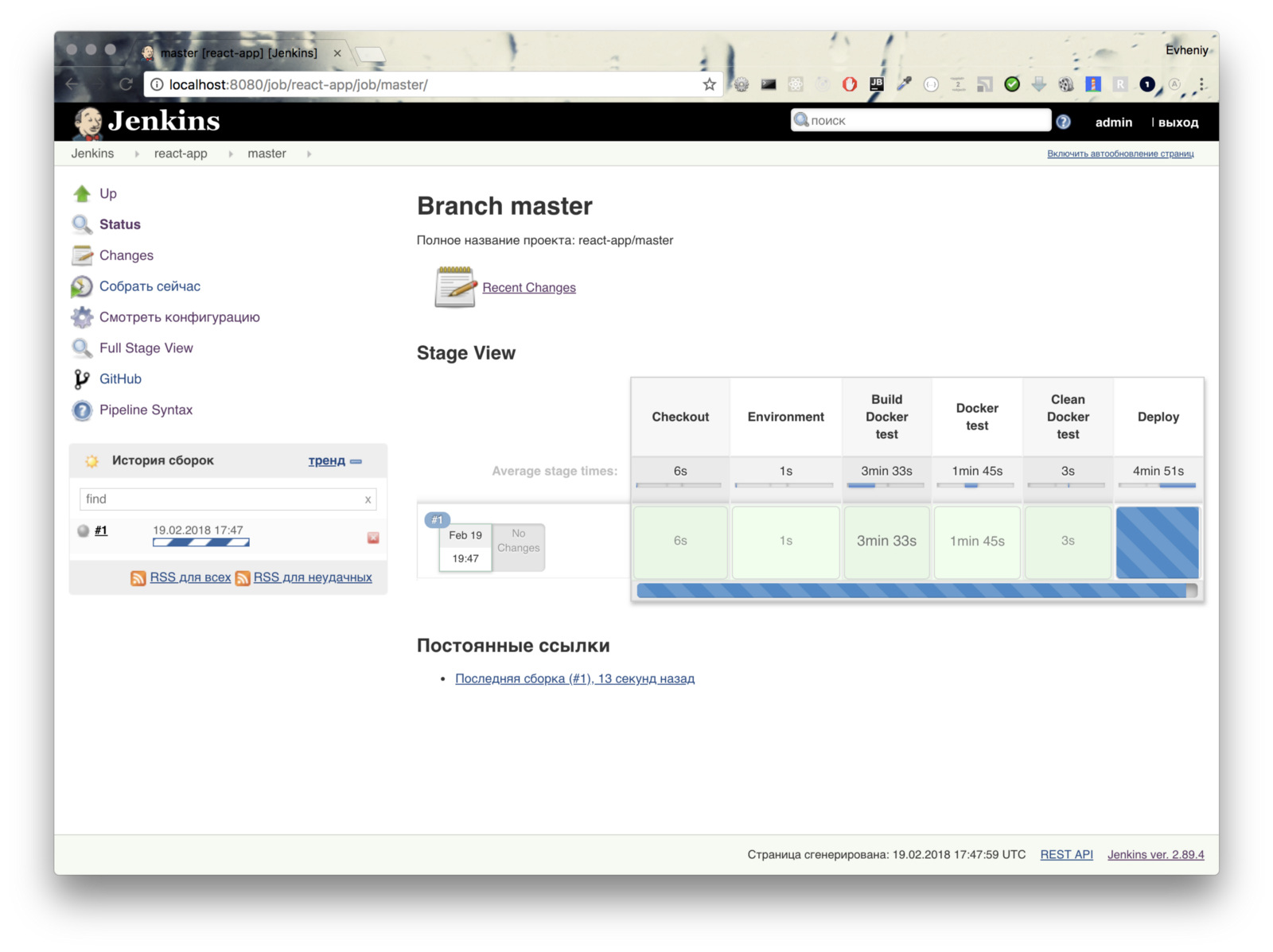

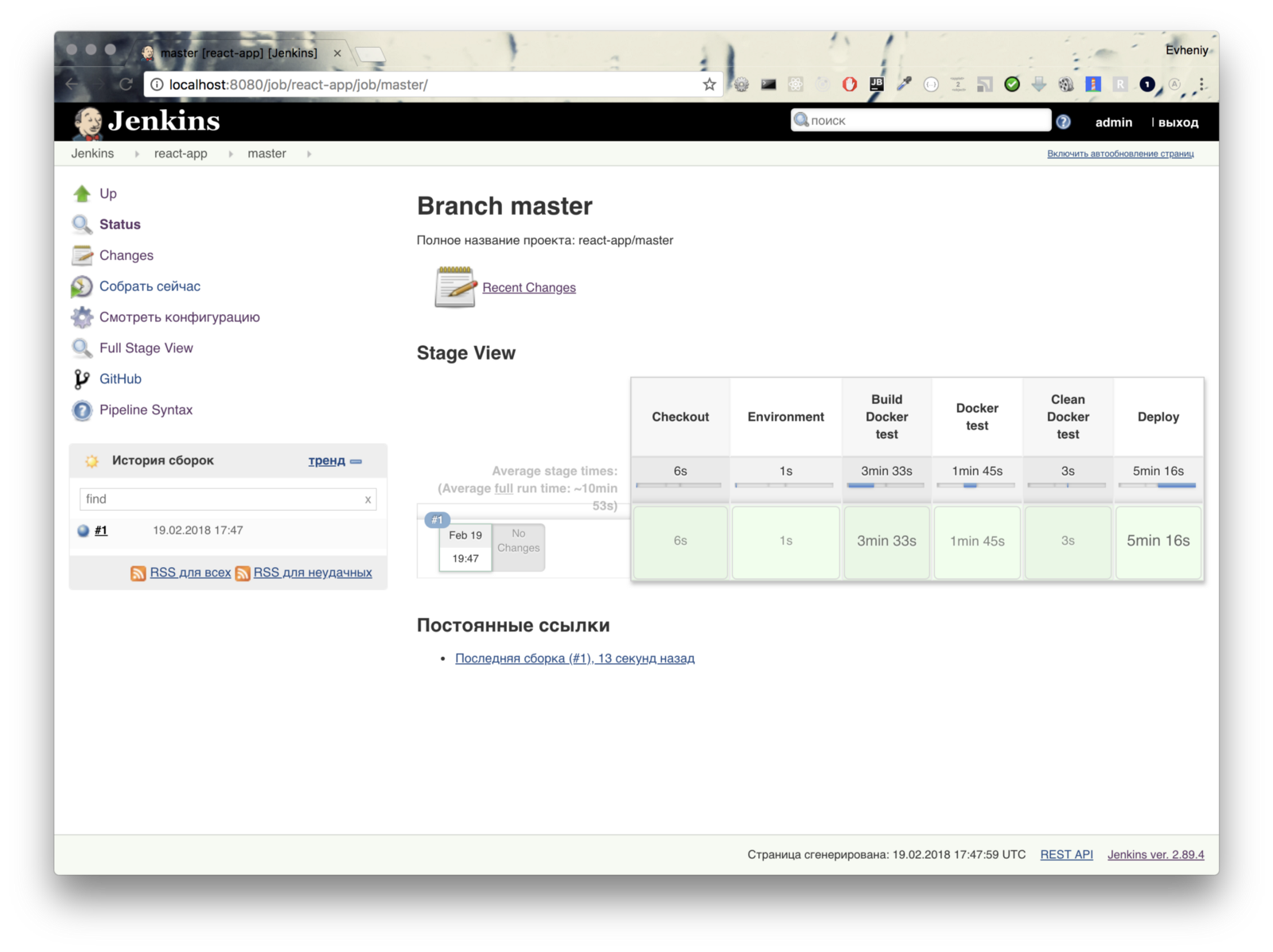

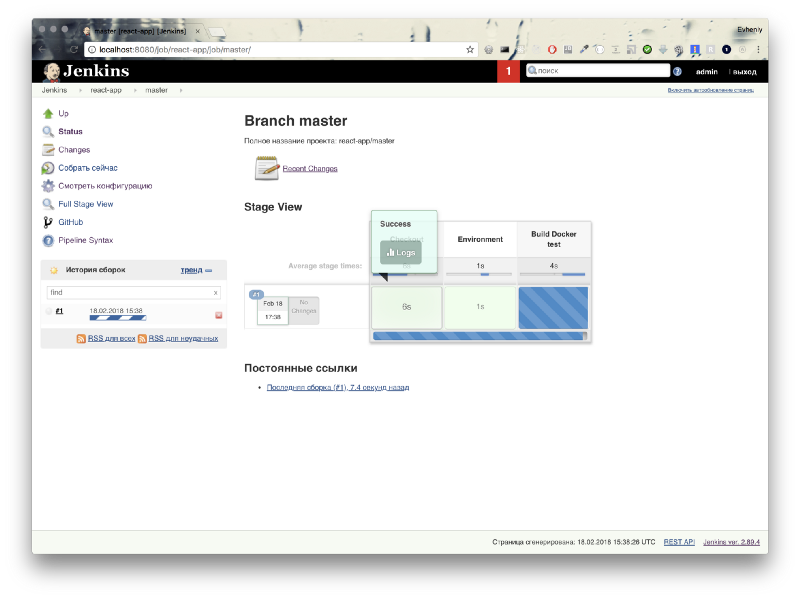

And after rescanning Jenkins checks it:

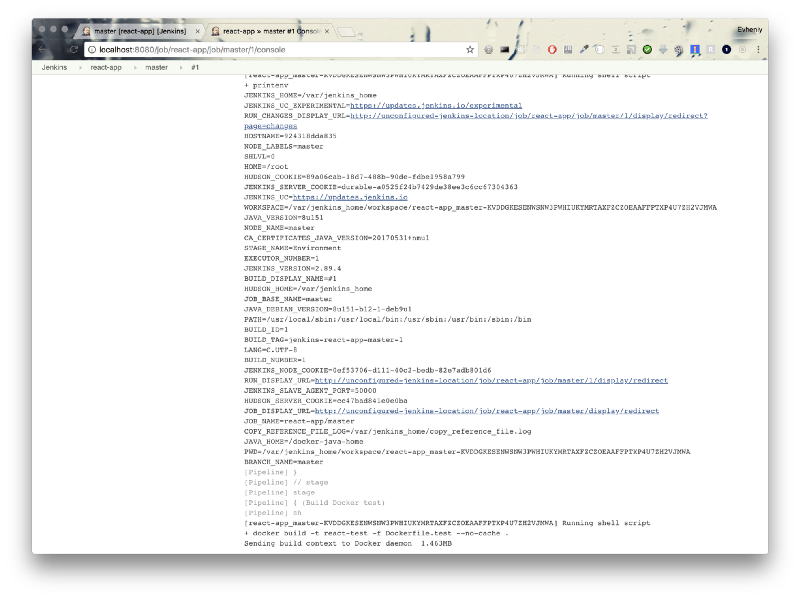

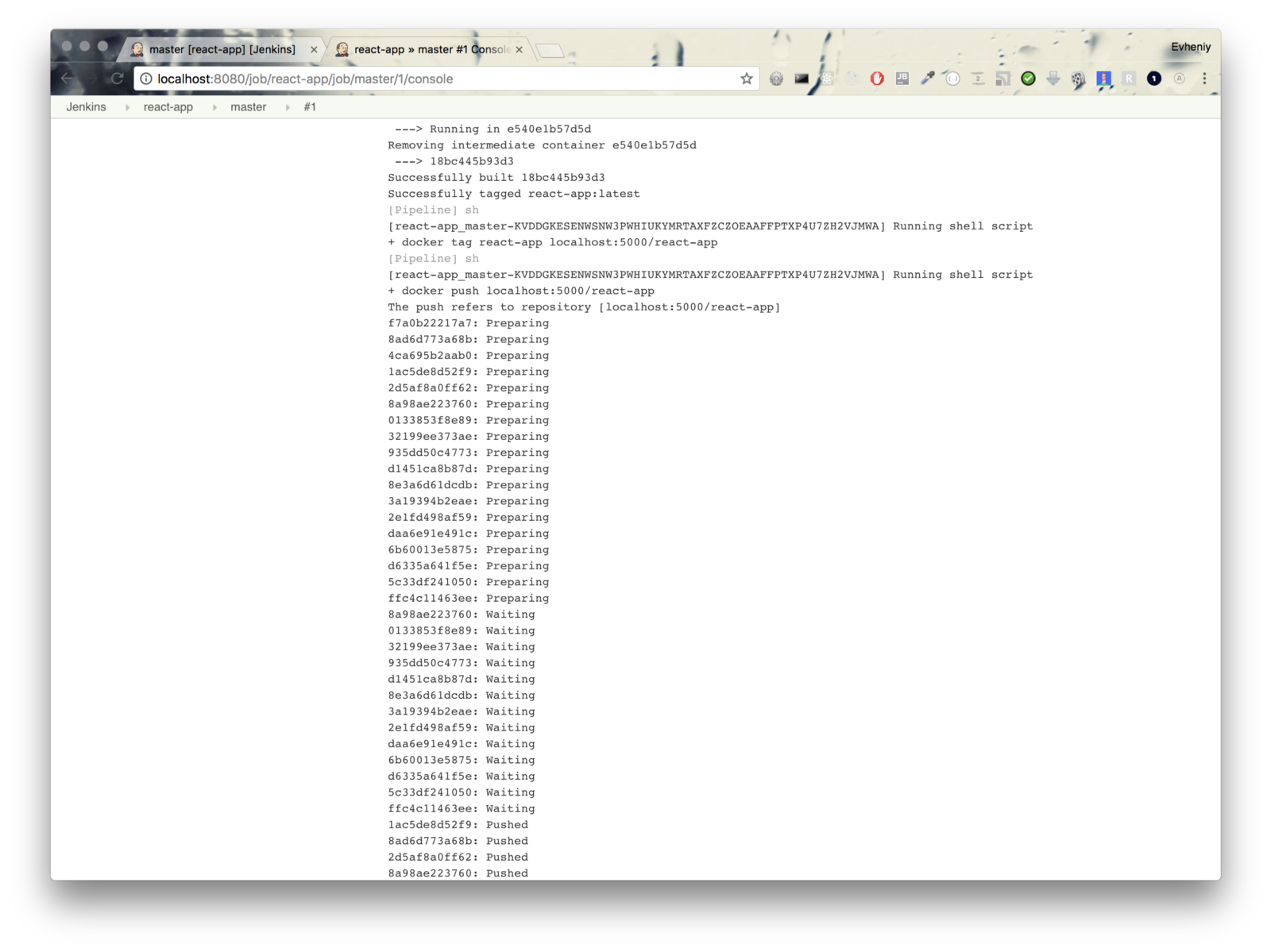

And logs:

We see a lot of interesting information.

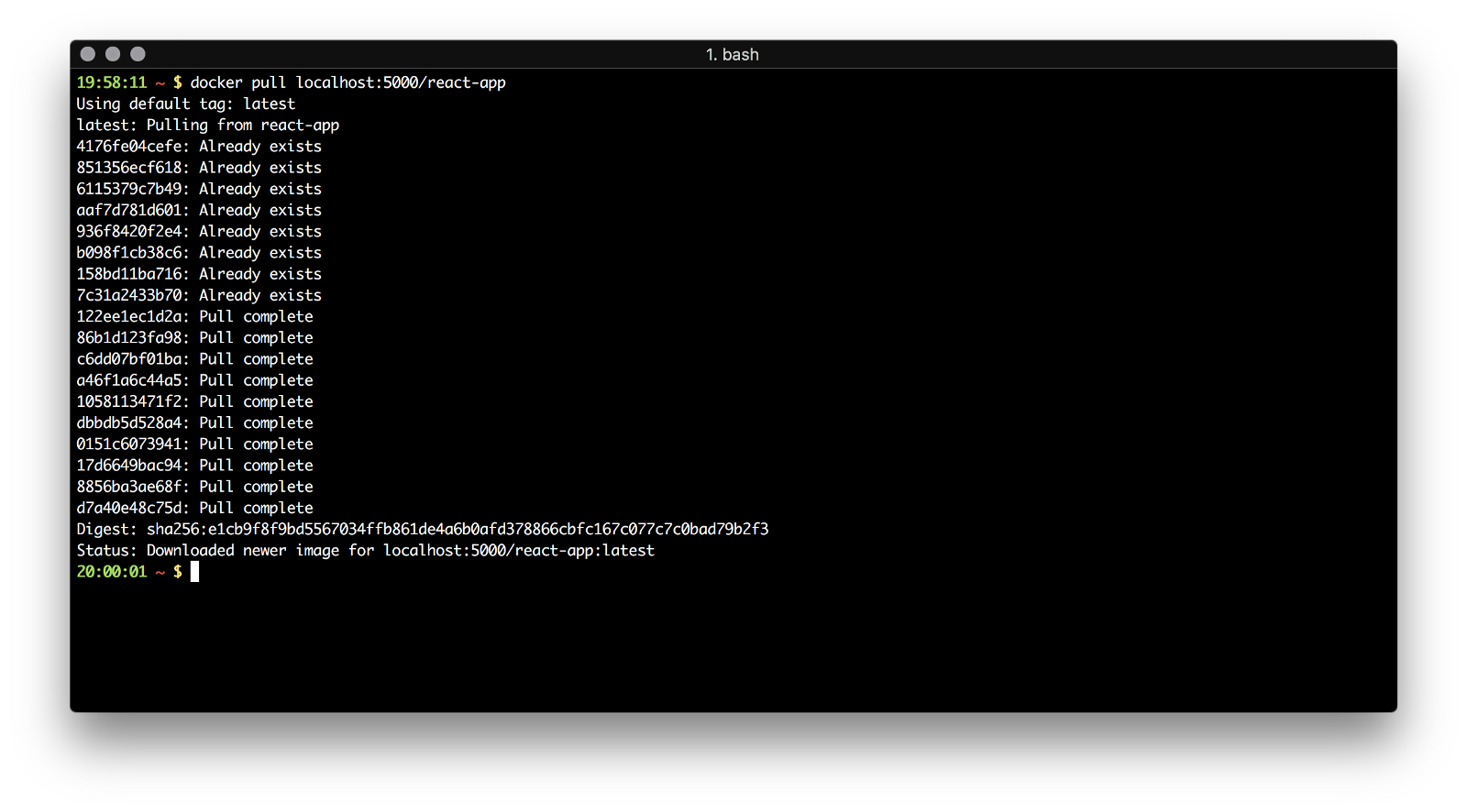

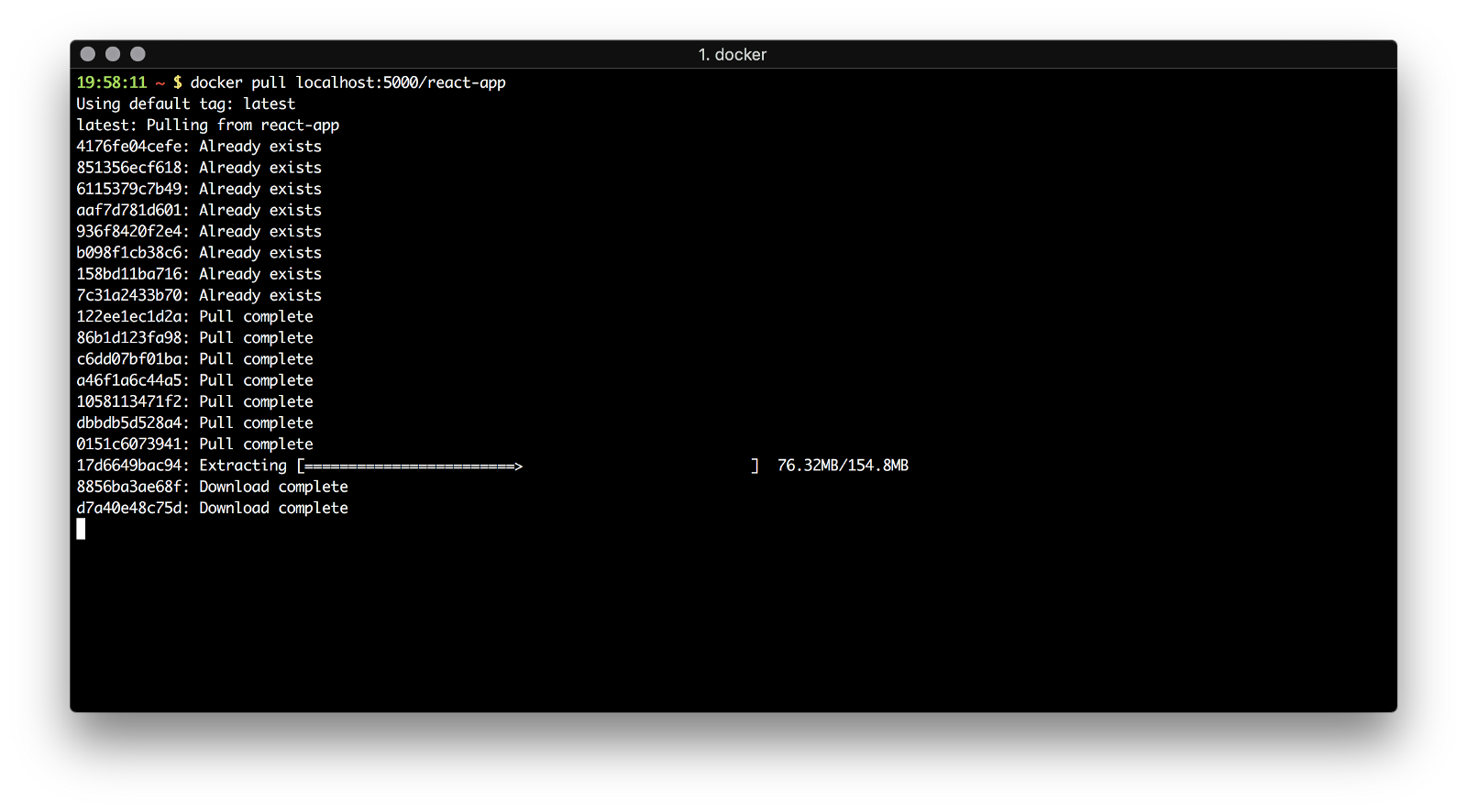

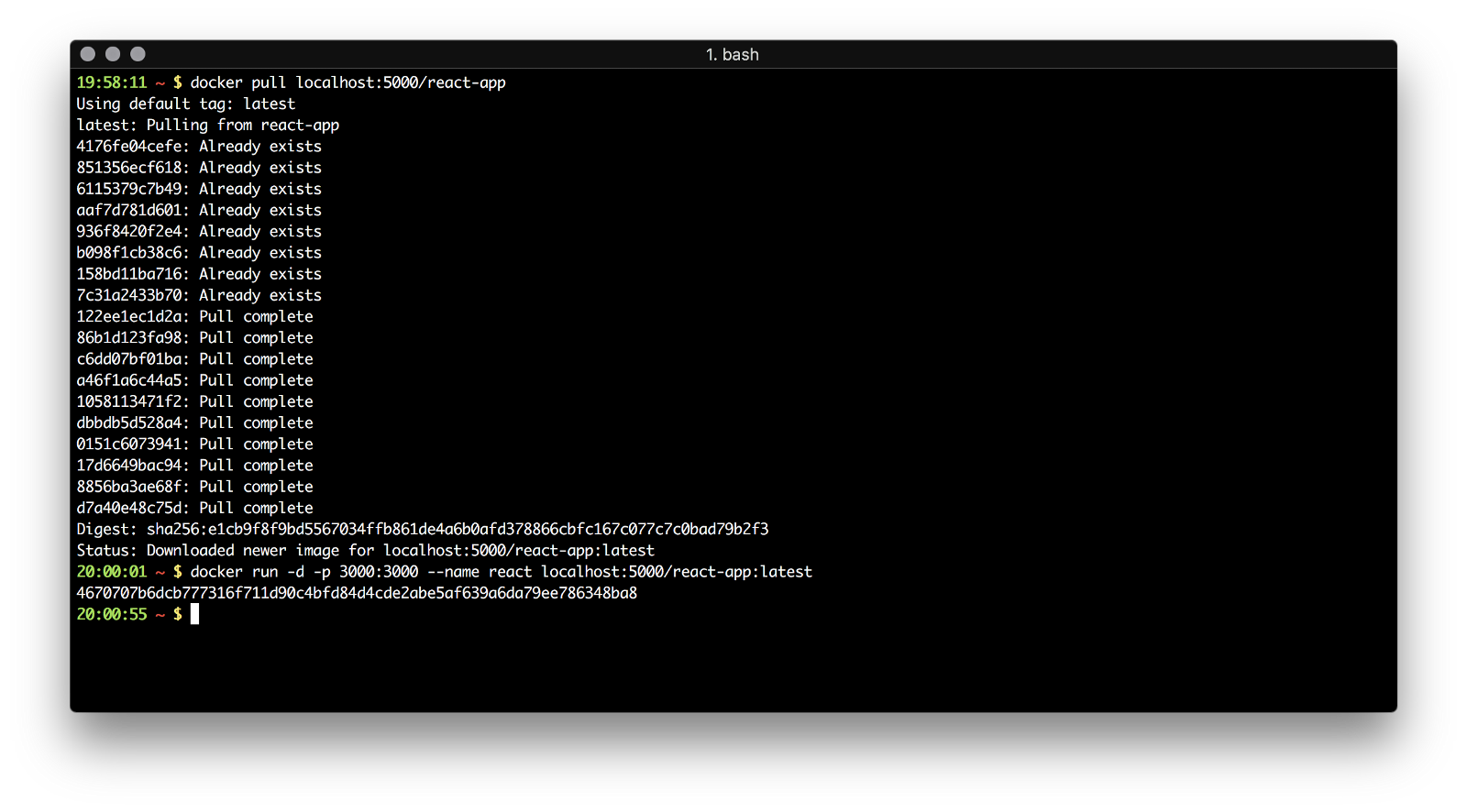

Now we can check that our image stored in our registry. Run command:

docker pull localhost:5000/react-app

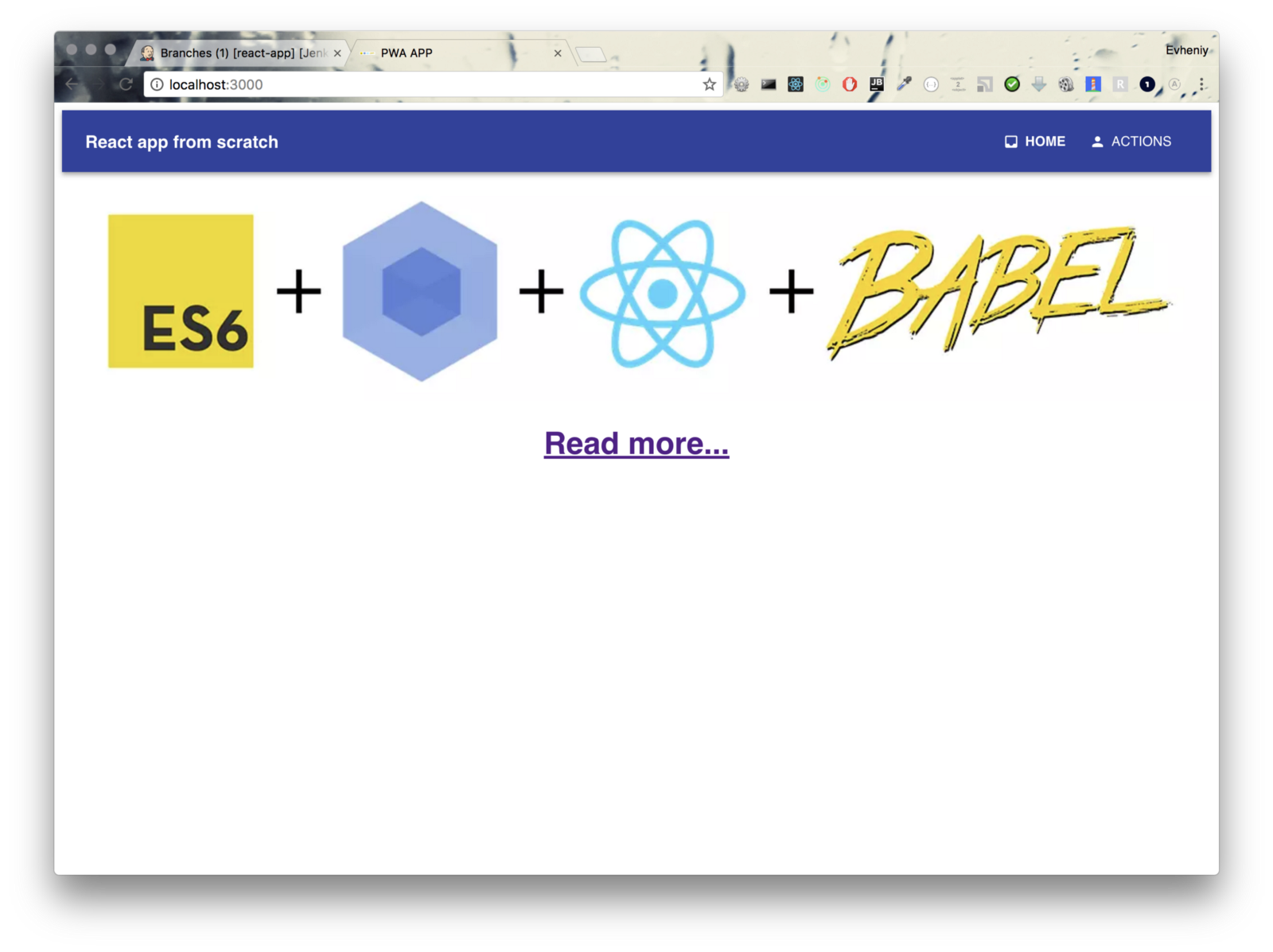

Now you can run this image on production server.

In this article I created docker compose file for running Jenkins and Docker registry. I created Jenkinsfile and Dockerfile for testing and releasing our app.

In next articles I’ll show how to use SSR, modular structure, webpack optimization, chaos monkey, testing and code coverage…
