A NEW APPARATUS FOR STORING AND UTILIZING SOLAR HEAT

Scientific American, Vol. XXXVII.—No. 2. [New Series.], July 14, 1877 by Various, is part of the HackerNoon Books Series. You can jump to any chapter in this book here. A NEW APPARATUS FOR STORING AND UTILIZING SOLAR HEAT.

A NEW APPARATUS FOR STORING AND UTILIZING SOLAR HEAT.

The apparatus herewith illustrated is devised to collect solar heat or other heat, store it up in a heat reservoir—a mass of iron or other suitable material—confine it in the reservoir until needed, keep it in such form that it can be transported from place to place, and utilize it for industrial or other purposes.

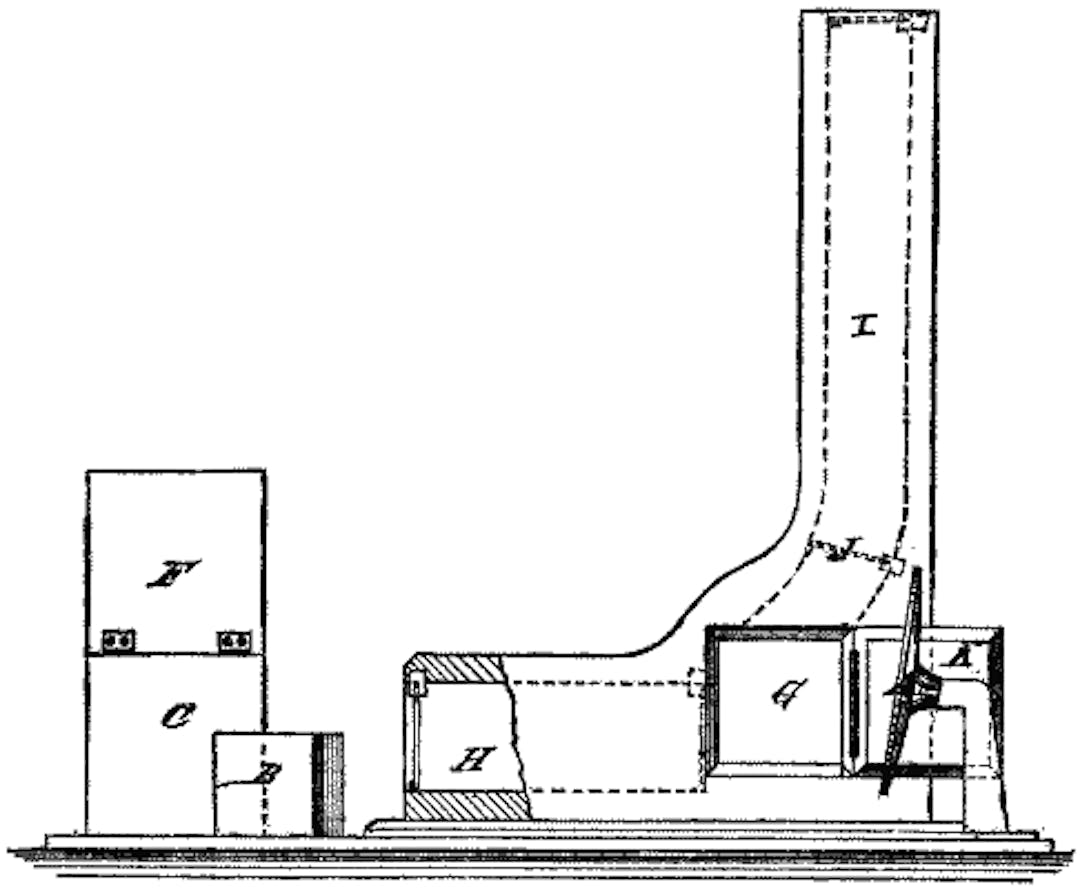

A is a concave mirror for concentrating the solar rays upon the heat reservoir, B, which is a mass of iron. C is the heat box for confining the heat until needed, and also for serving as package for transporting the heat reservoir when hot. G is the heat reservoir chamber, in which the heat is communicated from the hot reservoir to the air. Under certain circumstances the heat reservoir may be heated in the heat reservoir chamber. H is a devaporizing chamber, for extracting the moisture from the air by means of a deliquescent substance or other material or treatment. A vertical stack or flue, I, communicates with the heat reservoir chamber, for conveying the heated air away for use.

The device for concentrating the solar rays may be either stationary or movable, and, if movable, may be moved by hand, or automatically, to follow the sun. The various chambers mentioned will have valves, J, at the ends to regulate the passage of the air, and there will be a door, K, at the side or bottom.

Patented through the Scientific American Patent Agency, March 20, 1877, by Messrs. John S. Hittell and Geo. W. Deitzler, of San Francisco, Cal.
