4.3 Optimization of Market Calibrated DRL Agents

After the hyperparameter analysis, this study looks to improve on the key result from Pickard et al. (2024), wherein it is shown that DRL agents trained with paths from a market calibrated stochastic volatility model outperform DRL agents on the true asset paths between the option sale and maturity dates. One key shortcoming in the findings from Pickard et al. (2024) is that the stochastic volatility model is only calibrated to the option data on the sale date, and the agent trained with model is used to hedge the entire life of the option. As such, if any cases presented themselves where the market changed drastically between the sale and the maturity, this would render the agent obsolete, as it had been trained to hedge in a completely different environment. As such, it is hypothesized that performance will improve by re-training agents to new data at weekly intervals.

Given that the underlying asset data now stems from a stochastic volatility model, an alternative method is required for providing the DRL agent reward with the option price at each training step. While in the GBM experiments, the option price required for the DRL agent reward on each training step is obtained by interpolating a binomial tree, tree methods for stochastic volatility processes increase in complexity due to the requirement of a second spatial dimension. As such, Pickard et al. (2024) detail a Chebyshev interpolation method, first introduced in Glau et al. (2018), to provide the agent with the American option price at each time step in training.

Chebyshev interpolation involves weighting orthogonal interpolating polynomials to approximate a known function within predetermined upper and lower bounds at each time step. Computing an American option price via Chebyshev interpolation involves a three-step process:

1. Discretize the computational space from 𝑡0 = 0 to 𝑡𝑁 = 𝑇. Then, Chebyshev nodes are generated between the upper and lower bounds at 𝑡𝑁−1 and paths are simulated from these nodes to maturity at 𝑡𝑁. The continuation value is computed as the discounted average payoff for all nodes at 𝑡𝑁−1 The value function for Chebyshev nodes at 𝑡𝑁−1 is determined by comparing the continuation value with the immediate exercise payoff

2. For the next time step, 𝑡𝑁−2, the process is repeated by simulating paths from 𝑡𝑁−2 to 𝑡𝑁−1 and performing Chebyshev interpolation between nodes at 𝑡𝑁−1. This continues backward in time until 𝑡 = 𝑡0, and by indexing optimal exercise nodes, a Chebyshev exercise boundary is computed.

3. After completing steps 1 and 2, value functions become accessible at every node throughout the discretized computational space. Consequently, with a specified asset price level and time step, Chebyshev interpolation can be utilized to calculate the price of an option. This step may be called at any time step in the DRL agent training process, without repeating steps 1 and 2.

It is noted first that the Chebyshev approach is agnostic to the underlying asset evolution process, allowing for easy transitions to more complex environments.

A common alternative for computing option prices for a stochastic volatility case is to simulate several thousand MC paths from the current asset price level to maturity or exercise, where the exercise boundary is often computed using the Longstaff-Schwartz Monte Carlo (LSMC) method (Longstaff and Schwartz 2001). However, incorporating a simulation-based pricing method into the training of a reinforcement learning (RL) agent would substantially prolong the training duration, as each training step would necessitate a new set of simulations. For instance, in this study, a base case training loop comprises 5000 episodes, each spanning 25 steps. Consequently, a total of 125,000 sets of simulations would be requiring, an unnecessary addition to an already time-intensive procedure of training a neural network. For a more complete description of the Chebyshev method and its advantages over simulationbased LSMC pricing, the reader is directed to Glau et al. (2018).

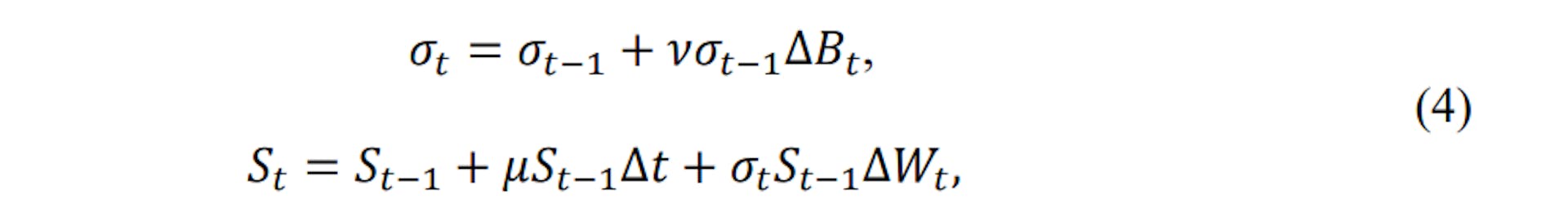

As described, this studies employs a strategy wherein each week, a new model is calibrated, new Chebyshev nodes are generated for pricing, and a DRL agent is trained to hedge according to the current market conditions. Note that the stochastic volatility model is the same as in Pickard et al. (2024), which is an adaptation of the SABR model (Hagan et al. 2002):

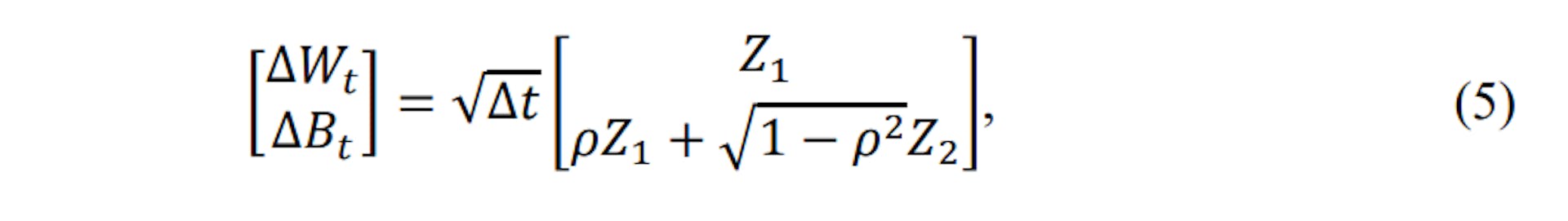

where 𝐵𝑡 and 𝑊𝑡 are Brownian motions with increments given by

noting that 𝑍1 and 𝑍2 are independent standard normal random variables. In this stochastic volatility model, 𝜌 and 𝜈 are model coefficients that may be used to calibrate the model to empirical observations. Specifically, option data is retrieved for 8 symbols and 5 strikes each. The first training date is October 16th, 2023, and the maturity for all options is November 17th, 2023. In one round of training, DRL agents are trained only using paths from the stochastic volatility model calibrated to data on October 16th. In a second round, DRL agents are trained to hedge only a week at a time. One agent is trained using the data from Monday, October 16th and to hedge only 5 days into the future. A new agent is trained from data available on Monday, October 23rd, and is again trained to hedge for 5 days. The process repeats, with new agents trained using data from October 30th, November 6th, and November 13th, respectively.

A comparison is then given by testing agents on the true asset paths between October 16th and November 17th, using 1 and 3% transaction costs. Note that the BS Delta method is used as a benchmark. Specifically, the BS delta uses the volatility from the weekly re-calibrated stochastic volatility model. Table 2 summarizes the option data. The base case hyperparameters are used for this analysis.

Table 2: Option Data Summary
